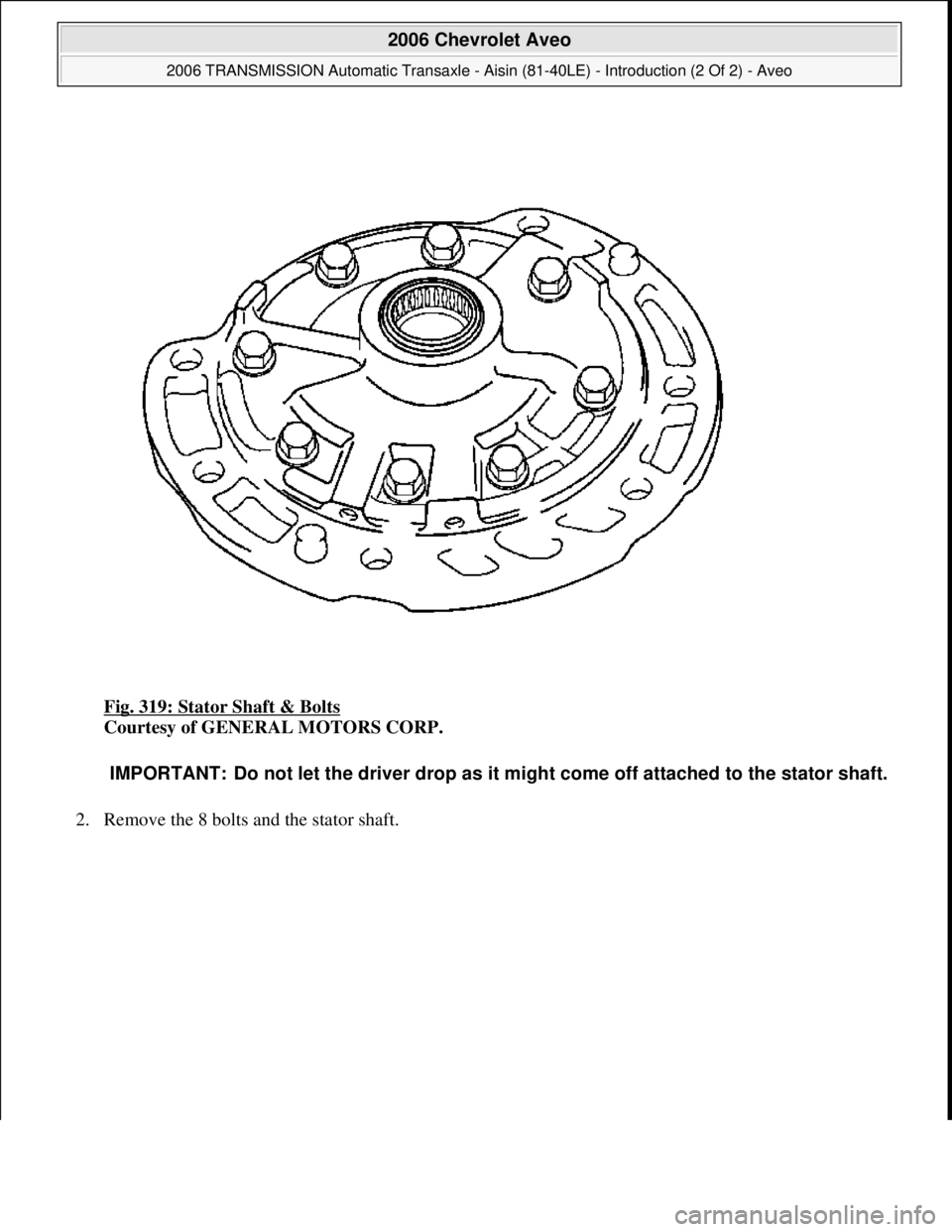

Fig. 319: Stator Shaft & Bolts
Courtesy of GENERAL MOTORS CORP.
2. Remove the 8 bolts and the stator shaft.
IMPORTANT: Do not let the driver drop as it might come off attached to the stator shaft.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 332 © 2005 Mitchell Repair Information Company, LLC.

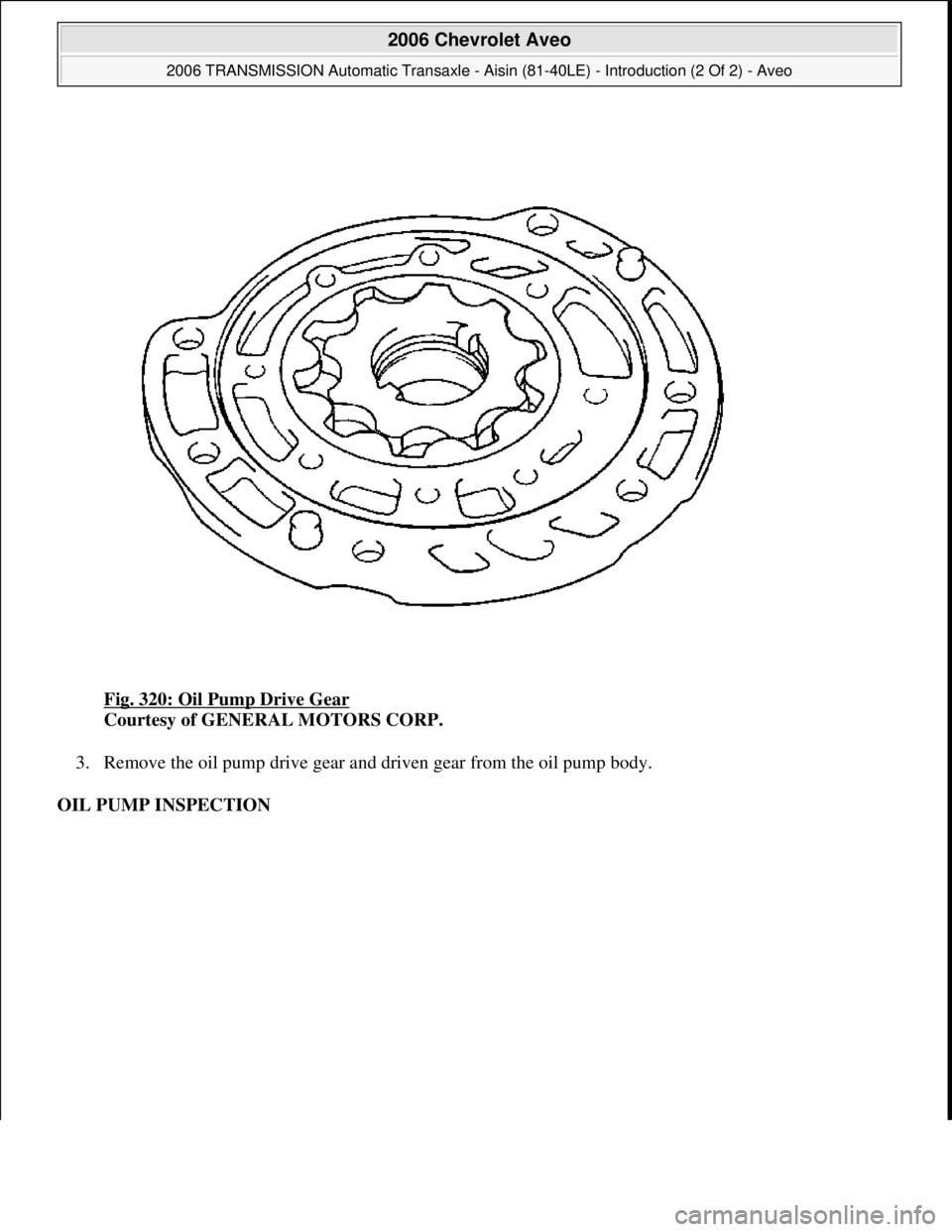

Fig. 320: Oil Pump Drive Gear
Courtesy of GENERAL MOTORS CORP.
3. Remove the oil pump drive gear and driven gear from the oil pump body.
OIL PUMP INSPECTION

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 333 © 2005 Mitchell Repair Information Company, LLC.

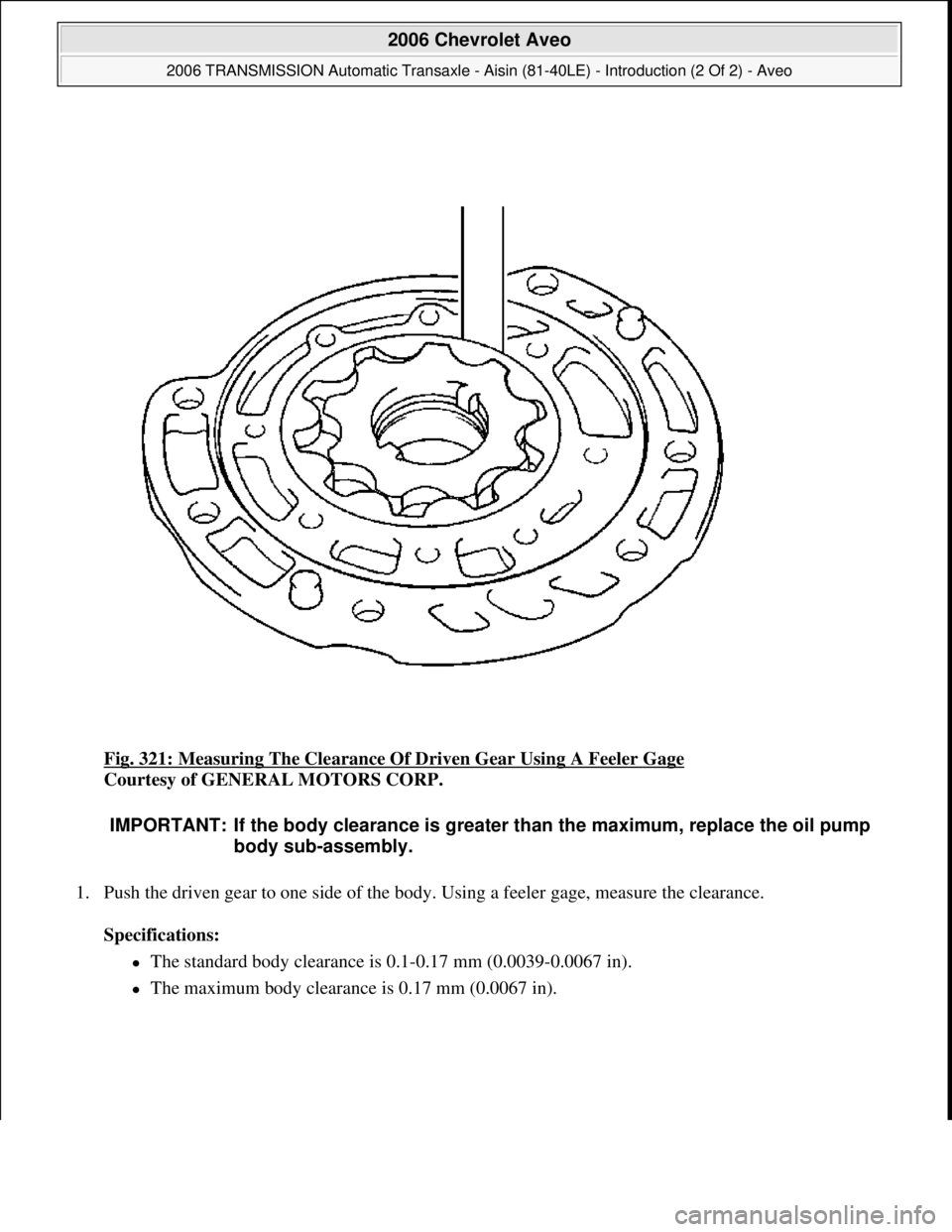

Fig. 321: Measuring The Clearance Of Driven Gear Using A Feeler Gage
Courtesy of GENERAL MOTORS CORP.
1. Push the driven gear to one side of the body. Using a feeler gage, measure the clearance.
Specifications:
The standard body clearance is 0.1-0.17 mm (0.0039-0.0067 in).
The maximum body clearance is 0.17 mm (0.0067 in).
IMPORTANT: If the body clearance is greater than the maximum, replace the oil pump
body sub-assembly.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 334 © 2005 Mitchell Repair Information Company, LLC.

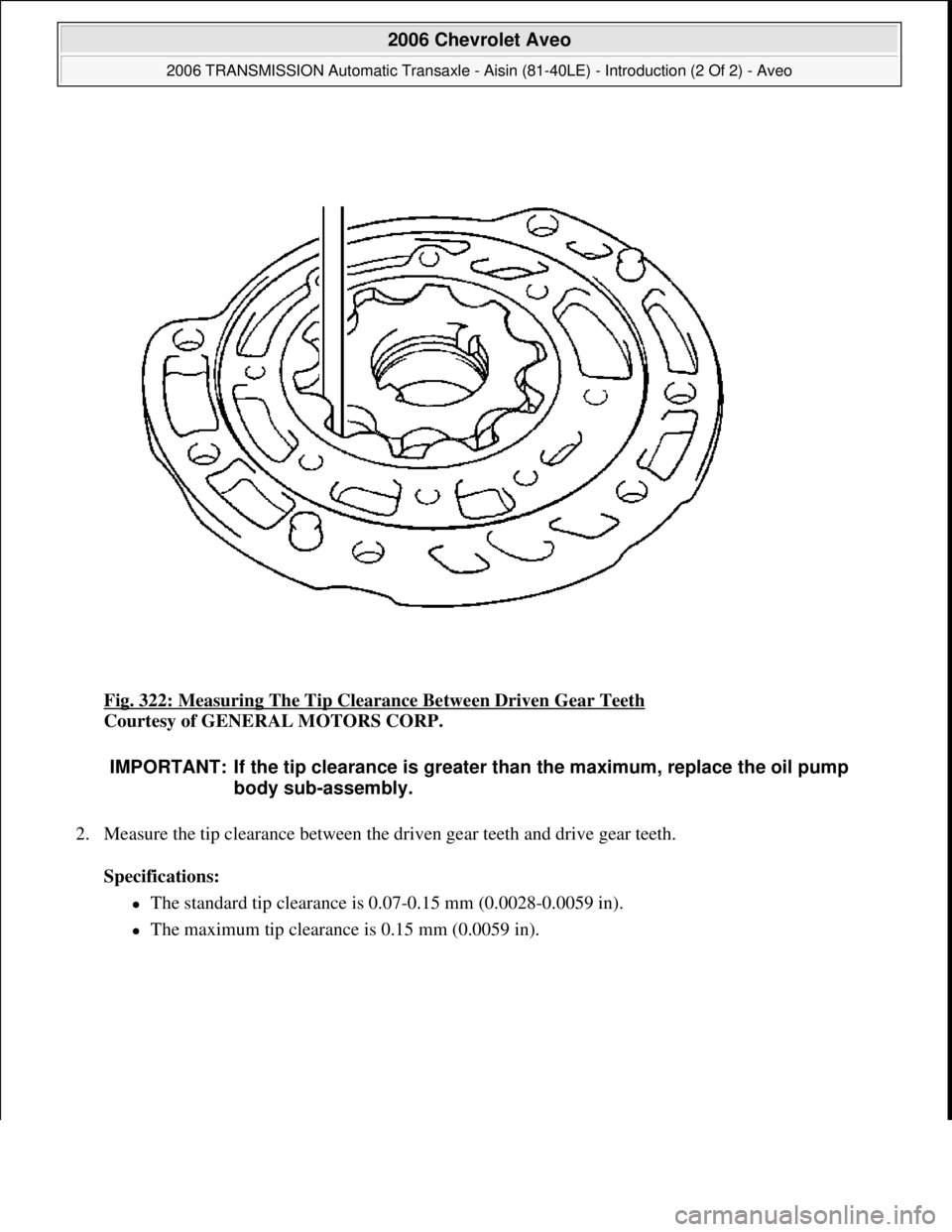

Fig. 322: Measuring The Tip Clearance Between Driven Gear Teeth
Courtesy of GENERAL MOTORS CORP.
2. Measure the tip clearance between the driven gear teeth and drive gear teeth.
Specifications:
The standard tip clearance is 0.07-0.15 mm (0.0028-0.0059 in).
The maximum tip clearance is 0.15 mm (0.0059 in).
IMPORTANT: If the tip clearance is greater than the maximum, replace the oil pump
body sub-assembly.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 335 © 2005 Mitchell Repair Information Company, LLC.

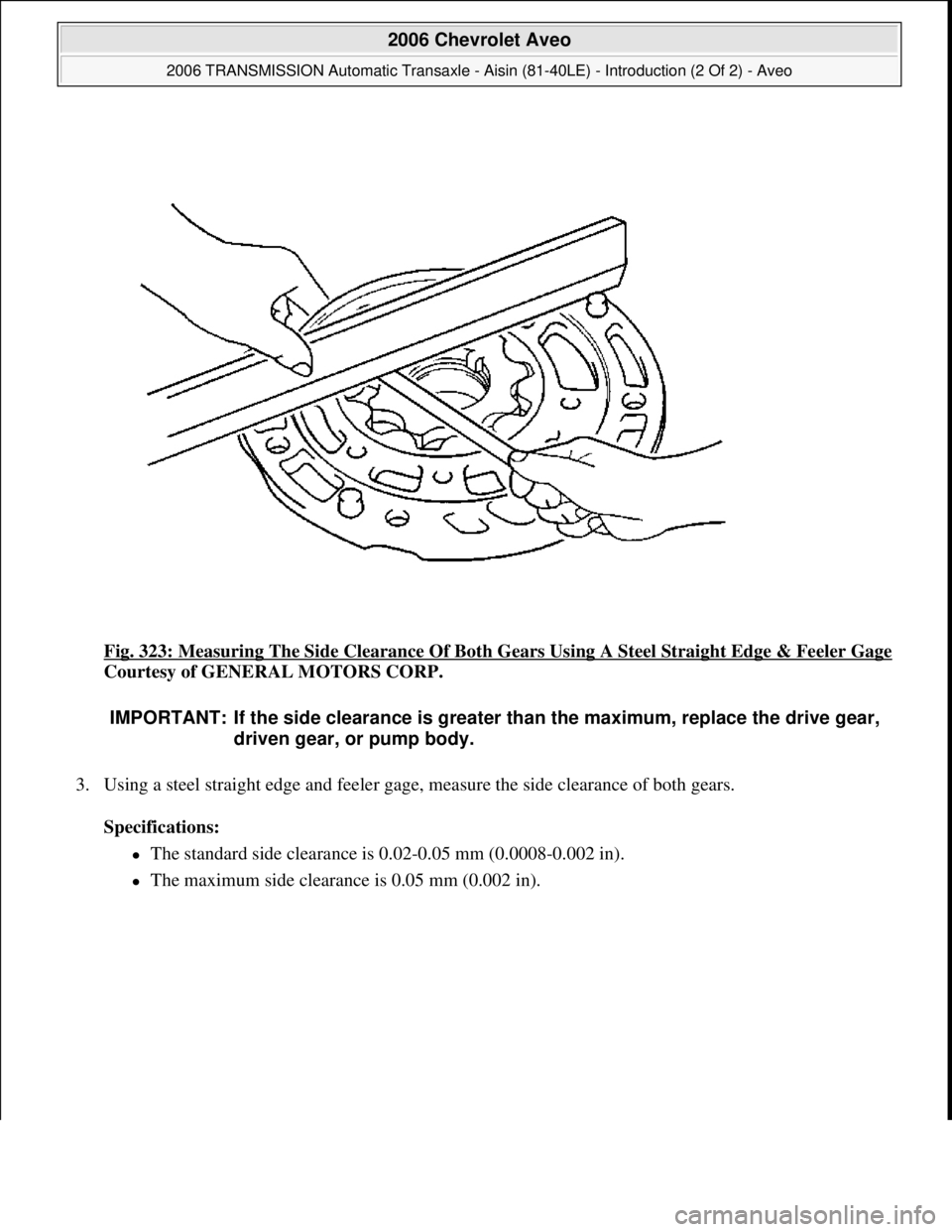

Fig. 323: Measuring The Side Clearance Of Both Gears Using A Steel Straight Edge & Feeler Gage
Courtesy of GENERAL MOTORS CORP.
3. Using a steel straight edge and feeler gage, measure the side clearance of both gears.
Specifications:
The standard side clearance is 0.02-0.05 mm (0.0008-0.002 in).
The maximum side clearance is 0.05 mm (0.002 in).
IMPORTANT: If the side clearance is greater than the maximum, replace the drive gear,
driven gear, or pump body.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 336 © 2005 Mitchell Repair Information Company, LLC.

Fig. 324: Measuring The Inside Diameter Of Oil Pump Body Bushing Using A Dial Indicator
Courtesy of GENERAL MOTORS CORP.
4. Using a dial indicator, measure the inside diameter of the oil pump body bushing.
Specifications:
The standard inside diameter is 38.126 mm (1.50102 in).
The maximum inside diameter is 38.188 mm (1.50346 in).
IMPORTANT: If the inside diameter is greater than the maximum, replace the oil pump
body sub-assembly.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 337 © 2005 Mitchell Repair Information Company, LLC.

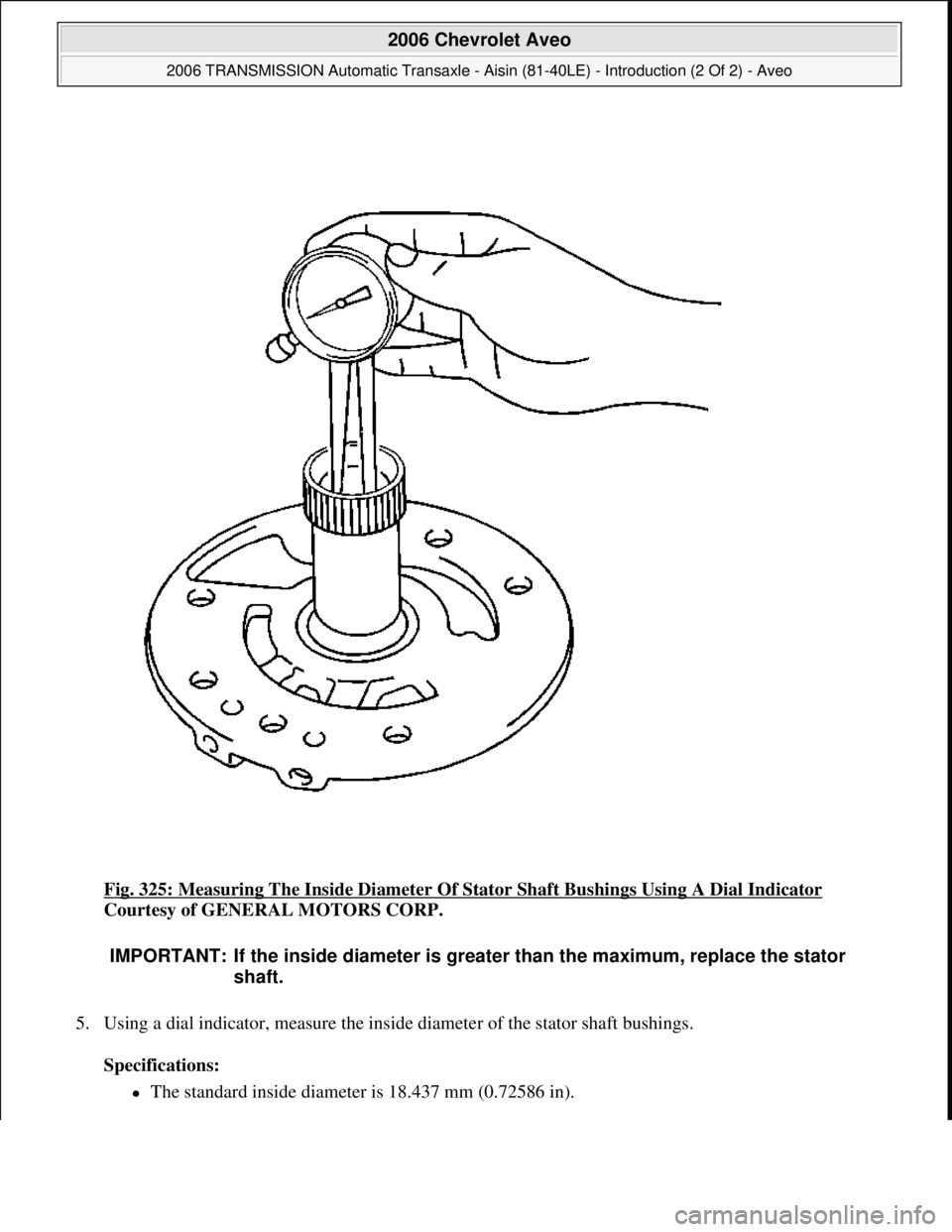

Fig. 325: Measuring The Inside Diameter Of Stator Shaft Bushings Using A Dial Indicator
Courtesy of GENERAL MOTORS CORP.
5. Using a dial indicator, measure the inside diameter of the stator shaft bushings.
Specifications:
The standard inside diameter is 18.437 mm (0.72586 in).
IMPORTANT: If the inside diameter is greater than the maximum, replace the stator
shaft.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 338 © 2005 Mitchell Repair Information Company, LLC.

The maximum inside diameter is 18.5 mm (0.728 in).
OIL PUMP ASSEMBLE

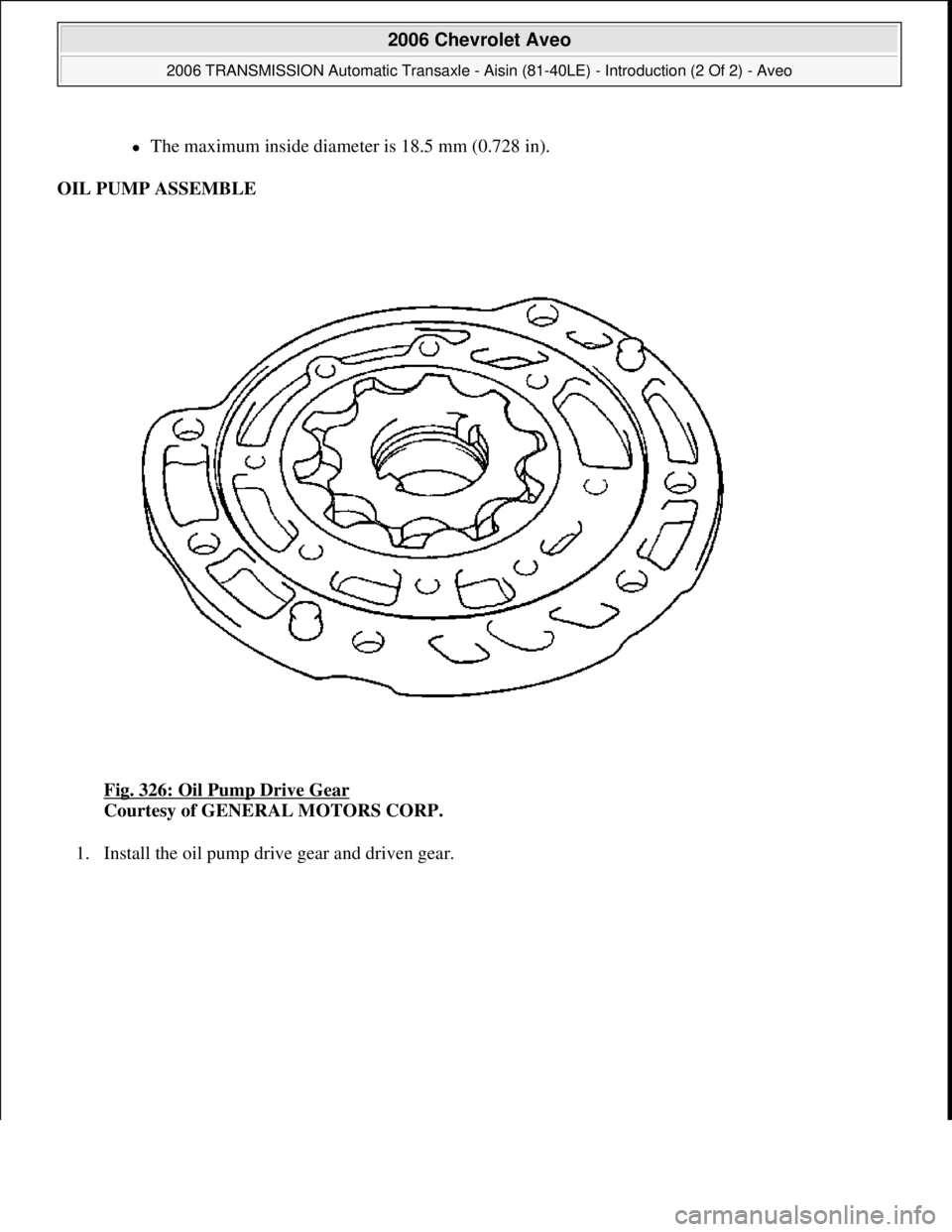

Fig. 326: Oil Pump Drive Gear

Courtesy of GENERAL MOTORS CORP.
1. Install the oil pump drive
gear and driven gear.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 339 © 2005 Mitchell Repair Information Company, LLC.

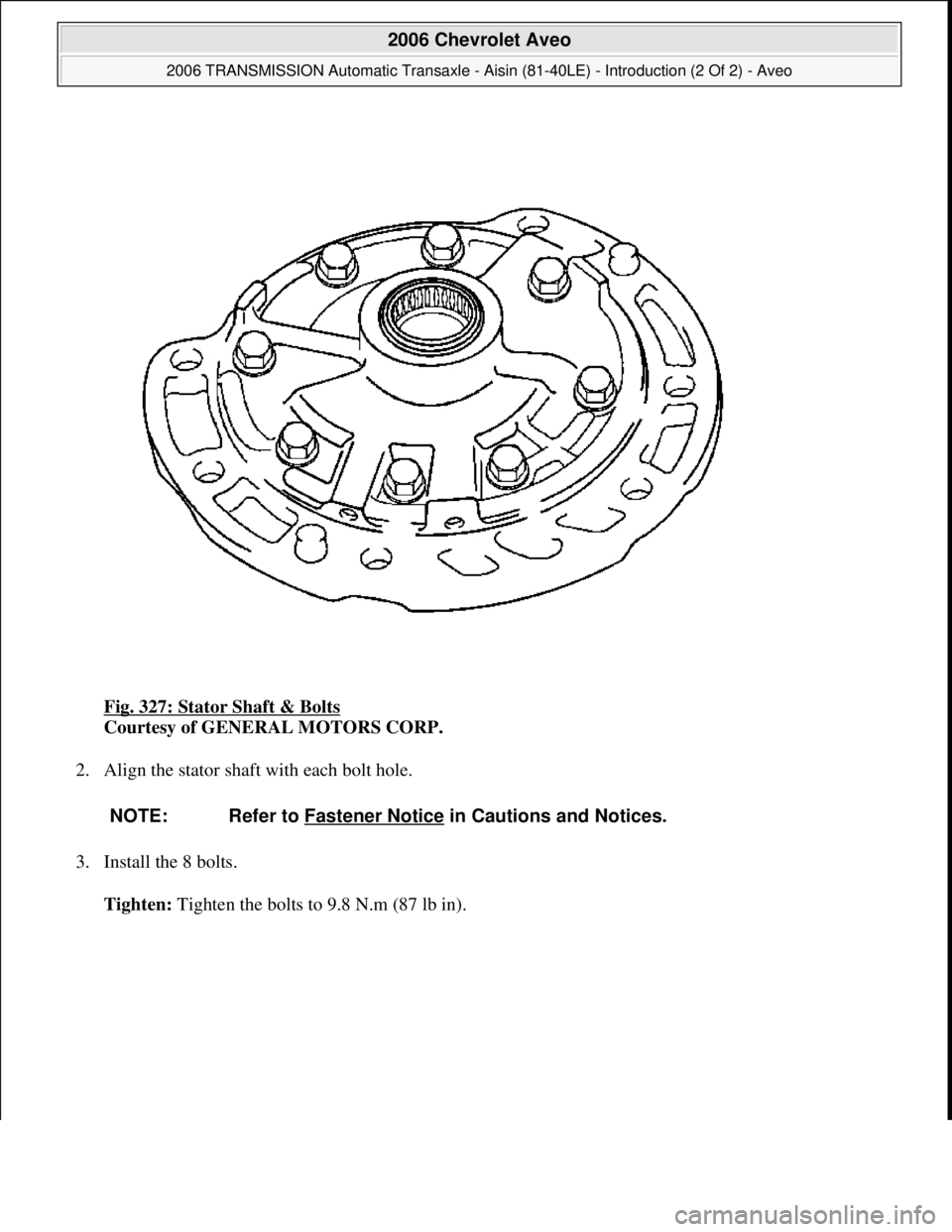

Fig. 327: Stator Shaft & Bolts
Courtesy of GENERAL MOTORS CORP.
2. Align the stator shaft with each bolt hole.
3. Install the 8 bolts.
Tighten: Ti
ghten the bolts to 9.8 N.m (87 lb in).
NOTE: Refer to Fastener Notice in Cautions and Notices.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:28 PMPage 340 © 2005 Mitchell Repair Information Company, LLC.

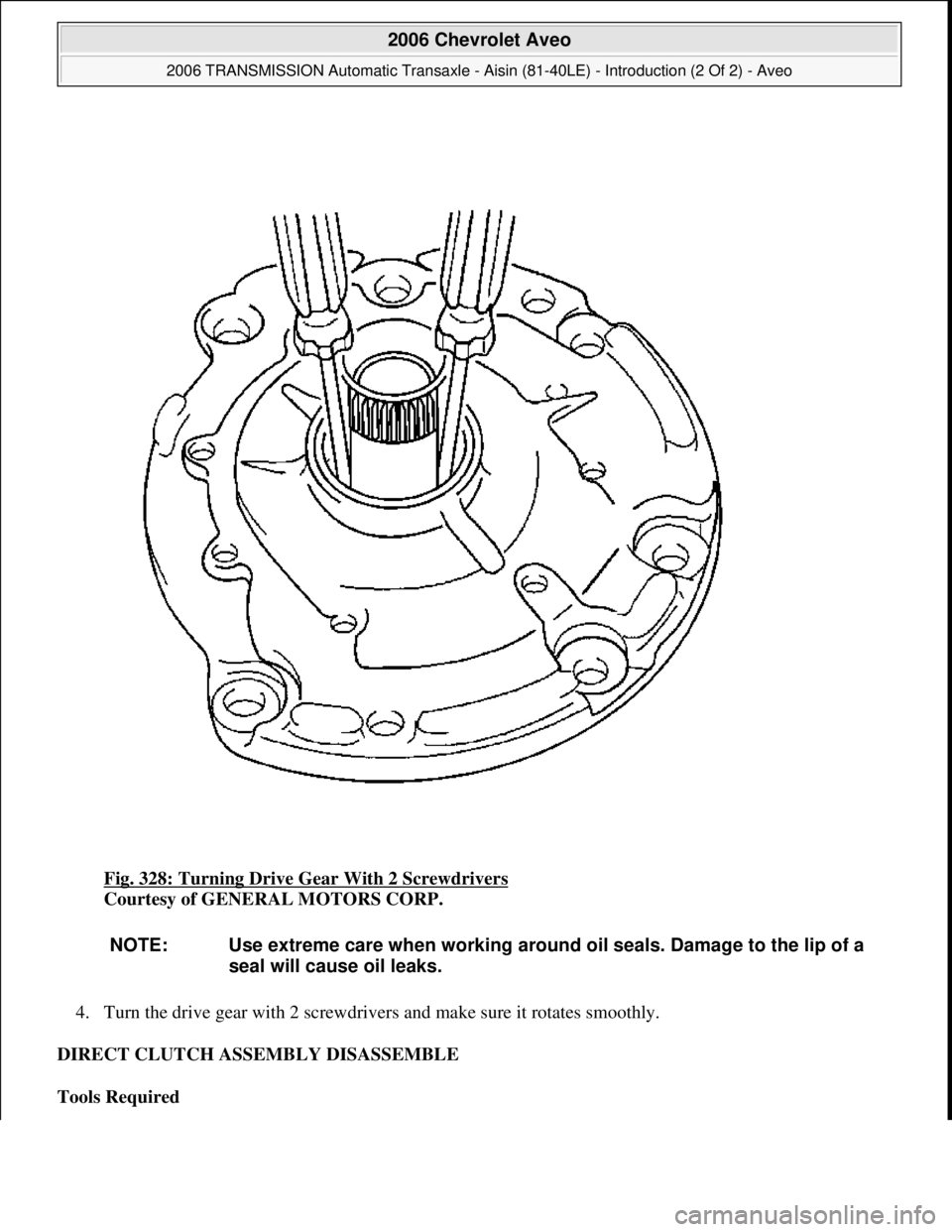

Fig. 328: Turning Drive Gear With 2 Screwdrivers
Courtesy of GENERAL MOTORS CORP.
4. Turn the drive gear with 2 screwdrivers and make sure it rotates smoothly.
DIRECT CLUTCH ASSEMBLY DISASSEMBLE
Tools Required
NOTE: Use extreme care when working around oil seals. Damage to the lip of a
seal will cause oil leaks.
