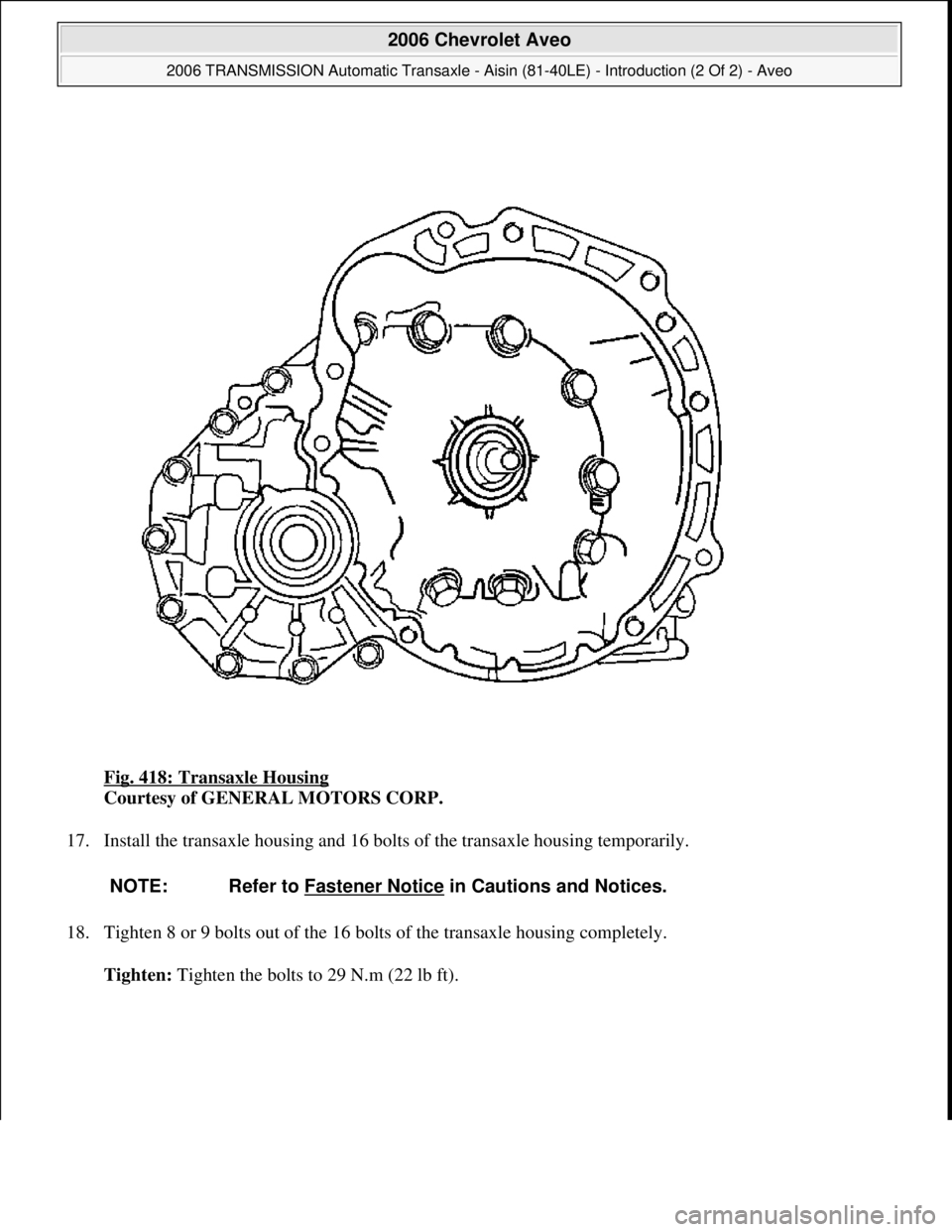

Fig. 418: Transaxle Housing
Courtesy of GENERAL MOTORS CORP.
17. Install the transaxle housing and 16 bolts of the transaxle housing temporarily.
18. Tighten 8 or 9 bolts out of the 16 bolts of the transaxle housing completely.
Tighten: Ti
ghten the bolts to 29 N.m (22 lb ft).
NOTE: Refer to Fastener Notice in Cautions and Notices.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:32 PMPage 432 © 2005 Mitchell Repair Information Company, LLC.

Fig. 419: Turning The Differential Gear Assembly
Courtesy of GENERAL MOTORS CORP.
19. Using the DT 46461 , turn the differential gear assembly right and left 2-3 times to allow the bearing to
settle. See Special Tools
.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:32 PMPage 433 © 2005 Mitchell Repair Information Company, LLC.

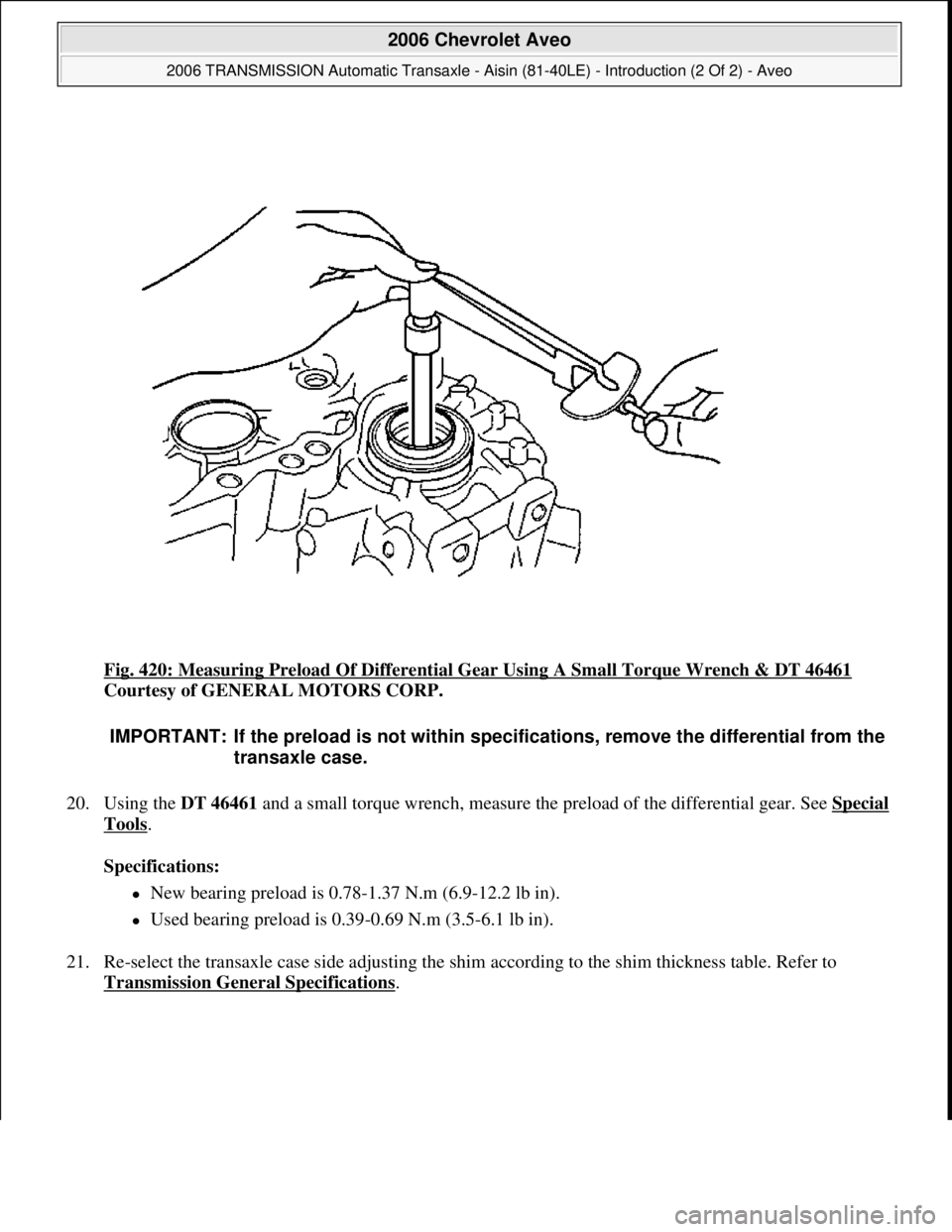

Fig. 420: Measuring Preload Of Differential Gear Using A Small Torque Wrench & DT 46461
Courtesy of GENERAL MOTORS CORP.
20. Using the DT 46461 and a small torque wrench, measure the preload of the differential gear. See Special
Tools.
Specifications:
New bearing preload is 0.78-1.37 N.m (6.9-12.2 lb in).
Used bearing preload is 0.39-0.69 N.m (3.5-6.1 lb in).
21. Re-select the transaxle case side adjusting the shim according to the shim thickness table. Refer to
Transmission General Specifications
.
IMPORTANT: If the preload is not within specifications, remove the differential from the
transaxle case.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:32 PMPage 434 © 2005 Mitchell Repair Information Company, LLC.

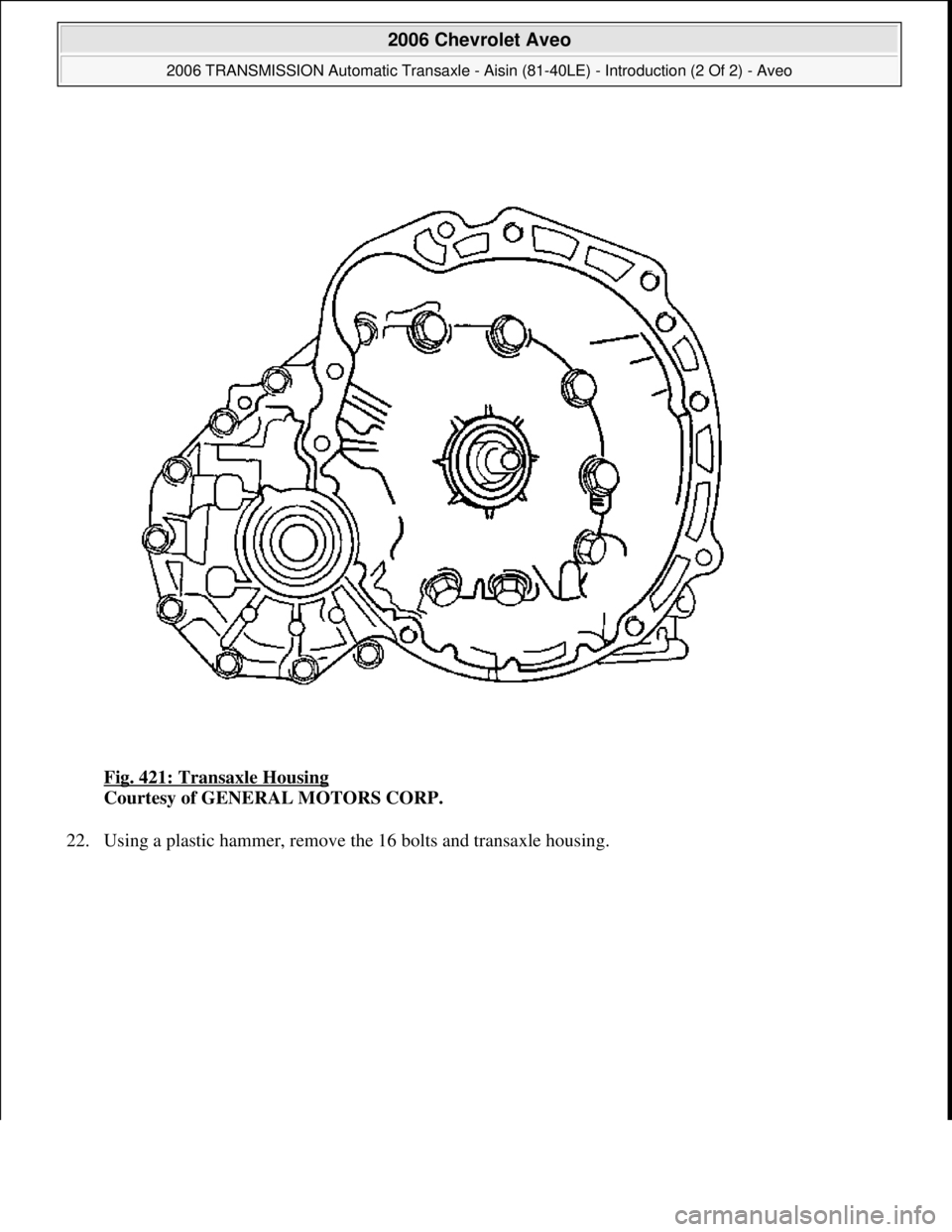

Fig. 421: Transaxle Housing
Courtesy of GENERAL MOTORS CORP.
22. Usin
g a plastic hammer, remove the 16 bolts and transaxle housing.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:32 PMPage 435 © 2005 Mitchell Repair Information Company, LLC.

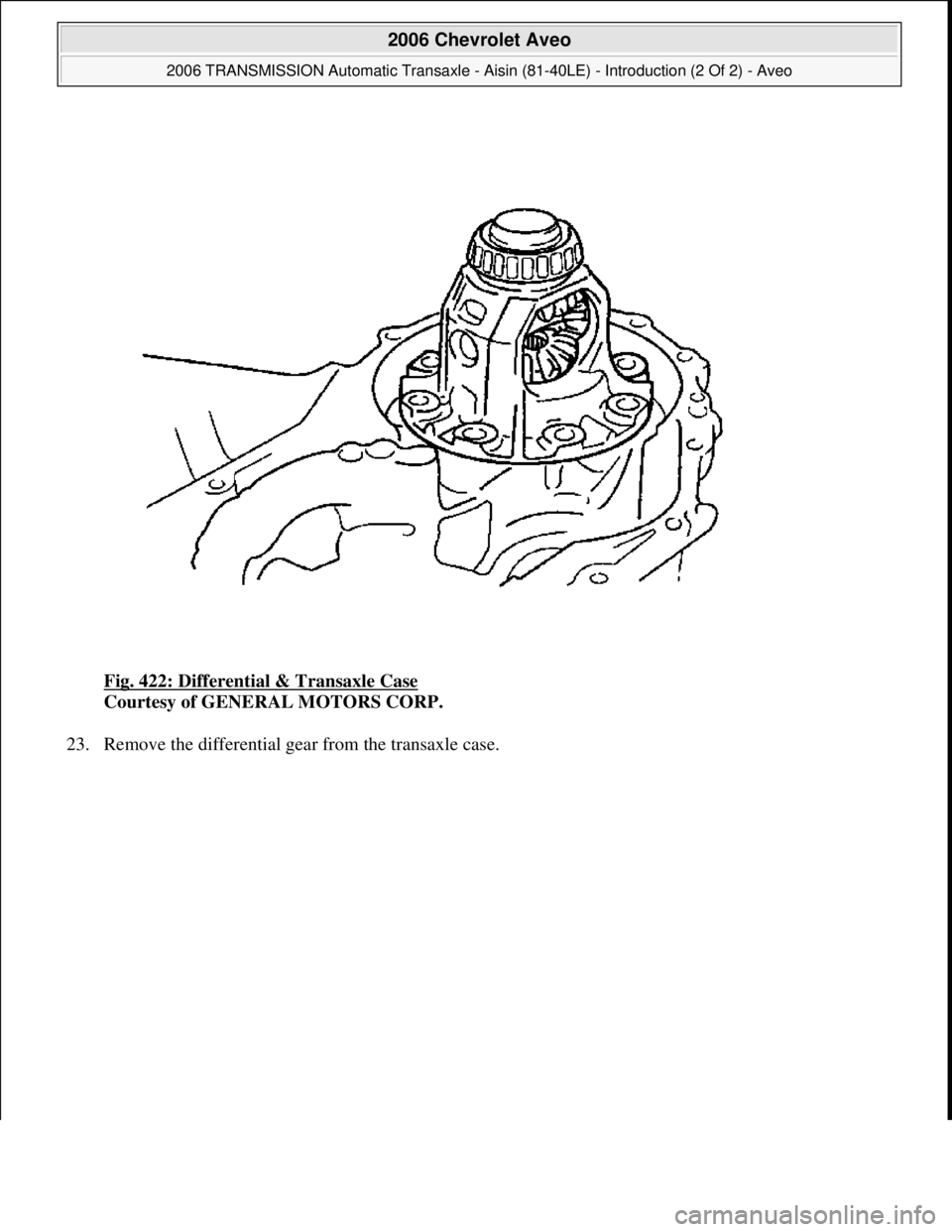

Fig. 422: Differential & Transaxle Case
Courtesy of GENERAL MOTORS CORP.
23. Remove the differential gear from the transaxle case.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:32 PMPage 436 © 2005 Mitchell Repair Information Company, LLC.

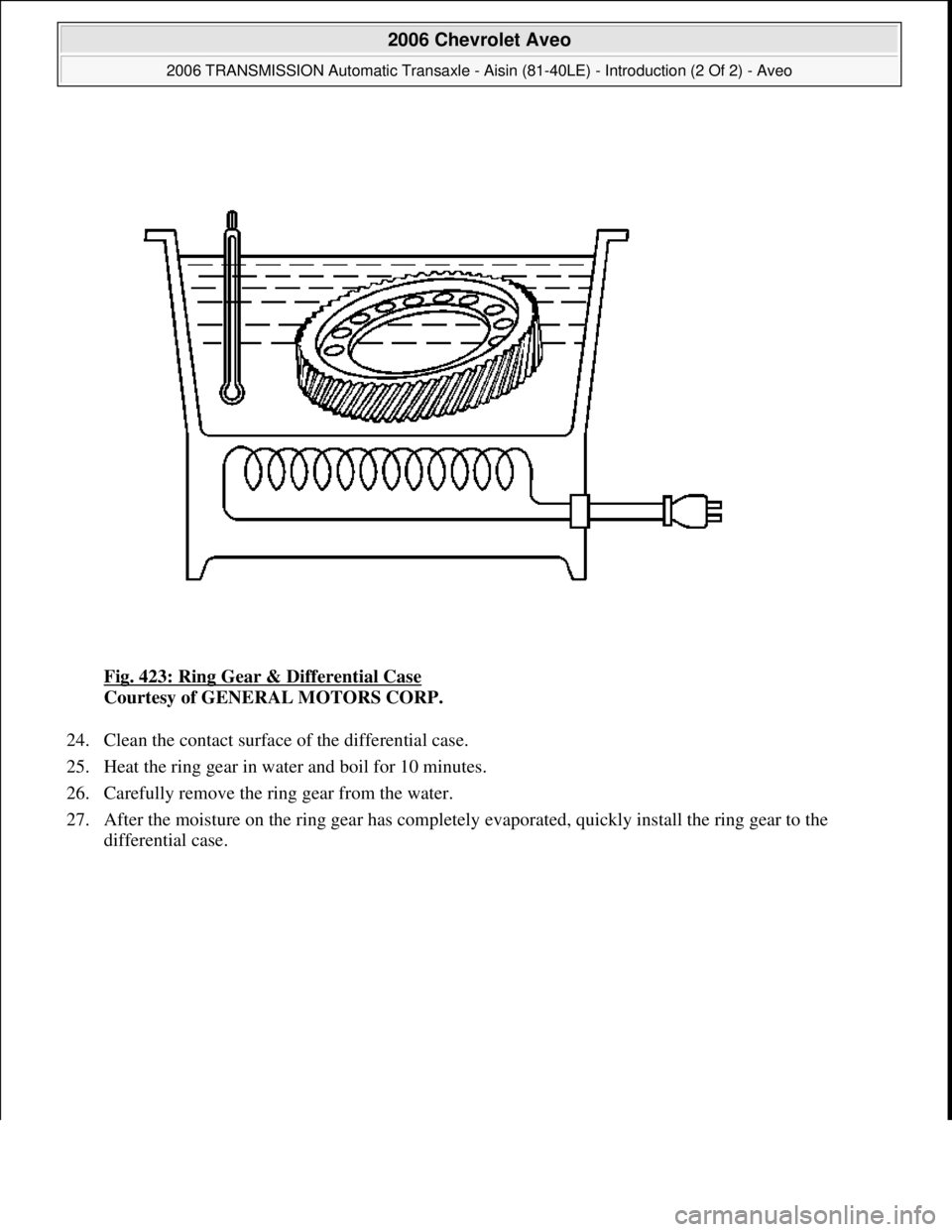

Fig. 423: Ring Gear & Differential Case
Courtesy of GENERAL MOTORS CORP.
24. Clean the contact surface of the differential case.
25. Heat the ring gear in water and boil for 10 minutes.
26. Carefully remove the ring gear from the water.
27. After the moisture on the ring gear has completely evaporated, quickly install the ring gear to the
differential case.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:32 PMPage 437 © 2005 Mitchell Repair Information Company, LLC.

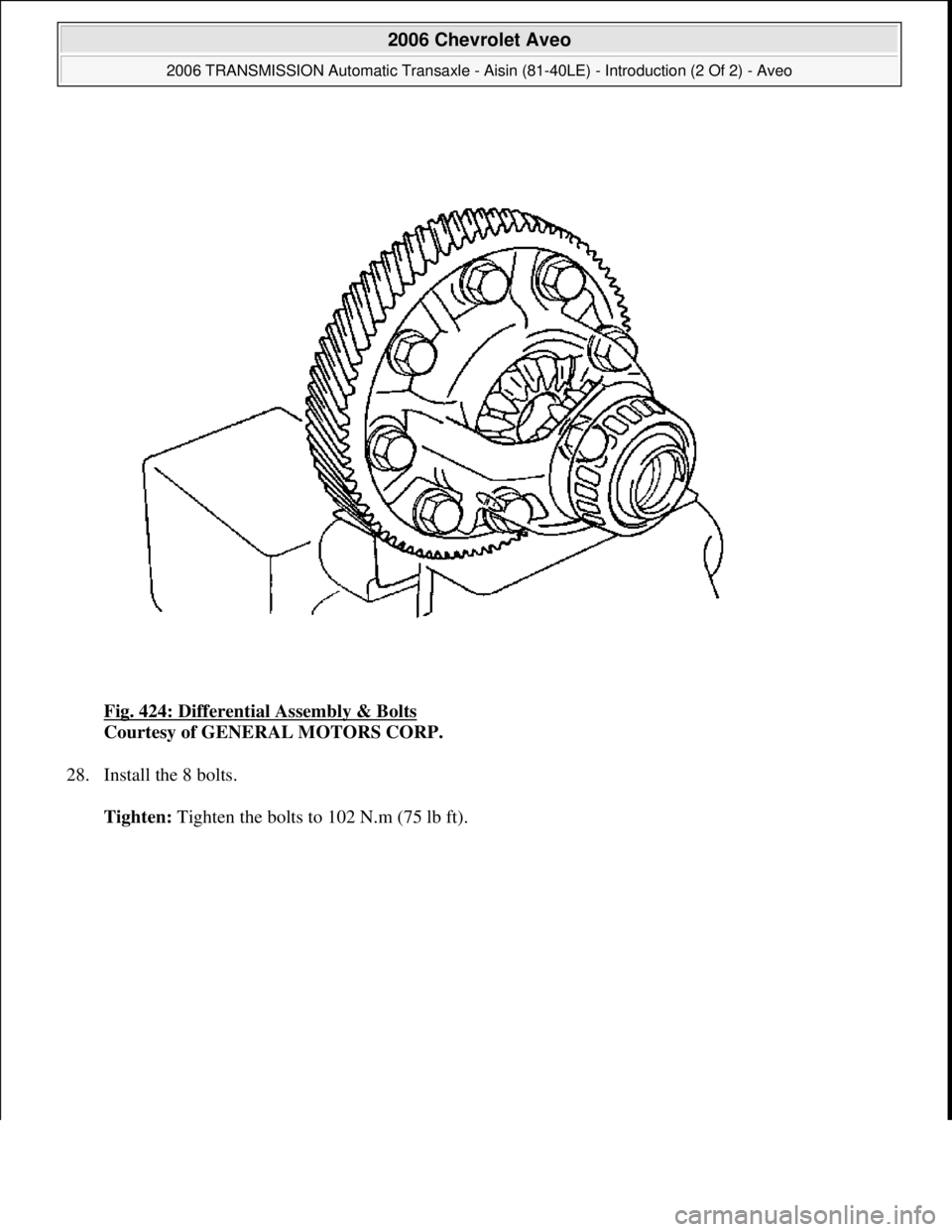

Fig. 424: Differential Assembly & Bolts
Courtesy of GENERAL MOTORS CORP.
28. Install the 8 bolts.
Tighten: Tighten the bolts to 102 N.m (75 lb ft).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:32 PMPage 438 © 2005 Mitchell Repair Information Company, LLC.

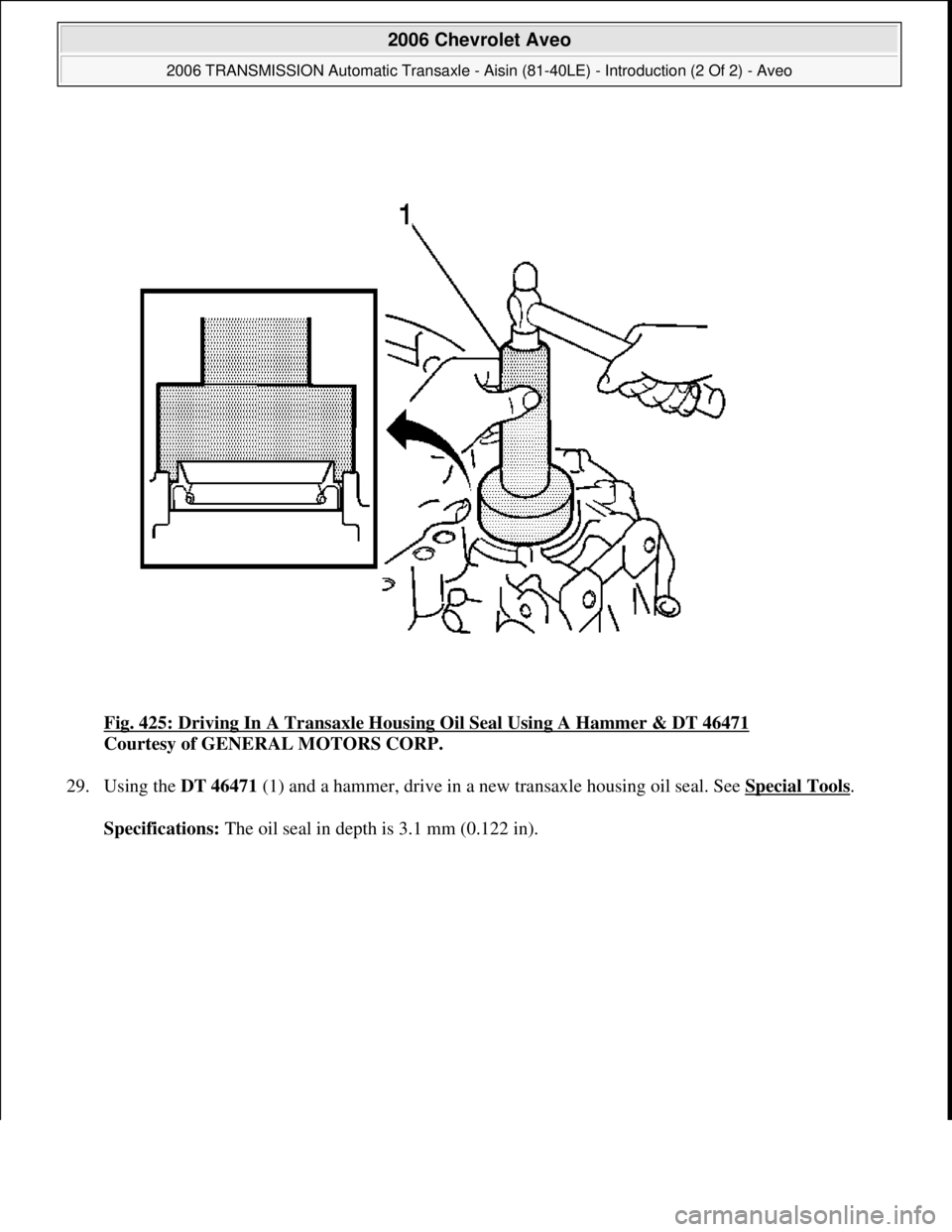

Fig. 425: Driving In A Transaxle Housing Oil Seal Using A Hammer & DT 46471
Courtesy of GENERAL MOTORS CORP.
29. Using the DT 46471 (1) and a hammer, drive in a new transaxle housing oil seal. See Special Tools
.
Specifications: The oil seal in depth is 3.1 mm (0.122 in).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:32 PMPage 439 © 2005 Mitchell Repair Information Company, LLC.

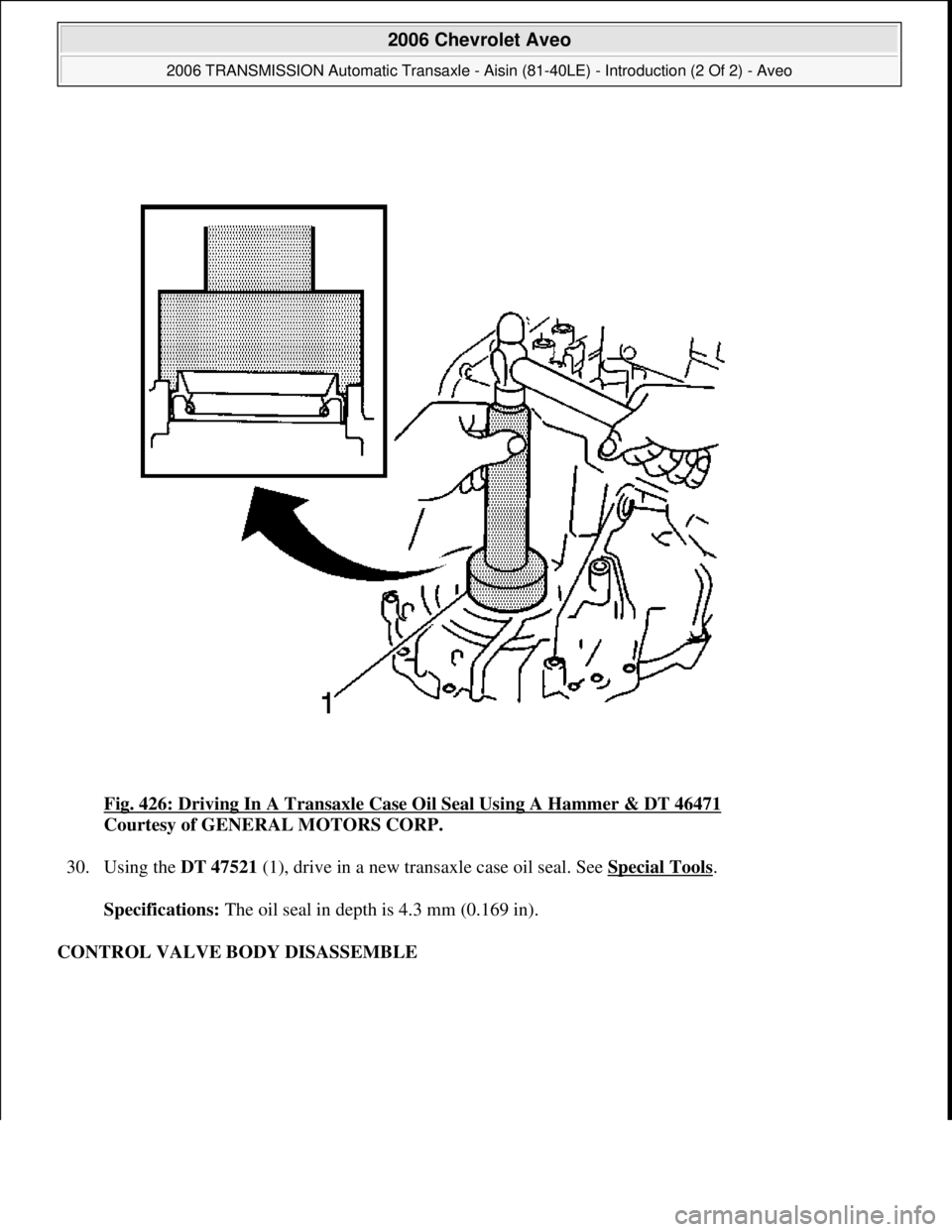

Fig. 426: Driving In A Transaxle Case Oil Seal Using A Hammer & DT 46471
Courtesy of GENERAL MOTORS CORP.
30. Using the DT 47521 (1), drive in a new transaxle case oil seal. See Special Tools
.
Specifications: The oil seal in depth is 4.3 mm (0.169 in).
CONTROL VALVE BODY DISASSEMBLE

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:32 PMPage 440 © 2005 Mitchell Repair Information Company, LLC.

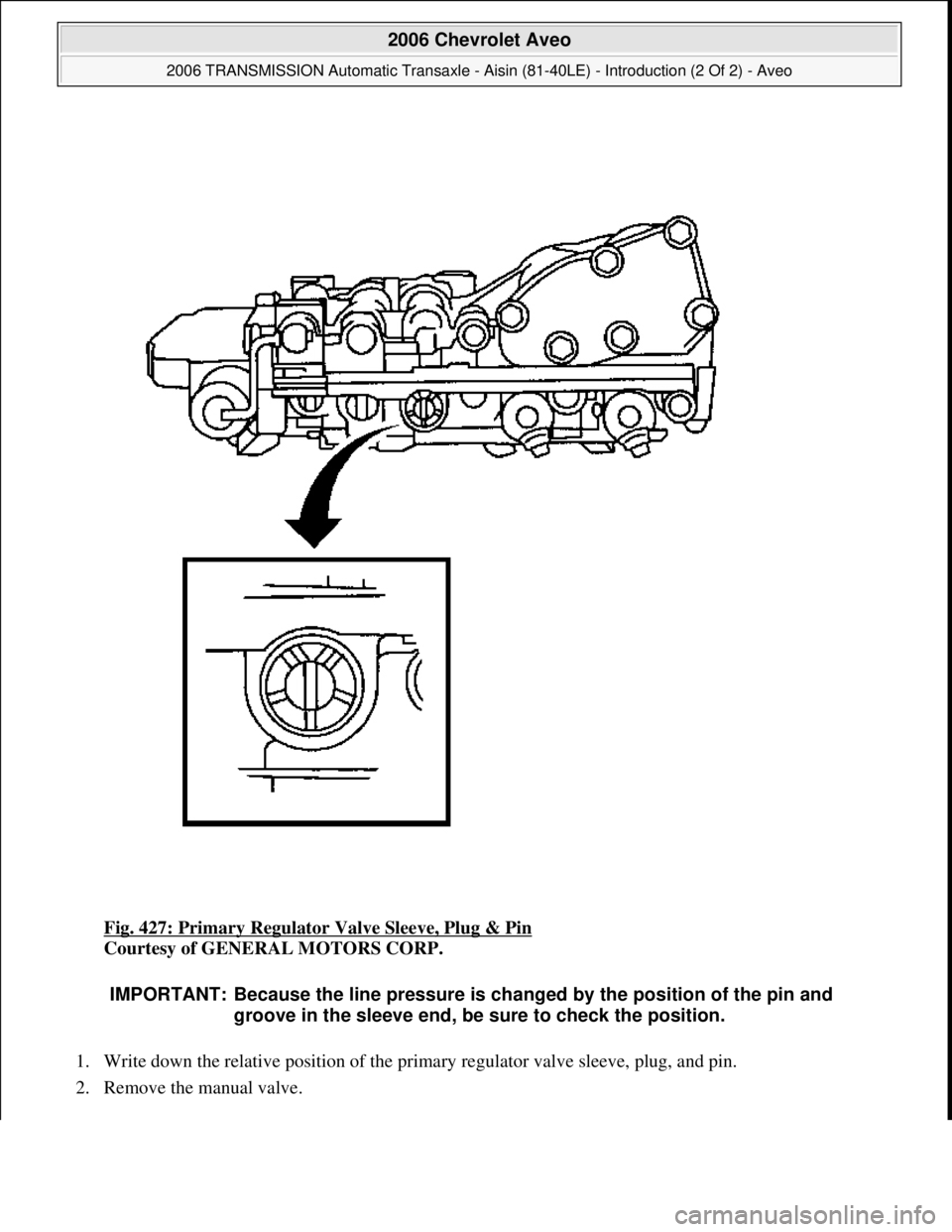

Fig. 427: Primary Regulator Valve Sleeve, Plug & Pin
Courtesy of GENERAL MOTORS CORP.
1. Write down the relative position of the primary regulator valve sleeve, plug, and pin.
2. Remove the manual valve.
IMPORTANT: Because the line pressure is changed by the position of the pin and
groove in the sleeve end, be sure to check the position.
