CHEVROLET BLAZER 1995 2.G Owners Manual

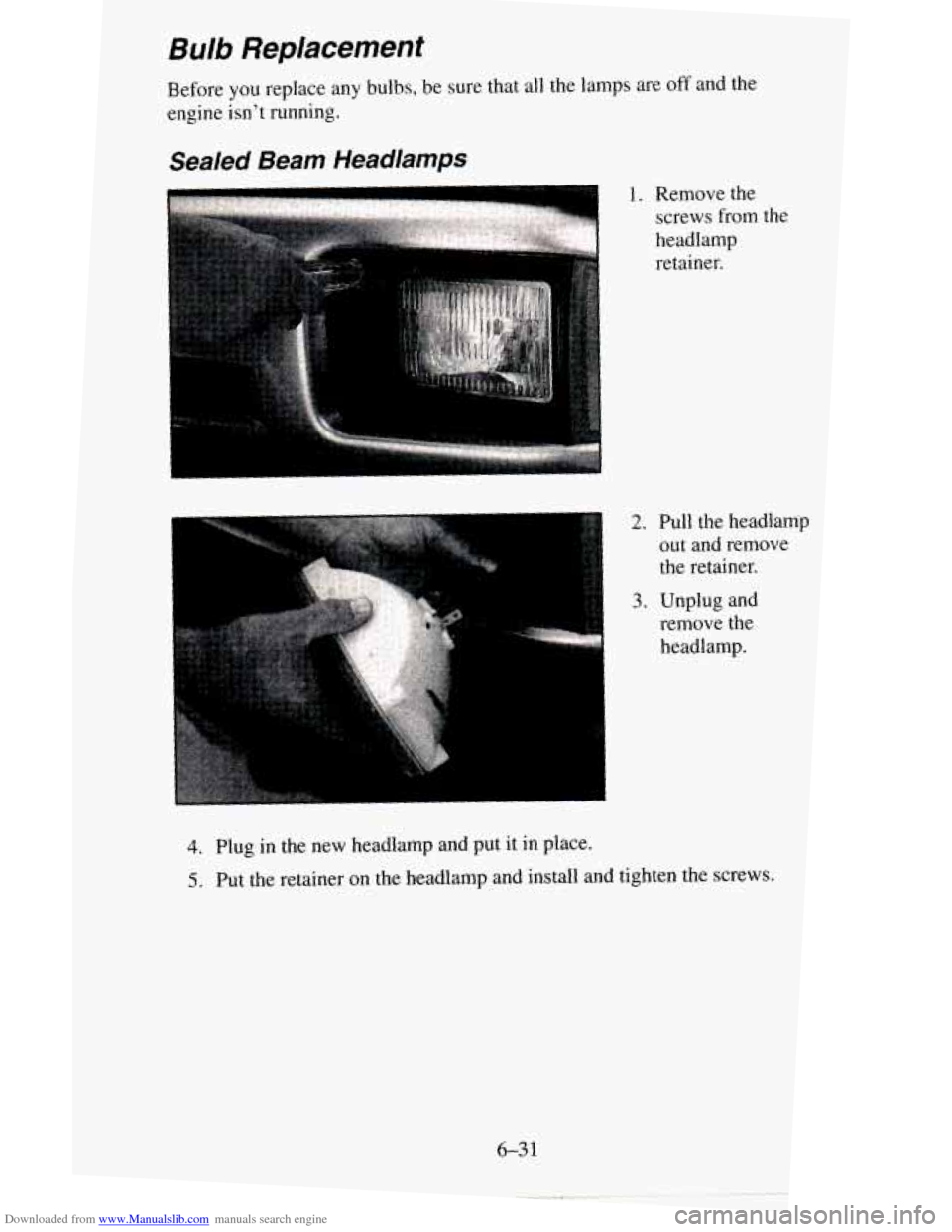

Downloaded from www.Manualslib.com manuals search engine Bulb Replacement
Before you replace any bulbs, be sure that all the lamps are off and the
engine isn’t running.
c
2. Pull the headlamp
out and remove
the retainer.
3. Unplug and
remove the
headlamp.

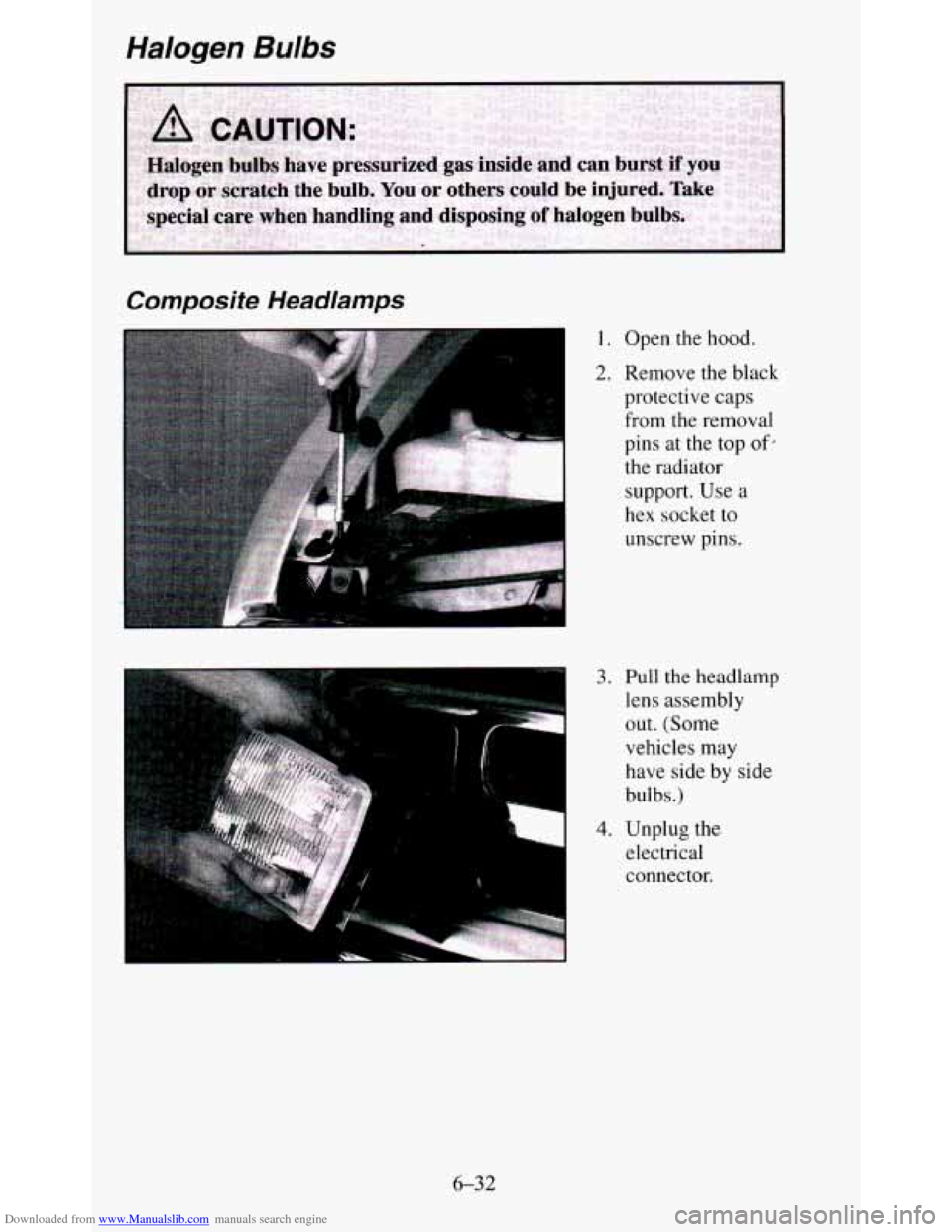

Downloaded from www.Manualslib.com manuals search engine Halogen Bulbs
Composite Headlamps
I. Open the hood.
2. Remove the black
protective caps
from the removal
pins at the top
of-
the radiator support.
Use a
hex socket
to
unscrew pins.
3. Pull the headlamp
lens assembly
out. (Some
vehicles may
have side by side
bulbs.)
4. Unplug the electrical
connector.
6-32

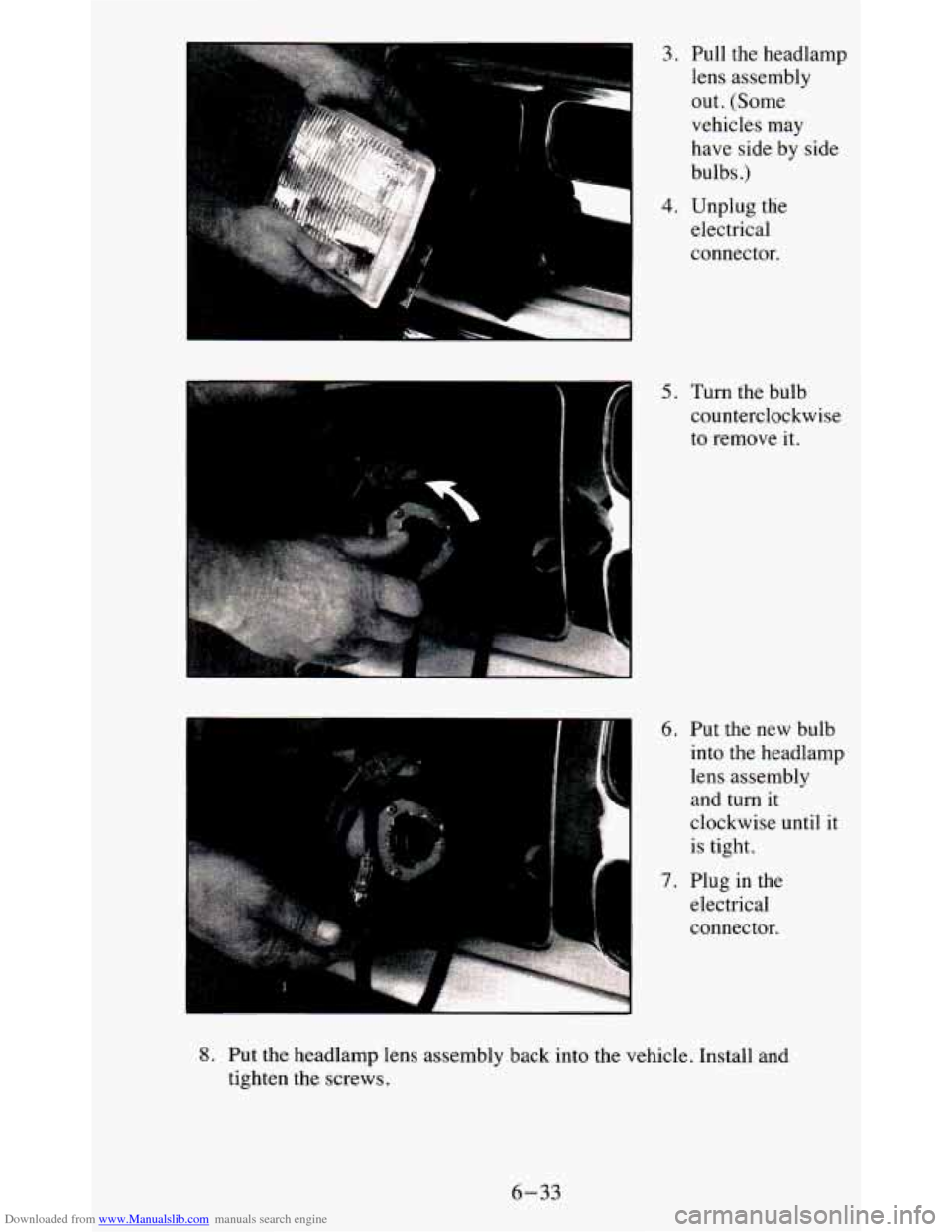

Downloaded from www.Manualslib.com manuals search engine 3. Pull the headlamp .. lens assembly
out. (Some
vehicles may
have side by side
bulbs
.)
4. Unplug the
electrical
connector.
_I , .
I 5. Turn the bulb
counterclockwise
to remove it.
6. Put the new bulb
I into the headlamp
lens assembly
and turn it
clockwise until it
is tight.
7. Plug in the
electrical
connector.
L
8. Put the headlamp lens assembly back into the vehicle. Install and
tighten the screws.
6-33

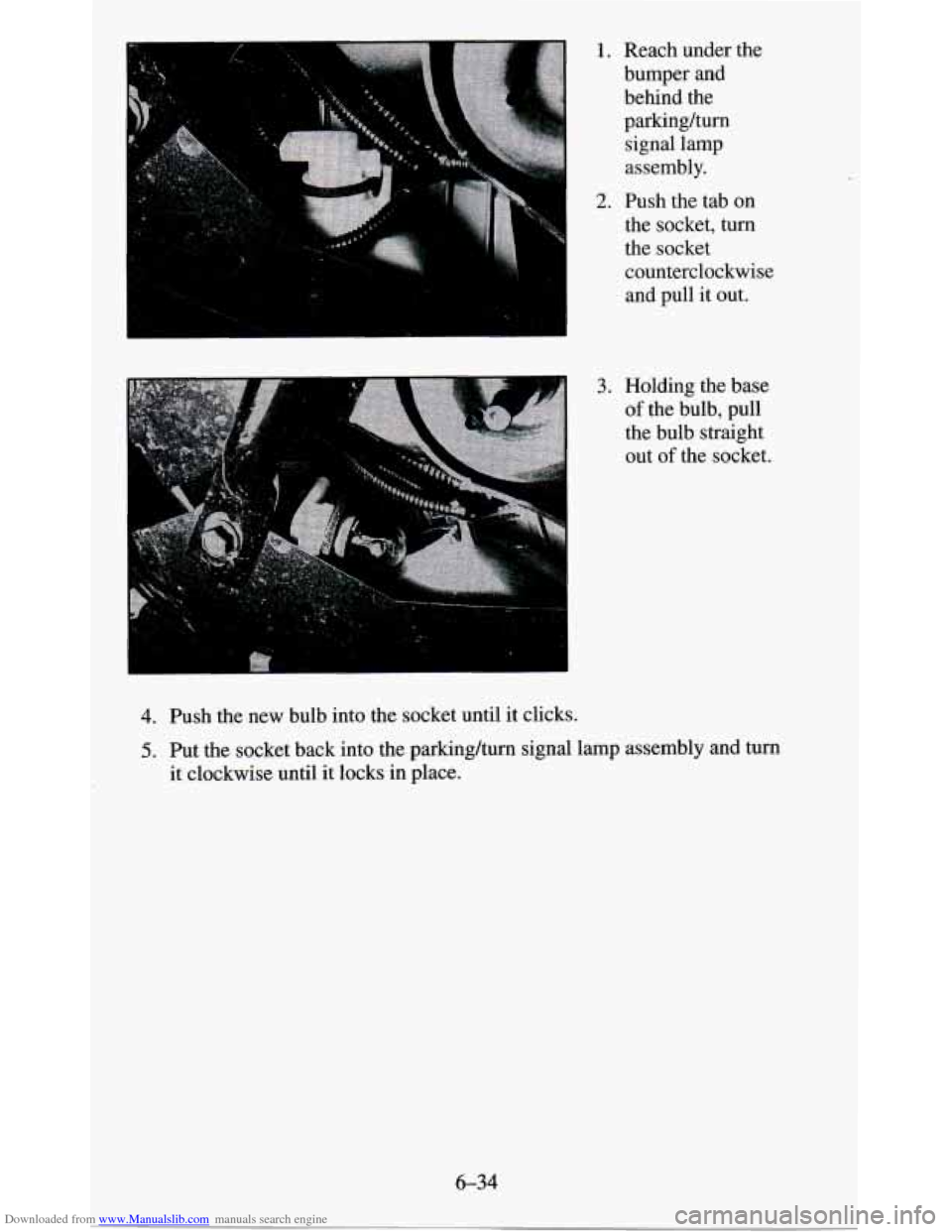

Downloaded from www.Manualslib.com manuals search engine 1. Reach under the
bumper and behind the parkinghrn
signal lamp
assembly.
2. Push the tab on
the socket, turn
the socket counterclockwise and pull it out.
3. Holding the base
of the bulb, pull
the bulb straight out
of the socket.
4. Push the new bulb into the socket until it clicks.
5. Put the socket back into the parking/turn signal lamp assembly and turn
it clockwise until it locks in place.
6-34

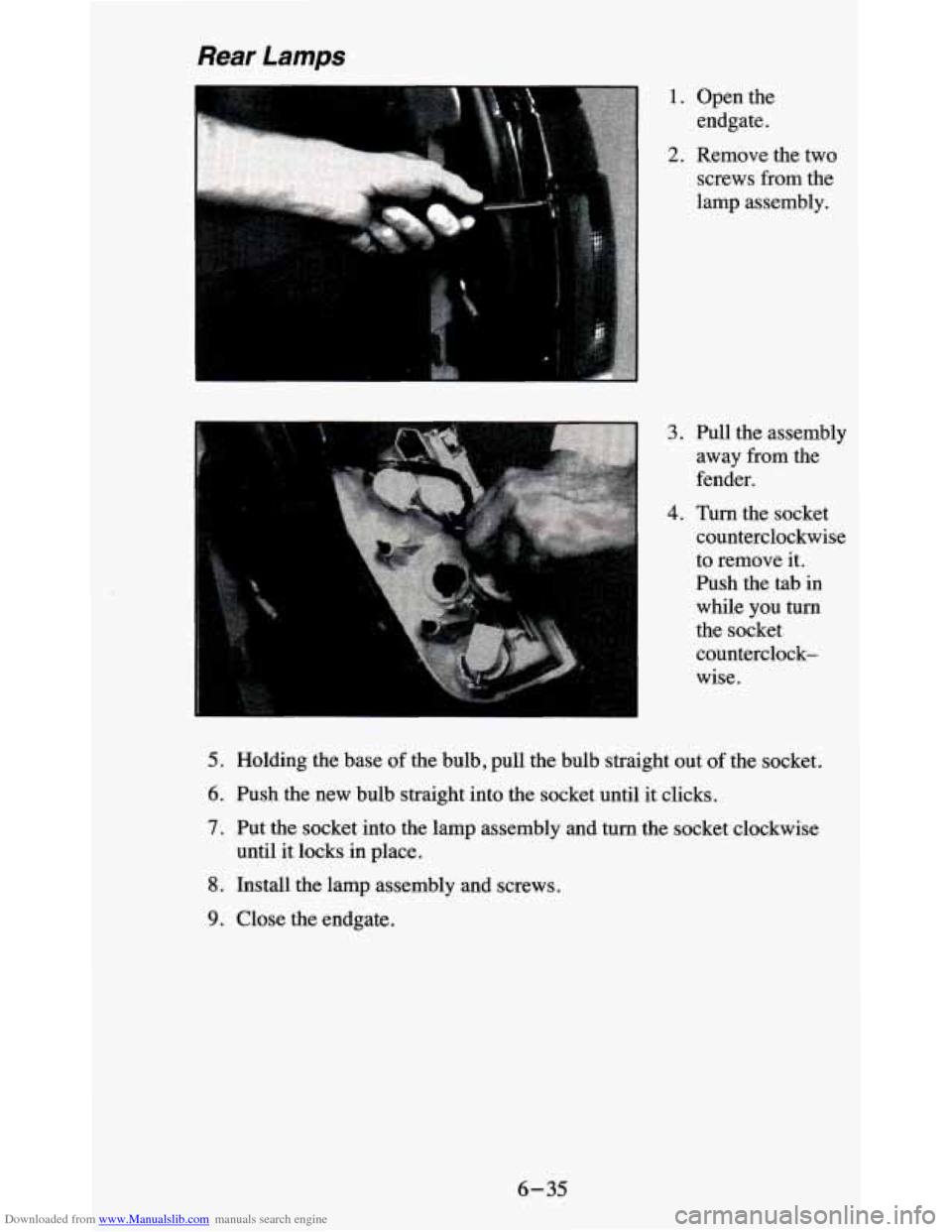

Downloaded from www.Manualslib.com manuals search engine Rear Lamps
r 1. Open the
endgate.
2. Remove the two
screws from the
lamp assembly.
3. Pull the assembly
away from the
fender.
4. Turn the socket
counterclockwise
to remove it.
Push the tab in
while you turn
the socket
counterclock-
wise.
5. Holding the base of the bulb, pull the bulb straight out of the socket.
6. Push the new bulb straight into the socket until it clicks.
7. Put the socket into the lamp assembly and turn the socket clockwise
until it locks in place.
8. Install the lamp assembly and screws.
9. Close the endgate.
6-35

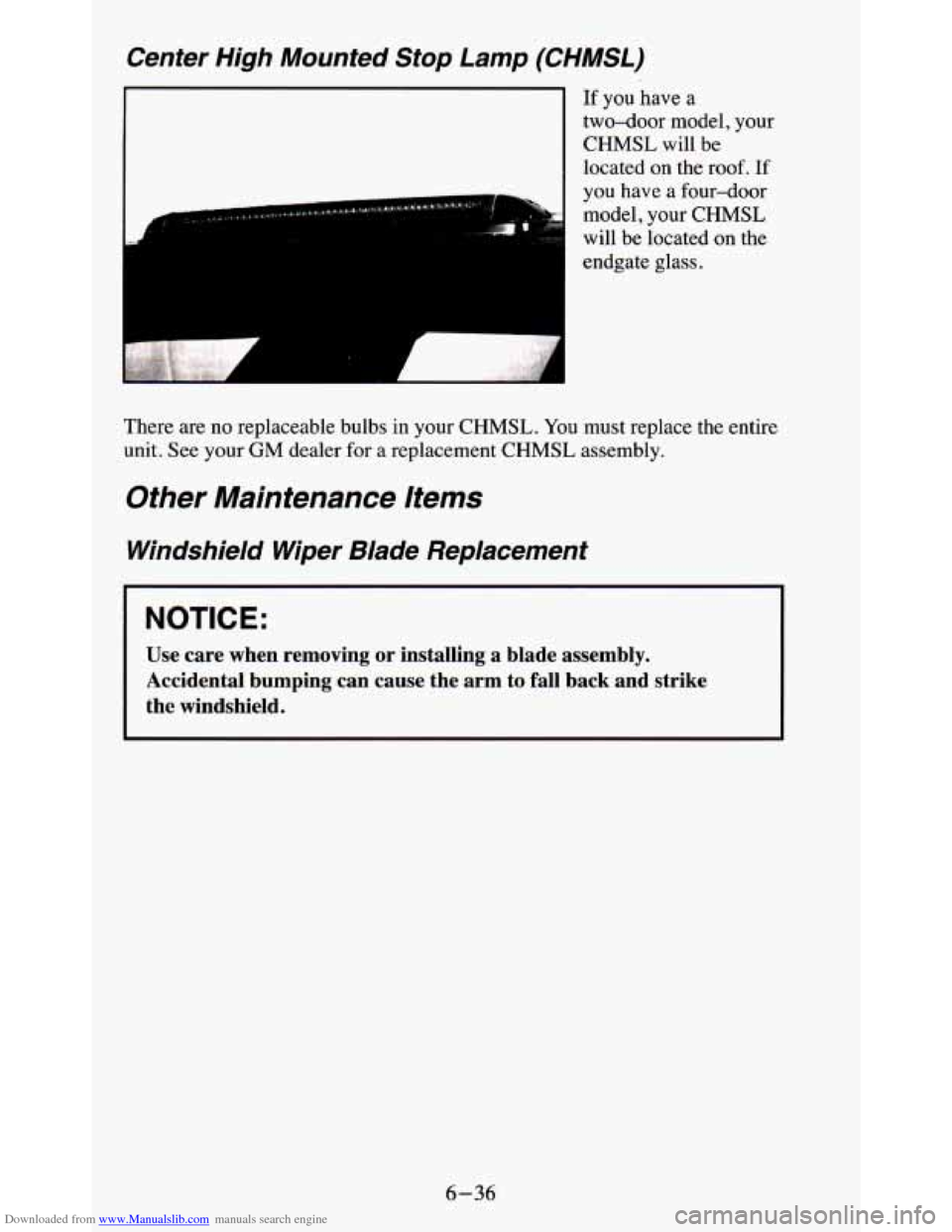

Downloaded from www.Manualslib.com manuals search engine Center High Mounted Stop Lamp (CHMSL)
A
P
If you have a
two-door model, your
CHMSL will be
located on the roof. If
you have a four-door
model, your CHMSL
will be located on the
endgate glass.
There
are no replaceable bulbs in your CHMSL. You must replace the entire
unit. See your
GM dealer for a replacement CHMSL assembly.
Other Maintenance Items
Whdshield Wiper Blade Replacement
NOTICE:
Use care when removing or installing a blade assembly.
Accidental bumping can cause the arm to fall back and strike
the windshield.
6-36

Downloaded from www.Manualslib.com manuals search engine To Remove the Old Wiper Blade:
Lift the wiper arm until it locks into a vertical position.
1. Blade Assembly
2. Arm Assembly
3. Locking Tab
4. Blade Pivot
5. Hook Slot
6. Arm Hook
Press down on the blade assembly pivot locking tab. Pull down on the
blade assembly to release it from the wiper arm hook
.
Remove the insert from the blade assembly. The insert has two notches
at one end that
are locked by bottom claws of the blade assembly. At
the notched end, pull the insert from the blade assembly.
6-37

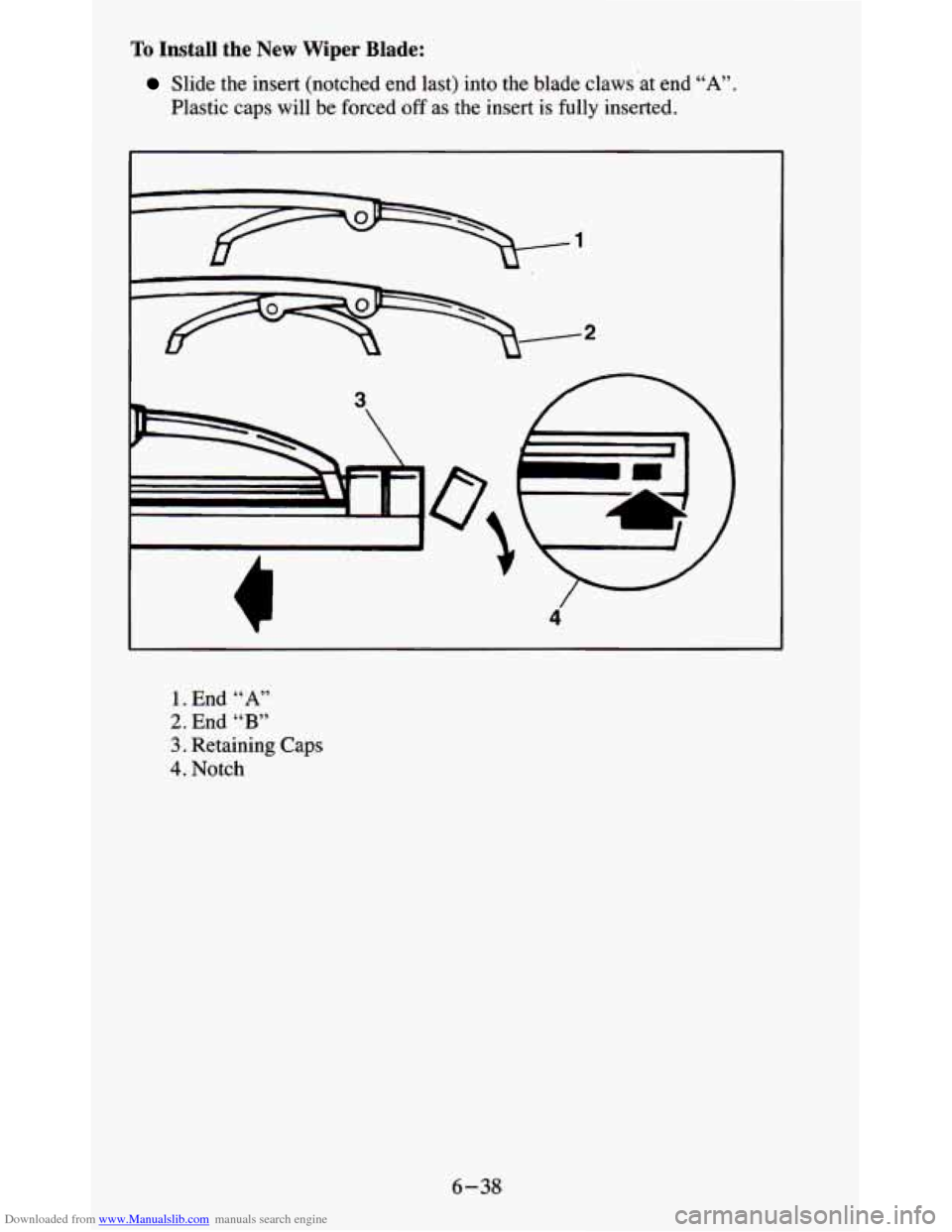

Downloaded from www.Manualslib.com manuals search engine To Install the New Wiper Blade:
Slide the insert (notched end last) into the blade claws‘at end “A”.
Plastic caps will be forced off as the insert is fully inserted.
1
4
0
5
I
4
1. End “A”
2. End “B”
3. Retaining Caps
4. Notch
6-38

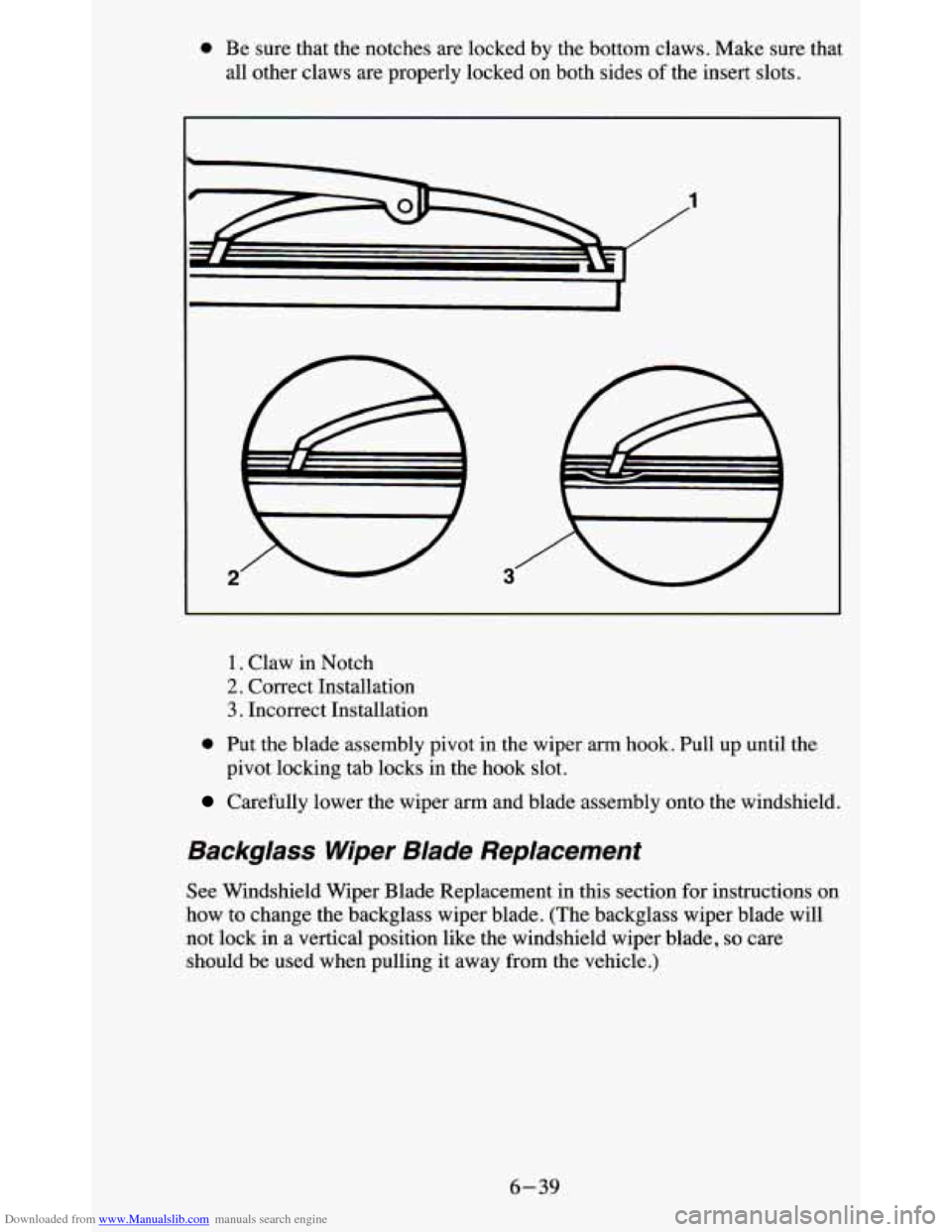

Downloaded from www.Manualslib.com manuals search engine 0 Be sure that the notches are locked by the bottom claws. Make sure that
all other claws are properly locked on both sides
of the insert slots.
3
1. Claw in Notch
2. Correct Installation
3. Incorrect Installation
0 Put the blade assembly pivot in the wiper arm hook. Pull up until the
pivot locking tab locks in the hook slot.
Carefully lower the wiper arm and blade assembly onto the windshield.
Backglass Wiper Blade Replacement
See Windshield Wiper Blade Replacement in this section for instructions on
how to change the backglass wiper blade. (The backglass wiper blade will
not lock in
a vertical position like the windshield wiper blade, so care
should be
used when pulling it away from the vehicle.)
6-39

Downloaded from www.Manualslib.com manuals search engine Air Conditioning
Every now and then have your dealership check your air conditioning
system to be sure it has not lost any cooling ability. If you think\
the system
is not working properly, have your dealership check it out as \
soon as
possible.
The air conditioning will not work when the temperature is below
40°F
(4°C).
Lock Cylinders
To be sure your locks operate properly, they must be lubricated.
Refer to the Maintenance Schedule to determine how often to lubricate them
and what type
of lubricant to use.
You should not
use penetrating oils because they could wash out me factory
installed lubricant and cause the lock to bind. De-icers which \
contain
alcohol could also wash away the lubricant,
so be sure to lubricate the lock
after using a de-icer of this type.
Exhaust System
To help prevent damage to your exhaust system, do not continue to drive
your vehicle
if you notice:
0 Engine misfiring
0 Loss of performance
0 Exhaust system components hanging lower than normal.
0 Loud exhaust system noises.
0 Other unusual operating conditions
Have your engine and exhaust system serviced regularly.
Three-way Catalytic Converter
Your vehicle’s three-way catalytic converter is designed to reduce \
the
pollutants in your vehicle’s exhaust. Use only unleaded fuel in your vehicle.
If you use leaded fuel, you could damage your three-way catalytic converter
and other engine components.
Engine Control Module System
This system has an oxygen (02) sensor that helps keep your engine’s
air-fuel mixture at a proper level. Use only unleaded fuel
in your vehicle. If
you use leaded fuel, you could damage your oxygen (02) sensor and affect
your vehicle’s emissions.
6-40
