CHEVROLET BLAZER 1995 2.G Owners Manual

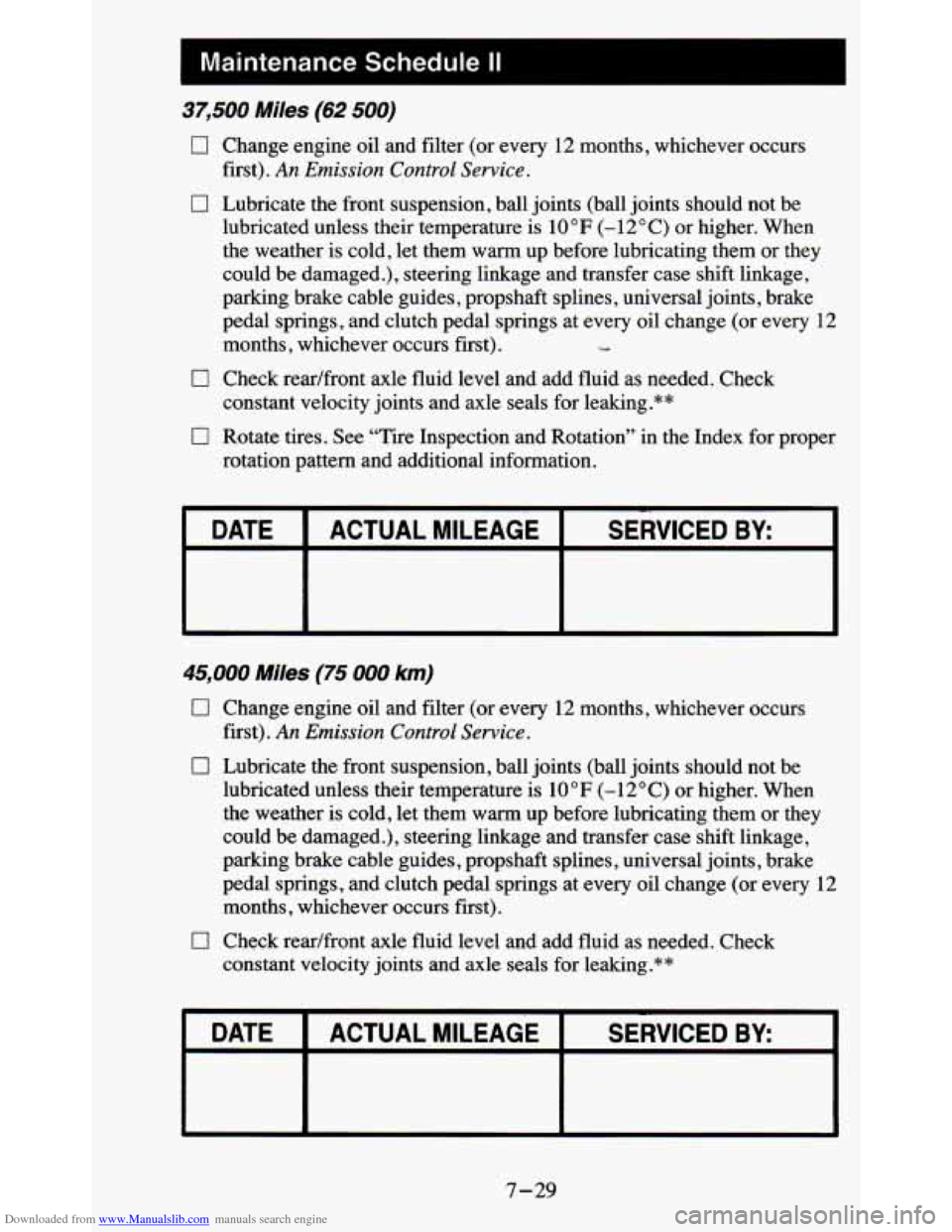

Downloaded from www.Manualslib.com manuals search engine 37,500 Miles (62 500)
0 Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, ball joints (ball joints should not be
lubricated unless their temperature is
10°F (-1 2°C) or higher. When
the weather is cold, let them warm up before lubricating them or they
could be damaged.), steering linkage and transfer case shift linkage,
parking brake cable guides, propshaft splines, universal joints, brake
pedal springs, and clutch pedal springs at every oil change (or every
12
months, whichever occurs first). -
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
rotation pattern and additional information.
45,000 Miles (75 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
first). An Emission Control Service.
0 Lubricate the front suspension, ball joints (ball joints should not be
lubricated unless their temperature is
10°F (-12°C) or higher. When
the weather is cold, let them
warm up before lubricating them or they
could be damaged.), steering linkage and transfer
case shift linkage,
parking brake cable guides, propshaft splines, universal joints, brake
pedal springs, and clutch pedal springs at
every oil change (or every 12
months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
DATE ACTUAL MILEAGE SERVICED BY
7-29

Downloaded from www.Manualslib.com manuals search engine 50,000 Miles (83 000 km)
0 Change automatic transmission fluid and filter if the vehicle is mainl\
y
- In heavy city traffic where the outside temperature regularly
driven under
one or more of these conditions:
reaches
90°F (32°C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police car or delivery service.
If you do not use your vehicle under any of these conditions, the fluid
and filter
do not require changing.
Manual transmission fluid doesn’t require change.
52,500 Miles (87 500)
0
0
0
Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
Lubricate the front suspension, ball joints (ball joints should not be
lubricated unless their temperature is
10°F (-12°C) or higher. When
the weather is cold, let them warm up before lubricating them or they
could be damaged.), steering linkage and transfer case shift linkage,
parking brake cable guides, propshaft splines, universal joints, brake
pedal springs, and clutch pedal springs at every oil change (\
or every 12
months, whichever occurs first).
Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
rotation pattern and additional information.
DATE SERVICED BY: ACTUAL MILEAGE I
7-30

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule II

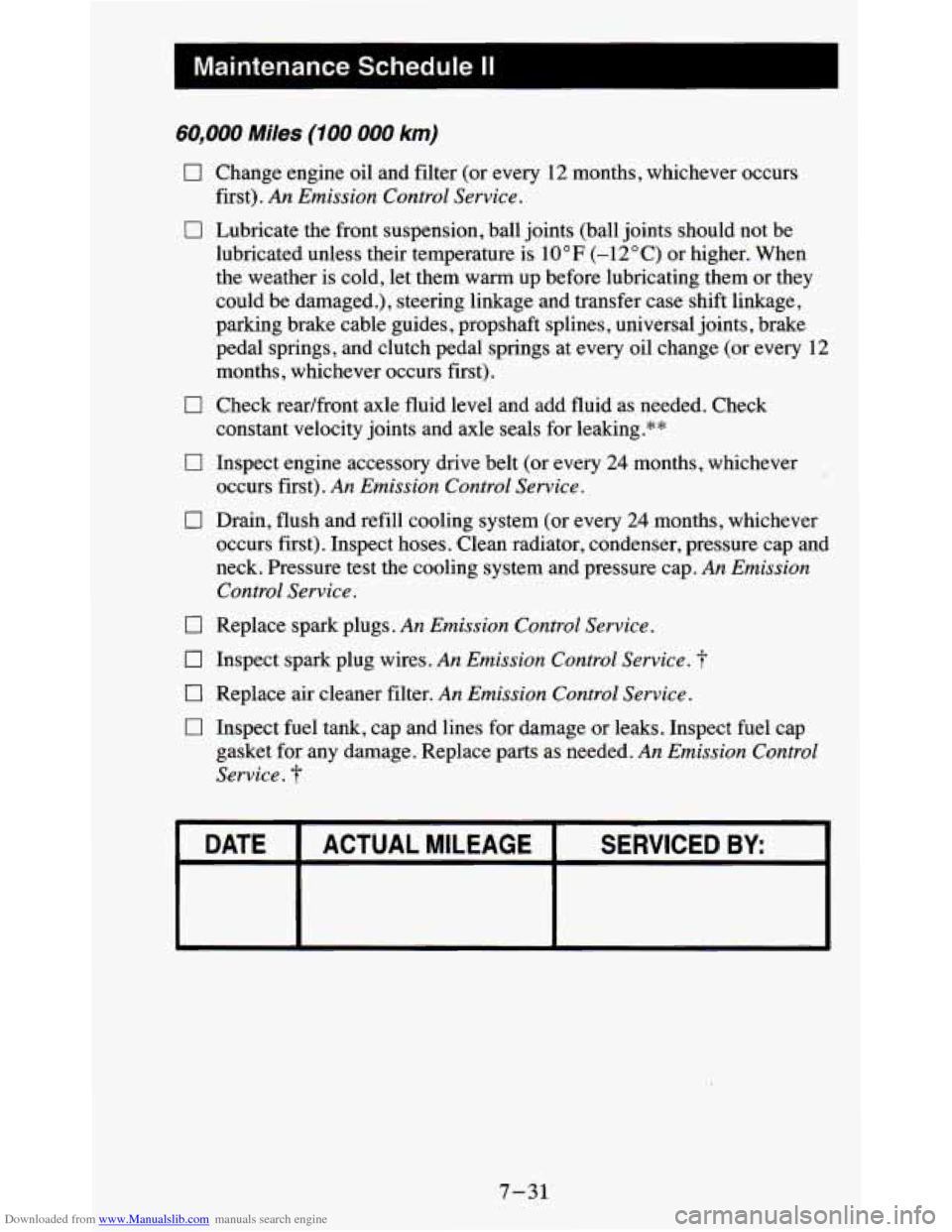

60.000 Miles (100 000 km)
U Change engine oil and filter (or every 12 months, whichever occurs
0 Lubricate the front suspension, ball joints (ball joints should not be
first).
An Emission Control
Service.
lubricated unless their temperature is 10 "F (-1 2" C) or higher. When
the weather is cold, let them
warrn up before lubricating them or they
could be damaged.), steering linkage and transfer case shift linkage,
parking brake cable guides, propshaft splines, universal joints, brake
pedal springs, and clutch pedal springs at every oil change (or every
12
months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
occurs first).
An Emission Control Service.
0 Inspect engine accessory drive belt (or every 24 months, whichever
0 Drain, flush and refill cooling system (or every 24 months, whichever
occurs first). Inspect hoses. Clean radiator, condenser, pressure cap and
neck. Pressure test the cooling system and pressure cap.
An Emission
Control Service.
0 Replace spark plugs. An Emission Control Service.
0 Inspect spark plug wires. An Emission Control Service.
0 Replace air cleaner filter. An Emission Control Service.
0 Inspect fuel tank, cap and lines for damage or leaks. Inspect fuel cap
gasket for any damage. Replace parts as needed.
An Emission Control
Service.
T
DATE ACTUAL MILEAGE SERVICED BY:
7-31

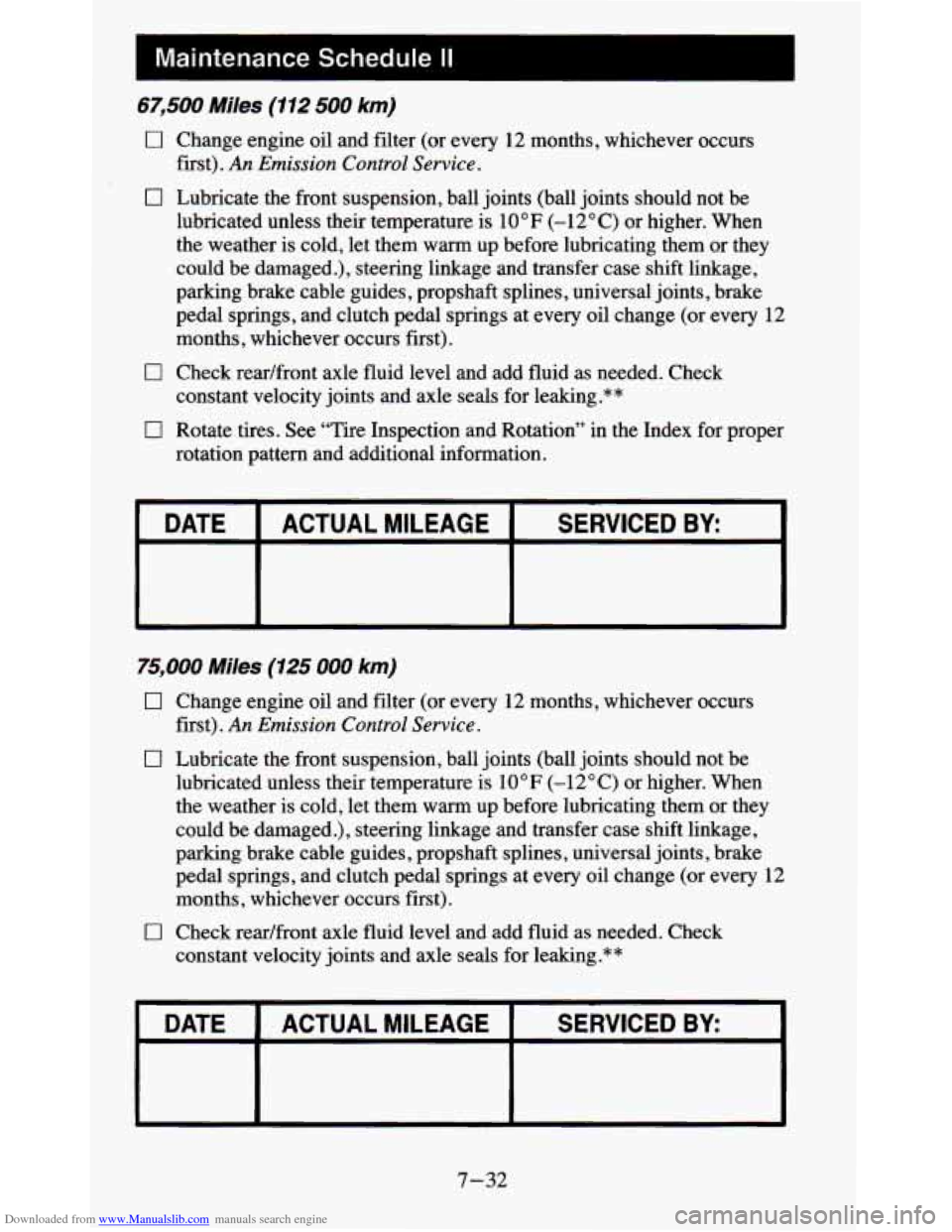

Downloaded from www.Manualslib.com manuals search engine 67,500 Miles (112 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, ball joints (ball joints should not be
lubricated unless their temperature is 10°F (-1
2” C) or higher. When
the weather is cold, let them
warrn up before lubricating them or they
could be damaged.), steering linkage and transfer case shift linkage,
parking brake cable guides, propshaft splines, universal joints, brake
pedal springs, and clutch pedal springs at every
oil change (or every 12
months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
rotation pattern and additional information.
DATE SERVICED BY: ACTUAL MILEAGE
75,000 Miles (125 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, ball joints (ball joints should not be
lubricated unless their temperature is 10°F (-1
2°C) or higher. When
the weather is cold, let them warm up before lubricating them or they
could be damaged.), steering linkage and transfer case shift linkage,
parking brake cable guides, propshaft splines, universal joints, brake
pedal springs, and clutch pedal springs at every oil change (or every
12
months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
DATE
SERVICED BY ACTUAL MILEAGE
7-32

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule II ~

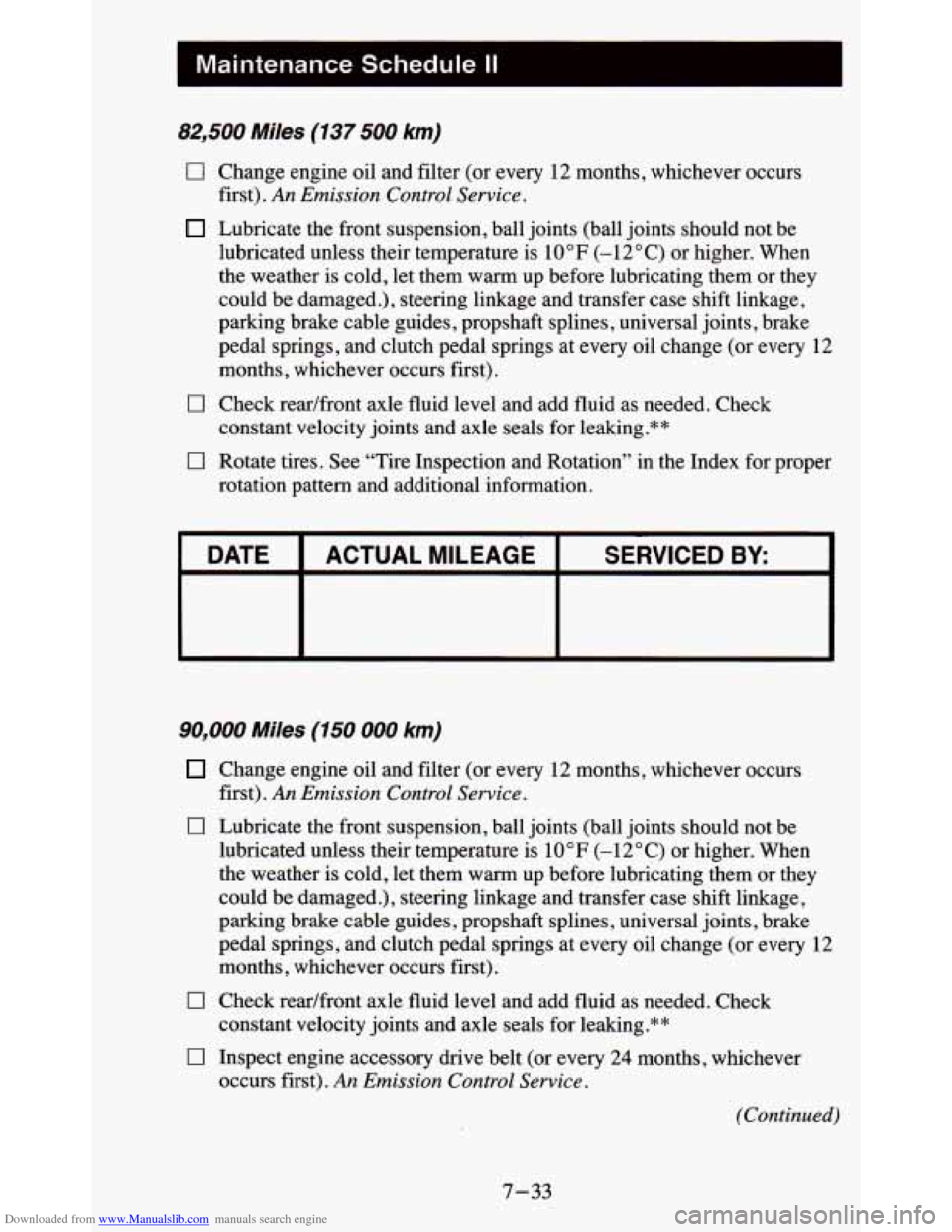

82,500 Miles (137 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
Lubricate the front suspension, ball joints (ball joints should not be
first).
An Emission Control
Service.
lubricated unless their temperature is 10°F (-1 2°C) or higher. When
the weather is cold, let them warm up before lubricating them or they
could be damaged.), steering linkage and transfer case shift linkage,
parking brake cable guides, propshaft splines, universal joints, brake
pedal springs, and clutch pedal springs at every oil change (or every 12
months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
rotation pattern and additional information.
Cl Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
DATE
SERVICED BY ACTUAL MILEAGE
90,000 Miles (150 000 km)
Change engine oil and filter (or every 12 months, whichever occurs
0 Lubricate the front suspension, ball joints (ball joints should not be
first).
An Emission Control
Service.
lubricated unless their temperature is 10°F (-12°C) or higher. When
the weather is cold, let them warm up before lubricating them or they
could be damaged.), steering linkage and transfer case shift linkage,
parking brake cable guides, propshaft splines, universal joints, brake
pedal springs, and clutch pedal springs at every oil change (or
every 12
months
, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
0 Inspect engine accessory drive belt (or every 24 months, whichever
occurs first).
An Emission Control Service.
(Continued)
7-33

Downloaded from www.Manualslib.com manuals search engine I Maintenance Schedule II I

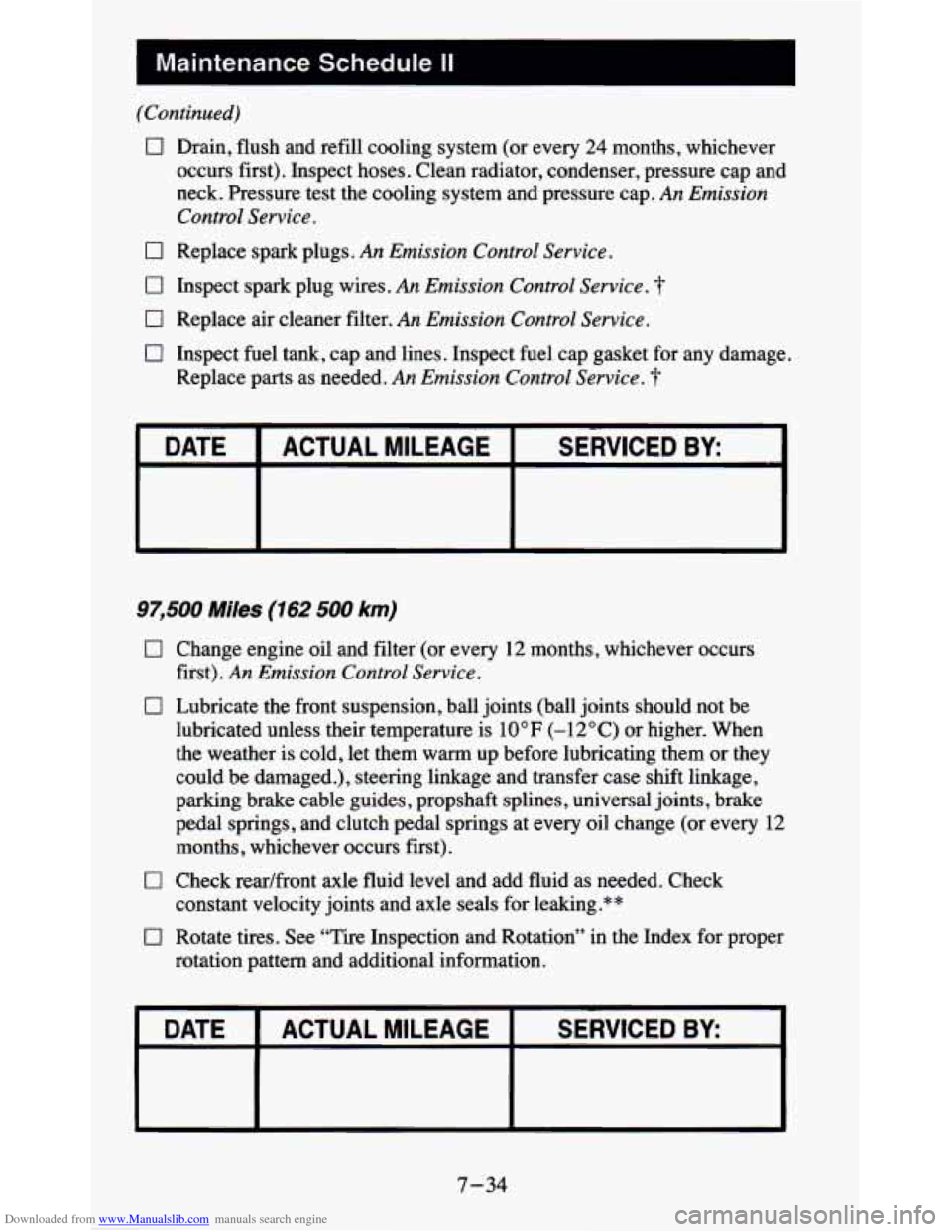

(Continued)
0
0
0
0
0
Drain, flush and refill cooling system (or every 24 months, whichever
occurs first). Inspect hoses. Clean radiator, condenser, pressure cap and
neck. Pressure test the cooling system and pressure cap.
An Emission
Control Service.
Replace spark plugs. An Emission Control Service.
Inspect spark plug wires. An Emission Control Service. ?
Replace air cleaner filter. An Emission Control Service.
Inspect fuel tank, cap and lines. Inspect fuel cap gasket for any damage.
Replace parts as needed.
An Emission Control Service. ?
I DATE I ACTUALMILEAGE I SERVICED BY I
97,500 Miles (162 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
0 Lubricate the front suspension, ball joints (ball joints should not be
first).
An Emission Control
Service.
lubricated unless their temperature is 10°F (-12°C) or higher. When
the weather
is cold, let them warm up before lubricating them or they
could be damaged.), steering linkage and transfer case shift linkage,
parking brake cable guides, propshaft splines, universal joints, brake
pedal springs, and clutch pedal springs at every oil change (or every
12
months, whichever occurs first).
constant velocity joints and axle seals for leaking.**
rotation pattern and additional information.
0 Check readfront axle fluid level and add fluid as needed. Check
0 Rotate tires. See “Tire Inspection and Rotation” in the I\
ndex for proper
DATE SERVICED BY ACTUAL MILEAGE
7-34

Downloaded from www.Manualslib.com manuals search engine I Maintenance Schedule II
700,000 Miles (766 000 km)
0 Change automatic transmission fluid and filter if the vehicle is mainly
- In heavy city traffic where the outside temperature regularly
driven under
one or more
of these conditions:
reaches
90 OF (32 O C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police car or delivery service.
IJ you do not use your vehicle under any of these conditions, the fluid
and filter do not require changing.
Manual transmission fluid doesn’t require change.
DATE
SERVICED BY: ACTUAL MILEAGE I
Part B: Owner Checks and Services
Listed below are owner checks and services which should be performed at
the intervals specified to help ensure the safety, dependability and emission
control performance
of your vehicle.
Be sure any necessary repairs are completed at once. Whenever any fluids
or lubricants are added to your vehicle, make sure they are the proper ones,
as shown
in Part D.
At Each Fuel Fill
It is important for you or a sewice station attendant to perform these
underhood checks at each @el
fill.
Engine Oil Level
Check the engine oil level and add the proper oil if necessary. See “Engine
Oil” in the Index for further details.
7-35

Downloaded from www.Manualslib.com manuals search engine €ngine Coolant Level
Check the engine coolant level and add the proper coolant mix if necessary.
See “Coolant” in the Index for further details.
Windshield Washer Fluid Level
Check the windshield washer fluid level in the windshield washe\
r tank and
add the proper fluid if necessary. See “Windshield Washer Fluid” in the
Index for further details.
At Least Once a Month
Tire Inflation
Check tire inflation. Make sure tires are inflated to the pressures specified
on the Certificatioflire label located on the driver’s door lock pillar. See
“Tires” in the Index for further details.
Cassette Deck
Clean cassette deck. Cleaning should be done every 50 hours of tape play.
See “Audio Systems” in the Index for further details.
At Least Once a Year
Key Lock Cylinders
Lubricate the key lock cylinders with the lubricant specified i\
n Part D.
Body Lubrication
Lubricate all body door hinges, the body hood, fuel door and rear
compartment hinges, latches and locks including interior glove box and
console doors, and any moving seat hardware. Lubricate the hood safety
lever pivot and prop rod pivot.
Part D tells you what to use. More frequent
lubrication may be required when exposed to
a corrosive environment.
7-36

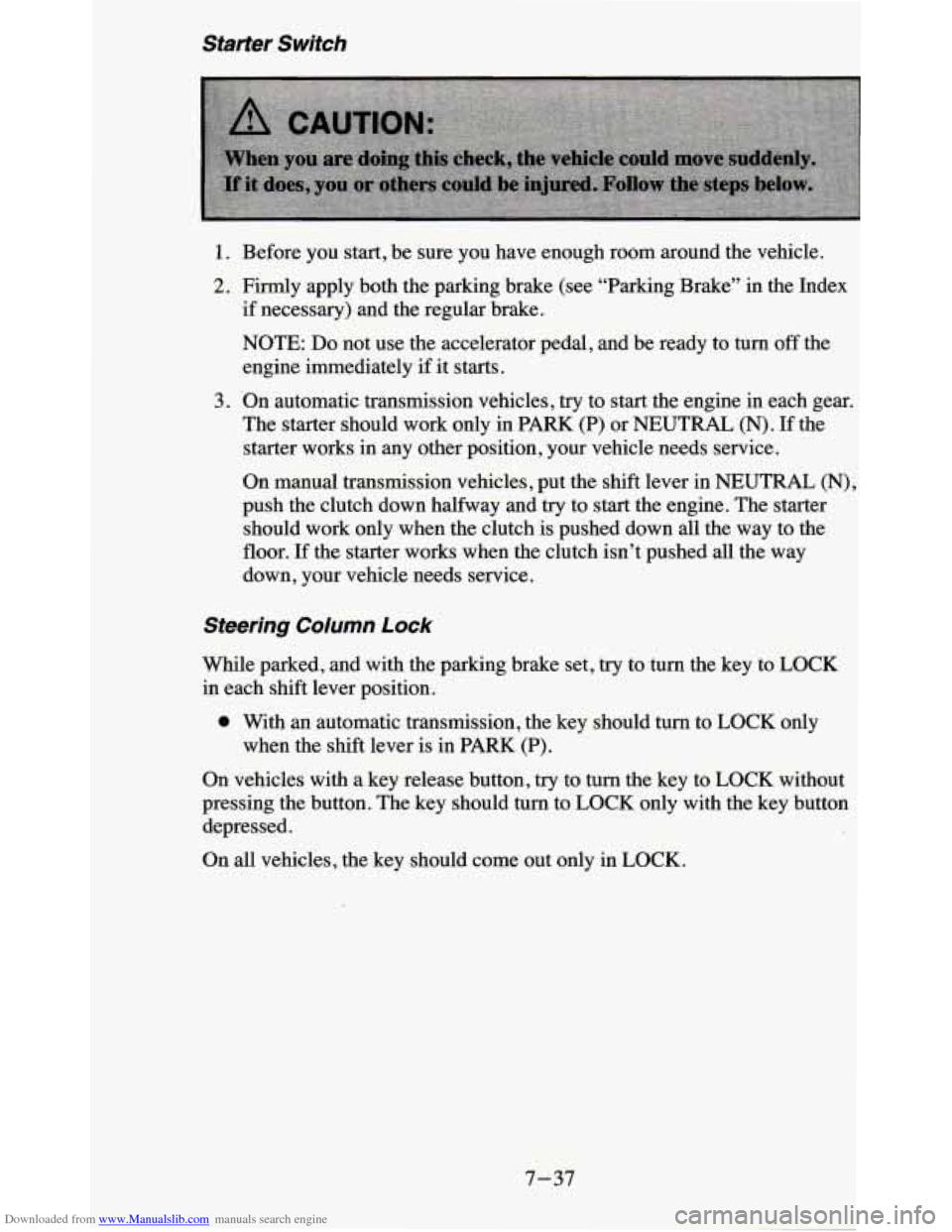

Downloaded from www.Manualslib.com manuals search engine Starter Switch
1. Before you start, be sure you have enough room around the vehicle.
2. Firmly apply both the parking brake (see “Parking Brake” in the Index
if necessary) and the regular brake.
NOTE:
Do not use the accelerator pedal, and be ready to turn off the
engine immediately if it starts.
3. On automatic transmission vehicles, try to start the engine in each gear.
The starter should work only in
PARK (P) or NEUTRAL (N). If the
starter works in any other position, your vehicle needs service.
On manual transmission vehicles, put the shift lever in
NEUTRAL (N),
push the clutch down halfway and try to start the engine. The starter
should work only when the clutch is pushed down all the way to the
floor.
If the starter works when the clutch isn’t pushed all the way
down, your vehicle needs service.
Steering Column Lock
While parked, and with the parking brake set, try to turn the key to LOCK
in each shift lever position.
a With an automatic transmission, the key should turn to LOCK only
when the shift lever is in
PARK (P).
On vehicles with a key release button, try to turn the key to LOCK without
pressing the button. The key should turn to LOCK only with the key button
depressed.
On
all vehicles, the key should come out only in LOCK.
7-37

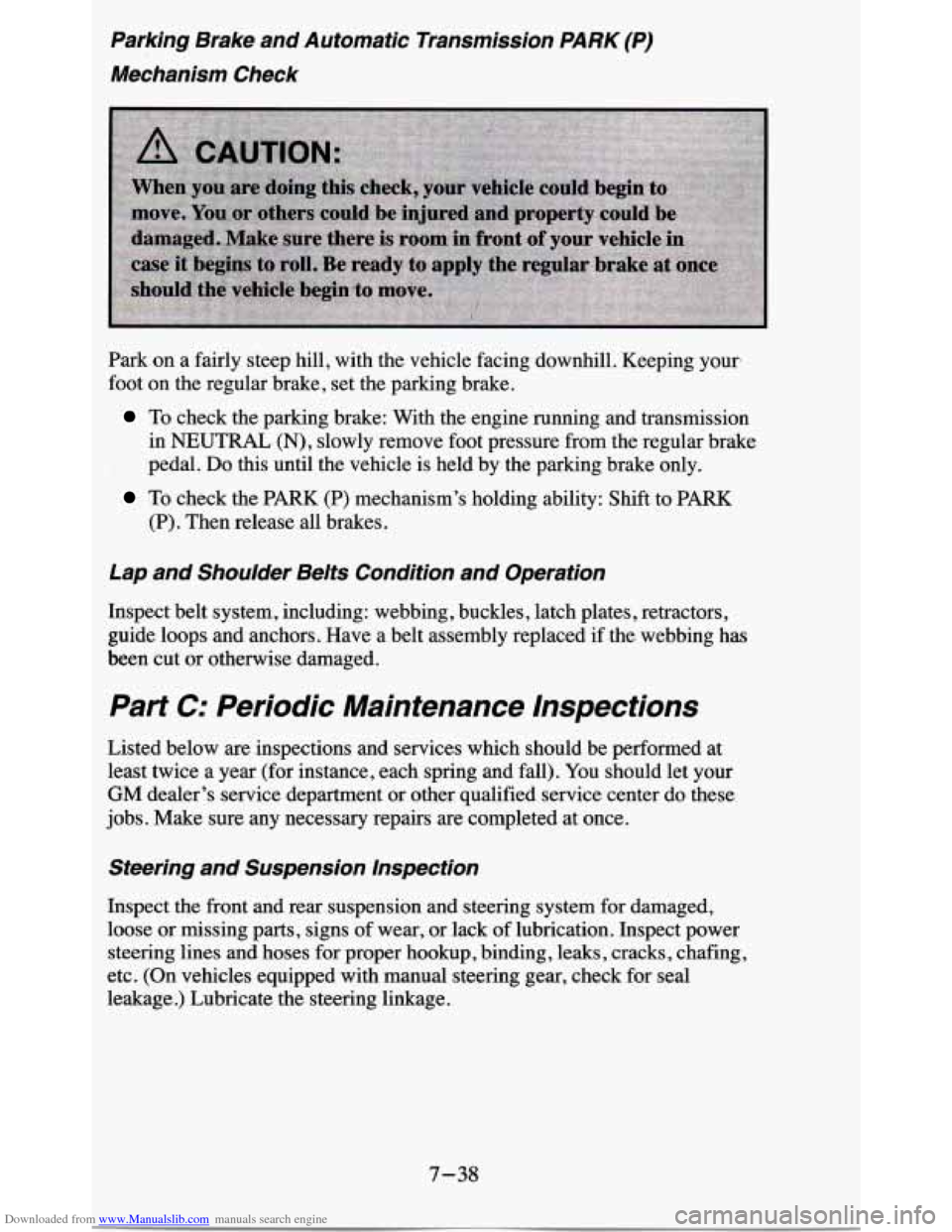

Downloaded from www.Manualslib.com manuals search engine Parking Brake and Automatic Transmission PARK (P)
Mechanism Check
Park on a fairfy steep hill, with the vehicle facing downhill. Keeping your
foot on the regular brake, set the parking brake.
To check the parking brake: With the engine running and transmission
in
NEUTRAL (N), slowly remove foot pressure from the regular brake
pedal.
Do this until the vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding ability: Shift to PARK
(P). Then release all brakes.
Lap and Shoulder Belts Condition and Operation
Inspect belt system, including: webbing, buckles, latch plates, retractors,
guide loops and anchors. Have a belt assembly replaced if the webbing has
been cut or otherwise damaged.
Part C: Periodic Maintenance Inspections
Listed below are inspections and services which should be perfo\
rmed at
least twice a year (for instance, each spring and fall). You should let your
GM dealer’s service department or other qualified service center do these
jobs. Make sure any necessary repairs are completed at once.
Steering and Suspension Inspection
Inspect the front and rear suspension and steering system for damaged,
loose or missing parts, signs of wear, or lack of lubrication. Inspect power
steering lines
and hoses for proper hookup, binding, leaks, cracks, chafing,
etc. (On vehicles equipped with manual steering gear, check for seal
leakage
.) Lubricate the steering linkage.
7-38
