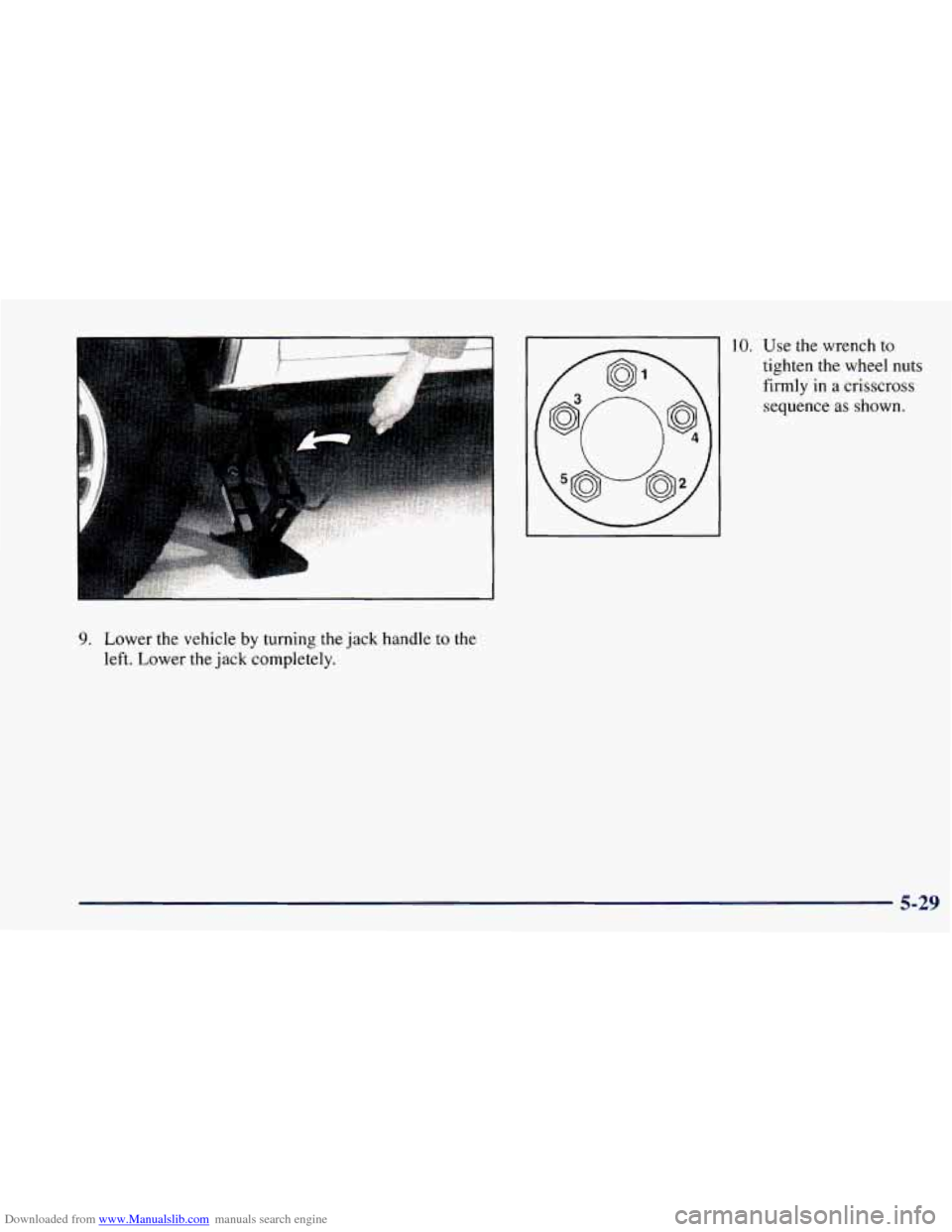

9. Lower the vehicle by turning the jack handle to the
left. Lower the jack completely.
10. Use the wrench to
tighten the wheel nuts
firmly in a crisscross
sequence
as shown.
5-29

Downloaded from www.Manualslib.com manuals search engine I

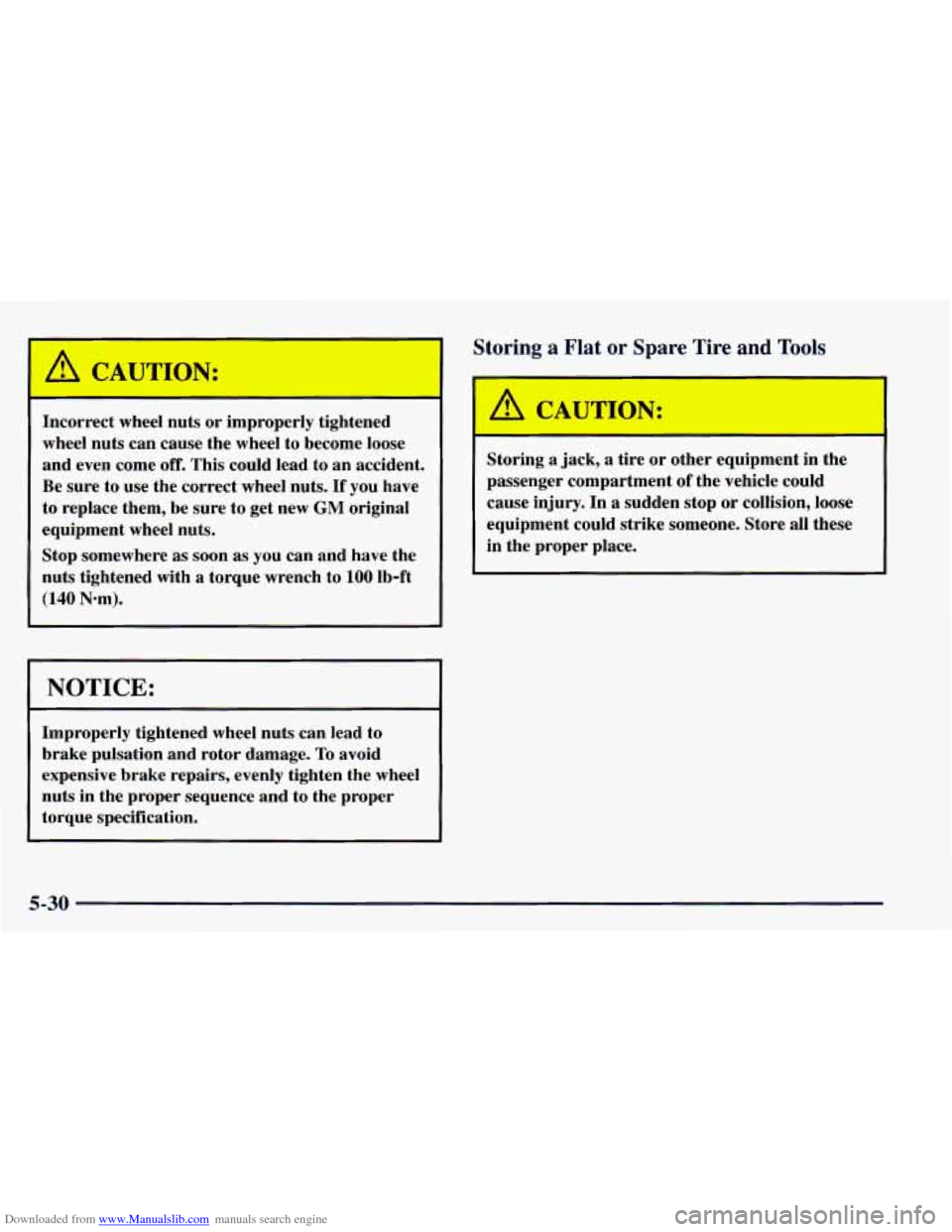

A CAUTION:
I
Incorrect wheel nuts or Improperly tightened
wheel nuts can cause the wheel to become loose
and even come
off. This could lead to an accident.
Be sure to use the correct wheel nuts. If you have
to replace them, be sure to get new
GM original
equipment wheel nuts.
Stop somewhere
as soon as you can and have the
nuts tightened with
a torque wrench to 100 Ib-ft
(140 N-m).
I NOTICE: I
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification.
Storing a Flat or Spare Tire and Tools
&!, CAUTION:
Storing a jack, a tire or other equipment in the
passenger compartment
of the vehicle could
cause injury. In
a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
5-30

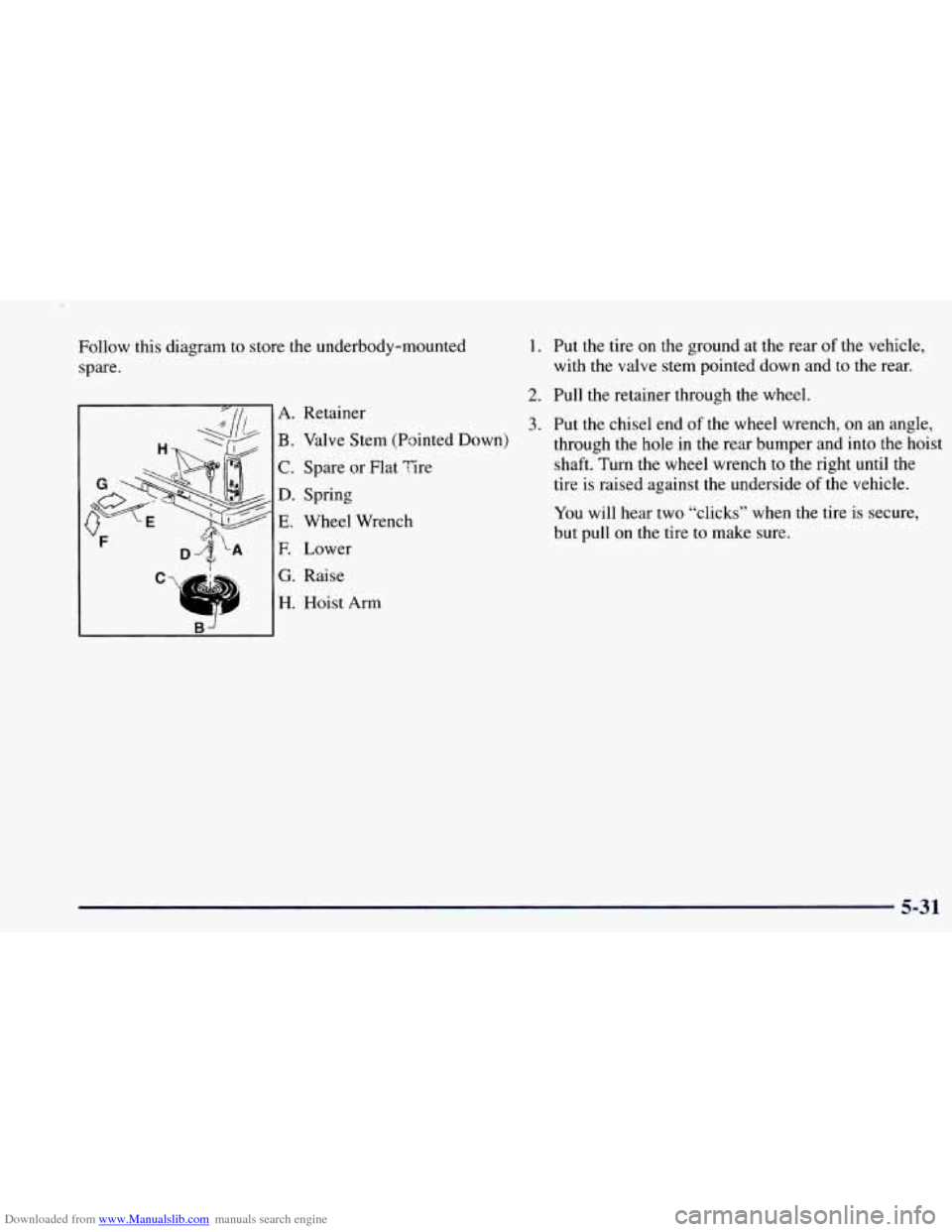

Downloaded from www.Manualslib.com manuals search engine Follow this diagram to store the underbody-mounted
spare.
A. Retainer
B. Valve Stem (Pointec
C. Spare or Flat Tire
D. Spring
E. Wheel Wrench
F. Lower
G. Raise
H. Hoist Arm
i Down)
1. Put the tire on the ground at the rear of the vehicle,
with the valve stem pointed down and
to the rear.
2. Pull the retainer through the wheel.
3. Put the chisel end of the wheel wrench, on an angle,
through the hole in the rear bumper and into the hoist
shaft. Turn the wheel wrench
to the right until the
tire is raised against the underside
of the vehicle.
You will hear
two “clicks” when the tire is secure.
but pull on the tire
to make sure.
5-31

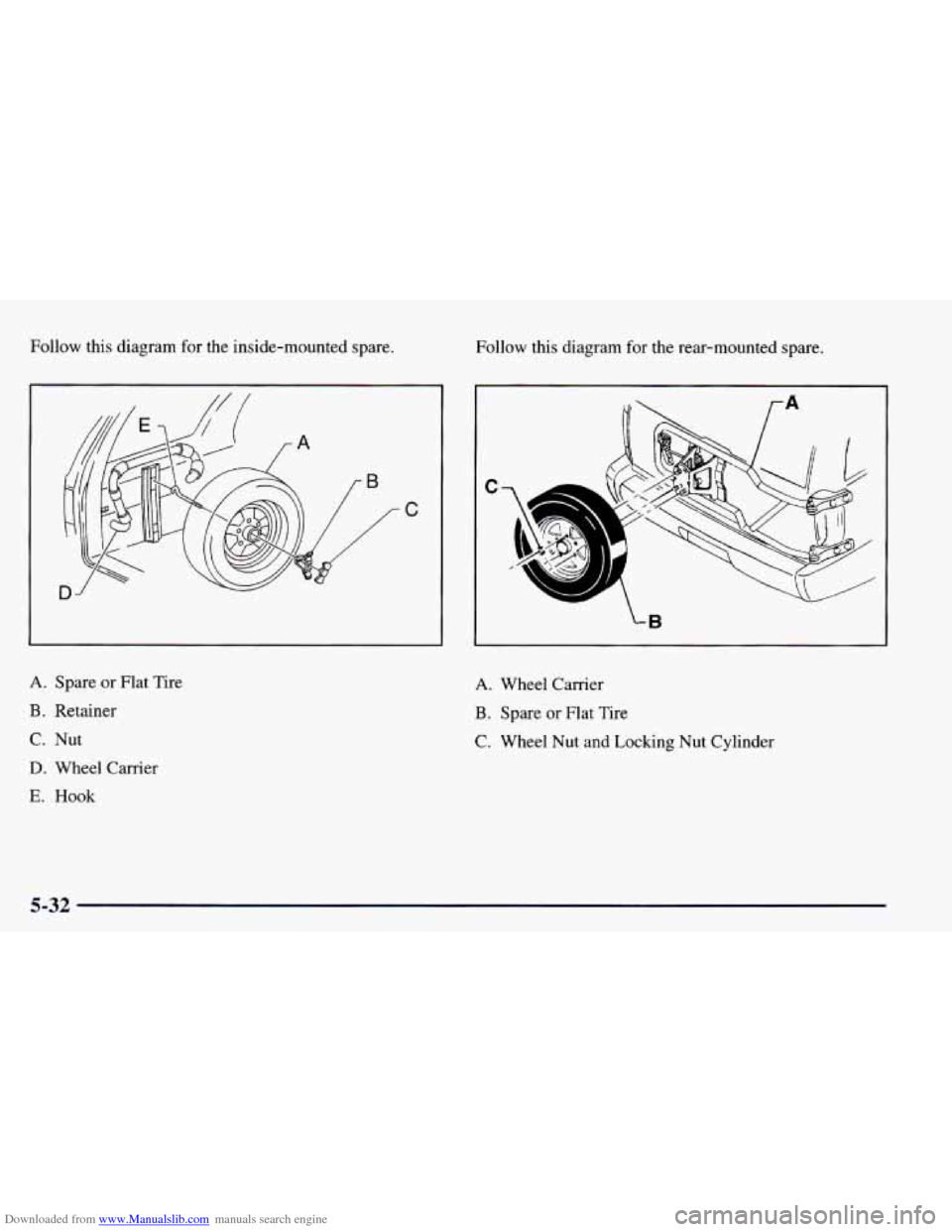

Downloaded from www.Manualslib.com manuals search engine Follow this diagram for the inside-mounted spare. Follow this diagram for the rear-mounted spare.
C7
A. Spare or Flat Tire
B. Retainer
C. Nut
D. Wheel Carrier
E. Hook
A. Wheel Carrier
B. Spare or Flat Tire
C. Wheel Nut and Locking
Nut Cylinder
5-32

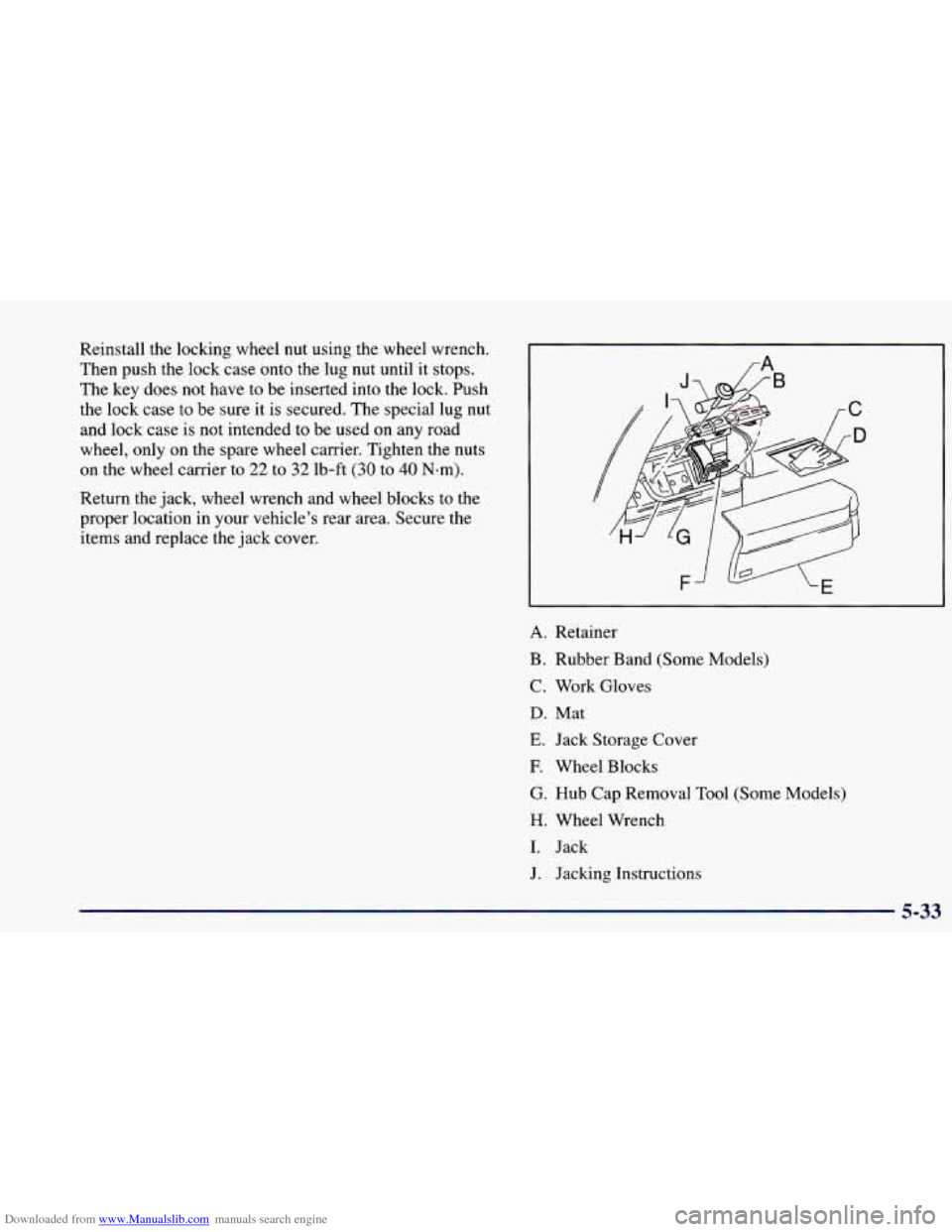

Downloaded from www.Manualslib.com manuals search engine Reinstall the locking wheel nut using the wheel wrench.
Then push the lock case onto the lug nut until it stops.
The key does not have to be inserted into the lock. Push
the lock case
to be sure it is secured. The special lug nut
and lock case
is not intended to be used on any road
wheel, only
on the spare wheel carrier. Tighten the nuts
on the wheel carrier to
22 to 32 lb-ft (30 to 40 Nem).
Return the jack, wheel wrench and wheel blocks to the
proper location in your vehicle’s rear area. Secure the
items and replace the jack cover.
/-A
A. Retainer
B. Rubber Band (Some Models)
C. Work Gloves
D. Mat
E. Jack Storage Cover
E Wheel Blocks
G. Hub Cap Removal Tool (Some Models)
H. Wheel Wrench
I. Jack
J. Jacking Instructions
5-33

Downloaded from www.Manualslib.com manuals search engine ’ CAUTION:
Make sure the tire and carrier are secure.
Driving with the tire or carrier unlatched could
injure pedestrians or damage the vehicle.
Compact Spare Tire (If Equipped)
Although the compact spare tire was fully inflated when
your vehicle was new, it can lose air after a time. Check
the inflation pressure regularly. It should be
60 psi
(420 kPa).
After installing the compact spare on your vehicle,
you should stop as soon as possible and make sure
your spare tire
is correctly inflated. The compact
spare
is made to perform well at speeds up to 65 mph
(105 Wh) for distances up to 3,000 miles (5 000 km),
so you can finish your trip and have your full-size tire
repaired or replaced where
you want. Of course, it’s besf
to replace your spare with a full-size tire as soon as you
can. Your spare will last longer and be in good shape in
case you need it again.
NOTICE:
When the compact spare is installed, don’t take
your vehicle through an automatic car wash with
guide rails. The compact spare can get caught on
the rails. That can damage
the tire and wheel,
and maybe other parts
of your vehicle.
Don’t use your compact spare on other vehicles.
And don’t mix your compact spare tire or wheel with
other wheels or tires. They won’t fit. Keep your spare
tire and its wheel together.
NOTICE:
Tire chains won’t fit your compact spare. Using
them can damage your vehicle and can damage
the chains too. Don’t use tire chains on your
compact spare.
5-34

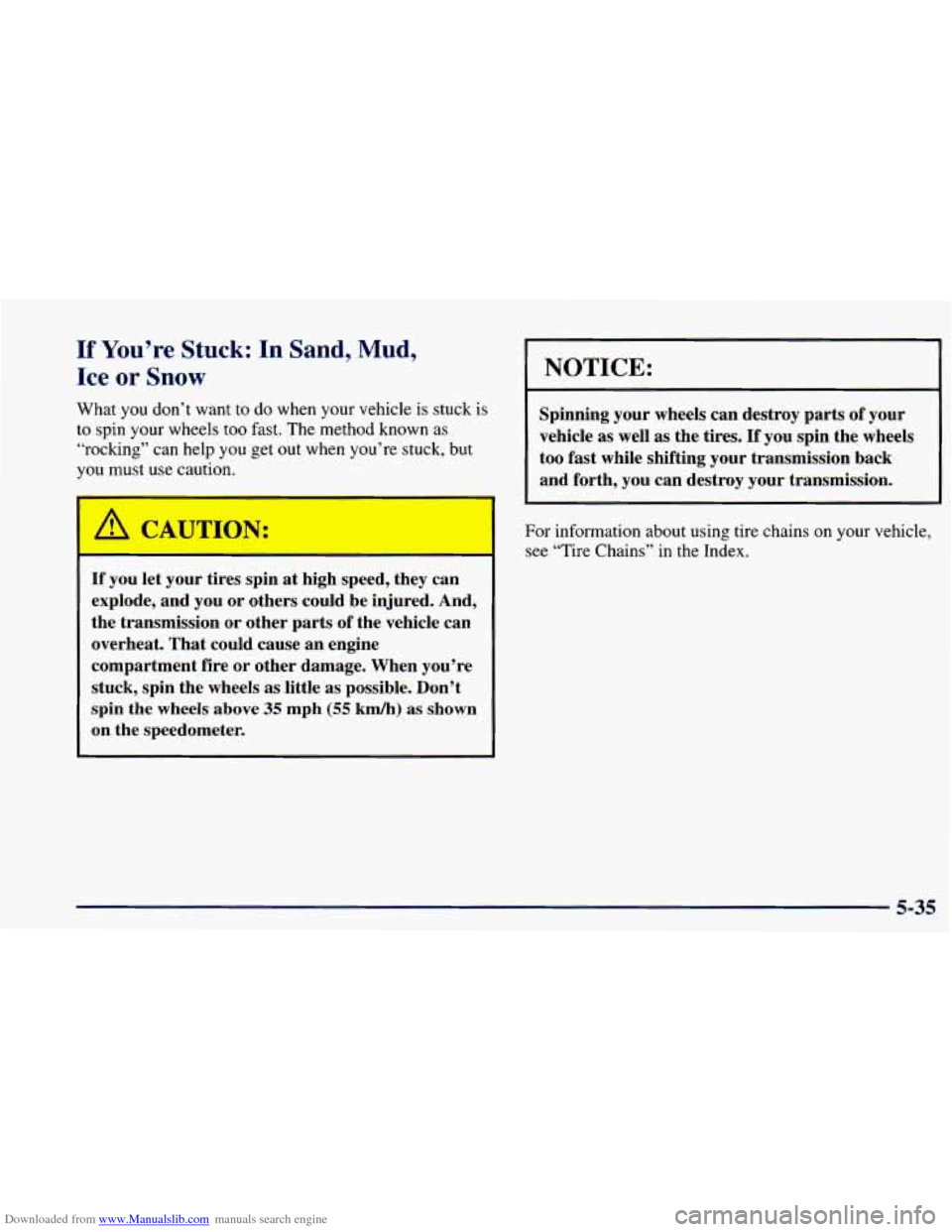

Downloaded from www.Manualslib.com manuals search engine If You’re Stuck: In Sand, Mud,
Ice or Snow
What you don’t want to do when your vehicle is stuck is
to spin your wheels too fast. The method known as
“rocking” can help you get out when you’re stuck, but
you must use caution.
If you let your tires sp~n at high speed, they can
explode, and you or others could be injured. And
the transmission or other parts of the vehicle can
overheat. That could cause an engine
compartment fire or other damage. When you’re
stuck, spin the wheels as little as possible. Don’t
spin
the wheels above 35 mph (55 km/h) as show]
on the speedometer.
1 NOTICE: I
Spinning your wheels can destroy parts of your
vehicle as well as the
tires. If you spin the wheels
too fast while shifting your transmission back
and forth, you can destroy your transmission.
For information about using tire chains on your vehicle,
see “Tire Chains” in the Index.
5-35

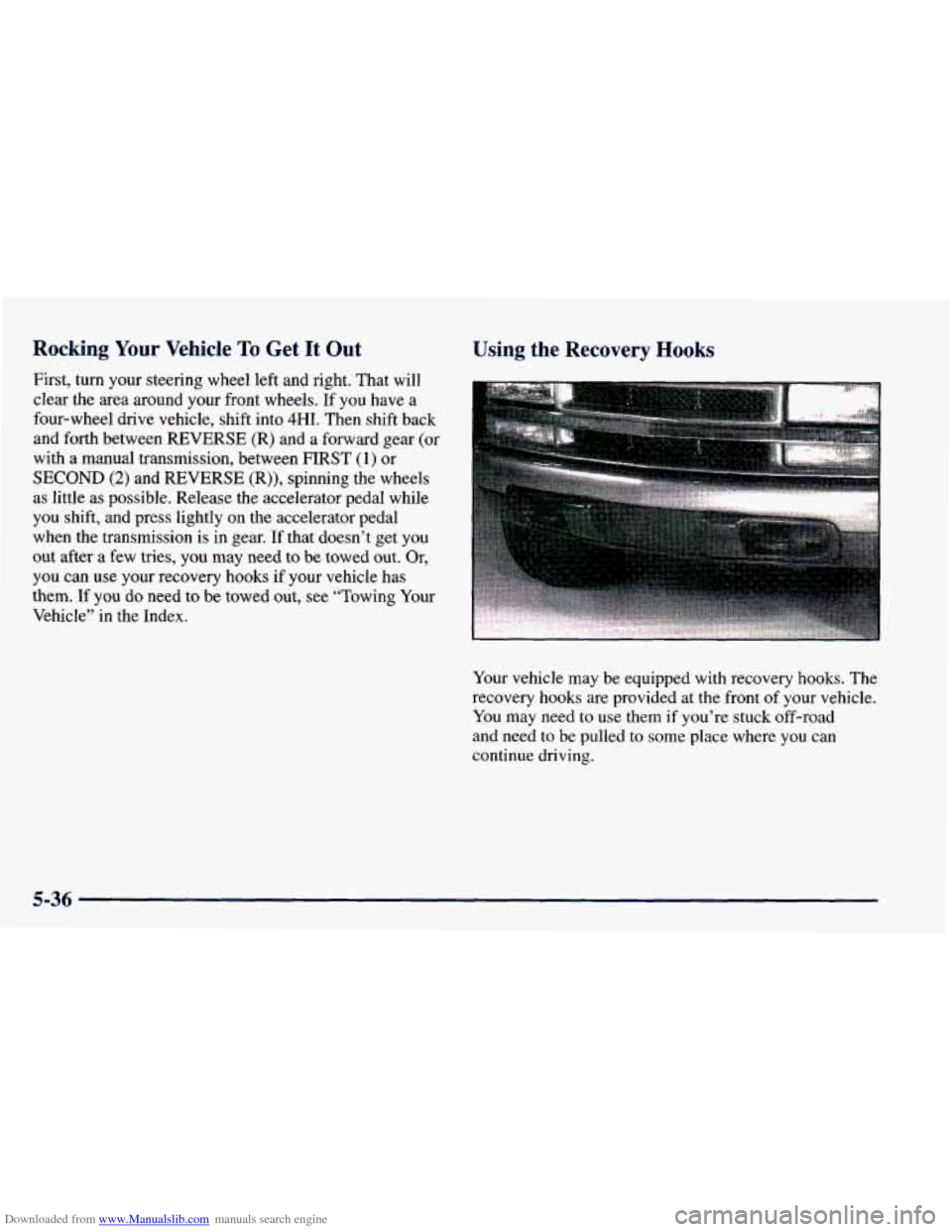

Downloaded from www.Manualslib.com manuals search engine Rocking Your Vehicle To Get It Out
First, turn your steering wheel left and right. That will
clear the area around your front wheels. If you have a
four-wheel drive vehicle, shift into 4HI. Then shift back
and forth between REVERSE
(R) and a forward gear (or
with a manual transmission, between FIRST (1) or
SECOND (2) and REVERSE (R)), spinning the wheels
as little as possible. Release the accelerator pedal while
you shift, and press lightly on the accelerator pedal
when the transmission is in gear. If that doesn’t get you
out after a few tries, you may need to be towed out. Or,
you can use your recovery hooks if your vehicle has
them. If you
do need to be towed out, see “Towing Your
Vehicle” in the Index.
Using the Kecovery Hooks
Your vehicle may be equipped with recovery hooks. The
recovery hooks are provided at the front of your vehicle.
You may need to use them
if you’re stuck off-road
and need to be pulled to some place where you can
continue driving.
5-36

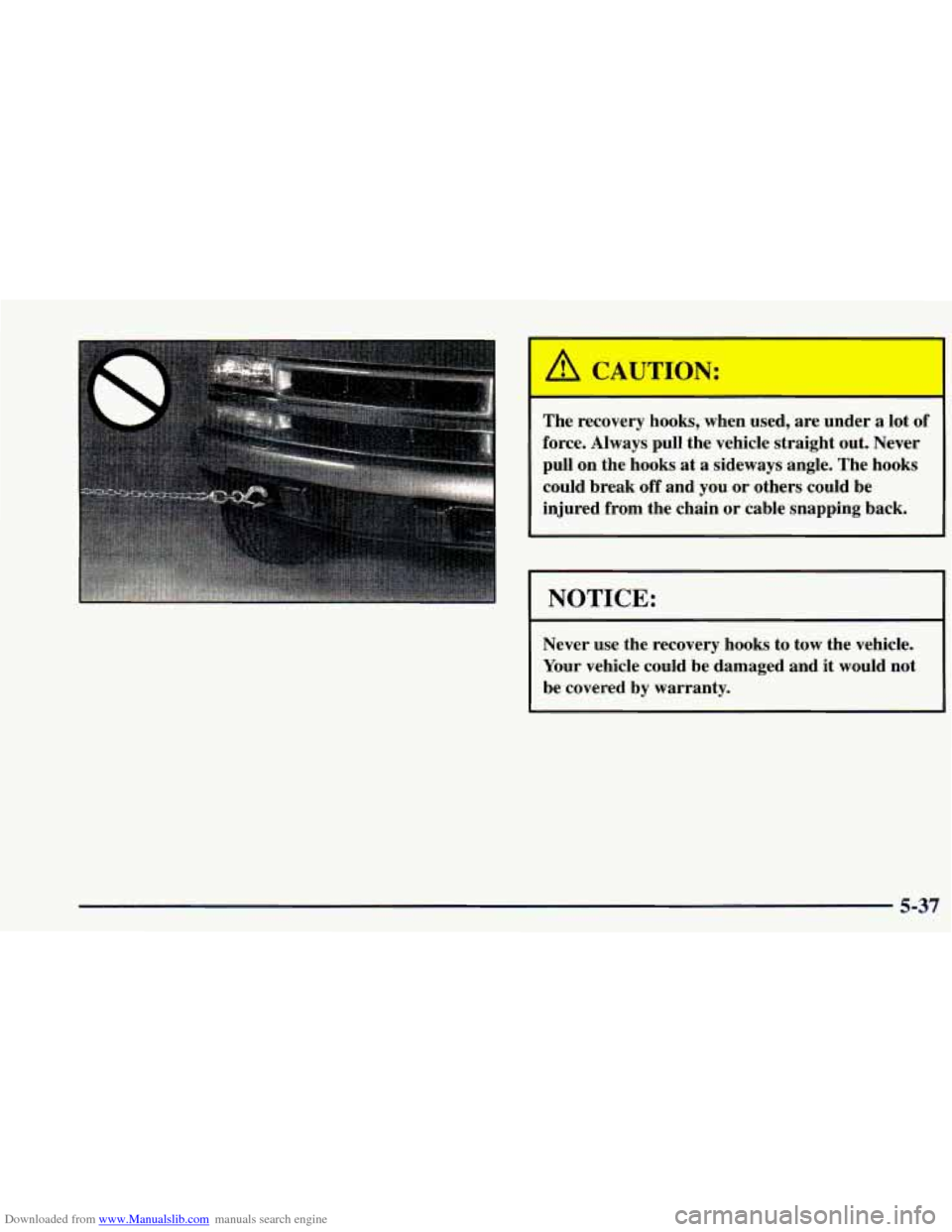

Downloaded from www.Manualslib.com manuals search engine The recovery hooks, when used, are under a lot of
force. Always pull the vehicle straight out. Never
pull on the hooks at
a sideways angle. The hooks
could break off and you or others could be
injured from the chain or cable snapping back.
I
NOTICE:
Never use the recovery hooks to tow the vehicle.
Your vehicle could be damaged and it would not
be covered by warranty.
5-37

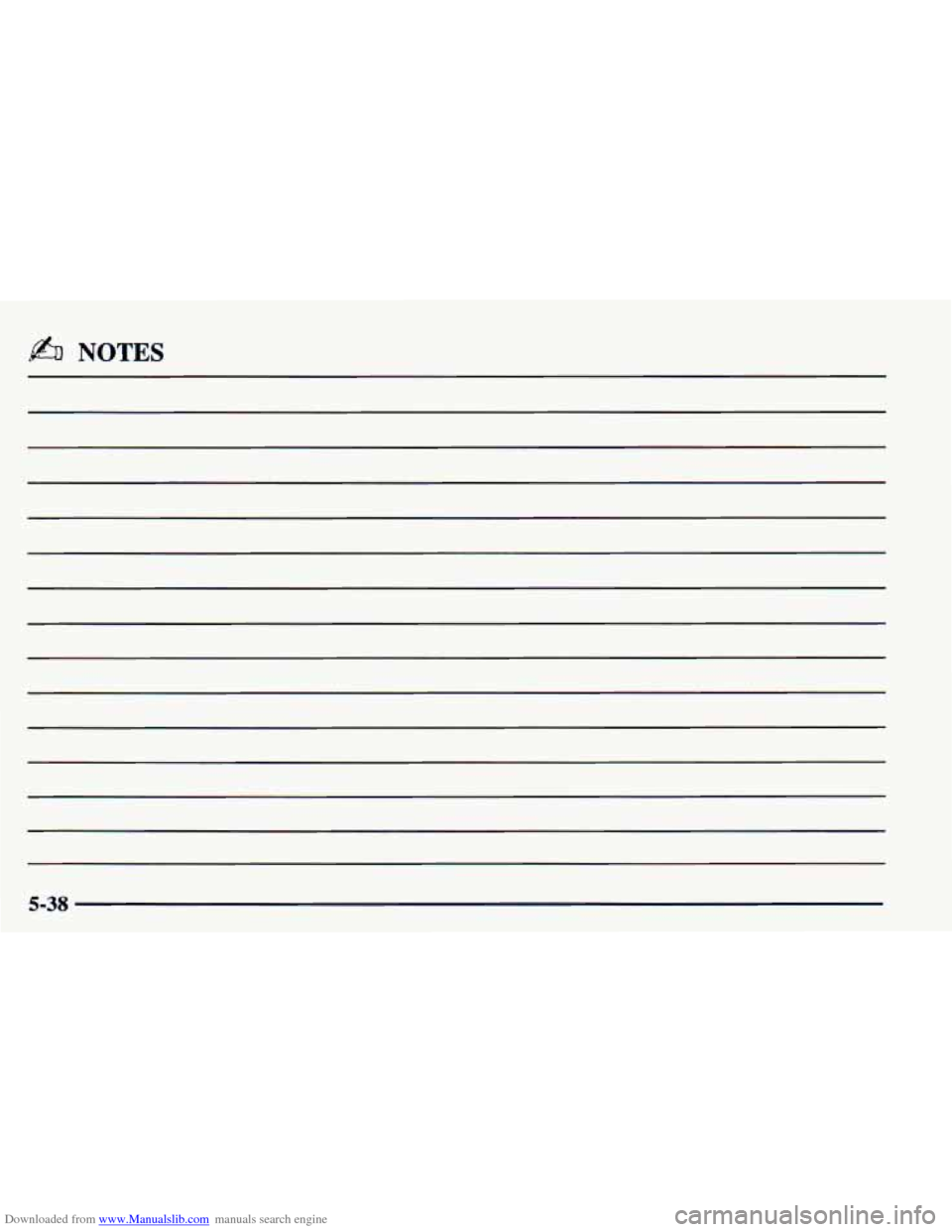

Downloaded from www.Manualslib.com manuals search engine fi NOTES
5-38
