MAINTENANCE AND ADJUSTMENTS
ENGINE-ELECTRICAL 6Y-19

PERIODIC MAINTENANCE

BREAKER POINT SYSTEM

The distributor breaker points and spark plugs are the

only ignition system components that require periodic

service. The remainder of the ignition system requires

only periodic inspection to check operation of the units,

tightness of the electrical connections, and condition of

the wiring. When checking the coil, test with a reputable

tester.

Breaker type distributors are equipped with cam lubri-

cator and should have the wick replaced at the same time

contact point set is replaced. It is not necessary to

lubricate the breaker cam when using a cam lubricator.

Do not attempt to lubricate the wick - Replace when

necessary. When installing a new wick, adjust its posi-

tion so the end of the wick just touches the lobe of the

breaker cam.

Distributor shaft lubrication is accomplished by a

reservoir of lube around the mainshaft in the distributor

body.

BREAKERLESS SYSTEM

Since there are no moving parts in the ignition pulse

amplifier unit mounted forward of the radiator bulkhead,

and the distributor shaft and bushings have permanent

type lubrication, no periodic maintenance is therefore

required for the breakerless ignition system. The dis-

tributor lower bushing is lubricated by engine oil through

a splash hole in the distributor housing, and a housing

cavity next to the upper bushing contains a supply of

lubricant which will last between overhaul periods. At

time of overhaul, the upper bushing may be lubricated

by removing the plastic seal and then adding SAE 20 oil

to the packing in the cavity. A new plastic seal will be

required since the old one will be damaged during

removal.

Tachometer readings for test purposes can be made on

the primary circuit of the breakerless ignition system in

the same manner as on the conventional ignition system,

however before attempting to connect a test tachometer

into the primary circuit check with your instrument

supplier to insure that satisfactory readings can be

obtained and the breakerless system will not be damaged

by the tachometer that is to be used,

IGNITION COIL CHECK (BREAKERLESS)

The ignition coil primary can be checked for an open
PULSE

AMPLIFIER

IGN. SWITCH WIRE

"("IGN" TERMINAL)
-E3 IJU
12
WHITE-

-20 BLACKf' • 12 WHITE-

Fig.
3i—
Breakerless Ignition System

condition by connecting an ohmmeter across the two

primary terminals with the battery disconnected. Pri-

mary resistance at 75
°F.
should be between .35 and .55

ohm. An infinite reading indicates the primary is open.

For the engine to run but miss at times, the primary

open may be of the intermittent type.

The coil secondary can be checked for an open by con-

necting an ohmmeter from the high tension center tower

to either primary terminal. To obtain a reliable reading,

a scale on the ohmmeter having the 20,000 ohm value

within, or nearly within, the middle third of the scale

should be used. Secondary resistance at 75°F. should be

between
8,000
and 12,500 ohms. If the reading is infinite,

the coil secondary winding is open.

A number of different types of coil testers are avail-

able from various test equipment manufacturers. When

using these testers, follow the procedure recommended

by the tester manufacturer.

tester will properly
NOTE:
Make sure the

check this special coil.

SPARK PLUGS

Should be removed, inspected cleaned and regapped at

tune-up. Defective plugs should be replaced, see Servic-

ing of Units Off the Vehicle.

SERVICE OPERATIONS

DISTRIBUTOR CONTACT POINTS

CLEANING

Dirty contact points should be dressed with a few

strokes of a clean, fine-cut contact file. The file should

not be used for other metals and should not be allowed to

become greasy or dirty. Never use emery cloth to clean

contact points. Contact surfaces, after considerable use,

may not appear bright and smooth, but this is not neces-
sarily an indication that they are not functioning satis-

factorily. Do not attempt to remove all roughness nor

dress the point surfaces down smooth; merely remove

scale or dirt.

Badly burned or pitted contact points should be re-

placed and the cause of trouble determined so it can be

eliminated. High resistance or loose connections in the

condenser circuit, oil or foreign materials on the contact

surfaces, improper point adjustment or high voltages may

CHEVROLET CHASSIS SERVICE MANUAL

ENGINE-ELECTRICAL-6Y-30

Fig.
2 li—Removing Ignition Switch Nut

4.
Remove heater and/or A/C control panel assembly

retaining screws and push panel assembly from

console.

NOTE: If interference between control panel

and radio is encountered, loosen radio retaining

nuts.

5.
Remove radio control knobs, bezels and retaining

nuts.

6. Disconnect radio wiring harness and antenna lead-in.

7.
Remove radio rear brace attaching screw and re-

move radio from vehicle.
Fig.
231—Switch and Connector Unplugged

8. Remove ignition switch bezel nut using Tool J-7607

and push switch rearward from panel opening.

9. Disconnect wiring connector from rear of switch.

10.
To install, reverse removal procedure.

SPARK PLUGS

CLEANING AND REGAPPING

Clean the spark plugs thoroughly, using an abrasive-

type cleaner. If the porcelains are badly glazed or

blistered, the spark plugs should be replaced. All spark

plugs must be of the same make and number or heat

range. Use a round feeler gauge to adjust the spark plug

gap to specifications (fig. 24i).

Fig.
22i—Unlocking Ignition Switch Connector

Fig.
241—Setting Sfxirk Plug Gap

CHEVROLET CHASSIS SERVICE MANUAL

ENGINE-ELECTRICAL
6Y-31

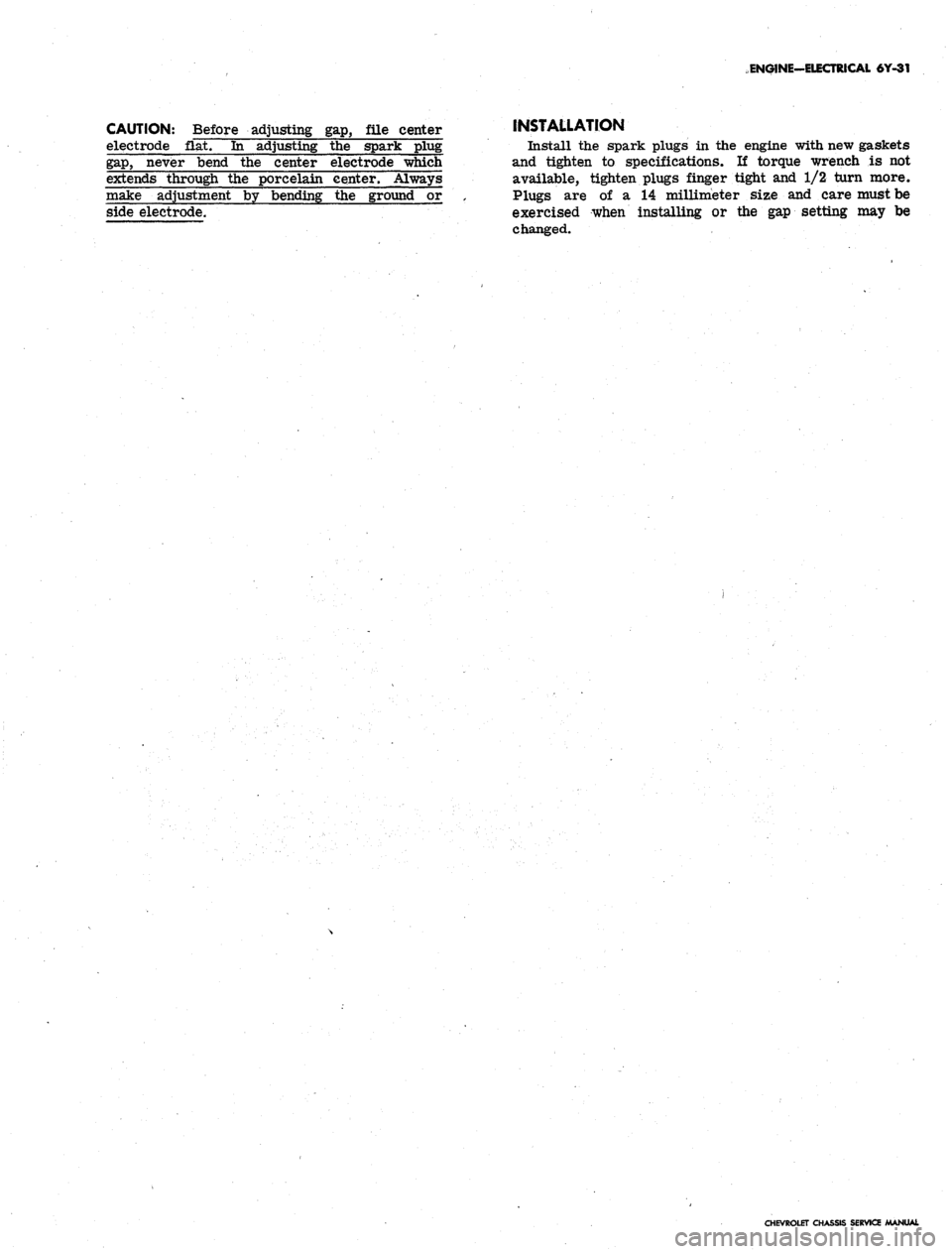

CAUTION: Before adjusting gap, me center
INSTALLATION

electrode flat. In adjusting the spark pluig Install the spark plugs in the engine with new gaskets

gap,
never bend the center electrode which and tighten to specifications. If torque wrench is not

extends through the porcelain center. Always available, tighten plugs finger tight and 1/2 turn more.

make adjustment by bending the ground or , Plugs are of a 14 millimeter size and care must be

side electrode. exercised when installing or the gap setting may be

changed.
