ENGINE FUEL 6M-6

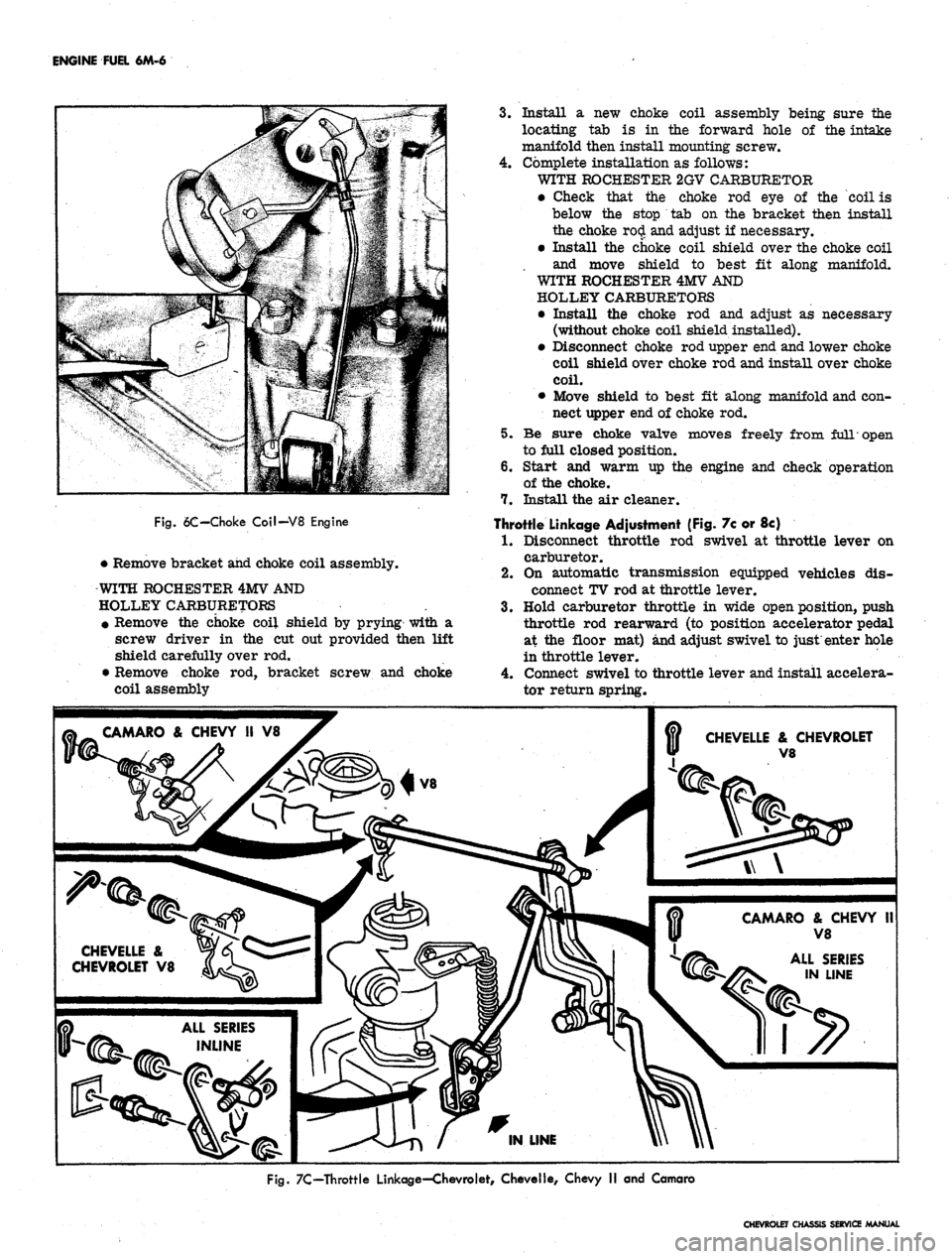

Fig.
6C-Choke Coil-V8 Engine

• Remove bracket and choke coil assembly.

WITH ROCHESTER 4MV AND

HOLLEY CARBURETORS

• Remove the choke coil shield by prying with a

screw driver in the cut out provided then lift

shield carefully over rod.

• Remove choke rod, bracket screw and choke

coil assembly
3.
Install a new choke coil assembly being sure the

locating tab is in the forward hole of the intake

manifold then install mounting screw.

4.
Complete installation as follows:

WITH ROCHESTER 2GV CARBURETOR

• Check that the choke rod eye of the coil is

below the stop tab on the bracket then install

the choke
ro and adjust if necessary.

• Install the choke coil shield over the choke coil

and move shield to best fit along manifold.

WITH ROCHESTER 4MV AND

HOLLEY CARBURETORS

• Install the choke rod and adjust as necessary

(without choke coil shield installed).

• Disconnect choke rod upper end and lower choke

coil shield over choke rod and install over choke

coil.

• Move shield to best fit along manifold and con-

nect upper end of choke rod.

5. Be sure choke valve moves freely from full open

to full closed position.

6. Start and warm up the engine and check operation

of the choke.

7. Install the air cleaner.

Throttle Linkage Adjustment (Fig. 7c or 8c)

1.
Disconnect throttle rod swivel at throttle lever on

carburetor.

2.
On automatic transmission equipped vehicles dis-

connect TV rod at throttle lever.

3.
Hold carburetor throttle in wide open position, push

throttle rod rearward (to position accelerator pedal

at the floor mat) and adjust swivel to just enter hole

in throttle lever.

4.
Connect swivel to throttle lever and install accelera-

tor return spring.

CAMARO & CHEVY II V8

CHEVELLE & CHEVROLET

V8

CAMARO
&
CHEVY
II

V8

CHEVELLE &

CHEVROLET V8
ALL SERIES

IN LINE

ALL SERIES

INLINE

Fig.
7C—Throttle Linkage—Chevrolet, Chevelle, Chevy II and Camaro

CHEVROLET CHASSIS SERVICE MANUAL

ENGINE-ELECTRICAL 6Y-11

I
BAT
JUNCTION BLOCK
DELCOTRON

—GRQ

BATTERY

&HJVVWV

0 VA OHM TEST RELAY >

RESISTOR [ 1 d

FUSIBLE

LINK

TO CRANKING

MOTOR
Ik

REGULATOR

VOLTMETER

FUSIBLE LINK

IGN.
SWITCH

Fig.
7c—Voltage Setting Test Connections

NOTE:
Voltage will not greatly exceed 12-1/2

volts until the battery develops a surface charge,

a few minutes generally, unless the battery is

severely discharged or is hot.

If reading is:

a. 12-1/2 volts or more, turn off electrical loads,

stop engine and proceed to Step 7.

b.
Less than 12-1/2 volts, perform "Delcotron Out-

put Test-Voltmeter Method."

(1) Delcotron tests bad—refer to "Service Op-

erations" and repair Delcotron, then repeat

Step 6.

(2) Delcotron tests good—disconnect regulator

connector, remove regulator cover and recon-

nect the connector. Then repeat Step 6 and

turn voltage adjusting screw (fig. 6c) to raise

setting to 12-1/2 volts. On transistor regula-

tor remove pipe plug (fig. 6c), insert screw

driver into slot and turn clockwise one or two

notches to increase setting. Turning counter-

clockwise decreases setting. For each notch

moved, the voltage setting will change ap-

proximately .3 volt. Turn off loads, stop en-

gine and proceed to Step 7. If 12-1/2 volts

cannot be obtained, install a new regulator and

repeat Step 6.

ADJUSTING REGULATOR VOLTAGE

7. Connect a 1/4 ohm-25 watt fixed resistor (purchased

commercially) into the charging circuit at the junc-

tion block as shown in Figure 7c.

NOTE:
Between both leads and the terminal.

8. Run engine at 1500 rpm or above for at least 15

minutes of warm-up, then cycle regulator voltage

control (by disconnecting and re-connecting regulator

connector) and read voltage.

If voltage is 13.5 to 15.2, the regulator is okay.

If voltage is not within 13.5 to 15.2 volts, leave en-

gine running at 1500 rpm or above and:
a. Disconnect four terminal connector and remove

regulator cover. Then re-connect four terminal

connector and adjust voltage to i4.2 to 14.6.

(Refer to Step 6 and fig. 6c).

b.
Disconnect four terminal connector and reinstall

regulator cover, then reinstall connector.

c. Continue running engine at 1500 rpm for 5-10

minutes to re-establish regulator internal

temperature.

d. Cycle regulator voltage by disconnecting and re-

connecting regulator connector. Read voltage. A

reading between 13.5 and 15.2 indicates a good

regulator.

CAUTION: Be sure four terminal regulator

connector is disconnected when removing or in-

stalling cover. This is to prevent regulator

damage by short circuits.

DELCOTRON OUTPUT TEST

Ammeter Method (Fig. 8c)

1.
Disconnect the battery ground cable at the battery.

2.
Disconnect the red wire at Delcotron battery termi-

nal and connect an ammeter in series between the

wire and terminal.

3.
Connect a voltmeter from battery terminal to a good

ground on the generator.

4.
Disconnect the F-R terminal connector at the

Delcotron.

5. Connect the jumper wire between Delcotron "F" and

battery terminals.

6. Connect the battery ground cable at the battery.

7. Connect an adjustable carbon pile across the battery

posts.

8. Start the engine and slowly bring the speed to 1500

RPM and at the same time adjust the carbon pile

load to hold the voltage at 14 volts.

9. Read the amperage and compare with a specifications

chart.

CHEVROLET CHASSIS SERVICE MANUAL

ENGINE-ELECTRICAL 6Y-32

STARTER CIRCUIT

INDEX

Page

General Description 6Y-32

Maintenance and Adjustments . '. . 6Y-32

Resistance Checks 6Y-32

Starting Motor and Solenoid Check 6Y-33
Page

Service Operations 6Y-33

Starter Motor 6Y-33

Removal and Installation 6Y-33

GENERAL DESCRIPTION

The function of the starting system, composed of the

starting motor, solenoid and battery, is to crank the

engine. The battery supplies the electrical energy, the

solenoid completes the circuit to the starting motor, and

the motor then does the actual work of cranking the

engine.

The starting motor (fig. Is) consists primarily of the

drive mechanism, frame, armature, brushes, and field

windings. The starting motor is a pad mounted 12-volt

extruded frame type, having four pole shoes and four
fields,
connected with the armature. The aluminum drive

end housing is extended to enclose the entire shift lever

and plunger mechanism, protecting them from dirt,

splash, and icing. The flange mounted solenoid switch

operates the overrunning clutch drive by means of a

linkage to the shaft lever.

The V-8 wiring harness differs from the in-line engine

in that the ignition lead to the coil from the switch is at-

tached at the coil instead of at the starter solenoid (fig.

2s).

CONTACT

FINGER

PINION

STOP

BRUSH

INSULATED BRUSH HOLDER \ FIELD COIL

BRUSH SPRING ARMATURE

GROUNDED BRUSH HOLDER
OVERRUNNING

CLUTCH

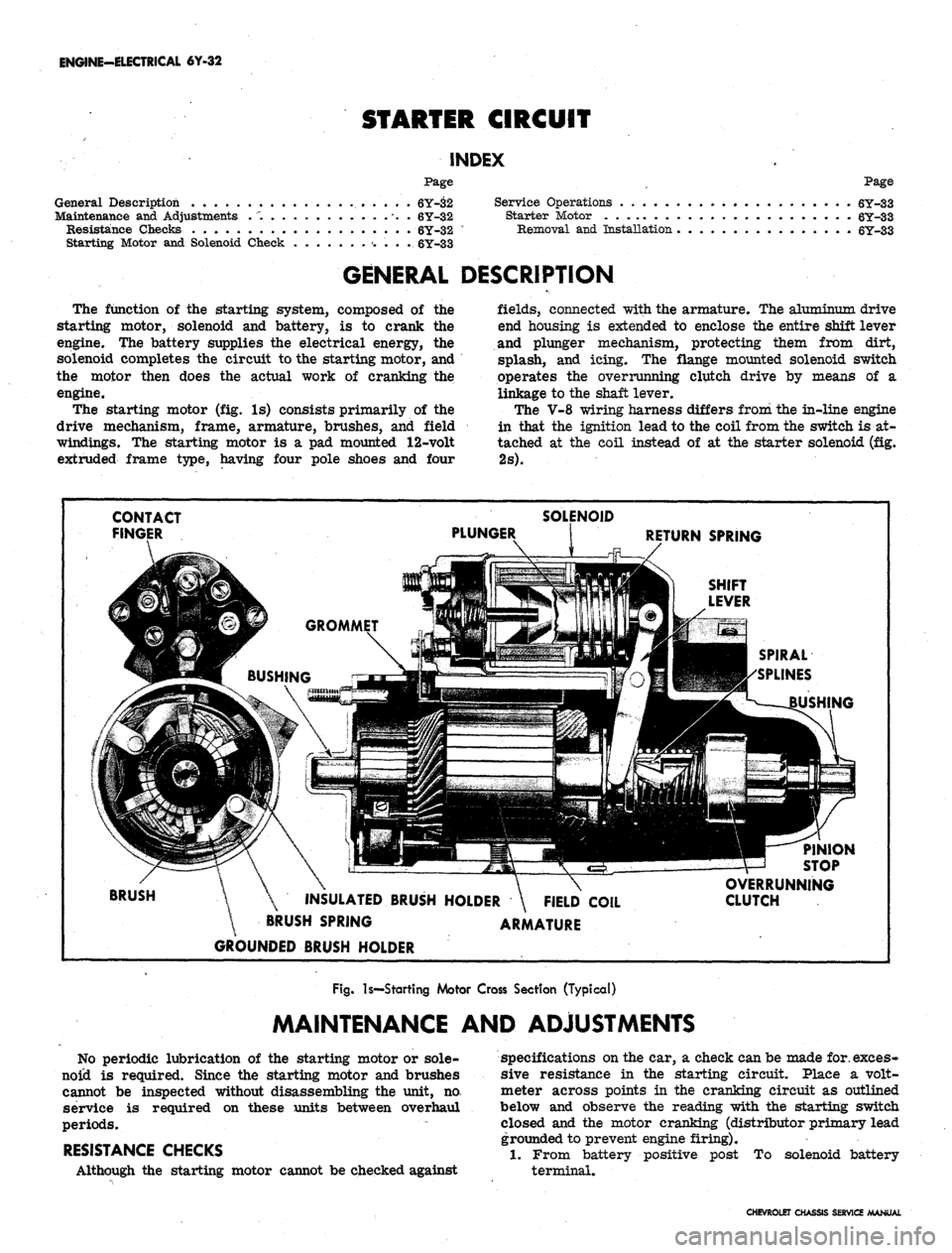

Fig.
Is—Starting Motor Cross Section (Typical)

MAINTENANCE AND ADJUSTMENTS

No periodic lubrication of the starting motor or sole-

noid is required. Since the starting motor and brushes

cannot be inspected without disassembling the unit, no.

service is required on these units between overhaul

periods.

RESISTANCE CHECKS

Although the starting motor cannot be checked against
specifications on the car, a check can be made for. exces-

sive resistance in the starting circuit. Place a volt-

meter across points in the cranking circuit as outlined

below and observe the reading with the starting switch

closed and the motor cranking (distributor primary lead

grounded to prevent engine firing).

1.
From battery positive post To solenoid battery

terminal.

CHEVROLET CHASSIS SERVICE MANUAL

CLUTCH AND TRANSMISSIONS 7-32

21.
Remove transmission output shaft slip yoke and in-

sert a plastic shipping plug in end of extension to

prevent spillage of transmission fluid.

NOTE:
The yoke is removed to avoid tearing

the heat reflecting pad on the underbbdy, when

the transmission is being removed.

22.
Remove bright metal ignition shielding from dis-

tributor area.

23.
Remove the transmission dip stick and tube

assembly.

24.
Disconnect transmission vacuum modulator line at

distributor advance line tee.

25.
Position transmission hoist under transmission and

attach safety chain to transmission.

26.
Remove transmission converter housing-to-engine

attaching foolts and slide transmission rearward.
NOTE:
Observe converter when moving trans-

mission rearward. If converter does not move

with the transmission, pry it free of flywheel

before proceeding.

27.
Install converter retaining strap.

28.
Lower and remove transmission from vehicle by

tilting the front down and to the right while inter-

mittently lowering the transmission to facilitate its

• removal.

29.
Reinstall transmission assembly by performing the

above steps in reverse order.

Bolt Torques

Transmission Case to Flywheel

Housing Bolts 35 ft. lbs.

Converter to Flywheel Bolts. . , . . 35 ft. lbs.

OTHER SERVICE OPERATIONS

Although certain operations, such as oil pan or gasket

replacement, valve body, governor, filler pipe "O" ring,

speedometer drive gear, case extension "0" ring and

rear oil seal, vacuum modulator, and servo cover or

gasket service may be performed from underneath the
vehicle without removing the Powerglide; their service

procedure is covered in the Passenger Overhaul Manual

and is not repeated here. Refer to the- Powerglide Sec-

tion of the Passenger Overhaul Manual for all other

service operations not covered here.

DIAGNOSIS

Proper operation of the Powerglide transmission may

be affected by a number of factors, all of which must be

considered when trouble in the unit is diagnosed.

Proper trouble diagnosis can only be accomplished

when performed in a thorough step by step procedure.

The following procedure has been devised and tested and

is recommended for all trouble diagnosis complaints and

if the service man will follow this checking procedure,

accurate and dependable diagnosis may be accomplished.

This will result in a savings of time, not only to the

service man, but to the customer as well.

WARMING UP TRANSMISSION

Before attempting to check and/or correct any com-

plaints on the Powerglide transmission it is absolutely

essential that the oil level be checked and corrected if

necessary. An oil level which is either too high or too

low can be the cause of a number of abnormal conditions

from excessive noise to slippage in all ranges.

It must be remembered that cold oil will slow up the

action of the hydraulic controls in the transmission. For

this reason a trouble or oil leak diagnosis should not be

attempted until the transmission has been warmed up by

either of the following procedures:

Shop Warm Up

1.
Connect tachometer to engine.

2.
Set parking brake tight and start engine.

3.
Place selector light in
"D"
(drive) range.

4.
Adjust carburetor idle speed adjusting screw to run

engine at approximately 750 rpm and operate in this

manner for two minutes. At the end of two minutes

of operation, the transmission will be sufficiently

warmed up for diagnosis purposes.
NOTE:
At this point, readjust the engine idle

speed to 450-475 rpm in
"D"
range.

Road Warm Up

Drive the car approximately 5 miles with frequent

starts and stops.

NOTE:
At this point, make sure the engine idle

speed is set to 450-475 rpm in
"D"
range.

CHECKING FLUID LEVEL AND CONDITION

After transmission has been warmed up, check the

fluid level with the engine idling, parking brake set and

control lever in "N" (neutral). If the fluid level is low,

add fluid to bring level up to the full mark on gauge rod,

CAUTION: If fluid level is too high, fluid may

be aerated by the planet carrier. Aerated fluid

will cause turbulence in the converter which will

result in lost power, lower stall speed and lower

pressures in control circuits. Lower fluid level

to full mark, then shut off engine to allow air

bubbles to work out of fluid.

When checking oil level, aburned smell and discolora-

tion indicate burned clutches or bands and the transmis-

sion will have to be removed.

MANUAL LINKAGE

Manual linkage adjustment and the associated neutral

safety switch are important from a safety standpoint.

The neutral safety switch should be adjusted so that the

engine will start in the Park and Neutral positions only.

With the selector lever in the Park position, the park-

ing pawl should freely engage and prevent the vehicle

CHEVROLET CHASSIS SERVICE MANUAL

CLUTCH AND TRANSMISSIONS 7-37

LI.
- LI Range can be selected at any vehicle speed,

and the transmission will shift to second gear

and remain in second until vehicle speed is re-

duced to approximately 40 MPH, .depending on

axle ratio. LI Range position prevents the trans-

mission from shifting out of first gear.
It is very important that any communication concerning

the Turbo Hydra-Matic always contain the transmission

serial number and that all transmission parts returned

to Chevrolet Motor Division always be tagged with the

transmission serial number.

MAINTENANCE AND ADJUSTMENTS

TRANSMISSION FLUID

Transmission fluid level should be checked with trans-

mission warm and selector lever in "P" Park position,

every time engine oil level is checked or as specified in

Section 0 when engine oil is changed.

CAUTION: Since the Turbo Hydra-Matic trans-

mission is very sensitive to oil level, special

precautions should be taken when checking the

oil level, to insure against an overfifE

Transmission fluid should be changed as specified in

Section 0.

FLUID LEVEL INDICATOR

The fluid level indicator is located in the filler pipe at

the right rear corner of the engine. To bring the fluid

level from the add mark to the full mark add 1 pint.

Fluid level should be to the full mark with transmission

at normal operating temperature. With cold fluid the

level should be at the add mark or slightly below.

SHIFT CONTROL LINKAGE ADJUSTMENT

Adjust linkage as shown below and in Figure 2.

1.
The shift tube and lever assembly must be free in the

mast jacket See Section 9 for alignment of steering

column assembly if necessary.

2.
To check for proper shift linkage adjustment, lift the

transmission selector lever towards the steering

wheel. Allow the selector lever to be positioned in

drive (D) by the transmission detent.

NOTE: Do not use the indicator pointer as a

reference to position the selector lever. When

performing linkage adjustment, pointer is ad-

justed last.

3.
Release the selector lever. The lever should be in-

hibited from engaging low range unless the lever is

lifted.

4.
Lift the selector lever towards the steering wheel,

and allow the lever to be positioned in neutral (N) by

the transmission detent.

5.
Release the selector lever. The lever should now be

inhibited from engaging reverse range unless the

lever is lifted.

6. A properly adjusted linkage will prevent the selector

lever from moving beyond both the neutral detent,

and the drive detent unless the lever is lifted to pass

over the mechanical stop in the steering column.

See schematic diagram.

7.
In the event that an adjustment is required, place the

selector lever in drive (D) position as determined by

the transmission detent. See Steps 2 and 3.

8. Loosen the adjustment swivel at the cross-shaft, and
rotate the transmission lever so that it contacts the

drive stop in the steering column.

9. Tighten the swivel and recheck the adjustment. See

Steps 2 and 6. -

l(h Readjust indicator needle if necessary to agree with

the transmission detent" positions. See Section 9.

11.
Readjust neutral safety switch if necessary to pro-

vide the correct relationship to the transmission de-

tent positions. See Section 12.

12.
When properly adjusted the following conditions must

be met by manual operation of the steering column

shift lever:

a. From reverse to drive position travel, the trans-

mission detent feel must be noted and related to

indicated position on dial.

b.
When in drive and reverse positions, pull lever

rearward (towards steering wheel) and then re-

lease. It must drop back into position with no

restrictions.

NEUTRAL SAFETY SWITCH ADJUSTMENT

The neutral safety switch must be adjusted so that the

car will start in the park or neutral position, but will not

start in the other positions. For replacement refer to

Section 12 of this Manual.

DRAINING AND REFILLING TRANSMISSION

Drain oil immediately after operation before it has had

an opportunity to cool.

To drain oil proceed as follows:

1.
Remove bottom pan attaching screws, pan, and gas-

ket.

2.
Remove oil strainer. Remove "O" ring seal from

pick-up pipe and discard.

3.
Discard strainer if dirty.

4.
Install new "O" ring seal on pick-up pipe and install

strainer and pipe assembly.

5.
Thoroughly clean bottom pan.

6.. Affix new gasket to bottom pan with petroleum jelly.

7.
Install bottom pan with attaching screws and torque

to specifications;

8. If only the pan has been removed, pour approximately

7-1/2 pints of fluid into the transmission. If the

valve body has also been removed use 9-1/2 pints.

After a complete overhaul approximately 19 pints

are required. Be sure container, spout, or funnel is

clean.

9. Start engine and let idle (carburetor off fast idle

step).
Place selector lever in P position and apply

hand brake.

10.
With transmission warm (approximately 150°F), add

fluid to bring level to full mark on indicator.

CAUTION: Do not overfill. Foaming will re-

sult.

CHEVROLET CHASSIS SERVICE MANUAL

STEERING
9-33

POWER STEERING

INDEX

Page

General Description
. 9-33

Maintenance
and
Adjustments
9-33

Bleeding Hydraulic System
9-33

Fluid Level
. 9-33

Adjustments
. 9-34

Power Steering Gear
. . 9-34

Pump Belt Tension
9-34
Hydraulic System Checks
9-34

Component Replacement
and
Repairs
. 9-35

Power Steering Pump.
. 9-35

Power Steering Gear
9-36

Control Valve
and
Adapter Assembly
9.35

Power Cylinder
9.37

Power Steering Hoses
9.39

GENERAL DESCRIPTION

Two types
of
power steering
are
used
for 1967.
One
is

the conventional linkage type
for
Chevy
n and
Corvette

vehicles
and the
other
is the
integral gear type
for

Chevrolet, Chevelle,
and
Camaro.
For
both types
the

hydraulic pressure
is
provided
by an
engine-driven vane-

type pump.

On
the
Chevy
n and
Corvette linkage type power steer-

ing, hydraulic pressure
is
delivered through
a
hose from

the pump
to a
valve which senses
the
requirement
for

power assistance
and
supplies
the
power cylinder
ac-

cordingly.
The
steering gear used with this power steer-

ing
is the
same basic unit used
on
manually steered

vehicles;
it is
serviced
as
outlined
in the
manual steering

part
of
this section except
for
adjustment, which
is

covered
in the
following pages.
The
steering linkage also

is serviced the same
as
manual counterparts.

The Chevrolet, Chevelle
and
Camaro integral gear type

power steering
has the
hydraulic pressure delivered

from
the
pump through two hoses
to the
steering gear.
In
the power steering gear
the
steering shaft, hydraulic

valve, worm, and rack-piston
nut are all in
line making
a

compact
and
space saving assembly.
All oil
passages
are

internal within
the
gear except
the
pressure
and
return

hoses.

The steering gear
is a
recirculating ball system
in

which steel balls
act as a
rolling thread between
the

steering worm
and
rack-piston
nut. The
rack-piston
nut

is
all one
piece
and is
geared
to the
sector
of
the piston

shaft.
The
valve
is
contained
in the
gear housing elimi-

nating
the
need
of
bolts
or
seals
to
attach
a
separate

valve housing.

The valve
is an
open-center, rotary-type three
way

valve.
The
spool
is
held
in
neutral position by means
of a

torsion
bar. The
spool
is
attached
by
means
of
the stub

shaft
to one end of the
torsion
bar
and
to the
valve body

on
the
other
end.
Twisting
of the
torsion bar allows
the

spool
to
move
in
relation
to the
valve body thereby oper-

ating
the
valve.

MAINTENANCE
AND
ADJUSTMENTS

BLEEDING HYDRAULIC SYSTEM

1.
Fill
oil
reservoir
to
proper level and
let oil
remain

undistrubed
for at
least two minutes.

2.
Start engine
and run
only
for
about
two
seconds.

3.
Add
oil if
necessary.

4.
Repeat above procedure until
oil
level remains
con-

stant after running engine.

5. Raise front
end of
vehicle
so
that wheels
are off
the

ground.

6. Increase engine speed
to
approximately
1500 rpm.

7. Turn
the
wheels
(off
ground) right
and
left, lightly

contacting
the
wheel stops.

8. Add
oil if
necessary.

9. Lower
the car and
turn wheels right and left
on the

ground.

10.
Check
oil
level and refill
as
required.

11.
If oil is
extremely foamy, allow vehicle
to
stand
a

few minutes with engine
off and
repeat above

procedure.
,

a.
Check belt tightness
and
check
for a
bent
or
loose

pulley. (Pulley should
not
wobble with engine

running.)
b.
Check
to
make sure hoses
are not
touching
any

other parts
of the car,
particularly sheet metal.

c. Check
oil
level, filling
to
proper level
if
neces-

sary, following operations
1
through
10.
This

step
and
Step
"D" are
extremely important
as

low
oil
level and/or
air in the oil are the
most

frequent causes
of
objectionable pump noise.

d. Check
the
presence
of air in the oil. If air is

present, attempt
to
bleed system
as
described
in

operations
1
through
10. If it
becomes obvious

that
the
pump will
not
bleed after
a few
trials,

proceed
as
outlined under Hydraulic System

Checks.

FLUID
LEVEL

1.
Check
oil
level
in the
reservoir
by
checking
the dip

stick when
oil is at
operating temperature.
On

Chevelle models equipped with remote reservoir,

the reservoir should
be
maintained approximately

3/4 full when
oil is at
operating temperature.

2.
Fill,
if
necessary,
to
proper level with
GM
Power

Steering Fluid
or, if
this
is not
available, automatic

CHEVROLET CHASSIS SERVICE MANUAL

STEERING 9-35

Fig.
66—Power Steering Diagnosis

shown in Figure 66. Gauge must be between shut-

off valve and pump. Open shut-off valve,

b.
Remove filler cap from pump reservoir and check

fluid level. Fill pump reservoir to full mark on

dip stick. Start engine and, holding steering

wheel against stop, check connections at Tool

J-5176 for leakage. Bleed system as outlined
under Maintenance and Adjustments. Insert ther-

mometer (Tool J-5421) in reservoir filler open-

ing. Move steering wheel from stop to stop

several times until thermometer indicates that

hydraulic fluid in reservoir has reached tempera-

ture of 150° to 170°F.

CAUTION: To prevent scrubbing flat spots on

tires,
do not turn steering wheel more than five

times without rolling car to change tire-to-floor

contact area.

c. Hold steering wheel against a stop momentarily

and read pressure gauge. If the maximum pres-

sure is below specifications, a faulty hydraulic

circuit is indicated. To determine which part is

faulty, proceed with test number two.

Test Number Two—Oil Circuit Closed

a. Slowly turn shut-off valve on J-5176 to closed

position and read pressure indicated on gauge.

Quickly reopen valve to avoid pump damage, if

indicated pressure is less than specification,

pump output is below requirement and pump may

be considered faulty. If pressure indicated is

within specifications, it may be safely assumed

that the external hoses, connections, valve and

adapter or steering gear is at fault.

NOTE:
If pump proves faulty in test number

two,
test should be repeated after pump is re-

paired and installed in vehicle. This will provide

a means of checking the repairs made to the

pump and the condition of the steering gear or

valve and adapter which may also be faulty.

COMPONENT REPLACEMENT AND REPAIRS

POWER STEERING PUMP

Removal (Fig. 67)

1.
Disconnect hoses at pump. When hoses are discon-

nected, secure ends in raised position to prevent

drainage of oil. Cap or tape the ends of the hoses to

prevent entrance of dirt.

NOTE:
Chevelle with 396 engine uses a remote

reservoir. It is necessary to disconnect the

reservoir to pump hose before removing the

pump.
Hold a 1 qt. container under the reservoir

when the hose is removed to catch the fluid.

2.
Install two caps at pump fittings to prevent drainage

of oil from pump.

3.
Remove pump belt.

4.
On Corvette with 427 engine, loosen alternator ad-

justment and remove pump to alternator belt.

5. Remove pump from attaching parts and remove pump

from vehicle.

NOTE:
On Chevrolet and Chevy II equipped with

283 and 327 engine it may be necessary to re-

move pump brace.

6. Remove drive pulley attaching nut.

7. Remove pulley from shaft with Tool J-21239 (for

stamped pulleys) or Tool J-8433-1 with J-8433-2
adapter (for cast iron pulleys). Do not hammer

pulley off shaft as this will damage the pump.

Fig.
67—Power Steering Pump Mounting

CHEVROLET CHASSIS SERVICE MANUAL

ELECTRICAL-BODY AND CHASSIS 12-46

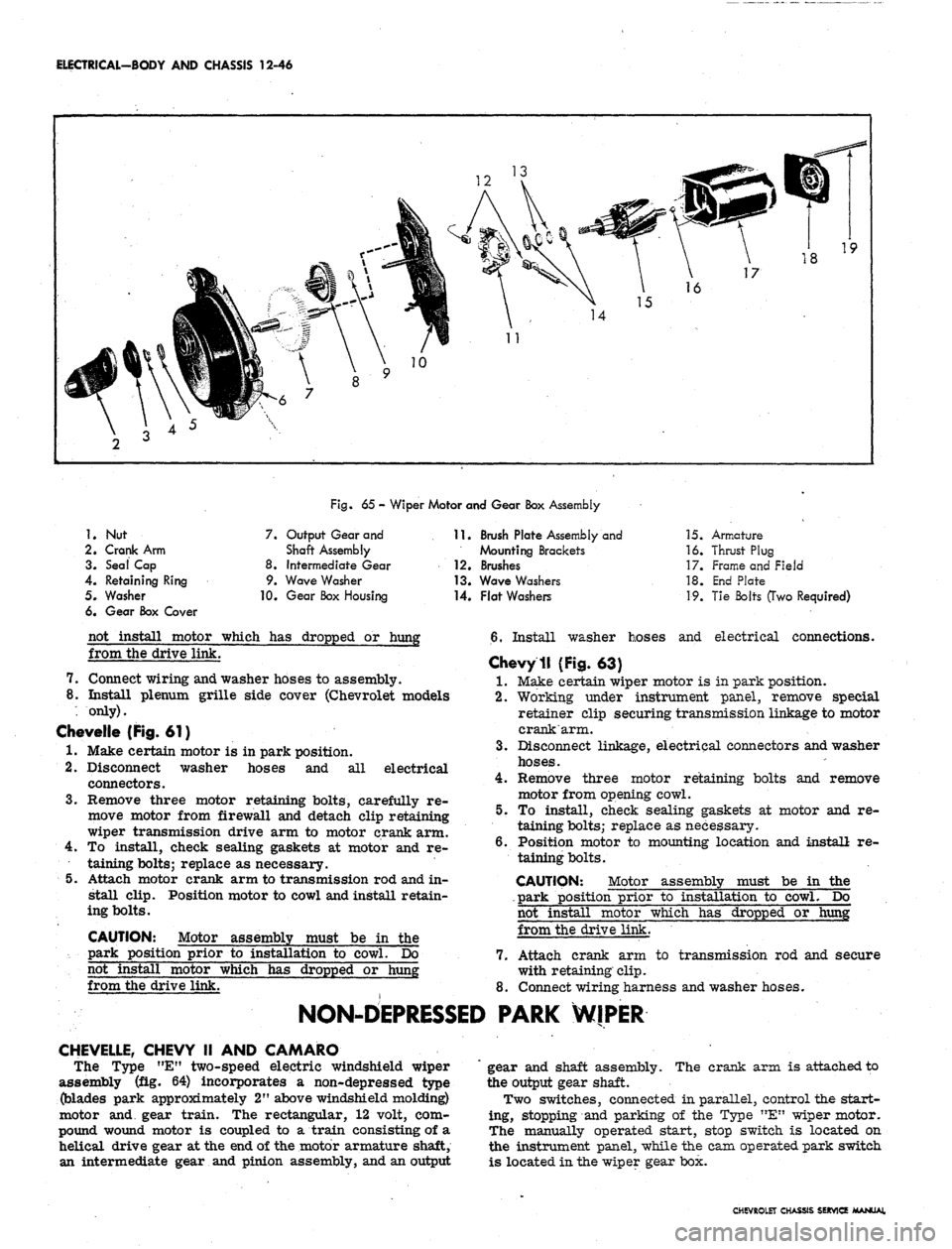

Fig.
65 - Wiper Motor and Gear Box Assembly

1.

2.

3.

4.

5.

6.
Nut

Crank Arm

Seal Cap

Retaining Ring

Washer

Gear Box Cover
7.

8.

9.
Output Gear and

Shaft Assembly

Intermediate Gear

Wave Washer

10.
Gear Box Housing
11.
Brush Plate Assembly and

Mounting Brackets

12.
Brushes

13.
Wave Washers

14.
Flat Washers
15.
Armature

16.
Thrust Plug

17.
Frame and Field

18.
End Plate

19.
Tie Bolts (Two Required)

not install motor which has dropped or hung

from the drive link.

7.
Connect wiring and washer hoses to assembly.

8. Install plenum grille side cover (Chevrolet models

. only).

CheveKe (Fig, 61)

1.
Make certain motor is in park position.

2.
Disconnect washer hoses and all electrical

connectors.

3.
Remove three motor retaining bolts, carefully re-

move motor from firewall and detach clip retaining

wiper transmission drive arm to motor crank arm.

4.
To install, check sealing gaskets at motor and re-

taining bolts; replace as necessary.

5.
Attach motor crank arm to transmission rod and in-

stall clip. Position motor to cowl and install retain-

ing bolts.

CAUTION: Motor assembly must be in the

park position prior to installation to cowl. Do

not install motor which has dropped or hung

from the drive link.
6. Install washer hoses and electrical connections.

Chevy
II (Fig. 63)

1.
Make certain wiper motor is in park position.

2.
Working under instrument panel, remove special

retainer clip securing transmission linkage to motor

crank arm.

3.
Disconnect linkage, electrical connectors and washer

hoses.

4.
Remove three motor retaining bolts and remove

motor from opening cowl.

5.
To install, check sealing gaskets at motor and re-

taining bolts; replace as necessary.

6. Position motor to mounting location and install re-

taining bolts.

CAUTION: Motor assembly must be in the

.park position prior to installation to cowl. Do

not install motor which has dropped or hung

from the drive link.

7.
Attach crank arm to transmission rod and secure

with retaining clip.

8. Connect wiring harness and washer hoses.

NON-DEPRESSED PARK WIPER

CHEVELLE, CHEVY II AND CAMARO

The Type "E" two-speed electric windshield wiper

assembly (fig. 64) incorporates a non-depressed type

(blades park approximately 2" above windshield molding)

motor and gear train. The rectangular, 12 volt, com-

pound wound motor is coupled to a train consisting of a

helical drive gear at the end of the motor armature shaft,

an intermediate gear and pinion assembly, and an output
gear and shaft assembly. The crank arm is attached to

the output gear shaft.

Two switches, connected in parallel, control the start-

ing, stopping and parking of the Type "E" wiper motor.

The manually operated start, stop switch is located on

the instrument panel, while the cam operated park switch

is located in the wiper gear box.

CHEVROLET CHASSIS SEKV1CE MANUAL

ELECTRICAL-BODY
AND
CHASSIS
12-49

BELLOWS
AND

SPRING
HOUSING
COIL
AND
POLE

ASSEMBLY

VALVE

ASSEMBLY
RATCHET

PAWL

ASSEMBLY

RATCHET

WHEEL

ACTUATOR
PLUNGER
ARM

ACTUATOR
PIN
HOLDING CONTACTS
OPEN

RAMP TANG

PLUNGER
ARM

Fig.
73 -
Releasing
Pump from
Lockout Position

Fig.
72 -
Washer
Pump
Mechanism

REMOVAL AND INSTALLATION

Removal of the washer pump from the wiper motor

consists of:

1.
Disconnect wiring harness and washer hoses from

washer.

2.
Remove the two pump-to-wiper retaining screws and

remove washer from wiper (fig. 66).

3.
Reverse removal procedure to install assembly.

DISASSEMBLY-ASSEMBLY

Refer to Figure

1.
Remove washer pump cover.

2.
Relay

a. To remove relay unsolder coil leads from

terminals.

NOTE:
No coil polarity is necessary when re-

soldering coil leads.

b.
Remove coil retainer clip and slip coil assembly

out of mounting bracket.

3.
Ratchet Pawl

a. To remove ratchet pawl disengage spring from

ratchet pawl and slide ratchet pawl from shaft.
CAUTION: Be sure spring is properly assem-

bled before replacing washer pump cover.

Terminal Board

a. Remove terminal board attaching screws, ratchet

dog and board from washer base.

Ratchet Wheel

a. Remove lock ring from shaft.

b.
Slide ratchet wheel from shaft.

Valve Assembly

a. To remove valve assembly remove screws that

secure valve assembly to bellows housing.

CAUTION: It may be necessary to carefully

pry bellows lip out of the valve body groove.

Bellows

a. To remove bellows first remove valve assembly.

b.
Manually operate pump clockwise to release pump

from 'lock-out" position (fig, 73).

c. Hold bellows plunger arm from moving, then push

in against bottom of bellows with thumb and twist

bellows spring from housing.

Actuator Pin

a. Remove actuator pin retaining spring and slide

pin from washer base.

Reverse disassembly procedure to assemble washer.

DEPRESSED PARK 2-SPEED WIPER

CHEVROLET

GENERAL DESCRIPTION

The Type "C" two speed electric wiper assembly (fig.

74) incorporates a depressed park type (blades park

against windshield lower molding when the motor is

turned off) motor and gear train. The wiper has a com-

pound wound 12 volt motor and a gear box section con-

taining the gear mechanism and relay control. The motor

armature is fitted with a worm gear which drives the

main gear assembly and crank arm.

The relay control, consisting of a relay coil, relay

armature and switch assembly, is located in the gear box
section bid controls the starting and stopping of the wiper

through a latching mechanism (fig. 75).

An electric washer pump is mounted on the gear box

section of the wiper and is driven by the wiper unit gear

assembly (fig* 75).

The overhaul procedures for the wiper are broken down

into three major areas: The motor section, gear box

section and washer pump section. Each section maybe

serviced independently of the other.

CHEVROLET CHASSIS SEftVKX

ELECTRICAL-BODY
AND
CHASSIS
12-56

DEPRESSED PARK 2-SPEED WIPER
AND
WASHER

CORVETTE

GENERAL DESCRIPTION

The 2-speed windshield wiper
(fig. 91)
consists
of a

compound wound
12
volt dc motor and
a
gear box section

containing
the
gear mechanism
and
relay control.
The

motor armature
is
fitted with
a
worm gear which drives

the main gear assembly and crank arm.

The relay control, consisting
of a
relay coil, relay
armature
and
switch assembly,
is
located in the gear
box"

section and controls the starting and stopping of the wiper

through
a
latching mechanism (fig. 92).

An electric .washer pump
is
mounted
on the
gear box

section
of the
wiper
and is
driven by the wiper unit gear

assembly (fig. 93).

SERVICE OPERATIONS

WIPER MOTOR
AND
WASHER

PUMP ASSEMBLY

REMOVAL AND INSTALLATION

1.
Raise vehicle hood
and
disconnect, ground lead
at

battery.

2.
Remove engine distributor shielding
and
left bank

spark plug wire vertical shield.

3.
Disconnect left bank spark plug wire bracket-to-

manifold and position assembly to one side.

4.
Disconnect ignition resistor at firewall, then remove

washer pump inlet
and
outlet hose
at
pump valve

assembly.

5.
Remove engine distributor
cap
and position
to one

side;
then disconnect washer pump
and
motor
as-

sembly lead wires.

6. Remove glove
box
door
and
compartment. Refer
to

Section
1
for
removal procedure.

7.
Make sure wiper arms
and
wiper motor are both
in

the parked position; then remove
the
wiper trans-

mission retaining clip and disconnect both transmis-

sion and spacer from crank arm (fig. 93).

8. Remove four wiper motor-to-dash wall mounting

bolts and remove wiper motor from vehicle.

9. With
the aid of
an assistant position the wiper motor

to
the
dash wall
and
install the four motor mounting

bolts,
making sure motor assembly
is in
parked

position.

GEAR

BOX

SECTION
—<

MOUNTING
^*^

GROMMET

MOTOR
_/

SECTION
MOUNTING

/"""GROMMET

ARMATURE
END
PLAY

ADJUSTING SCREW

AND LOCK
NUT

P
^
CRANK

^_ /GROMMETS
RELAY

Fig.
92 -
Relay Control

10.
Position left transmission assembly, spacer
and

right transmission assembly
on
crank arm, then in-

stall
the
retaining clip
in the
groove
in
the crank

arm.

11.
Install glove compartment and door assembly. Refer

to Section
1
for
installation procedure.

12.
Install washer pump and motor assembly lead wires;

then install engine-distributor cap.

13.
Install washer pump inlet
and
outlet hose
to
pump

valve assembly, then install ignition resistor
to

firewall.

14.
Connect left bank spark plug wire bracket-to-mani-

fold, vertical shield and engine distributor shielding.

ROTOR
CAM. ^

CAM SLOT-~-*"'-*

WASHER PUMP^.

DRIVE
PIN
m

M
VALVE

— ASSEMBLY

i

Fig.
91 - Wiper Assembly—Corvette
Fig.
93 - Washer Pump

CHEVROLET CHASSIS SERVICE MANUAL
