CHEVROLET CAMARO 1995 4.G Owners Manual

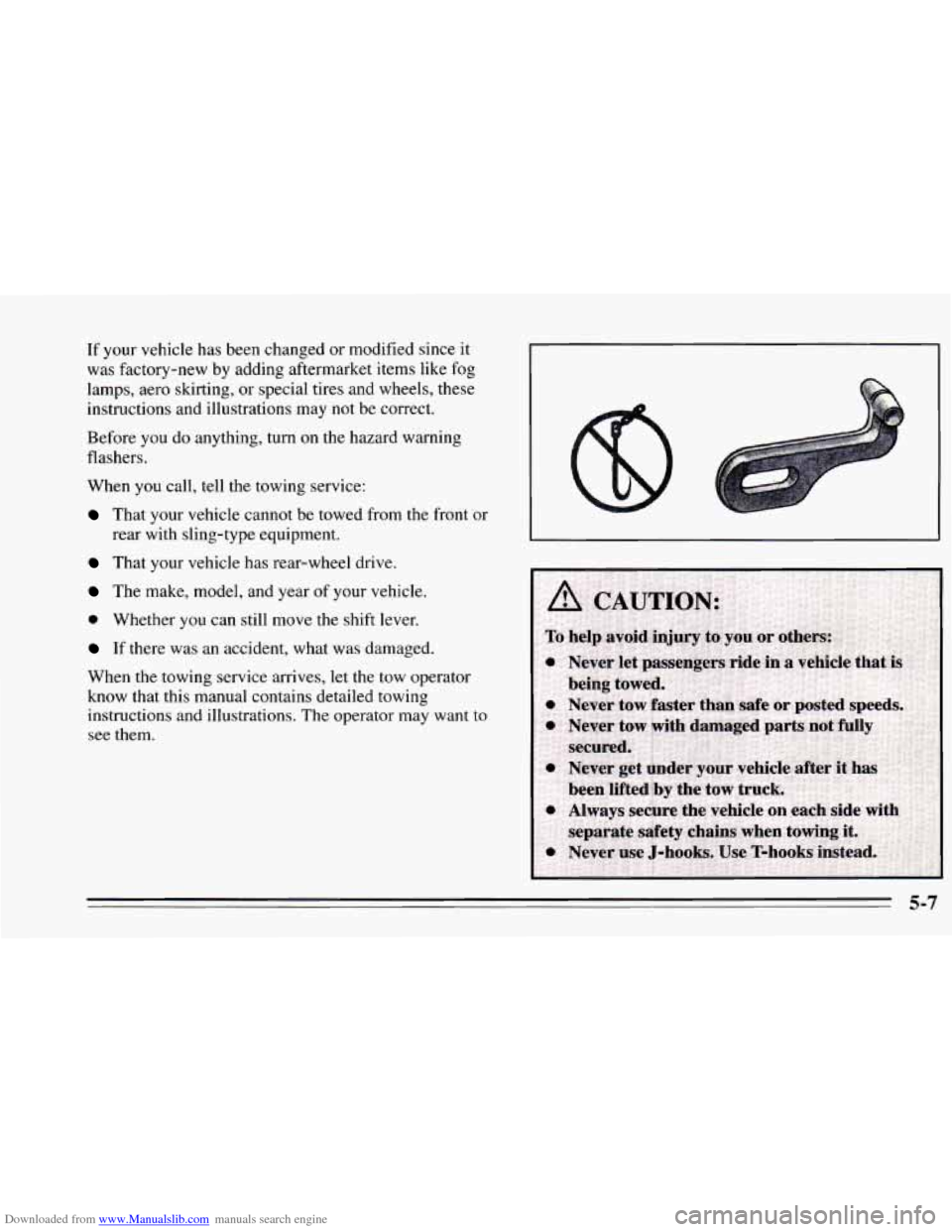

Downloaded from www.Manualslib.com manuals search engine If your vehicle has been changed or modified since it
was factory-new by adding aftermarket items like fog
lamps, aero skirting, or special tires and wheels, these
instructions and illustrations may not be correct.
Before you do anything, turn on the hazard warning
flashers.
When you call, tell the towing service:
That your vehicle cannot be towed from the front or
rear with sling-type equipment.
That your vehicle has rear-wheel drive.
The make, model, and year of your vehicle.
0 Whether you can still move the shift lever.
If there was an accident, what was damaged.
When the towing service arrives, let the tow operator
know that this manual contains detailed towing
instructions and illustrations. The operator may want to
see them.
5-7

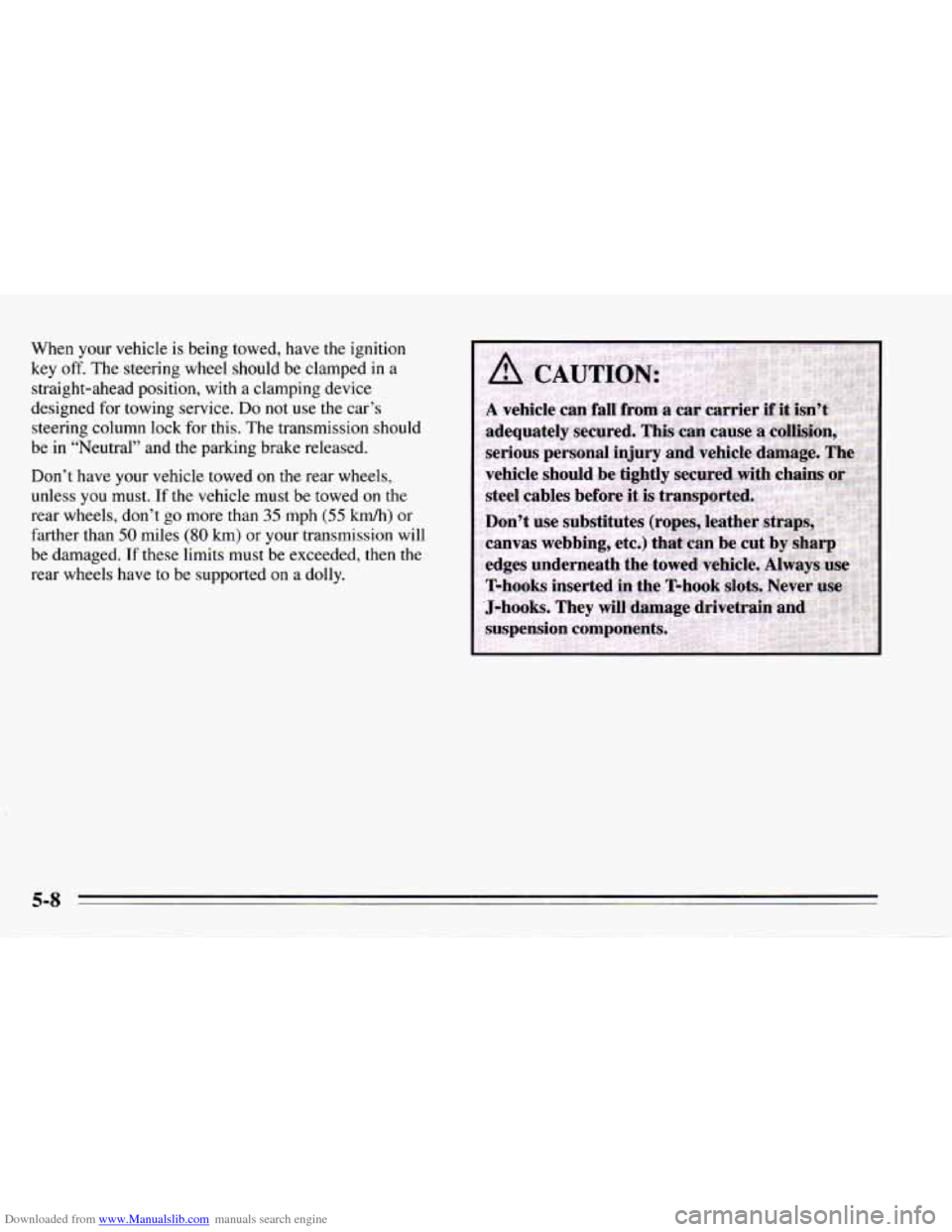

Downloaded from www.Manualslib.com manuals search engine When your vehicle is being towed, have the ignition
key off. The steering wheel should be clamped in a
straight-ahead position, with a clamping device
designed for towing service.
Do not use the car’s
steering column lock for this. The transmission should
be in “Neutral” and the parking brake released.
Don’t have your vehicle towed
on the rear wheels,
unless you must.
If the vehicle must be towed on the
rear wheels, don’t go more than
35 mph (55 km/h) or
farther than 50 miles (80 km) or your transmission will
be damaged.
If these limits must be exceeded, then the
rear wheels have to be supported on
a dolly.

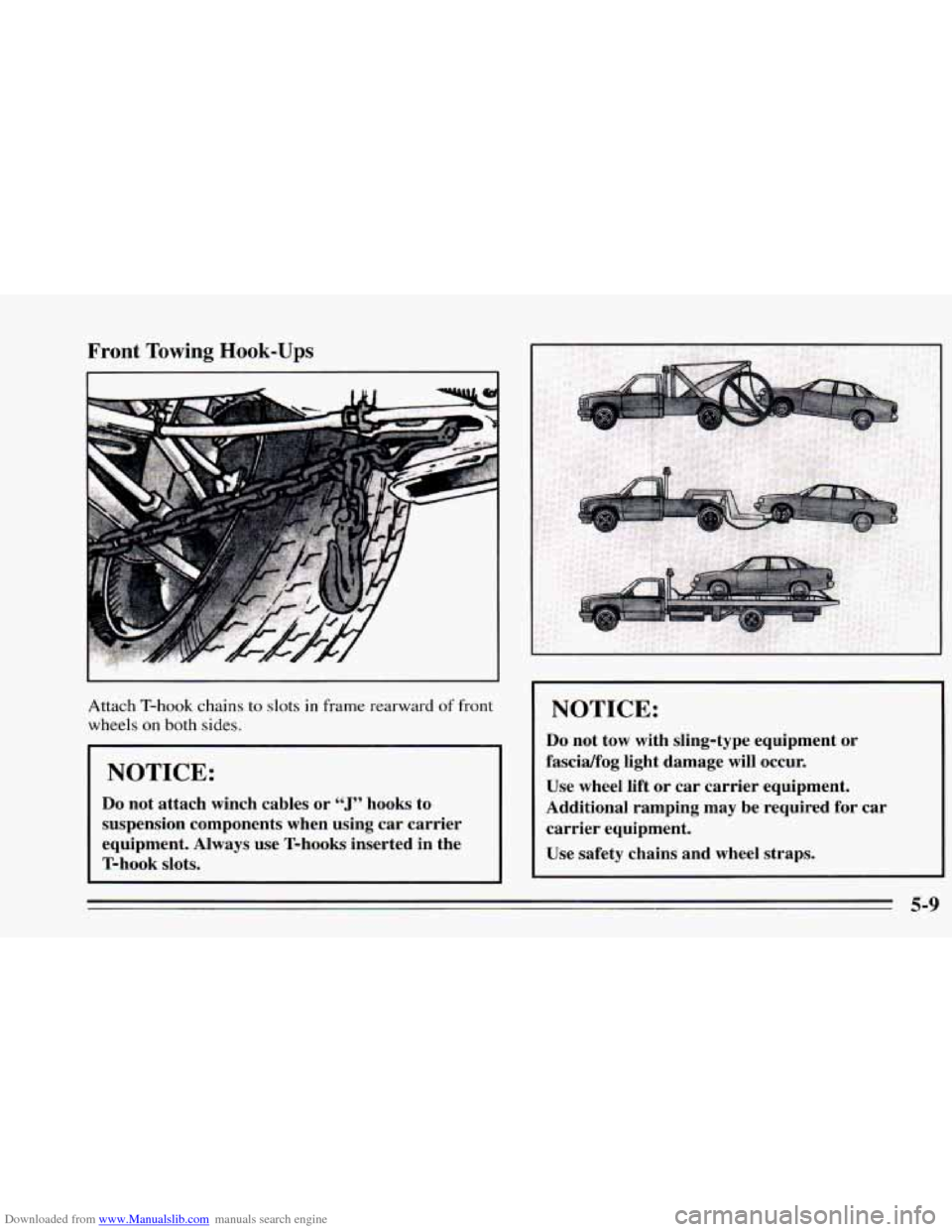

Downloaded from www.Manualslib.com manuals search engine Front Towing Hook-Ups
I
Attach T-hook chains to slots in frame rearward of front
wheels on both sides.
NOTICE:
Do not attach winch cables or “J” hooks to
suspension components when using car carrier
equipment. Always use
T-hooks inserted in the
T-hook slots.
NOTICE:
Do not tow with sling-type equipment or
fascidfog light damage will occur.
Use wheel lift or car carrier equipment.
Additional ramping may be required for car
carrier equipment.
Use safety chains and wheel straps.

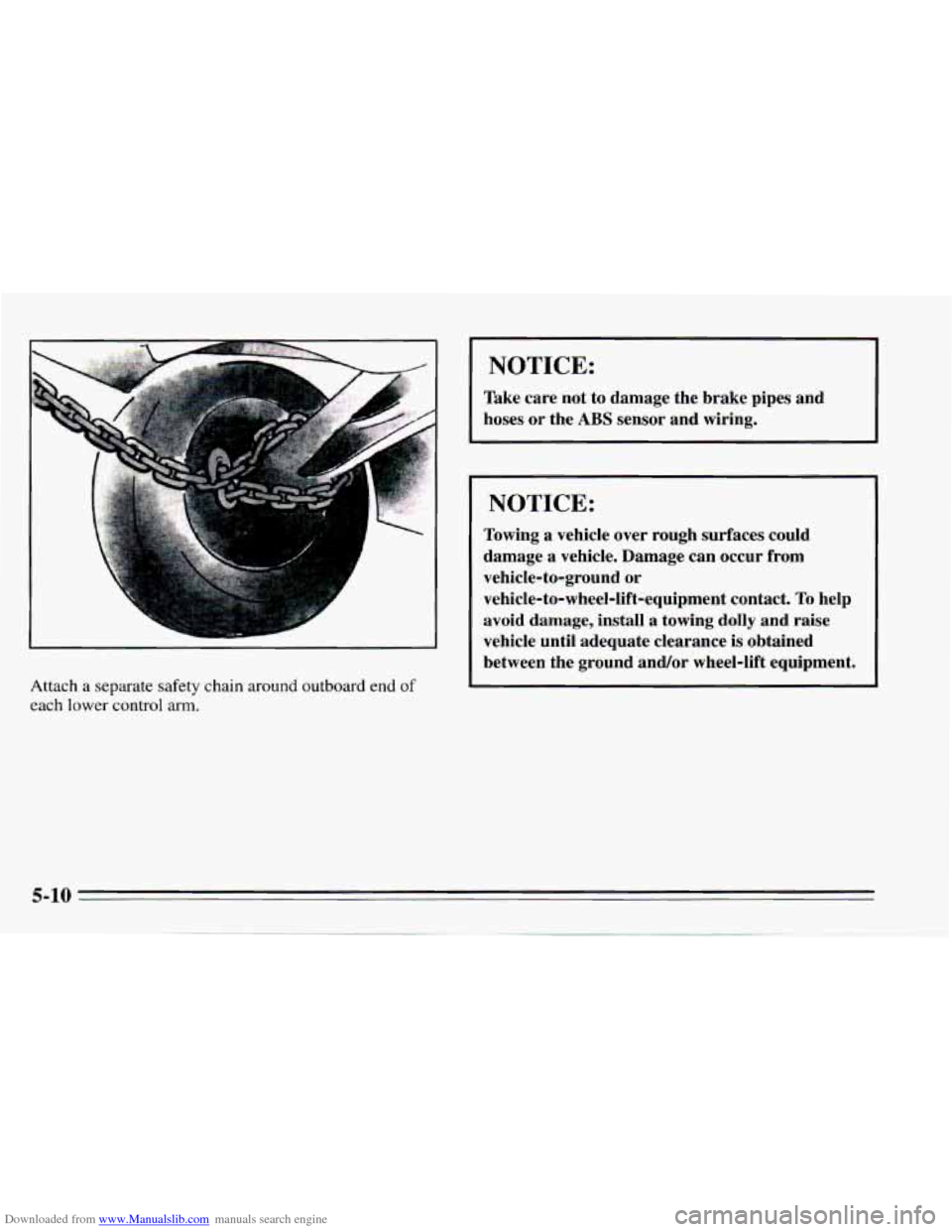

Downloaded from www.Manualslib.com manuals search engine Attach a separate safety chain around outboard end of
each lower control arm.
NOTICE:
Take care not to damage the brake pipes and
hoses or the
ABS sensor and wiring.
NOTICE:
Towing a vehicle over rough surfaces could
damage
a vehicle. Damage can occur from
vehicle-to-ground or
vehicle-to-wheel-lift-equipment contact. To help
avoid damage, install
a towing dolly and raise
vehicle until adequate clearance is obtained
between the ground and/or wheel-lift equipment.
5-10

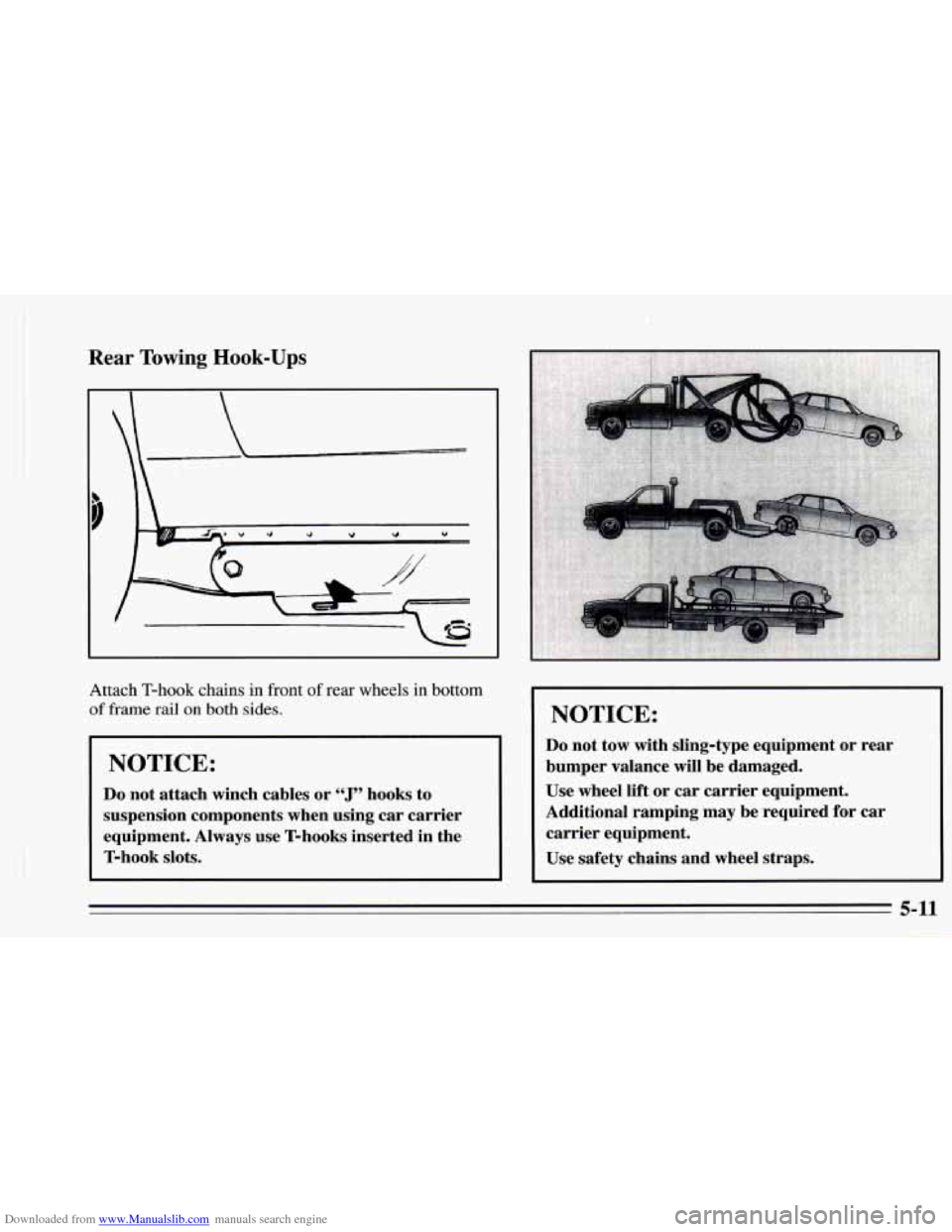

Downloaded from www.Manualslib.com manuals search engine Rear Towing Hook-Ups
I
p
Attach T-hook chains in front of rear wheels in bottom
of frame rail
on both sides.
I NOTICE:
Do not attach winch cables or “J” hooks to
suspension components when using car carrier
equipment. Always use T-hooks inserted in the
T-hook slots.
NOTICE:
Do .not tow with sling-type equipment or rear
bumper valqce wilI be damaged.
Use wheel lift
or car carrier equipment.
Additional rainping may be required for car
carrier equipment.
Use safety chdins
and wheel straps.
5-11

Downloaded from www.Manualslib.com manuals search engine L

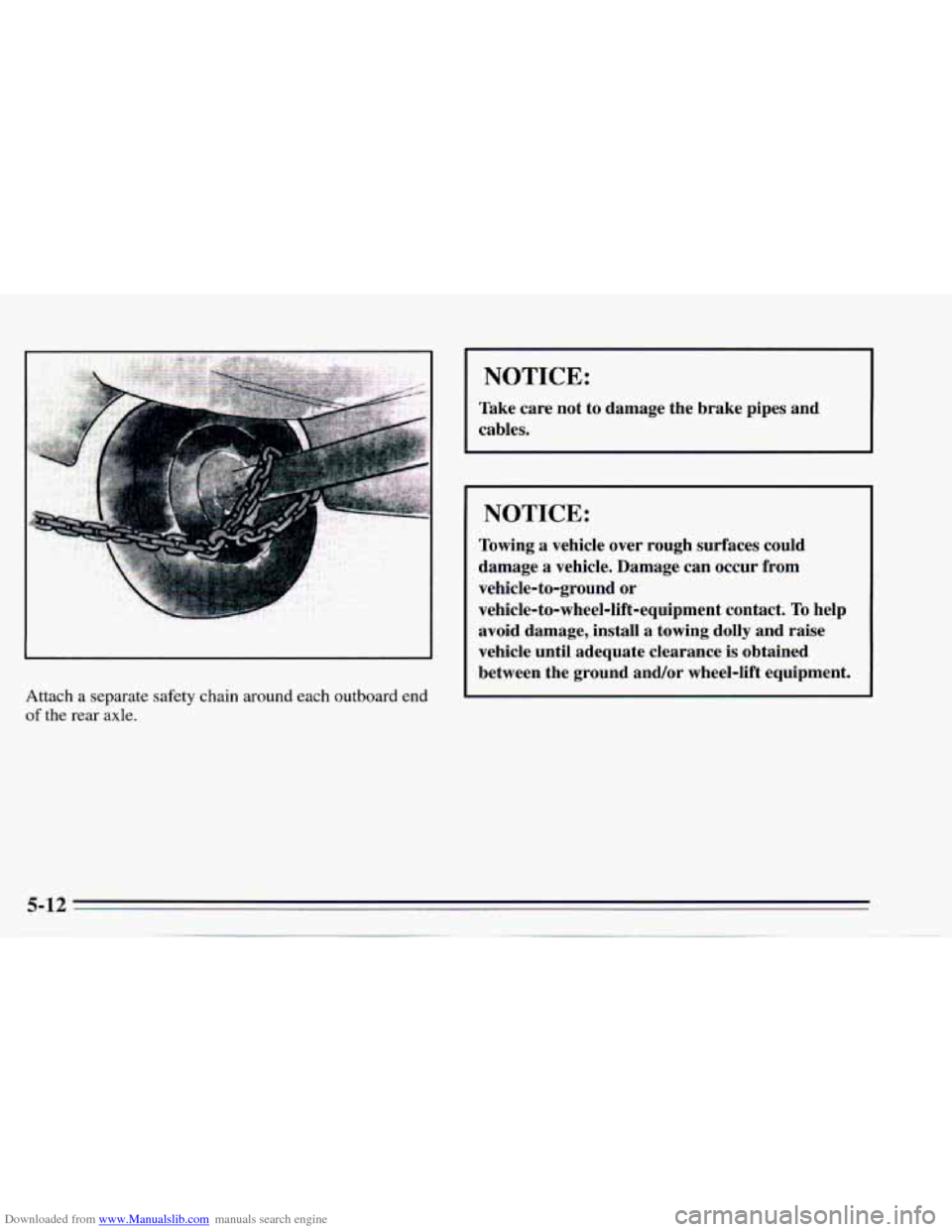

Attach a separate safety chain around each outboard end
of the rear axle.
NOTICE:
Take care not to damage the brake pipes and
cables.
NOTICE:
Towing a vehicle over rough surfaces could
damage a vehicle. Damage can occur from
vehicle-to-ground or
vehicle-to-wheel-lift-equipment contact. To help
avoid damage, install a towing dolly and raise
vehicle until adequate clearance is obtained
between the ground and/or wheel-lift equipment.

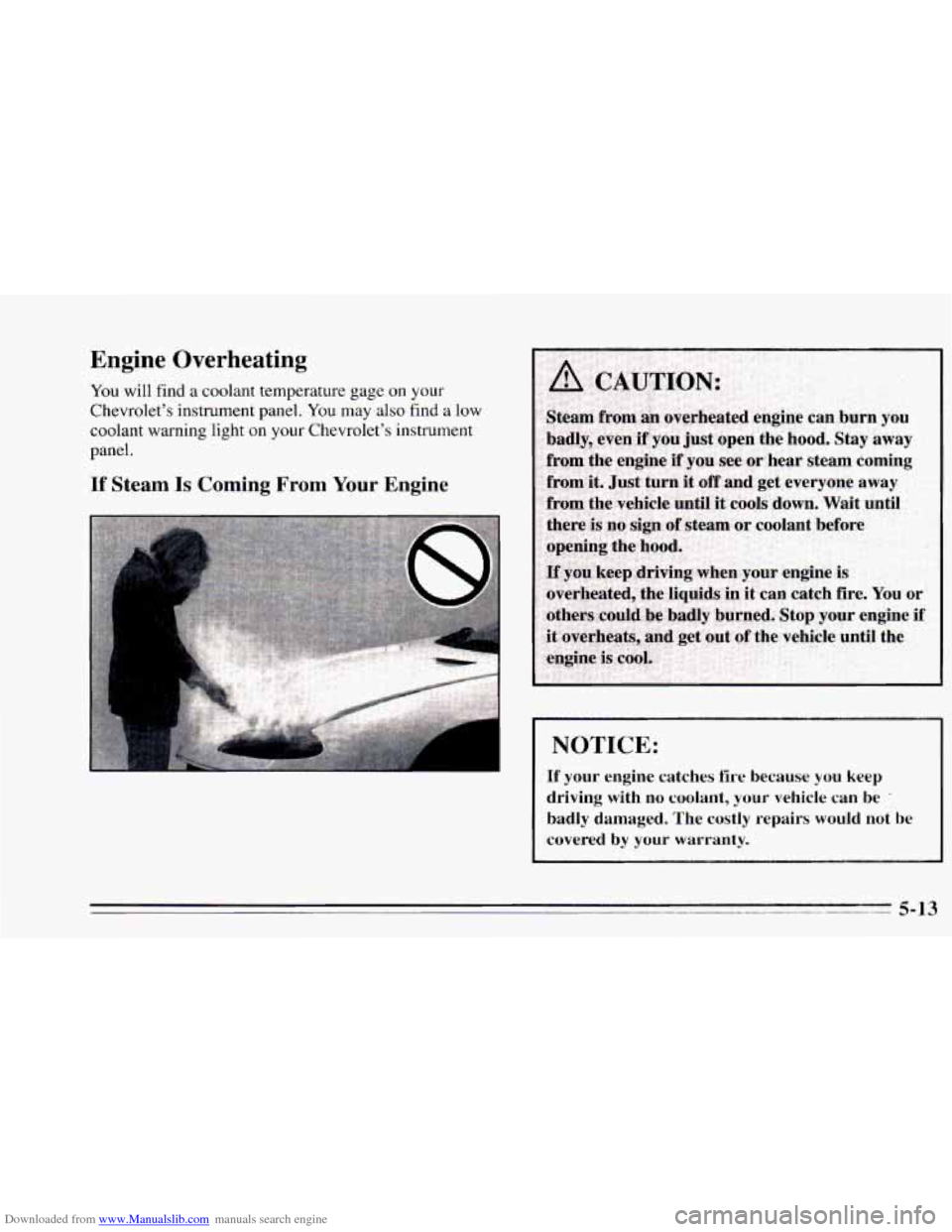

Downloaded from www.Manualslib.com manuals search engine Engine Overheating
You will find a coolant temperature gage on your
Chevrolet’s instrument panel.
You may also find a low
coolant warning light on your Chevrolet’s instrument
panel.
If Steam Is Coming From Your Engine
NOTICE:
If your engine catches fire because you keep
driving with
no coolant, your vehicle can be .
badly damaged. The costly repairs would not be
covered by your warranty.

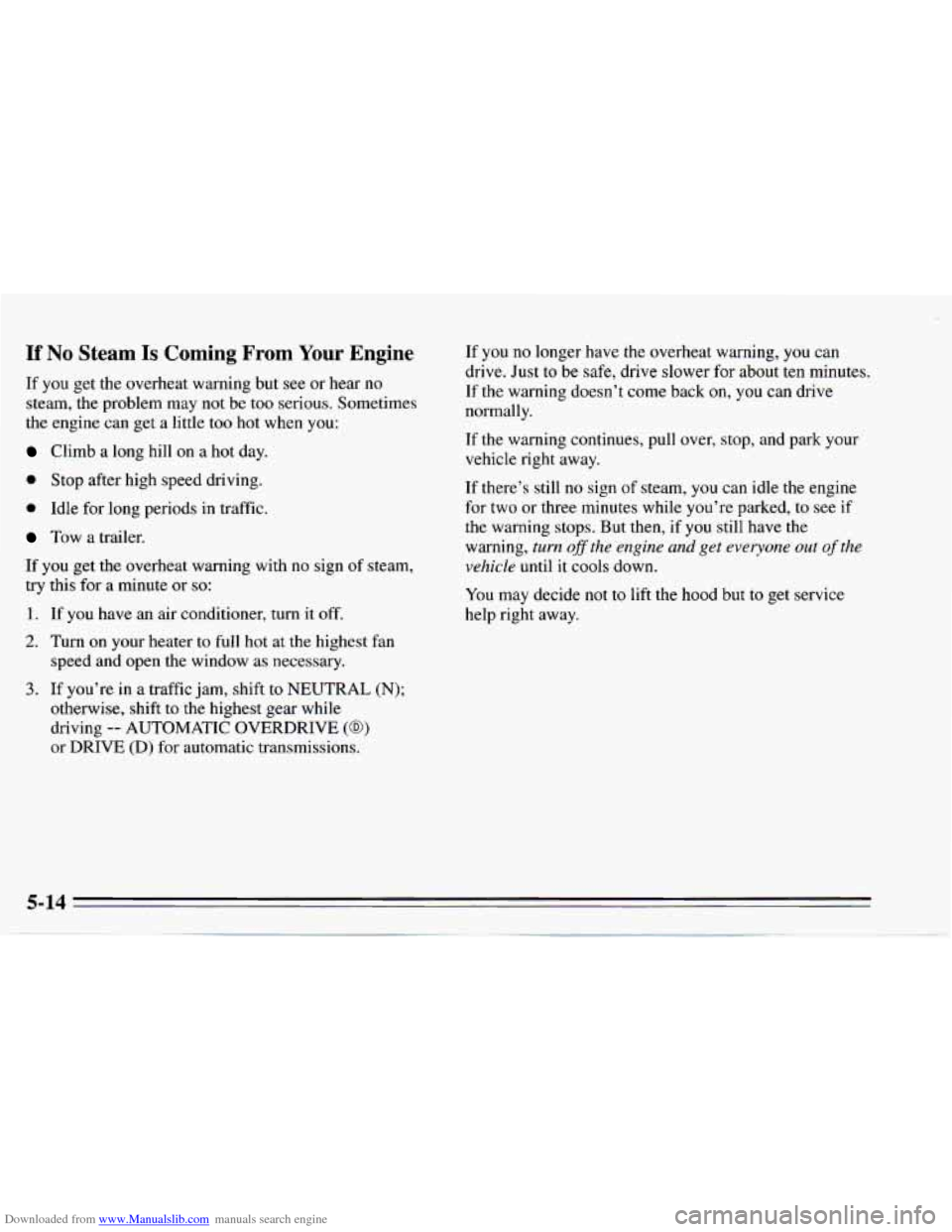

Downloaded from www.Manualslib.com manuals search engine If No Steam Is Coming From Your Engine
If you get the overheat warning but see or hear no
steam, the problem may not be
too serious. Sometimes
the engine can get a little too hot when you:
Climb a long hill on a hot day.
0 Stop after high speed driving.
0 Idle for long periods in traffic.
Tow a trailer.
If you get the overheat warning with no sign
of steam,
try this for a minute or
so:
1. If you have an air conditioner, turn it off.
2. Turn on your heater to full hot at the highest fan
speed and open the window as necessary.
3. If you’re in a traffic jam, shift to NEUTRAL (N);
otherwise, shift to the highest gear while
driving
-- AUTOMATIC OVERDRIVE (a)
or DRIVE (D) for automatic transmissions. If you
no longer
have the overheat warning, you can
drive. Just
to be safe, drive slower for about ten minutes.
If the warning doesn’t come back
on, you can drive
normally.
If the warning continues, pull over, stop, and park your
vehicle right away.
If there’s still no sign
of steam, you can idle the engine
for two or three minutes while you’re parked,
to see if
the warning stops. But then, if you still have the
warning,
turn ofSthe engine and get everyone out of the
vehicle
until it cools down.
You may decide not to lift the hood but to get service
help right away.

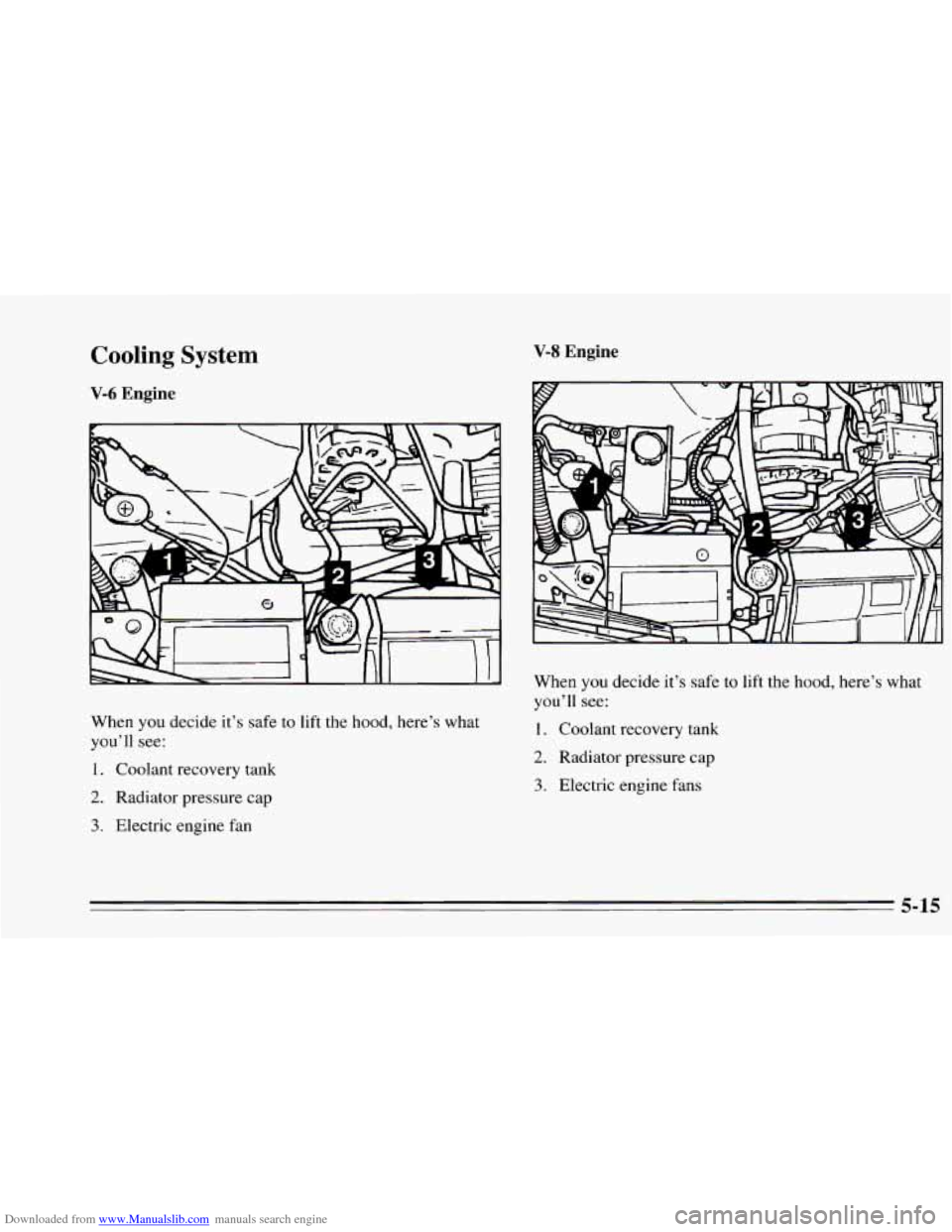

Downloaded from www.Manualslib.com manuals search engine Cooling
V-6 Engine
System
When you decide it’s safe to lift the hood, here’s what
you’ll see:
1. Coolant recovery tank
2. Radiator pressure car,
3. Electric engine fan
V-8 Engine
When you decide it’s safe to lift the hood, here’s what
you’ll see:
1. Coolant recovery tank
2. Radiator pressure cap
3. Electric engine fans
5-15

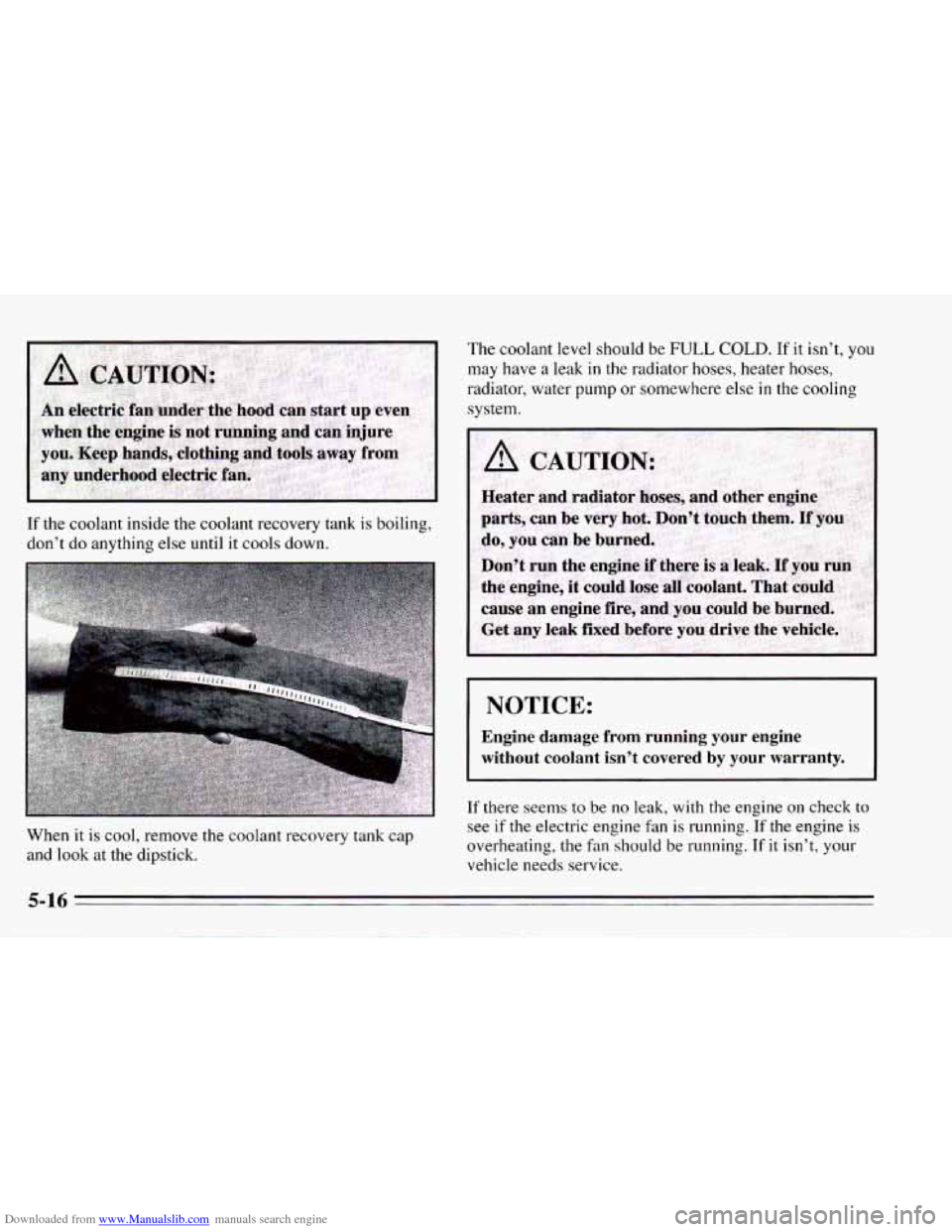

Downloaded from www.Manualslib.com manuals search engine If the coolant inside the coolant recovery tank is boiling,
don’t
do anything else until it cools down.
When
it is cool, remove the coolant recovery tank cap
and look at the dipstick. The coolant
level should be
FULL COLD. If it isn’t, you
may have
a leak in the radiator hoses, heater hoses,
radiator, water pump
or somewhere else in the cooling
system.
I NOTICE:
Engine damage from running your engine
without coolant
isn’t covered by your warranty.
If there seems to be no leak, with the engine on check to
see if the electric engine fan is running. If the engine is
overheating, the fan should be running. If it isn’t, your
vehicle needs service.
