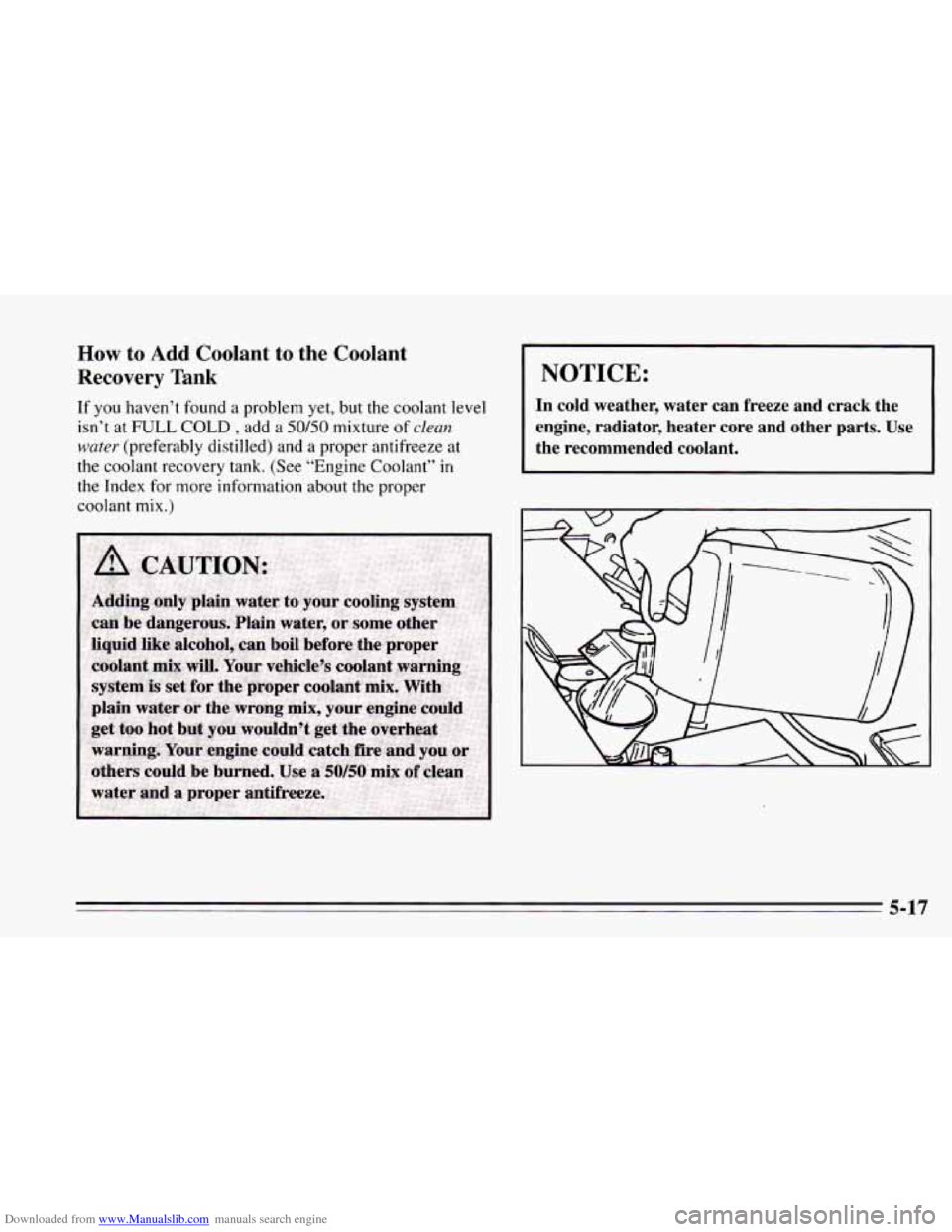

Downloaded from www.Manualslib.com manuals search engine How to Add Coolant to the Coolant
Recovery Tank
If you haven’t found a problem yet, but the coolant level
isn’t at
FULL COLD , add a 50/50 mixture of clean
water (preferably distilled) and a proper antifreeze at
the coolant recovery tank. (See “Engine Coolant” in
the Index for more information about
the proper
coolant mix.)
I NOTICE: I
In cold weather, water can freeze and crack the
engine, radiator, heater core and other parts.
Use
the recommended coolant.
5-17

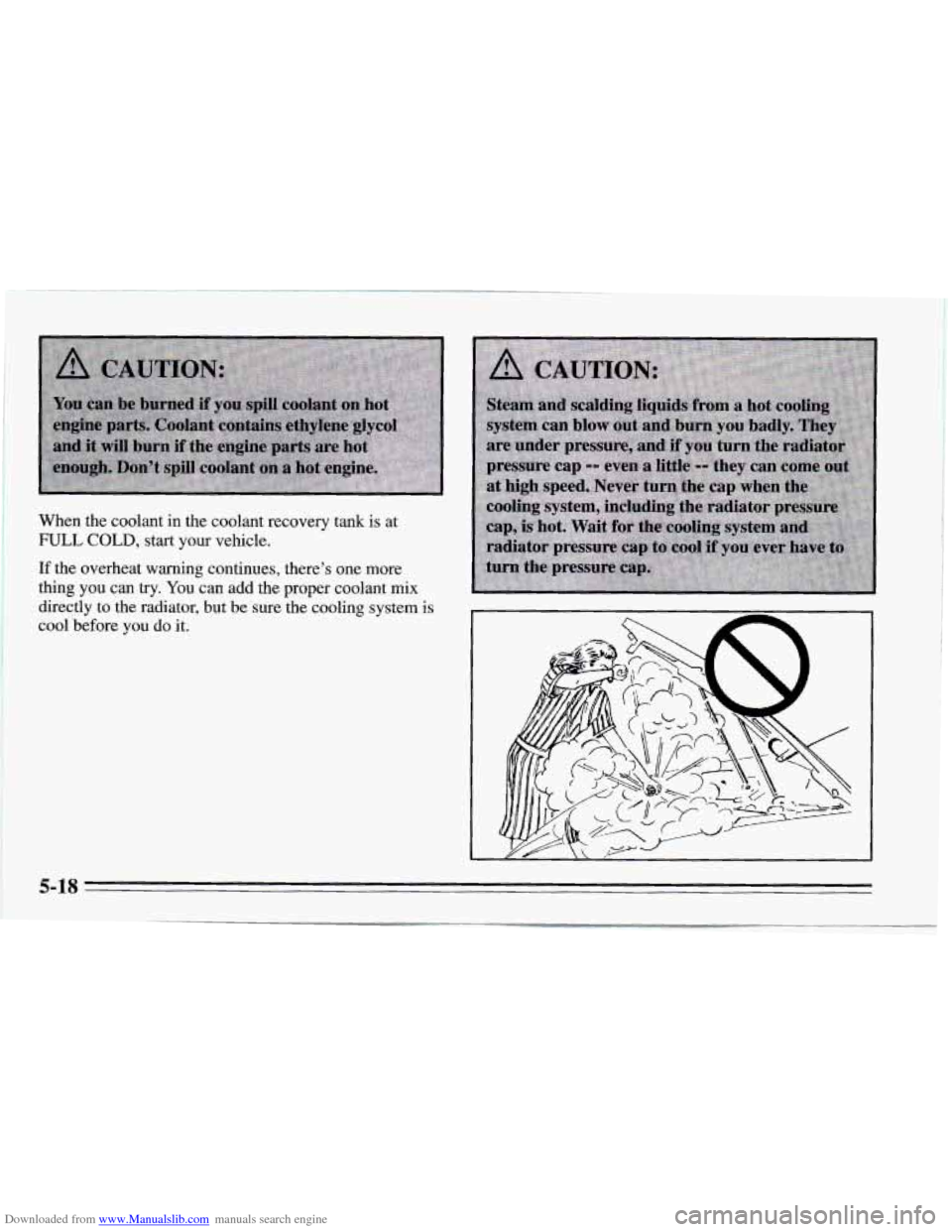

Downloaded from www.Manualslib.com manuals search engine When the coolant in the coolant recovery tank is at
FULL COLD, start your vehicle.
If the overheat warning continues, there’s one more
thing you can try. You can add the proper coolant mix
directly
to the radiator, but be sure the cooling system is
cool before you do it.
5-18

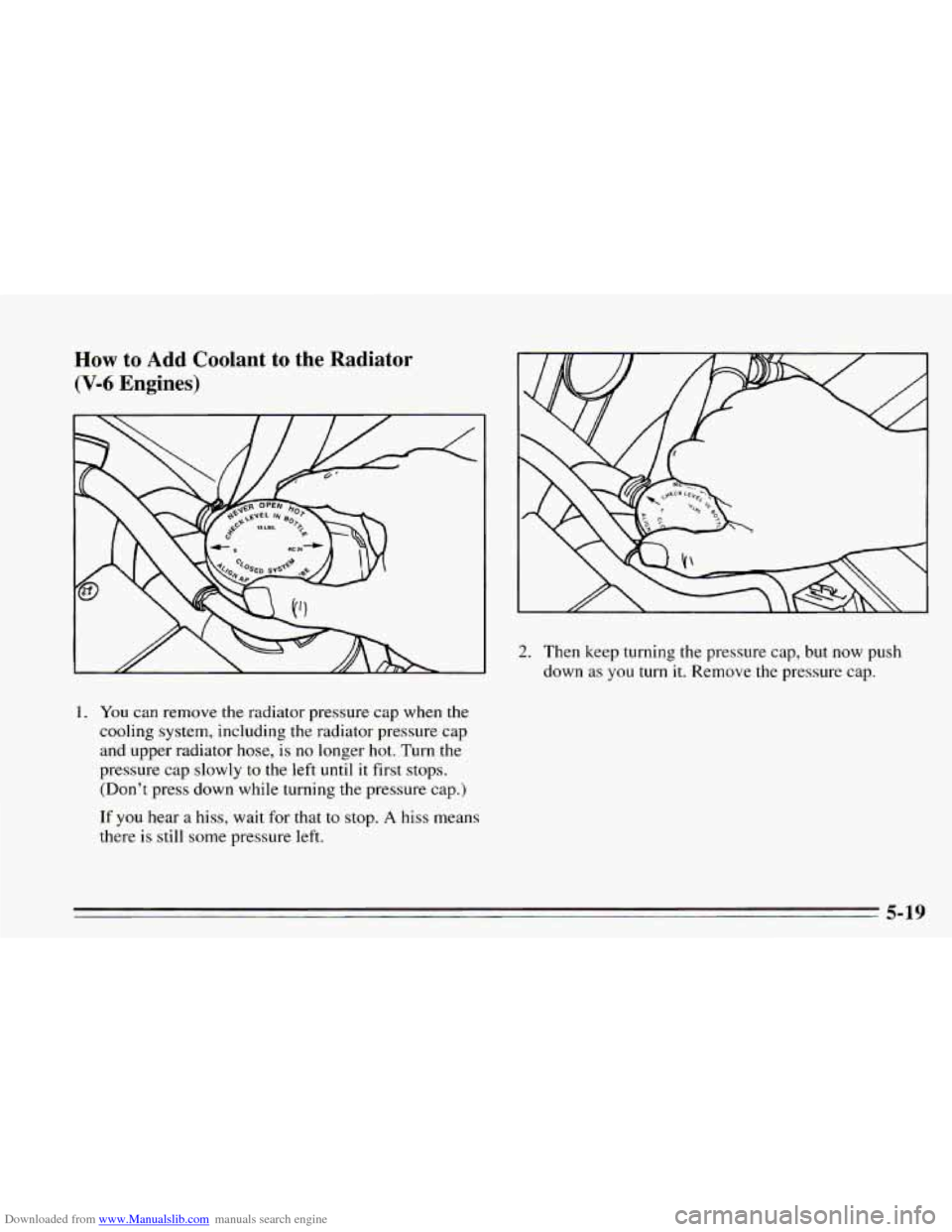

Downloaded from www.Manualslib.com manuals search engine HOW to Add Coolant to the Radiator
(V-6 Engines)
2. Then keep turning the pressure cap, but now push
down as you turn
it. Remove the pressure cap.
1. You can remove the radiator pressure cap when the
cooling system, including the radiator pressure cap
and upper radiator hose,
is no longer hot. Turn the
pressure cap slowly to the left until
it first stops.
(Don’t press down while turning
the pressure cap.)
If you hear a hiss, wait for that to stop. A hiss means
there is still some pressure left.
5-19

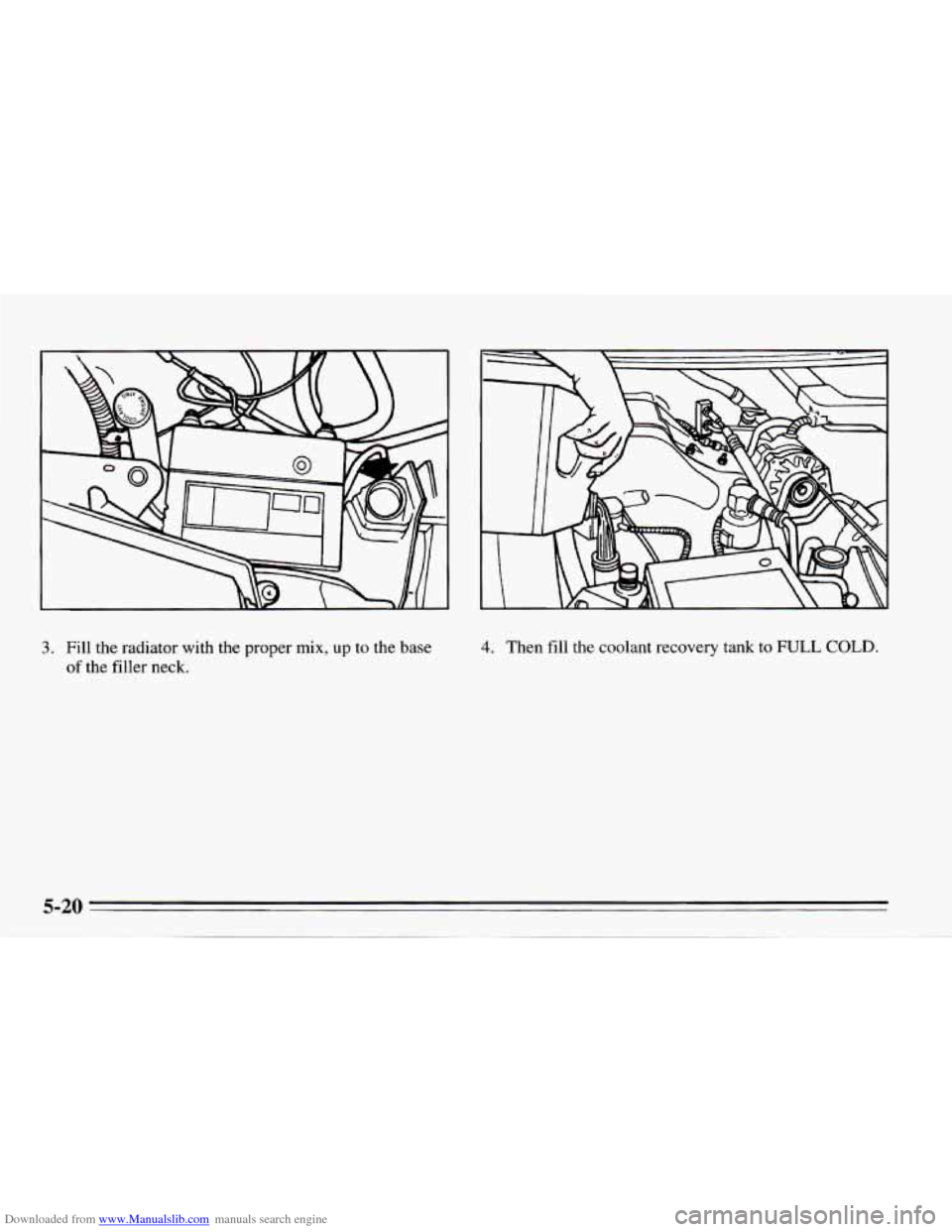

Downloaded from www.Manualslib.com manuals search engine ~~ 3. Fill
the radiator with the proper mix, up to the base
of the filler neck. 4. Then fill the coolant recovery tank to FULL COLD.

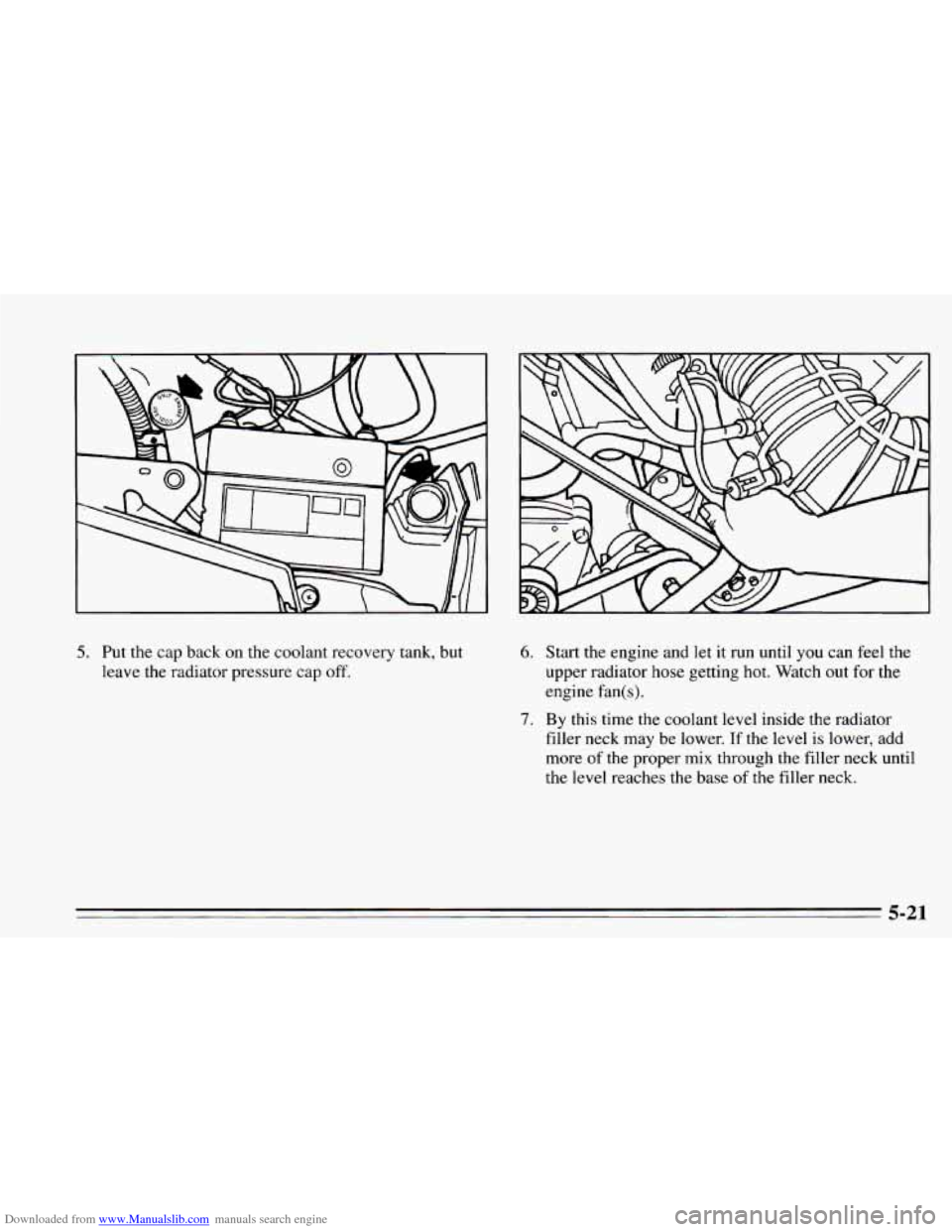

Downloaded from www.Manualslib.com manuals search engine 5. Put the cap back on the coolant recovery tank, but
leave the radiator pressure cap off. 6. Start the engine and let it run until you can feel the
upper radiator hose getting hot. Watch out for the
engine fan(s).
7. By this time the coolant level inside the radiator
filler neck may be lower. If the level is lower, add
more of the proper mix through the filler neck until
the
level reaches the base of the filler neck.
5-21

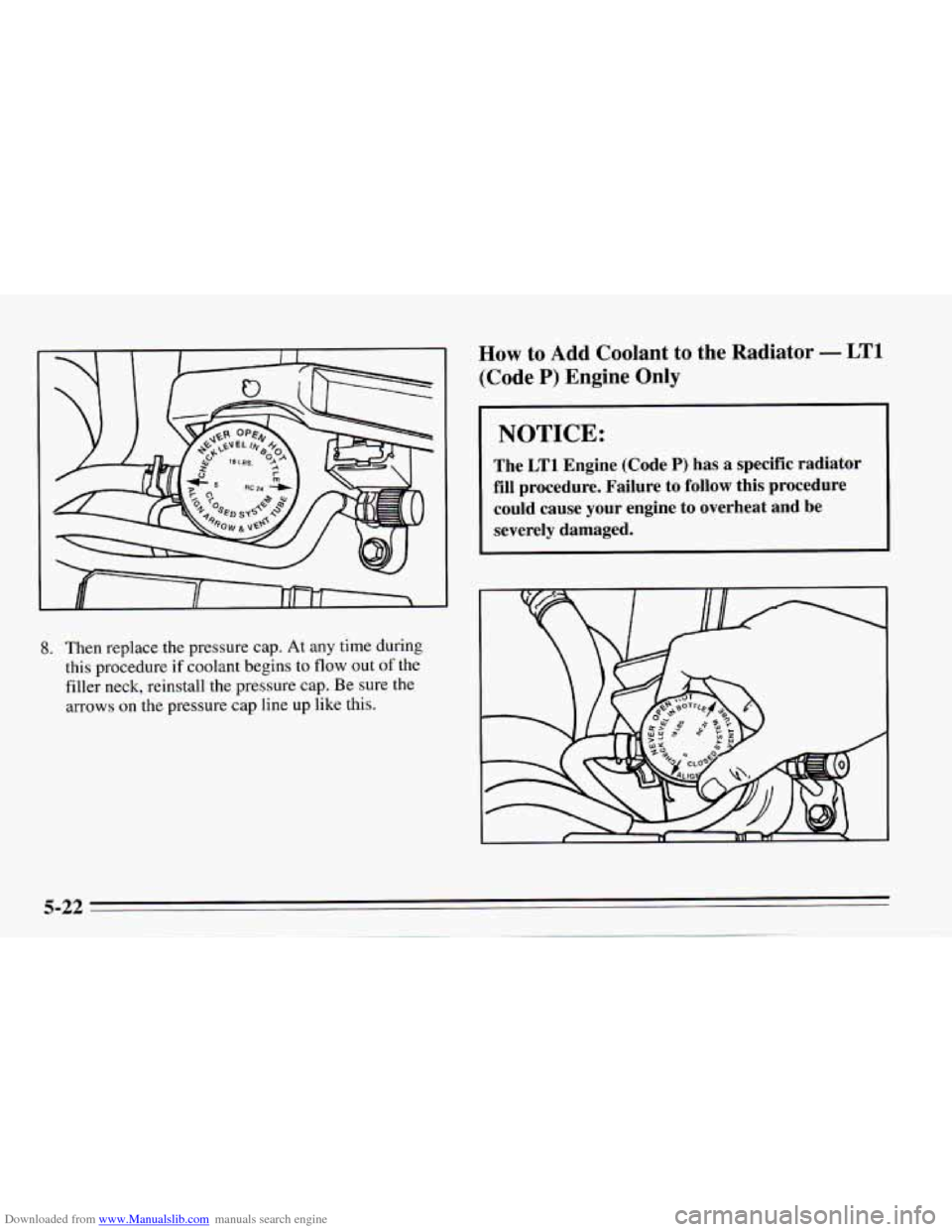

Downloaded from www.Manualslib.com manuals search engine 8. Then replace the pressure cap. At any time during
this procedure if coolant begins to flow out
of the
filler neck, reinstall the pressure cap. Be sure the
arrows
on the pressure cap line up like this.
How to Add Coolant to the Radiator - LT1
(Code P) Engine Only
NOTICE:
The LT1 Engine (Code P) has a specific radiator
fill procedure. Failure
to follow this procedure
could cause your engine to overheat
and be
severely damaged.
5-22

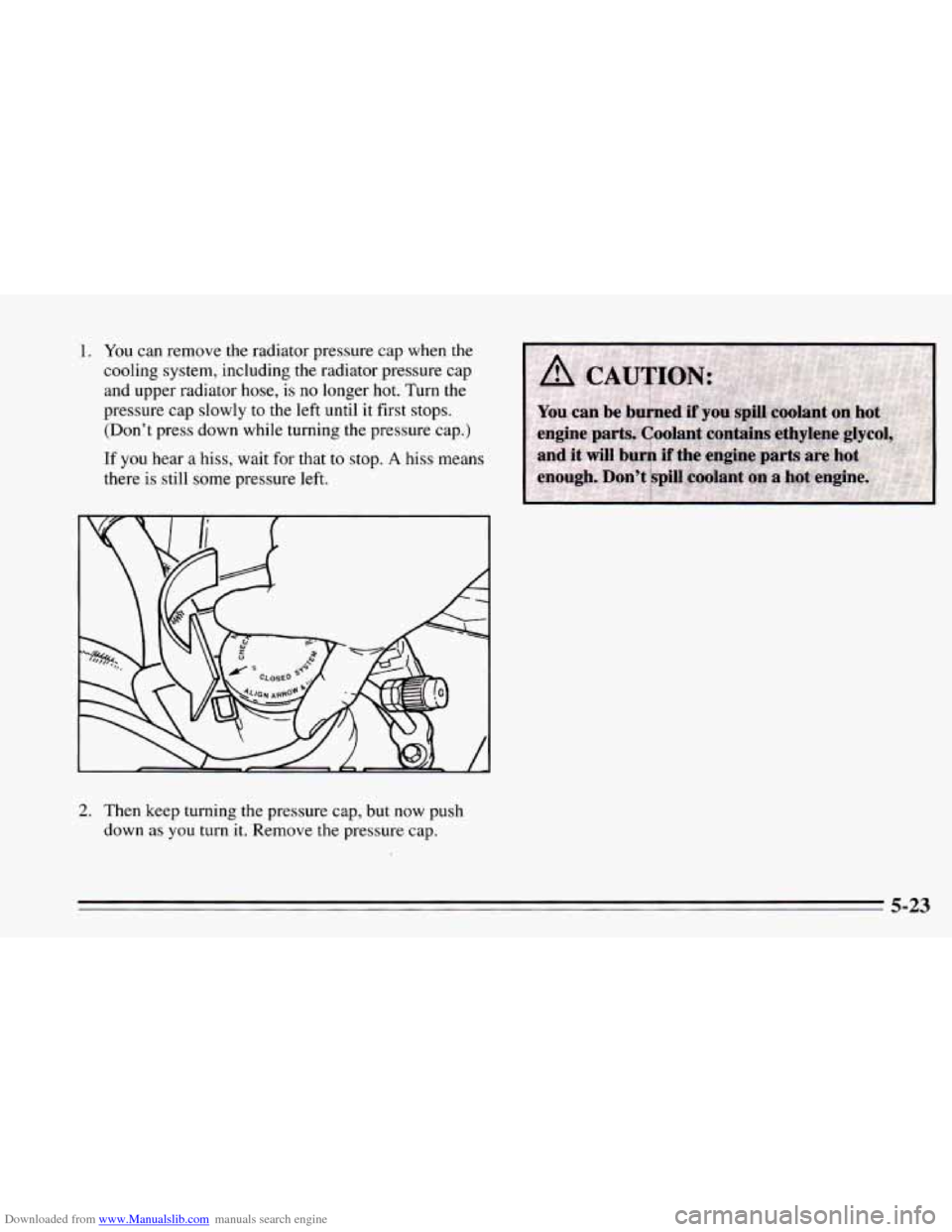

Downloaded from www.Manualslib.com manuals search engine 1. You can remove the radiator pressure cap when the
cooling system, including
the radiator pressure cap
and upper radiator hose, is
no longer hot. Turn the
pressure cap slowly to the left until it first stops.
(Don’t press down while turning
the pressure cap.)
If you hear a hiss, wait for that to stop. A hiss means
there is still some pressure left.
2. Then keep turning the pressure cap, but now push
down
as you turn it. Remove the pressure cap.
5-23

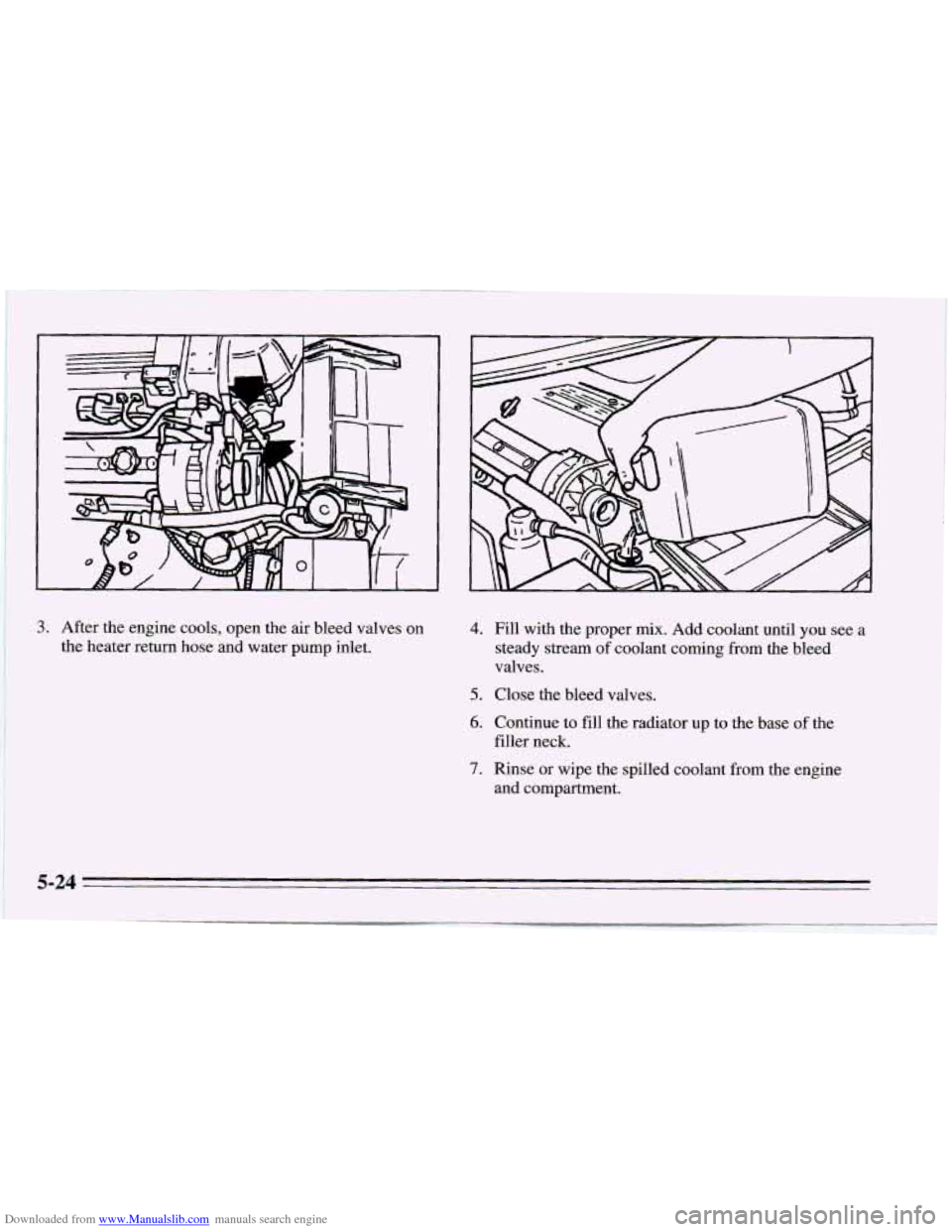

Downloaded from www.Manualslib.com manuals search engine 3. After the engine cools, open the air bleed valves on
the heater return hose and water pump inlet. 4.
5.
6.
7.
Fill with the proper mix. Add coolant until you see a
steady stream of coolant coming from the bleed
valves.
Close the bleed valves.
Continue to fill the radiator up to the base of the
filler neck.
Rinse or wipe the spilled coolant from the engine and compartment.
5-24

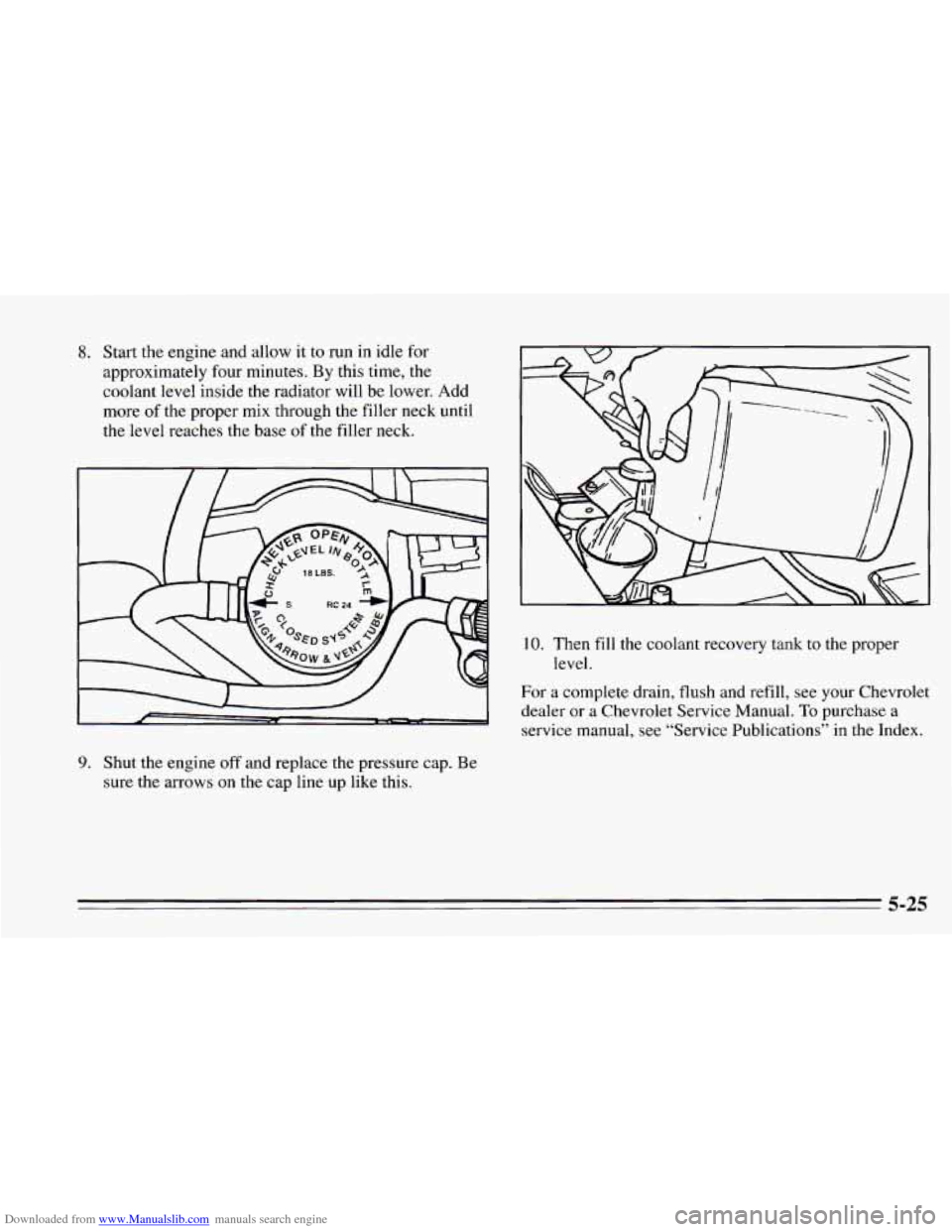

Downloaded from www.Manualslib.com manuals search engine 8. Start the engine and allow it to run in idle for
approximately four minutes. By this time, the
coolant level inside
the radiator will be lower. Add
more of the proper mix through the filler neck until
the level reaches the base
of the filler neck.
10. Then fill the coolant recovery tank to the proper
level.
9. Shut the engine off and replace the pressure cap. Be
sure the arrows
on the cap line up like this.
For a complete drain, flush and refill, see your Chevrolet
dealer or a Chevrolet Service Manual.
To purchase a
service manual, see “Service Publications’’
in the Index.
5-25

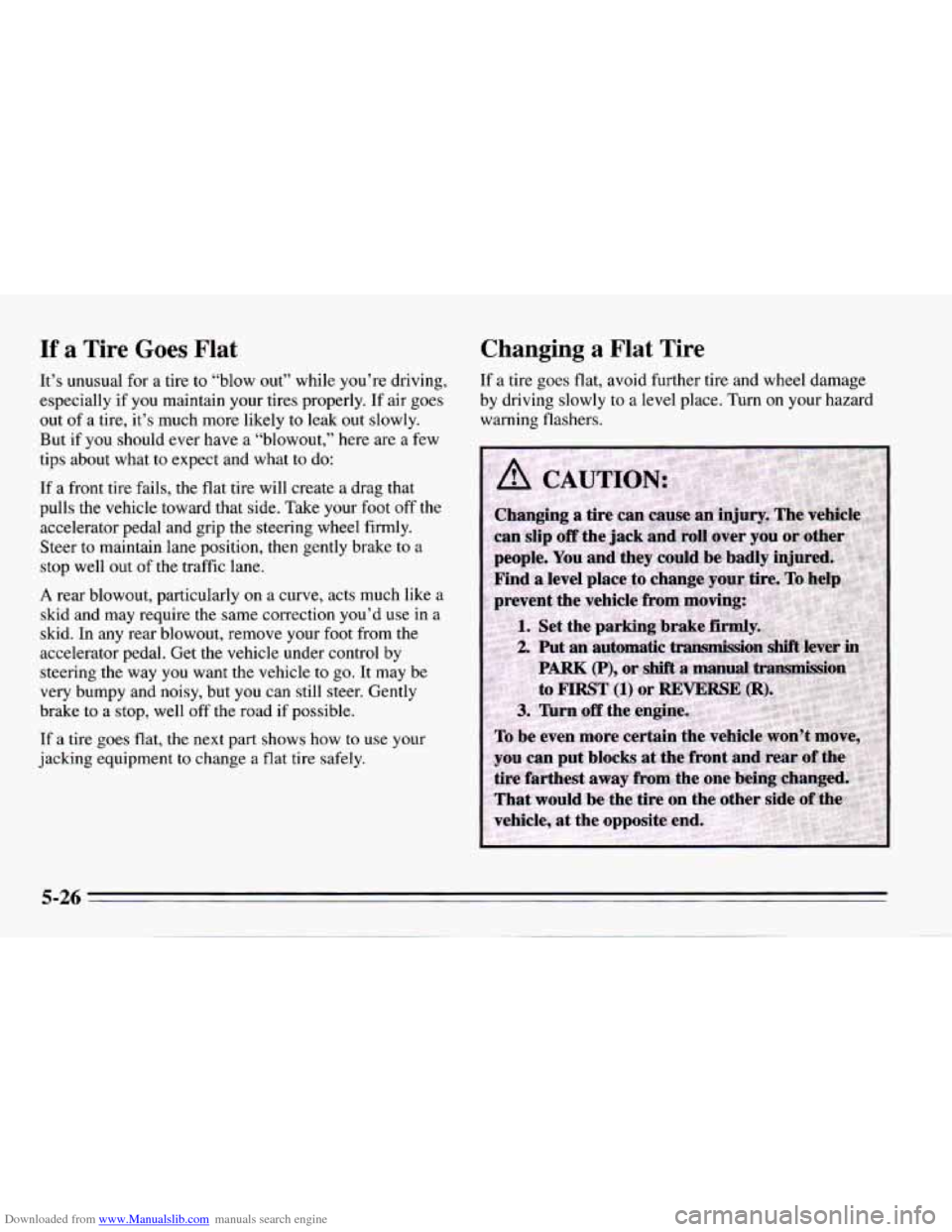

Downloaded from www.Manualslib.com manuals search engine If a Tire Goes Flat
It’s unusual for a tire to “blow out” while you’re driving,
especially if you maintain your tires properly. If air goes
out of a tire, it’s much more likely to leak out slowly.
But if you should ever have a “blowout,” here are a few
tips about what to expect and what to do:
If a front tire fails, the flat tire will create a drag that
pulls the vehicle toward that side. Take your foot off the
accelerator pedal and grip the steering wheel firmly.
Steer to maintain lane position, then gently brake to a
stop well out of the traffic lane.
A rear blowout, particularly on a curve, acts much like a
skid and may require the same correction you’d use in a
skid. In any rear blowout, remove your foot from the
accelerator pedal. Get the vehicle under control
by
steering the way you want the vehicle to go. It may be
very bumpy and noisy, but you can still steer. Gently
brake to a stop, well off the road if possible.
If a tire goes flat, the next part shows how
to use your
jacking equipment to change a flat tire safely.
Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to
a level place. Turn on your hazard
warning flashers.
