CHEVROLET CAMARO 1995 4.G Owners Manual

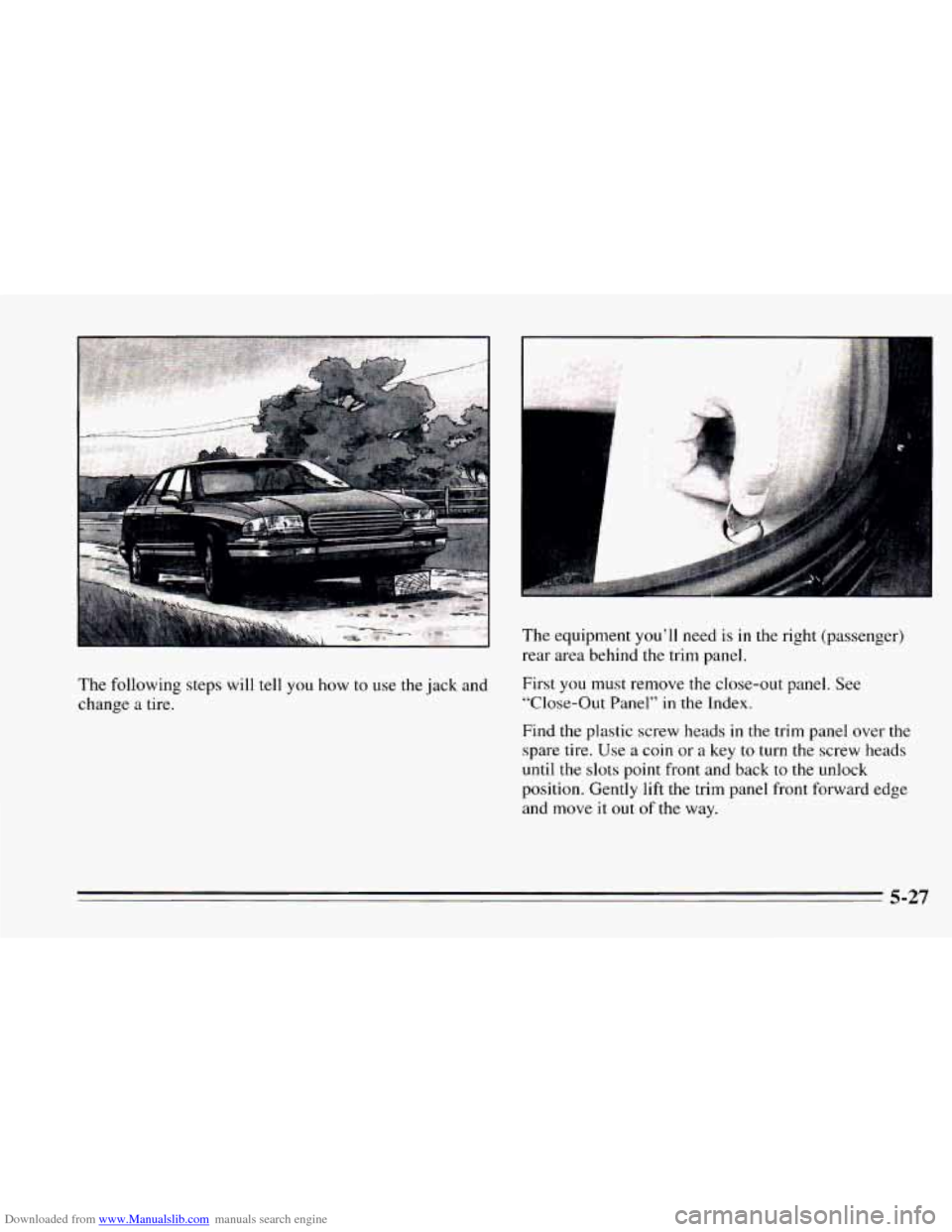

Downloaded from www.Manualslib.com manuals search engine The following steps will tell you how to use the jack and
change a tire. The
equipment
you’ll need is in the right (passenger)
rear area behind the trim panel.
First
you must remove the close-out panel. See
“Close-Out Panel’’
in the Index.
Find the plastic screw heads
in the trim panel over the
spare tire. Use a coin or a key
to turn the screw heads
until the slots point front and back to the unlock
position. Gently lift the trim panel front forward edge
and move
it out of the way.
5-27

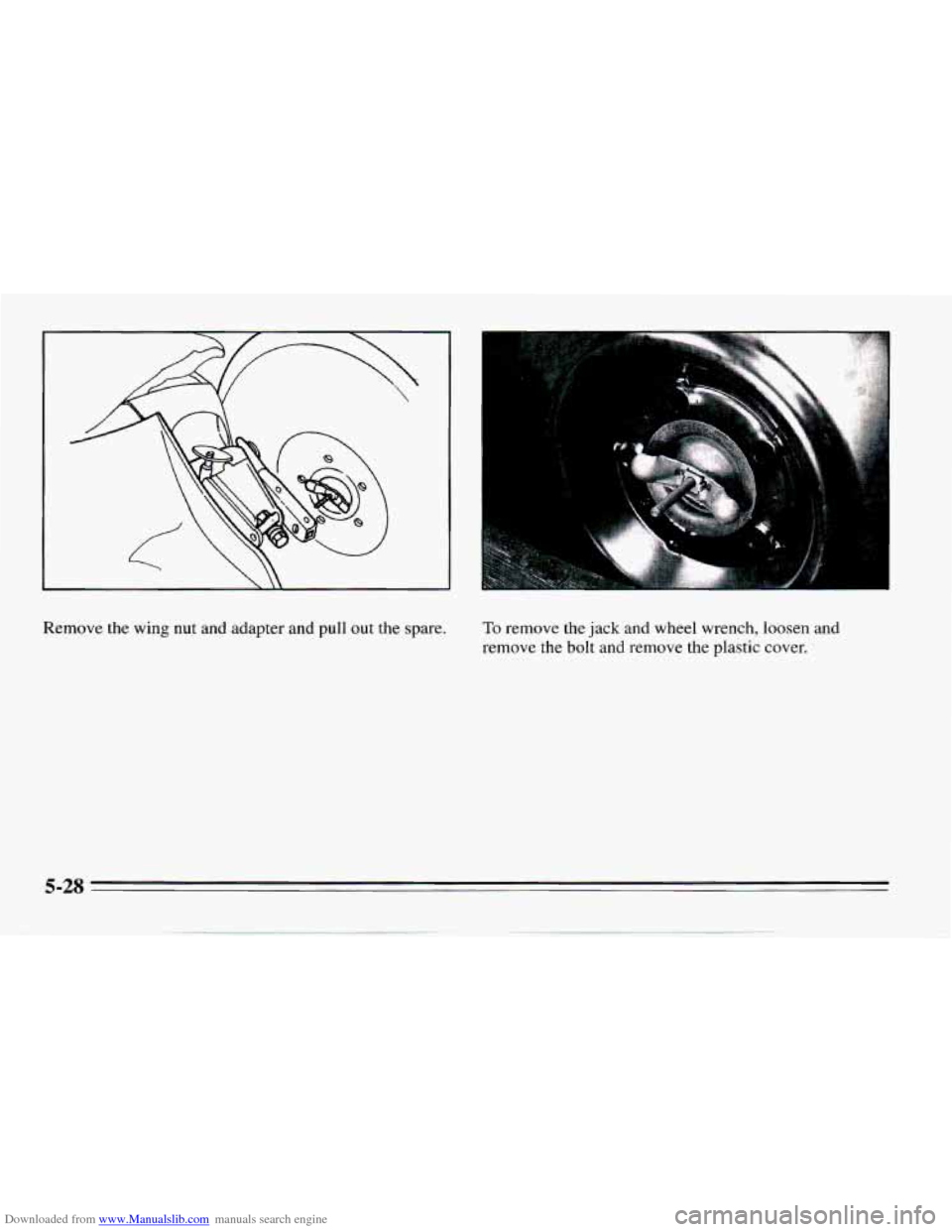

Downloaded from www.Manualslib.com manuals search engine Jsemove the wing nut and adapter and pull out the spare. To remove the jack and wheel wrench, loosen and
remove the bolt and remove the plastic cover.
5-28

Downloaded from www.Manualslib.com manuals search engine AA

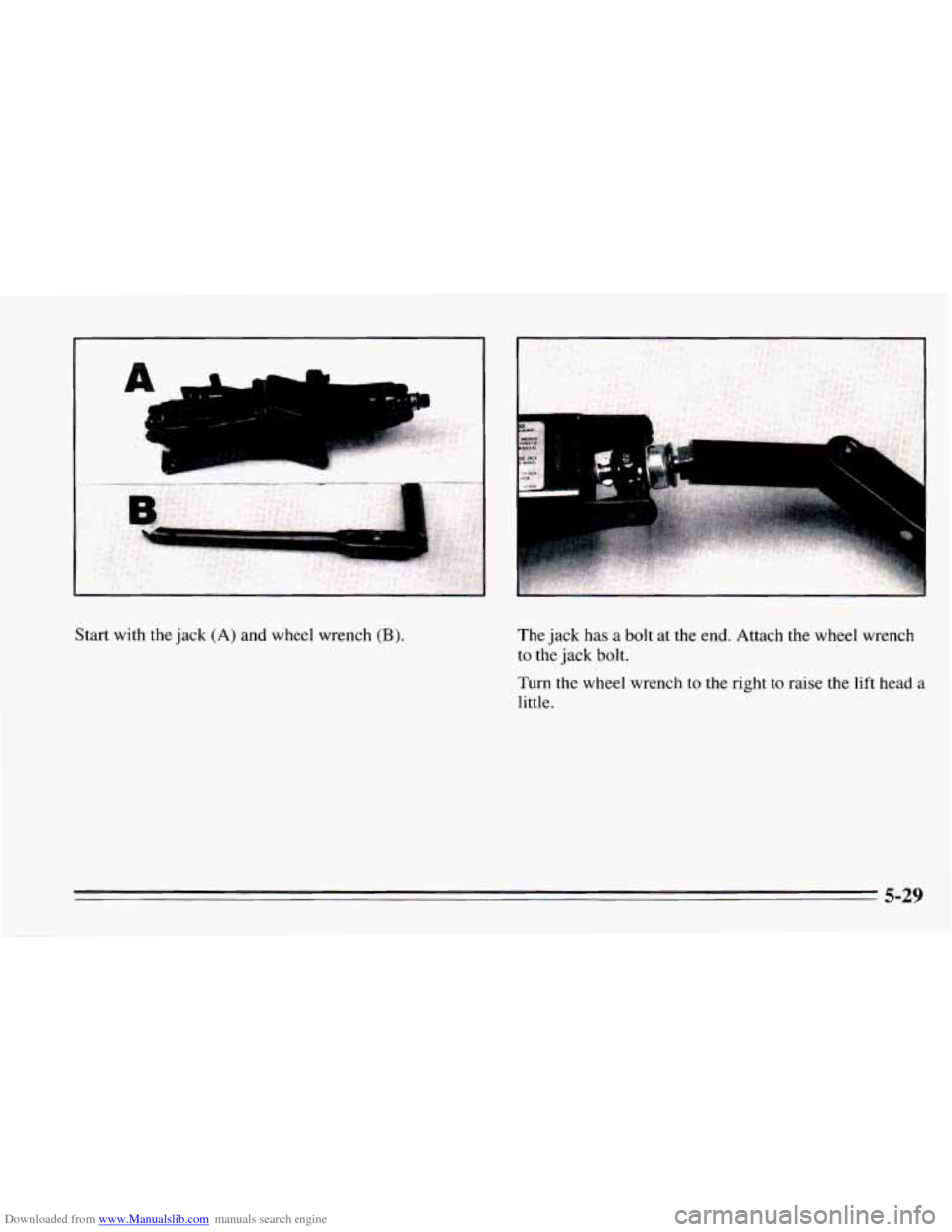

Start with the jack (A) and wheel wrench (B). The jack has a bolt at the end. Attach the wheel wrench
to the jack bolt.
Turn the wheel wrench to the right to raise the lift head a
little.
5-29

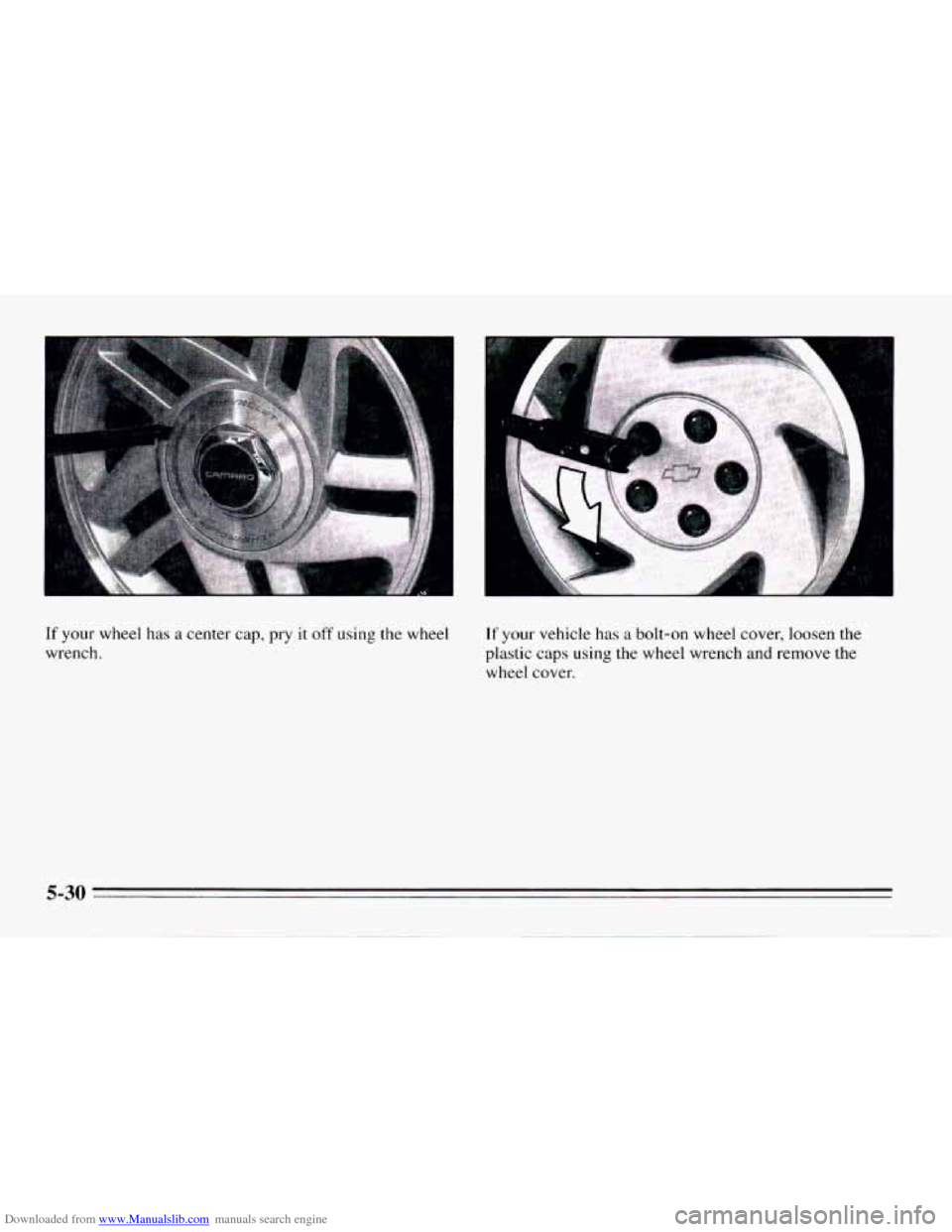

Downloaded from www.Manualslib.com manuals search engine If your wheel has a center cap, pry it off using the wheel
wrench.
If your vehicle has a bolt-on wheel cover, loosen the
plastic caps using the wheel wrench and remove the
wheel cover.
5-30

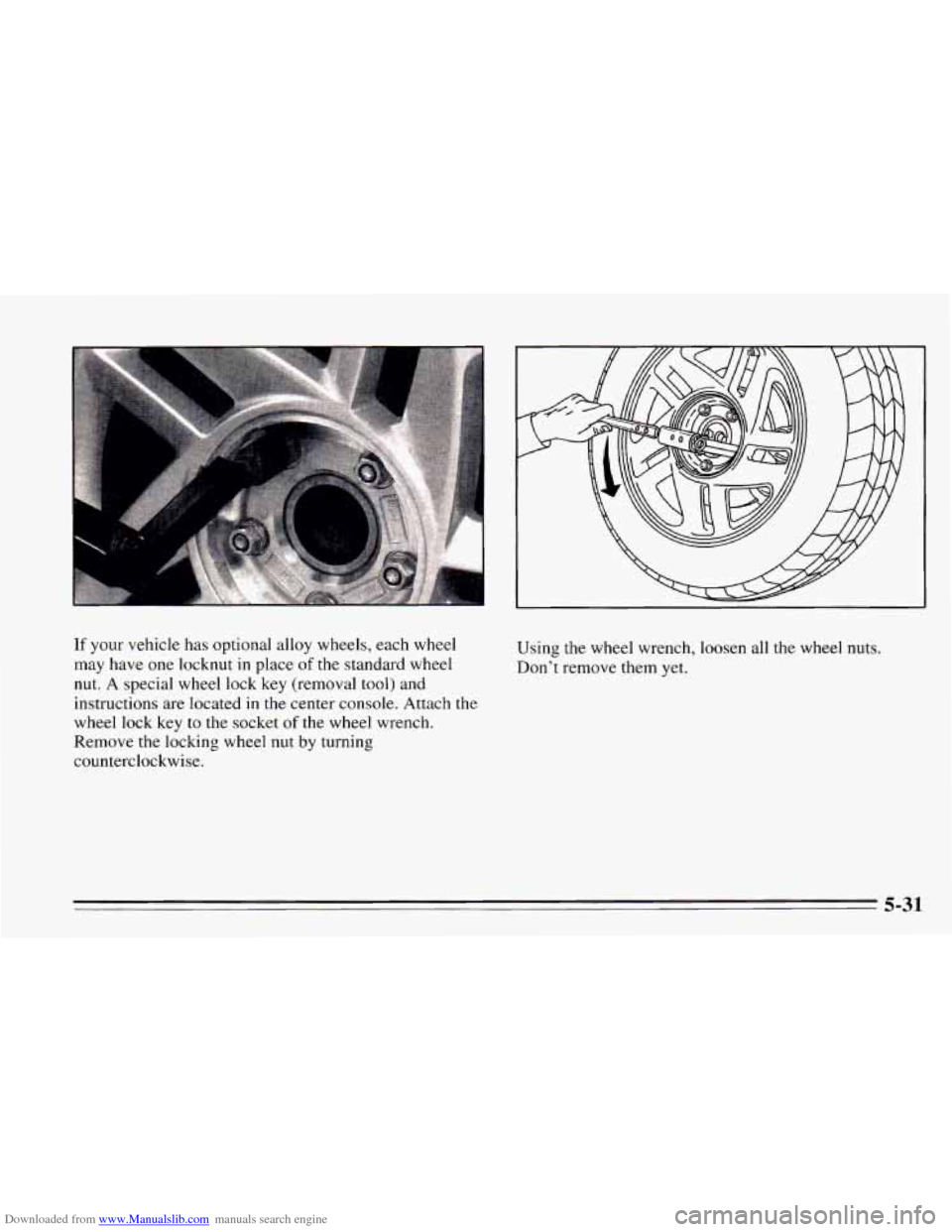

Downloaded from www.Manualslib.com manuals search engine If your vehicle has optional alloy wheels, each wheel
may have one locknut in place
of the standard wheel
nut. A special wheel lock key (removal tool) and
instructions are located
in the center console. Attach the
wheel lock key to the socket
of the wheel wrench.
Remove the locking wheel nut by turning
counterclockwise. Using the wheel wrench, loosen all the wheel nuts.
Don’t remove
them yet.
-
5-31

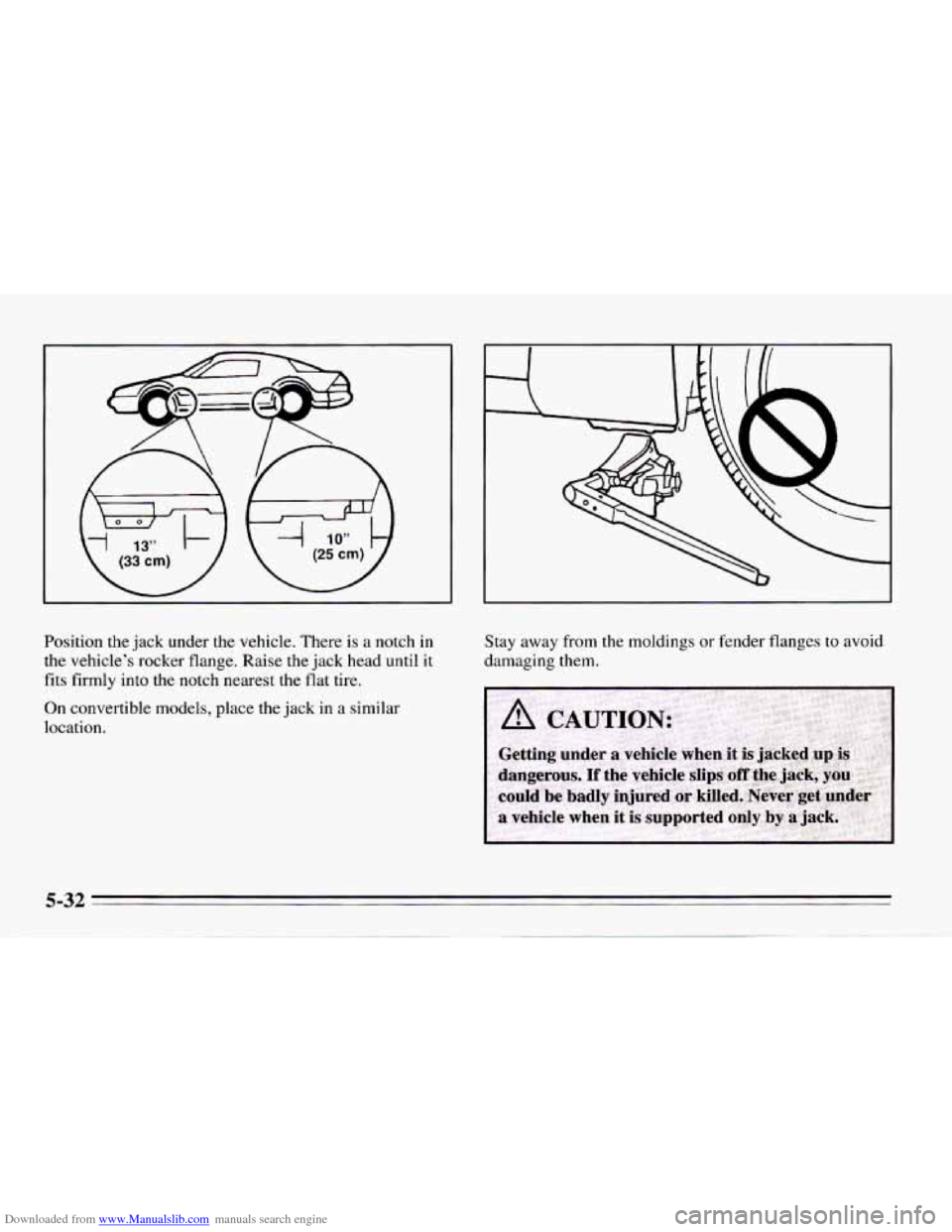

Downloaded from www.Manualslib.com manuals search engine Position the jack under the vehicle. There is a notch in
the vehicle's rocker flange. Raise the jack head until it
fits firmly into the notch nearest the flat tire.
On convertible models, place the jack in a similar
location. Stay
away from the moldings
or fender flanges to avoid
damaging them.

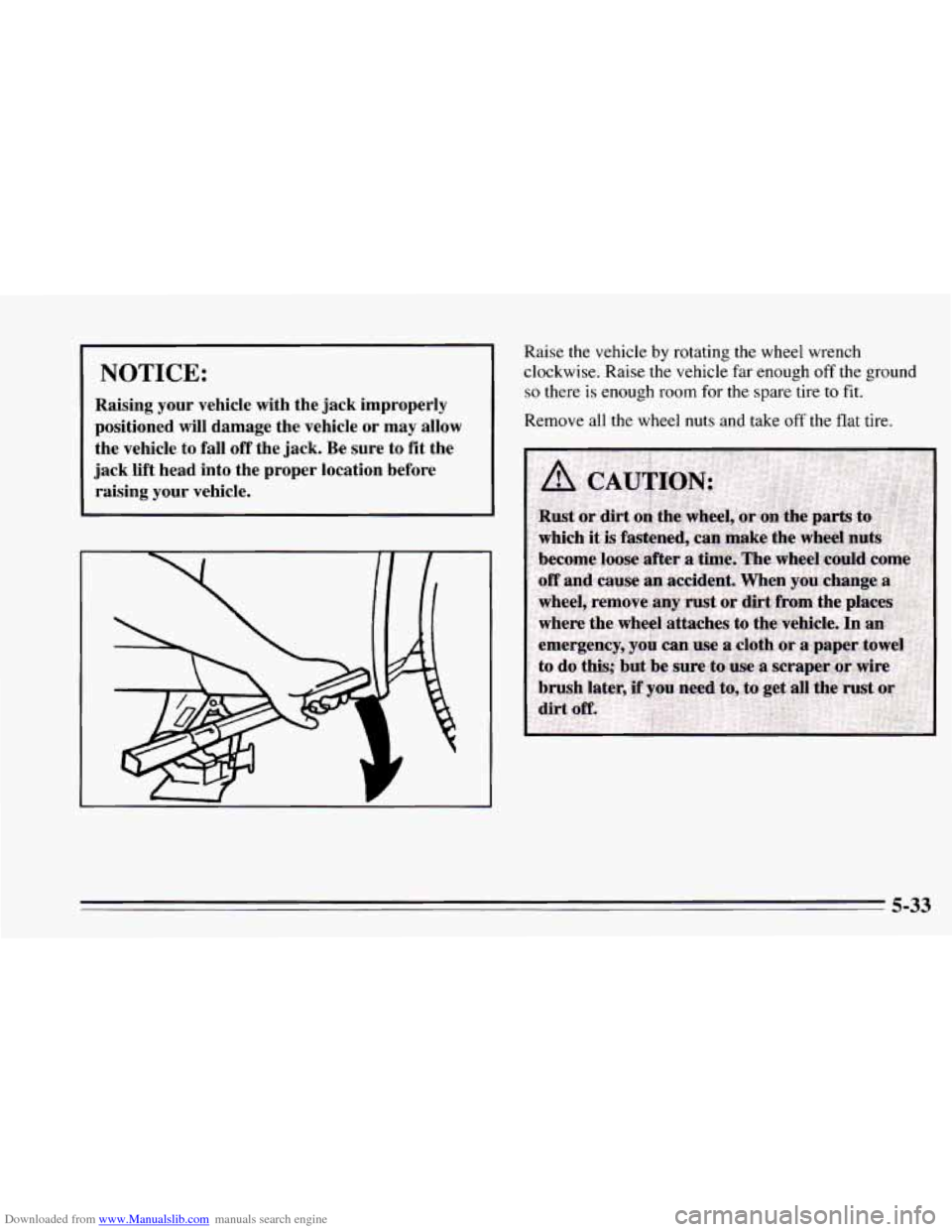

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Raising your vehicle with the jack improperly
positioned will damage the vehicle or may allow
the vehicle to fall off the jack. Be sure to fit the
jack lift head into the proper location before raising your vehicle.
7I-T
a
a
Raise the vehicle by rotating the wheel wrench
clockwise. Raise the vehicle far enough
off the ground
so there is enough room for the spare tire to fit.
Remove all the wheel nuts and take
off the flat tire.
5-33

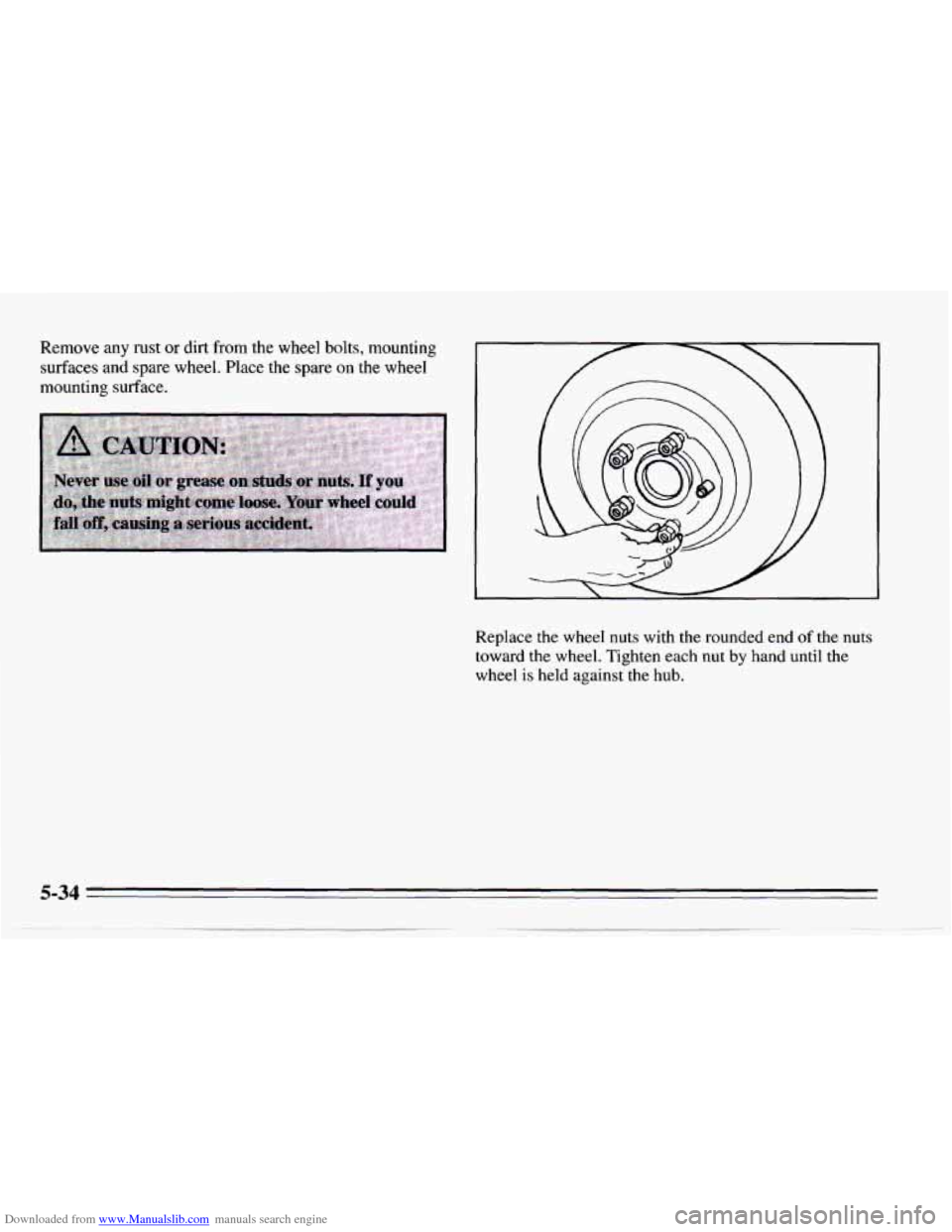

Downloaded from www.Manualslib.com manuals search engine Remove any rust or dirt from the wheel bolts, mounting
surfaces and spare wheel. Place the spare on the wheel
mounting surface.
Replace
the wheel nuts with the rounded end of the nuts
toward the wheel. Tighten each nut by hand until the
wheel is held against the hub.

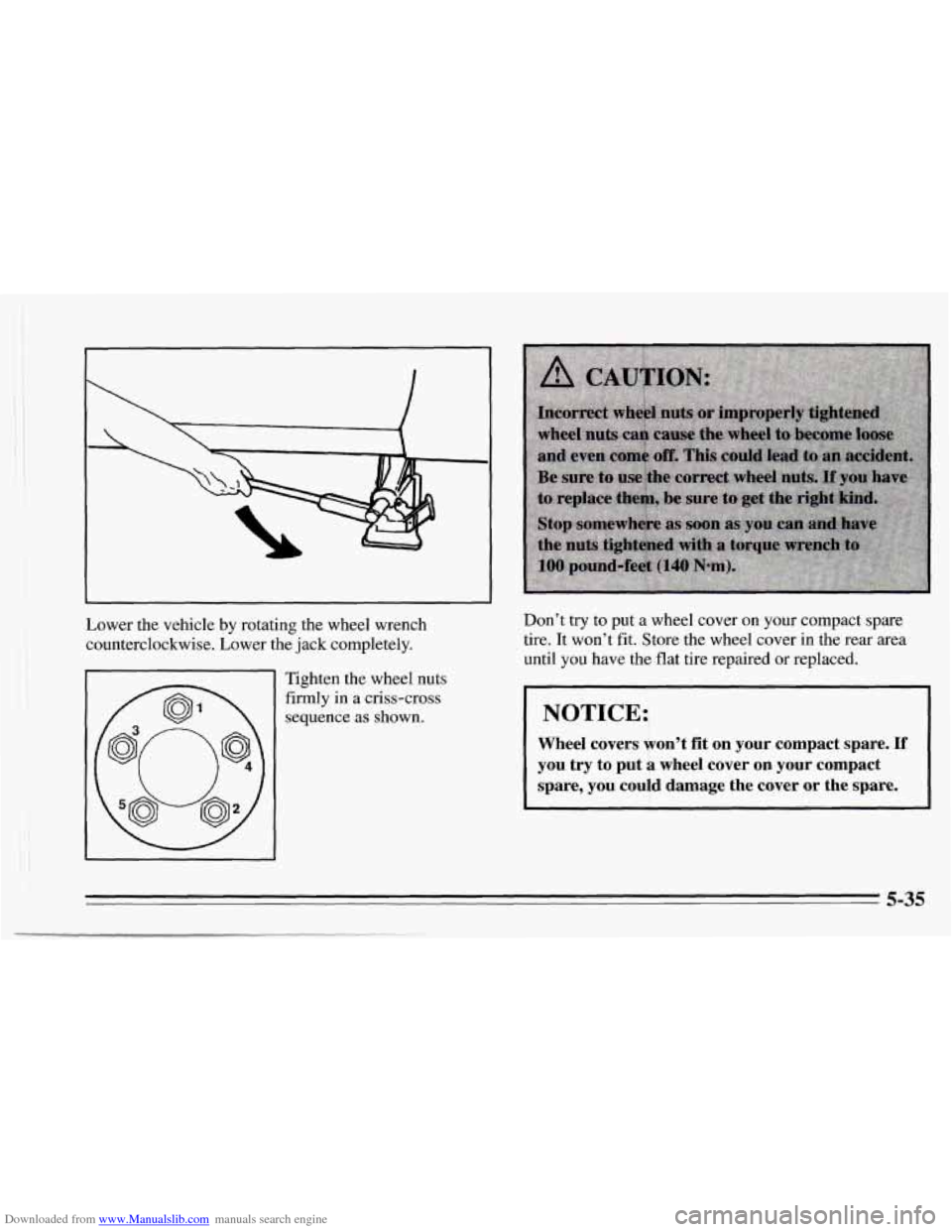

Downloaded from www.Manualslib.com manuals search engine Lower the vehicle by rotating the wheel wrench
counterclockwise. Lower the jack completely.
Tighten the wheel nuts
firmly in a criss-cross
sequence as shown. Don’t
try to put a
wheel cover on your compact spare
tire.
It won’t fit. Store the wheel cover in the rear area
until
you have the flat tire repaired or replaced.
NOTICE:
Wheel covers won’t fit on your compact spare. If
you try to put a wheel cover on your compact
spare, you could damage the cover
or the spare.
5-35

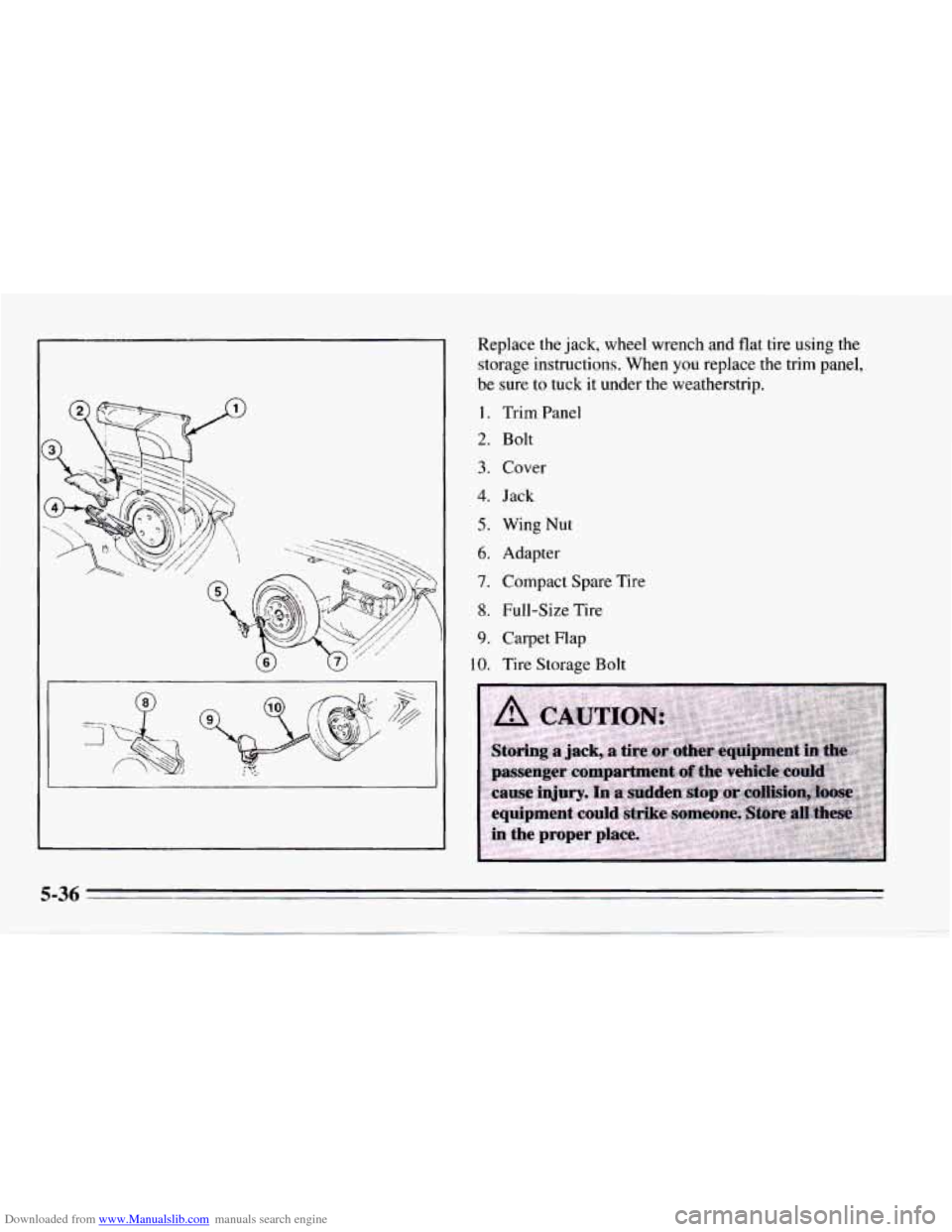

Downloaded from www.Manualslib.com manuals search engine Replace the jack, wheel wrench and flat tire using the
storage instructions. When you replace the trim panel,
be sure
to tuck it under the weatherstrip.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Trim Panel
Bolt
Cover
Jack Wing Nut
Adapter
Compact Spare Tire
Full-Size Tire
Carpet
Flap
Tire Storage Bolt
