CHEVROLET CAMARO 1995 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine 3.4L L32 (Code S) When you open the hood you’ll see:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Battery
Engine Coolant Reservoir
Engine Oil Dipstick
Automatic Transmission Dipstick (if equipped)
Air Cleaner
Oil Fill Cap
Brake Fluid Reservoir
Power Steering Reservoir
Windshield Washer Reservoir
Engine Fan
Clutch Fluid Reservoir (if equipped)
6-9

Downloaded from www.Manualslib.com manuals search engine 5.7L LT1 (Code P) When you open the hood you’ll see:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Battery
Engine Coolant Reservoir
Engine Oil Dipstick
Automatic Transmission Dipstick (if equipped)
Air Cleaner
Oil Fill Cap
Brake Fluid Reservoir
Power Steering Reservoir
Windshield Washer Reservoir
Engine Fans
Clutch
Fluid Reservoir (if equipped)

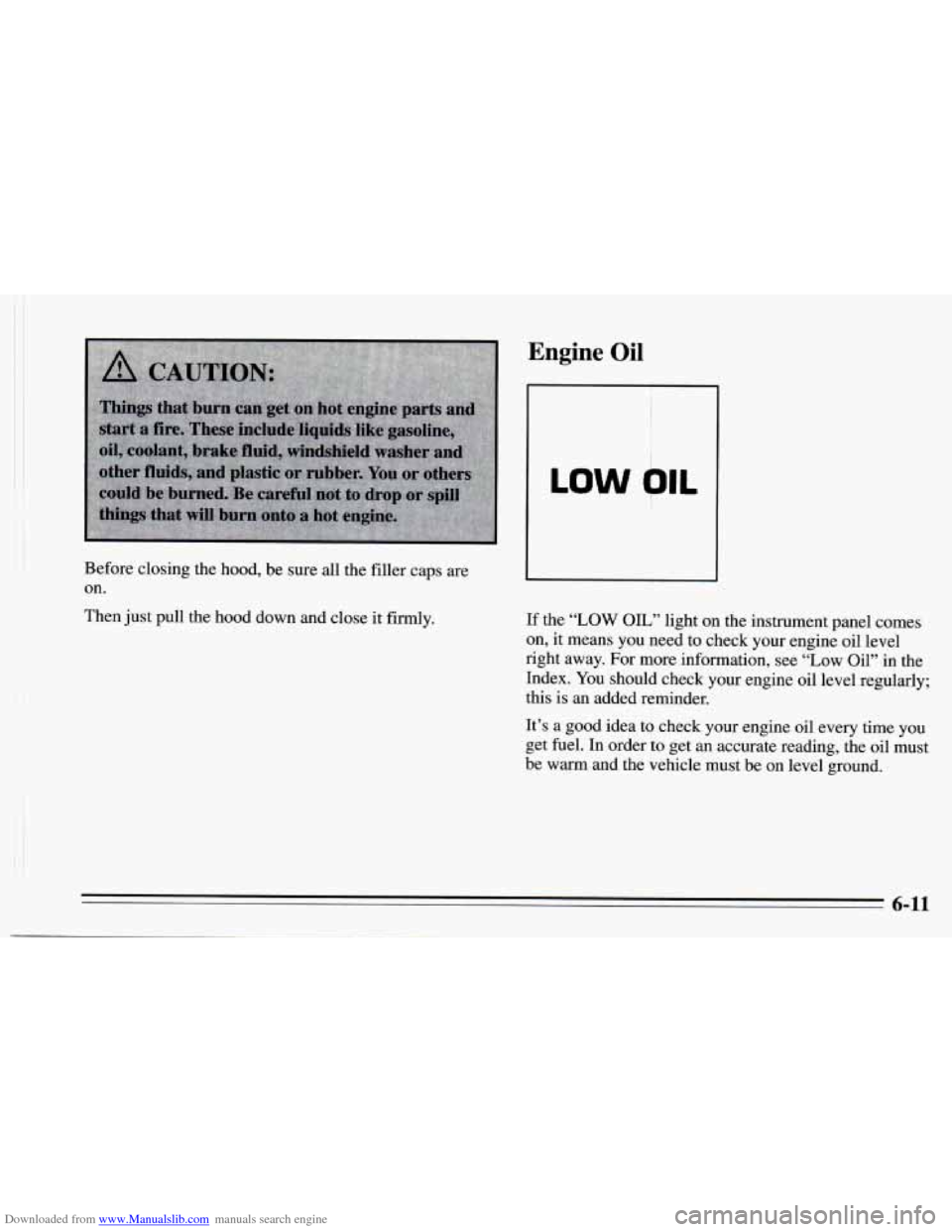

Downloaded from www.Manualslib.com manuals search engine Then just pull the hood down and close it firmly.
Before closing
the hood, be sure
all the filler caps are
on.
Engine Oil
LOW blL
If the “LOW OIL” light on the instrument panel comes
on, it means you need to check your engine oil level
right away. For more information, see “Low Oil”
in the
Index. You should check your engine oil level regularly;
this is an added reminder.
It’s
a good idea to check your engine oil every time you
get
fuel. In order to get an accurate reading, the oil must
be warm and the vehicle must be on level ground.
6-11

Downloaded from www.Manualslib.com manuals search engine 3.4 L - L32 (Code S) Oil Dipstick Location 3800 - L36 (Code K) Oil Dipstick Location
6-12

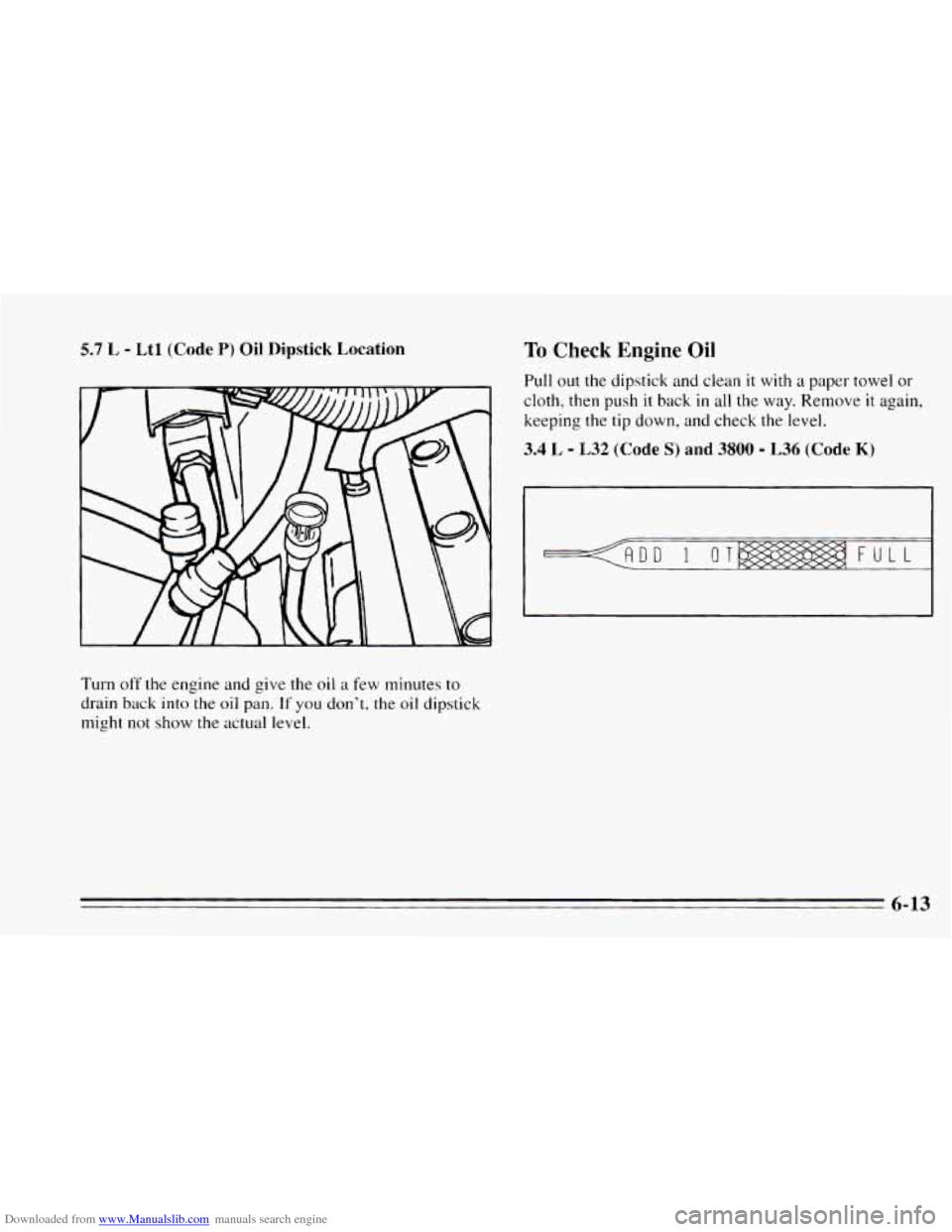

Downloaded from www.Manualslib.com manuals search engine 5.7 L - Ltl (Code P) Oil Dipstick Location To Check Engine Oil
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping the
tip down, and check the level.
3.4 L - L32 (Code S) and 3800 - L36 (Code K)
Turn off the engine and give the oil a few minutes to
drain back into the oil pan. If you don’t, the oil dipstick
might
not show the actual level.
6-13

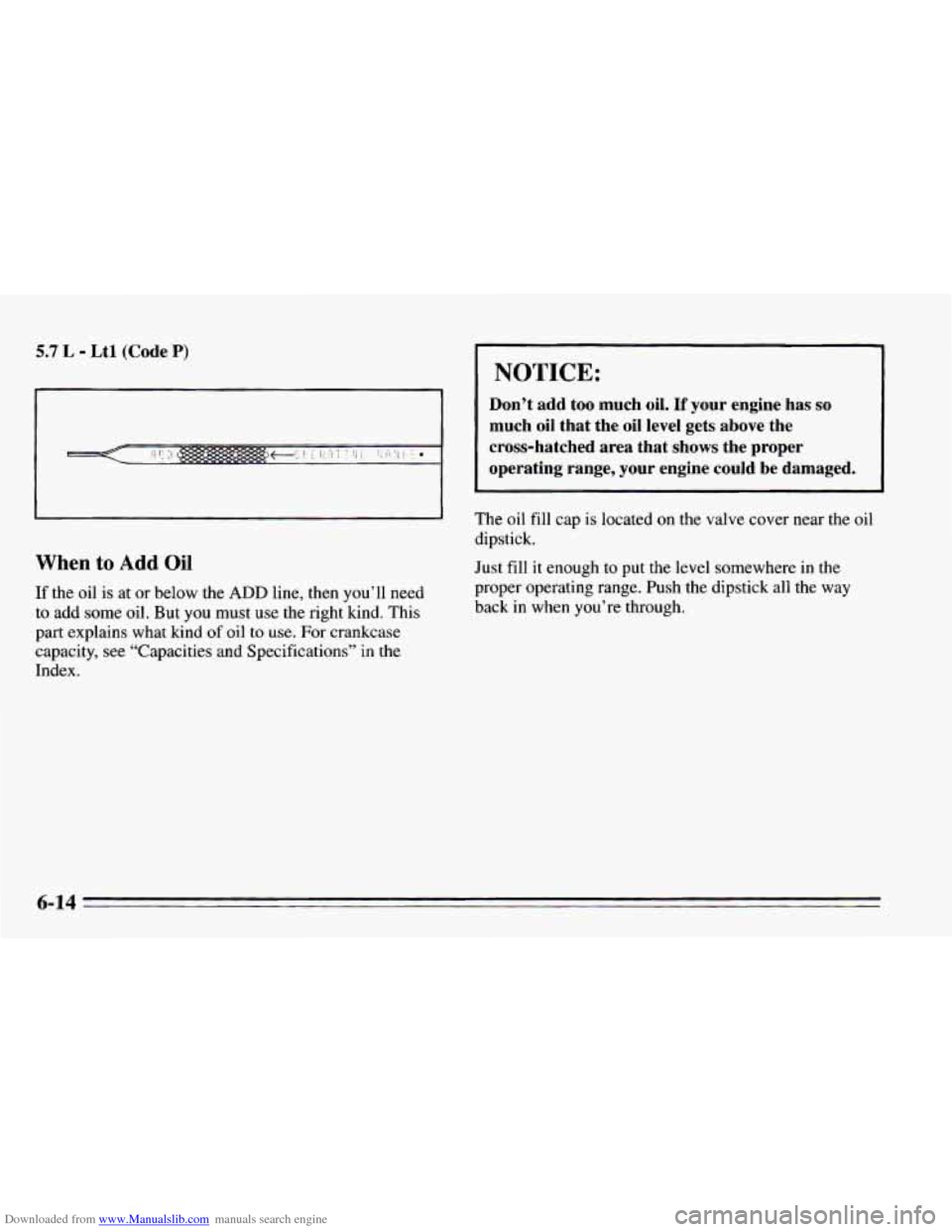

Downloaded from www.Manualslib.com manuals search engine 5.7 L - Ltl (Code P)
When to Add Oil
If the oil is at or below the ADD line, then you’ll need
to add some oil. But you must use the right kind. This
part explains what kind of oil
to use. For crankcase
capacity, see “Capacities and Specifications” in the
Index.
I NOTICE:
Don’t add too much oil. If your engine has so
much oil that the oil level gets above the
cross-hatched area that shows the proper
operating range, your engine could be damaged.
The oil fill cap is located on the valve cover near the oil
dipstick.
Just fill it enough to
put the level somewhere in the
proper operating range. Push the dipstick all the
way
back in when you’re through.
6-14

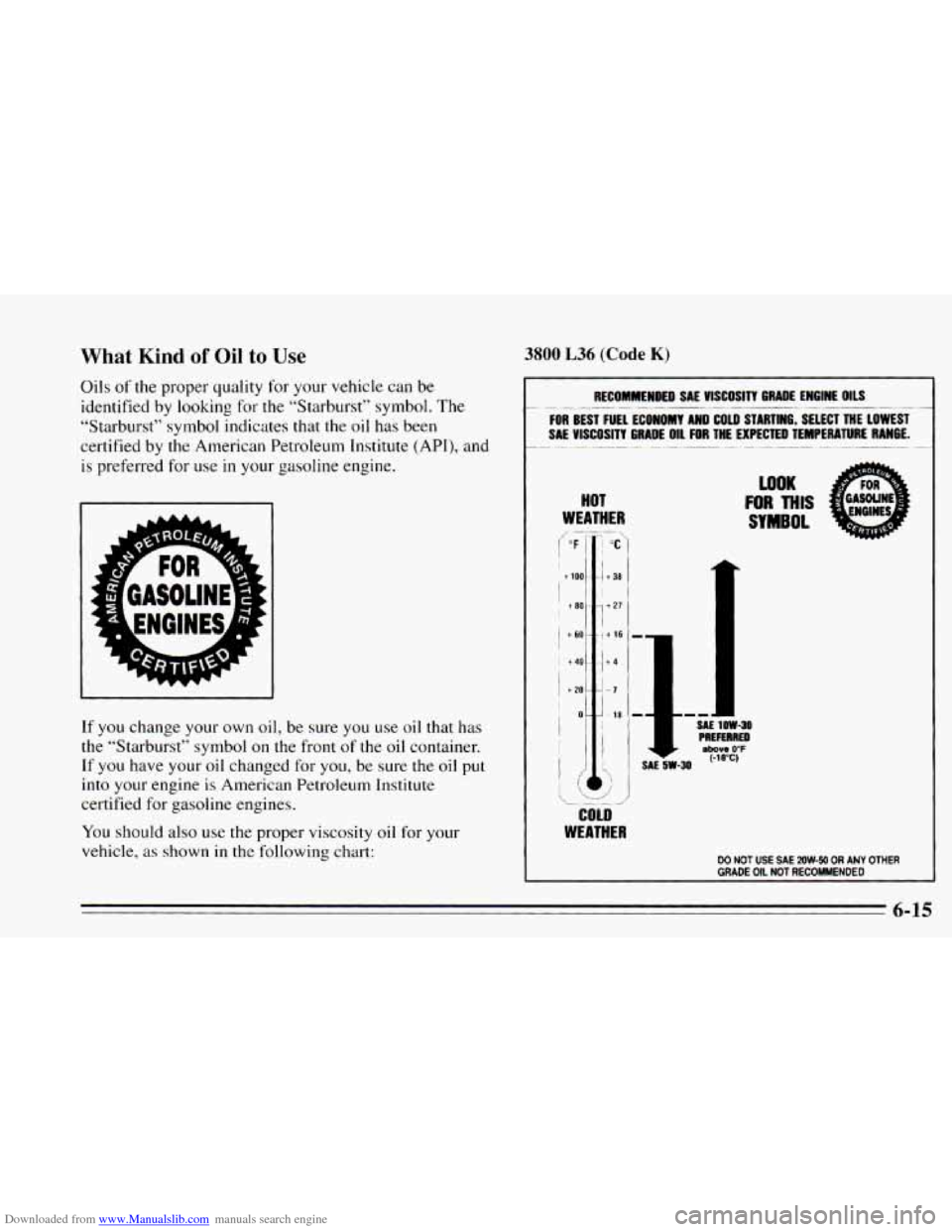

Downloaded from www.Manualslib.com manuals search engine What Kind of Oil to Use 3800 L36 (Code K)
Oils of the proper quality for your vehicle can be
identified by looking for the “Starburst” symbol. The
“Starburst” symbol indicates that the oil
has been
certified by the American Petroleum Institute
(API), and
is preferred for use in your gasoline enpine.
If you change your
own oil, be sure you use oil that has
the “Starburst” symbol
on the front of the oil container.
If you have your oil changed for you, be sure the oil put
into your engine is American Petroleum institute
certified for gasoline engines.
You should also use the proper viscosity oil for your
vehicle, as shown in the following chart:
RECOMMENDED SAE VlSCOSlW GRADE ENGINE OILS
FOR BEST FUEL EONOMY AND COLD STARTING, SELECT THE LOWEST
SA€ VISCOSITY GRADE OIL
FOR THE EXPECTED TEMPERATURE RANGE.
__-_____ -
-- -_.___--____--I__--
WOK
FOR THIS
SYMBOL
I SAE 5W-30
COLD
WEATHER
DO NOT USE SAE 20W-50 OR ANY OTHER GRADE OIL NOT RECOMMENDED
6-15

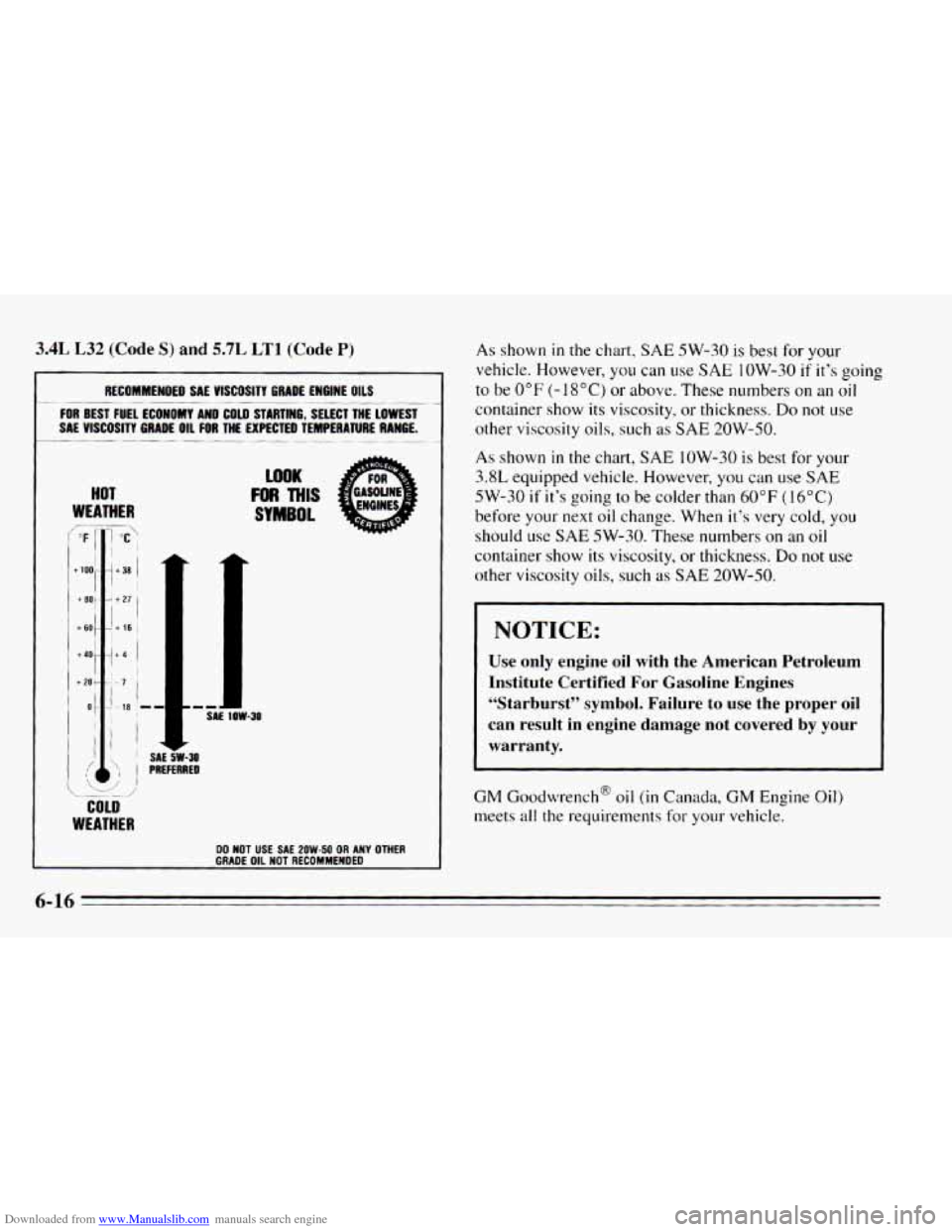

Downloaded from www.Manualslib.com manuals search engine 3.4L L32 (Code S) and 5.7L LTl (Code P)
RECOMMENDED SAL VISCOSITY GRADE EN61NE OILS
FOR BEST FUEL ECONOMY AND COLD STARTING, SELECT THE LOWEST
SAL VISCOSITY GRADE OIL FOR THE EXPECTED TEMPERATURE RANGE.
-~ .______ __ ~___ ~~ .
_.__ ~ ~ .~ __ .
HOT
WEATHER
I I
i I
’ - 18
i I
WEATHER
SAE ZW-30 PREFERRED
00 NOT USE SAE 2OW-50 OR ANY OTHER
GRADE OIL NOT RECOMMENDED
As shown in the chart, SAE 5W-30 is best for your
vehicle. However, you can use
SAE 1OW-30 if it’s going
to be 0°F (-18°C) or above. These numbers on an oil
container show its viscosity, or thickness. Do not use
other viscosity oils, such
as SAE 20W-50.
As shown in the chart, SAE low-30 is best for your
3.8L equipped vehicle. However, you can use SAE
5W-30 if it’s going to be colder than 60°F (16°C)
before your next oil change. When it’s very cold, you
should use
SAE 5W-30. These numbers on an oil
container show its viscosity, or thickness. Do not use
other viscosity
oils, such as SAE 20W-50.
I NOTICE:
Use only engine oil with the American Petroleum
Institute Certified For Gasoline Engines
“Starburst” symbol. Failure to use the proper oil
can result in engine damage not covered by your warranty.
GM Goodwrench@ oil (in Canada, GM Engine Oil)
meets
all the requirements for your vehicle.
6-16

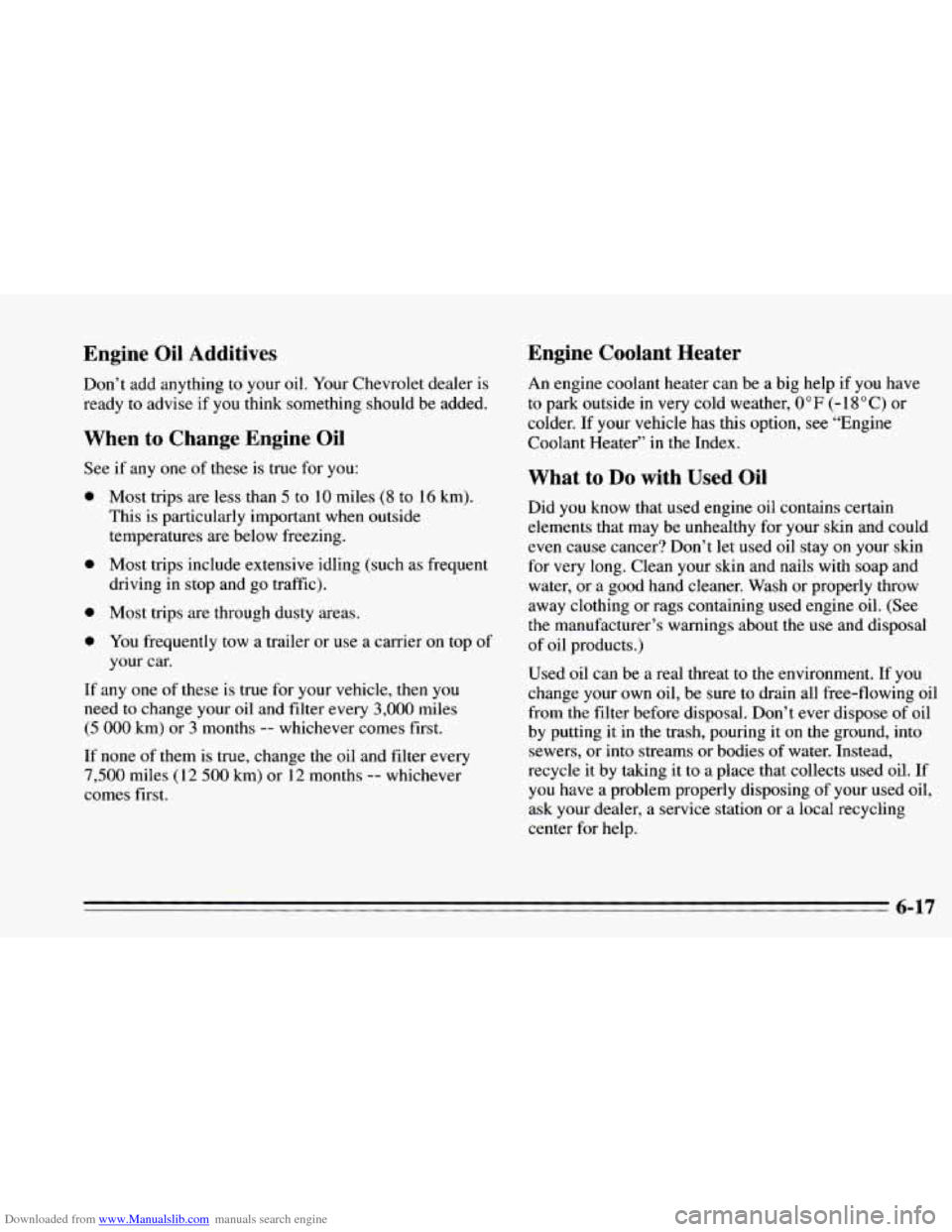

Downloaded from www.Manualslib.com manuals search engine Engine Oil Additives
Don’t add anything to your oil. Your Chevrolet dealer is
ready to advise if you think something should be added.
When to Change Engine Oil
See if any one of these is true for you:
0
0
0
Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as frequent
driving
in stop and go traffic).
Most trips are through dusty areas.
You frequently tow a trailer or use a carrier on top
of
your car.
If any one of these is true for your vehicle, then you
need to change your oil and filter every
3,000 miles
(5 000 km) or 3 months -- whichever comes first.
If none of them is true, change the oil and filter every
7,500 miles (12 500 km) or 12 months -- whichever
comes first.
Engine Coolant Heater
An engine coolant heater can be a big help if you have
to park outside in very cold weather,
0°F (- 18 “C) or
colder.
If your vehicle has this option, see “Engine
Coolant Heater” in the Index.
What to Do with Used Oil
Did you know that used engine oil contains certain
elements that may be unhealthy for your skin and could
even cause cancer? Don’t let used oil stay on your skin
for very long. Clean your skin and nails with soap and
water, or a good hand cleaner. Wash or properly throw
away clothing or rags containing used engine oil. (See
the manufacturer’s warnings about the use and disposal
of oil products.)
Used oil can be a real threat to the environment.
If you
change your own oil, be sure to drain all free-flowing oil
from the filter before disposal. Don’t ever dispose of oil
by putting it in the trash, pouring it on the ground, into
sewers, or into streams
or bodies of water. Instead,
recycle it by taking
it to a place that collects used oil. If
you have a problem properly disposing of your used oil,
ask your dealer, a service station or a local recycling
center for help.
6-17

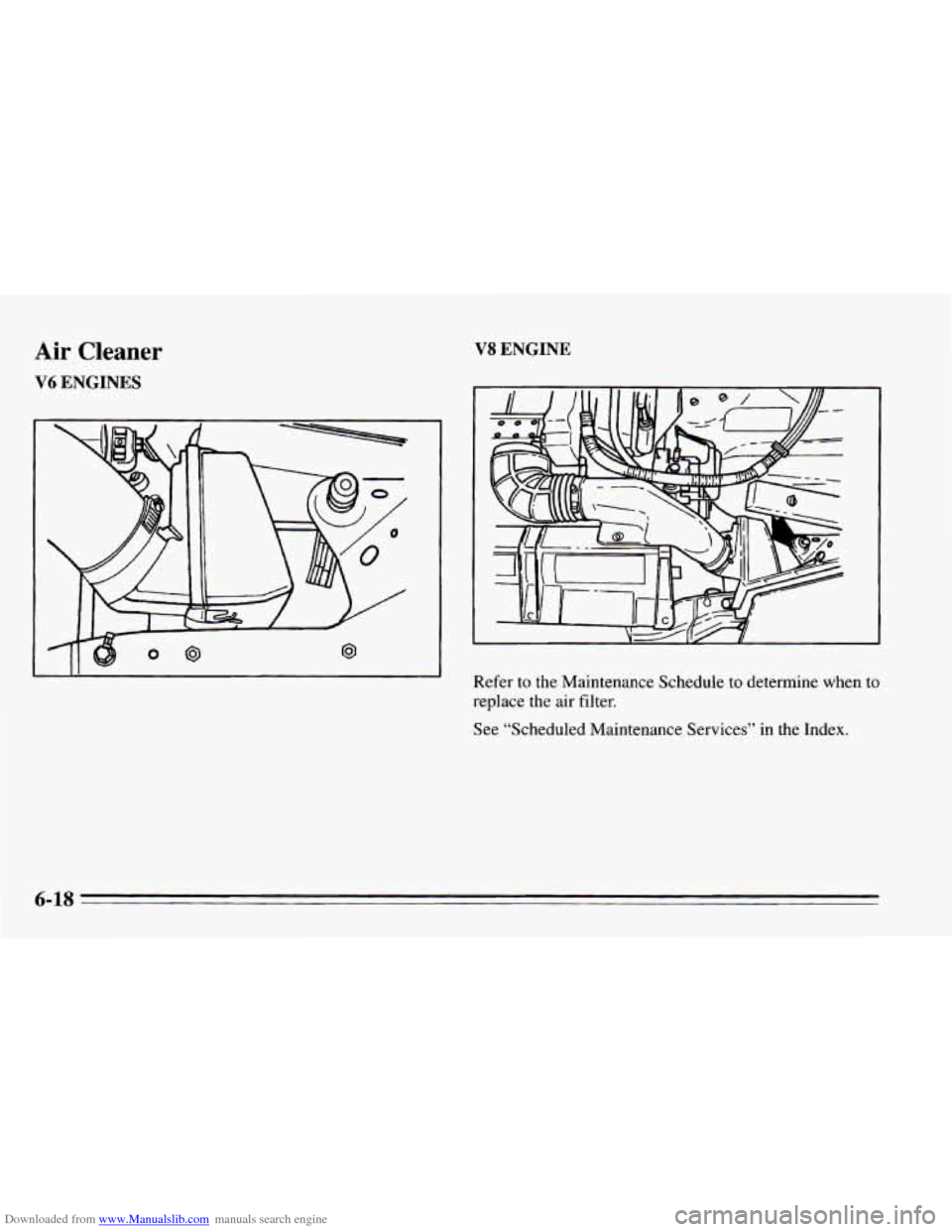

Downloaded from www.Manualslib.com manuals search engine Air Cleaner
V6 ENGINES
V8 ENGINE
Refer to the Maintenance Schedule to determine when to
replace the air filter.
See “Scheduled Maintenance Services” in the Index.
