CHEVROLET CAMARO 1996 4.G Owners Manual

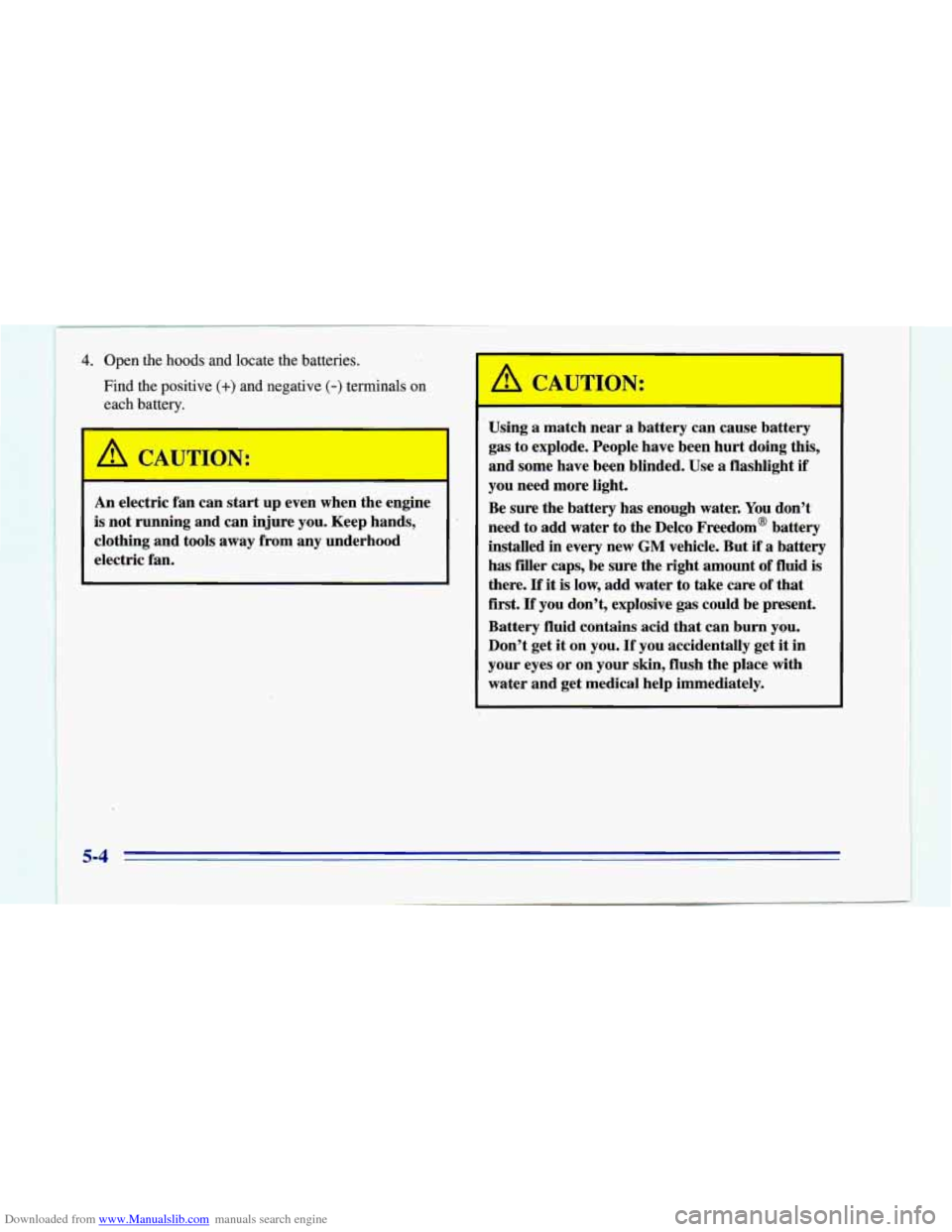

Downloaded from www.Manualslib.com manuals search engine -4. Open the hoods and locate the batteries.
Find the positive
(+) and negative (-) terminals on
each battery.
/! CAUTION:
An electric fan can start up even when the engine
is not running and can injure you. Keep hands,
clothing and tools away from any underhood
electric fan.
Using a match near a battery can cause battery
gas to explode. People have been hart doing this,
and some have been blinded. Use a flashlight if
you need more light.
Be sure the battery has enough water.
You don’t
need to add water to the Delco Freedom@ battery
installed in every new
GM vehicle. But if a battery
has filler caps, be sure the right amount of
fluid is
there.
If it is low, add water to take care of that
first.
If you don’t, explosive gas could be present.
Battery fluid contains acid that can burn
you.
Don’t get it on you. If you accidentally get it in
your eyes or
on your skin, flush the place with
water and get medical help immediately.
5-4

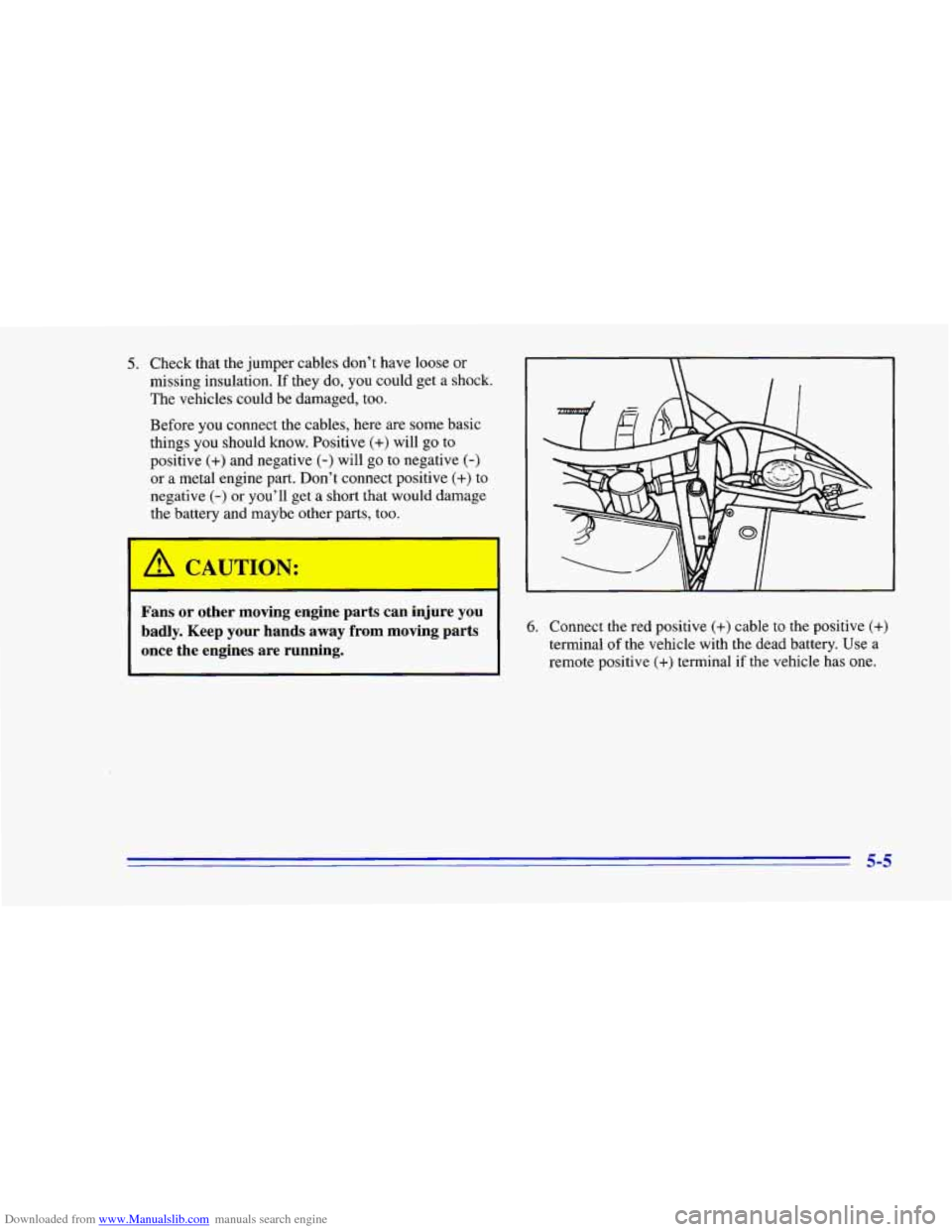

Downloaded from www.Manualslib.com manuals search engine 5. Check that the jumper cables don’t have loose or
missing insulation.
If they do, you could get a shock.
The vehicles could be damaged, too.
Before you connect the cables, here are some basic
things
you should know. Positive (+) will go to
positive
(+) and negative (-) will go to negative (-)
or a metal engine part. Don’t connect positive (+) to
negative
(-) or you’ll get a short that would damage
the battery and maybe other parts, too.
I A CAUTION:
Fans or other moving engine parts can injure you
badly. Keep your hands away from moving parts
once the engines are running.
1
6. Connect the red positive (+) cable to the positive (+)
terminal of the vehicle with the dead battery. Use a
remote positive (+) terminal if the vehicle has one.
5-5

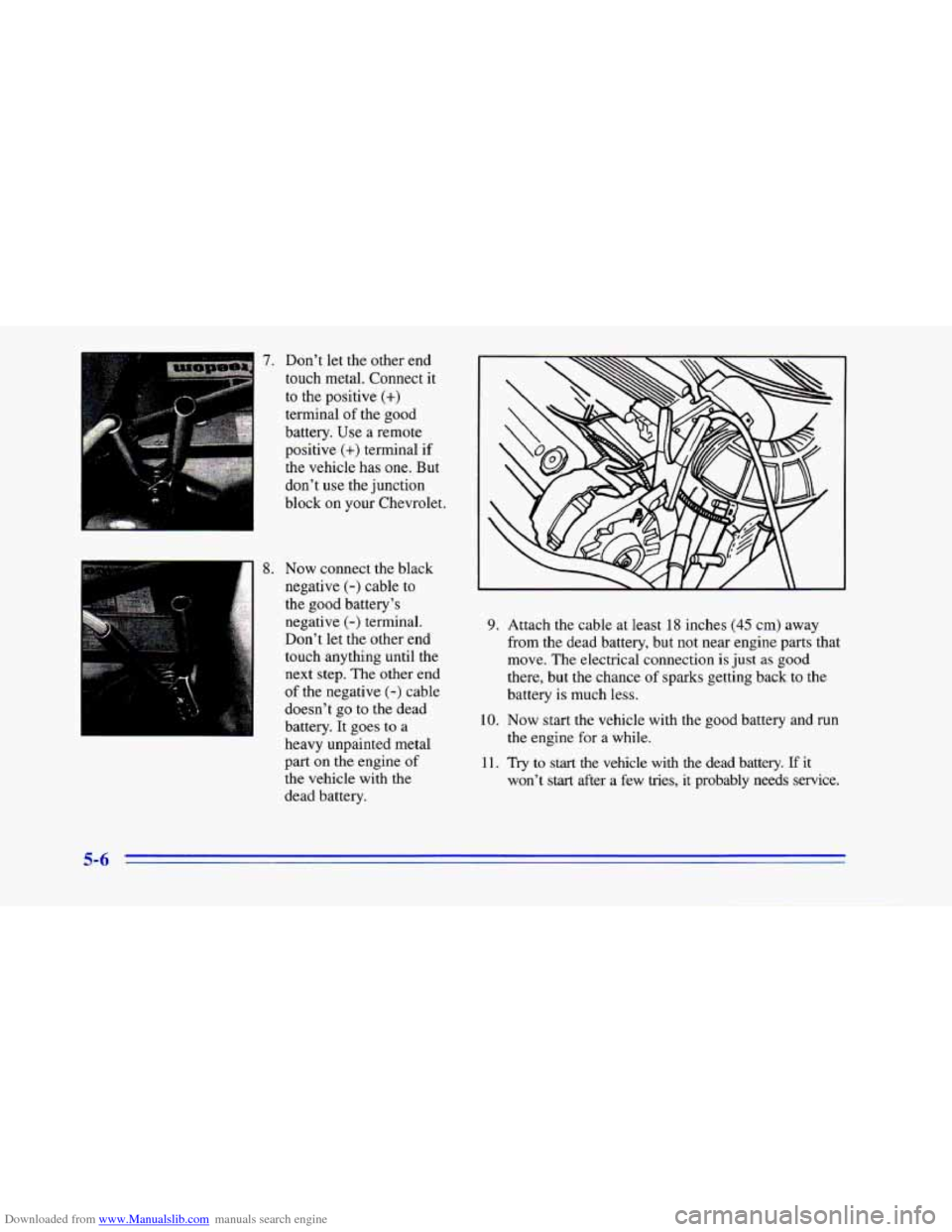

Downloaded from www.Manualslib.com manuals search engine 7. Don't let the other end
touch metal. Connect it
to the positive
(+)
terminal of the good
battery. Use a remote
positive
(+) terminal if
the vehicle has one. But
don't use the junction
block
on your Chevrolet.
8. Now connect the black
negative
(-) cable to
the good battery's
negative
(-) terminal.
Don't let the other end
touch anything until the
next step. The other end
of the negative
(-) cable
doesn't go to the dead
battery. It goes
to a
heavy unpainted metal
part on the engine of
the vehicle with the
dead battery.
9. Attach the cable at least 18 inches (45 cm) away
from the dead battery, but not near engine parts that
move. The electrical connection is just as good
there, but
the chance of sparks getting back to the
battery
is much less.
10. Now start the vehicle with the good battery and run
the engine for a while.
11.
Try to start the vehicle with the dead battery. If it
won't
start after a few tries, it probably needs service.
5-6

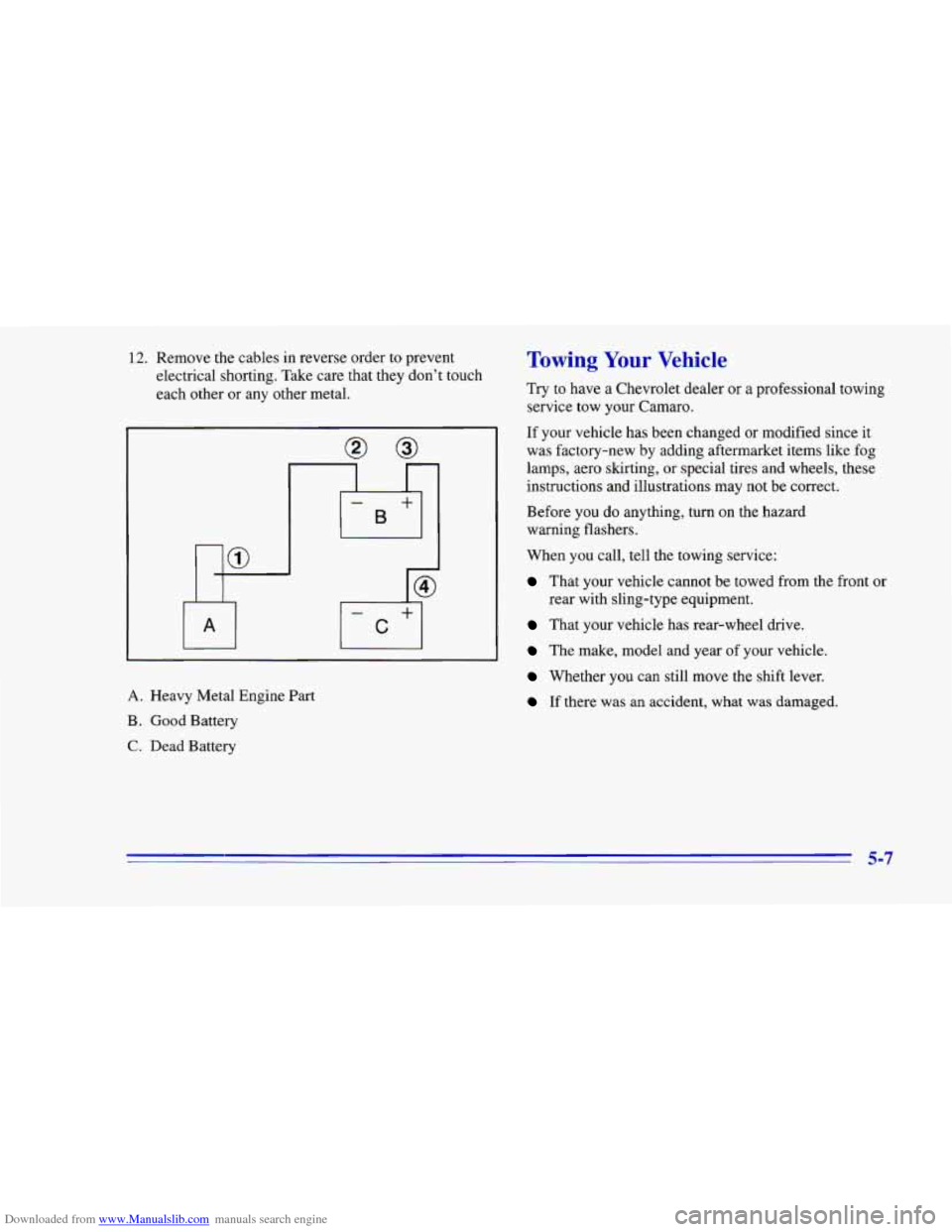

Downloaded from www.Manualslib.com manuals search engine 12. Remove the cables in reverse order to prevent
electrical shorting. Take care that they don’t touch
each other or any other metal.
I
A. Heavy Metal Engine Part
B. Good Battery
C. Dead Battery
Towing Your Vehicle
Try to have a Chevrolet dealer or a professional towing
service tow your Camaro.
If your vehicle has been changed or modified since it
was factory-new by adding aftermarket items like fog
lamps, aero skirting,
or special tires and wheels, these
instructions and illustrations may
not be correct.
Before you
do anything, turn on the hazard
warning flashers.
When you call, tell the towing service:
That your vehicle cannot be towed from the front or
rear with sling-type equipment.
That your vehicle has rear-wheel drive.
The make, model and year of your vehicle.
Whether you can still move the shift lever.
If there was an accident, what was damaged.
5-7

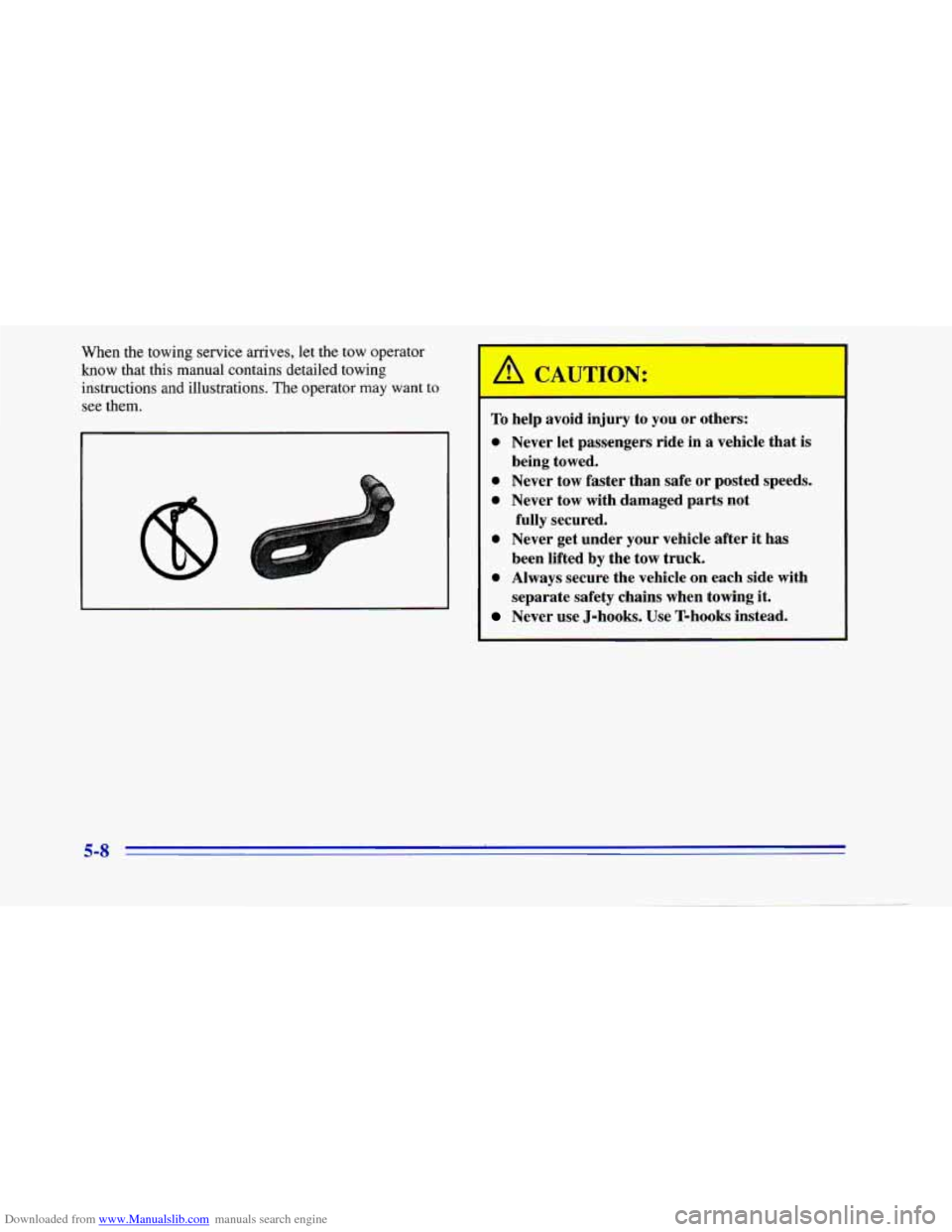

Downloaded from www.Manualslib.com manuals search engine When the towing service arrives, let the tow operator
know that this manual contains detailed towing
instructions
and illustrations. The operator may want to
see them.
A CAUTION:
To help avoid injury to you or others:
0 Never let passengers ride in a vehicle that is
0 Never tow faster than safe or posted speeds.
0 Never tow with damaged parts not
fully secured.
0 Never get under your vehicle after it has
been lifted by the tow truck.
0 Always secure the vehicle on each side with
separate safety chains when towing it.
Never use J-hooks. Use T-hooks instead. being towed.
5-8

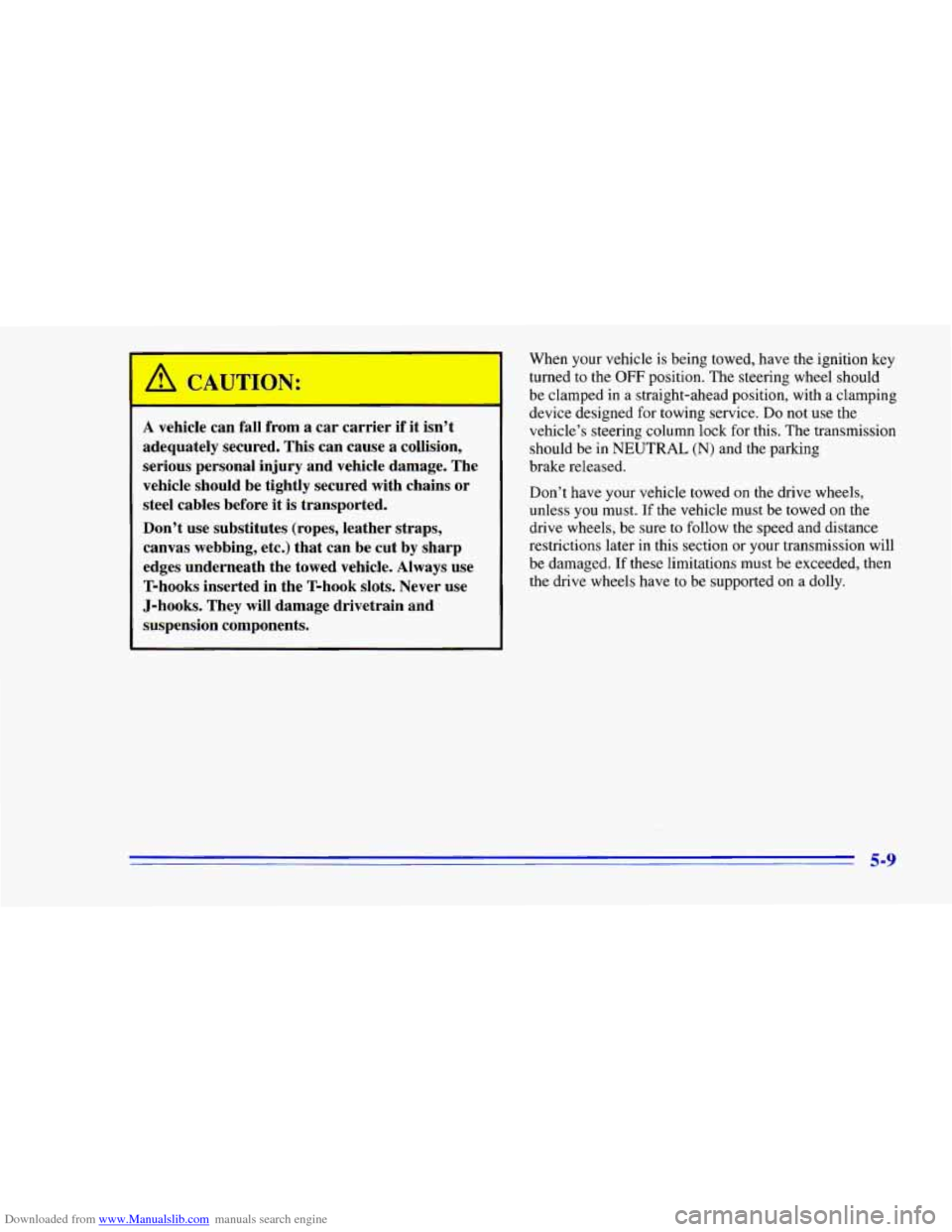

Downloaded from www.Manualslib.com manuals search engine A CAUTION:
A vehicle can fall from a car carrier if it isn’t
adequately secured. This can cause a collision,
serious personal injury and vehicle damage. The
vehicle should be tightly secured with chains
or
steel cables before it is transported.
Don’t use substitutes (ropes, leather straps,
canvas webbing, etc.) that can be cut
by sharp
edges underneath the towed vehicle. Always use
T-hooks inserted in the T-hook slots. Never use
J-hooks. They will damage drivetrain and
suspension components.
When your vehicle is being towed, have the ignition key
turned
to the OFF position. The steering wheel should
be clamped in a straight-ahead position, with a clamping
device designed for towing service. Do not use the
vehicle’s steering column lock for this. The transmission
should be in
NEUTRAL (N) and the parking
brake released.
Don’t have your vehicle towed on the drive wheels,
unless you must. If the vehicle must
be towed on the
drive wheels, be sure to follow the speed and distance
restrictions later
in this section or your transmission will
be damaged. If these limitations must be exceeded, then
the drive wheels have
to be supported on a dolly.
5-9

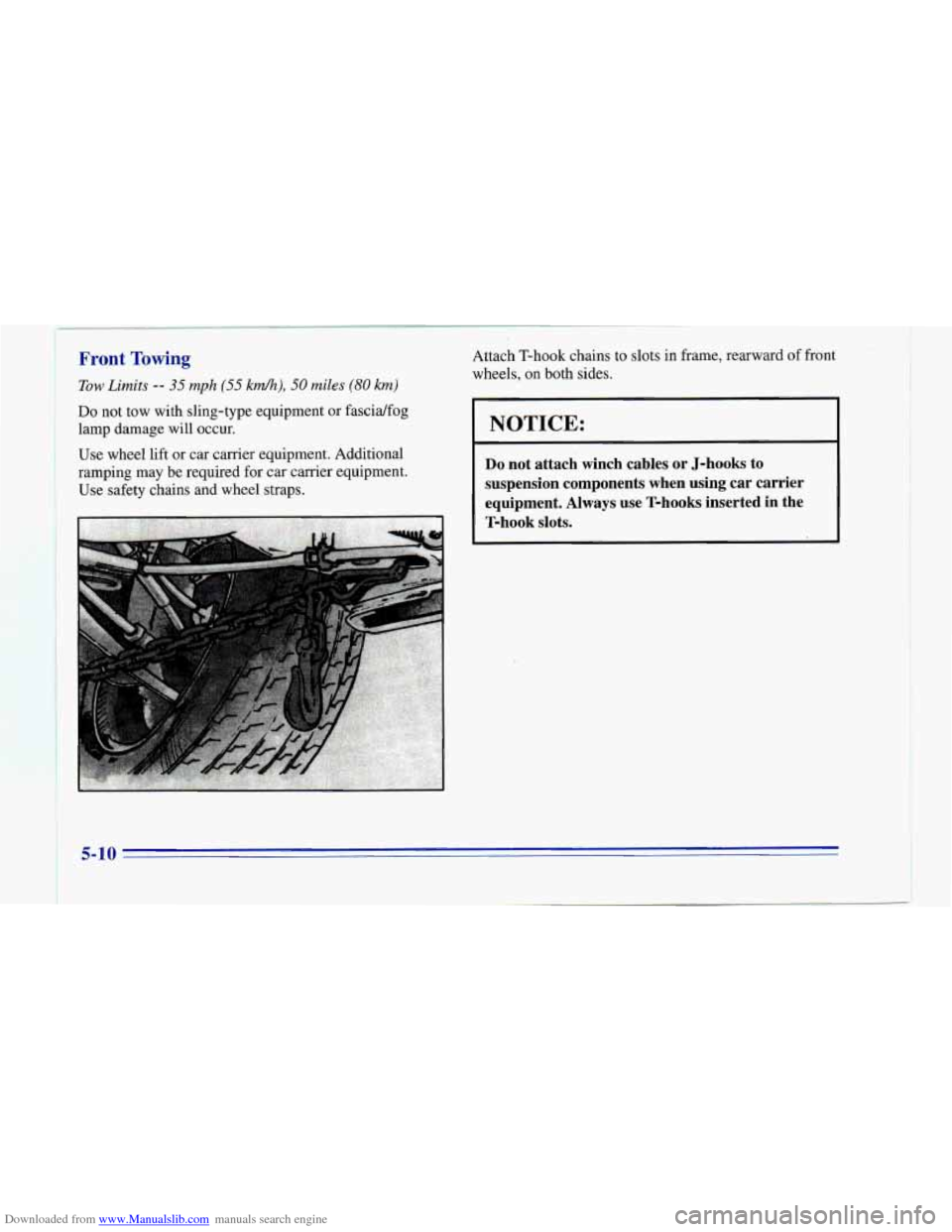

Downloaded from www.Manualslib.com manuals search engine Front Towing: Attach T-hook chains to slots in frame, rearward of front v
Tow Limits -- 35 mph (55 km/h), 50 miles (80 km)
wheels, on both sides.
E
5-10

Downloaded from www.Manualslib.com manuals search engine Attach a separate safety chain around outboard end of
each lower control arm.
NOTICE:
I
Take care not to damage the brake pipes and
hoses or the
ABS sensor and wiring.
NOTICE:
Towing a vehicle over rough surfaces could
damage a vehicle. Damage can occur from
vehicle
to ground or vehicle-to wheel-lift
equipment-contact.
To help avoid damage, install
a towing dolly and raise vehicle until adequate
clearance is obtained between the ground and/or
wheel-lift equipment.

Downloaded from www.Manualslib.com manuals search engine Rear Towing
.
NOTICE:
Do not attach winch cables or J-hooks to
suspension components when using car carrier
equipment. Always use T-hooks inserted in
the T-hook slots.
Do not tow with sling-type
equipment or rear bumper valance will
be damaged.
Use wheel lift or car carrier equipment.
Additional ramping may be required for car
carrier equipment.
Use safety chains and wheel straps.
Towing a vehicle over rough surfaces could
damage
a vehicle. Damage can occur from vehicle
to ground or vehicle to wheel-lift equipment
contact. To help avoid damage, install a towing
dolly and raise vehicle until adequate clearance
is obtained between the ground and/or
wheel-lift equipment.
5-12
t

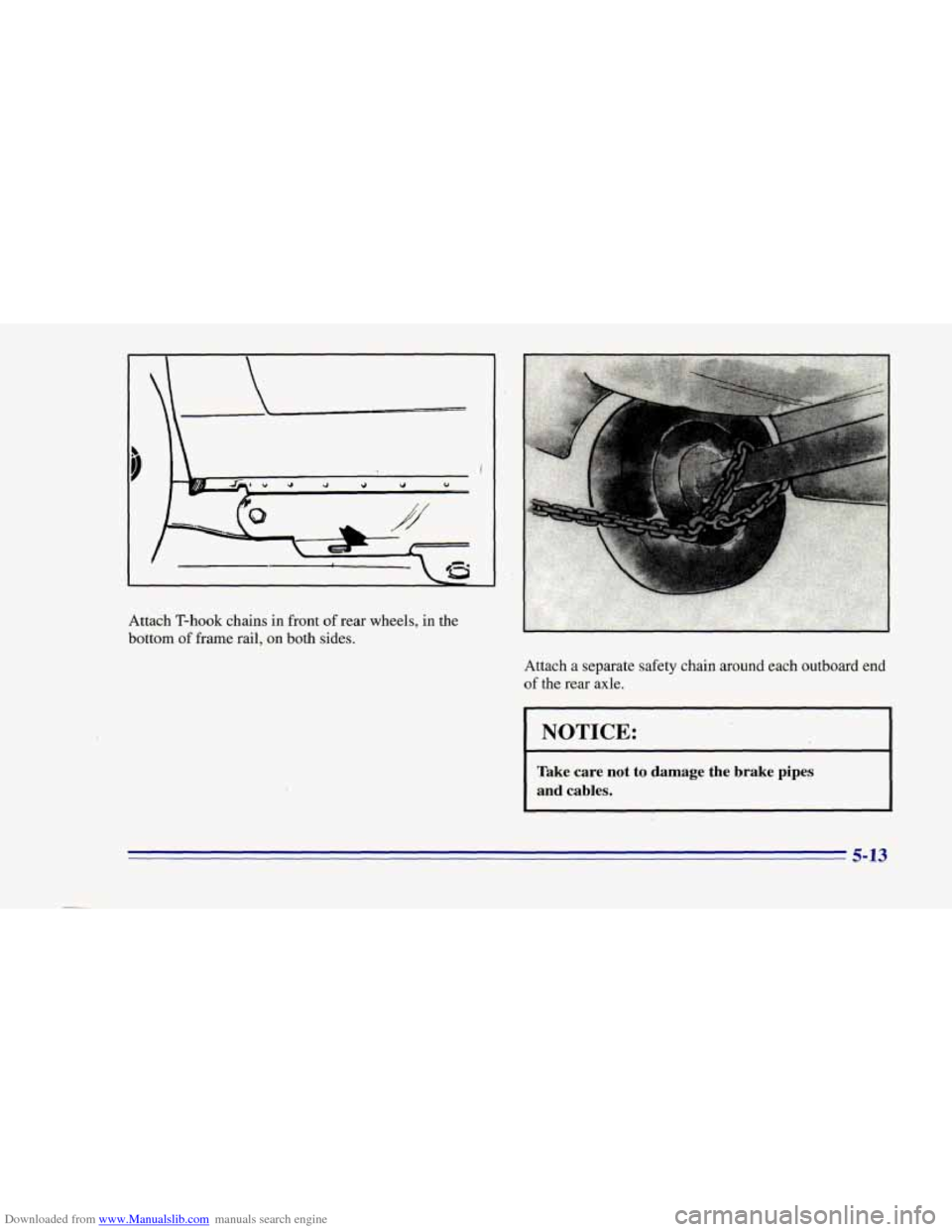

Downloaded from www.Manualslib.com manuals search engine Attach T-hook chains in front of rear wheels, in the
bottom
of frame rail, on both sides.
Attach a separate safety chain around each outboard end
of the rear axle.
I NOTICE:
Take care not to damage the brake pipes
and cables.
