CHEVROLET CAMARO 1996 4.G Owners Manual

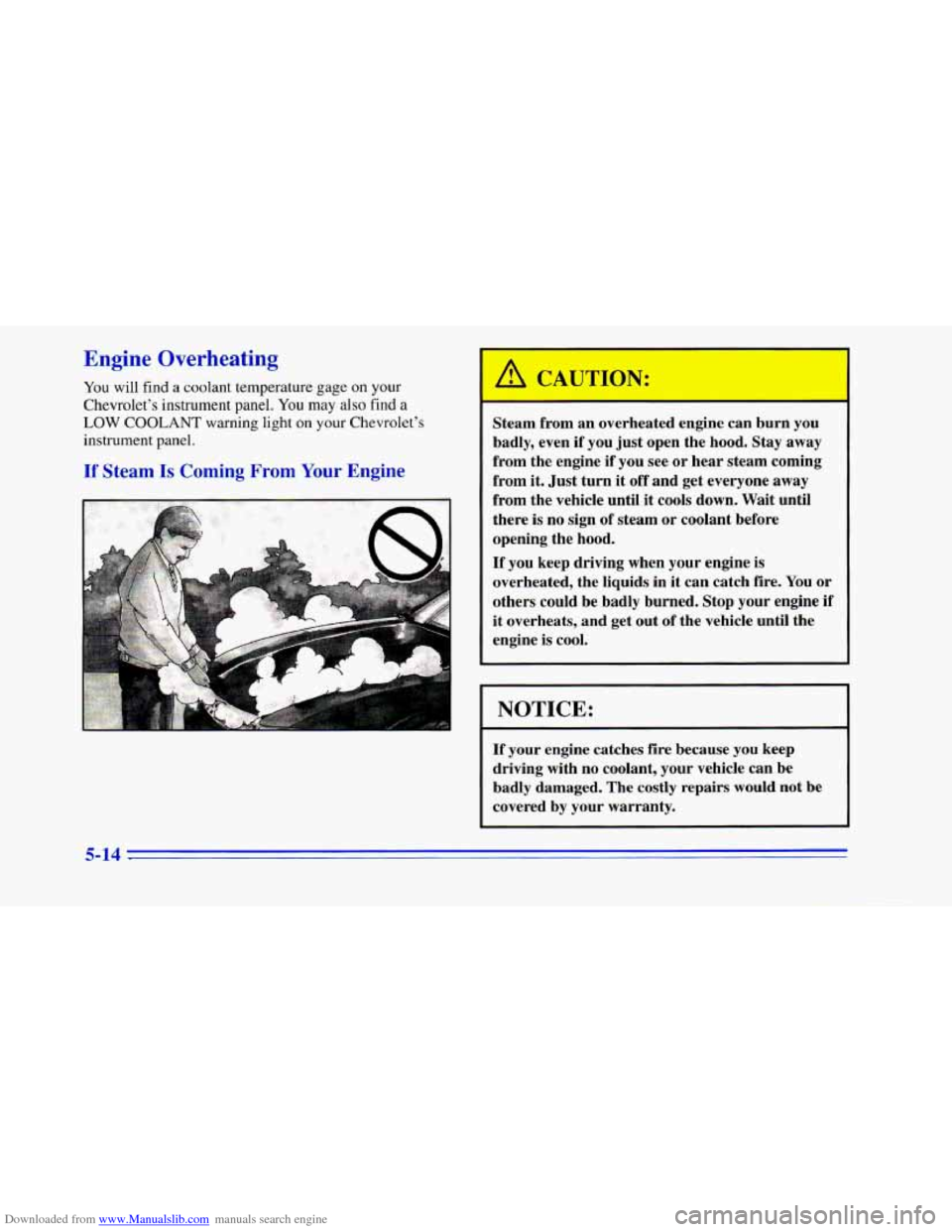

Downloaded from www.Manualslib.com manuals search engine Engine Overheating
You will find a coolant temperature gage on your
Chevrolet’s instrument panel. You
may also find a
LOW COOLANT warning light on your Chevrolet’s
instrument panel.
If Steam Is Coming From Your Engine
A C*.UTIC i:
4
Steam from an overheated engine can burn you
badly, even if you just open the hood. Stay away
from the engine if you see or hear steam coming
from it. Just turn it off and get everyone away
from the vehicle until it cools down. Wait until
there is no sign of steam or coolant before
opening the hood.
If you keep driving when your engine is
overheated, the liquids in it can catch fire. You
or
others could be badly burned. Stop your engine if
it overheats, and get out of the vehicle until the
engine
is cool.
I NOTICE:
If your engine catches fire because you keep
driving with no coolant, your vehicle can be
badly damaged. The costly repairs would not be
covered by your warranty.
5-14 ..

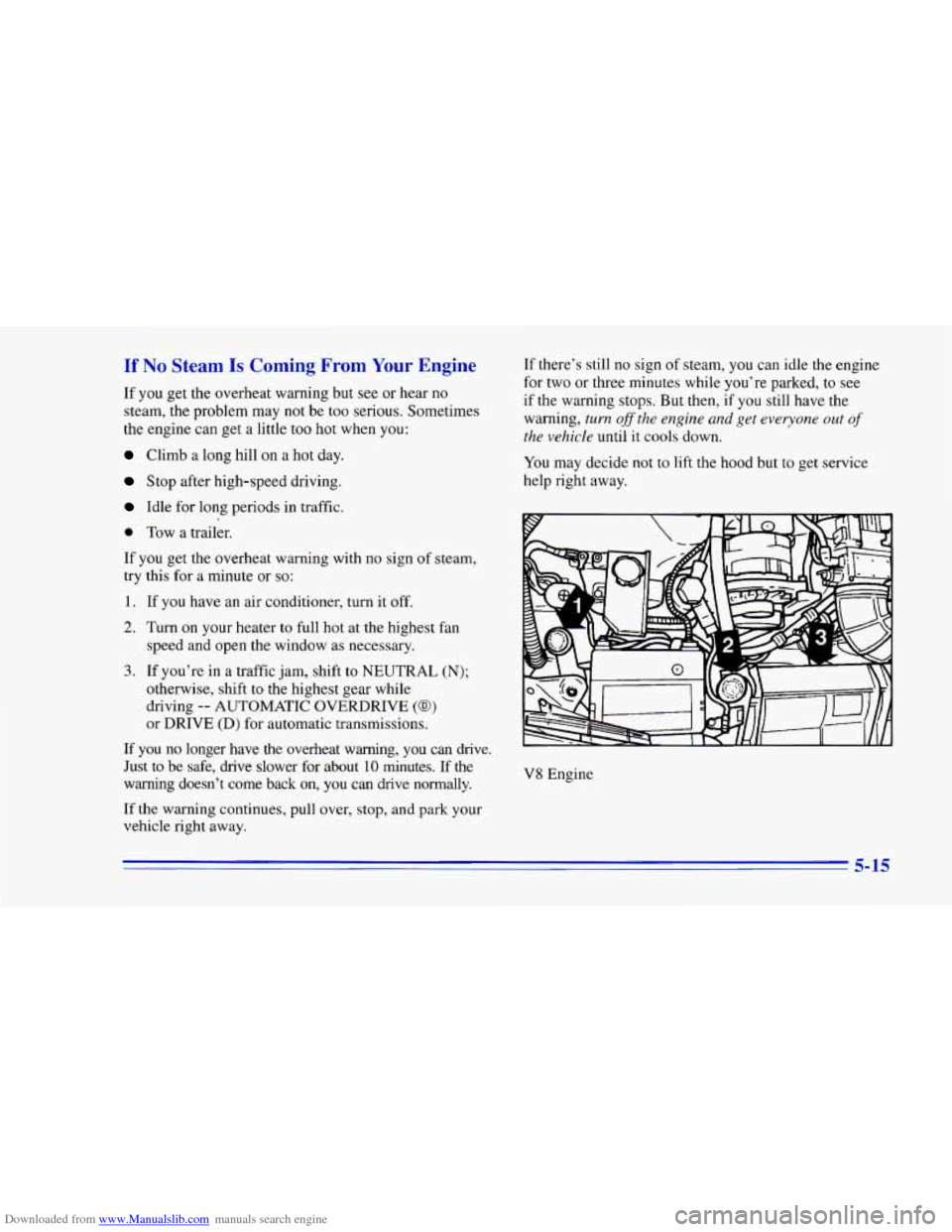

Downloaded from www.Manualslib.com manuals search engine If No Steam Is Ci ling Fro] YC r Engine
If you get the overheat warning but see or hear no
steam, the problem may not be too serious. Sometimes
the engine can get a little too hot when you:
Climb a long hill on a hot day.
Stop after high-speed driving,
Idle for long periods in traffic.
0 Tow a trailer.
11 you get the overheat warning with no sign of steam,
try this for a minute or
so:
1. If you have an air conditioner, turn it off.
2. Turn on your heater to full hot at the highest fan
speed and open the window as necessary.
3. If you’re in a traffic jam, shift to NEUTRAL (N);
otherwise, shift to the highest gear while
driving
-- AUTOMATIC OVERDRIVE (@)
or DRIVE (D) for automatic transmissions.
If you no longer have the overheat warning, you can drive.
Just
to be safe, drive slower for about 10 minutes. If the
warning doesn’t come back on, you can drive normally.
If the warning continues, pull over, stop, and park your
vehicle right away. If
there’s still no sign
of steam, you can idle the engine
for two or three minutes while you’re parked,
to see
if the warning stops. But then,
if you still have the
warning,
turn 08 the engine and get everyone out of
the vehicle until it cools down.
You may decide not to lift the hood but to get service
help right away.
V8 Engine

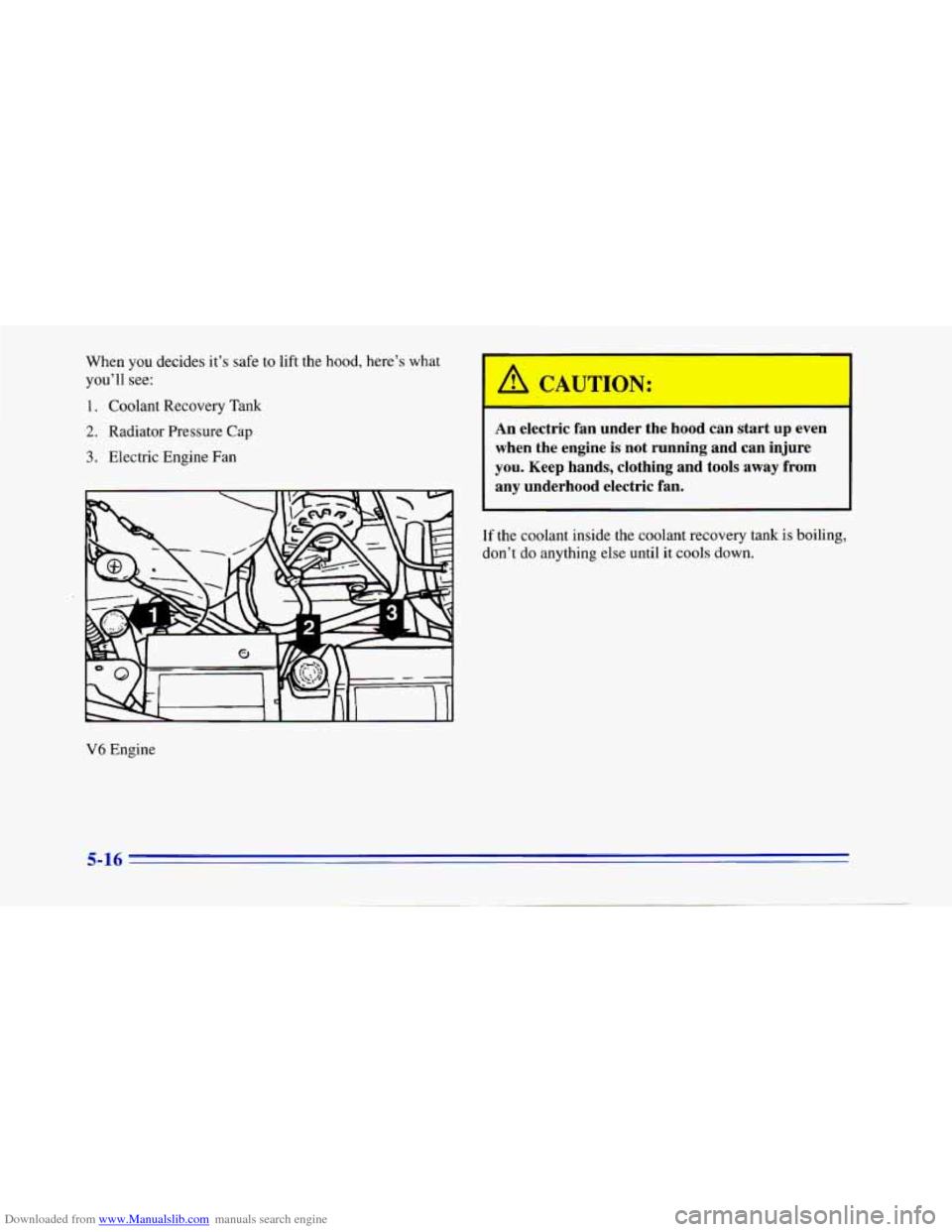

Downloaded from www.Manualslib.com manuals search engine When you decides it’s safe to lift the hood, here’s what
you’ll see:
1. Coolant Recovery Tank
2. Radiator Pressure Cap
3. Electric Engine Fan
If the coolant inside the coolant recovery tank is boiling,
don’t
do anything else until it cools down.
V6 Engine
/d CAUTION:
An electric fan under the hood can start up even
when the engine is not running and can injure
you. Keep hands, clothing and tools away from
any underhood electric fan.
5-16

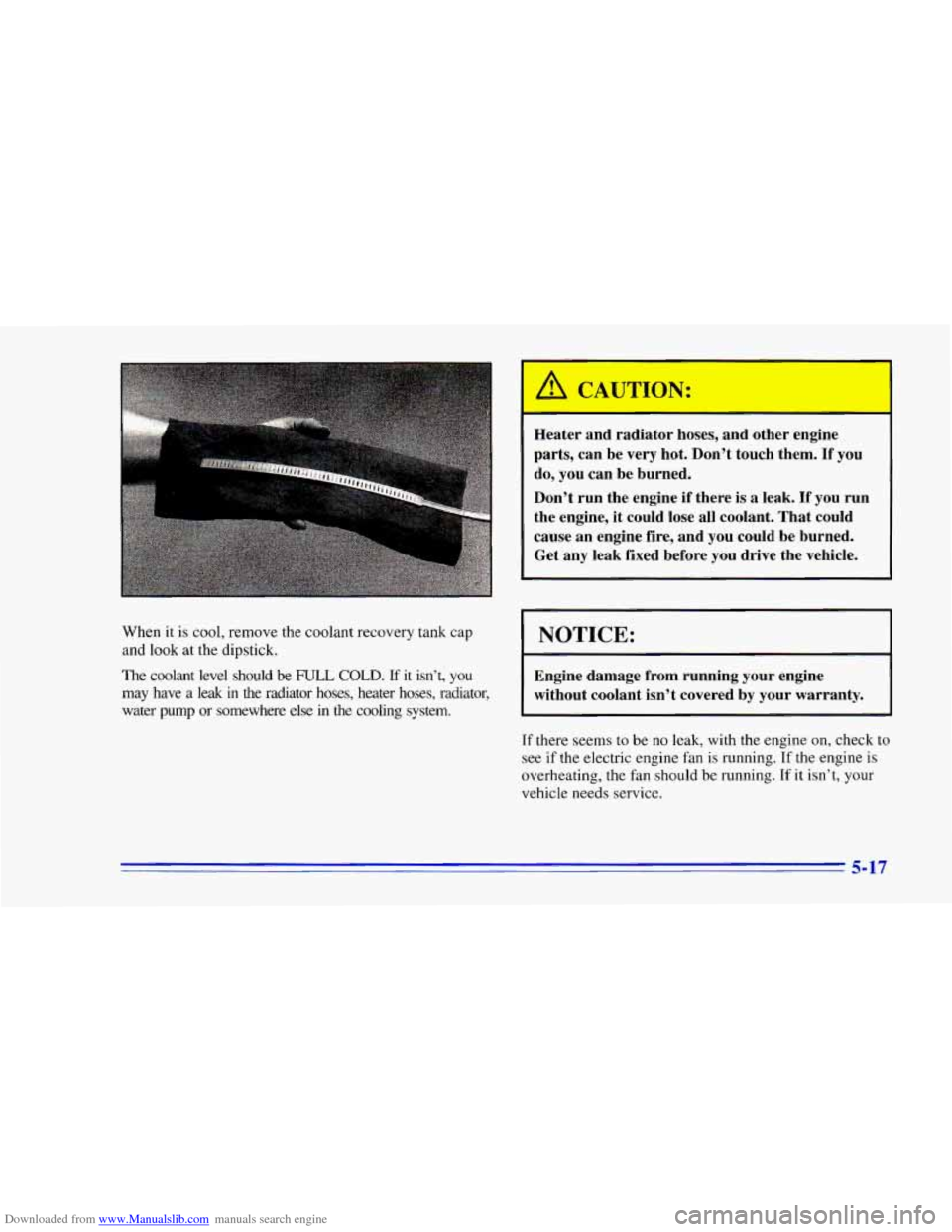

Downloaded from www.Manualslib.com manuals search engine When it is cool, remove the coolant recovery tank cap
and look at the dipstick.
The coolant level should
be FULL COLD. If it isn’t, you
may have a leak in the radiator hoses, heater hoses, radiator,
water pump or somewhere else in the cooling system.
Heater and radiator hoses, and other engine
parts, can be very hot. Don’t touch them.
If you
do, you can be burned.
Don’t run the engine if there is a leak.
If you run
the engine, it could lose all coolant. That could
cause an engine fire, and
you could be burned.
Get any leak fixed before you drive the vehicle.
NOTICE:
~~~
Engine damage from running your engine
without coolant isn’t covered by your warranty.
If there seems to be no leak, with the engine on, check to
see if the electric engine
fan is running. If the engine is
overheating, the fan should be running.
If it isn’t, your
vehicle needs service.
5-17

Downloaded from www.Manualslib.com manuals search engine A

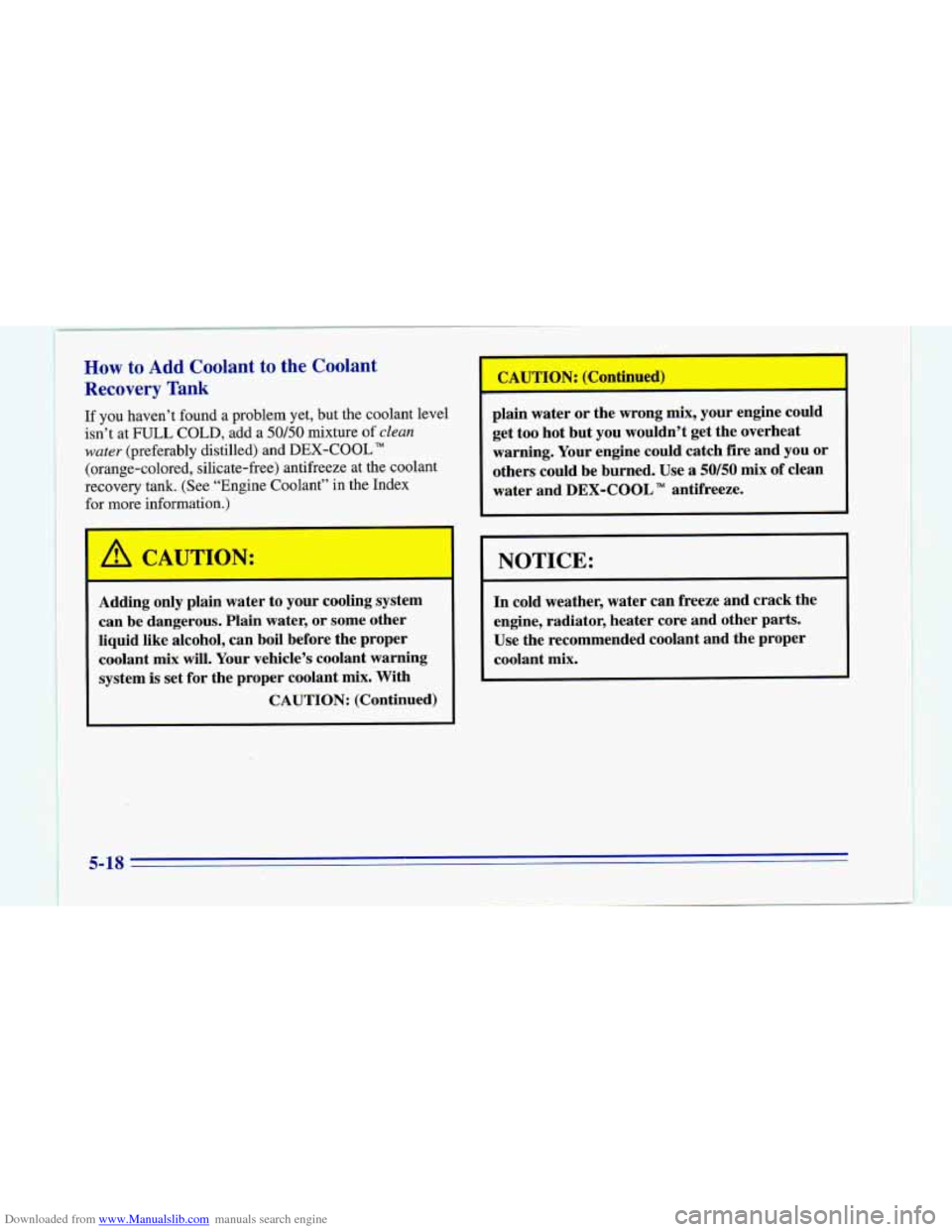

How to Add Coolant to the Coolant
Recovery Tank
If you haven’t found a problem yet, but the coolant level
isn’t at
FULL COLD, add a 50/50 mixture of clean
water (preferably distilled) and DEX-COOL ’ (orange-colored, silicate-free) antifreeze at the coolant
1 recovery tank. (See “Engine Coolant” in the Index
~ for more information.)
i
A CAUTION:
Adding only plain water to your cooling system
can be dangerous. Plain water, or some other
liquid like alcohol, can boil before the proper
coolant
mix will. Your vehicle’s coolant warning
system
is set for the proper coolant mix. With
CAUTION: (Continued)
- - -
plain water or the wrong mix, your engine could
get too hot but you wouldn’t get the overheat
warning. Your engine could catch fire and you or
others could be burned. Use a
50/50 mix of clean
water and DEX-COOL
TM antifreeze.
NOTICE:
In cold weather, water can freeze and crack the
engine, radiator, heater core and other parts.
Use the recommended coolant and the proper
coolant mix.
5-18
t

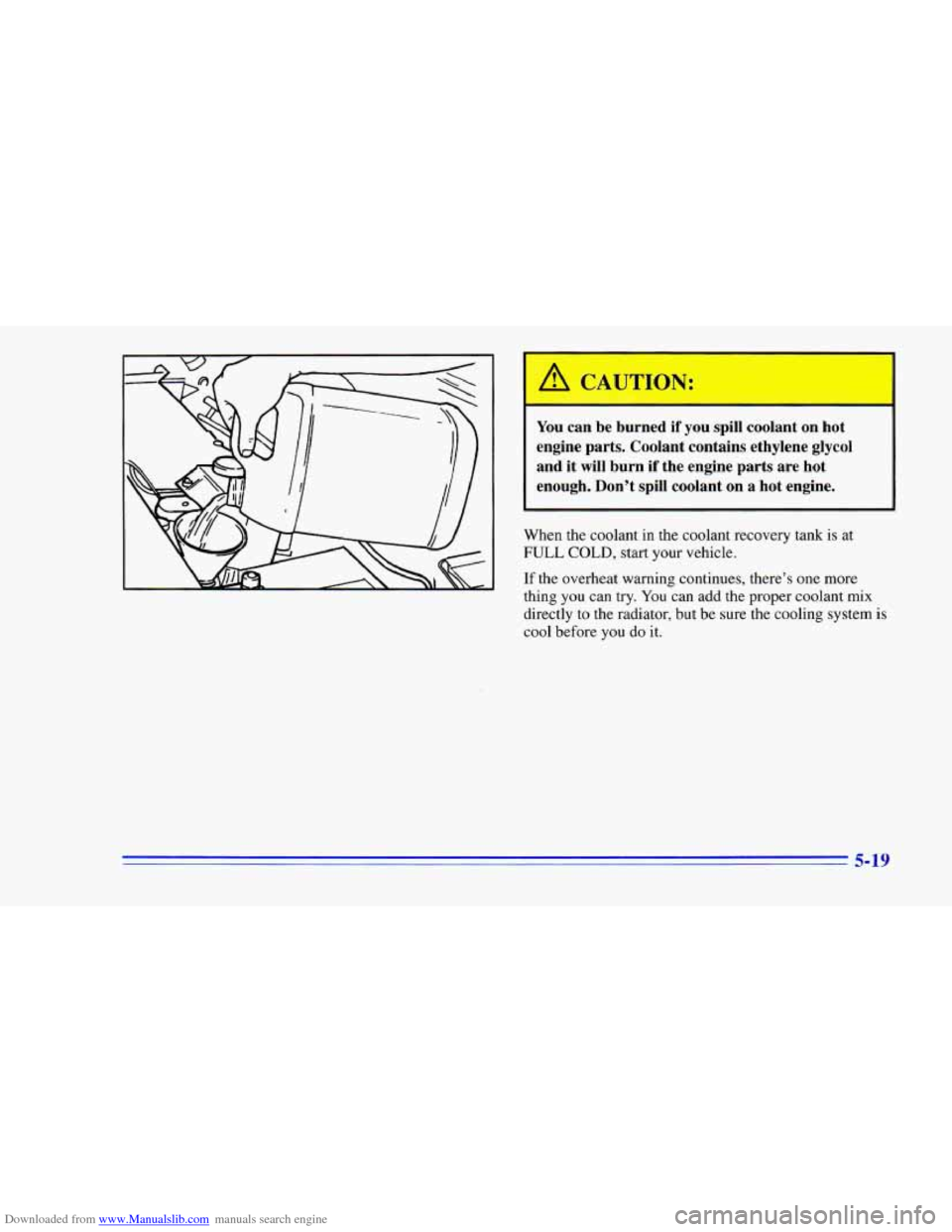

Downloaded from www.Manualslib.com manuals search engine YOU can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol
and it will burn if the engine parts are hot enough. Don’t spill coolant on a hot engine.
1
.
When the coolant in the coolant recovery tank is at
FULL COLD, start your vehicle.
If the overheat warning continues, there’s one more
thing
you can try. You can add the proper coolant mix
directly to the radiator, but
be sure the cooling system is
cool before
you do it.
5-19

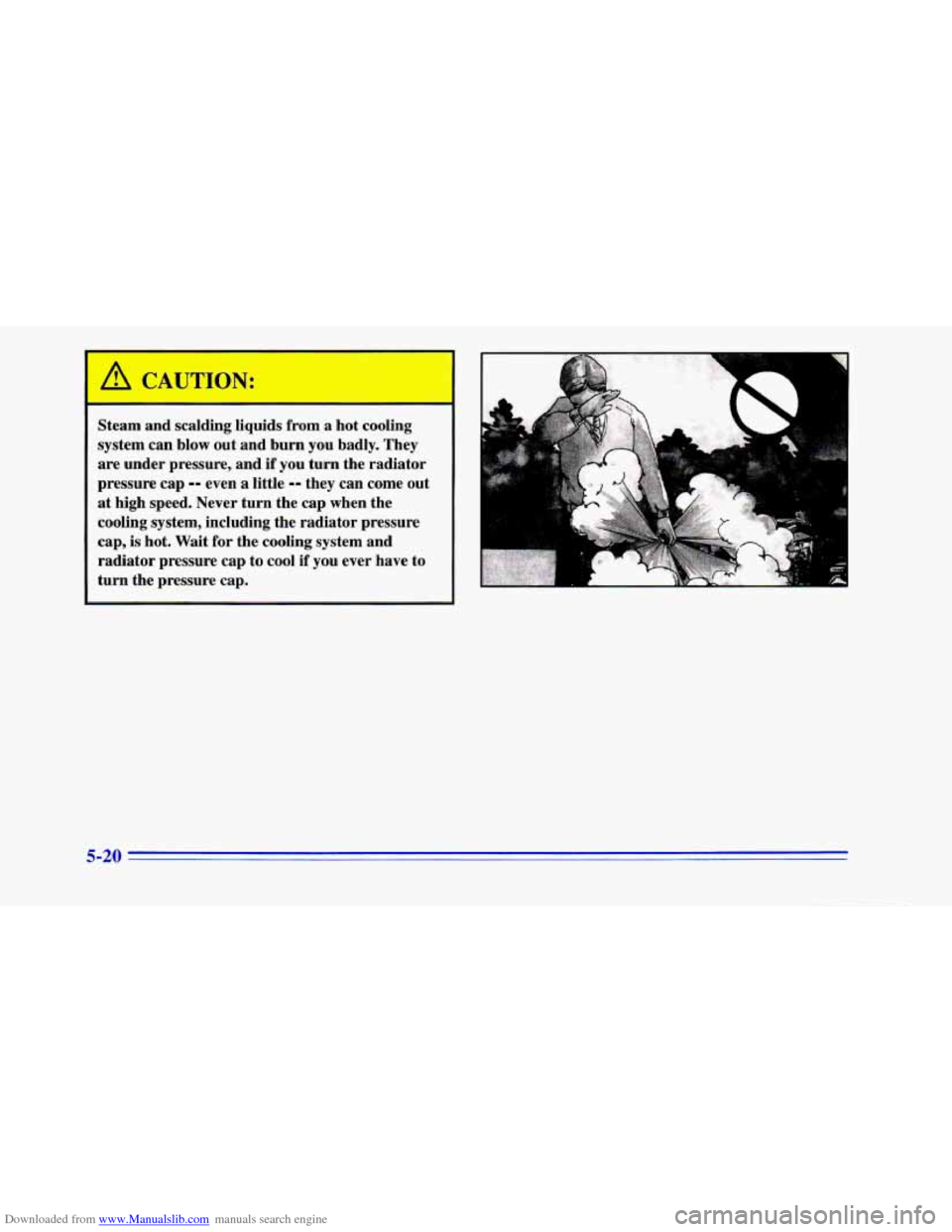

Downloaded from www.Manualslib.com manuals search engine Steam and scalding liquids from a hot cooling
system can blow out and burn you badly. They
are under pressure, and
if you turn the radiator
pressure cap
-- even a little -- they can come out
at high speed. Never turn the cap when the
cooling system, including the radiator pressure
cap, is hot. Wait for the cooling system and
radiator pressure cap
to cool if you ever have to
turn the pressure cap.
5-20

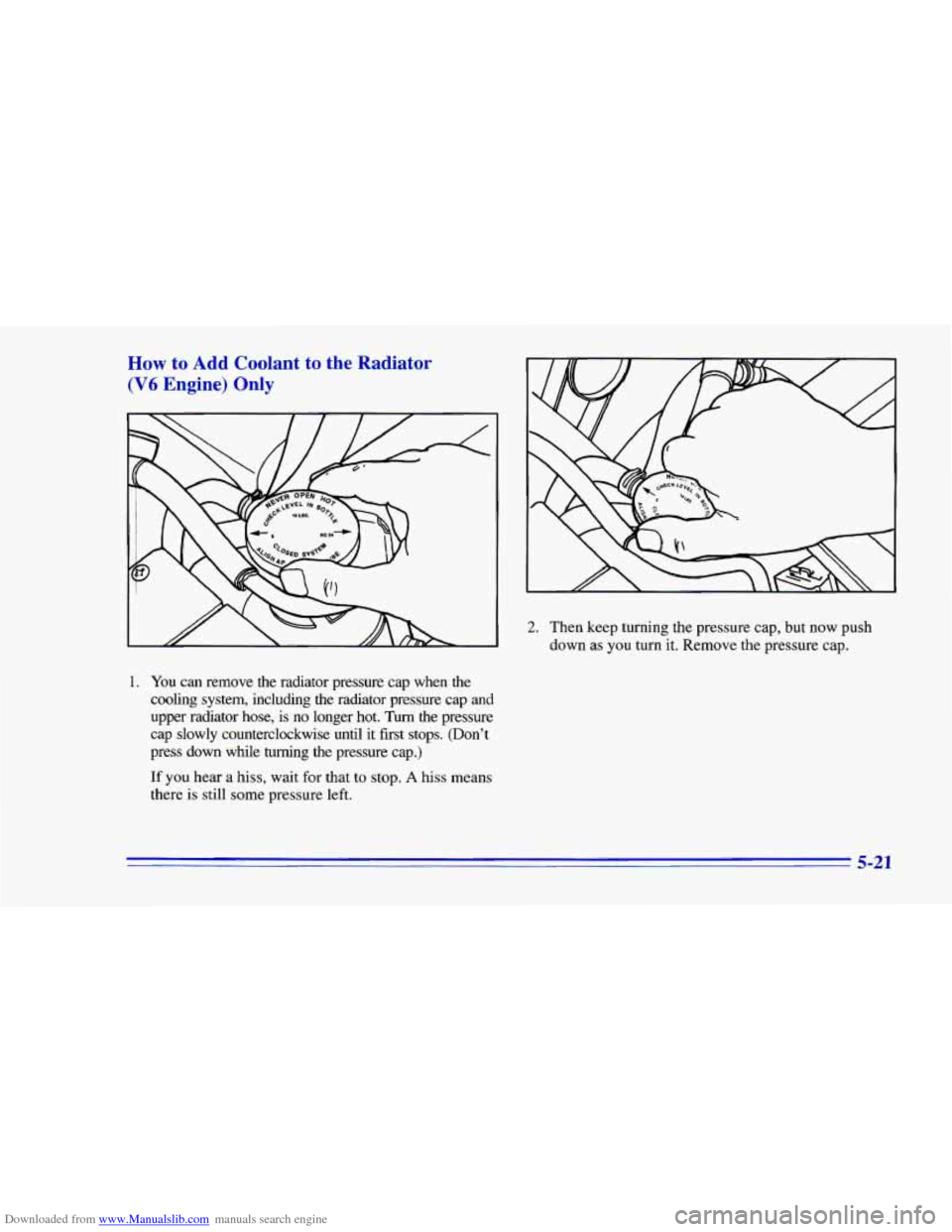

Downloaded from www.Manualslib.com manuals search engine How to Add Coolant to the Radiator
(V6 Engine) Only
1. You can remove the radiator pressure cap when the
cooling system, including the radiator pressure cap
and
upper radiator hose, is no longer hot. Turn the pressure
cap slowly counterclockwise until it first stops. (Don’t
press down while turning the pressure cap.)
If you hear a hiss, wait for that to stop. A hiss means
there is still some pressure left.
2. Then keep turning the pressure cap, but now push
down as you turn
it. Remove the pressure cap.
5-21

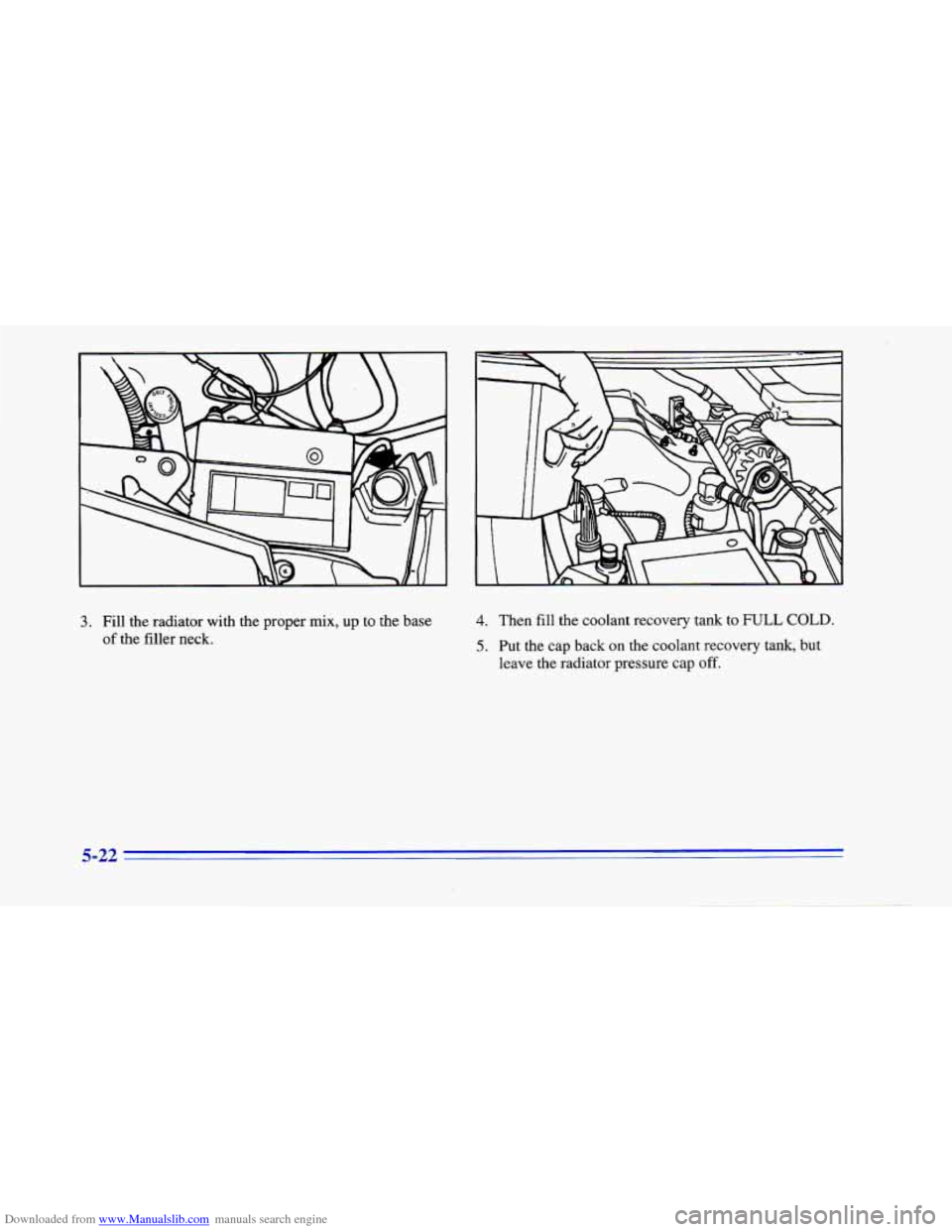

Downloaded from www.Manualslib.com manuals search engine 3. Fill the radiator with the proper mix, up to the base
of the filler neck.
4. Then fill the coolant recovery tank to FULL COLD.
5. Put the cap back on the coolant recovery tank, but
leave the radiator pressure cap
off.
5-22

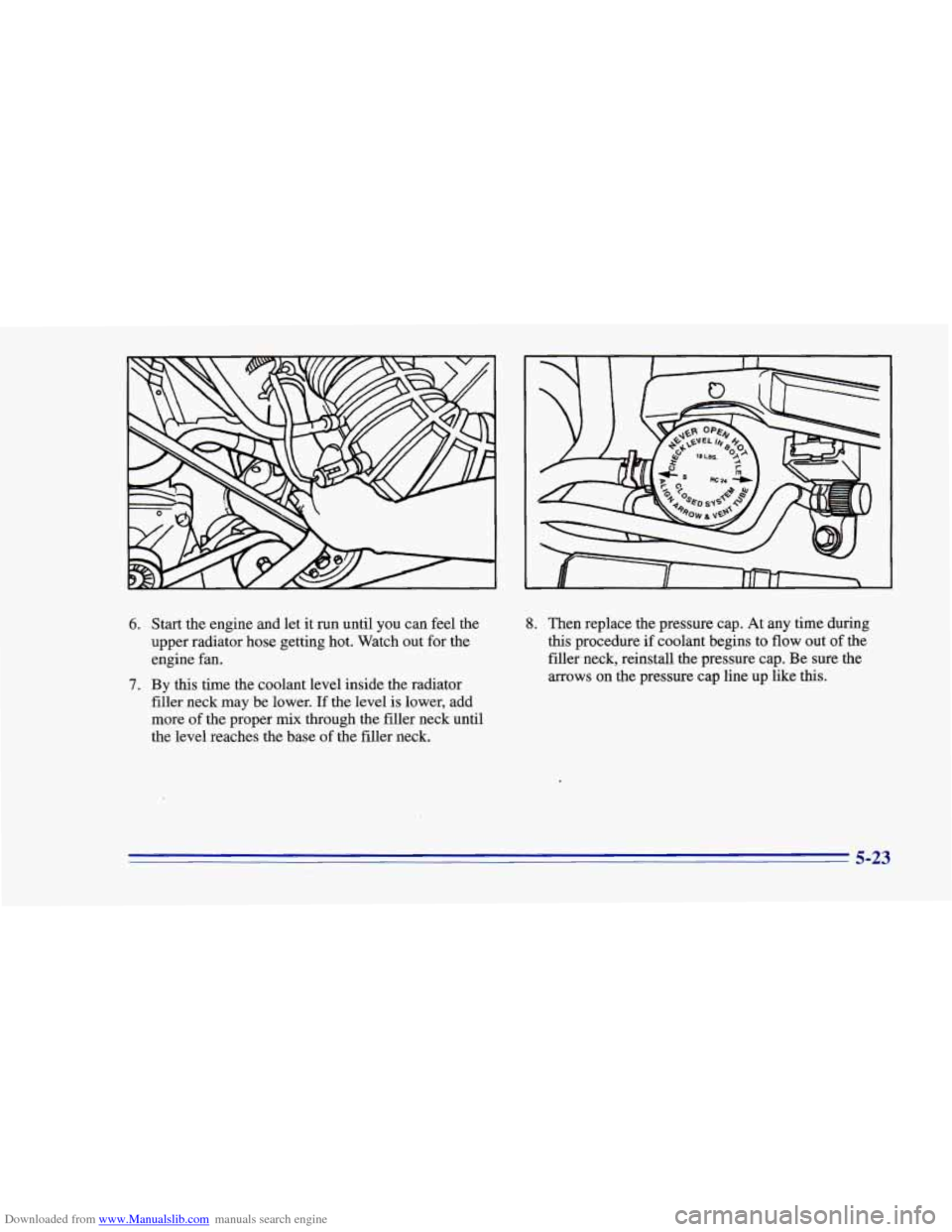

Downloaded from www.Manualslib.com manuals search engine 6.
7.
Start the engine and let it run until you can feel the
upper radiator hose getting hot. Watch out for the
engine fan.
By this time the coolant level inside the radiator
filler neck may be lower. If the level
is lower, add
more of the proper
mix through the filler neck until
the level reaches the base of the filler neck.
8. Then replace the pressure cap. At any time during
this procedure if coolant begins to
flow out of the
filler neck, reinstall the pressure cap. Be sure the
arrows on the pressure cap line up like this.
