Page 41 of 53
Chevrolet Camaro High Performance Owner Manual Supplemen (GMNA-
Localizing-U.S./Canada/Mexico-11348335) - 2018 - CRC - 4/5/17
40 Vehicle Care
Jump Starting
Jump Starting - North
America
See“Jump Starting –North
America” in the owner ’s manual.
Towing the Vehicle
Caution
Incorrectly towing a disabled
vehicle may cause damage. The
damage would not be covered by
the vehicle warranty.
Do not lash or hook to
suspension components. Use the
proper straps around the tires to
secure the vehicle.
Use only a flatbed tow truck for
towing a disabled vehicle. Never
use a sling type lift or damage will
occur. Use ramps to help reduce
approach angles if necessary.
A towed vehicle should have its
drive wheels off the ground.
Consult a professional towing
service if the disabled vehicle must
be towed.
To tow the vehicle behind another
vehicle for recreational purposes,
such as behind a motor home, see
the owner ’s manual.
SS 1LE, and ZL1 Only
Due to low ramp angles on ZL1 and
SS 1LE vehicles, use care when
loading the vehicle onto a flatbed
carrier. Front spring spacers were
provided for lifting the front
suspension if more clearance is
necessary when towing.
ZL1 1LE Only
Due to the high spring rate and
spring design used on ZL1 1LE
vehicles, spring spacers are not
provided. If more clearance is
needed when towing, raise the
adjustable spring seat to lift the front
Page 42 of 53
Chevrolet Camaro High Performance Owner Manual Supplemen (GMNA-
Localizing-U.S./Canada/Mexico-11348335) - 2018 - CRC - 4/5/17
Vehicle Care 41
suspension. See "Strut Spring Seat
Adjustment" inTrack Events and
Competitive Driving 014.
Tow Eye Socket
If the vehicle is equipped with a tow
eye, only use the tow eye to pull the
vehicle onto a flatbed car carrier
from a flat road surface. Do not use
the tow eye to pull the vehicle from
snow, mud, or sand.
The tow eye is in the rear
compartment storage area.
To install the tow eye:
1. Locate the tow eye socket through the opening in the
grille.
2. Install the tow eye into the socket by turning it clockwise
until it stops.
Appearance Care
Exterior Care
Automatic Car Washes
Do not use automatic car washes.
Vehicles with the ZL1 or the 1LE
package (or any accessory ground
effects package) have reduced
ground clearance. Damage can
occur in automatic car washes,
when approaching curbs, or on
steep inclines. Approach curbs and
inclines with caution.
Caution
Stepping on the rocker molding
could damage the molding. The
repairs would not be covered by
warranty. Do not step on the
rocker molding.
Hood Extractor
Caution
Using wax on low gloss black
finish stripes can increase the
gloss level and create a
non-uniform finish. Clean low
gloss stripes with soap and
water only.
It is not recommended that the ZL1
hood extractor be waxed, as it will
change the gloss level of the
surface. In addition, care must be
used when waxing around the hood
extractor. If a small amount of wax
Page 43 of 53
Chevrolet Camaro High Performance Owner Manual Supplemen (GMNA-
Localizing-U.S./Canada/Mexico-11348335) - 2018 - CRC - 4/5/17
42 Vehicle Care
is applied to the hood extractor it
can create an irregular appearance
in the surface of the panel. If wax,
debris, or other materials create
stains on the hood extractor, see
your dealer for the recommended
cleaner.
There is a water deflector on the
underside of the hood extractor.
Remove it for track use only.
Hood Wrap (1LE Only)
Caring for Vehicle Graphics
Wash regularly.
.Wash whenever the car appears
dirty. Contaminants allowed to
remain on the graphic may be
more difficult to remove during
cleaning.
. Rinse off as much dirt and grit
as possible with a spray of
water.
. Never scrub the hood wrap
surface.
. Use a wet, non-abrasive
detergent.
. Do not buff or apply polishes to
the hood wrap.
. Rinse thoroughly with clean
water. To reduce water spotting,
immediately use a silicone
squeegee to remove water.
Finish with a clean microfiber
cloth. Pressure Washing
.
Ensure the water pressure is
kept below 14,000 kPa
(2,000 psi).
. Keep water temperature below
80 °C (180 °F).
. Use a spray nozzle with a
40 degree wide angle spray
pattern.
. Keep the nozzle at least 30 cm
(1 ft) away from and
perpendicular (at 90 degrees) to
the graphic.
Finish Care
Application of aftermarket clearcoat
sealant/wax materials is not
recommended. If painted surfaces
are damaged, see your dealer to
have the damage assessed and
repaired. Foreign materials such as
calcium chloride and other salts, ice
melting agents, road oil and tar, tree
sap, bird droppings, chemicals from
industrial chimneys, etc., can
damage the vehicle's finish if they
remain on painted surfaces. Wash
the vehicle as soon as possible.
If necessary, use non-abrasive
Page 44 of 53
Chevrolet Camaro High Performance Owner Manual Supplemen (GMNA-
Localizing-U.S./Canada/Mexico-11348335) - 2018 - CRC - 4/5/17
Vehicle Care 43
cleaners that are marked safe for
painted surfaces to remove foreign
matter.
Occasional hand waxing or mild
polishing should be done to remove
residue from the paint finish. See
your dealer for approved cleaning
products.
Do not apply waxes or polishes to
uncoated plastic, vinyl, flat paint,
or matte or textured finishes as
damage can occur.
Caution
Machine compounding or
aggressive polishing on a
basecoat/clearcoat paint finish
may damage it. Use only
non-abrasive waxes and polishes
that are made for a basecoat/
clearcoat paint finish on the
vehicle.
To keep the paint finish looking new,
keep the vehicle garaged or
covered whenever possible.

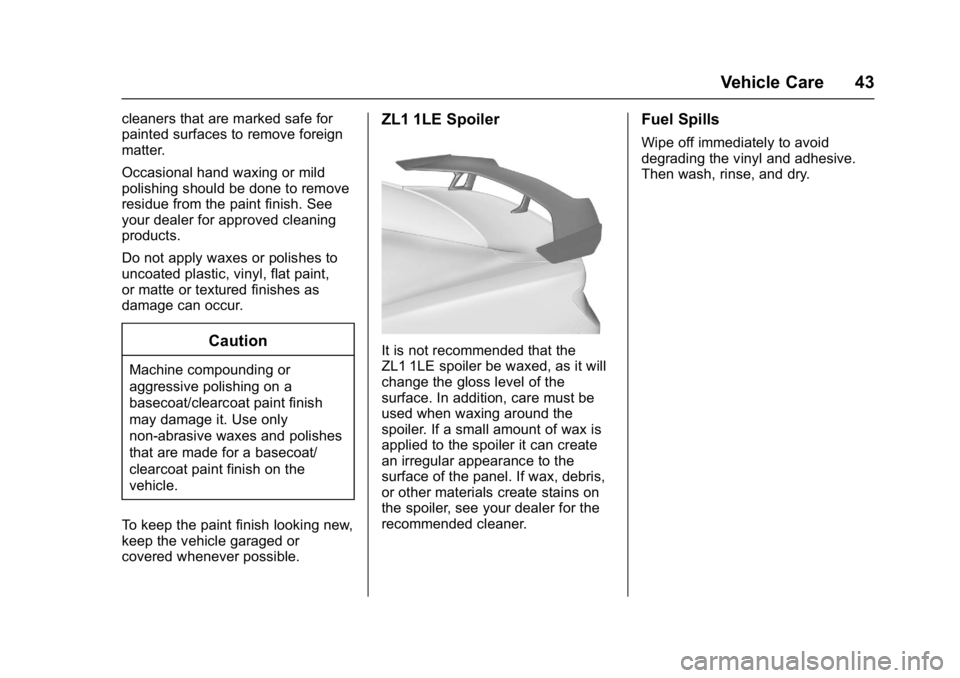

ZL1 1LE Spoiler
It is not recommended that the
ZL1 1LE spoiler be waxed, as it will
change the gloss level of the
surface. In addition, care must be
used when waxing around the
spoiler. If a small amount of wax is
applied to the spoiler it can create
an irregular appearance to the
surface of the panel. If wax, debris,
or other materials create stains on
the spoiler, see your dealer for the
recommended cleaner.
Fuel Spills
Wipe off immediately to avoid
degrading the vinyl and adhesive.
Then wash, rinse, and dry.
Page 45 of 53
Chevrolet Camaro High Performance Owner Manual Supplemen (GMNA-
Localizing-U.S./Canada/Mexico-11348335) - 2018 - CRC - 4/5/17

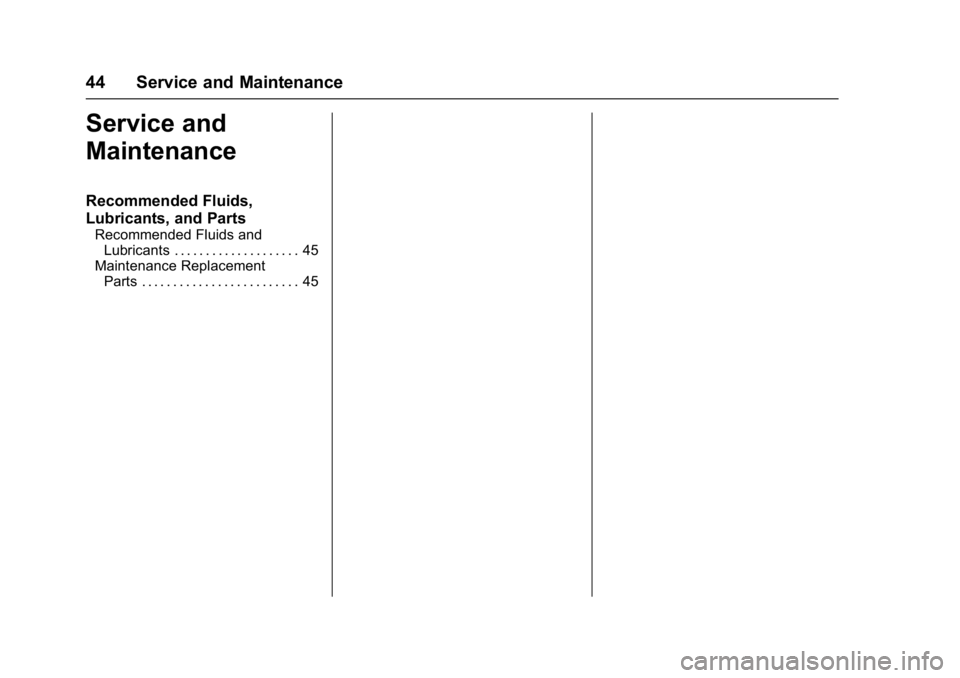

44 Service and Maintenance
Service and
Maintenance
Recommended Fluids,
Lubricants, and Parts
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . 45
Maintenance Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . 45
Page 46 of 53
Chevrolet Camaro High Performance Owner Manual Supplemen (GMNA-
Localizing-U.S./Canada/Mexico-11348335) - 2018 - CRC - 4/5/17
Service and Maintenance 45

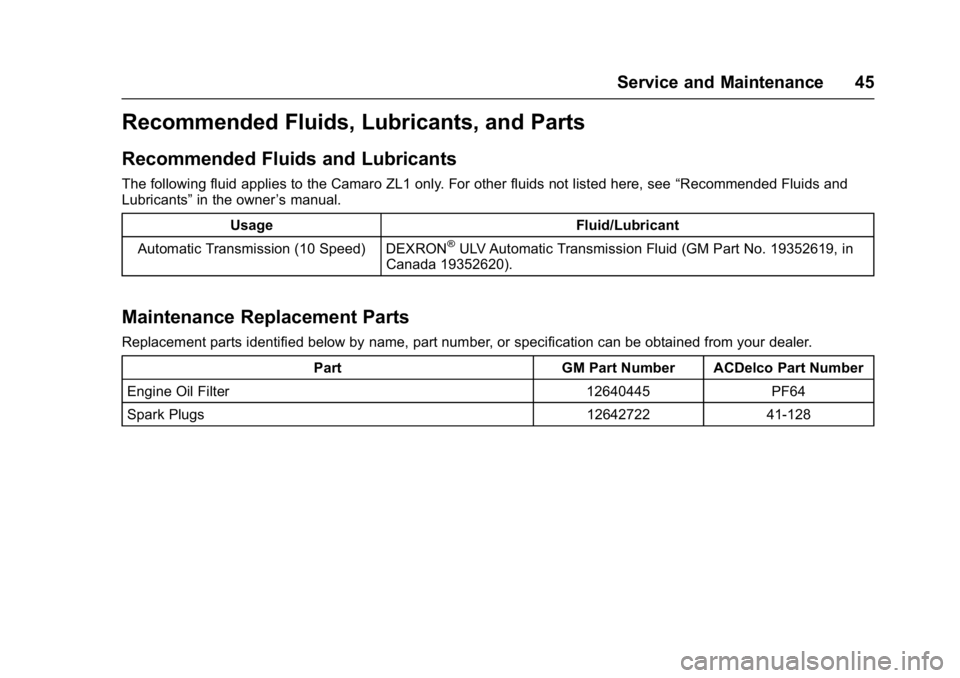

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
The following fluid applies to the Camaro ZL1 only. For other fluids not listed here, see“Recommended Fluids and
Lubricants” in the owner ’s manual.
Usage Fluid/Lubricant
Automatic Transmission (10 Speed) DEXRON
®ULV Automatic Transmission Fluid (GM Part No. 19352619, in
Canada 19352620).
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Oil Filter 12640445 PF64
Spark Plugs 12642722 41-128
Page 47 of 53
Chevrolet Camaro High Performance Owner Manual Supplemen (GMNA-
Localizing-U.S./Canada/Mexico-11348335) - 2018 - CRC - 4/5/17
46 Technical Data
Technical Data
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . . 47
Engine Drive Belt Routing . . . . . 49
Page 48 of 53
Chevrolet Camaro High Performance Owner Manual Supplemen (GMNA-
Localizing-U.S./Canada/Mexico-11348335) - 2018 - CRC - 4/5/17
Technical Data 47

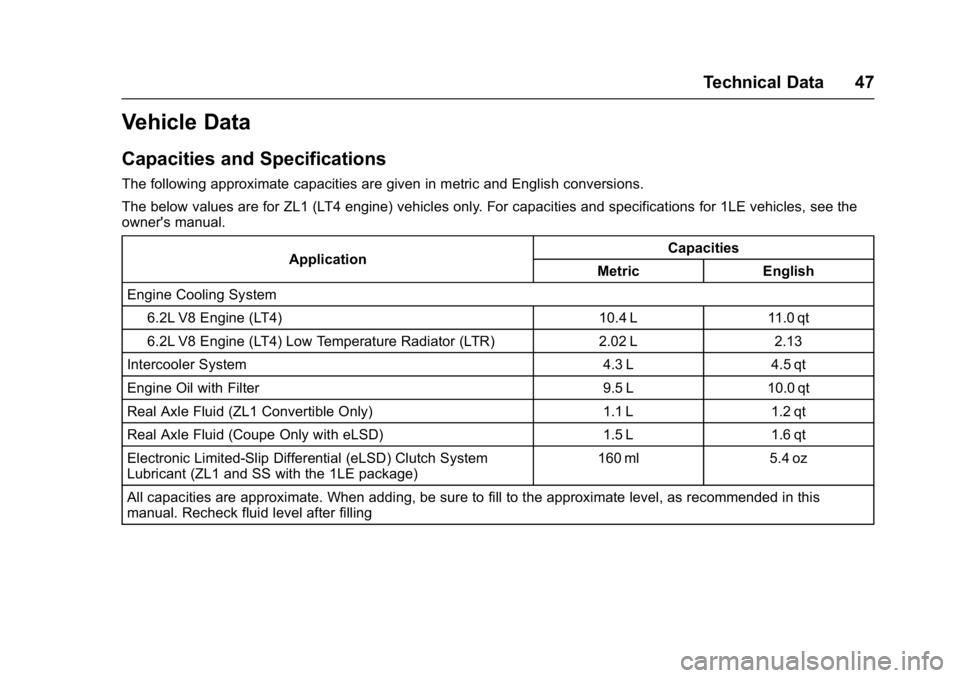

Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions.
The below values are for ZL1 (LT4 engine) vehicles only. For capacities and specifications for 1LE vehicles, see the
owner's manual.Application Capacities
Metric English
Engine Cooling System 6.2L V8 Engine (LT4) 10.4 L 11.0 qt
6.2L V8 Engine (LT4) Low Temperature Radiator (LTR) 2.02 L 2.13
Intercooler System 4.3 L 4.5 qt
Engine Oil with Filter 9.5 L 10.0 qt
Real Axle Fluid (ZL1 Convertible Only) 1.1 L 1.2 qt
Real Axle Fluid (Coupe Only with eLSD) 1.5 L 1.6 qt
Electronic Limited-Slip Differential (eLSD) Clutch System
Lubricant (ZL1 and SS with the 1LE package) 160 ml 5.4 oz
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling
Page 49 of 53
Chevrolet Camaro High Performance Owner Manual Supplemen (GMNA-
Localizing-U.S./Canada/Mexico-11348335) - 2018 - CRC - 4/5/17
48 Technical Data

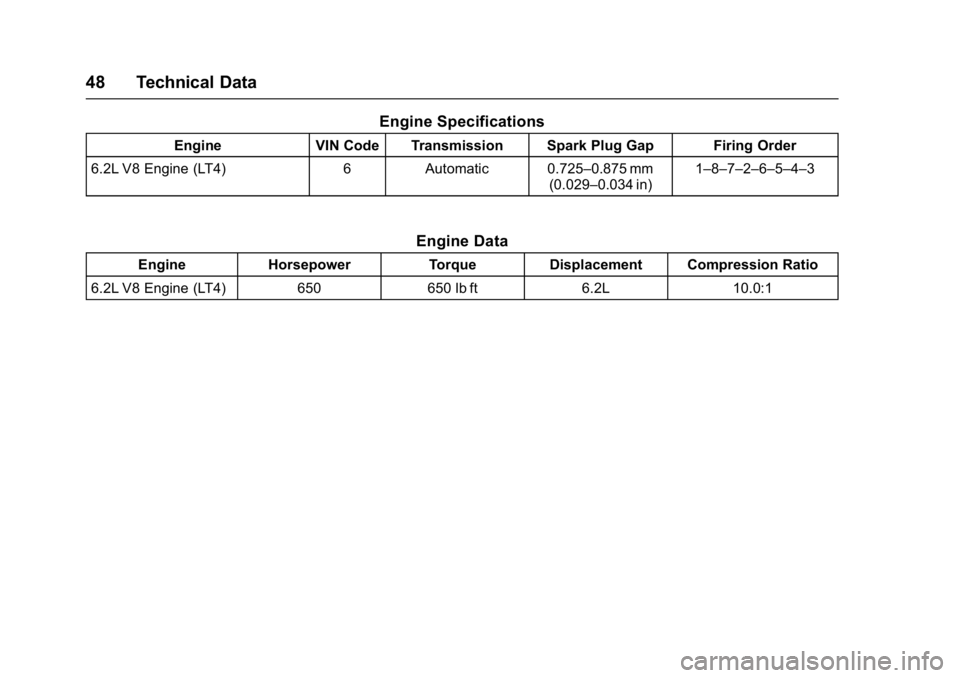

Engine Specifications
EngineVIN Code Transmission Spark Plug Gap Firing Order
6.2L V8 Engine (LT4) 6Automatic 0.725–0.875 mm
(0.029–0.034 in) 1–8–7–2–6–5–4–3
Engine Data
Engine
Horsepower TorqueDisplacement Compression Ratio
6.2L V8 Engine (LT4) 650650 lb ft 6.2L10.0:1
Page 50 of 53
Chevrolet Camaro High Performance Owner Manual Supplemen (GMNA-
Localizing-U.S./Canada/Mexico-11348335) - 2018 - CRC - 4/5/17
Technical Data 49

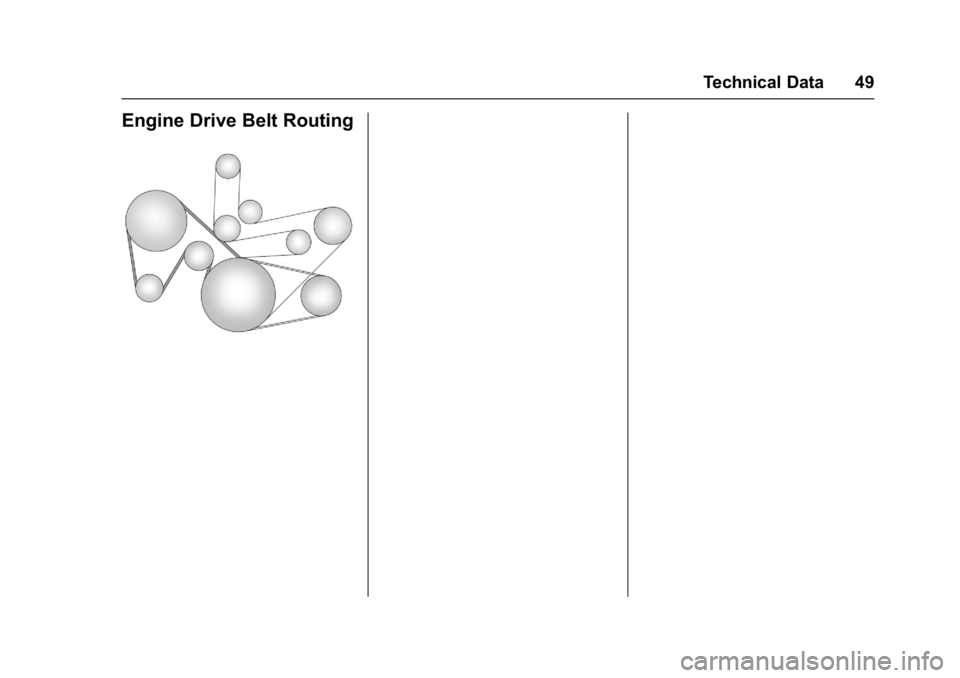

Engine Drive Belt Routing
