Black plate (1,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12
Technical Data 12-1
Technical Data Vehicle Identification Vehicle Identification
Number (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification
Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data Capacities and
Specifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-4 Vehicle Identification Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration. Engine Identification The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “ Engine Specifications ”
under Capacities and Specifications
on page 12 ‑ 2 for the vehicle's
engine code.
Service Parts
Identification Label This label, on the inside of the glove
box, has the following information: .
Vehicle Identification
Number (VIN). .
Model designation. .
Paint information. .
Production options and special
equipment.
Do not remove this label from the
vehicle.
Page 332 of 374

Black plate (2,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12
12-2 Technical Data

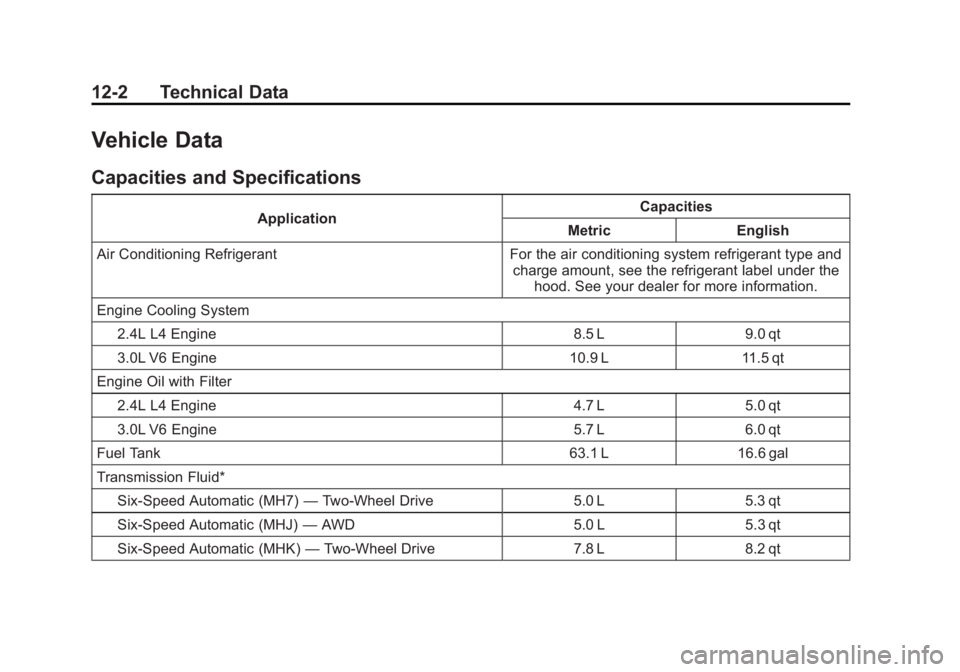

Vehicle Data Capacities and Specifications Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and
charge amount, see the refrigerant label under the
hood. See your dealer for more information.
Engine Cooling System
2.4L L4 Engine 8.5 L 9.0 qt
3.0L V6 Engine 10.9 L 11.5 qt
Engine Oil with Filter
2.4L L4 Engine 4.7 L 5.0 qt
3.0L V6 Engine 5.7 L 6.0 qt
Fuel Tank 63.1 L 16.6 gal
Transmission Fluid*
Six-Speed Automatic (MH7) — Two-Wheel Drive 5.0 L 5.3 qt
Six-Speed Automatic (MHJ) — AWD 5.0 L 5.3 qt
Six-Speed Automatic (MHK) — Two-Wheel Drive 7.8 L 8.2 qt
Page 333 of 374

Black plate (3,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12
Technical Data 12-3Application Capacities
Metric English

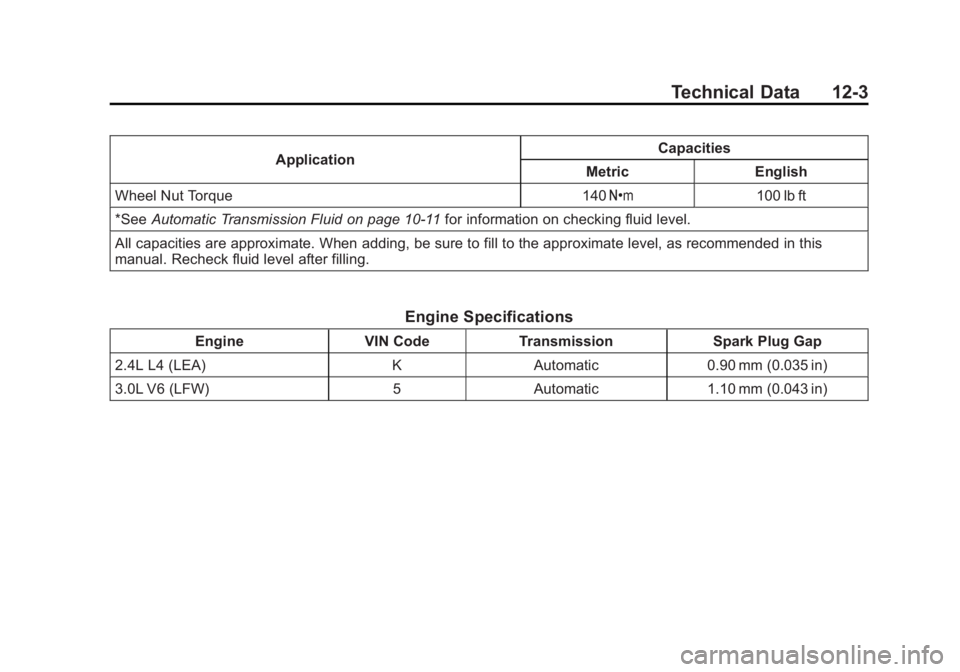

Wheel Nut Torque 140 Y 100 lb ft
*See Automatic Transmission Fluid on page 10 ‑ 11 for information on checking fluid level.
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine SpecificationsEngine VIN Code Transmission Spark Plug Gap
2.4L L4 (LEA) K Automatic 0.90 mm (0.035 in)
3.0L V6 (LFW) 5 Automatic 1.10 mm (0.043 in)
Page 334 of 374

Black plate (4,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12
12-4 Technical Data

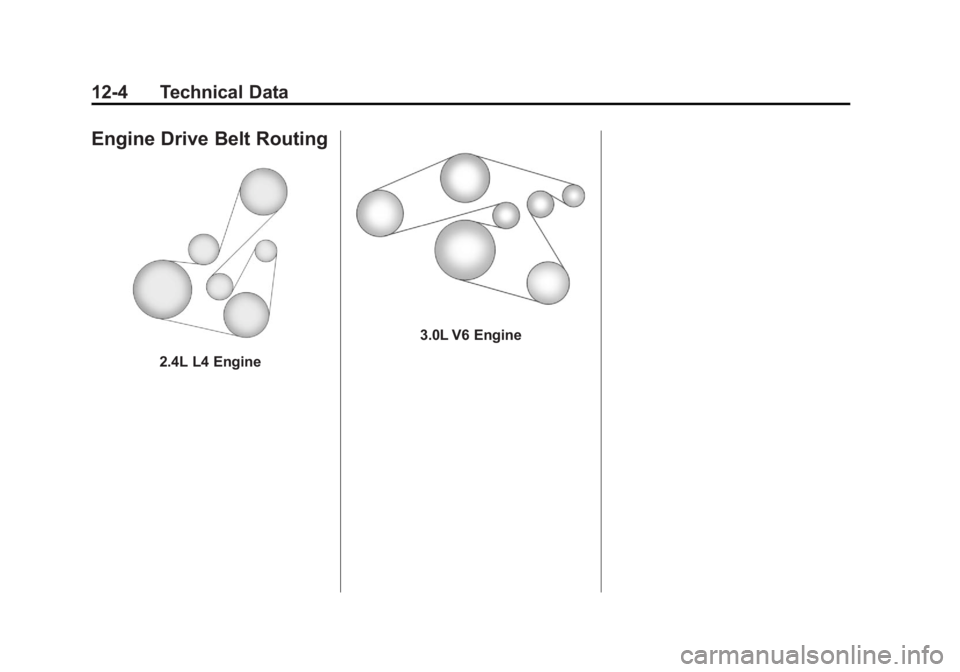

Engine Drive Belt Routing
2.4L L4 Engine 3.0L V6 Engine
Page 335 of 374

Black plate (1,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12
Customer Information 13-1
Customer
Information Customer Information Customer Satisfaction
Procedure (U.S. and
Canada) . . . . . . . . . . . . . . . . . . . . 13-2
Customer Satisfaction
Procedure (Mexico) . . . . . . . . 13-4
Customer Assistance Offices
(U.S. and Canada) . . . . . . . . . 13-5
Customer Assistance Offices
(Mexico) . . . . . . . . . . . . . . . . . . . . 13-5
Customer Assistance for Text
Telephone (TTY) Users (U.S.
and Canada) . . . . . . . . . . . . . . . 13-6
Online Owner Center . . . . . . . . 13-6 GM Mobility Reimbursement
Program (U.S. and
Canada) . . . . . . . . . . . . . . . . . . . . 13-7
Roadside Assistance Program
(Mexico) . . . . . . . . . . . . . . . . . . . . 13-7
Roadside Assistance
Program (U.S. and
Canada) . . . . . . . . . . . . . . . . . . . 13-11
Scheduling Service
Appointments (U.S. and
Canada) . . . . . . . . . . . . . . . . . . 13-12
Courtesy Transportation
Program (U.S. and
Canada) . . . . . . . . . . . . . . . . . . 13-13
Collision Damage Repair
(U.S. and Canada) . . . . . . . . 13-14
Service Publications
Ordering Information . . . . . . 13-16 Reporting Safety Defects Reporting Safety Defects to
the United States
Government . . . . . . . . . . . . . . . 13-17
Reporting Safety Defects to
the Canadian
Government . . . . . . . . . . . . . . . 13-18
Reporting Safety Defects to
General Motors . . . . . . . . . . . 13-18
Vehicle Data Recording and
Privacy Vehicle Data Recording and
Privacy . . . . . . . . . . . . . . . . . . . . 13-19
Event Data Recorders . . . . . . 13-19
OnStar ®
. . . . . . . . . . . . . . . . . . . . 13-20
Radio Frequency
Identification (RFID) . . . . . . . 13-20
Radio Frequency
Statement . . . . . . . . . . . . . . . . . 13-20
