CHEVROLET CITY EXPRESS 2018 Owner's Guide
Manufacturer: CHEVROLET, Model Year: 2018, Model line: CITY EXPRESS, Model: CHEVROLET CITY EXPRESS 2018Pages: 287, PDF Size: 4.19 MB
Page 21 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
20 In Brief
.When road and weather
conditions are appropriate, use
cruise control.
. Always follow posted speed
limits or drive more slowly when
conditions require.
. Keep vehicle tires properly
inflated.
. Combine several trips into a
single trip.
. Replace the vehicle's tires with
the same size and type as the
originals.
. Follow recommended scheduled
maintenance.Roadside Assistance
Program
U.S.: 1-800-243-8872
TTY Users (U.S. Only):
1-888-889-2438
Canada: 1-800-268-6800
New Chevrolet owners are
automatically enrolled in the
Roadside Assistance Program.
See Roadside Assistance Program
0 267.
Page 22 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Keys, Doors, and Windows 21
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . 23
Remote Keyless Entry (RKE) System Operation . . . . . . . . . . . . 23
Door Locks . . . . . . . . . . . . . . . . . . . . 25
Power Door Locks . . . . . . . . . . . . . 27
Automatic Door Locks . . . . . . . . . 27
Lockout Protection . . . . . . . . . . . . . 27
Doors
Sliding Door . . . . . . . . . . . . . . . . . . . 28
Back Doors . . . . . . . . . . . . . . . . . . . . 28
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . . . 30
Vehicle Alarm System . . . . . . . . . 30
Immobilizer . . . . . . . . . . . . . . . . . . . . 32
Immobilizer Operation . . . . . . . . . 32
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . 33
Manual Mirrors . . . . . . . . . . . . . . . . . 33
Power Mirrors . . . . . . . . . . . . . . . . . . 33
Folding Mirrors . . . . . . . . . . . . . . . . . 34 Heated Mirrors . . . . . . . . . . . . . . . . . 34
Interior Mirrors
Interior Rearview Mirrors . . . . . . . 34
Manual Rearview Mirror . . . . . . . . 34
Windows
Windows . . . . . . . . . . . . . . . . . . . . . . . 34
Power Windows . . . . . . . . . . . . . . . 35
Sun Visors . . . . . . . . . . . . . . . . . . . . . 36
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with
the ignition key is dangerous and
children or others could be
seriously injured or killed. They
could operate the power windows
or other controls or make the
vehicle move. The windows will
function with the keys in the
ignition, and children or others
could be caught in the path of a
closing window. Do not leave
children in a vehicle with the
ignition key.
Page 23 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
22 Keys, Doors, and Windows
{Warning
If the key is unintentionally
rotated while the vehicle is
running, the ignition could be
moved out of the RUN position.
This could be caused by heavy
items hanging from the key ring,
or by large or long items attached
to the key ring that could be
contacted by the driver or
steering wheel. If the ignition
moves out of the RUN position,
the engine will shut off, braking
and steering power assist may be(Continued)
Warning (Continued)
impacted, and airbags may not
deploy. To reduce the risk of
unintentional rotation of the
ignition key, do not change the
way the ignition key and Remote
Keyless Entry (RKE) transmitter,
if equipped, are connected to the
provided key rings.
The ignition key, key rings, and RKE
transmitter are designed to work
together. As a system, it reduces
the risk of unintentionally moving
the key out of the RUN position.
If replacements or additions are
required, see your dealer. Limit
added items to a few essential keys
or small, light items no larger than
an RKE transmitter.
Interference from radio-frequency
identification (RFID) tags may
prevent the key from starting the
vehicle. Keep RFID tags away from
the key when starting the vehicle.
Page 24 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Keys, Doors, and Windows 23

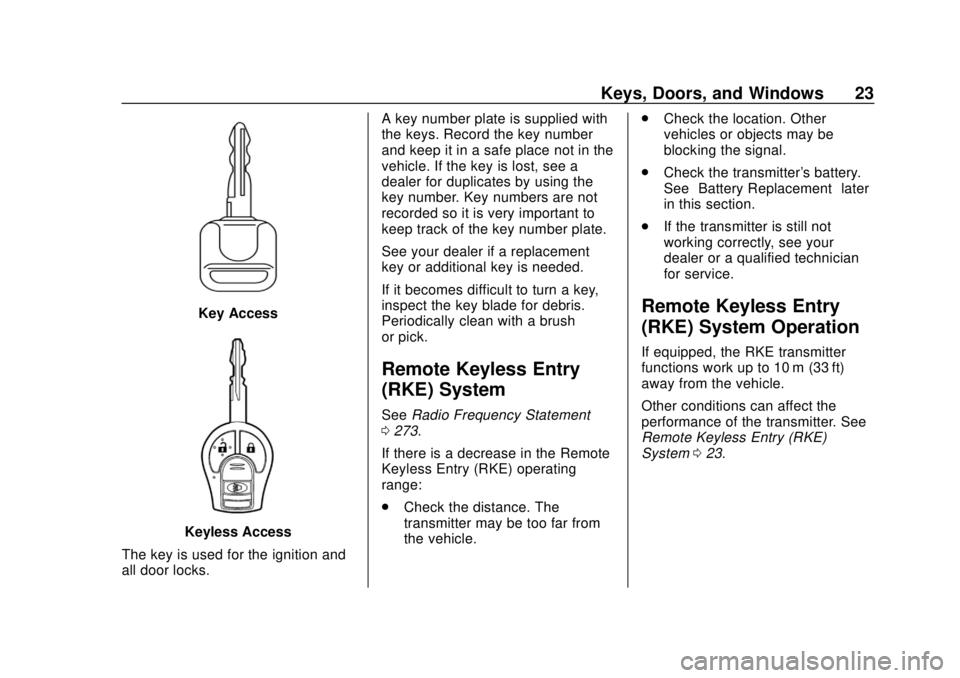

Key Access
Keyless Access
The key is used for the ignition and
all door locks. A key number plate is supplied with
the keys. Record the key number
and keep it in a safe place not in the
vehicle. If the key is lost, see a
dealer for duplicates by using the
key number. Key numbers are not
recorded so it is very important to
keep track of the key number plate.
See your dealer if a replacement
key or additional key is needed.
If it becomes difficult to turn a key,
inspect the key blade for debris.
Periodically clean with a brush
or pick.
Remote Keyless Entry
(RKE) System
See
Radio Frequency Statement
0 273.
If there is a decrease in the Remote
Keyless Entry (RKE) operating
range:
. Check the distance. The
transmitter may be too far from
the vehicle. .
Check the location. Other
vehicles or objects may be
blocking the signal.
. Check the transmitter's battery.
See “Battery Replacement” later
in this section.
. If the transmitter is still not
working correctly, see your
dealer or a qualified technician
for service.
Remote Keyless Entry
(RKE) System Operation
If equipped, the RKE transmitter
functions work up to 10 m (33 ft)
away from the vehicle.
Other conditions can affect the
performance of the transmitter. See
Remote Keyless Entry (RKE)
System 023.
Page 25 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
24 Keys, Doors, and Windows
Q:Press to lock all doors.
The hazard warning flashers flash
twice and the horn chirps once to
indicate all doors are locked.
If a door is open and
Qis pressed,
the doors will lock but the horn will
not beep and the hazard warning
flashers will not flash. The horn can
be disabled. See “Silencing the
Horn Sound Feature” in this section.
K:Press once to unlock the driver
door. The hazard warning flashers
flash once if all doors are closed. Press
Kagain within five seconds
to unlock all remaining doors. The
hazard warning flashers flash once
if all doors are completely closed.
The interior lamp comes on and the
lamp timer activates for 30 seconds
when the interior lamp switch is in
the door position with the ignition
switch in any position except ON.
The interior lamp can be
immediately turned off by inserting
the key into the ignition switch and
turning the ignition switch on, by
locking the doors with the RKE
transmitter, by pressing the door
lock switch, or by turning the interior
lamp switch off.
When
Kis pressed, all doors will
automatically lock within one minute
unless a door is opened, the ignition
switch is turned from off to on, or
Q
is pressed.
7: Press and hold7to sound the
panic alarm. Press any button on
the RKE transmitter to cancel the
panic alarm. The panic alarm will
not work if the key is in the ignition. Auto Relock
When
Kis pressed, all doors will
automatically lock within one minute
unless a door is opened, the ignition
switch is turned from off to on, or
Q
is pressed.
Silencing the Horn Sound Feature
The Horn Sound feature can be
deactivated using the RKE
transmitter.
Press and hold
QandKfor at least
two seconds to deactivate the horn
sound. The hazard warning flashers
will flash three times to confirm that
the horn sound feature has been
deactivated.
Press and hold again for at least
two seconds to activate the horn
sound. The hazard warning flashers
will flash once and the horn will
sound once to confirm that the horn
sound is activated. The horn sound
will not deactivate if the alarm is
triggered.
Page 26 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Keys, Doors, and Windows 25
The RKE transmitter buttons will not
operate when the key is in the
ignition.
Programming Transmitters to
the Vehicle
Only RKE transmitters programmed
to the vehicle will work. If a
transmitter is lost or stolen, a
replacement can be purchased and
programmed through your dealer.
When the replacement transmitter is
programmed to the vehicle, all
remaining transmitters must also be
programmed. Any lost or stolen
transmitters no longer work once the
new transmitter is programmed.
Each vehicle can have up to
five transmitters programmed to it.
Battery ReplacementCaution
When replacing the battery, do
not touch any of the circuitry on
the transmitter. Static from your
body could damage the
transmitter. To replace the battery:
1. Remove the screw.
2. Separate the transmitter with a
flat, thin tool.
.Carefully insert the tool into
the notch located along the
parting line of the
transmitter.
. Twist the tool until the
transmitter is separated.
3. Remove the old battery.
4. Insert the new battery, positive side facing the bottom of the
case. Replace with a CR1620
or equivalent battery.
5. Close the lid and install the screw securely.
Door Locks
{Warning
.Passengers, especially
children, can easily open
the doors and fall out of a
moving vehicle. When a
(Continued)
Page 27 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
26 Keys, Doors, and Windows
Warning (Continued)
door is locked, the handle
will not open it. The chance
of being thrown out of the
vehicle in a crash is
increased if the doors are
not locked. So, all
passengers should wear
seat belts properly and the
doors should be locked
whenever the vehicle is
driven.
. Young children who get into
unlocked vehicles may be
unable to get out. A child
can be overcome by
extreme heat and can suffer
permanent injuries or even
death from heat stroke.
Always lock the vehicle
whenever leaving it.
. Outsiders can easily enter
through an unlocked door
when you slow down or stop
the vehicle. Locking the
doors can help prevent this
from happening.
Manual Door Locks
Lock and unlock the doors from the
outside using the key or the Remote
Keyless Entry (RKE) transmitter.
See Remote Keyless Entry (RKE)
System Operation 023.
Front Doors
From the outside, turn the key
toward the front of the vehicle to
lock and toward the rear to unlock.
From the inside, move the inside
lock knob inward to the lock
position, then close the door. To
unlock, move the inside lock knob
outward to the unlock position.
Sliding Doors
From the outside, turn the key
toward the front of the vehicle to
lock and toward the rear to unlock.
From the inside, slide the lever
forward (2) to lock and rearward (1)
to unlock.
Back Door
Turn the key toward the right of the
vehicle to lock. Turn the key toward
the left of the vehicle to unlock.
Page 28 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Keys, Doors, and Windows 27
From the inside, push the lever
inward to lock (1) or pull outward to
unlock (2).
Power Door Locks
From the outside, pressQorKon
the RKE transmitter to lock or
unlock the doors.
From the inside, pressQorKon
the power door lock switch to lock or
unlock the doors.
Automatic Door Locks
The doors will lock automatically
when the vehicle speed reaches
24 km/h (15 mph). To unlock the doors:
.
Press
Kon a door.
. Shift the transmission into
P (Park).
The doors will unlock automatically
when the ignition is placed in the
OFF position or when the key is
removed from the ignition.
Lockout Protection
When locking is requested with the
driver door open and the key in the
ignition, all the doors will lock and
then the driver door will unlock.
Page 29 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
28 Keys, Doors, and Windows
Doors
Sliding Door
From the outside:
To open, pull the handle and slide
the door toward the rear of the
vehicle until the door clicks into the
detent.
To close, pull the handle again. The
door will release from the open
position and slide closed.
From the inside:
To open, pull the handle toward the
rear of the vehicle and slide the
door until it clicks into the detent.
To close, pull the handle toward the
rear of the vehicle. The door will
release from the open position and
slide closed.
Make sure the door is completely
closed before driving away.
The sliding door wire mesh is
designed for ejection mitigation
purposes only, do not consider it an
anti-theft feature. In case the sliding
door wire mesh is removed, it is
recommended that you see your
dealer for proper installation. Any
damage or failure caused by misuse
would not be covered by the vehicle
warranty.
Back Doors
{Warning
Unlocked doors can be
dangerous.. Passengers, especially
children, can easily open
the doors and fall out of a
moving vehicle. The doors
can be unlocked and
opened while the vehicle is
moving. The chance of
being thrown out of the
vehicle in a crash is
increased if the doors are
not locked. So, all
passengers should wear
seat belts properly and the
doors should be locked
whenever the vehicle is
driven.
. Young children who get into
unlocked vehicles may be
unable to get out. A child
can be overcome by
extreme heat and can suffer
(Continued)
Page 30 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Keys, Doors, and Windows 29
Warning (Continued)
permanent injuries or even
death from heat stroke.
Always lock the vehicle
whenever leaving it.
. Outsiders can easily enter
through an unlocked door
when you slow down or stop
the vehicle. Locking the
doors can help prevent this
from happening.
To open the passenger side back
door from the outside, pull the
handle and open until it stops.
To open the driver side back door,
pull the latch release at the inside
edge of the door.
To close the back doors, close the
driver side back door first. Then
close the passenger side back door.
Check to make sure both doors are
completely closed.
The back doors open fully to
approximately 180°. To open either
door to the wide open position, open
both doors normally.
Pull the 180° release latch located
on the inside of each back door to
release the check link arm. Open
the door slowly until it stops.
Caution
Do not operate the 180° release
latch until the door has been fully
opened. Doing so can result in
damage to the vehicle and/or
malfunction of the mechanism.
(Continued)
