CHEVROLET CITY EXPRESS CARGO VAN 2016 1.G User Guide

Black plate (4,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
1-4 In Brief
Keyless Access
Q:Press to lock all doors.
The hazard warning flashers flash
twice and the horn chirps once to
indicate all doors are locked.
If a door is open and
Qis pressed,
the doors will lock but the horn will
not beep and the hazard warning
flashers will not flash. The horn may
or may not beep. See “Silencing the
Horn Sound Feature” underRemote
Keyless Entry (RKE) System
Operation on page 2-3.
K: Press once to unlock the driver
door. The hazard warning flashers
flash once if all doors are closed
with the ignition switch in any
position except ON.
The interior lamp comes on and the
lamp timer activates for 30 seconds
when the interior lamp switch is in
the DOOR position with the ignition
switch in any position except ON.
The interior lamp can be
immediately turned off by inserting
the key into the ignition switch and
placing the ignition switch in ON or
START, by locking the doors with
the RKE transmitter, by pressing the
door switch, or by pressing OFF on
the interior lamp switch.
Press
Kagain within five seconds
to unlock all remaining doors. The
hazard warning flashers flash once
if all doors are completely closed. When
Kis pressed, all doors will
automatically lock within one minute
unless a door is opened, the ignition
switch is turned from OFF to ON,
or
Qis pressed.
7: Press and hold7to sound the
panic alarm. Press any button on
the RKE transmitter to cancel the
panic alarm.
See Keys on page 2-1 andRemote
Keyless Entry (RKE) System
Operation on page 2-3.
Door Locks
Manual Door Locks
Lock and unlock the door from the
outside using the key or the Remote
Keyless Entry (RKE) transmitter,
if equipped. From the inside, slide
the manual lever on the door
forward to lock and rearward to
unlock.
See Door Locks on page 2-5.

Black plate (5,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
In Brief 1-5

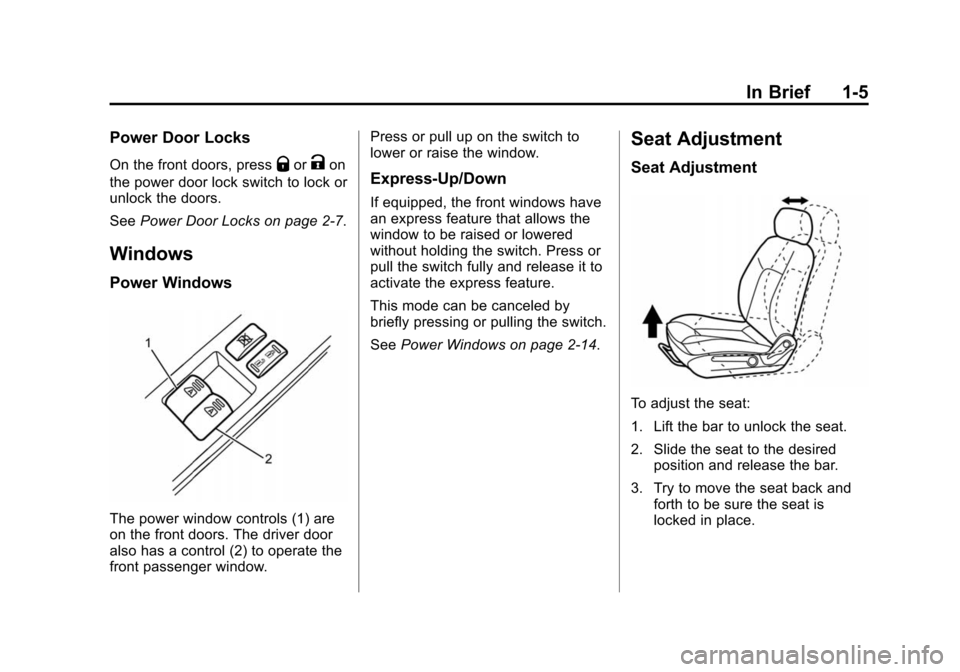

Power Door Locks
On the front doors, pressQorKon
the power door lock switch to lock or
unlock the doors.
See Power Door Locks on page 2-7.
Windows
Power Windows
The power window controls (1) are
on the front doors. The driver door
also has a control (2) to operate the
front passenger window. Press or pull up on the switch to
lower or raise the window.
Express-Up/Down
If equipped, the front windows have
an express feature that allows the
window to be raised or lowered
without holding the switch. Press or
pull the switch fully and release it to
activate the express feature.
This mode can be canceled by
briefly pressing or pulling the switch.
See
Power Windows on page 2-14.
Seat Adjustment
Seat Adjustment
To adjust the seat:
1. Lift the bar to unlock the seat.
2. Slide the seat to the desired
position and release the bar.
3. Try to move the seat back and forth to be sure the seat is
locked in place.

Black plate (6,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
1-6 In Brief

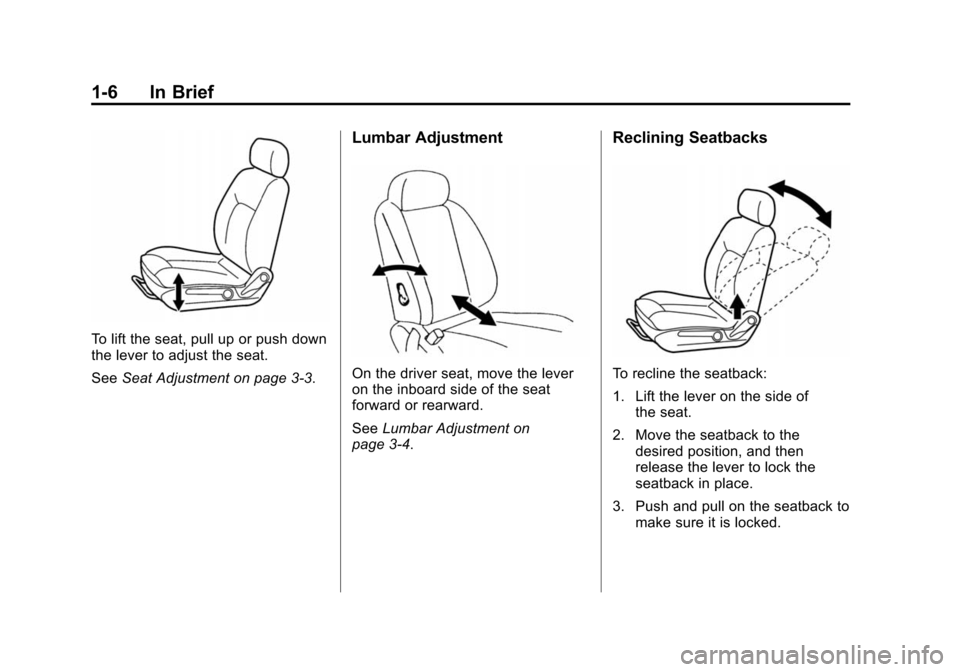

To lift the seat, pull up or push down
the lever to adjust the seat.
SeeSeat Adjustment on page 3-3.
Lumbar Adjustment
On the driver seat, move the lever
on the inboard side of the seat
forward or rearward.
SeeLumbar Adjustment on
page 3-4.
Reclining Seatbacks
To recline the seatback:
1. Lift the lever on the side of
the seat.
2. Move the seatback to the desired position, and then
release the lever to lock the
seatback in place.
3. Push and pull on the seatback to make sure it is locked.

Black plate (7,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
In Brief 1-7
To return the seatback to the upright
position:
1. Lift the lever fully withoutapplying pressure to the
seatback, and the seatback will
return to the upright position.
2. Push and pull on the seatback to make sure it is locked.
See Reclining Seatbacks on
page 3-4.
Folding Seatback
The front passenger seatback may
fold flat.
To fold the seatback:
1. Lower the head restraint all the way. See Head Restraints on
page 3-2.
2. Move the seat as far back as possible. See Seat Adjustment
on page 3-3.3. Lift the lever fully and fold the seatback forward until it
disengages.4. Lift the latch on the inboard sideof the seatback to release
the seat.

Black plate (8,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
1-8 In Brief
5. Fold the seatback flat over theseat cushion.
To raise the seatback:
1. Raise the seatback and push it rearward.
2. Pull up on the recline lever and lean the seatback to the upright
seating position. See Reclining
Seatbacks on page 3-4.
3. Push and pull on the seatback to make sure it is locked in place.
See Folding Seatback on page 3-6.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
SeeHead Restraints on page 3-2
and Seat Adjustment on page 3-3.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.Safety Belts on page 3-8.
.How to Wear Safety Belts
Properly on page 3-9.
.Lap-Shoulder Belt on page 3-10.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3-38.

Black plate (9,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
In Brief 1-9

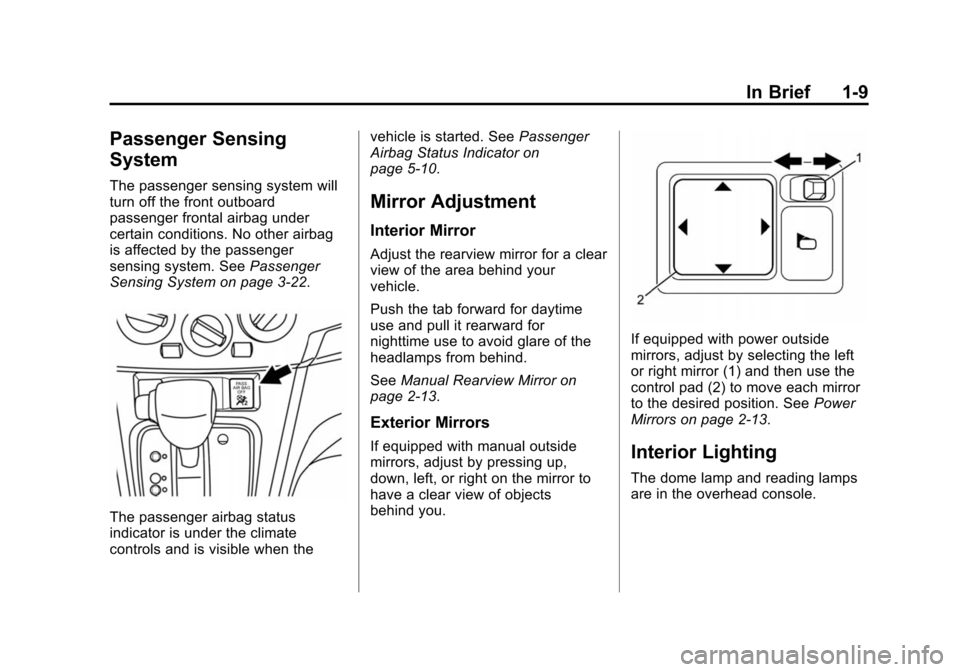

Passenger Sensing
System
The passenger sensing system will
turn off the front outboard
passenger frontal airbag under
certain conditions. No other airbag
is affected by the passenger
sensing system. SeePassenger
Sensing System on page 3-22.
The passenger airbag status
indicator is under the climate
controls and is visible when the vehicle is started. See
Passenger
Airbag Status Indicator on
page 5-10.
Mirror Adjustment
Interior Mirror
Adjust the rearview mirror for a clear
view of the area behind your
vehicle.
Push the tab forward for daytime
use and pull it rearward for
nighttime use to avoid glare of the
headlamps from behind.
See Manual Rearview Mirror on
page 2-13.
Exterior Mirrors
If equipped with manual outside
mirrors, adjust by pressing up,
down, left, or right on the mirror to
have a clear view of objects
behind you.
If equipped with power outside
mirrors, adjust by selecting the left
or right mirror (1) and then use the
control pad (2) to move each mirror
to the desired position. See Power
Mirrors on page 2-13.
Interior Lighting
The dome lamp and reading lamps
are in the overhead console.

Black plate (10,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
1-10 In Brief

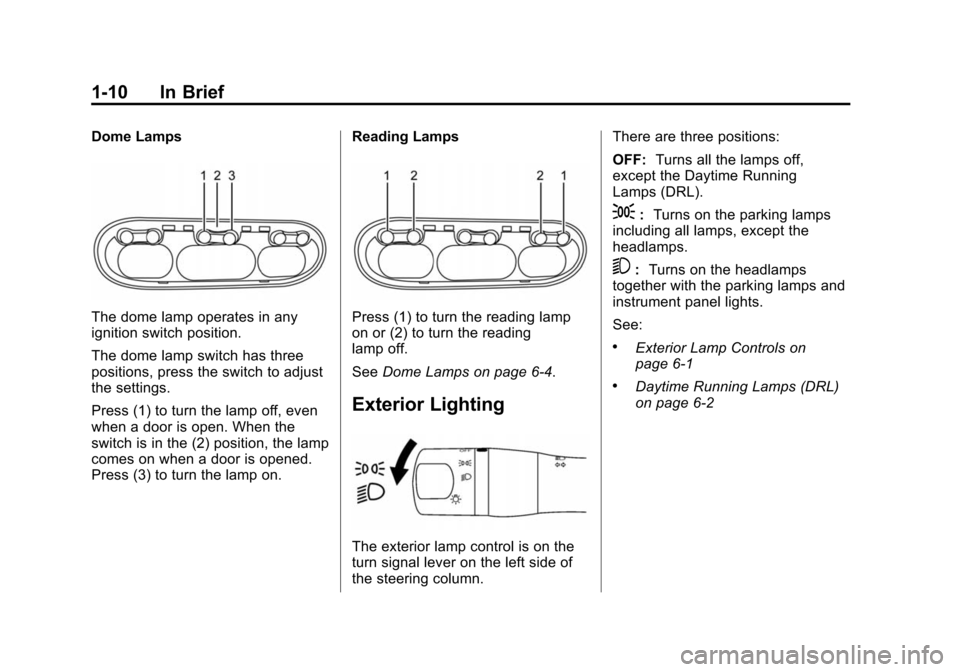

Dome Lamps
The dome lamp operates in any
ignition switch position.
The dome lamp switch has three
positions, press the switch to adjust
the settings.
Press (1) to turn the lamp off, even
when a door is open. When the
switch is in the (2) position, the lamp
comes on when a door is opened.
Press (3) to turn the lamp on.Reading LampsPress (1) to turn the reading lamp
on or (2) to turn the reading
lamp off.
See
Dome Lamps on page 6-4.
Exterior Lighting
The exterior lamp control is on the
turn signal lever on the left side of
the steering column. There are three positions:
OFF:
Turns all the lamps off,
except the Daytime Running
Lamps (DRL).
;: Turns on the parking lamps
including all lamps, except the
headlamps.
5: Turns on the headlamps
together with the parking lamps and
instrument panel lights.
See:
.Exterior Lamp Controls on
page 6-1
.Daytime Running Lamps (DRL)
on page 6-2

Black plate (11,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
In Brief 1-11

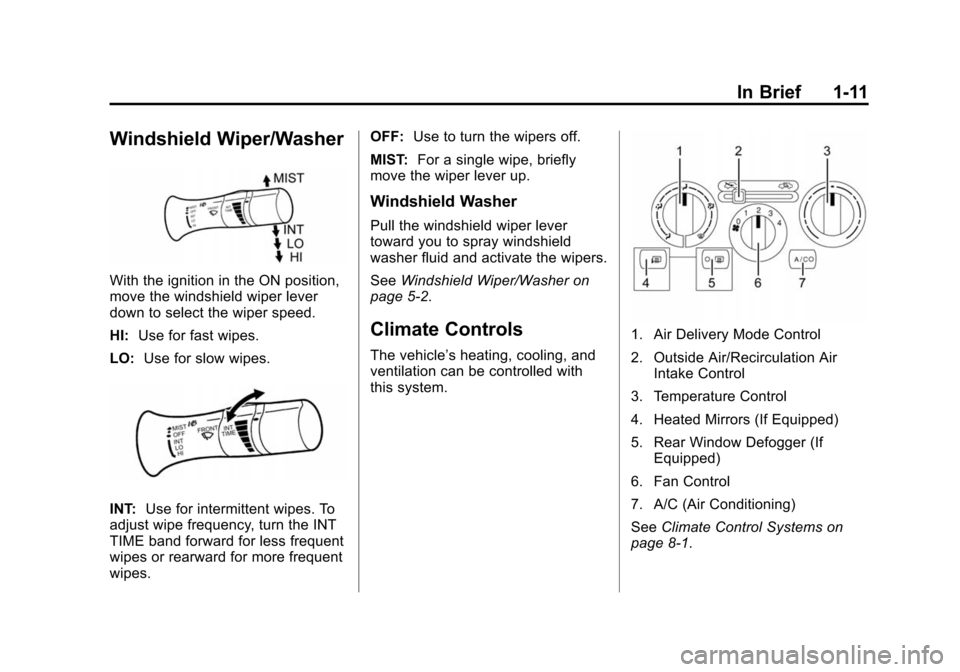

Windshield Wiper/Washer
With the ignition in the ON position,
move the windshield wiper lever
down to select the wiper speed.
HI:Use for fast wipes.
LO: Use for slow wipes.
INT: Use for intermittent wipes. To
adjust wipe frequency, turn the INT
TIME band forward for less frequent
wipes or rearward for more frequent
wipes. OFF:
Use to turn the wipers off.
MIST: For a single wipe, briefly
move the wiper lever up.
Windshield Washer
Pull the windshield wiper lever
toward you to spray windshield
washer fluid and activate the wipers.
See Windshield Wiper/Washer on
page 5-2.
Climate Controls
The vehicle’s heating, cooling, and
ventilation can be controlled with
this system.
1. Air Delivery Mode Control
2. Outside Air/Recirculation Air Intake Control
3. Temperature Control
4. Heated Mirrors (If Equipped)
5. Rear Window Defogger (If Equipped)
6. Fan Control
7. A/C (Air Conditioning)
See Climate Control Systems on
page 8-1.

Black plate (12,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
1-12 In Brief

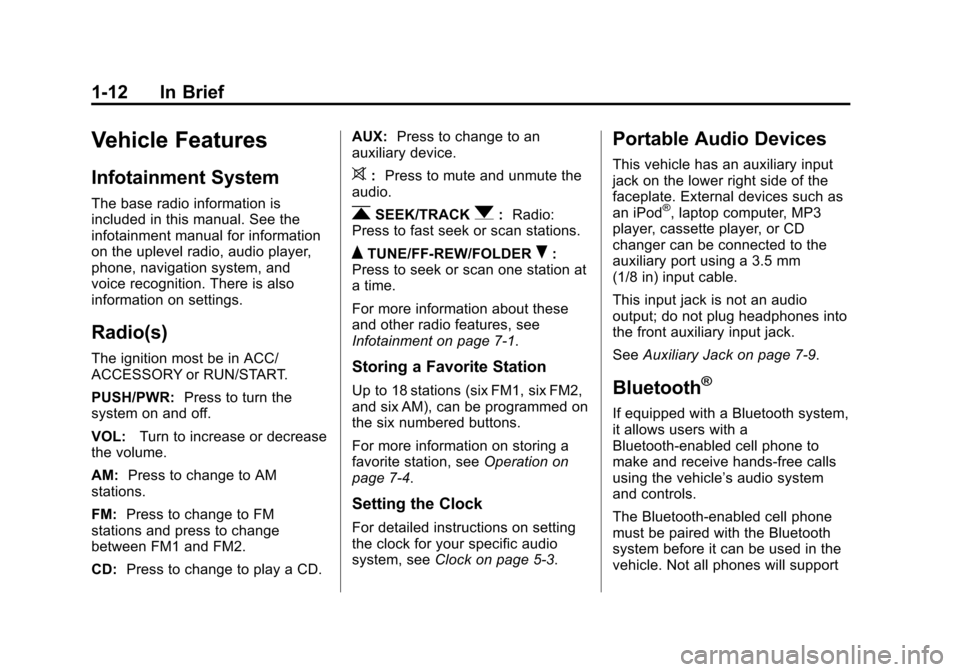

Vehicle Features
Infotainment System
The base radio information is
included in this manual. See the
infotainment manual for information
on the uplevel radio, audio player,
phone, navigation system, and
voice recognition. There is also
information on settings.
Radio(s)
The ignition most be in ACC/
ACCESSORY or RUN/START.
PUSH/PWR:Press to turn the
system on and off.
VOL: Turn to increase or decrease
the volume.
AM: Press to change to AM
stations.
FM: Press to change to FM
stations and press to change
between FM1 and FM2.
CD: Press to change to play a CD. AUX:
Press to change to an
auxiliary device.
>: Press to mute and unmute the
audio.
rSEEK/TRACKq: Radio:
Press to fast seek or scan stations.
QTUNE/FF-REW/FOLDERR:
Press to seek or scan one station at
a time.
For more information about these
and other radio features, see
Infotainment on page 7-1.
Storing a Favorite Station
Up to 18 stations (six FM1, six FM2,
and six AM), can be programmed on
the six numbered buttons.
For more information on storing a
favorite station, see Operation on
page 7-4.
Setting the Clock
For detailed instructions on setting
the clock for your specific audio
system, see Clock on page 5-3.
Portable Audio Devices
This vehicle has an auxiliary input
jack on the lower right side of the
faceplate. External devices such as
an iPod
®, laptop computer, MP3
player, cassette player, or CD
changer can be connected to the
auxiliary port using a 3.5 mm
(1/8 in) input cable.
This input jack is not an audio
output; do not plug headphones into
the front auxiliary input jack.
See Auxiliary Jack on page 7-9.
Bluetooth®
If equipped with a Bluetooth system,
it allows users with a
Bluetooth-enabled cell phone to
make and receive hands-free calls
using the vehicle’ s audio system
and controls.
The Bluetooth-enabled cell phone
must be paired with the Bluetooth
system before it can be used in the
vehicle. Not all phones will support

Black plate (13,1)Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
7707496) - 2015 - CRC - 11/26/14
In Brief 1-13
all functions. For more information,
see www.gm.com/bluetooth and
Bluetooth on page 7-10.

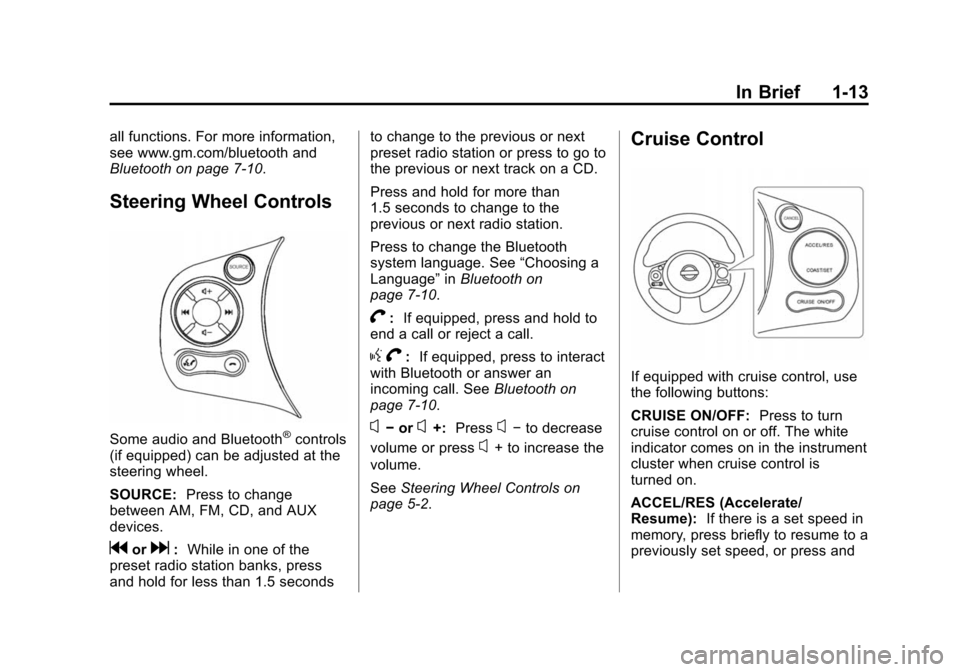

Steering Wheel Controls
Some audio and Bluetooth®controls
(if equipped) can be adjusted at the
steering wheel.
SOURCE: Press to change
between AM, FM, CD, and AUX
devices.
gord: While in one of the
preset radio station banks, press
and hold for less than 1.5 seconds to change to the previous or next
preset radio station or press to go to
the previous or next track on a CD.
Press and hold for more than
1.5 seconds to change to the
previous or next radio station.
Press to change the Bluetooth
system language. See
“Choosing a
Language” inBluetooth on
page 7-10.
V: If equipped, press and hold to
end a call or reject a call.
g V: If equipped, press to interact
with Bluetooth or answer an
incoming call. See Bluetooth on
page 7-10.
x− orx+: Pressx−to decrease
volume or press
x+ to increase the
volume.
See Steering Wheel Controls on
page 5-2.
Cruise Control
If equipped with cruise control, use
the following buttons:
CRUISE ON/OFF: Press to turn
cruise control on or off. The white
indicator comes on in the instrument
cluster when cruise control is
turned on.
ACCEL/RES (Accelerate/
Resume): If there is a set speed in
memory, press briefly to resume to a
previously set speed, or press and
