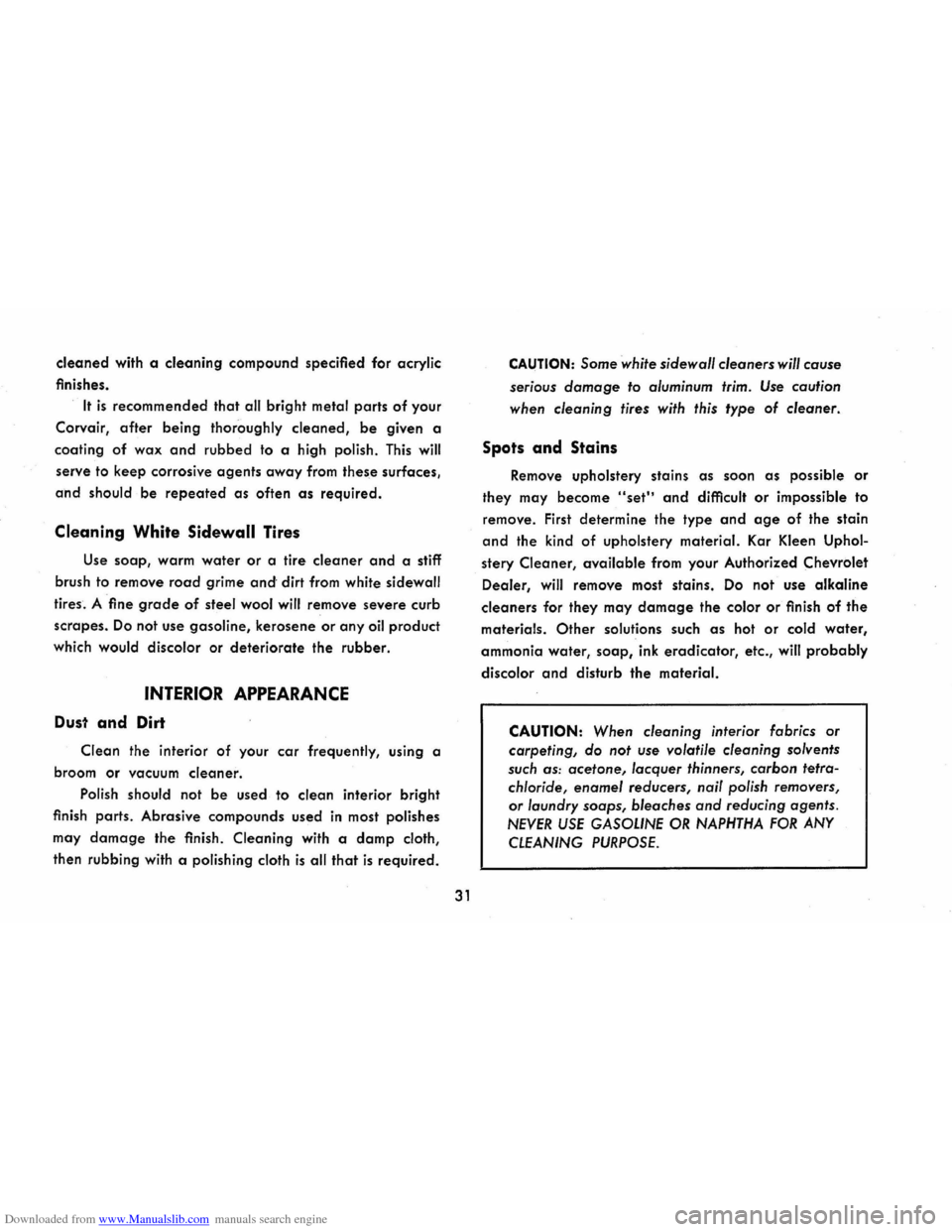

Downloaded from www.Manualslib.com manuals search engine cleaned with a cleaning compound specified for acrylic
finishes.
It is recommended that all bright metal parts of your
Corvair,
after being thoroughly cleaned, be given a
coating
of wax and rubbed to a high polish. This will
serve to keep corrosive agents away from these surfaces,
and should be repeated as often as required.
Cleaning White Sidewall Tires
Use soap, warm water or a tire cleaner and a stiff
brush to remove
road grime and' dirt from white sidewall
tires. A fine
grade of steel wool will remove severe curb
scrapes .
Do not use gasoline, kerosene or any oil product
which would discolor or deteriorate the rubber.
INTERIOR APPEARANCE
Dust and Dirt
Clean the interior of your car frequently, using a
broom
or vacuum cleaner.
Polish should not be used to clean interior bright
finish parts. Abrasive compounds used
in most polishes
may damage the finish. Cleaning with a damp cloth,
then rubbing with a polishing cloth
is all that is required.
31
CAUTION: Some white sidewall cleaners will cause
serious damage to aluminum trim. Use caution
when cleaning tires with this type
of cleaner .
Spots and Stains
Remove upholstery stains as soon as possible or
they may become "set" and difficult or impossible to
remove. First determine the type
and age of the stain
and the kind of upholstery material. Kar Kleen Uphol­
stery Cleaner, available from your Authorized Chevrolet
Dealer,
will remove most stains. Do not use alkaline
cleaners for they may
damage the color or finish of the
materials.
Other solutions such as hot or cold water,
ammonia water,
soap, ink eradicator, etc., will probably
discolor and disturb the material.
CAUTION: When cleaning interior fabrics or
carpeting, do not use volatile cleaning solvents
such
as: acetone, lacquer thinners, carbon tetra­
chloride, enamel reducers, nail polish removers,
or laundry soaps, bleaches and reducing agents.
NEVER USE GASOLINE OR NAPHTHA FOR ANY
CLEANING PURPOSE.

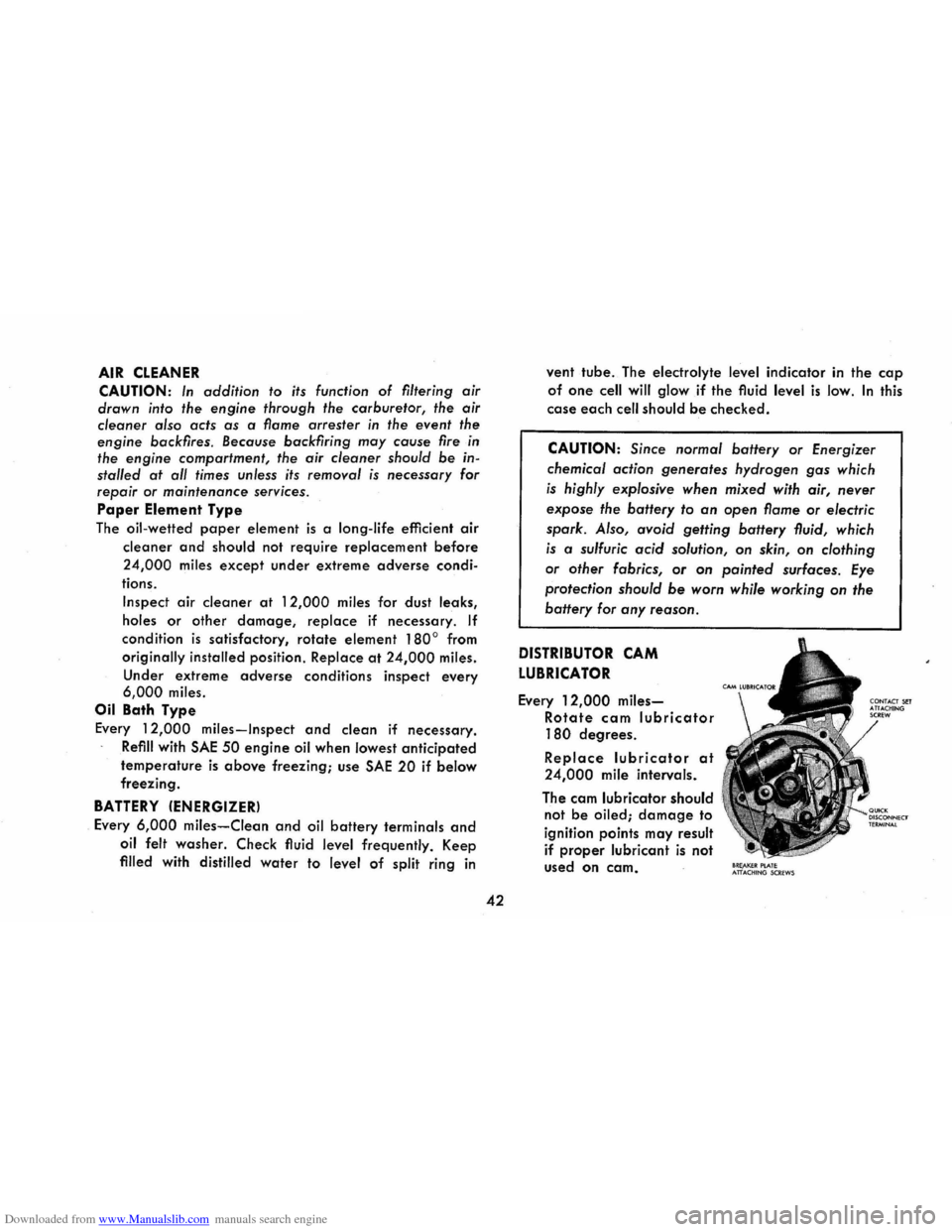

Downloaded from www.Manualslib.com manuals search engine AIR CLEANER
CAUTION: In addition to its function of filtering air
drawn into
the engine through the carburetor, the air
cleaner also acts as
a flame arrester in the event the
engine backfires. Because backfiring
may cause fire in
the engine compartment, the air cleaner should be in­
stalled at all times unless its removal is necessary for
repair or maintenance services.
Paper Element Type
The oil-wetted paper element is a long-life efficient air
cleaner and should not require replacement before
24,000 miles except under extreme adverse condi­
tions .
Inspect air cleaner at 12,000 miles for dust leaks,
holes
or other damage, replace if necessary . If
condition is satisfactory, rotate element 1800 from
originally installed position. Replace
at 24,000 miles.
Under extreme
adverse conditions inspect every 6,000 miles.
Oil Bath Type
Every 12,000 miles-Inspect and clean if necessary.
Refill with SAE 50 engine oil when lowest anticipated
temperature is above freezing; use SAE 20 if below
freezing.
BATTERY (ENERGIZER)
Every 6,000 miles-Clean and oil battery terminals and
oil felt washer. Check fluid level frequently. Keep
filled with distilled water to level of split ring in
42
vent tube. The electrolyte level indicator in the cap
of one cell will glow if the fluid level is low. In this
case each cell should be checked.
CAUTION: Since normal battery or Energizer
chemical action generates hydrogen gas which
is highly explosive when mixed with air, never
expose the battery to an open flame or electric
spark. Also, avoid getting battery fluid, which
is a sulfuric acid solution, on skin, on clothing
or other fabrics, or on painted surfaces . Eye
protection should
be worn while working on the
battery for
any reason.
DISTRIBUTOR CAM
LUBRICATOR
Every 12,000 miles­
Rotate cam lubricator
180 degrees.
Replace lubricator at
24,000 mile intervals.
The cam lubricator should
not
be oiled; damage to
ignition points may result
if
proper lubricant is not
used
on cam. 8RE,AKEIt PlATE ATTACHtNG SCREWS
