2-103
Easy Entry
The easy entry feature will only be available if the
vehicle is equipped with the memory option.
Press the OPTIONS button until SEAT EASY ENTRY
appears on the display, then use the RESET button to
page through the following choices:

SEAT EASY ENTRY ON

SEAT EASY ENTRY OFF
If you choose SEAT EASY ENTRY ON, when you
turn the ignition off and remove the key, the seat will
automatically move back and the telescopic steering
wheel (if equipped) will return to its full
-forward
position for an easy exit or an easy entrance when
returning to the vehicle.
SEAT EASY ENTRY OFF turns off this option.
Languages
You can select which language the DIC will display its
messages. Press the OPTIONS button until the word
LANGUAGES appears on the display, then use the
RESET button to page through the following choices:

LANGUAGE ENGLISH

LANGUAGE FRENCH

LANGUAGE GERMAN

LANGUAGE SPANISHBlank Page
There is a blank page at the end of the OPTIONS menu.
When the blank page is displayed, you can access the
following items:
FOB TRAINING: This option allows you to match
the RKE transmitter(s) to your vehicle. You can access
this option by pressing and holding RESET for three
seconds while you are on the blank page at the end of
the OPTIONS menu. The message FOB TRAINING
will be displayed. See ªMatching Transmitter(s) To
Your Vehicleº in the Index for more information.
TIRE TRAINING (Except Z06): The Tire Pressure
Monitor (TPM) operates with battery
-powered sensors
that are located inside the valve stems on each tire.
Each sensor has a unique ID code so the vehicle knows
the tire location of the sensor. When the vehicle reaches
a speed of greater than 15 mph (24 km/h), the sensors
begin to send the tire pressure readings to a receiver
inside the vehicle. These readings are displayed when
using the GAGES button on the DIC. If you are
unable to display your tire pressures while the vehicle
speed is greater than 15 mph (24 km/h), you may
need to have your sensor ID codes learned by the
vehicle. See your dealer.

2-104
DIC Warnings and Messages
The following messages and warnings may appear in
the DIC display. The DIC display area is located in the
instrument panel cluster below the speedometer and
tachometer, directly above the steering column. You may
receive more than one message at a time. Messages will
appear one behind the other. To acknowledge a message
and remove it from the display, press RESET. You may
scroll through the messages that may have been sent at
the same time. The message center is continuously
updated with the vehicle performance status.
ABS ACTIVE (Anti
-Lock Brake System Active):
When your anti
-lock system is adjusting brake pressure
to help avoid a braking skid, the ABS ACTIVE message
will be displayed.
Slippery road conditions may exist if this message
is displayed, so adjust your driving accordingly.
The message will stay on for a few seconds after the
system stops adjusting brake pressure.ACT HNDLG
- WARMING UP: When you first
start your vehicle (especially during cold winter weather),
and begin to drive away (up to 6 mph (10 km/h)), the
message ACT HNDLG
- WARMING UP may be
displayed in the DIC, the instrument panel cluster light
will be on, and a chime will sound. This is normal.
You can acknowledge this message by pressing the
RESET button. The Active Handling System
performance is affected until the next message
WARM UP COMPLETE is displayed in the DIC.
During hot or cold temperature conditions, this message
may be displayed in the DIC after exceeding 12 mph
(20 kph) for 30 seconds. The Active Handling System
is off until the WARM UP COMPLETE message
is displayed.
WARM UP COMPLETE: If you receive this message
and hear a chime, the system has completed the
functional check of the Active Handling System.

2-105
TRAC/ACT HNDLG - ON: If the Traction Control
and Active Handling Systems are off, depressing the
Active Handling System console button momentarily
will turn both systems on. The message TRAC/ACT
HNDLG
- ON will be displayed temporarily in the DIC,
the instrument panel cluster light will be off and a chime
will sound.
TRAC/ACT HNDLG
- OFF: By pressing the Active
Handling System console button briefly, the driver can
turn the Traction Control and Active Handling Systems
off. The message TRAC/ACT HNDLG
- OFF will
be displayed in the DIC, the instrument panel cluster
light will be on and a chime will sound. You can
acknowledge this message by pressing the RESET
button. The anti
-lock brake systems remains on with
the Traction Control and Active Handling Systems off.
You should adjust your driving accordingly.
COMPETITIVE DRIVING: When the Competitive
Driving mode is selected, this message will be displayed
in the DIC. The instrument panel cluster light will not
be on when the Competitive Driving mode is selected.
The Traction Control System will not be operating while
in the Competitive Driving mode. You should adjust
your driving accordingly.SERVICE ABS (Anti
-Lock Brake System): If the
SERVICE ABS message is displayed when you are
driving, stop as soon as possible and turn the ignition
off. Then start the engine again to reset the system.
If the message stays on, or comes back on again while
you are driving, your vehicle is in need of service. If the
regular brake system warning light isn't on, you still
have brakes, but don't have anti
-lock brakes. If the
regular brake system light is also on, you don't have
anti
-lock brakes and there is a problem with your
brakes. See ªBrake System Warning Lightº earlier
in this section.
If the SERVICE ABS message is being displayed, your
traction control system and the optional active handling
system will also be disabled. The driver information
center will scroll three messages: SERVICE ABS,
SERVICE TRACTION SYS and SERVICE ACTIVE
HNDLG, and the instrument cluster car icon will be
illuminated. The driver can acknowledge these messages
by pressing the reset button three times. When the
service message is displayed the computer controlled
systems will not assist the driver and you should have
the system repaired as soon as possible. Adjust your
driving accordingly.

2-106
SERVICE COLUMN LOCK (Manual Transmission
Only): If the system that controls the locking and
unlocking of the steering column does not work
properly, have the vehicle towed to a dealer for service.
PULL KEY
- WAIT 10 SEC (Manual Transmission
Only): If this message comes on, the steering column
lock system has detected a problem while engaging the
steering column lock. This message may occur when
the ignition key is removed and reinserted before the
steering column lock system fully locks or unlocks the
steering column. To acknowledge that you have read
this message, and to clear it from the display, remove
the ignition key and wait 10 seconds before reinserting
the key into the ignition. If you attempt to operate
your vehicle without removing the key for 10 seconds,
the vehicle's fuel system will shut off when you reach
1.5 mph (2.4 km/h). If the message stays on after
removing the key and waiting 10 seconds, have your
vehicle taken to an authorized dealer as soon as possible
for diagnosis and repair.LOW OIL PRESSURE: You will hear four chimes
and the CHECK GAGES telltale will come on when
this message is displayed. To acknowledge the warning,
press the RESET button. After you press the RESET
button, a message will be displayed and you will hear a
chime every minute until the vehicle is serviced. If you
do not press RESET, the message will remain on the
digital display until the vehicle is serviced.
Low oil pressure may be the result of a combination
of low oil level and abrupt changes in the vehicle's
direction. When this warning is displayed, you should
not operate the engine at high rpm or make fast abrupt
moves. As soon as possible, you should check the oil
level. See ªEngine Oilº in the Index.
LOW OIL LEVEL: Press RESET to acknowledge
that you have read the message and to remove it from
the display. The message will reappear every 10 minutes
until this condition changes. Once the vehicle senses
a temperature change in the engine oil, the light will
remain off.
You will hear two chimes when this message is
displayed. If this message appears after starting your
engine, your engine oil level may be too low. You may
need to add oil. See ªEngine Overheatingº in the Index.

2-107
REDUCED ENGINE POWER: You will hear
chimes continuously when this message is displayed.
To acknowledge that you have read the message and to
remove it from the display, press RESET. The message
will reappear every 15 seconds until this condition changes.
If the Driver Information Center (DIC) displays the
REDUCED ENGINE POWER message and the
CHECK ENGINE light comes on, a noticeable
reduction in the vehicle's performance may occur. If the
REDUCED ENGINE POWER message is displayed but
there is no reduction in performance, proceed to your
destination. The performance may be reduced the next
time the vehicle is driven.
The vehicle may be driven at a reduced speed while the
REDUCED ENGINE POWER message is displayed,
but acceleration and speed may be reduced. Anytime the
CHECK ENGINE light stays on, the vehicle should be
taken to an authorized Chevrolet dealer as soon as
possible for diagnosis and repair.
Also, refer to ªMalfunction Indicator Lampº (Check
Engine Light) in the Index. If the REDUCED ENGINE
POWER message is displayed in combination with the
COOLANT OVER TEMP message, see ªEngine
Overheatingº in the Index.SERVICE VEHICLE SOON: If this message appears
on the DIC, there may be an electrical or another system
problem with your vehicle. Have your vehicle checked
by your dealer if this message keeps appearing.
CHARGE SYSTEM FAULT: Press RESET to
acknowledge that you have read the message and to
remove it from the display. The message will reappear
every 10 minutes until this condition changes. You will
hear two chimes when this message is displayed.
If this message comes on while you are driving, you
may have a problem with the electrical charging system.
It could indicate that you have a loose or broken drive
belt or another electrical problem. Have it checked
right away. Driving while this light is on could drain
your battery.
If you must drive a short distance with the message on,
be certain to turn off your accessories, such as the radio
and air conditioner.
TRACTION SYS ACTIVE: When your Traction
Control System is limiting wheel spin, the TRACTION
SYS ACTIVE message will be displayed. Slippery road
conditions may exist if this message is displayed, so
adjust your driving accordingly. The message will stay
on for a few seconds after the traction control system
stops limiting wheel spin.

2-108
TRACTION SYSTEM - ON: This message is
displayed when you decide to turn on the Traction
Control System by pressing the switch on the console.
This message will shut off automatically on its own.
TRACTION SYSTEM
- OFF: You will hear a
single quick tone when this message is displayed.
This message comes on and stays on when the Traction
Control System button on the console is pressed to
turn the system off. To acknowledge this message,
press RESET.
SERVICE TRACTION SYSTEM: If the SERVICE
TRACTION SYS message is displayed when you are
driving, there is a problem with your Traction Control
System and your vehicle is in need of service. When this
message is displayed, the system will not limit wheel
spin. Adjust your driving accordingly.
The SERVICE ACTIVE HNDLG message will also be
displayed and the instrument cluster car icon will also be
illuminated. The driver can acknowledge both messages
by pressing the reset button two times which will also
turn off the instrument cluster icon. When the service
messages are displayed, the computer controlled
systems will not assist the driver in controlling the
vehicle. Have the system repaired as soon as possible.
Adjust your driving accordingly.SERVICE RIDE CONTROL: This message is used
to indicate to the driver that the Selective Real Time
Damping system has detected a malfunction and that
the system must be serviced. The SERVICE RIDE
CONTROL message will always come on when a
failure is detected by the Selective Real Time Damping
system. If a fault is present in the Selective Real Time
Damping system which causes the shocks to be in their
full soft condition, the SERVICE RIDE CONTROL,
SHOCKS INOPERATIVE and MAXIMUM 80 MPH
(129 km/h) will display together. You will never get a
SHOCKS INOPERATIVE and MAXIMUM SPEED
80 MPH (129 km/h) message without a SERVICE
RIDE CONTROL message.
SHOCKS INOPERATIVE: You will hear four chimes
when this message is displayed. To acknowledge that
you have read the message and to remove it from the
display, press RESET. The message will reappear every
10 minutes until this condition changes.
This message indicates that a malfunction is present
in the Selective Real Time Damping system which
is causing the shocks to be in their full soft mode.
This is a warning to the driver that the vehicle handling
may be affected. Have your vehicle serviced as soon
as possible.

2-109
MAXIMUM SPEED 80 MPH (129 km/h): You will
hear four chimes when this message is displayed.
To acknowledge the warning, press RESET. After you
press RESET, a message will reappear every 10 minutes
until this condition changes.
This message indicates that a malfunction is present
in the selective real time damping system. The vehicle
speed will be limited to 80 mph (129 km/h) when the
shock absorber system has failed and the shocks are in
their full soft mode. Have your vehicle serviced as soon
as possible.
COOLANT OVER TEMP: You will hear four chimes
and the CHECK GAGES telltale will come on when
this message is displayed. To acknowledge the warning,
press the RESET button. After you press the RESET
button, a message will be displayed and you will hear a
chime every minute until this condition changes. If you
do not press RESET, the message will remain on the
digital display until the condition changes.If the engine coolant exceeds 255
F (124
C), this
message is displayed. If you have been operating your
vehicle under normal driving conditions, you should
pull off from the road, stop your vehicle and turn off the
engine as soon as possible. You can monitor the coolant
temperature with the GAGES button on the DIC or the
engine coolant gage on the instrument panel cluster.
See ªEngine Overheatingº in the Index.
REDUCE ENGINE RPM: You will hear four chimes
when this message is displayed. To acknowledge the
warning, press the RESET button. After you press the
RESET button, a message will be displayed and you
will hear a chime every minute until this condition
changes. If you do not press RESET, the message will
remain on the digital display until the condition changes.
If the engine oil temperature exceeds 320
F (160
C),
this message is displayed. You should check the engine
coolant temperature and engine oil level. If your engine
is too hot, see ªEngine Overheatingº in the Index.
Your vehicle may need service, so see your dealer.
You can monitor the oil temperature with the GAGES
button on the DIC.

2-110
HIGH TRANS TEMP (Automatic Transmission
Only): You will hear four chimes when this message
is displayed. To acknowledge this warning, press the
RESET button. After you press the RESET button,
the message will be displayed every 10 minutes until
the condition changes. If you do not press RESET,
the message remains on the display until the
condition changes.
If the transmission fluid temperature rises above 270
F
(132
C) or rises rapidly, this message is displayed.
The transmission may shift gears or apply the torque
converter clutch to reduce the fluid temperature.
Driving aggressively or driving on long hills can cause
the transmission fluid temperature to be higher than
normal. If this message appears, you may continue to
drive at a slower speed. You should also monitor the
transmission fluid temperature and allow it to cool to at
least 230
F (110
C). The transmission fluid temperature
can be monitored with the GAGES button on the DIC.
See ªAutomatic Transmission Fluidº in the Index.
You should also check the engine coolant temperature.
If it is also hot, see ªEngine Overheatingº in the Index.If the HIGH TRANS TEMP message is displayed during
normal vehicle operation on flat roads, your vehicle may
need service. See your dealer for an inspection.
SERVICE ACTIVE HANDLING: If the SERVICE
ACTIVE HNDLG message is displayed, there is a
problem with your Active Handling System and your
vehicle needs service. The instrument cluster light will
also be on and a chime will sound. When this message
is displayed, the system is not working. Adjust your
driving accordingly.
ACTIVE HANDLING: Your vehicle is equipped with
a computer controlled system to assist the driver in
controlling the vehicle in difficult driving conditions.
You may feel or hear the system working and see the
ACTIVE HANDLING message displayed in the DIC.
This is normal when the system is operating. Also see
ªAnti
-Lock Brakesº in the Index.

2-111
LOW TIRE PRESSURE: (Except Z06) You will
hear two chimes when this message is displayed.
To acknowledge the warning, press RESET. After you
press RESET, a message will appear every 10 minutes
until this condition changes. This message indicates
that the pressure in one of your tires is less than
25 psi (172 kPa). Next to the LOW TIRE PRESSURE
message, you can see either LF (left front), LR (left rear),
RF (right front) or RR (right rear) to indicate to you
which tire is low on pressure. You can receive more
than one tire pressure message at a time. To read other
messages that may have been sent at the same time,
press RESET. If a tire pressure message appears on the
DIC, stop as soon as you can. Have the tire pressures
checked and set to those shown on your Tire Loading
Information Label. See ªExtended Mobility Tiresº and
ªTire Pressure Monitorº in the Index.

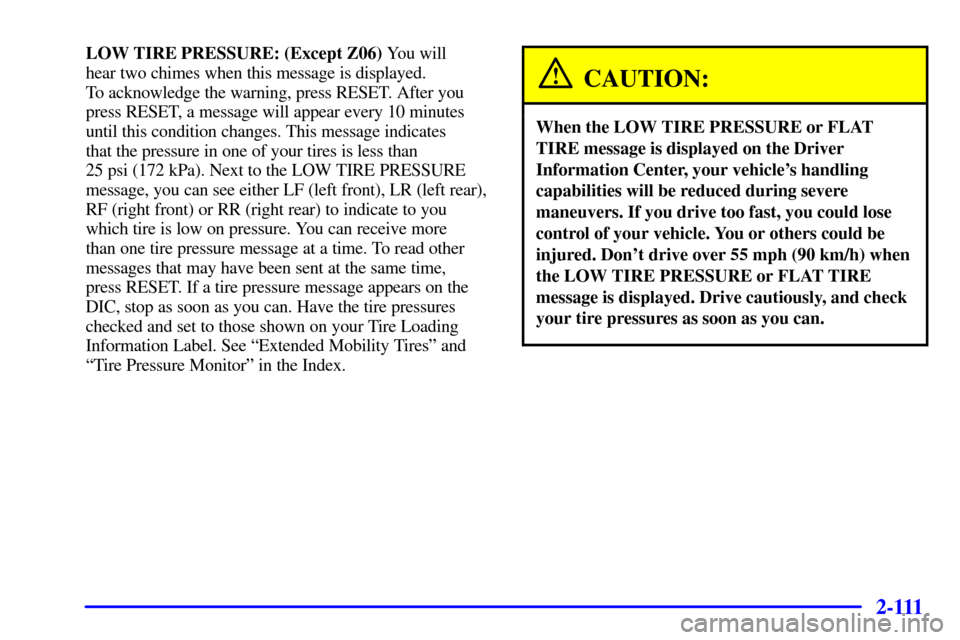

CAUTION:
When the LOW TIRE PRESSURE or FLAT
TIRE message is displayed on the Driver
Information Center, your vehicle's handling
capabilities will be reduced during severe
maneuvers. If you drive too fast, you could lose
control of your vehicle. You or others could be
injured. Don't drive over 55 mph (90 km/h) when
the LOW TIRE PRESSURE or FLAT TIRE
message is displayed. Drive cautiously, and check
your tire pressures as soon as you can.

2-112
FLAT TIRE: (Except Z06) You will hear two chimes
when this message is displayed followed by the message
MAX SPEED 55 MPH (90 km/h). If this message
appears, do not drive your vehicle above these limits.
The next message to appear is REDUCED HANDLING.
Adjust your driving accordingly. To acknowledge these
warnings, press RESET. After you press RESET,
a message will reappear every 10 minutes until this
condition changes. This message indicates that the
pressure in one of your tires is lower than 5 psi (34 kPa).
Next to the FLAT TIRE message, you can see either
LF (left front), LR (left rear), RF (right front) or
RR (right rear) to indicate to you which tire is flat.
You can receive more than one tire pressure message
at a time. To read other messages that may have been
sent at the same time, press RESET. If a tire pressure
message appears on the DIC, stop as soon as you can.
Have the tire pressures checked and set to those shown
on your Tire Loading Information Label. See ªExtended
Mobility Tiresº and ªTire Inflationº in the Index.

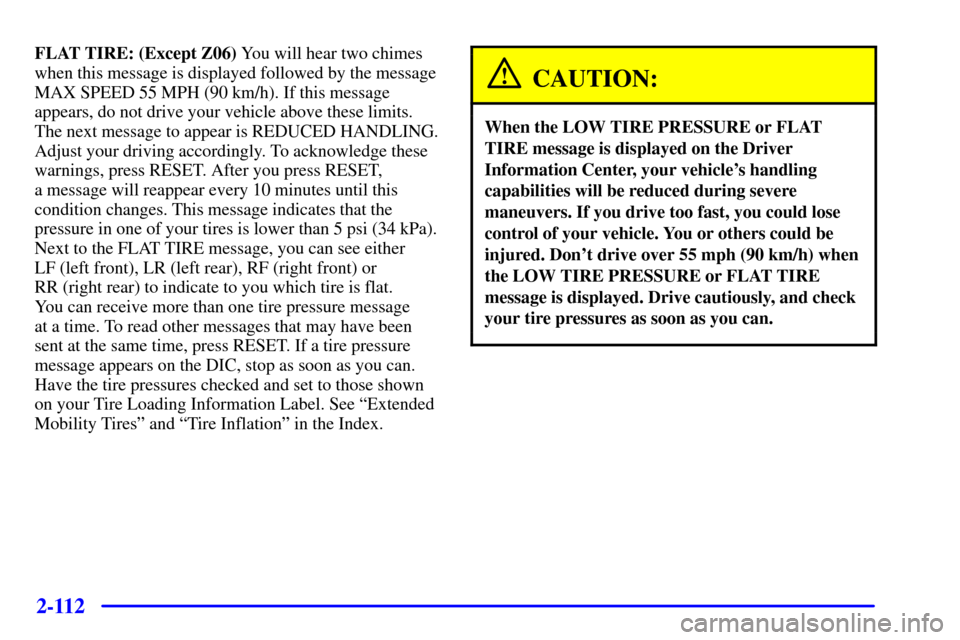

CAUTION:
When the LOW TIRE PRESSURE or FLAT
TIRE message is displayed on the Driver
Information Center, your vehicle's handling
capabilities will be reduced during severe
maneuvers. If you drive too fast, you could lose
control of your vehicle. You or others could be
injured. Don't drive over 55 mph (90 km/h) when
the LOW TIRE PRESSURE or FLAT TIRE
message is displayed. Drive cautiously, and check
your tire pressures as soon as you can.
