HIGH TIRE PRESSURE - (LF, LR, RF, RR)
(Except Z06): You will hear two chimes when this
message is displayed. To acknowledge the warning,
press RESET. After you press RESET, a message will
reappear every 10 minutes until this condition changes.
This message indicates that the pressure in one of
your tires is higher than 42 psi (290 kPa). Next to
the HIGH TIRE PRESSURE message, you can see
either LF (left front), LR (left rear), RF (right front)
or RR (right rear) to indicate to you which tire is higher
than 42 psi (290 kPa). You can receive more than one
tire pressure message at a time. To read other messages
that may have been sent at the same time, press RESET.
If a tire pressure message appears on the DIC, stop as
soon as you can. Have the tire pressures checked and set
to those shown on your Tire Loading Information Label.
See ªExtended Mobility Tiresº and ªTire Inflationº
in the Index.SERVICE TIRE MON SYS (Except Z06): If this
message comes on, a part on the Tire Pressure Monitor
(TPM) is not working properly. If you drive your
vehicle while any of the four sensors are missing or
inoperable, the warning will come on in approximately
10 minutes. If all four sensors are missing, the warning
will come on in approximately 15 to 20 minutes.
(All the sensors would be missing, for example, if you
put different wheels on your vehicle without transferring
the sensors.) If the warning comes on and stays on,
there may be a problem with the TPM. See your dealer.

2-114
Other Messages
Here are more messages that you can receive on your
Driver Information Center (DIC). To acknowledge a
message and read another message that may have
come on at the same time, press the RESET button.

BRAKE BEFORE SHIFT
(Automatic Transmissions Only)

CHANGE OIL NOW
(See ªGM Oil Life Systemº in the Index.)

CHANGE OIL SOON
(See ªGM Oil Life Systemº in the Index.)

CRUISE DISENGAGED
(See ªCruise Controlº in the Index.)

CRUISE SET __ MPH (__ km/h)
(See ªCruise Controlº in the Index.)

DOOR AJAR
ENGINE PROTECTION REDUCE ENGINE RPM

HATCH AJAR (Coupe)

HIGH VOLTAGE (See ªVoltmeterº in the Index.)

LOW BRAKE FLUID
(See ªBrake Fluidº in the Index.)

LOW FUEL (See ªFuel Gageº in the Index.)

LOW VOLTAGE (See ªVoltmeterº in the Index.)

LOW WASHER FLUID
(See ªWindshield Washer Fluidº in the Index.)

RESERVE FUEL (See ªFuel Gageº in the Index.)

TONNEAU AJAR (Convertible)

TRUNK AJAR (Convertible/Z06)

UPSHIFT NOW
(See ªManual Transmissionº in the Index.)

2-115
Head-Up Display (HUD) (If Equipped)
CAUTION:
If the HUD image is too bright, or too high in
your field of view, it may take you more time to
see things you need to see when it's dark outside.
Be sure to keep the HUD image dim and placed
low in your field of view.
If your vehicle is equipped with the Head-Up Display
(HUD), you can see some of the driver information that
appears on your instrument panel cluster.The information may be displayed in English or metric
units and appears as an image focused out toward
the front of your vehicle. The HUD consists of the
following information:

Speedometer

Turn Signal Indicators

High
-Beam Indicator Symbol

Tachometer

Oil, Temperature and Fuel Gages

Shift Light (Performance SHIFT Light)
This light is used for performance driving to indicate
that the vehicle's best performance level has been
reached to shift the transmission into the next
higher gear. The SHIFT light will display at an
engine speed of about 5,750 rpm (6,250 rpm
on Z06), just prior to reaching the engine fuel
cut
-off mode. To better understand the vehicle's
power curves, see ªCapacities and Specificationsº
in the Index.

Check Gages Icon

2-116
There are five HUD selections that you can choose to
view in the HUD display. By pressing and holding the
PAGE button, you can scroll through these pages in
the following order:

Speed Only

Speed and Gage

Speed, Tachometer and Gage

Speed and Tachometer

Tachometer Only
When you have chosen the desired HUD display,
release the PAGE button.
Gages can be scrolled through by tapping the
PAGE button (only when a gage is displayed).
The gages shown are the following:

Oil Pressure

Coolant Temperature

Fuel Level
The selections that you choose will remain in the
HUD display until they are changed.
Be sure to continue scanning your displays, controls
and driving environment just as you would in a vehicle
without HUD. If you never look at your instrument
panel cluster, you may not see something important,
such as a warning light. Under important warning
conditions, the CHECK GAGES icon will illuminate in
the HUD. View your Driver Information Center (DIC)
for more information.

2-117
The HUD controls are located to the left of the
steering wheel.To adjust the HUD so you can see it properly:
1. Start your engine and slide the HUD dimmer
control all the way up.
The brightness of the HUD image is determined by
the light conditions in the direction your vehicle is
facing and where you have the HUD dimmer control
set. If you are facing a dark object or a heavily
shaded area, your HUD may anticipate that you
are entering a dark area and may begin to dim.
It is possible for sunlight to enter the HUD causing
all of the graphics to light up. The display will return
to normal when the sunlight is no longer entering
the HUD.
2. Adjust the seat to a comfortable driving position.
If you change your seat position later, you may
have to re
-adjust your HUD.
3. Press the top or bottom of the DISPLAY switch
to center the HUD image in your view.
The HUD image can only be adjusted up and down,
not side
-to-side.
4. Slide the dimmer control downward until the HUD
image is no brighter than necessary. To turn HUD
off, slide the switch to OFF.

2-118
If the sun comes out or it becomes cloudy, you may
need to adjust the HUD brightness again using the
dimmer control. Polarized sunglasses could make the
HUD image harder to see.
To change from English to metric units, push the
E/M button located to the right of the steering wheel.
Clean the inside of the windshield as needed to remove
any dirt or film that reduces the sharpness or clarity of
the HUD image.
To clean the HUD, spray household glass cleaner on a
soft, clean cloth. Wipe the HUD lens gently, then dry it.
Do not spray cleaner directly on the lens because the
cleaner could leak into the unit.If the ignition is on and you can't see the HUD image,
check to see if:

Something is covering the HUD unit.

The HUD dimmer control is adjusted properly.

The HUD image is adjusted to the proper height.

Ambient light (in the direction your vehicle is
facing) is low.

A fuse is blown. See ªFuses and Circuit Breakersº
in the Index.
Keep in mind that your windshield is part of the HUD
system. If you ever have to have your windshield
replaced, be sure to get one that is designed for HUD or
your HUD image may look blurred and out of focus.

3-
3-1
Section 3 Comfort Controls and Audio Systems
In this section, you'll find out how to operate the comfort control and audio systems offered with your vehicle.
Be sure to read about the particular systems supplied with your vehicle.
3
-2 Comfort Controls
3
-2 Manual Comfort Controls
3
-3 Automatic Electronic Dual Climate
Control System (Option)
3
-10 Sensors
3
-11 Air Conditioning
3
-11 Heating
3
-12 Defogging and Defrosting
3
-12 Rear Window Defogger
3
-13 Audio Systems
3
-13 Setting the Clock
3
-14 AM-FM Stereo with Cassette Tape Player
and Automatic Tone Control (If Equipped)3
-19 AM-FM Stereo with Compact Disc Player
and Automatic Tone Control
3
-24 Trunk-Mounted CD Changer (Option)
3
-29 Theft-Deterrent Feature
3
-31 Understanding Radio Reception
3
-32 Tips About Your Audio System
3
-33 Care of Your Cassette Tape Player
3
-34 Care of Your Compact Discs
3
-34 Care of Your Compact Disc Player
3
-34 Fixed Mast Antenna (Z06)
3
-35 Power Mast Antenna Care (Convertible)
3
-35 Integrated Windshield and Rear Window
Antennas (Coupe)

3-2
Comfort Controls
This section tells you how to make your air system work
for you.
With these systems, you can control the heating,
cooling and ventilation in your vehicle. Your vehicle
also has a flow
-through ventilation system described
later in this section.

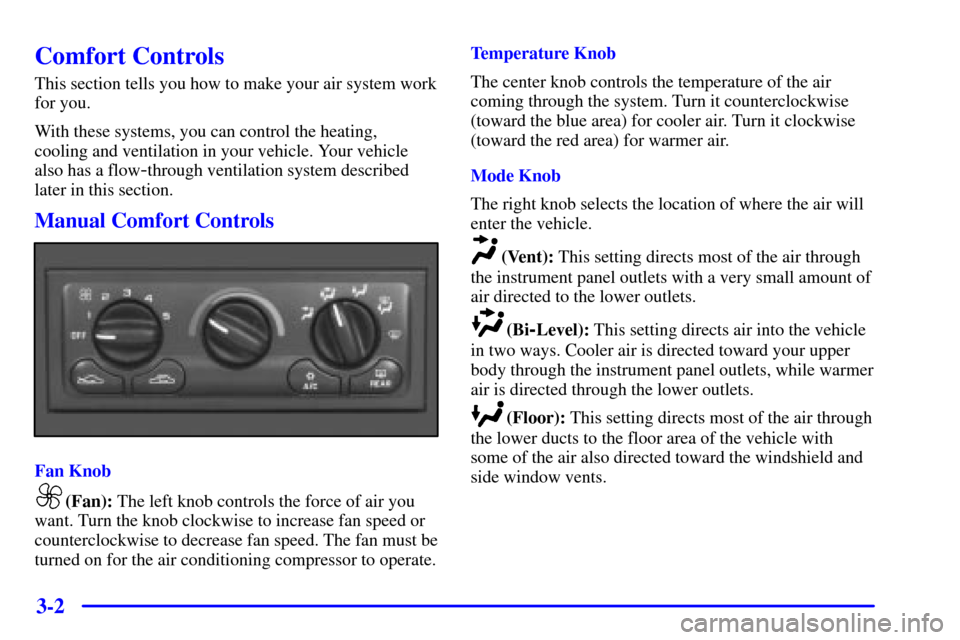

Manual Comfort Controls
Fan Knob
(Fan): The left knob controls the force of air you
want. Turn the knob clockwise to increase fan speed or
counterclockwise to decrease fan speed. The fan must be
turned on for the air conditioning compressor to operate.Temperature Knob
The center knob controls the temperature of the air
coming through the system. Turn it counterclockwise
(toward the blue area) for cooler air. Turn it clockwise
(toward the red area) for warmer air.
Mode Knob
The right knob selects the location of where the air will
enter the vehicle.
(Vent): This setting directs most of the air through
the instrument panel outlets with a very small amount of
air directed to the lower outlets.
(Bi-Level): This setting directs air into the vehicle
in two ways. Cooler air is directed toward your upper
body through the instrument panel outlets, while warmer
air is directed through the lower outlets.
(Floor): This setting directs most of the air through
the lower ducts to the floor area of the vehicle with
some of the air also directed toward the windshield and
side window vents.

3-3
(Defog): This setting divides the air between the
windshield and lower outlets with a small amount of air
directed toward the side window vents. This is useful
when fog appears on the windshield or side glass due to
rain or snowy conditions.
(Defrost): Use this setting to quickly remove fog or
frost from the windshield. This setting directs most of
the airflow to the windshield with a small amount of air
directed toward the lower and side window outlets.
Mode Buttons
These buttons control the air intake, the air conditioning
and the rear window defogger operation.
(Outside Air): Press this button and it will bring
outside air into the vehicle. The light on the button will
come on when operating. Use this setting while trying to
defrost or defog windows to help clear moisture.
(Recirculate): Press this button to limit the amount
of outside air entering the vehicle by recirculating most
of the air inside the vehicle. The light on the button will
come on when operating. This setting is helpful when
you are trying to cool the air quickly or to limit odors
entering the vehicle. Recirculate cannot be used while in
the defrost or defog modes.Operating the system in the recirculation mode may
cause fogging of the vehicle's windows when the
weather is cold and damp. To clear the fog, switch the
system to either the defog or defrost mode and increase
the fan speed. To avoid re
-fogging of the windows,
operate the system in the outside air mode.
A/C (Air Conditioning): This button turns the
air conditioning compressor off or on under most
conditions. The light on the A/C button comes on
when the compressor is operating. The air conditioning
does not operate at temperatures below approximately
35
F to 40
F (2
C to 4
C). The air conditioning
cools and dehumidifies the air coming into the vehicle.
The air conditioning cannot be turned off in defrost,
as it helps to remove moisture from the vehicle. It also
helps to keep the windows clear.
The air conditioning may be forced off at high engine
speeds or high engine oil or coolant temperatures.
See ªRear Window Defoggerº later in this section for
more information.

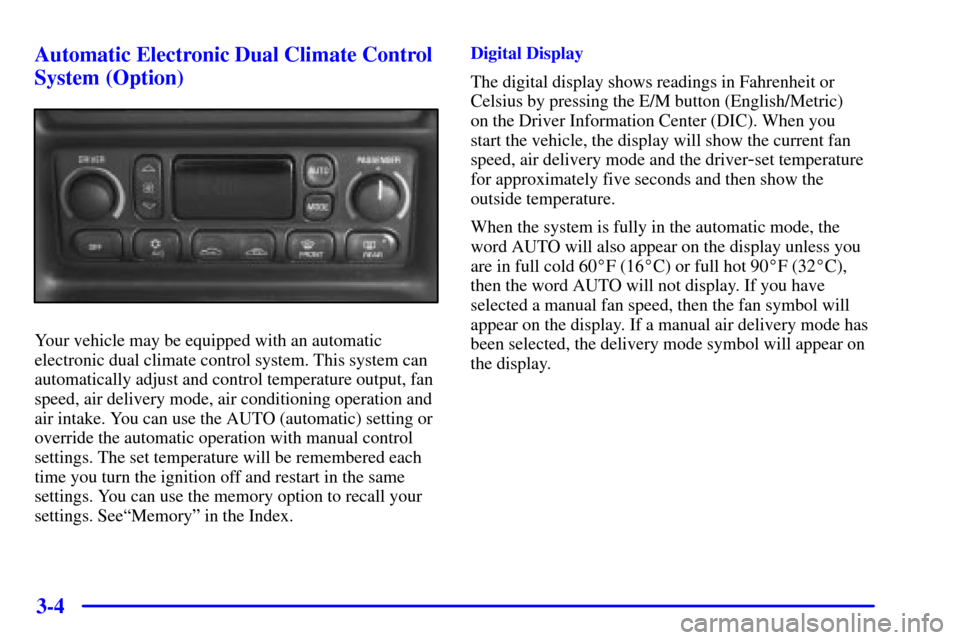

3-4 Automatic Electronic Dual Climate Control
System (Option)
Your vehicle may be equipped with an automatic
electronic dual climate control system. This system can
automatically adjust and control temperature output, fan
speed, air delivery mode, air conditioning operation and
air intake. You can use the AUTO (automatic) setting or
override the automatic operation with manual control
settings. The set temperature will be remembered each
time you turn the ignition off and restart in the same
settings. You can use the memory option to recall your
settings. SeeªMemoryº in the Index.Digital Display
The digital display shows readings in Fahrenheit or
Celsius by pressing the E/M button (English/Metric)
on the Driver Information Center (DIC). When you
start the vehicle, the display will show the current fan
speed, air delivery mode and the driver
-set temperature
for approximately five seconds and then show the
outside temperature.
When the system is fully in the automatic mode, the
word AUTO will also appear on the display unless you
are in full cold 60
F (16
C) or full hot 90
F (32
C),
then the word AUTO will not display. If you have
selected a manual fan speed, then the fan symbol will
appear on the display. If a manual air delivery mode has
been selected, the delivery mode symbol will appear on
the display.
