CHEVROLET CRUZE LIMITED 2016 2.G Warranty Guide

Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15
16 Things to Know About the New Vehicle Limited Warranty
Warranty Repairs–
Component Exchanges
In the interest of customer
satisfaction, GM may offer
exchange service on some vehicle
components. This service is
intended to reduce the amount of
time your vehicle is not available for
use due to repairs. Components
used in exchange are service
replacement parts that may be new,
remanufactured, or refurbished.
Remanufactured parts meet GM
approved service part requirements
and are made from previously used
components in a process that
involves disassembly, inspection,
cleaning, update of software and
replacement of parts as appropriate,
testing and reassembly.
Refurbished parts meet GM
approved service part requirements
and are previously used parts that
are inspected, cleaned, tested, and
repackaged.
All exchange components used
meet GM standards and are
warranted the same as new
components. Examples of the types of components that might be
serviced in this fashion include:
engine and transmission
assemblies, instrument cluster
assemblies, radios, compact disc
players, batteries, and powertrain
control modules.
Warranty Repairs
–Recycled
Materials
Environmental Protection Agency
(EPA) guidelines and GM support
the capture, purification, and reuse
of automotive air conditioning
refrigerant gases and engine
coolant. As a result, any repairs GM
may make to your vehicle may
involve the installation of purified
reclaimed refrigerant and coolant.
Tire Service
Any authorized Chevrolet or tire
dealer for your brand of tires can
assist you with tire service. If, after
contacting one of these dealers, you
need further assistance or you have
questions, contact the Chevrolet
Customer Assistance Center. The toll-free telephone numbers are
listed under
Customer Assistance
Offices 036.
Diesel Engine Components
For trucks equipped with a Diesel
Engine, the complete engine
assembly, including turbocharger
components, is covered for defects
in material or workmanship 5 years
or 60,000 miles whichever comes
first. Coverage for 2500 and 3500
series Heavy Duty (HD) Pickups
equipped with a 6.6L Duramax,
certain commercial fleet and/or
government fleet vehicles is 5 years
or 100,000 miles, whichever comes
first. Please refer to your Chevrolet
dealer for details.
.
Cylinder block and heads and all
internal parts, intake and
exhaust manifolds, timing gears,
timing gear chain or belt and
cover, flywheel, harmonic
balancer, valve covers, oil pan,
oil pump, water pump, fuel
pump, engine mounts, seals,
and gaskets

Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15

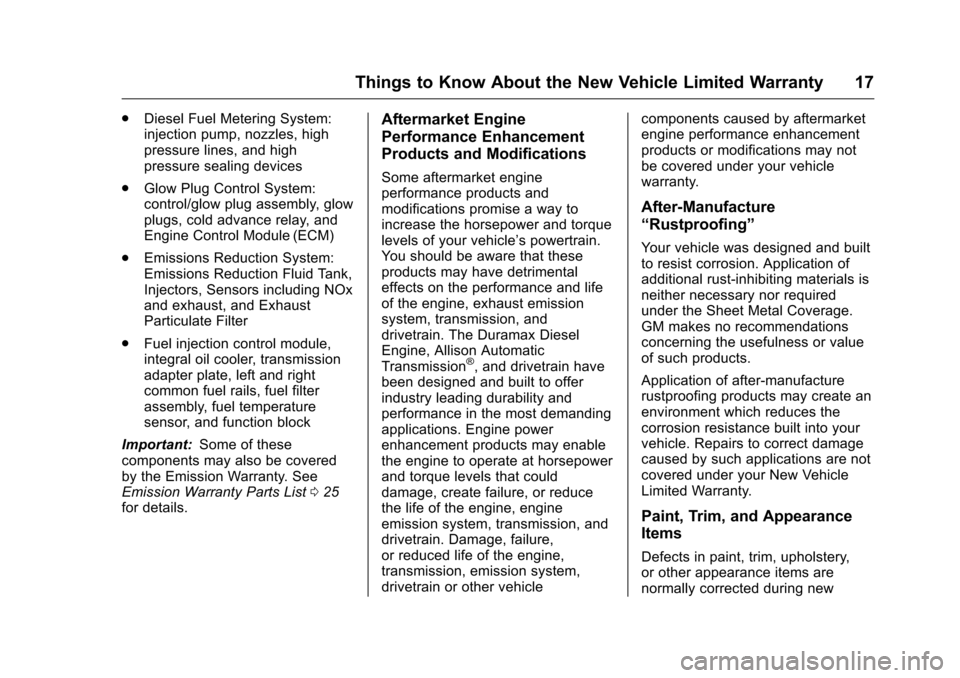

Things to Know About the New Vehicle Limited Warranty 17
.Diesel Fuel Metering System:
injection pump, nozzles, high
pressure lines, and high
pressure sealing devices
. Glow Plug Control System:
control/glow plug assembly, glow
plugs, cold advance relay, and
Engine Control Module (ECM)
. Emissions Reduction System:
Emissions Reduction Fluid Tank,
Injectors, Sensors including NOx
and exhaust, and Exhaust
Particulate Filter
. Fuel injection control module,
integral oil cooler, transmission
adapter plate, left and right
common fuel rails, fuel filter
assembly, fuel temperature
sensor, and function block
Important: Some of these
components may also be covered
by the Emission Warranty. See
Emission Warranty Parts List 025
for details.Aftermarket Engine
Performance Enhancement
Products and Modifications
Some aftermarket engine
performance products and
modifications promise a way to
increase the horsepower and torque
levels of your vehicle’s powertrain.
You should be aware that these
products may have detrimental
effects on the performance and life
of the engine, exhaust emission
system, transmission, and
drivetrain. The Duramax Diesel
Engine, Allison Automatic
Transmission
®, and drivetrain have
been designed and built to offer
industry leading durability and
performance in the most demanding
applications. Engine power
enhancement products may enable
the engine to operate at horsepower
and torque levels that could
damage, create failure, or reduce
the life of the engine, engine
emission system, transmission, and
drivetrain. Damage, failure,
or reduced life of the engine,
transmission, emission system,
drivetrain or other vehicle components caused by aftermarket
engine performance enhancement
products or modifications may not
be covered under your vehicle
warranty.
After-Manufacture
“Rustproofing”
Your vehicle was designed and built
to resist corrosion. Application of
additional rust-inhibiting materials is
neither necessary nor required
under the Sheet Metal Coverage.
GM makes no recommendations
concerning the usefulness or value
of such products.
Application of after-manufacture
rustproofing products may create an
environment which reduces the
corrosion resistance built into your
vehicle. Repairs to correct damage
caused by such applications are not
covered under your New Vehicle
Limited Warranty.
Paint, Trim, and Appearance
Items
Defects in paint, trim, upholstery,
or other appearance items are
normally corrected during new

Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15

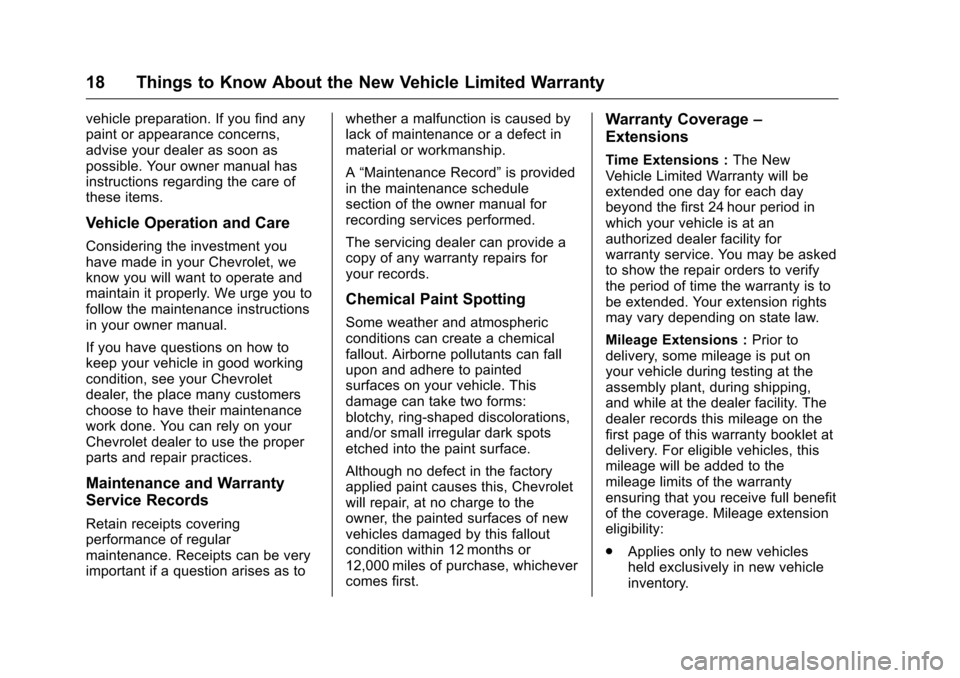

18 Things to Know About the New Vehicle Limited Warranty
vehicle preparation. If you find any
paint or appearance concerns,
advise your dealer as soon as
possible. Your owner manual has
instructions regarding the care of
these items.
Vehicle Operation and Care
Considering the investment you
have made in your Chevrolet, we
know you will want to operate and
maintain it properly. We urge you to
follow the maintenance instructions
in your owner manual.
If you have questions on how to
keep your vehicle in good working
condition, see your Chevrolet
dealer, the place many customers
choose to have their maintenance
work done. You can rely on your
Chevrolet dealer to use the proper
parts and repair practices.
Maintenance and Warranty
Service Records
Retain receipts covering
performance of regular
maintenance. Receipts can be very
important if a question arises as towhether a malfunction is caused by
lack of maintenance or a defect in
material or workmanship.
A
“Maintenance Record” is provided
in the maintenance schedule
section of the owner manual for
recording services performed.
The servicing dealer can provide a
copy of any warranty repairs for
your records.
Chemical Paint Spotting
Some weather and atmospheric
conditions can create a chemical
fallout. Airborne pollutants can fall
upon and adhere to painted
surfaces on your vehicle. This
damage can take two forms:
blotchy, ring-shaped discolorations,
and/or small irregular dark spots
etched into the paint surface.
Although no defect in the factory
applied paint causes this, Chevrolet
will repair, at no charge to the
owner, the painted surfaces of new
vehicles damaged by this fallout
condition within 12 months or
12,000 miles of purchase, whichever
comes first.
Warranty Coverage –
Extensions
Time Extensions : The New
Vehicle Limited Warranty will be
extended one day for each day
beyond the first 24 hour period in
which your vehicle is at an
authorized dealer facility for
warranty service. You may be asked
to show the repair orders to verify
the period of time the warranty is to
be extended. Your extension rights
may vary depending on state law.
Mileage Extensions : Prior to
delivery, some mileage is put on
your vehicle during testing at the
assembly plant, during shipping,
and while at the dealer facility. The
dealer records this mileage on the
first page of this warranty booklet at
delivery. For eligible vehicles, this
mileage will be added to the
mileage limits of the warranty
ensuring that you receive full benefit
of the coverage. Mileage extension
eligibility:
. Applies only to new vehicles
held exclusively in new vehicle
inventory.

Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15

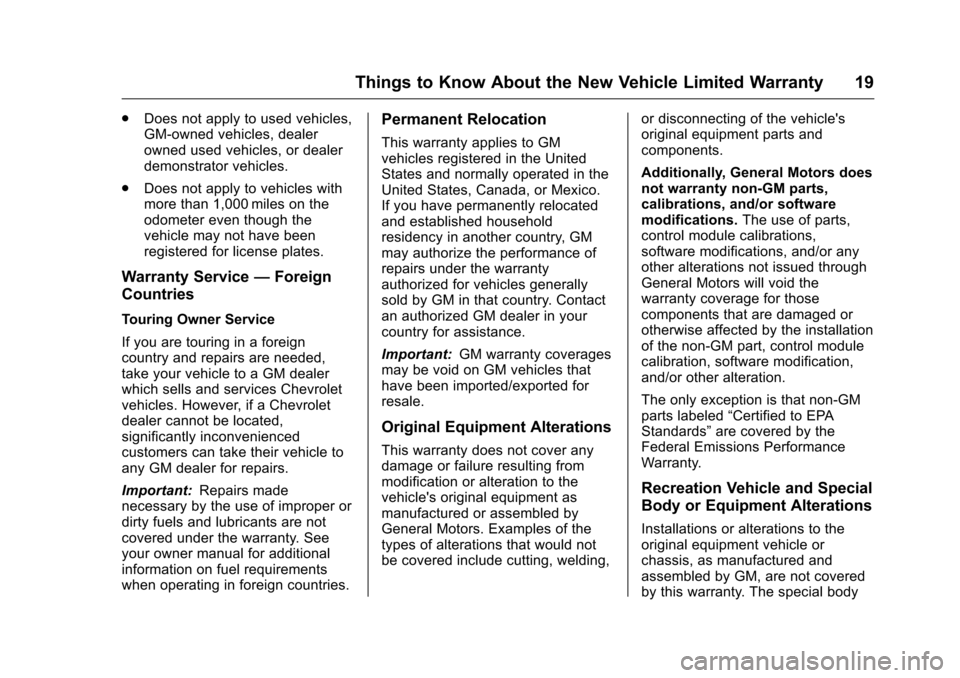

Things to Know About the New Vehicle Limited Warranty 19
.Does not apply to used vehicles,
GM-owned vehicles, dealer
owned used vehicles, or dealer
demonstrator vehicles.
. Does not apply to vehicles with
more than 1,000 miles on the
odometer even though the
vehicle may not have been
registered for license plates.
Warranty Service —Foreign
Countries
Touring Owner Service
If you are touring in a foreign
country and repairs are needed,
take your vehicle to a GM dealer
which sells and services Chevrolet
vehicles. However, if a Chevrolet
dealer cannot be located,
significantly inconvenienced
customers can take their vehicle to
any GM dealer for repairs.
Important: Repairs made
necessary by the use of improper or
dirty fuels and lubricants are not
covered under the warranty. See
your owner manual for additional
information on fuel requirements
when operating in foreign countries.
Permanent Relocation
This warranty applies to GM
vehicles registered in the United
States and normally operated in the
United States, Canada, or Mexico.
If you have permanently relocated
and established household
residency in another country, GM
may authorize the performance of
repairs under the warranty
authorized for vehicles generally
sold by GM in that country. Contact
an authorized GM dealer in your
country for assistance.
Important: GM warranty coverages
may be void on GM vehicles that
have been imported/exported for
resale.
Original Equipment Alterations
This warranty does not cover any
damage or failure resulting from
modification or alteration to the
vehicle's original equipment as
manufactured or assembled by
General Motors. Examples of the
types of alterations that would not
be covered include cutting, welding, or disconnecting of the vehicle's
original equipment parts and
components.
Additionally, General Motors does
not warranty non-GM parts,
calibrations, and/or software
modifications.
The use of parts,
control module calibrations,
software modifications, and/or any
other alterations not issued through
General Motors will void the
warranty coverage for those
components that are damaged or
otherwise affected by the installation
of the non-GM part, control module
calibration, software modification,
and/or other alteration.
The only exception is that non-GM
parts labeled “Certified to EPA
Standards” are covered by the
Federal Emissions Performance
Warranty.
Recreation Vehicle and Special
Body or Equipment Alterations
Installations or alterations to the
original equipment vehicle or
chassis, as manufactured and
assembled by GM, are not covered
by this warranty. The special body

Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15
20 Things to Know About the New Vehicle Limited Warranty
company, assembler, or equipment
installer is solely responsible for
warranties on the body or
equipment and any alterations to
any of the parts, components,
systems, or assemblies installed by
GM. Examples include, but are not
limited to, special body installations,
such as recreational vehicles, the
installation of any non-GM part,
cutting, welding, or the
disconnecting of original equipment
vehicle or chassis parts and
components, extension of the
wheelbase, suspension and
driveline modifications, and axle
additions.
Pre-Delivery Service
Defects in the mechanical,
electrical, sheet metal, paint, trim,
and other components of your
vehicle may occur at the factory or
while it is being transported to the
dealer facility. Normally, any defects
occurring during assembly are
identified and corrected at the
factory during the inspection
process. In addition, dealers inspecteach vehicle before delivery. They
repair any uncorrected factory
defects and any transit damage
detected before the vehicle is
delivered to you.
Any defects still present at the time
the vehicle is delivered to you are
covered by the warranty. If you find
any defects, advise your dealer
without delay. For further details
concerning any repairs which the
dealer may have made prior to you
taking delivery of your vehicle, ask
your dealer.
Production Changes
GM and GM dealers reserve the
right to make changes in vehicles
built and/or sold by them at any time
without incurring any obligation to
make the same or similar changes
on vehicles previously built and/or
sold by them.
Noise Emissions Warranty for
Light Duty Trucks Over
10,000 Lbs Gross Vehicle
Weight Rating (GVWR) Only
GM warrants to the first person who
purchases this vehicle for purposes
other than resale and to each
subsequent purchaser of this
vehicle, as manufactured by GM,
that this vehicle was designed, built,
and equipped to conform at the time
it left GM's control with all applicable
United States EPA Noise Control
Regulations.
This warranty covers this vehicle as
designed, built, and equipped by
GM, and is not limited to any
particular part, component,
or system of the vehicle
manufactured by GM. Defects in
design or assembly, or in any part,
component, or vehicle system as
manufactured by GM, which, at the
time it left GM's control, caused
noise emissions to exceed Federal
Standards, are covered by this
warranty for the life of the vehicle.

Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15
Emission Control Systems Warranty 21
The emission warranty on your
vehicle is issued in accordance with
the U.S. Federal Clean Air Act.
Defects in material or workmanship
in GM emission parts may also be
covered under the New Vehicle
Limited Warranty
Bumper-to-Bumper coverage. There
may be additional coverage on GM
diesel engine vehicles. In any case,
the warranty with the broadest
coverage applies.
What Is Covered
The parts covered under the
emission warranty are listed under
the“Emission Warranty Parts List”
later in this section.
How to Determine the
Applicable Emissions Control
System Warranty
State and Federal agencies may
require a different emission control
system warranty depending on:
. Whether the vehicle conforms to
regulations applicable to light
duty or heavy duty emission
control systems. .
Whether the vehicle conforms to
or is certified for California
regulations in addition to U.S.
EPA Federal regulations.
All vehicles are eligible for Federal
Emissions Control System Warranty
Coverage. If the emissions control
label contains language stating the
vehicle conforms to California
regulations, the vehicle is also
eligible for California Emissions
Control System Warranty Coverage.
Federal Emission Control
System Warranty
Federal Warranty Coverage
. Car or Light Duty Truck with a
Gross Vehicle Weight
Rating (GVWR) of 8,500 lbs.
or less
‐2 years or 24,000 miles and
8 years or 80,000 miles for the
catalytic converter, vehicle/
powertrain control module,
transmission control module or
other onboard emissions
diagnostic device, including
emission-related software,
whichever comes first. .
Light Duty Truck equipped with
Heavy Duty Gasoline Engine
and with a Gross Vehicle Weight
Rating (GVWR) greater than
8,500 lbs.
‐5 years or 50,000 miles,
whichever comes first.
. Light Duty Truck equipped with
Heavy Duty Diesel Engine and
with a Gross Vehicle Weight
Rating (GVWR) greater than
8,500 lbs.
‐5 years or 50,000 miles,
whichever comes first.
Federal Emission Defect Warranty
GM warrants to the owner the
following:
. The vehicle was designed,
equipped, and built so as to
conform at the time of sale with
applicable regulations of the
Federal Environmental
Protection Agency (EPA).
. The vehicle is free from defects
in materials and workmanship
which cause the vehicle to fail to

Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15
22 Emission Control Systems Warranty
conform with those regulations
during the emission warranty
period.
Emission-related defects in the
genuine GM parts listed under the
Emission Warranty Parts List,
including related diagnostic costs,
parts, and labor are covered by this
warranty.
Federal Emission Performance
Warranty
Some states and/or local
jurisdictions have established
periodic vehicle Inspection and
Maintenance (I/M) programs to
encourage proper maintenance of
your vehicle. If an EPA-approved I/
M program is enforced in your area,
you may also be eligible for
Emission Performance Warranty
coverage when all three of the
following conditions are met:
. The vehicle has been
maintained and operated in
accordance with the instructions
for proper maintenance and use
set forth in the owner manual
supplied with your vehicle. .
The vehicle fails an
EPA-approved I/M test during
the emission warranty period.
. The failure results, or will result,
in the owner of the vehicle
having to bear a penalty or other
sanctions, including the denial of
the right to use the vehicle,
under local, state, or federal law.
GM warrants that your dealer will
replace, repair, or adjust to GM
specifications, at no charge to you,
any of the parts listed under the
Emission Warranty Parts List 025,
which may be necessary to conform
to the applicable emission
standards. Non-GM parts labeled
“Certified to EPA Standards” are
covered by the Federal Emission
Performance Warranty.
California Emission Control
System Warranty
This section outlines the emission
warranty that GM provides for your
vehicle in accordance with the
California Air Resources Board.
Defects in material or workmanship
in GM emission parts may also be
covered under the New Vehicle Limited Warranty
Bumper-to-Bumper coverage. There
may be additional coverage on GM
diesel engine vehicles. In any case,
the warranty with the broadest
coverage applies.
This warranty applies if your vehicle
meets both of the following
requirements:
.
Your vehicle is registered in
California or other states
adopting California emission
and warranty regulations.*
. Your vehicle is certified for sale
in California as indicated on the
vehicle's emission control
information label.
* Important: Connecticut,
Delaware, Maine, Maryland,
Massachusetts, New Jersey, New
York, Oregon, Pennsylvania, Rhode
Island, Vermont, and Washington
have California Emissions Warranty
coverage.
California Partial Zero Emission
Vehicles (PZEV) have extended
coverage on all emission-related
parts.

Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15
Emission Control Systems Warranty 23
Important:California, Connecticut,
Maine, Maryland, Massachusetts,
New Jersey, New York, Rhode
Island, and Vermont have PZEV
Emission Warranty Coverage.
(Oregon has PZEV Hybrid battery
10 years/150,000 mile
coverage only).
Your Rights and Obligations (For
Vehicles Subject to California
Exhaust Emission Standards)
The California Air Resources Board
and General Motors are pleased to
explain the emission control system
warranty on your vehicle. In
California, new motor vehicles must
be designed, built, and equipped to
meet the state's stringent anti-smog
standards. GM must warrant the
emission control system on your
vehicle for the periods of time and
mileage listed provided there has
been no abuse, neglect, or improper
maintenance of your vehicle. Your
vehicle's emission control system
may include parts such as the fuel
injection system, ignition system,
catalytic converter, and engine computer. Also included are hoses,
belts, connectors, and other
emission-related assemblies.
Where a warrantable condition
exists, GM will repair your vehicle at
no cost to you including diagnosis,
parts, and labor.
California Emission Defect and
Emission Performance Warranty
Coverage
For cars and trucks with light duty or
medium duty emissions:
.
For 3 years or 50,000 miles
(5 years or 50,000 miles for
Duramax Diesel), whichever
comes first:
‐If your vehicle fails a smog
check inspection, GM will
make all necessary repairs
and adjustments to ensure
that your vehicle passes the
inspection. This is your
Emission Control System
Performance Warranty.
‐ If any emission-related part on
your vehicle is defective, GM
will repair or replace it. This is your Short-term Emission
Control Systems Defects
Warranty.
. For 7 years or 70,000 miles,
whichever comes first:
‐If an emission-related part
listed in this booklet specially
noted with coverage for
7 years or 70,000 miles is
defective, GM will repair or
replace it. This is your
Long-term Emission Control
Systems Defects Warranty.
. For 8 years or 80,000 miles,
whichever comes first:
‐If the catalytic converter,
vehicle powertrain control
module, transmission control
module, or other onboard
emissions diagnostic device,
including emission-related
software, is found to be
defective, GM will repair or
replace it under the Federal
Emission Control System
Warranty.

Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15
24 Emission Control Systems Warranty
.For 15 years or 150,000 miles,
whichever comes first for a
Partial Zero Emission
Vehicle (PZEV):
‐If any emission-related part*
listed in this booklet is
defective, GM will repair or
replace it. This is your (PZEV)
Emission Control System
Defects Warranty.
* PZEV Hybrid Batteries and Hybrid
A/C compressor are covered for
10 years or 150,000 miles,
whichever comes first.
Any authorized Chevrolet dealer
will, as necessary under these
warranties, replace, repair, or adjust
to GM specifications any genuine
GM parts that affect emissions.
The applicable warranty period shall
begin on the date the vehicle is
delivered to the first retail purchaser
or, if the vehicle is first placed in service as a demonstrator or
company vehicle prior to sale at
retail, on the date the vehicle is
placed in such service.
Owner's Warranty Responsibilities
As the vehicle owner, you are
responsible for the performance of
the scheduled maintenance listed in
your owner manual. GM
recommends that you retain all
maintenance receipts for your
vehicle, but GM cannot deny
warranty coverage solely for the
lack of receipts or for your failure to
ensure the performance of all
scheduled maintenance.
You are responsible for presenting
your vehicle to a GM dealer selling
your vehicle line as soon as a
problem exists. The warranted
repairs should be completed in a
reasonable amount of time, not to
exceed 30 days.
As the vehicle owner, you should
also be aware that GM may deny
warranty coverage if your vehicle or
a part has failed due to abuse,
neglect, improper or insufficient
maintenance, or modifications not
approved by GM.
If you have any questions regarding
your rights and responsibilities
under these warranties, you should
contact the Customer Assistance
Center at 1-800-222-1020. Spark
EV call 855-4-SPARK-INFO
(855-477-2754 For Volt call
1-877-486-5846 (1-877-4-Volt Info)
or, in California, write to:
State of California Air Resources
Board
Mobile Source Operations Division
P.O. Box 8001
El Monte, CA 91731-2990

Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15
Emission Warranty Parts List 25
The emission parts listed here are
covered under the Emission Control
System Warranty. The terms are
explained in theEmission Control
Systems Warranty 021 under
“Federal Emission Control System
Warranty” and the“California
Emission Control System Warranty.”
Important: Certain parts may be
covered beyond these warranties if
shown with asterisk(s) as follows:
. (*) 7 years/70,000 miles,
whichever comes first, California
Emission Control System
Warranty coverage.
. (**) 8 years/80,000 miles,
whichever comes first, Federal
Emission Control System
Warranty coverage. (Also
applies to California certified
light duty and medium duty
vehicles.)
All listed parts 15 years/
150,000 miles, whichever comes
first, on California PZEV (NU6)
vehicles registered in a PZEV state
except Hybrid batteries and Hybrid A/C compressors, which are
covered for 10 years/150,000 miles,
whichever comes first.
Powertrain Control System
Accelerator Pedal Position Sensor
Alternator (Chevrolet Colorado and
GMC Canyon with Duramax
Diesel only)
Camshaft Position Actuator *
Camshaft Position Actuator Valve
Coolant Sensor
Data Link Connector
Engine Control Module (ECM) **
Engine Coolant Temperature Sensor
Fuel Control Module **
Flex Fuel Sensor
Humidity Sensor
Intake Air Temperature Sensor
Malfunction Indicator Lamp
Manifold Absolute Pressure Sensor
Mass Air Flow Sensor
Outside Air Temperature Sensor
Oxygen Sensor(s)Powertrain Control Module (PCM) **
Thermostat
Throttle Position Sensor
Vehicle Control Module (VCM) **
Vehicle Speed Sensor
Transmission Controls and
Torque Management
Control Solenoids and Pressure
Switches
Clutch Solenoids and Switches
Internal Mode Switch
Park/Neutral Switch
Transmission Control Module **
Transmission Fluid Temperature
Sensor
Transmission Speed Sensors
Fuel Management System
AFM Fuel Pump Power Module
AFM Exhaust Valves and Controller
Diesel Fuel Injection Pump *
Diesel Direct Fuel Injector
Assembly*
Fuel Injector
