Page 91 of 100

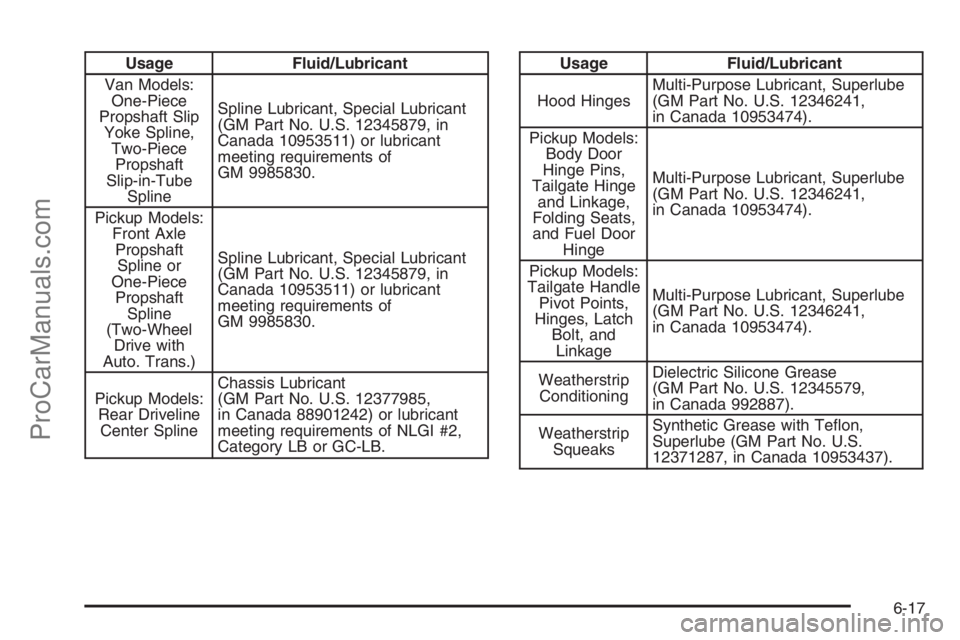

Usage Fluid/Lubricant
Van Models:
One-Piece
Propshaft Slip
Yoke Spline,
Two-Piece
Propshaft
Slip-in-Tube
SplineSpline Lubricant, Special Lubricant
(GM Part No. U.S. 12345879, in
Canada 10953511) or lubricant
meeting requirements of
GM 9985830.
Pickup Models:
Front Axle
Propshaft
Spline or
One-Piece
Propshaft
Spline
(Two-Wheel
Drive with
Auto. Trans.)Spline Lubricant, Special Lubricant
(GM Part No. U.S. 12345879, in
Canada 10953511) or lubricant
meeting requirements of
GM 9985830.
Pickup Models:
Rear Driveline
Center SplineChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.Usage Fluid/Lubricant
Hood HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Pickup Models:
Body Door
Hinge Pins,
Tailgate Hinge
and Linkage,
Folding Seats,
and Fuel Door
HingeMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Pickup Models:
Tailgate Handle
Pivot Points,
Hinges, Latch
Bolt, and
LinkageMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip
ConditioningDielectric Silicone Grease
(GM Part No. U.S. 12345579,
in Canada 992887).
Weatherstrip
SqueaksSynthetic Grease with Teflon,
Superlube (GM Part No. U.S.
12371287, in Canada 10953437).
6-17
ProCarManuals.com
Page 92 of 100

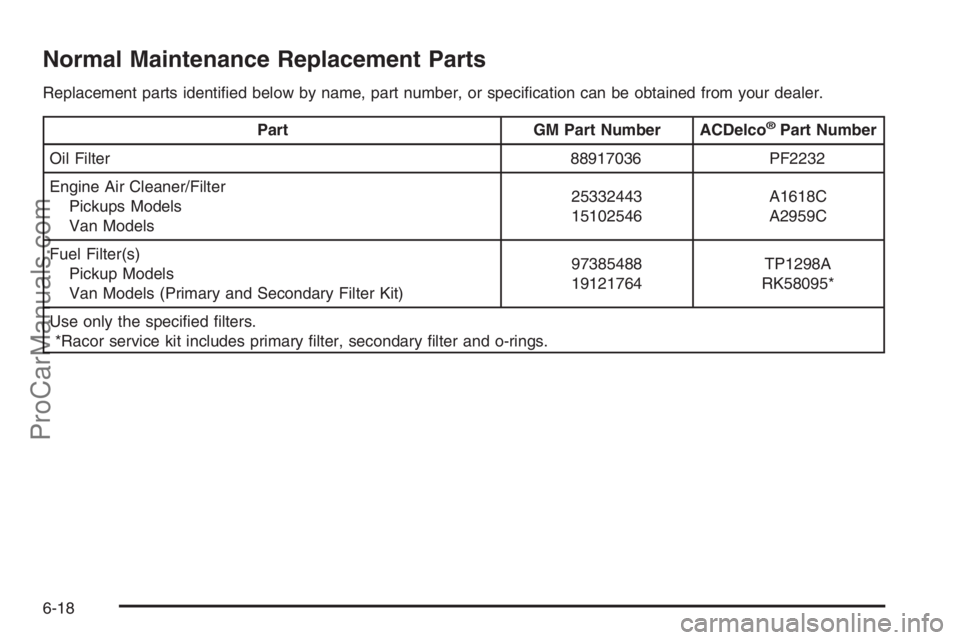

Normal Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco®Part Number
Oil Filter 88917036 PF2232
Engine Air Cleaner/Filter
Pickups Models
Van Models25332443
15102546A1618C
A2959C
Fuel Filter(s)
Pickup Models
Van Models (Primary and Secondary Filter Kit)97385488
19121764TP1298A
RK58095*
Use only the specified filters.
*Racor service kit includes primary filter, secondary filter and o-rings.
6-18
ProCarManuals.com
Page 93 of 100
Engine Drive Belt Routing
6-19
ProCarManuals.com
Page 94 of 100

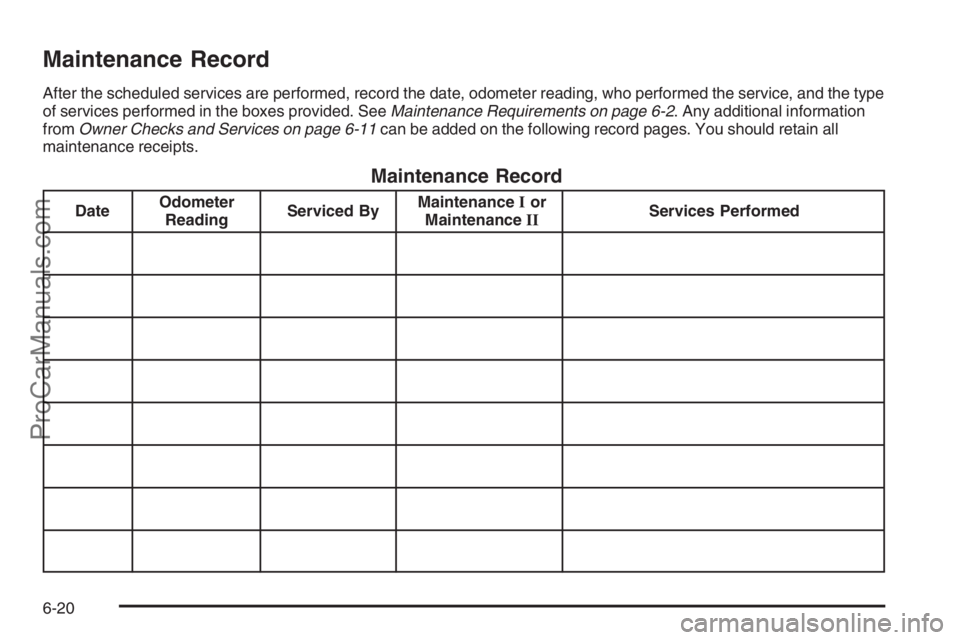

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type
of services performed in the boxes provided. SeeMaintenance Requirements on page 6-2. Any additional information
fromOwner Checks and Services on page 6-11can be added on the following record pages. You should retain all
maintenance receipts.
Maintenance Record
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
6-20
ProCarManuals.com
Page 95 of 100

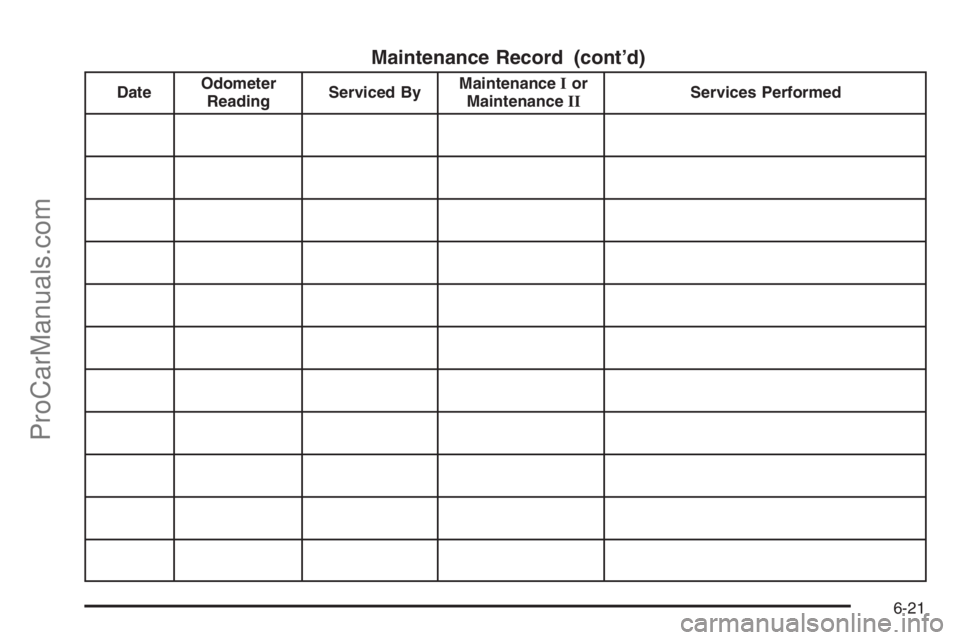

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
6-21
ProCarManuals.com
Page 96 of 100

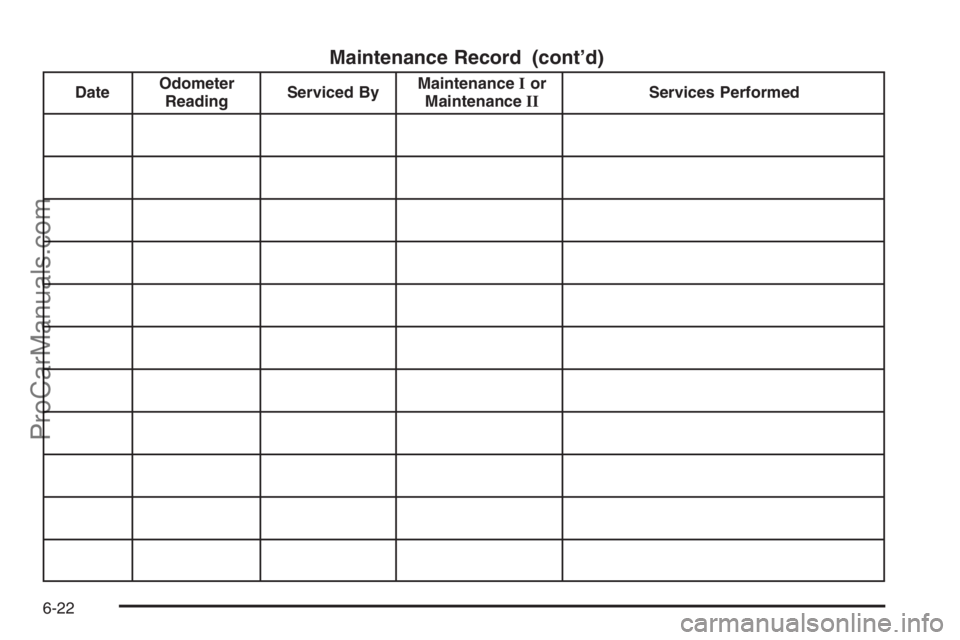

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
6-22
ProCarManuals.com
Page 97 of 100

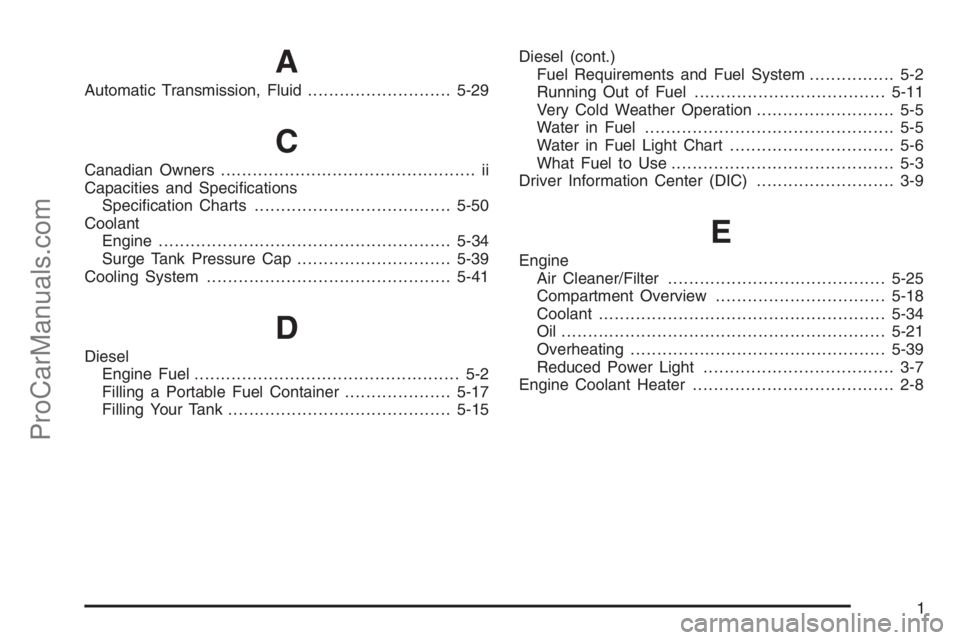

A
Automatic Transmission, Fluid...........................5-29
C
Canadian Owners................................................ ii
Capacities and Specifications
Specification Charts.....................................5-50
Coolant
Engine.......................................................5-34
Surge Tank Pressure Cap.............................5-39
Cooling System..............................................5-41
D
Diesel
Engine Fuel.................................................. 5-2
Filling a Portable Fuel Container....................5-17
Filling Your Tank..........................................5-15Diesel (cont.)
Fuel Requirements and Fuel System................ 5-2
Running Out of Fuel....................................5-11
Very Cold Weather Operation.......................... 5-5
Water in Fuel............................................... 5-5
Water in Fuel Light Chart............................... 5-6
What Fuel to Use.......................................... 5-3
Driver Information Center (DIC).......................... 3-9
E
Engine
Air Cleaner/Filter.........................................5-25
Compartment Overview................................5-18
Coolant......................................................5-34
Oil .............................................................5-21
Overheating................................................5-39
Reduced Power Light.................................... 3-7
Engine Coolant Heater...................................... 2-8
1
ProCarManuals.com
Page 98 of 100

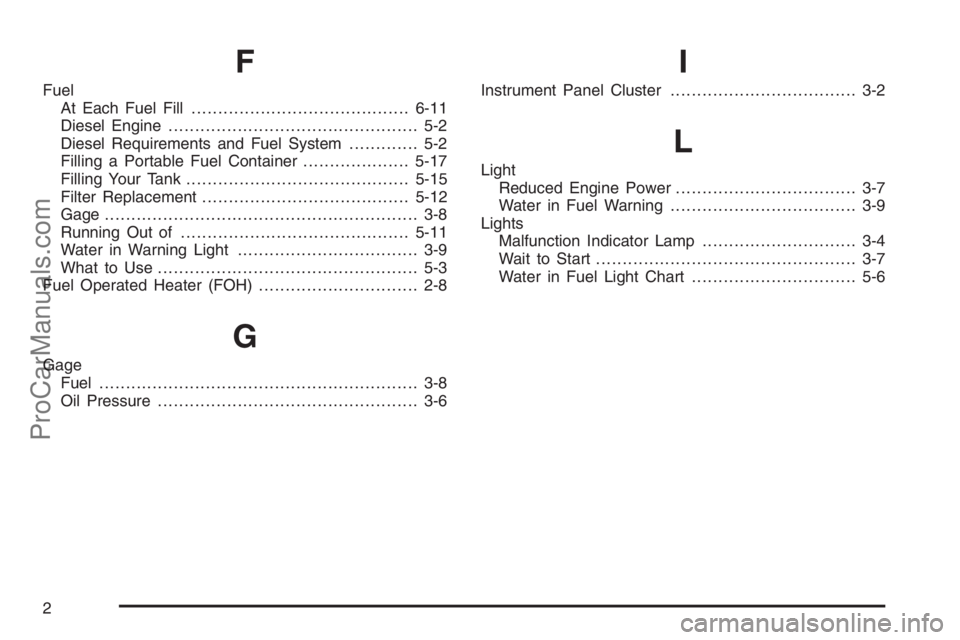

F
Fuel
At Each Fuel Fill.........................................6-11
Diesel Engine............................................... 5-2
Diesel Requirements and Fuel System............. 5-2
Filling a Portable Fuel Container....................5-17
Filling Your Tank..........................................5-15
Filter Replacement.......................................5-12
Gage ........................................................... 3-8
Running Out of...........................................5-11
Water in Warning Light.................................. 3-9
What to Use ................................................. 5-3
Fuel Operated Heater (FOH).............................. 2-8
G
Gage
Fuel............................................................ 3-8
Oil Pressure................................................. 3-6
I
Instrument Panel Cluster................................... 3-2
L
Light
Reduced Engine Power.................................. 3-7
Water in Fuel Warning................................... 3-9
Lights
Malfunction Indicator Lamp............................. 3-4
Wait to Start................................................. 3-7
Water in Fuel Light Chart............................... 5-6
2
ProCarManuals.com
Page 99 of 100

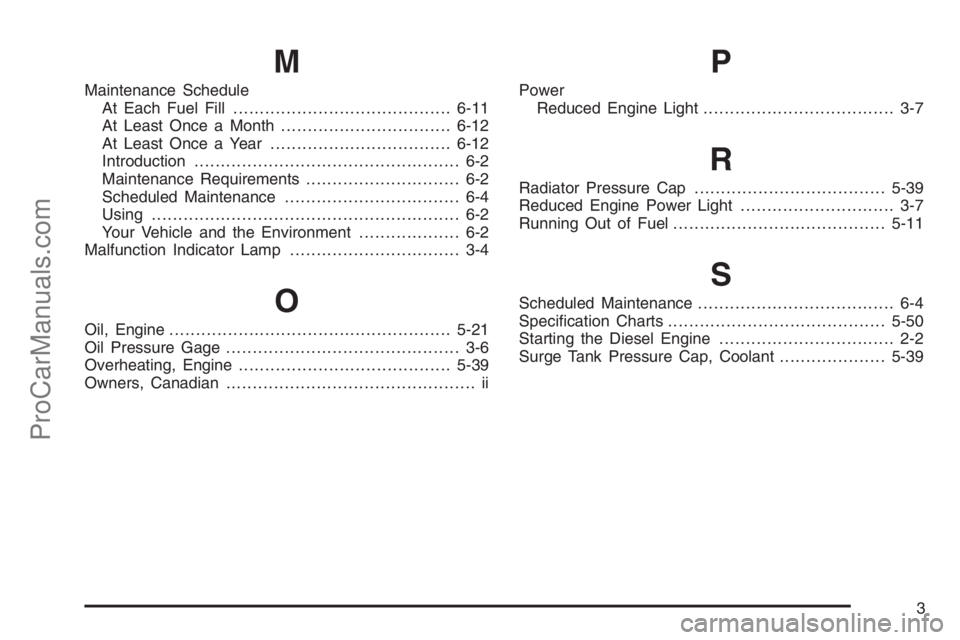

M
Maintenance Schedule
At Each Fuel Fill.........................................6-11
At Least Once a Month................................6-12
At Least Once a Year..................................6-12
Introduction.................................................. 6-2
Maintenance Requirements............................. 6-2
Scheduled Maintenance................................. 6-4
Using.......................................................... 6-2
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Lamp................................ 3-4
O
Oil, Engine.....................................................5-21
Oil Pressure Gage............................................ 3-6
Overheating, Engine........................................5-39
Owners, Canadian............................................... ii
P
Power
Reduced Engine Light.................................... 3-7
R
Radiator Pressure Cap....................................5-39
Reduced Engine Power Light............................. 3-7
Running Out of Fuel........................................5-11
S
Scheduled Maintenance..................................... 6-4
Specification Charts.........................................5-50
Starting the Diesel Engine................................. 2-2
Surge Tank Pressure Cap, Coolant....................5-39
3
ProCarManuals.com
Page 100 of 100

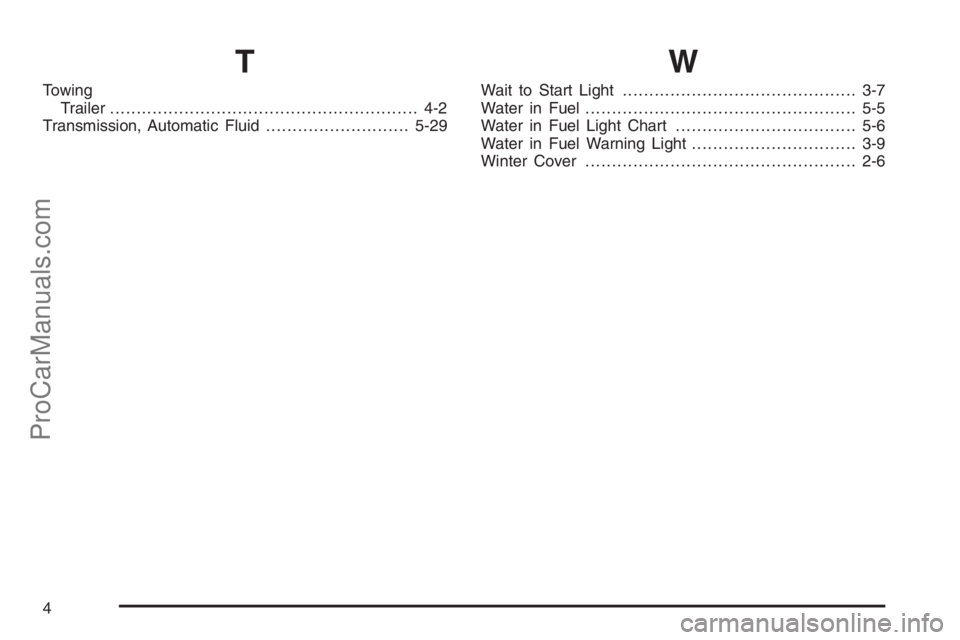

T
Towing
Trailer.......................................................... 4-2
Transmission, Automatic Fluid...........................5-29
W
Wait to Start Light............................................ 3-7
Water in Fuel................................................... 5-5
Water in Fuel Light Chart.................................. 5-6
Water in Fuel Warning Light............................... 3-9
Winter Cover................................................... 2-6
4
