CHEVROLET EXPRESS 1998 1.G Owners Manual

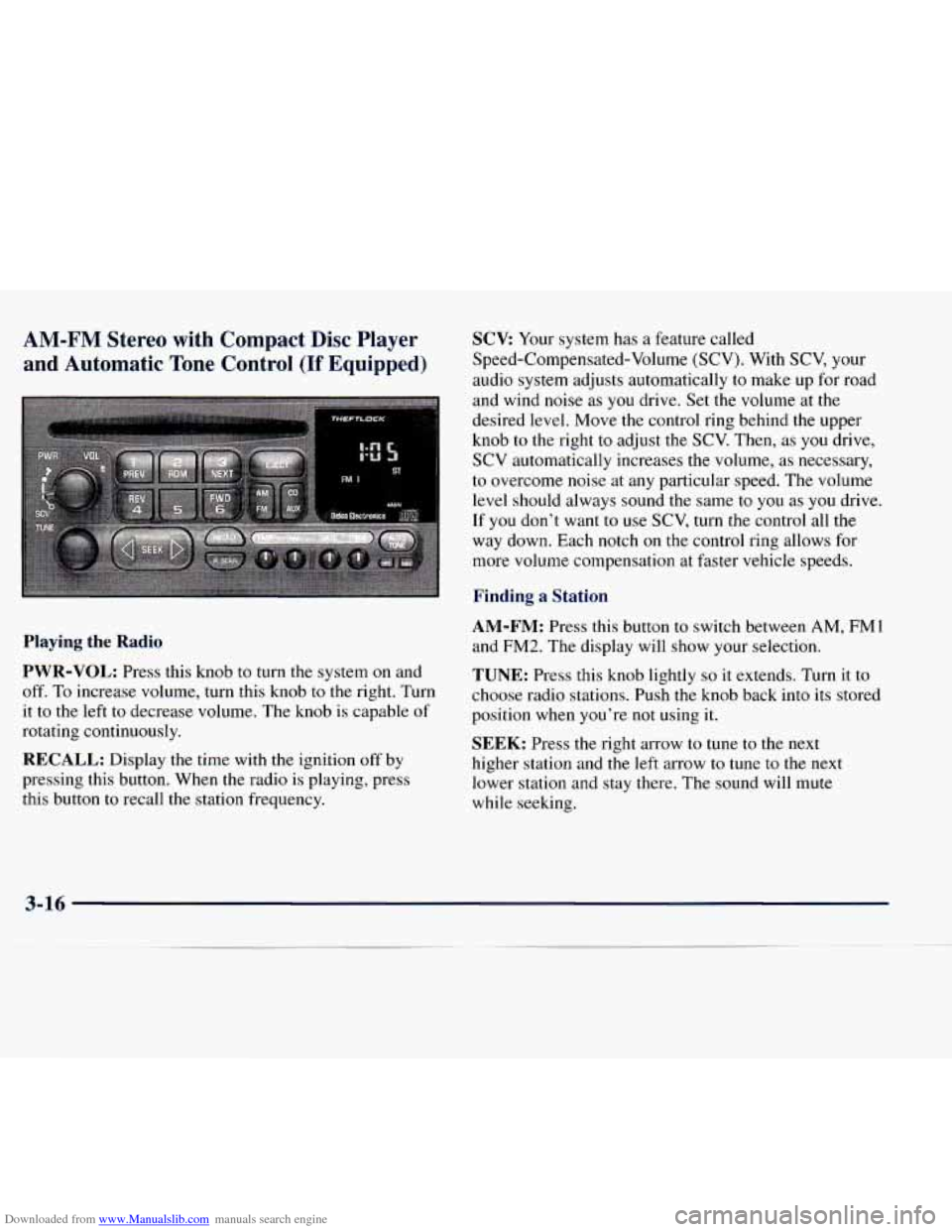

Downloaded from www.Manualslib.com manuals search engine AM-FM Stereo with Compact Disc Player SCV: Your system has a feature called
and Automatic Tone Control (If Equipped) SPeed-ComPensated-Volume (scv). With scv, Your
audio system adjusts automatically
to make up for road
and wind noise as you drive. Set the volume at the
desired level. Move the control ring behind the upper
knob
to the right to adjust the SCV. Then, as you drive,
SCV automatically increases the volume, as necessary,
to overcome noise at any particular speed. The volume
level should always sound the same to you
as you drive.
If
you don't want to use SCV, turn the control all the
way down. Each notch
on the control ring allows for
more volume compensation at faster vehicle speeds.
Finding a Station
Playing the Radio
AM-FM: Press this button to switch between AM, FM1
and
FM2. The display will show your selection.
PWR-VOL: Press this knob to turn the system on and TUNE: Press this knob lightly so it extends. Turn it to
Off. TO increase volume, turn this knob to the right. Turn choose radio stations. Push the knob back into its stored
it to the left
to decrease volume. The knob is capable of position when you're not using it.
rotating continuously.
RECALL: Display the time with the ignition off by
higher station and the left mow to tune to the next
pressing this button. When the radio is playing, press
lower station and stay there. The sound will mute
this button to recall the station frequency.
while seeking.
SEEK: Press the right arrow to tune to the next
3-16

Downloaded from www.Manualslib.com manuals search engine SCAN: Press and hold SEEK for two seconds until
SCAN appears
on the display. SCAN allows you to
listen to stations for a few seconds. The receiver will
continue to scan and momentarily stop at each station
until you press the button again. The sound will mute
while scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can
set up to
18 stations (six AM, six FM 1 and six FM2). Just:
1.
2.
3.
4.
5.
6. Turn
the radio on.
Press AM-FM to select the band.
Tune
in the desired station.
Press AUTO
TONE to select the setting you prefer.
Press and hold one of the six pushbuttons. The sound
will mute. When
it returns, release the button.
Whenever
you press that numbered button, the
station you set
will return and the tone you selected
will be automatically selected for that button.
Repeat the steps for each pushbutton.
P.SCAN: The preset scan button lets you scan through
your favorite stations stored on your pushbuttons. Select
either the AM, FM1 or
FM2 mode and then press P.SCAN.
It will scan
through each station stored on
your pushbuttons and stop for a few seconds before
continuing to
scan through all of the pushbuttons. Press
P.SCAN again or one of
the pushbuttons to stop
scanning to listen to a specific stored station. P.SCAN
will light up
on the display while in this mode. If one of
the stations stored on a pushbutton is too weak for the
location
you are in, the radio display will show the
channel number (Pl-P6) for several seconds before
advancing to the next preset station.
Setting the Tone
BASS: Press lightly on this knob to release it from its
stored position. Turn the knob to the right to increase bass
and to the left to decrease bass. When the BASS control is
rotated, the AUTO TONE display
will go blank.
TREB: Press lightly on this knob to release it from its
stored position. Turn the knob to the right
to increase
treble and to the left to decrease treble. When
the TREB
control is rotated,
the AUTO TONE display will go
blank. If a station is weak or noisy, you may want to
decrease the treble.
Push these knobs back into their stored positions when
you’re not using them.
3-17

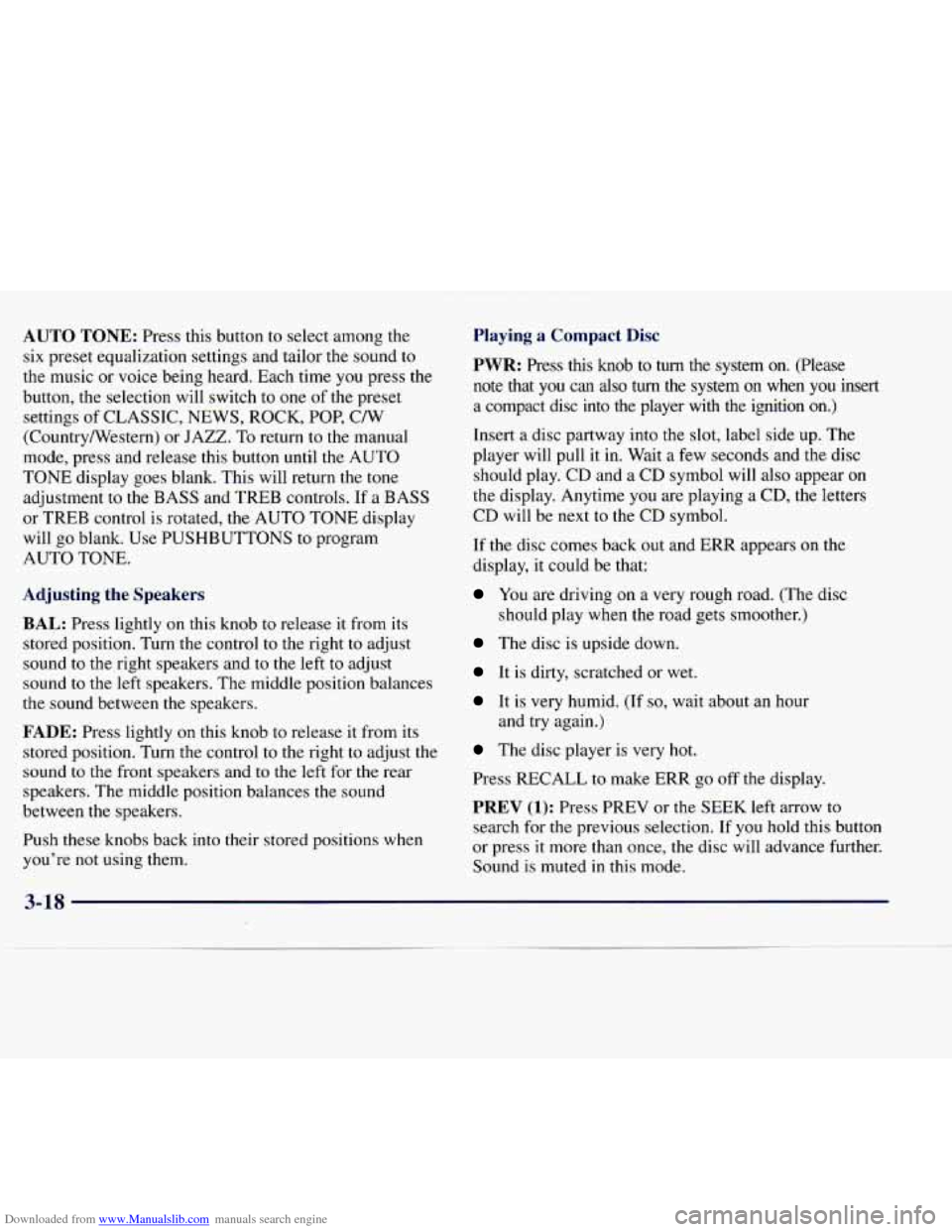

Downloaded from www.Manualslib.com manuals search engine AUTO TONE: Press this button to select among the
six preset equalization settings and tailor the sound to
the music or voice being heard. Each time you press the
button, the selection will switch to one of the preset
settings of CLASSIC, NEWS, ROCK, POP, CN
(CountryWestern) or JAZZ.
To return to the manual
mode, press and release this button until the AUTO
TONE display goes blank. This will return the tone
adjustment to the BASS and TREB controls. If a BASS
or TREB control is rotated, the AUTO TONE display
will go blank. Use
PUSHBUTTONS to program
AUTO TONE.
Adjusting the Speakers
BAL: Press lightly on this knob to release it from its
stored position. Turn the control to the right to adjust
sound to the right speakers and to the left to adjust
sound to the left speakers. The middle position balances
the sound between the speakers.
FADE: Press lightly on this knob to release it from its
stored position. Turn the control to the right to adjust the
sound to the front speakers and
to the left for the rear
speakers. The middle position balances the sound
between the speakers.
Push these knobs back into their stored positions when
you’re
not using them.
Playing a Compact Disc
PWR: Press this knob to turn the system on. (Please
note that you can
also turn the system on when you insert
a compact disc into the player with the ignition on.)
Insert a disc partway into the slot, label side up. The
player will pull it in. Wait a few seconds and the disc
should play.
CD and a CD symbol will also appear on
the display. Anytime you are playing a CD, the letters
CD will be next to the CD symbol.
If
the disc comes back out and ERR appears on the
display, it could be that:
You are driving on a very rough road. (The disc
The disc is upside down.
It is dirty, scratched or wet.
It is very humid. (If so, wait about an hour
The disc player is very hot.
Press
RECALL to make ERR go off the display.
PREV (1): Press PREV or the SEEK left arrow to
search for the previous selection. If you hold this button
or press it more than once, the disc will advance further.
Sound is muted in this mode.
should play when the road
gets smoother.)
and try again.)
3-18

Downloaded from www.Manualslib.com manuals search engine RDM (2): Press this button to play the tracks on the disc
in random order. While in the RDM mode, RANDOM
appears on the display. Press RDM again to return to
normal play.
NEXT (3): Press NEXT or the SEEK right arrow to
search for the next selection. If
you hold this button or
press it more than once, the disc will advance further.
The next track number will appear on the display. Sound
is muted in this mode.
REV (4): Press and hold REV to return rapidly to a
favorite passage. You will hear the disc selection play at
high speed while you press the REV button. This allows
you to listen and find out when the disc is at the desired
selection. Release REV
to resume playing.
FWD (6): Press and hold this button to advance rapidly
within a track. You will hear the disc selection play
at
high speed while you press the FWD button. This allows
you to listen and find
out when the disc is at the desired
selection. Release FWD to resume playing.
RECALL: Press this button to see what track is playing.
Press it again within five seconds to see how long the
CD has been playing that track. Elapsed time
is
displayed in minutes and tenths of a second. The track
number will also appear when a new track begins to
play. Press RECALL again
to return to the time display.
AM-FM: While in the CD mode, press this button to
stop playing the CD and play the radio. The CD symbol
will still display but the word CD will be replaced with
either
AM, FM1 or FM2. (If the radio is turned off, the
disc stays in the player and will resume playing at the
point where it stopped.)
CD AUX: To switch between the player and the radio
when a disc is playing, press
the AM-FM button. To
return to the player, press CD AUX. When a disc is
playing, the letters CD and the CD symbol will appear
on the display. (If the radio is turned off, the disc stays
in the player and will resume playing at the point where
it stopped.)
EJECT Press this button to eject the disc from the
player and play the radio. When the same or a new disc
is inserted, the disc will start playing
on track one. If a
compact disc is left sitting in the opening for more than
a few seconds, the player will pull the CD back in. The
radio will continue playing. When the ignition is
off,
press this button to load a CD.
3-19

Downloaded from www.Manualslib.com manuals search engine Remote Compact Disc Player (If Equipped)
If you h .ave this option, you can pla
(cD) at a time. .y
one compact
disc
To load
a CD into the player, hold the disc with the label
side up and insert it carefully into the player
(approximately halfway). The disc will automatically be
pulled into the player.
If the radio is off and the ignition
is on when a CD
is inserted, the radio will turn on and
begin playing the
CD. It is possible to load and unload
CDs with the ignition off. To load a disc with the
ignition
off, press the EJECT button on the remote
player and then insert the disc. To remove the disc, press
the EJECT button and remove the disc from
the player.
A disc that has been ejected but is still sitting in the
remote CD player will be pulled back into the player
after approximately
30 seconds. This protects the disc
and player from damage. The disc will not start playing. To
remove the disc, press the EJECT button and remove
the disc from the player.
All
of the compact disc functions are controlled by the
radio buttons except for EJECT. When a disc is in the
player, a CD symbol will appear on the display. When
a
disc is playing, the letters CD will appear next to the CD
symbol in the bottom left corner. The track number will
also be displayed.
If the disc comes back out and
ERR appears on the
display, it could be that:
0 The disc is upside down.
0 It is dirty, scratched or wet.
0 There’s too much moisture in the air. (Wait about an
hour and try again.)
You are driving on a very rough road.
Please contact your dealership
if any error recurs or
cannot be corrected.
PREV (1): Press this button to go back to the start of the
current track if more than eight seconds have played.
Press
PREV again to go to the previous track on the disc.
NEXT (3): Press this button to advance to the next track
on
the disc.
3-20

Downloaded from www.Manualslib.com manuals search engine REV (4): Press and hold this button to quickly reverse
within a track.
As the CD reverses, elapsed time will be
displayed to help you find the correct passage.
FWD (6): Press and hold this button to quickly advance
within
a track. As the CD advances, elapsed time will be
displayed to help you find the correct passage.
SEEK: Press the left arrow while playing a CD to go
back to the start of the current track. It will go back to
the current track
if more than eight seconds have played.
Press the left arrow again
to go to previous tracks. Press
the right arrow to go to the next higher track on the disc.
RANDOM: Press P.SCAN to enter the random play
mode. RANDOM will appear on the display. While in
this mode, the tracks on the discs will be played in
random order. If you press SEEK, PREV or NEXT
while
in the random mode, the previous or next track
will be scanned randomly. Press P.SCAN again to
turn
off RANDOM and return to normal operation.
RECALL: Press this button to see what track is
currently playing. Press RECALL again within five
seconds to see how
long the track has been playing.
When a new track starts to play,
the track number will
also appear. Press RECALL a third time and the time of
day will be displayed.
TAPE AUX: With a disc loaded in the player and the
radio playing, press this button once
to play the compact
disc. To return to playing the radio, press AM-FM. If
both a cassette tape and CD are loaded, press TAPE
AUX to switch between the tape and compact disc.
EJECT Press this button on the remote player to eject a
compact disc.
Theft-Deterrent Feature (If Equipped)
THEFTLOCK@ is designed to discourage theft of your
radio. It works by using a secret code to disable all radio
functions whenever battery power is removed. Your
audio system is equipped with THEFTLOCK if
THEFTLOCK is displayed on the front of the radio.
The THEFTLOCK feature for the radio may be used or
ignored. If ignored, the system plays normally and the
radio is not protected by the feature. If THEFTLOCK is
activated, your radio will not operate if stolen.
When THEFTLOCK is activated, the radio will display
LOC
to indicate a locked condition anytime battery
power has been interrupted. If your battery loses power
for any reason, you must unlock the radio with the secret
code before
it will operate.
3-21

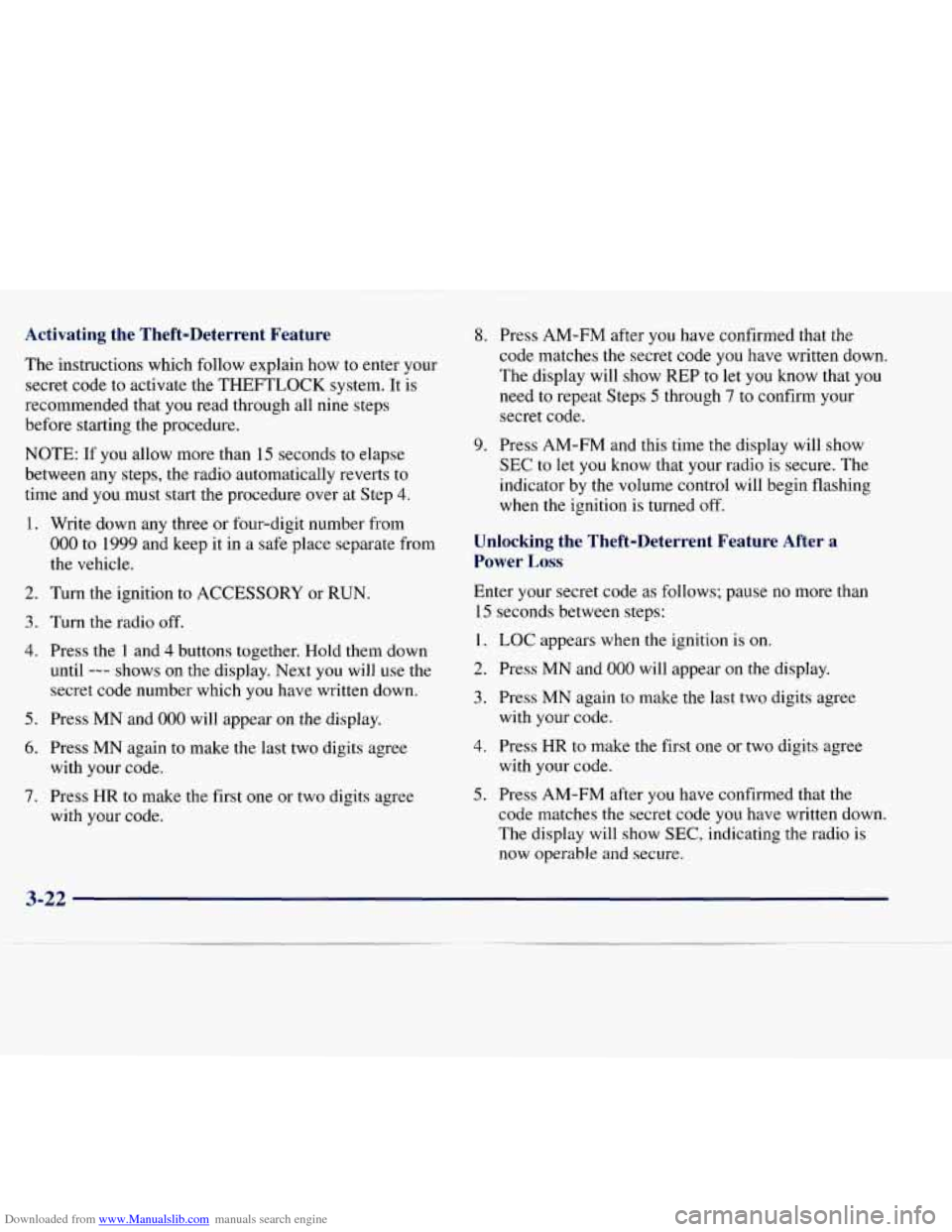

Downloaded from www.Manualslib.com manuals search engine Activating the Theft-Deterrent Feature
The instructions which follow explain how to enter your
secret code to activate the THEFTLOCK system. It is
recommended that you read through all nine steps
before starting the procedure.
NOTE:
If you allow more than 15 seconds to elapse
between any steps, the radio automatically reverts to
time and you must start the procedure over at Step
4.
1.
2.
3.
4.
5.
6.
7.
Write down any three or four-digit number from
000 to 1999 and keep it in a safe place separate from
the vehicle.
Turn the ignition to ACCESSORY or RUN.
Turn
the radio off.
Press the 1 and 4 buttons together. Hold them down
until
--- shows on the display. Next you will use the
secret code number which
you have written down.
Press MN and
000 will appear on the display.
Press MN again to make the last two digits agree
with your code.
Press HR
to make the first one or two digits agree
with your code.
8. Press AM-FM after you have confirmed that the
code matches the secret code you have written down.
The display will show
REP to let you know that you
need to repeat Steps
5 through 7 to confirm your
secret code.
9. Press AM-FM and this time the display will show
SEC to let
you know that your radio is secure. The
indicator by the volume control will begin flashing
when the ignition is turned off.
Unlocki ~ the Theft-Deterrent Feature After a
Power Loss
Enter your secret code as follows; pause no more than
15 seconds between steps:
1. LOC appears when the ignition is on.
2. Press MN and 000 will appear on the display.
3. Press MN again to make the last two digits agree
with your code.
4. Press HR to make the first one or two digits agree
with your code.
code matches the secret code you have written down.
The display will show
SEC, indicating the radio is
now operable and secure.
5. Press AM-FM after you have confirmed that the
3-22

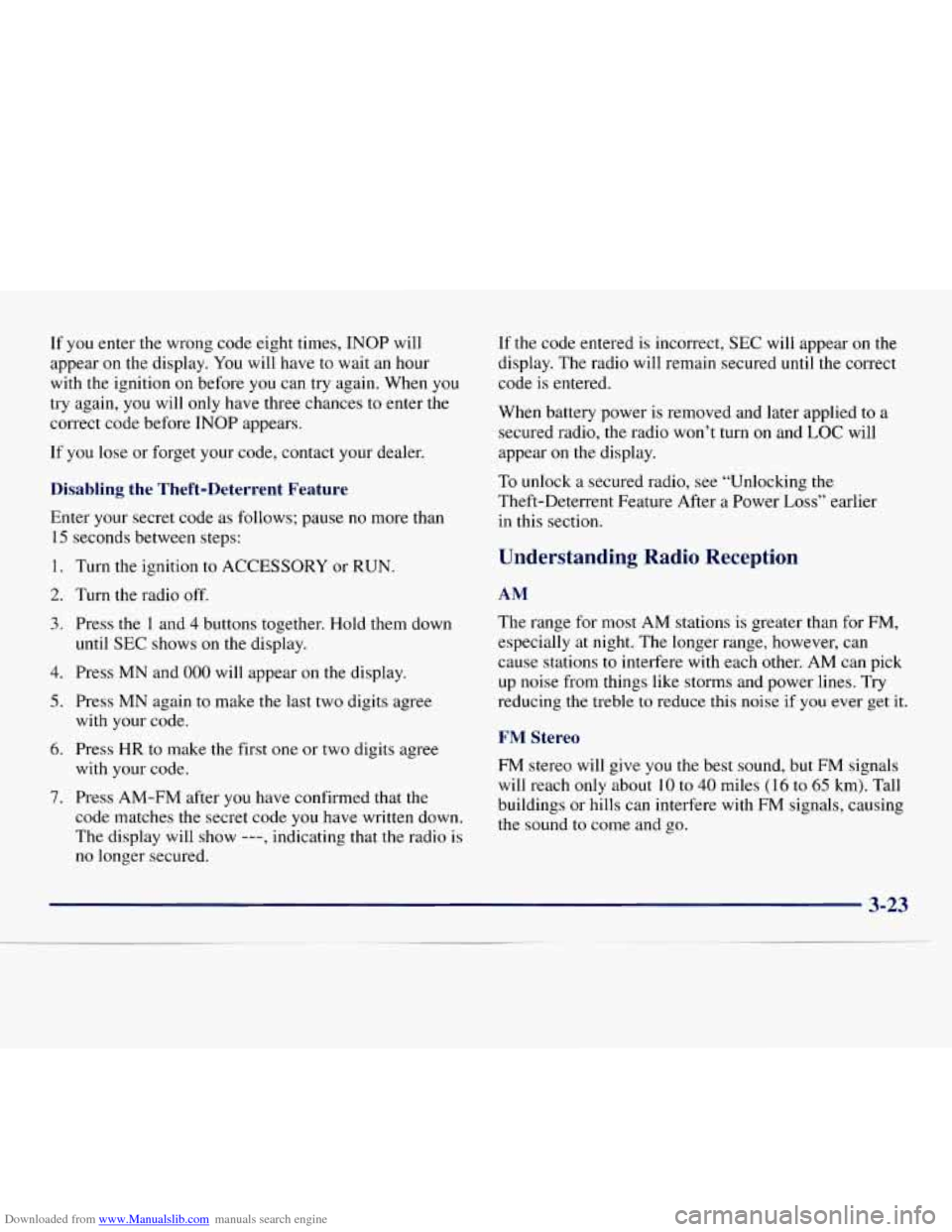

Downloaded from www.Manualslib.com manuals search engine If you enter the wrong code eight times, INOP will
appear on the display. You will have to wait an hour
with the ignition
on before you can try again. When you
try again, you will only have three chances to enter the
correct code before INOP appears.
If
you lose or forget your code, contact your dealer.
Disabling the Theft-Deterrent Feature
Enter your secret code as follows; pause no more than
15 seconds between steps:
1.
2.
3.
4.
5.
6.
7.
Turn the ignition to ACCESSORY or RUN.
Turn the radio
off.
Press the 1 and 4 buttons together. Hold them down
until
SEC shows on the display.
Press MN and
000 will appear on the display.
Press MN again to make the last two digits agree
with your code.
Press HR
to make the first one or two digits agree
with your code.
Press AM-FM after
you have confirmed that the
code matches the secret code you have written down.
The display will show
---, indicating that the radio is
no longer secured. If
the code entered is incorrect, SEC will appear on
the
display. The radio will remain secured until the correct
code is entered.
When battery power
is removed and later applied to a
secured radio, the radio won’t turn
on and LOC will
appear on the display.
To unlock a secured radio, see “Unlocking the
Theft-Deterrent Feature After a Power
Loss” earlier
in this section.
Understanding Radio Reception
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range, however, can
cause stations
to interfere with each other. AM can pick
up noise from things like storms and power lines. Try
reducing the treble
to reduce this noise if you ever get it.
FM Stereo
FM stereo will give you the best sound, but FM signals
will reach only about
10 to 40 miles ( 16 to 65 km). Tall
buildings or hills can interfere with FM signals, causing
the sound
to come and go.

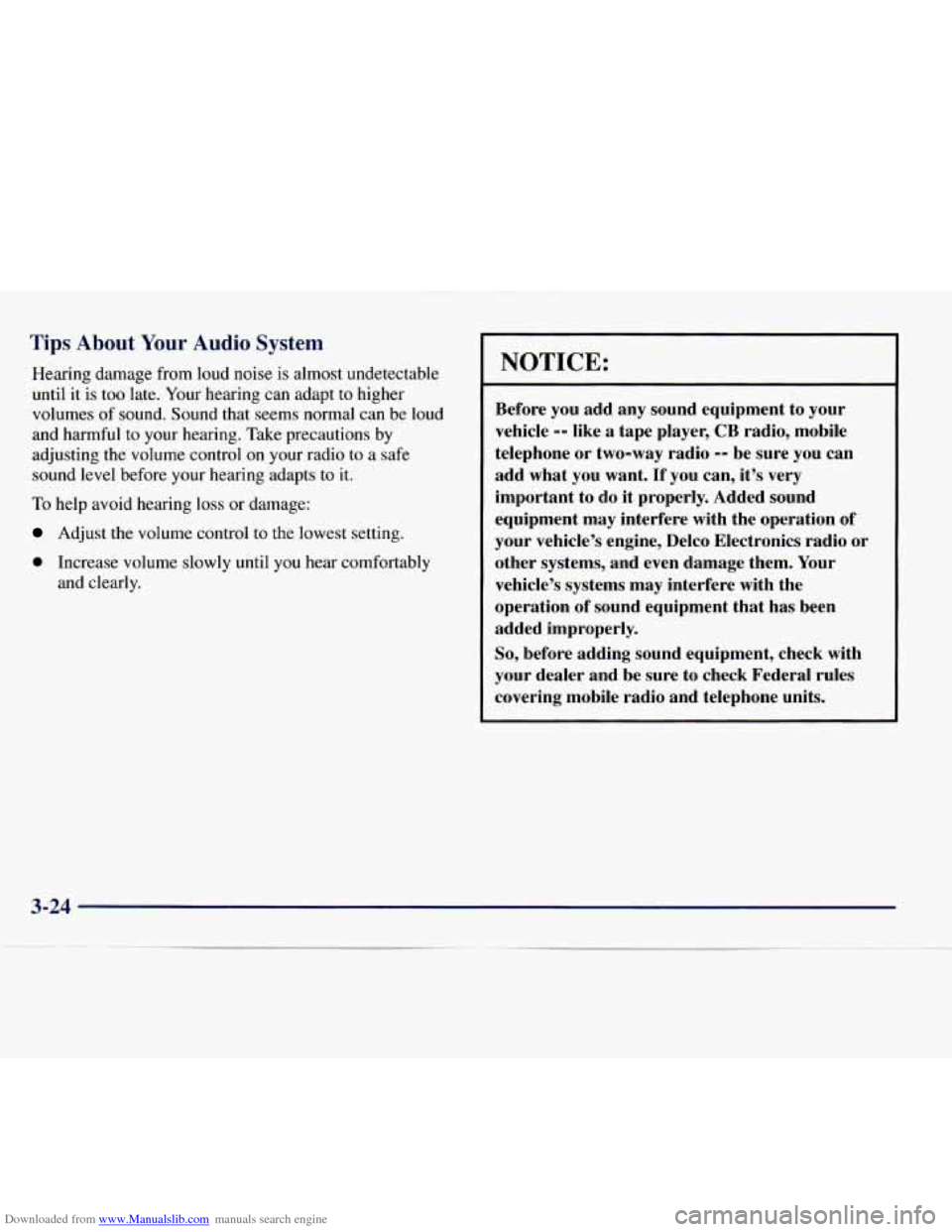

Downloaded from www.Manualslib.com manuals search engine Tips About Your Audio System
Hearing damage from loud noise is almost undetectable
until
it is too late. Your hearing can adapt to higher
volumes of sound. Sound that seems normal can be loud
and harmful
to your hearing. Take precautions by
adjusting the volume control on your radio to a safe
sound level before your hearing adapts
to it.
To help avoid hearing loss or damage:
Adjust the volume control to the lowest setting.
0 Increase volume slowly until you hear comfortably
and clearly.
I
NOTICE:
Before you add any sound equipment to your
vehicle
-- like a tape player, CB radio, mobile
telephone or two-way radio
-- be sure you can
add what you want.
If you can, it’s very
important to do it properly. Added sound
equipment may interfere with the operation
of
your vehicle’s engine, Delco Electronics radio or
other systems, and even damage them. Your
vehicle’s systems may interfere with the
operation
of sound equipment that has been
added improperly.
So, before adding sound equipment, check with
your dealer and be sure to check Federal rules
covering mobile radio and telephone units.
3-24

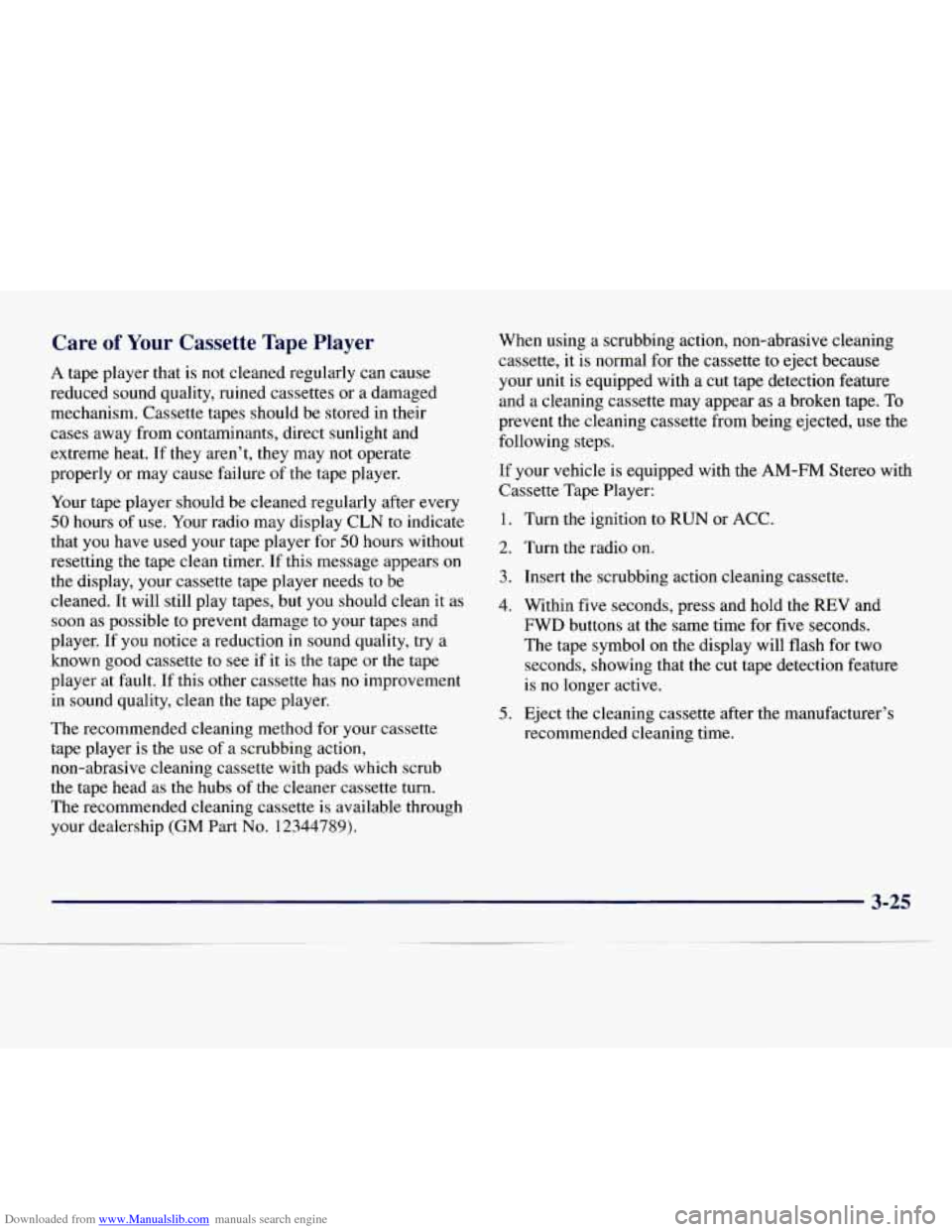

Downloaded from www.Manualslib.com manuals search engine Care of Your Cassette Tape Player
A tape player that is not cleaned regularly can cause
reduced sound quality, ruined cassettes or a damaged
mechanism. Cassette tapes should be stored in their
cases away from contaminants, direct sunlight and
extreme
heat. If they aren’t, they may not operate
properly or may cause failure of the tape player.
Your tape player should be cleaned regularly after every
50 hours of use. Your radio may display CLN to indicate
that you have used your tape player for
50 hours without
resetting
the tape clean timer. If this message appears on
the display, your cassette tape player needs to be
cleaned. It will still play tapes, but you should clean it as
soon as possible to prevent damage to your tapes and
player. If you notice a reduction in sound quality, try
a
known good cassette to see if it is the tape or the tape
player at fault. If this other cassette has no improvement
in sound quality, clean the tape player.
The recommended cleaning method for your cassette
tape player is the use of a scrubbing action,
non-abrasive cleaning cassette with pads which scrub
the tape head as the hubs
of the cleaner cassette turn.
The recommended cleaning cassette is available through
your dealership
(GM Part No. 12344789). When using
a scrubbing action, non-abrasive cleaning
cassette, it is normal for the cassette to eject because
your unit is equipped with
a cut tape detection feature
and a cleaning cassette may appear
as a broken tape. To
prevent the cleaning cassette from being ejected, use the
following steps.
If your vehicle is equipped with the AM-FM Stereo with
Cassette Tape Player:
1.
2.
3.
4.
5.
Turn the ignition to RUN or ACC.
Turn the radio on.
Insert the scrubbing action cleaning cassette.
Within five seconds, press and hold the
REV and
FWD buttons at the same time for five seconds.
The tape symbol on the display will flash for two
seconds, showing that the cut tape detection feature
is no longer active.
Eject the cleaning cassette after the manufacturer’s
recommended cleaning time.
3-25
