240 Vehicle Care
Caution (Continued)
the vehicle warranty. Do not allow
the wiper arm to touch the
windshield.
1. Lift the wiper arm away fromthe windshield.
2. Push the release lever (2) todisengage the hook and pushthe wiper arm (1) out of theblade assembly (3).
3. Push the new blade assemblysecurely on the wiper arm untilthe release lever clicks intoplace.
Headlamp Aiming
Headlamp aim has been preset andshould need no further adjustment.
If the vehicle is damaged in a crash,the headlamp aim may be affected.If adjustment to the headlamps isnecessary, see your dealer.
Bulb Replacement
For the proper type of replacementbulbs, seeReplacementBulbs0245.
For any bulb-changing procedurenot listed in this section, contactyour dealer.
Halogen Bulbs
{Warning
Halogen bulbs have pressurized
gas inside and can burst if you
drop or scratch the bulb. You or
others could be injured. Be sure
to read and follow the instructions
on the bulb package.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Vehicle Care 241
Headlamps
Composite Headlamp
1. High-Beam Headlamp
2. Low-Beam Headlamp
To r e m o v e t h e h e a d l a m p a s s e m b l yfrom the vehicle and access thebulbs:
1. Open the hood. SeeHood0217.
2. Remove the two bolts from theheadlamp assembly.
3. Lift the headlamp assembly torelease the lower tabs from theradiator support.
4. Turn the headlamp forward andupward to remove it from thegrille.
5. Disconnect the electricalconnector.
6. Turn the bulb counterclockwiseone-quarter turn to remove itfrom the headlamp assembly.
7. Install the new bulb into theheadlamp assembly andconnect the electricalconnector.
8. Reverse the steps to reinstallthe headlamp assembly.
To p r e v e n t h e a d l a m p v i b r a t i o nand shortened bulb life, besure to insert the headlamp

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
242 Vehicle Care
assembly tabs in the slots atthe lower portion of thehousing.

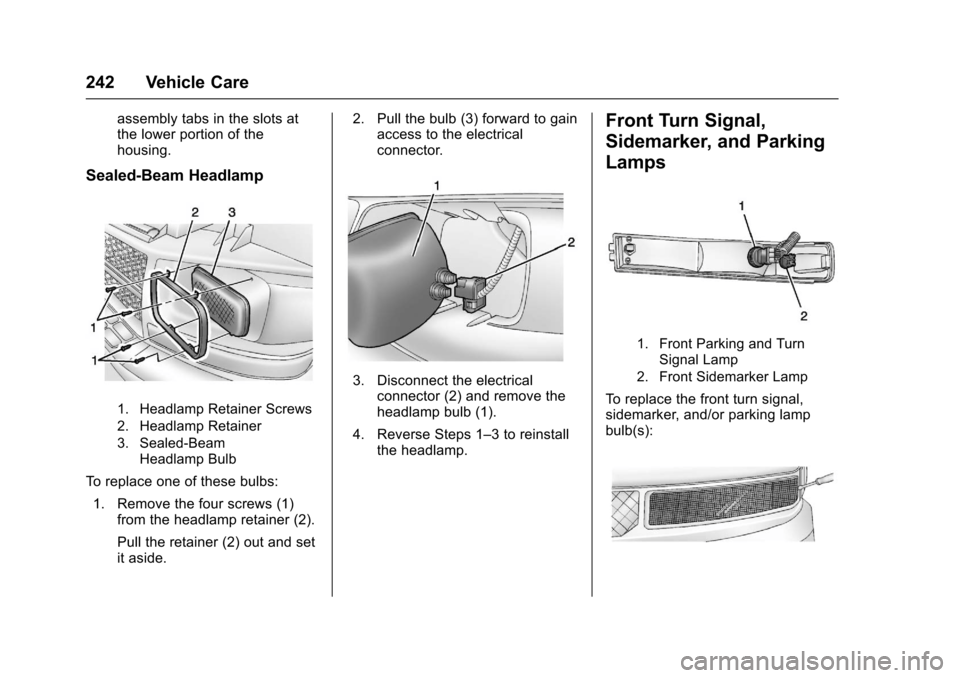

Sealed-Beam Headlamp
1. Headlamp Retainer Screws
2. Headlamp Retainer
3. Sealed-BeamHeadlamp Bulb
To r e p l a c e o n e o f t h e s e b u l b s :
1. Remove the four screws (1)from the headlamp retainer (2).
Pull the retainer (2) out and setit aside.
2. Pull the bulb (3) forward to gainaccess to the electricalconnector.
3. Disconnect the electricalconnector (2) and remove theheadlamp bulb (1).
4. Reverse Steps 1–3toreinstallthe headlamp.
Front Turn Signal,
Sidemarker, and Parking
Lamps
1. Front Parking and TurnSignal Lamp
2. Front Sidemarker Lamp
To r e p l a c e t h e f r o n t t u r n s i g n a l ,sidemarker, and/or parking lampbulb(s):

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Vehicle Care 243
1. Use a small tool to unlatch theoutboard clip on the lamp bypushing inboard and prying thelamp assembly forward.
2. Remove the lamp from thegrille.
3. Turn the bulb socketcounterclockwise one-quarterturn and remove it from thelamp assembly.
4. Remove the bulb from thesocket by pulling it straight out.
5. Replace the bulb.
6. Turn the bulb socket clockwiseto reinstall it in the lampassembly.
7. Reinstall the lamp assemblyinto the grille until the outboardclip snaps into place.
Taillamps

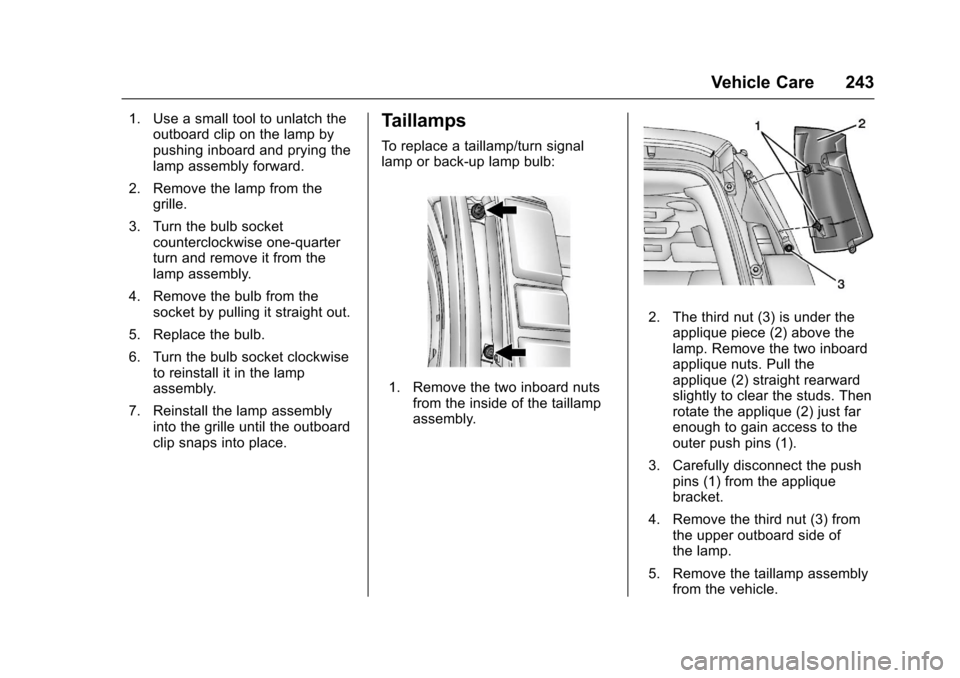

To r e p l a c e a t a i l l a m p / t u r n s i g n a llamp or back-up lamp bulb:
1. Remove the two inboard nutsfrom the inside of the taillampassembly.
2. The third nut (3) is under theapplique piece (2) above thelamp. Remove the two inboardapplique nuts. Pull theapplique (2) straight rearwardslightly to clear the studs. Thenrotate the applique (2) just farenough to gain access to theouter push pins (1).
3. Carefully disconnect the pushpins (1) from the appliquebracket.
4. Remove the third nut (3) fromthe upper outboard side ofthe lamp.
5. Remove the taillamp assemblyfrom the vehicle.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
244 Vehicle Care
6. Remove the taillamp/turn signallamp (1) or back-up lamp (2)bulb socket by turning itcounterclockwise one-quarterturn and pulling it out of thelamp assembly.
7. Remove the bulb by pulling itstraight out.
8. Push the new bulb into thesocket.
9. Reinstall the bulb socket byturning it clockwise into thelamp assembly.
10. Reverse Steps 1–5toreinstallthe taillamp assembly andapplique.
Center High-Mounted
Stoplamp (CHMSL)
The Center High-Mounted Stoplamp(CHMSL) is above the rear doors atthe center of the vehicle.

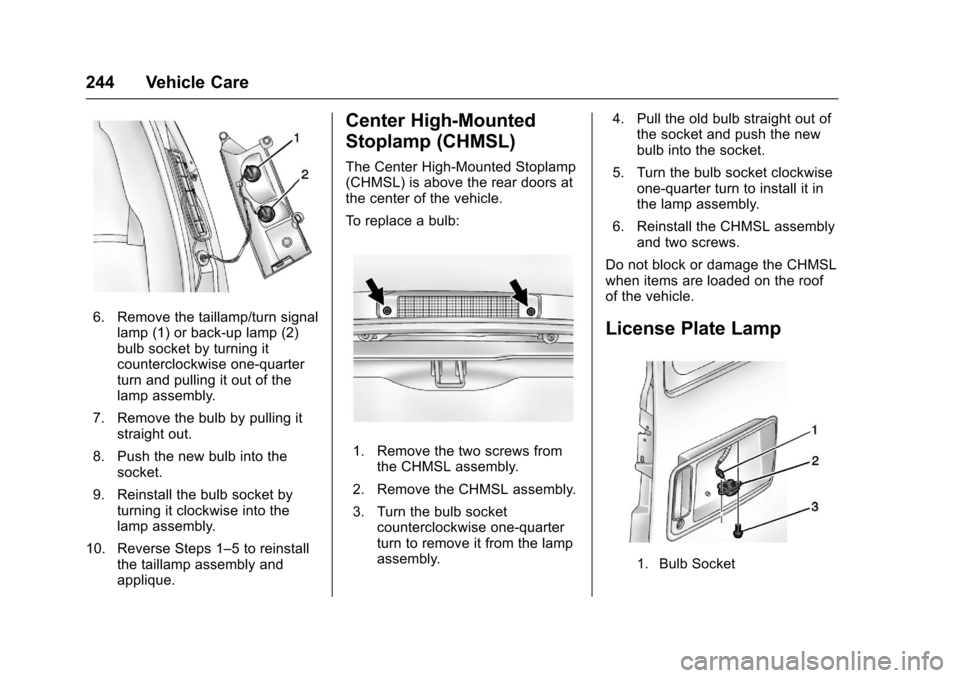

To r e p l a c e a b u l b :
1. Remove the two screws fromthe CHMSL assembly.
2. Remove the CHMSL assembly.
3. Turn the bulb socketcounterclockwise one-quarterturn to remove it from the lampassembly.
4. Pull the old bulb straight out ofthe socket and push the newbulb into the socket.
5. Turn the bulb socket clockwiseone-quarter turn to install it inthe lamp assembly.
6. Reinstall the CHMSL assemblyand two screws.
Do not block or damage the CHMSLwhen items are loaded on the roofof the vehicle.
License Plate Lamp
1. Bulb Socket

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Vehicle Care 245
2. License Plate BulbAssembly
3. Screws
To r e p l a c e o n e o f t h e s e b u l b s :
1. Remove the screws (3) thatsecure the license plate bulbassembly (2).
2. Turn the bulb socket (1)counterclockwise and pull thebulb straight out of the socket.
3. Install the new bulb.
4. Reverse Steps 1 and 2 toreinstall the license plate bulbassembly.

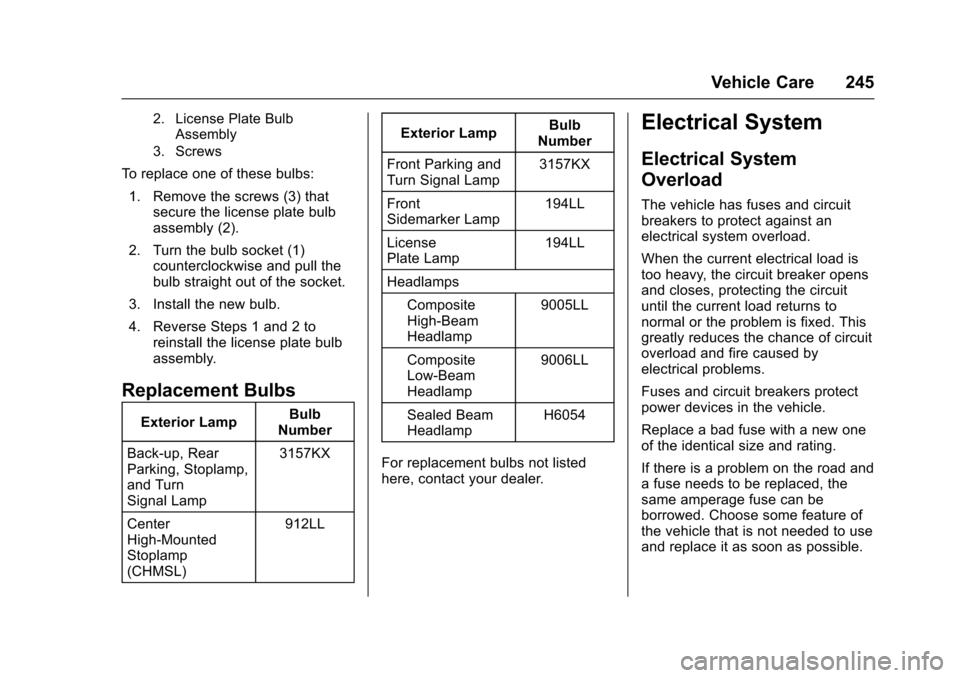

Replacement Bulbs
Exterior LampBulbNumber
Back-up, RearParking, Stoplamp,and TurnSignal Lamp
3157KX
CenterHigh-MountedStoplamp(CHMSL)
912LL
Exterior LampBulbNumber
Front Parking andTurn Signal Lamp3157KX
FrontSidemarker Lamp194LL
LicensePlate Lamp194LL
Headlamps
CompositeHigh-BeamHeadlamp
9005LL
CompositeLow-BeamHeadlamp
9006LL
Sealed BeamHeadlampH6054
For replacement bulbs not listedhere, contact your dealer.
Electrical System
Electrical System
Overload
The vehicle has fuses and circuitbreakers to protect against anelectrical system overload.
When the current electrical load istoo heavy, the circuit breaker opensand closes, protecting the circuituntil the current load returns tonormal or the problem is fixed. Thisgreatly reduces the chance of circuitoverload and fire caused byelectrical problems.
Fuses and circuit breakers protectpower devices in the vehicle.
Replace a bad fuse with a new oneof the identical size and rating.
If there is a problem on the road andafuseneedstobereplaced,thesame amperage fuse can beborrowed. Choose some feature ofthe vehicle that is not needed to useand replace it as soon as possible.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
246 Vehicle Care

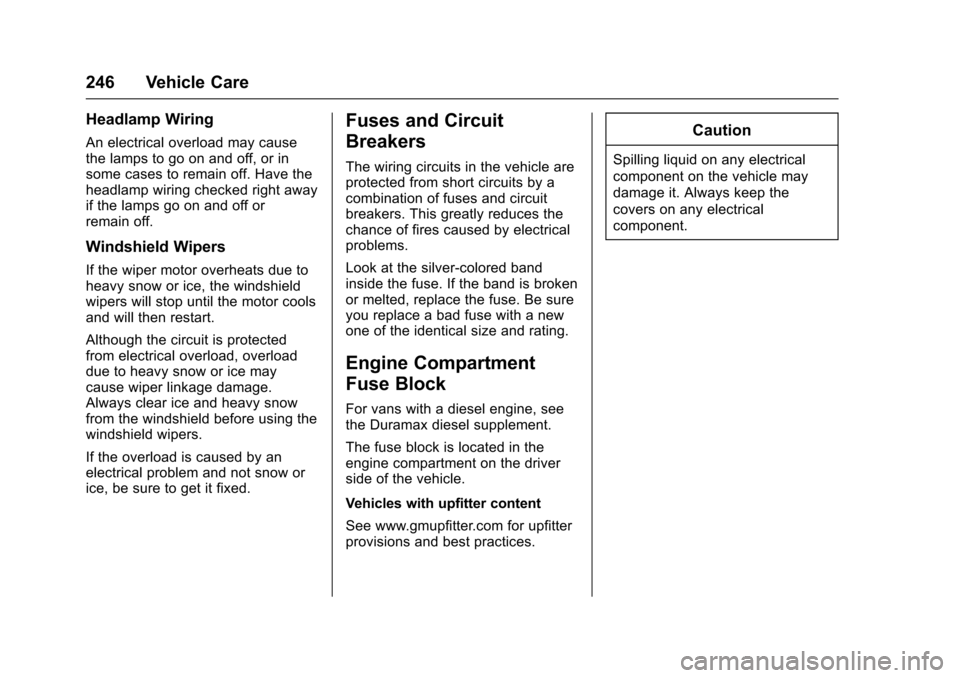

Headlamp Wiring
An electrical overload may causethe lamps to go on and off, or insome cases to remain off. Have theheadlamp wiring checked right awayif the lamps go on and off orremain off.
Windshield Wipers
If the wiper motor overheats due toheavy snow or ice, the windshieldwipers will stop until the motor coolsand will then restart.
Although the circuit is protectedfrom electrical overload, overloaddue to heavy snow or ice maycause wiper linkage damage.Always clear ice and heavy snowfrom the windshield before using thewindshield wipers.
If the overload is caused by anelectrical problem and not snow orice, be sure to get it fixed.
Fuses and Circuit
Breakers
The wiring circuits in the vehicle areprotected from short circuits by acombination of fuses and circuitbreakers. This greatly reduces thechance of fires caused by electricalproblems.
Look at the silver-colored bandinside the fuse. If the band is brokenor melted, replace the fuse. Be sureyou replace a bad fuse with a newone of the identical size and rating.
Engine Compartment
Fuse Block
For vans with a diesel engine, seethe Duramax diesel supplement.
The fuse block is located in theengine compartment on the driverside of the vehicle.
Vehicles with upfitter content
See www.gmupfitter.com for upfitterprovisions and best practices.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the
covers on any electrical
component.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Vehicle Care 247

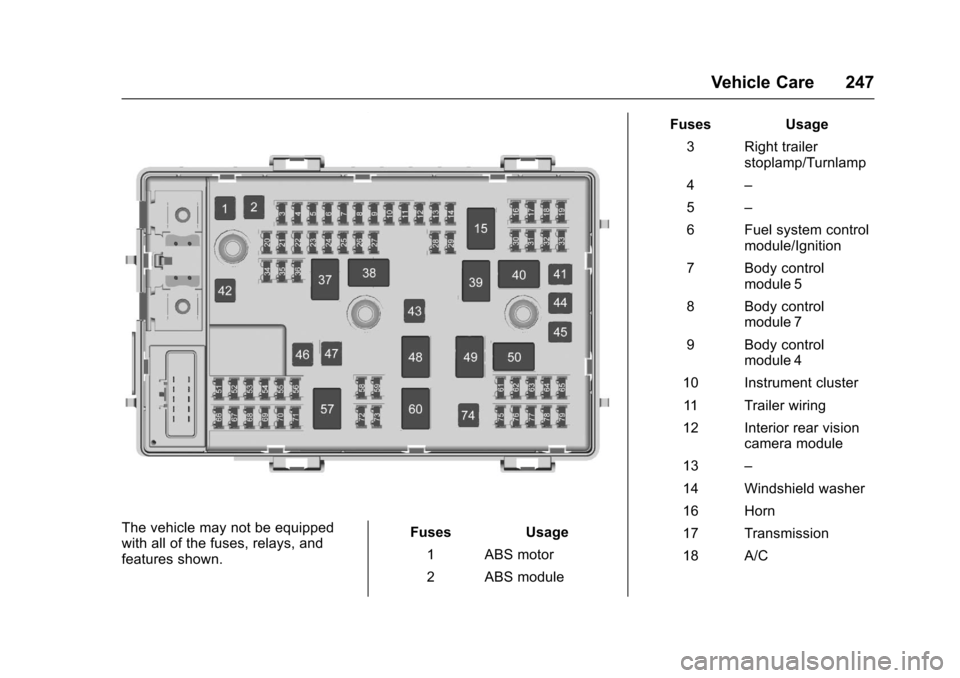

The vehicle may not be equippedwith all of the fuses, relays, andfeatures shown.
Fuses Usage
1ABSmotor
2ABSmodule
Fuses Usage
3Righttrailerstoplamp/Turnlamp
4–
5–
6Fuelsystemcontrolmodule/Ignition
7Bodycontrolmodule 5
8Bodycontrolmodule 7
9Bodycontrolmodule 4
10 Instrument cluster
11 Tr a i l e r w i r i n g
12 Interior rear visioncamera module
13–
14 Windshield washer
16 Horn
17 Transmission
18 A/C

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
248 Vehicle Care

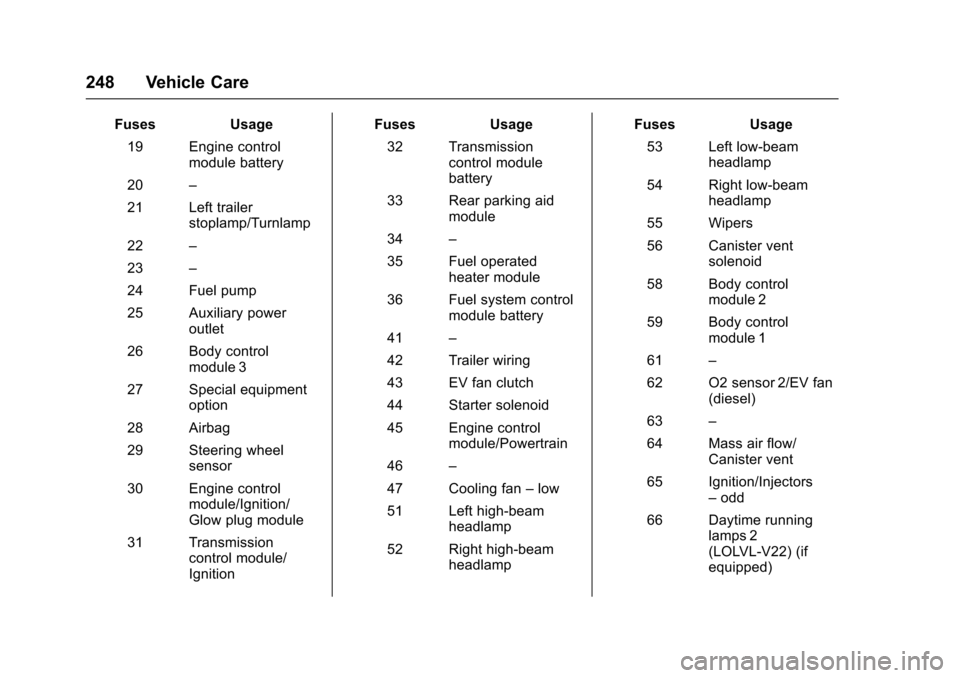

FusesUsage
19 Engine controlmodule battery
20–
21 Left trailerstoplamp/Turnlamp
22–
23–
24 Fuel pump
25 Auxiliary poweroutlet
26 Body controlmodule 3
27 Special equipmentoption
28 Airbag
29 Steering wheelsensor
30 Engine controlmodule/Ignition/Glow plug module
31 Transmissioncontrol module/Ignition
FusesUsage
32 Transmissioncontrol modulebattery
33 Rear parking aidmodule
34–
35 Fuel operatedheater module
36 Fuel system controlmodule battery
41–
42 Trailer wiring
43 EV fan clutch
44 Starter solenoid
45 Engine controlmodule/Powertrain
46–
47 Cooling fan–low
51 Left high-beamheadlamp
52 Right high-beamheadlamp
FusesUsage
53 Left low-beamheadlamp
54 Right low-beamheadlamp
55 Wipers
56 Canister ventsolenoid
58 Body controlmodule 2
59 Body controlmodule 1
61–
62 O2 sensor 2/EV fan(diesel)
63–
64 Mass air flow/Canister vent
65 Ignition/Injectors–odd
66 Daytime runninglamps 2(LOLVL-V22) (ifequipped)

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Vehicle Care 249

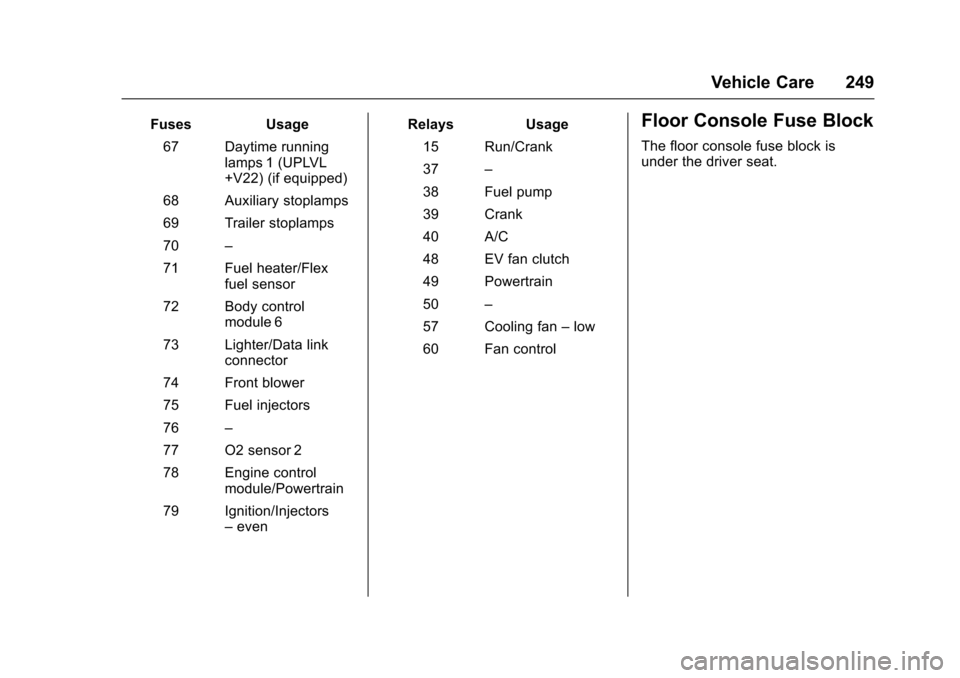

FusesUsage
67 Daytime runninglamps 1 (UPLVL+V22) (if equipped)
68 Auxiliary stoplamps
69 Trailer stoplamps
70–
71 Fuel heater/Flexfuel sensor
72 Body controlmodule 6
73 Lighter/Data linkconnector
74 Front blower
75 Fuel injectors
76–
77 O2 sensor 2
78 Engine controlmodule/Powertrain
79 Ignition/Injectors–even
RelaysUsage
15 Run/Crank
37–
38 Fuel pump
39 Crank
40 A/C
48 EV fan clutch
49 Powertrain
50–
57 Cooling fan–low
60 Fan control
Floor Console Fuse Block
The floor console fuse block isunder the driver seat.
