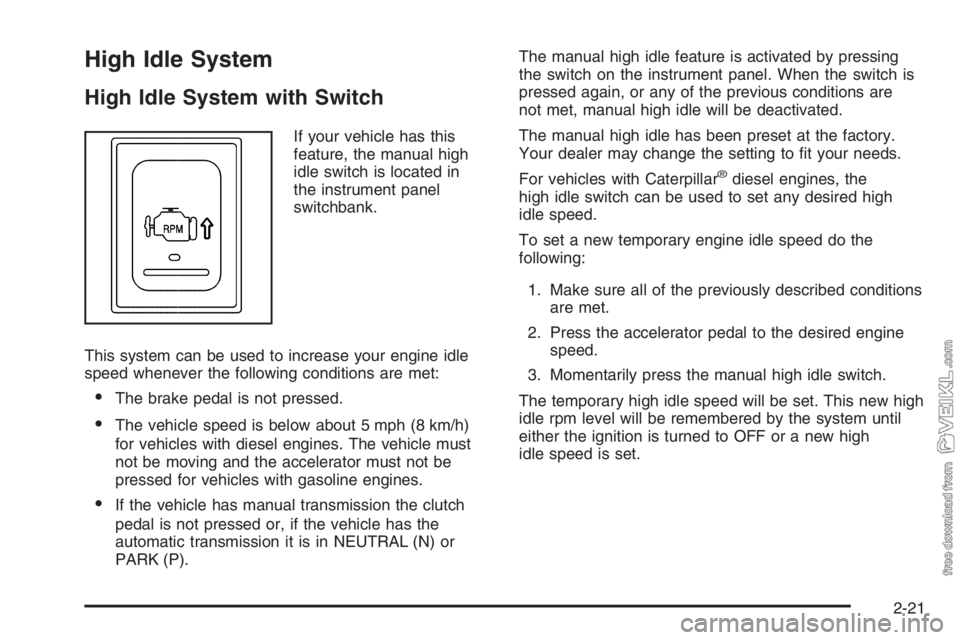

High Idle System
High Idle System with Switch
If your vehicle has this
feature, the manual high
idle switch is located in
the instrument panel
switchbank.
This system can be used to increase your engine idle
speed whenever the following conditions are met:
•The brake pedal is not pressed.
•The vehicle speed is below about 5 mph (8 km/h)
for vehicles with diesel engines. The vehicle must
not be moving and the accelerator must not be
pressed for vehicles with gasoline engines.
•If the vehicle has manual transmission the clutch
pedal is not pressed or, if the vehicle has the
automatic transmission it is in NEUTRAL (N) or
PARK (P).The manual high idle feature is activated by pressing
the switch on the instrument panel. When the switch is
pressed again, or any of the previous conditions are
not met, manual high idle will be deactivated.
The manual high idle has been preset at the factory.
Your dealer may change the setting to fit your needs.
For vehicles with Caterpillar
®diesel engines, the
high idle switch can be used to set any desired high
idle speed.
To set a new temporary engine idle speed do the
following:
1. Make sure all of the previously described conditions
are met.
2. Press the accelerator pedal to the desired engine
speed.
3. Momentarily press the manual high idle switch.
The temporary high idle speed will be set. This new high
idle rpm level will be remembered by the system until
either the ignition is turned to OFF or a new high
idle speed is set.
2-21

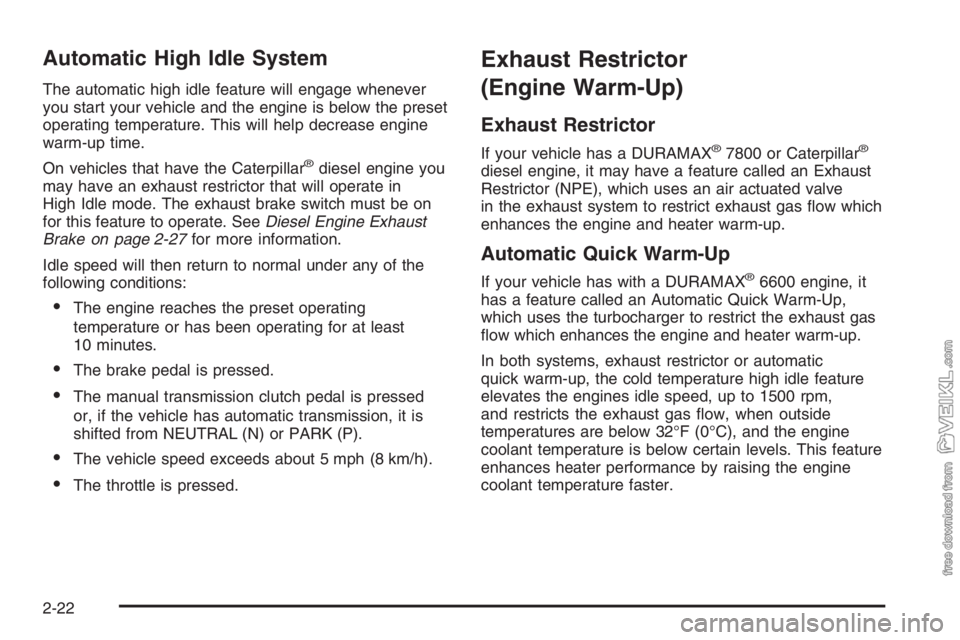

Automatic High Idle System
The automatic high idle feature will engage whenever
you start your vehicle and the engine is below the preset
operating temperature. This will help decrease engine
warm-up time.
On vehicles that have the Caterpillar
®diesel engine you
may have an exhaust restrictor that will operate in
High Idle mode. The exhaust brake switch must be on
for this feature to operate. SeeDiesel Engine Exhaust
Brake on page 2-27for more information.
Idle speed will then return to normal under any of the
following conditions:
•The engine reaches the preset operating
temperature or has been operating for at least
10 minutes.
•The brake pedal is pressed.
•The manual transmission clutch pedal is pressed
or, if the vehicle has automatic transmission, it is
shifted from NEUTRAL (N) or PARK (P).
•The vehicle speed exceeds about 5 mph (8 km/h).
•The throttle is pressed.
Exhaust Restrictor
(Engine Warm-Up)
Exhaust Restrictor
If your vehicle has a DURAMAX®7800 or Caterpillar®
diesel engine, it may have a feature called an Exhaust
Restrictor (NPE), which uses an air actuated valve
in the exhaust system to restrict exhaust gas flow which
enhances the engine and heater warm-up.
Automatic Quick Warm-Up
If your vehicle has with a DURAMAX®6600 engine, it
has a feature called an Automatic Quick Warm-Up,
which uses the turbocharger to restrict the exhaust gas
flow which enhances the engine and heater warm-up.
In both systems, exhaust restrictor or automatic
quick warm-up, the cold temperature high idle feature
elevates the engines idle speed, up to 1500 rpm,
and restricts the exhaust gas flow, when outside
temperatures are below 32°F (0°C), and the engine
coolant temperature is below certain levels. This feature
enhances heater performance by raising the engine
coolant temperature faster.
2-22

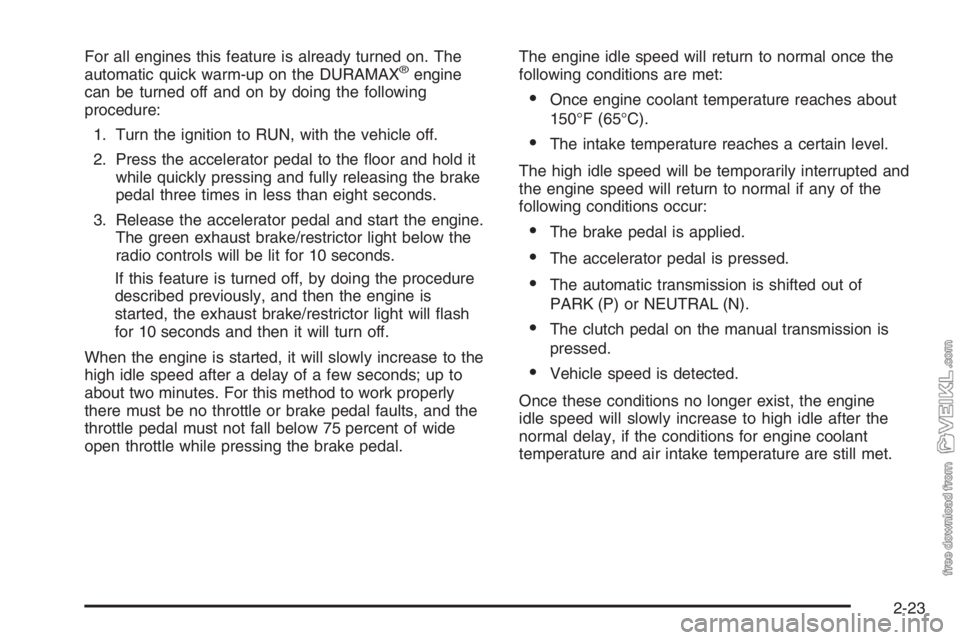

For all engines this feature is already turned on. The
automatic quick warm-up on the DURAMAX®engine
can be turned off and on by doing the following
procedure:
1. Turn the ignition to RUN, with the vehicle off.
2. Press the accelerator pedal to the floor and hold it
while quickly pressing and fully releasing the brake
pedal three times in less than eight seconds.
3. Release the accelerator pedal and start the engine.
The green exhaust brake/restrictor light below the
radio controls will be lit for 10 seconds.
If this feature is turned off, by doing the procedure
described previously, and then the engine is
started, the exhaust brake/restrictor light will flash
for 10 seconds and then it will turn off.
When the engine is started, it will slowly increase to the
high idle speed after a delay of a few seconds; up to
about two minutes. For this method to work properly
there must be no throttle or brake pedal faults, and the
throttle pedal must not fall below 75 percent of wide
open throttle while pressing the brake pedal.The engine idle speed will return to normal once the
following conditions are met:
•Once engine coolant temperature reaches about
150°F (65°C).
•The intake temperature reaches a certain level.
The high idle speed will be temporarily interrupted and
the engine speed will return to normal if any of the
following conditions occur:
•The brake pedal is applied.
•The accelerator pedal is pressed.
•The automatic transmission is shifted out of
PARK (P) or NEUTRAL (N).
•The clutch pedal on the manual transmission is
pressed.
•Vehicle speed is detected.
Once these conditions no longer exist, the engine
idle speed will slowly increase to high idle after the
normal delay, if the conditions for engine coolant
temperature and air intake temperature are still met.
2-23

Engine Checks Before Operating
When you have started your engine, let it run for
20 to 30 seconds before you put a load on the engine.
But do not leave the vehicle while the engine is running.
Avoid unnecessary idling of diesel engine equipped
vehicles.
If the engine idles too long, the temperature of the
engine coolant will fall below the normal operating
range. Low engine operating temperature causes
several conditions which affect engine operation and
reduce engine life.
The engine should be permitted to go through a
warm-up period. Operate the vehicle at a minimum
of 600 rpm during the warm-up period. During this period
and during operation, the following observations
should be made.During this warm-up period, check your warning lights
and gages:•If oil pressure does not begin to rise within
15 seconds of starting, stop the engine and find the
cause. SeeOil Pressure Gage on page 3-38for
more information.
•If the engine coolant temperature gage needle goes
into the hot area on the gage, stop the engine and
find the cause of the overheating. SeeEngine
Coolant Temperature Gage on page 3-36for more
information.
•If you have air brakes, the dual-needle air pressure
gage should read at least 115 psi (790 kPa) for
both service systems before you try to move
the vehicle. When air pressure is below 60 psi
(420 kPa), the LOW AIR light will come on and you
will hear a tone alarm. SeeBrake System Warning
Light on page 3-33for more information. If the
pressure does not build up or drops during warm-up,
stop the engine and find the cause before you try
to move the vehicle. Recommended air pressure
before driving is 120 psi (830 kPa). SeeAir
Pressure Gage on page 3-47for more information.
2-24

•The charging system light should come on when
the ignition key is turned to RUN or START and
should go out when the engine is running above
idle. If the light does not go out or comes back on
during normal engine operation, have the charging
system checked right away. (This light tells you
if the generator is not charging; it does not reflect
the condition of the battery.) SeeCharging System
Light on page 3-31for more information.
•The voltmeter charge indicator gage tells you the
condition of your battery’s charge. The gage
should be in the center area during engine
operation. The red area on the left indicates an
undercharge condition; the red area on the
right indicates an overcharge. If the gage is in
either red area, have the battery and charging
system checked right away. SeeVoltmeter Gage
on page 3-32for more information.Notice:Do not allow the engine to operate at low
idle for more than ve minutes. This can cause
low engine operating temperatures which can affect
engine operation and reduce engine life. Engine
idle speed should be increased to 1200 rpm
whenever extended idle is required. Once started,
the engine should be placed under load to allow the
engine coolant temperature to reach 150°F (66°C)
before shutting off the engine.
2-25

Engine Coolant Heater
Your vehicle may be equipped with this feature.
In very cold weather, 0°F (–18°C) or colder, the engine
coolant heater can help. You will get easier starting
and better fuel economy during engine warm-up.
Usually, the coolant heater should be plugged in a
minimum of four hours prior to starting your vehicle. At
temperatures above 32°F (0°C), use of the coolant
heater is not required.
To Use the Engine Coolant Heater
1. Turn off the engine.
2. Find the plug-in outlet located under the
driver’s door.
3. Plug it into a normal, grounded 110-volt AC outlet.
{CAUTION:
Plugging the cord into an ungrounded outlet
could cause an electrical shock. Also, the
wrong kind of extension cord could overheat
and cause a re. You could be seriously
injured. Plug the cord into a properly grounded
three-prong 110-volt AC outlet. If the cord will
not reach, use a heavy-duty three-prong
extension cord rated for at least 15 amps.
4. Before starting the engine, be sure to unplug and
store the cord as it was before to keep it away
from moving engine parts. If you do not, it could be
damaged.
How long should you keep the coolant heater plugged
in? The answer depends on the outside temperature, the
kind of oil you have, and some other things. Instead
of trying to list everything here, we ask that you contact
your dealer in the area where you will be parking
your vehicle. The dealer can give you the best advice
for that particular area.
2-26

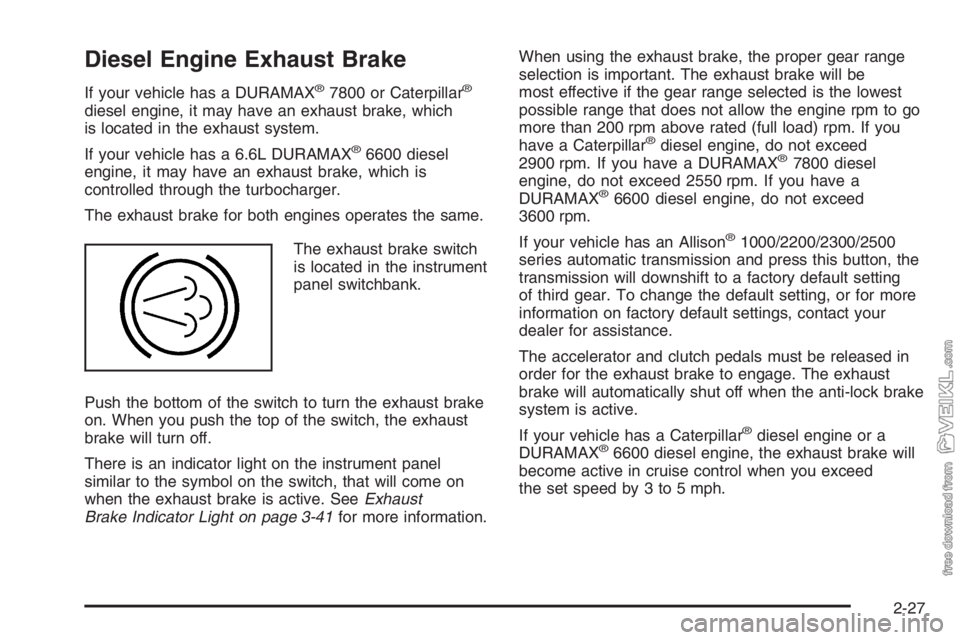

Diesel Engine Exhaust Brake
If your vehicle has a DURAMAX®7800 or Caterpillar®
diesel engine, it may have an exhaust brake, which
is located in the exhaust system.
If your vehicle has a 6.6L DURAMAX
®6600 diesel
engine, it may have an exhaust brake, which is
controlled through the turbocharger.
The exhaust brake for both engines operates the same.
The exhaust brake switch
is located in the instrument
panel switchbank.
Push the bottom of the switch to turn the exhaust brake
on. When you push the top of the switch, the exhaust
brake will turn off.
There is an indicator light on the instrument panel
similar to the symbol on the switch, that will come on
when the exhaust brake is active. SeeExhaust
Brake Indicator Light on page 3-41for more information.When using the exhaust brake, the proper gear range
selection is important. The exhaust brake will be
most effective if the gear range selected is the lowest
possible range that does not allow the engine rpm to go
more than 200 rpm above rated (full load) rpm. If you
have a Caterpillar®diesel engine, do not exceed
2900 rpm. If you have a DURAMAX®7800 diesel
engine, do not exceed 2550 rpm. If you have a
DURAMAX
®6600 diesel engine, do not exceed
3600 rpm.
If your vehicle has an Allison
®1000/2200/2300/2500
series automatic transmission and press this button, the
transmission will downshift to a factory default setting
of third gear. To change the default setting, or for more
information on factory default settings, contact your
dealer for assistance.
The accelerator and clutch pedals must be released in
order for the exhaust brake to engage. The exhaust
brake will automatically shut off when the anti-lock brake
system is active.
If your vehicle has a Caterpillar
®diesel engine or a
DURAMAX®6600 diesel engine, the exhaust brake will
become active in cruise control when you exceed
the set speed by 3 to 5 mph.
2-27

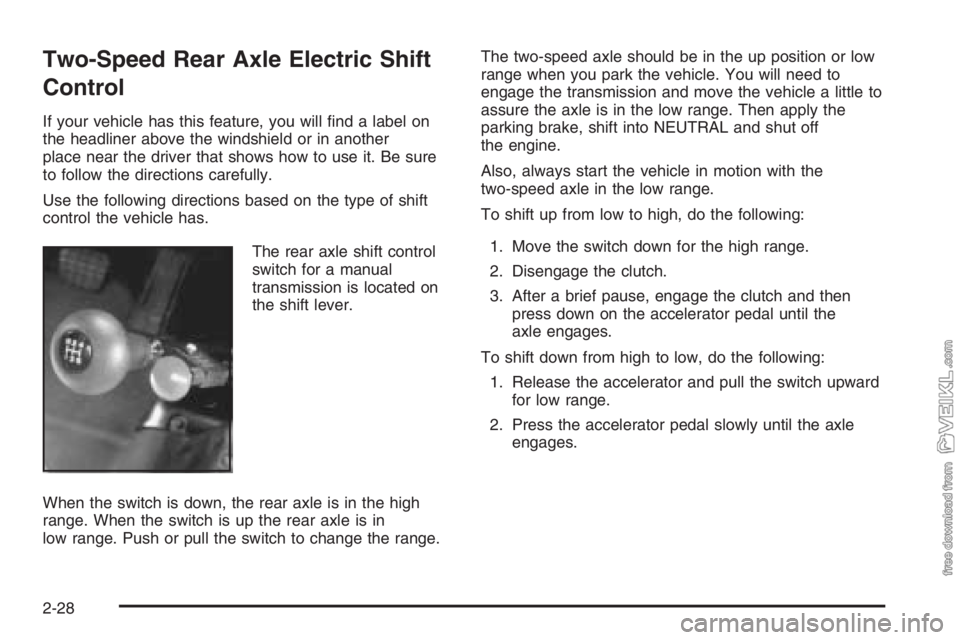

Two-Speed Rear Axle Electric Shift
Control
If your vehicle has this feature, you will find a label on
the headliner above the windshield or in another
place near the driver that shows how to use it. Be sure
to follow the directions carefully.
Use the following directions based on the type of shift
control the vehicle has.
The rear axle shift control
switch for a manual
transmission is located on
the shift lever.
When the switch is down, the rear axle is in the high
range. When the switch is up the rear axle is in
low range. Push or pull the switch to change the range.The two-speed axle should be in the up position or low
range when you park the vehicle. You will need to
engage the transmission and move the vehicle a little to
assure the axle is in the low range. Then apply the
parking brake, shift into NEUTRAL and shut off
the engine.
Also, always start the vehicle in motion with the
two-speed axle in the low range.
To shift up from low to high, do the following:
1. Move the switch down for the high range.
2. Disengage the clutch.
3. After a brief pause, engage the clutch and then
press down on the accelerator pedal until the
axle engages.
To shift down from high to low, do the following:
1. Release the accelerator and pull the switch upward
for low range.
2. Press the accelerator pedal slowly until the axle
engages.
2-28

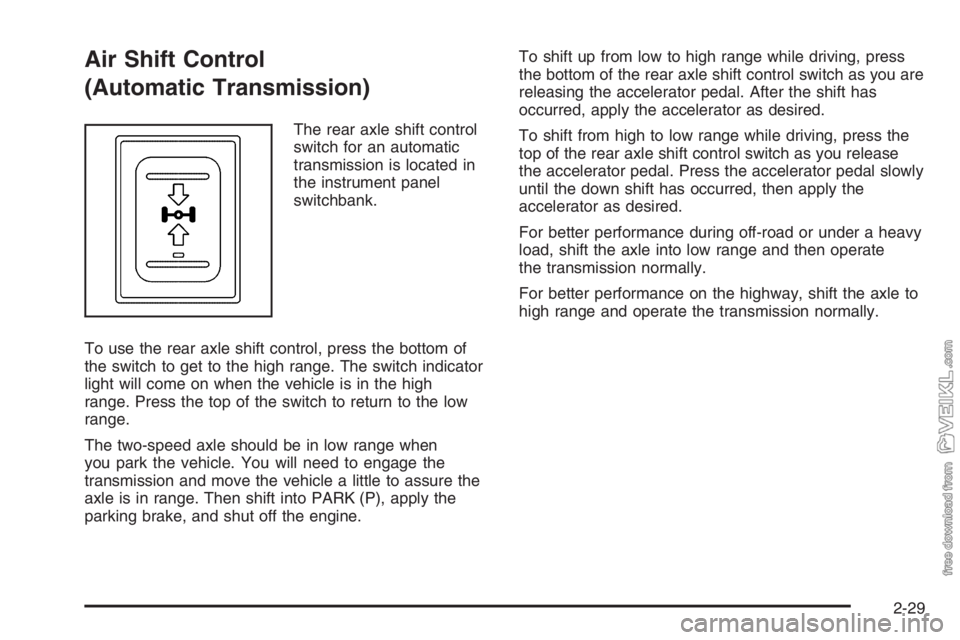

Air Shift Control
(Automatic Transmission)
The rear axle shift control
switch for an automatic
transmission is located in
the instrument panel
switchbank.
To use the rear axle shift control, press the bottom of
the switch to get to the high range. The switch indicator
light will come on when the vehicle is in the high
range. Press the top of the switch to return to the low
range.
The two-speed axle should be in low range when
you park the vehicle. You will need to engage the
transmission and move the vehicle a little to assure the
axle is in range. Then shift into PARK (P), apply the
parking brake, and shut off the engine.To shift up from low to high range while driving, press
the bottom of the rear axle shift control switch as you are
releasing the accelerator pedal. After the shift has
occurred, apply the accelerator as desired.
To shift from high to low range while driving, press the
top of the rear axle shift control switch as you release
the accelerator pedal. Press the accelerator pedal slowly
until the down shift has occurred, then apply the
accelerator as desired.
For better performance during off-road or under a heavy
load, shift the axle into low range and then operate
the transmission normally.
For better performance on the highway, shift the axle to
high range and operate the transmission normally.
2-29

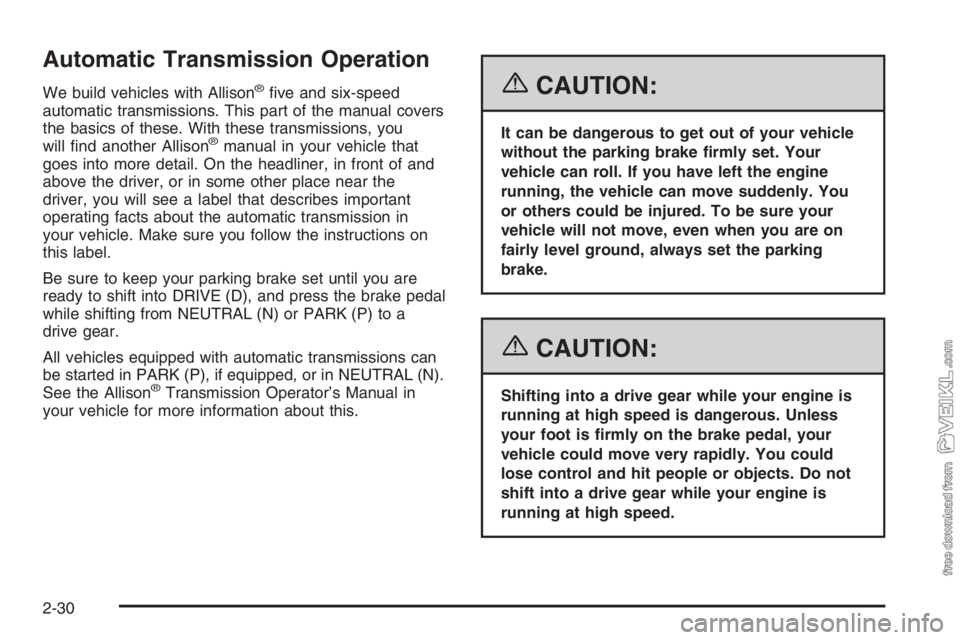

Automatic Transmission Operation
We build vehicles with Allison®five and six-speed
automatic transmissions. This part of the manual covers
the basics of these. With these transmissions, you
will find another Allison
®manual in your vehicle that
goes into more detail. On the headliner, in front of and
above the driver, or in some other place near the
driver, you will see a label that describes important
operating facts about the automatic transmission in
your vehicle. Make sure you follow the instructions on
this label.
Be sure to keep your parking brake set until you are
ready to shift into DRIVE (D), and press the brake pedal
while shifting from NEUTRAL (N) or PARK (P) to a
drive gear.
All vehicles equipped with automatic transmissions can
be started in PARK (P), if equipped, or in NEUTRAL (N).
See the Allison
®Transmission Operator’s Manual in
your vehicle for more information about this.
{CAUTION:
It can be dangerous to get out of your vehicle
without the parking brake rmly set. Your
vehicle can roll. If you have left the engine
running, the vehicle can move suddenly. You
or others could be injured. To be sure your
vehicle will not move, even when you are on
fairly level ground, always set the parking
brake.
{CAUTION:
Shifting into a drive gear while your engine is
running at high speed is dangerous. Unless
your foot is rmly on the brake pedal, your
vehicle could move very rapidly. You could
lose control and hit people or objects. Do not
shift into a drive gear while your engine is
running at high speed.
2-30
