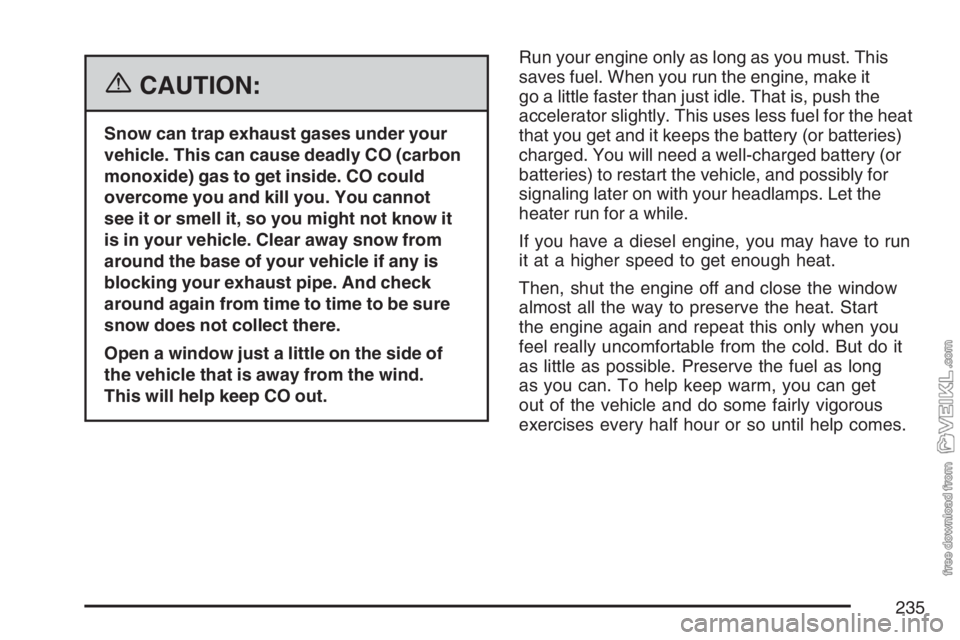

{CAUTION:
Snow can trap exhaust gases under your
vehicle. This can cause deadly CO (carbon
monoxide) gas to get inside. CO could
overcome you and kill you. You cannot
see it or smell it, so you might not know it
is in your vehicle. Clear away snow from
around the base of your vehicle if any is
blocking your exhaust pipe. And check
around again from time to time to be sure
snow does not collect there.
Open a window just a little on the side of
the vehicle that is away from the wind.
This will help keep CO out.Run your engine only as long as you must. This
saves fuel. When you run the engine, make it
go a little faster than just idle. That is, push the
accelerator slightly. This uses less fuel for the heat
that you get and it keeps the battery (or batteries)
charged. You will need a well-charged battery (or
batteries) to restart the vehicle, and possibly for
signaling later on with your headlamps. Let the
heater run for a while.
If you have a diesel engine, you may have to run
it at a higher speed to get enough heat.
Then, shut the engine off and close the window
almost all the way to preserve the heat. Start
the engine again and repeat this only when you
feel really uncomfortable from the cold. But do it
as little as possible. Preserve the fuel as long
as you can. To help keep warm, you can get
out of the vehicle and do some fairly vigorous
exercises every half hour or so until help comes.
235

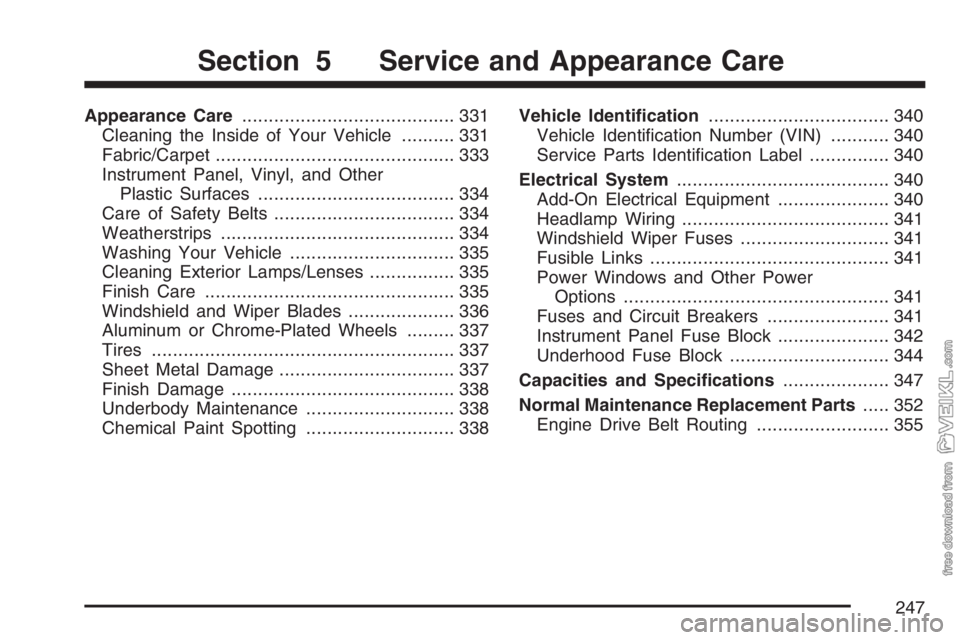

Appearance Care........................................ 331
Cleaning the Inside of Your Vehicle.......... 331
Fabric/Carpet............................................. 333
Instrument Panel, Vinyl, and Other
Plastic Surfaces..................................... 334
Care of Safety Belts.................................. 334
Weatherstrips............................................ 334
Washing Your Vehicle............................... 335
Cleaning Exterior Lamps/Lenses................ 335
Finish Care............................................... 335
Windshield and Wiper Blades.................... 336
Aluminum or Chrome-Plated Wheels......... 337
Tires......................................................... 337
Sheet Metal Damage................................. 337
Finish Damage.......................................... 338
Underbody Maintenance............................ 338
Chemical Paint Spotting............................ 338Vehicle Identication.................................. 340
Vehicle Identification Number (VIN)........... 340
Service Parts Identification Label............... 340
Electrical System........................................ 340
Add-On Electrical Equipment..................... 340
Headlamp Wiring....................................... 341
Windshield Wiper Fuses............................ 341
Fusible Links............................................. 341
Power Windows and Other Power
Options.................................................. 341
Fuses and Circuit Breakers....................... 341
Instrument Panel Fuse Block..................... 342
Underhood Fuse Block.............................. 344
Capacities and Specications.................... 347
Normal Maintenance Replacement Parts..... 352
Engine Drive Belt Routing......................... 355
Section 5 Service and Appearance Care
247

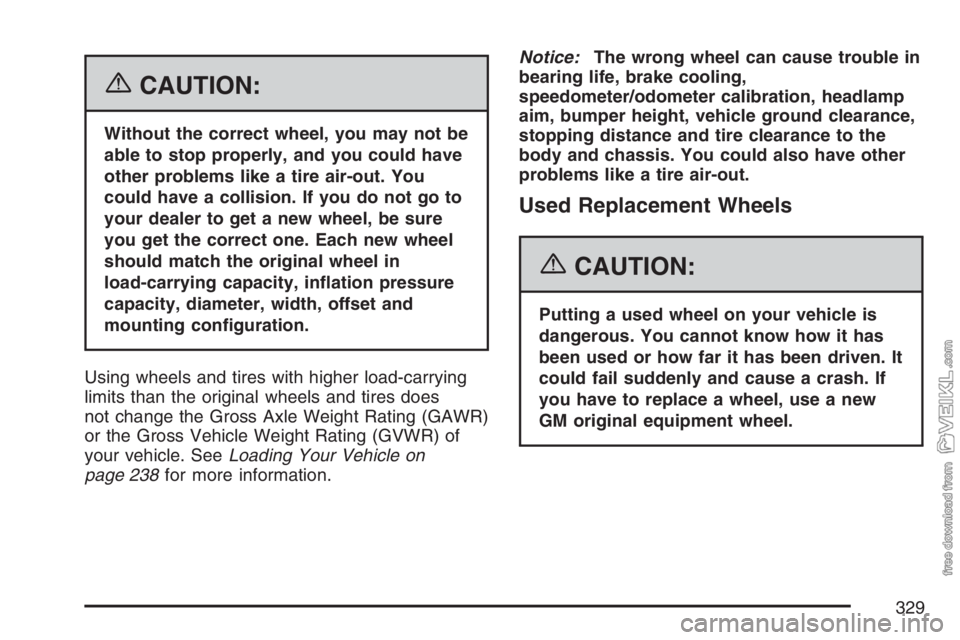

{CAUTION:
Without the correct wheel, you may not be
able to stop properly, and you could have
other problems like a tire air-out. You
could have a collision. If you do not go to
your dealer to get a new wheel, be sure
you get the correct one. Each new wheel
should match the original wheel in
load-carrying capacity, ination pressure
capacity, diameter, width, offset and
mounting conguration.
Using wheels and tires with higher load-carrying
limits than the original wheels and tires does
not change the Gross Axle Weight Rating (GAWR)
or the Gross Vehicle Weight Rating (GVWR) of
your vehicle. SeeLoading Your Vehicle on
page 238for more information.Notice:The wrong wheel can cause trouble in
bearing life, brake cooling,
speedometer/odometer calibration, headlamp
aim, bumper height, vehicle ground clearance,
stopping distance and tire clearance to the
body and chassis. You could also have other
problems like a tire air-out.
Used Replacement Wheels
{CAUTION:
Putting a used wheel on your vehicle is
dangerous. You cannot know how it has
been used or how far it has been driven. It
could fail suddenly and cause a crash. If
you have to replace a wheel, use a new
GM original equipment wheel.
329

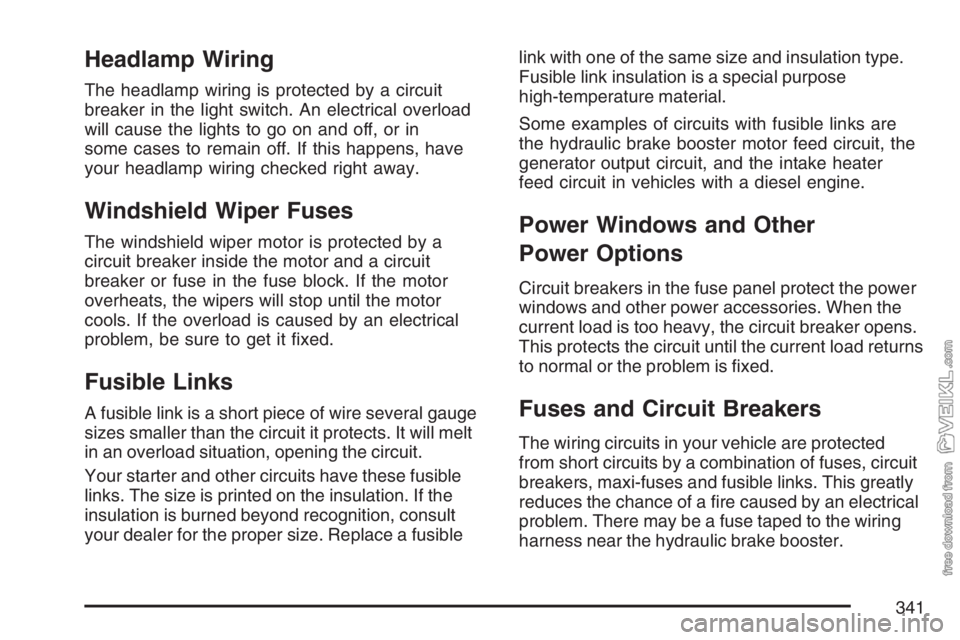

Headlamp Wiring
The headlamp wiring is protected by a circuit
breaker in the light switch. An electrical overload
will cause the lights to go on and off, or in
some cases to remain off. If this happens, have
your headlamp wiring checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a
circuit breaker inside the motor and a circuit
breaker or fuse in the fuse block. If the motor
overheats, the wipers will stop until the motor
cools. If the overload is caused by an electrical
problem, be sure to get it fixed.
Fusible Links
A fusible link is a short piece of wire several gauge
sizes smaller than the circuit it protects. It will melt
in an overload situation, opening the circuit.
Your starter and other circuits have these fusible
links. The size is printed on the insulation. If the
insulation is burned beyond recognition, consult
your dealer for the proper size. Replace a fusiblelink with one of the same size and insulation type.
Fusible link insulation is a special purpose
high-temperature material.
Some examples of circuits with fusible links are
the hydraulic brake booster motor feed circuit, the
generator output circuit, and the intake heater
feed circuit in vehicles with a diesel engine.
Power Windows and Other
Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the
current load is too heavy, the circuit breaker opens.
This protects the circuit until the current load returns
to normal or the problem is fixed.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by a combination of fuses, circuit
breakers, maxi-fuses and fusible links. This greatly
reduces the chance of a fire caused by an electrical
problem. There may be a fuse taped to the wiring
harness near the hydraulic brake booster.
341

Fuse Usage
NOTE 3L18 Fuel, LG4 Powertrain Control
Valve, LG5 Electronic Control
Module
STUD A Spare
STUD B Spare
Relay Usage
NOTE 1LLY/L18 Fuel Pump Relay, LG4/LG5
Heated Fuel Relay
IGN B Ignition Relay
STARTER Starter Relay
HORN Horn Relay
IGN A Ignition Relay
PTO/ECU*Power Take-Off/Engine Control Unit
(*Diesel 7.8L LG4)
REVERSE Reverse Relay
NEUTRAL
STARTNeutral Start (LG4 Allison Automatic
Transmission Series 3000/3500)
Fuse Usage
IGN 1 Ignition 1
IGN 4 Ignition 4
IGN 3 Ignition 3
BATT/HAZ Battery/Hazard Warning Flashers
HEADLAMP Headlamps
LIGHTING Interior/Exterior Lamps
HVAC Climate Control System
NOTEC4/C5 Electric Brake,
C6/C7/C8 Brake Lamps Secondary Underhood
Fuse Block
346

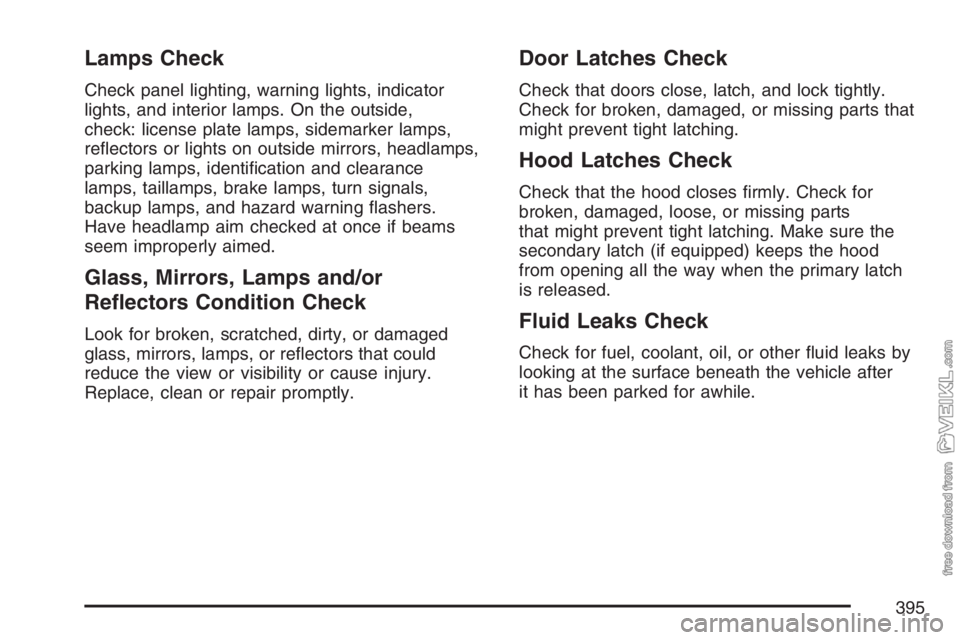

Lamps Check
Check panel lighting, warning lights, indicator
lights, and interior lamps. On the outside,
check: license plate lamps, sidemarker lamps,
reflectors or lights on outside mirrors, headlamps,
parking lamps, identification and clearance
lamps, taillamps, brake lamps, turn signals,
backup lamps, and hazard warning flashers.
Have headlamp aim checked at once if beams
seem improperly aimed.
Glass, Mirrors, Lamps and/or
Reectors Condition Check
Look for broken, scratched, dirty, or damaged
glass, mirrors, lamps, or reflectors that could
reduce the view or visibility or cause injury.
Replace, clean or repair promptly.
Door Latches Check
Check that doors close, latch, and lock tightly.
Check for broken, damaged, or missing parts that
might prevent tight latching.
Hood Latches Check
Check that the hood closes firmly. Check for
broken, damaged, loose, or missing parts
that might prevent tight latching. Make sure the
secondary latch (if equipped) keeps the hood
from opening all the way when the primary latch
is released.
Fluid Leaks Check
Check for fuel, coolant, oil, or other fluid leaks by
looking at the surface beneath the vehicle after
it has been parked for awhile.
395

E
Electrical System
Add-On Equipment................................... 340
Fuses and Circuit Breakers...................... 341
Fusible Links............................................ 341
Headlamp Wiring..................................... 341
Instrument Panel Fuse Block................... 342
Power Windows and Other Power
Options................................................. 341
Underhood Fuse Block............................. 344
Windshield Wiper Fuses........................... 341
Engine
Air Cleaner/Filter...................................... 280
Alarm and Automatic Shutdown................ 104
Battery..................................................... 304
Change Engine Oil Light.......................... 176
Check and Service Engine Soon Light..... 174
Checks Before Operating......................... 109
Coolant...........................................284, 287
Coolant Heater......................................... 111
Coolant Temperature Gage...................... 173
Diesel Engine Exhaust Brake................... 112
Drive Belt Routing.................................... 355
Exhaust................................................... 131
Exhaust Restrictor.................................... 108
Fan Breakage.......................................... 250Engine (cont.)
Fan Noise................................................ 294
High Idle System..................................... 106
Oil ...................................................268, 272
Oil Life System.......................276, 278, 279
Overheating............................................. 288
Overspeed Warning Light......................... 177
Reduced Power Light............................... 179
Shutdown Warning Light.......................... 177
Speed Limiter.......................................... 164
Starter Over-Crank Protection.................... 97
Starting Your Diesel................................. 100
Starting Your Gasoline............................... 97
Entry Lighting.............................................. 154
Event Data Recorders (EDR)...................... 409
Exhaust Brake Indicator Light...................... 178
Exhaust Restrictor....................................... 108
Extender, Safety Belt..................................... 41
Exterior Lamps............................................ 150
F
Filter
Engine Air Cleaner................................... 280
Filter Minder Gage...................................... 182
Finish Damage............................................ 338
Fixed Mast Antenna.................................... 204
421

H
Hazard Warning Flashers............................ 142
Headlamp Wiring......................................... 341
Headlamps
Bulb Replacement.................................... 315
Daytime Running Lamps.......................... 151
High/Low Beam Changer......................... 144
On Reminder........................................... 150
Heater......................................................... 157
High Idle System......................................... 106
Highbeam On Light..................................... 179
Highway Hypnosis....................................... 229
Hill and Mountain Roads............................. 230
Hood
Checking Things Under............................ 266
Latches.................................................... 267
Horn............................................................ 142
Hourmeter Gage.......................................... 183
How to Use This Manual................................ 4
How to Wear Safety Belts Properly............... 26
Hydraulic Brake Systems............................. 211
I
Ignition Positions........................................... 96
Infants and Young Children, Restraints .......... 45
Inflation - Tire Pressure............................... 322
Instrument Panel
Overview.................................................. 140
Switchbank.............................................. 154
Instrument Panel (I/P)
Brightness................................................ 152
Cluster..................................................... 162
J
Jump Starting.............................................. 305
K
Keyless Entry System................................... 87
Keys............................................................. 86
423
