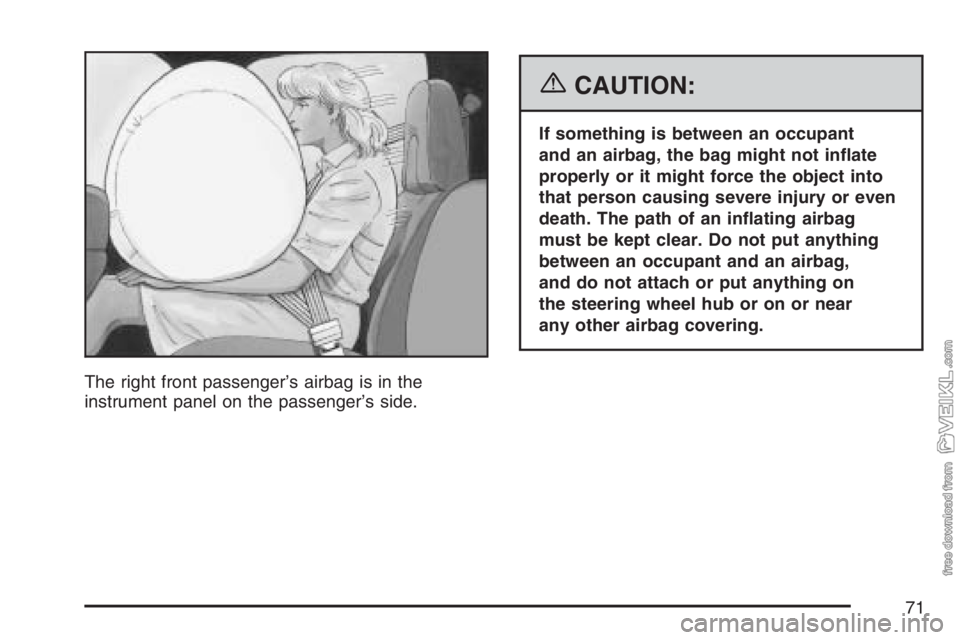

The right front passenger’s airbag is in the
instrument panel on the passenger’s side.
{CAUTION:
If something is between an occupant
and an airbag, the bag might not inate
properly or it might force the object into
that person causing severe injury or even
death. The path of an inating airbag
must be kept clear. Do not put anything
between an occupant and an airbag,
and do not attach or put anything on
the steering wheel hub or on or near
any other airbag covering.
71

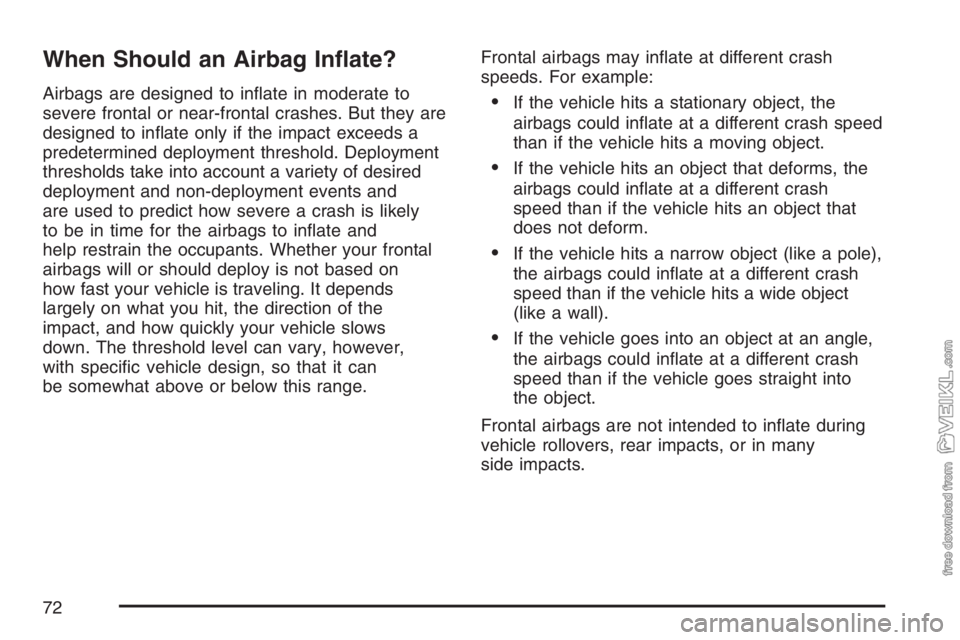

When Should an Airbag Inate?
Airbags are designed to inflate in moderate to
severe frontal or near-frontal crashes. But they are
designed to inflate only if the impact exceeds a
predetermined deployment threshold. Deployment
thresholds take into account a variety of desired
deployment and non-deployment events and
are used to predict how severe a crash is likely
to be in time for the airbags to inflate and
help restrain the occupants. Whether your frontal
airbags will or should deploy is not based on
how fast your vehicle is traveling. It depends
largely on what you hit, the direction of the
impact, and how quickly your vehicle slows
down. The threshold level can vary, however,
with specific vehicle design, so that it can
be somewhat above or below this range.Frontal airbags may inflate at different crash
speeds. For example:•If the vehicle hits a stationary object, the
airbags could inflate at a different crash speed
than if the vehicle hits a moving object.
•If the vehicle hits an object that deforms, the
airbags could inflate at a different crash
speed than if the vehicle hits an object that
does not deform.
•If the vehicle hits a narrow object (like a pole),
the airbags could inflate at a different crash
speed than if the vehicle hits a wide object
(like a wall).
•If the vehicle goes into an object at an angle,
the airbags could inflate at a different crash
speed than if the vehicle goes straight into
the object.
Frontal airbags are not intended to inflate during
vehicle rollovers, rear impacts, or in many
side impacts.
72

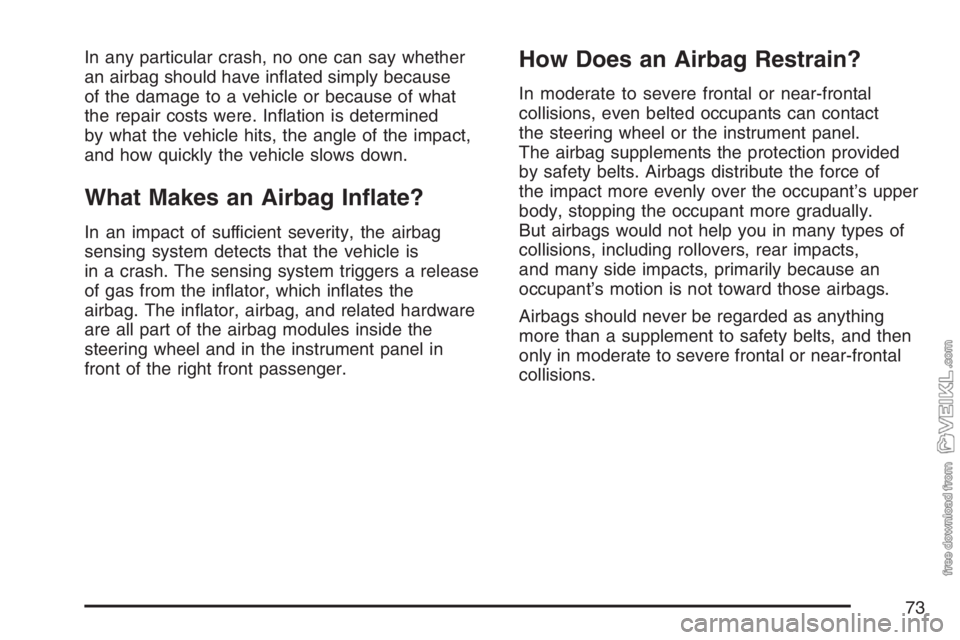

In any particular crash, no one can say whether
an airbag should have inflated simply because
of the damage to a vehicle or because of what
the repair costs were. Inflation is determined
by what the vehicle hits, the angle of the impact,
and how quickly the vehicle slows down.
What Makes an Airbag Inate?
In an impact of sufficient severity, the airbag
sensing system detects that the vehicle is
in a crash. The sensing system triggers a release
of gas from the inflator, which inflates the
airbag. The inflator, airbag, and related hardware
are all part of the airbag modules inside the
steering wheel and in the instrument panel in
front of the right front passenger.
How Does an Airbag Restrain?
In moderate to severe frontal or near-frontal
collisions, even belted occupants can contact
the steering wheel or the instrument panel.
The airbag supplements the protection provided
by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually.
But airbags would not help you in many types of
collisions, including rollovers, rear impacts,
and many side impacts, primarily because an
occupant’s motion is not toward those airbags.
Airbags should never be regarded as anything
more than a supplement to safety belts, and then
only in moderate to severe frontal or near-frontal
collisions.
73

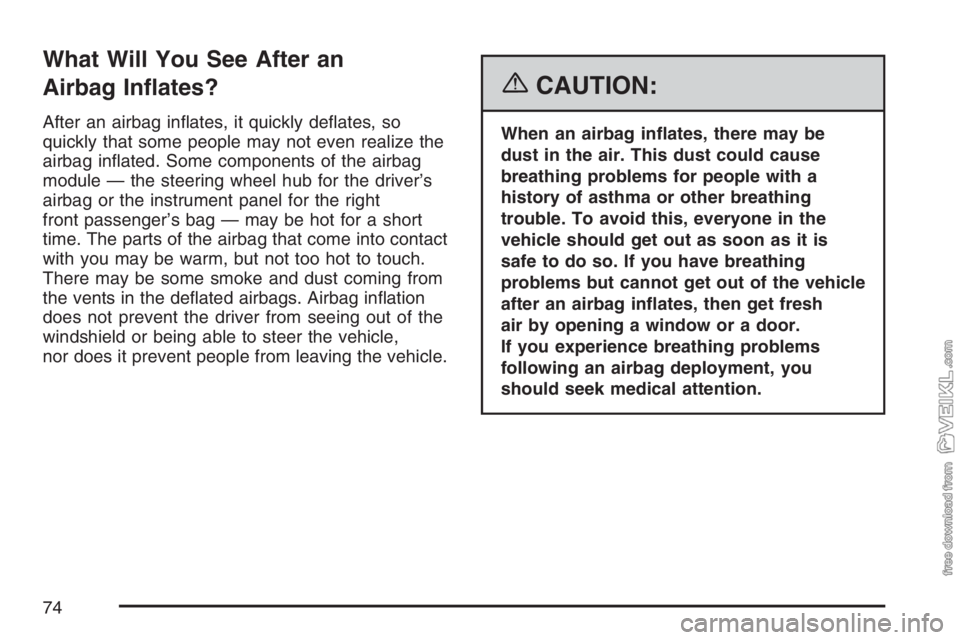

What Will You See After an
Airbag Inates?
After an airbag inflates, it quickly deflates, so
quickly that some people may not even realize the
airbag inflated. Some components of the airbag
module — the steering wheel hub for the driver’s
airbag or the instrument panel for the right
front passenger’s bag — may be hot for a short
time. The parts of the airbag that come into contact
with you may be warm, but not too hot to touch.
There may be some smoke and dust coming from
the vents in the deflated airbags. Airbag inflation
does not prevent the driver from seeing out of the
windshield or being able to steer the vehicle,
nor does it prevent people from leaving the vehicle.
{CAUTION:
When an airbag inates, there may be
dust in the air. This dust could cause
breathing problems for people with a
history of asthma or other breathing
trouble. To avoid this, everyone in the
vehicle should get out as soon as it is
safe to do so. If you have breathing
problems but cannot get out of the vehicle
after an airbag inates, then get fresh
air by opening a window or a door.
If you experience breathing problems
following an airbag deployment, you
should seek medical attention.
74

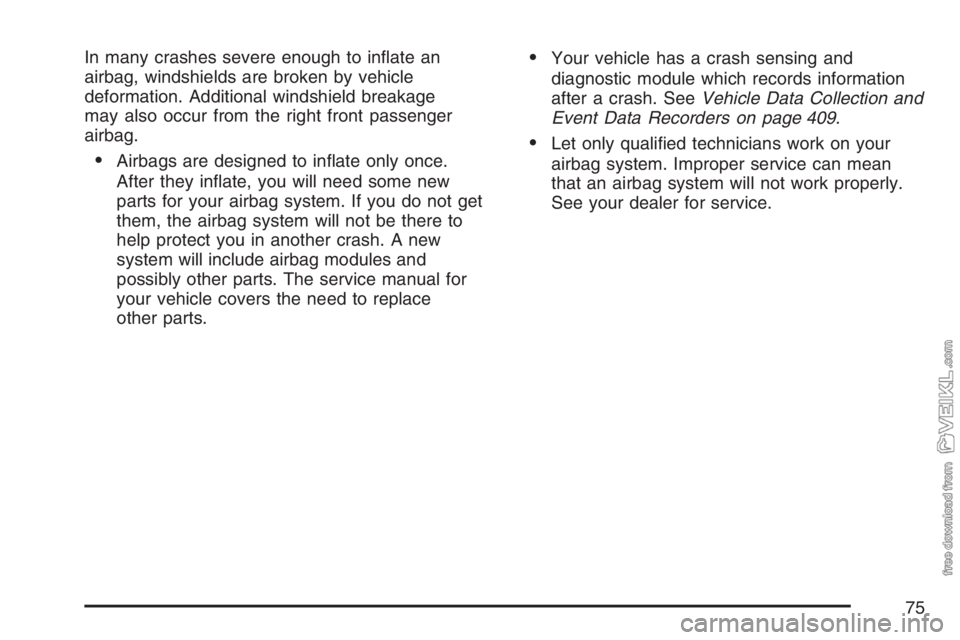

In many crashes severe enough to inflate an
airbag, windshields are broken by vehicle
deformation. Additional windshield breakage
may also occur from the right front passenger
airbag.
•Airbags are designed to inflate only once.
After they inflate, you will need some new
parts for your airbag system. If you do not get
them, the airbag system will not be there to
help protect you in another crash. A new
system will include airbag modules and
possibly other parts. The service manual for
your vehicle covers the need to replace
other parts.
•Your vehicle has a crash sensing and
diagnostic module which records information
after a crash. SeeVehicle Data Collection and
Event Data Recorders on page 409.
•Let only qualified technicians work on your
airbag system. Improper service can mean
that an airbag system will not work properly.
See your dealer for service.
75

Airbag Off Switch
If your vehicle has a right front passenger
airbag, it has a switch on the instrument panel
that you can use to turn off the right front
passenger’s airbag.This switch should only be turned to the off
position if the person in the right front passenger’s
position is a member of a passenger risk group
identified by the national government as follows:
Infant.An infant (less than 1 year old)
must ride in the front seat because:
•
My vehicle has no rear seat;
•My vehicle has a rear seat too small to
accommodate a rear-facing infant seat; or
•The infant has a medical condition which,
according to the infant’s physician, makes
it necessary for the infant to ride in the front
seat so that the driver can constantly
monitor the child’s condition.
United StatesCanada
76

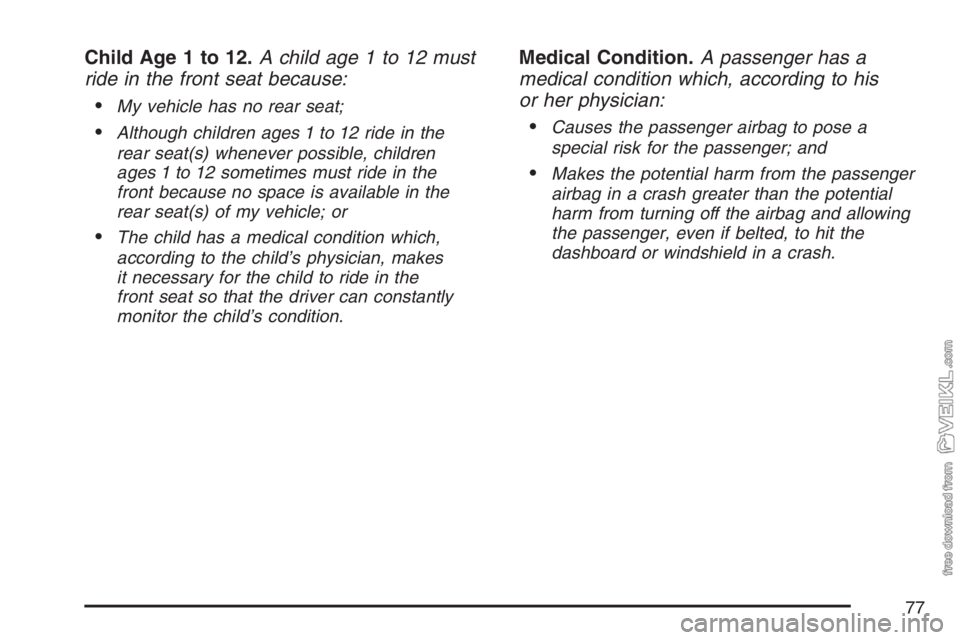

Child Age 1 to 12.A child age 1 to 12 must
ride in the front seat because:
•
My vehicle has no rear seat;
•Although children ages 1 to 12 ride in the
rear seat(s) whenever possible, children
ages 1 to 12 sometimes must ride in the
front because no space is available in the
rear seat(s) of my vehicle; or
•The child has a medical condition which,
according to the child’s physician, makes
it necessary for the child to ride in the
front seat so that the driver can constantly
monitor the child’s condition.
Medical Condition.A passenger has a
medical condition which, according to his
or her physician:
•
Causes the passenger airbag to pose a
special risk for the passenger; and
•Makes the potential harm from the passenger
airbag in a crash greater than the potential
harm from turning off the airbag and allowing
the passenger, even if belted, to hit the
dashboard or windshield in a crash.
77

{CAUTION:
If the right front passenger’s airbag is
turned off for a person who is not in a
risk group identied by the national
government, that person will not have
the extra protection of an airbag. In a
crash, the airbag will not be able to inate
and help protect the person sitting there.
Do not turn off the passenger’s airbag
unless the person sitting there is in
a risk group.
To turn off the right front passenger’s airbag,
insert your ignition key into the switch, push in,
and move the switch to the off position.
The airbag off light will come on to let you know
that the right front passenger’s airbag is off.
The light will stay on to remind you that the airbag
is off. The right front passenger’s airbag will
remain off until you turn it back on.
United StatesCanada
78

{CAUTION:
If the airbag readiness light ever comes
on when you have turned off the airbag,
it means that something may be wrong
with the airbag system. The right front
passenger’s airbag could inate even
though the switch is off. If this ever
happens, do not let anyone whom the
national government has identied as
a member of a passenger airbag risk
group sit in the right front passenger’s
position (for example, do not secure a
rear-facing child restraint in the right front
passenger’s seat) until you have your
vehicle serviced. SeeAirbag Readiness
Light on page 165for additional
information.To turn the right front passenger’s airbag on,
insert your ignition key into the switch, push in,
and move the switch to the on position.
United StatesCanada
79

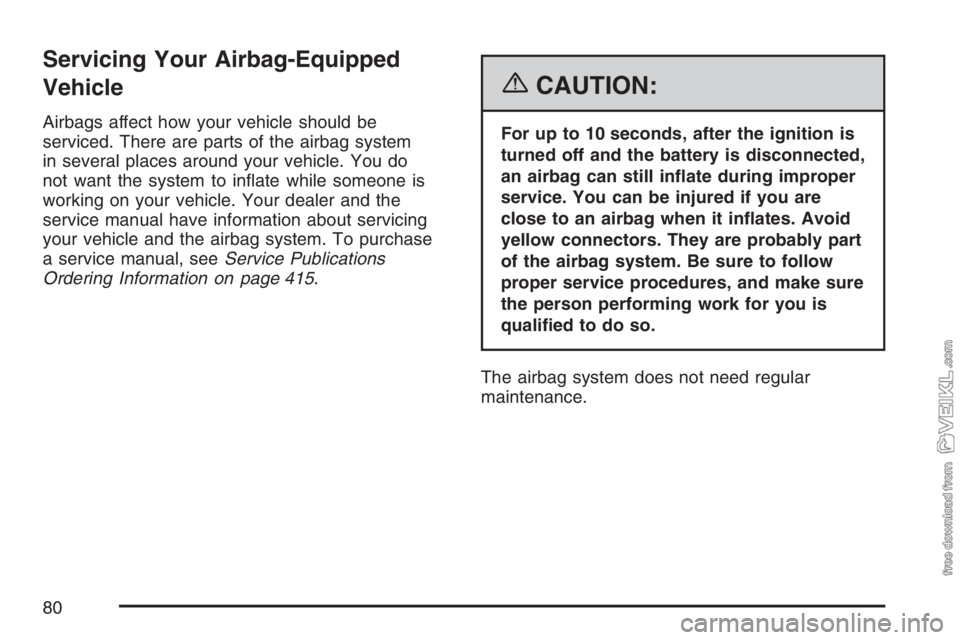

Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system
in several places around your vehicle. You do
not want the system to inflate while someone is
working on your vehicle. Your dealer and the
service manual have information about servicing
your vehicle and the airbag system. To purchase
a service manual, seeService Publications
Ordering Information on page 415.
{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still inate during improper
service. You can be injured if you are
close to an airbag when it inates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make sure
the person performing work for you is
qualied to do so.
The airbag system does not need regular
maintenance.
