CHEVROLET KODIAK 2007 Owners Manual

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can
easily open the doors and fall out of a
moving vehicle. When a door is
locked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash if
the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
CAUTION: (Continued)
CAUTION: (Continued)

Young children who get into unlocked
vehicles may be unable to get out.
A child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
There are several ways to lock and unlock your
vehicle.
If your vehicle is equipped with keyless entry, you
can use your transmitter to lock or unlock your
vehicle. SeeRemote Keyless Entry (RKE) System
Operation on page 88.
91

To lock or unlock your door from the outside, use
your key.
To lock the door from
the inside, slide the
manual lever on
the door down. To
unlock the door, slide
the manual lever up.Power Door Locks
If your vehicle has
power door locks, press
the bottom of the
power door lock switch
to lock all the doors
at once. To unlock all
the doors at once, press
the top of the power
door lock switch.
When a door is locked, the inside door handle will
not work.
92

Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome by the
extreme heat and suffer permanent
injuries or even death from heat stroke.
Never leave a child, a helpless adult, or a
pet alone in a vehicle, especially with the
windows closed in warm or hot weather.
Manual Windows
Turn the hand crank on each door to raise or
lower the window.
93

Power Windows
If your vehicle has power windows, the switches
for all windows are located on the driver’s door. In
addition, each passenger door has a switch for
their own window.
Press the rearward part of the switch to lower the
window. Press the forward part of the switch to
raise the window.
The power windows will operate when the ignition
is in ACCESSORY or RUN.
Express-Down
The driver’s window has an express-down feature.
This allows the window to be lowered fully
without continuously holding the switch. Press the
switch down fully to initiate the express-down
feature. Press the top of the switch to stop
the window from lowering.
Window Lockout (Crew Cab)
o
(Window Lockout):The driver’s window
switches include a lockout feature. This prevents
the passenger’s from operating their windows.
The driver can still operate all windows with
the lockout on. Press the button to turn the
lockout feature on and off.
Sliding Rear Window
To open the sliding rear window, pull the latch
toward the driver’s side of the vehicle.
To close the window, slide the window toward the
passenger’s side of the vehicle. The latch will
automatically lock into place. Try to open
the window without releasing the latch to be sure
the window is in the locked position.
Regular Cab Switches
Crew Cab Switches
94

Sun Visors
To block out glare, you can swing down the
visors. You can also swing them out to block glare
from the side.
Starting and Operating Your
Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an
elaborate break-in. But it will perform better in
the long run if you follow these guidelines:
Let your engine warm up before you
operate your vehicle under load.
Keep your speed at 55 mph (88 km/h) or
less for the rst 500 miles (805 km).
Do not drive at any one speed, fast or
slow, for the rst 500 miles (805 km).
Do not make full-throttle starts.
Avoid making hard stops for the rst
200 miles (322 km) or so. During this time
your new brake linings are not yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every time
you get new brake linings.
Use the lowest gear you can when you start
a loaded vehicle in motion and when going
up hills to avoid overloading the engine.
Check and adjust engine and transmission
uid levels often and be sure tires are
properly inated for the load you are
carrying.
If you have a Caterpillar®diesel engine, see
the Caterpillar®Diesel Engine Operation
and Maintenance Manual.
95

Ignition Positions
With your key in the ignition switch, you can turn it
to five different positions.
A (ACCESSORY):This position allows you to use
things like the radio, power windows and the
windshield wipers when the engine is off. To get
into ACCESSORY, push in the key and turn it
toward you. Your steering wheel will remain
locked, just as it was before you inserted the key.B (LOCK):This position locks your ignition,
steering wheel and transmission. It is a
theft-deterrent feature. You will only be able to
remove your key when the ignition is turned
to LOCK.
C (OFF):This position lets you turn off the engine
but still turn the steering wheel. It does not lock
the steering wheel like LOCK. Use OFF if
you must have your vehicle in motion while the
engine is off.
D (RUN):This is the position for driving.
The battery could be drained if you leave the key
in the ACCESSORY or RUN position with the
engine off. You may not be able to start your
vehicle if the battery is allowed to drain for
an extended period of time.
E (START):This position starts your engine.
96

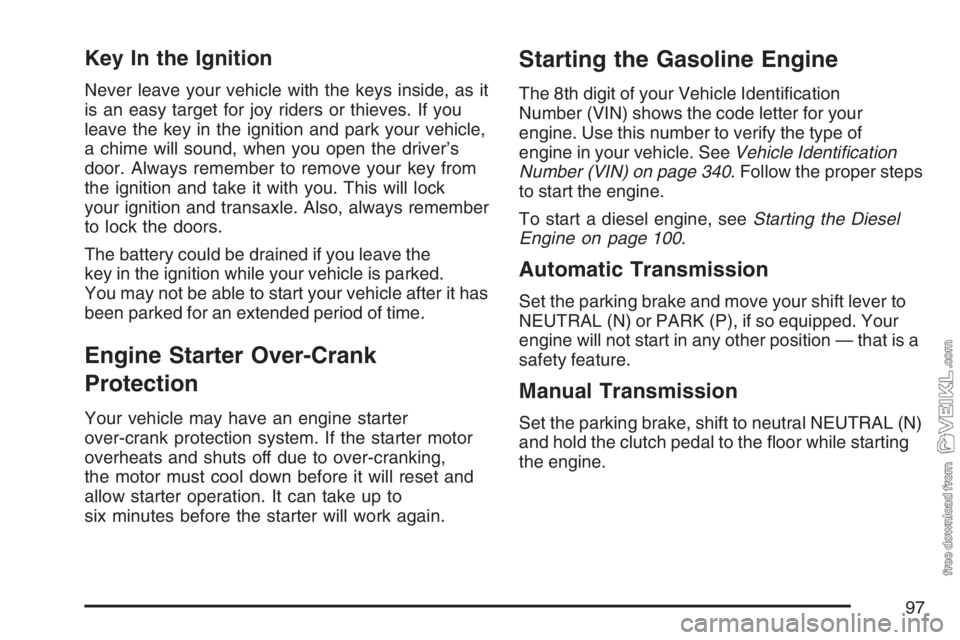

Key In the Ignition
Never leave your vehicle with the keys inside, as it
is an easy target for joy riders or thieves. If you
leave the key in the ignition and park your vehicle,
a chime will sound, when you open the driver’s
door. Always remember to remove your key from
the ignition and take it with you. This will lock
your ignition and transaxle. Also, always remember
to lock the doors.
The battery could be drained if you leave the
key in the ignition while your vehicle is parked.
You may not be able to start your vehicle after it has
been parked for an extended period of time.
Engine Starter Over-Crank
Protection
Your vehicle may have an engine starter
over-crank protection system. If the starter motor
overheats and shuts off due to over-cranking,
the motor must cool down before it will reset and
allow starter operation. It can take up to
six minutes before the starter will work again.
Starting the Gasoline Engine
The 8th digit of your Vehicle Identification
Number (VIN) shows the code letter for your
engine. Use this number to verify the type of
engine in your vehicle. SeeVehicle Identication
Number (VIN) on page 340. Follow the proper steps
to start the engine.
To start a diesel engine, seeStarting the Diesel
Engine on page 100.
Automatic Transmission
Set the parking brake and move your shift lever to
NEUTRAL (N) or PARK (P), if so equipped. Your
engine will not start in any other position — that is a
safety feature.
Manual Transmission
Set the parking brake, shift to neutral NEUTRAL (N)
and hold the clutch pedal to the floor while starting
the engine.
97

Starter Motor Operation
•The starter motor will disengage if you release
the key or the engine reaches a predetermined
engine speed.
•To prevent overheating, the starter motor will
disengage after continuously operating for
15 seconds. You must release the key
from the start position to re-engage the starter.
•The starter motor will not engage if the engine
is already running.
•The starter motor will disengage if, after
two seconds, the starter pinion gear does not
engage the flywheel or there is no engine
rpm signal from the engine speed sensor.
Starting Your Engine
1. Without pushing the accelerator pedal, turn
your ignition key to START. When the
engine starts, let go of the key. The idle speed
will go down as your engine gets warm.2. If the engine does not start in 10 seconds,
push the accelerator pedal all the way down
and crank the engine for five more seconds,
unless it starts sooner.
3. If your engine still will not start, or starts but
then stops, it could be flooded with too much
gasoline.
Wait 15 seconds to let the starter motor cool
down. Do Steps 1 through 3 again.
When the engine starts, let go of the key and
the accelerator pedal.
Notice:Your engine is designed to work with
the electronics in your vehicle. If you add
electrical parts or accessories, you could
change the way the engine operates. Before
adding electrical equipment, check with your
dealer. If you do not, your engine might not
perform properly. Any resulting damage would
not be covered by your vehicle’s warranty.
If you ever need to have your vehicle towed, see
Towing Your Vehicle on page 241.
98

Gasoline Engine Warm-Up
When you have started your engine, let it run for
20 or 30 seconds to warm up before you put a
load on the engine.
Drive at moderate speeds for the first 2 to 3 miles
(3.2 to 4.8 km), especially in cold weather. See
High Idle System on page 106.
Restarting the Gasoline Engine While
Moving (Automatic Transmission)
If you have to restart the engine while the
vehicle is moving, you will first have to shift to
NEUTRAL (N). This safety feature prevents
starting the engine when the transmission is in a
drive gear.
Stopping the Gasoline Engine
Let your engine idle for a few seconds before
turning it off after you have finished driving your
vehicle.
If you shift to NEUTRAL (N) or PARK (P), set the
parking brake.
If your vehicle has a two-speed axle, put the
range selector in low. To be sure the axle has
shifted into low, engage the clutch and
transmission; the vehicle may move slightly
when you do this.
While your engine is idling and before you turn it
off, you can make a list of any operational or
handling concerns to give to responsible
maintenance personnel so they can handle them
right away.
Moisture will condense in a fuel tank that is almost
empty if the engine has not run for a while,
even just overnight under some conditions. So, it
is always best to refuel your vehicle at the end
of each run.
99

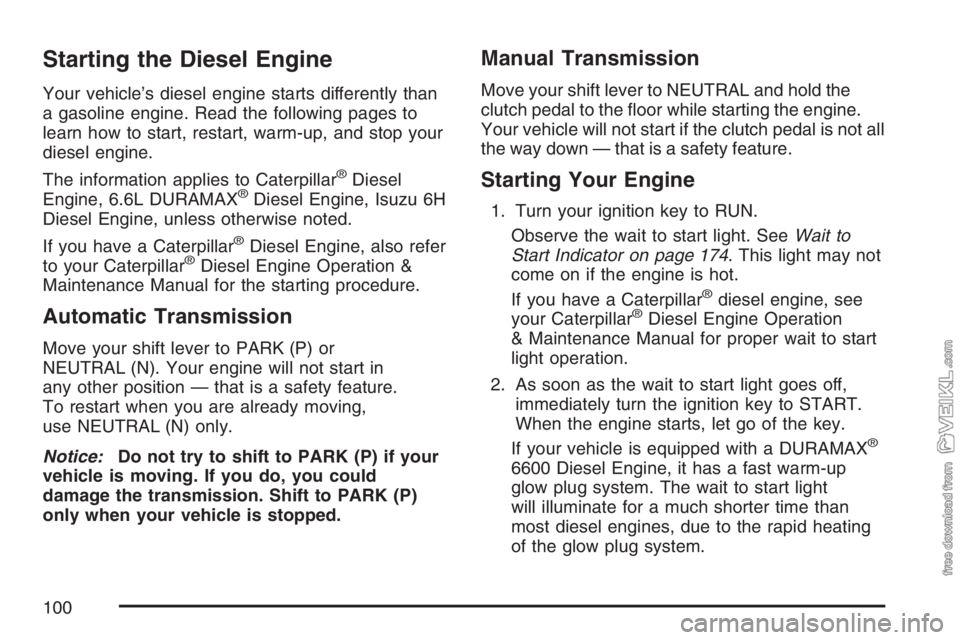

Starting the Diesel Engine
Your vehicle’s diesel engine starts differently than
a gasoline engine. Read the following pages to
learn how to start, restart, warm-up, and stop your
diesel engine.
The information applies to Caterpillar
®Diesel
Engine, 6.6L DURAMAX®Diesel Engine, Isuzu 6H
Diesel Engine, unless otherwise noted.
If you have a Caterpillar
®Diesel Engine, also refer
to your Caterpillar®Diesel Engine Operation &
Maintenance Manual for the starting procedure.
Automatic Transmission
Move your shift lever to PARK (P) or
NEUTRAL (N). Your engine will not start in
any other position — that is a safety feature.
To restart when you are already moving,
use NEUTRAL (N) only.
Notice:Do not try to shift to PARK (P) if your
vehicle is moving. If you do, you could
damage the transmission. Shift to PARK (P)
only when your vehicle is stopped.
Manual Transmission
Move your shift lever to NEUTRAL and hold the
clutch pedal to the floor while starting the engine.
Your vehicle will not start if the clutch pedal is not all
the way down — that is a safety feature.
Starting Your Engine
1. Turn your ignition key to RUN.
Observe the wait to start light. SeeWait to
Start Indicator on page 174. This light may not
come on if the engine is hot.
If you have a Caterpillar
®diesel engine, see
your Caterpillar®Diesel Engine Operation
& Maintenance Manual for proper wait to start
light operation.
2. As soon as the wait to start light goes off,
immediately turn the ignition key to START.
When the engine starts, let go of the key.
If your vehicle is equipped with a DURAMAX
®
6600 Diesel Engine, it has a fast warm-up
glow plug system. The wait to start light
will illuminate for a much shorter time than
most diesel engines, due to the rapid heating
of the glow plug system.
100
