CHEVROLET LOW CAB FORWARD 2017 Owner's Manual

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
390 Technical Data
Fuel injection timing
(static) degree0° Variable 0°
Valve clearance (Between
cam and roller) Both intake and exhaust
valves:
0.15 mm (0.006 in) in cold engine —
Both intake and exhaust
valves:
0.6 mm (0.024 in) in cold engine
Idling speed 576 - 625 r/min 550 r/min 500 - 600 r/min
Fan belt tension New belt: 4 - 6 mm (0.16 -
0.24 in)/212 - 236 Hz
When used: 6 - 8 mm (0.24
- 0.31 in)/181 - 195 Hz —
New belt: 5 - 7 mm (0.20 -
0.28 in)/184 - 206 Hz
When used: 8 - 9 mm (0.31
- 0.35 in)/158 - 170 Hz
Oil filter Replaceable element type Replaceable element type Catridge
Engine oil capacity When changing oil and
filter:
8.2 L (8.7 qt)
*1
When changing oil and filter:
5.7 L (6.0 qt)
*1
When changing oil only: 9.5 L (10.0 qt)*1
When changing oil and
filter:
11.0 L (11.6 qt)
*1
Engine coolant capacity 12.6 L (13.3 qt)*215.0 L (15.9 qt)*219.6 L (20.7 qt)*2
Preheating system Glow plugs—Glow plugs

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Technical Data 391
Transmission Specifications
Model A460Six-speed automatic
transmission (overdrive
gear for 5th and 6th),
lock-up clutch for 2nd
to 6th. 6L90
Six-speed automatic
transmission (overdrive
gear for 5th and 6th),
lock-up clutch for 2nd
to 6thA465 Model
Six-speed automatic
transmission (overdrive
gear for 5th and 6th),
lock-up clutch for 2nd
to 6th
Gear ratio 1st 3.742 to 1 4.027 to 1 3.742 to 1 2nd 2.003 to 1 2.364 to 1 2.003 to 13rd 1.343 to 1 1.532 to 1 1.343 to 1
4th 1.000 to 1 1.152 to 1 1.000 to 1
5th 0.773 to 1 0.852 to 1 0.773 to 1
6th 0.634 to 1 0.667 to 1 0.634 to 1
Reverse 3.539 to 1 3.064 to 1 3.539 to 1
Transmission oil capacity 13.4 L (28.3 pt) 12.17 L (25.72 pt) 13.1 L (27.7 pt)
Weights
Model 3.0 Diesel Engine 6.0L Gasoline Engine 5.2 Diesel Engine
Axle weight rating : Front 3500HD: 2431 kg (5,360 lb) 3500: 2204 kg (4,860 lb) 4500: 3007 kg (6,630 lb)4500HD: 2431 kg (5,360 lb)
4500XD: 3007 kg (6,630 lb)
5500HD: 3098 kg (6,830 lb) 5500XD: 3300 kg (7,275 lb)
Engine Oil Service
Model 3.0 Diesel Engine 6.0L Gasoline Engine 5.2 Diesel Engine

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
392 Technical Data
Engine oil capacityWhen changing oil only:
7.5 L (7.9 qt)*1
When changing oil andfilter: 8.2 L (8.7 qt)*1
When changing oil andfilter: 5.7 L (6.0 qt)*1When changing oil only: 9.5 L (10.0 qt)*1
When changing oil andfilter: 11.0 L (11.6 qt)*1
Engine Cooling System Service
Model 3.0 Diesel Engine 6.0L Gasoline Engine 5.2 Diesel Engine
Capacity 12.6 L (13.3 qt) 15.0 L (15.9 qt) 19.6 L (20.7 qt)
Engine oil Thermostat:
Starts to open 85 °C (185 °F) 85.5-87.5 °C
(185.9-189.5 °F)82-85 °C (180-185 °F)
Radiator pressure 108 kPa (16 psi) 103 kPa (15 psi) 108 kPa (16 psi)
Transmission Service
Model A460 6L90 A465
Transmission oil capacity 13.4 L (28.3 qt)
*312.7 L (25.7 qt)*313.1 L (27.7 qt)*3
Rear Axle Service
Model 3.0 Diesel Engine 6.0L Gasoline Engine 5.2 Diesel Engine
Differential gear oil
capacity 9.0 L (19.0 qt)
*49.7 L (20.5 qt)*44500HD/4500XD:
9.0 L (19.0 qt)*4
5500HD/5500XD:
10.0 L (21.1 qt)*4
Limited slip differential
lubricant additive 0.5 L (1.06 qt)*50.6 L (1.27 qt)*54500HD/4500XD:
0.5 L (1.06 qt)*5
5500HD/5500XD:
0.6 L (1.27 qt)*5

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Technical Data 393
Fuel
Fuel tank capacity
*6113 L (30.0 qt/24.9 gal) 113 L (30.0 qt/24.9 gal) 113 L (30.0 qt/24.9 gal)125 L (33.0 qt/27.5 gal)
Diesel Exhaust Fluid (DEF)
DEF tank capacity (Diesel Only) 16.0 L (4.23 gal)
Steering
Steering wheel free play 10 - 50 mm (0.39 - 1.97 in)
Power steering fluid capacity 1.5 L (1.6 qt)
Wheel
Wheel alignment Toe-in -2 to 2 mm (-0.08 to 0.08 in)
Camber 0°15’
Caster LH 2°50’, RH 3°40’
King pin 12°
Wheel hub bearing grease capacity 0.11 kg (0.24 lb)
Wheel stud nut torque : Front and rear 500 Y(50 kgf m/363 lb ft)
Disc Brakes
Model 3500/3500HD/4500HD 4500/4500XD/5500HD/5500XD
Brake size (Diameter x
Thickness) 293 x 40 mm (11.54 x 1.57 in) 363 x 42 mm (14.29 x 1.65 in)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
394 Technical Data

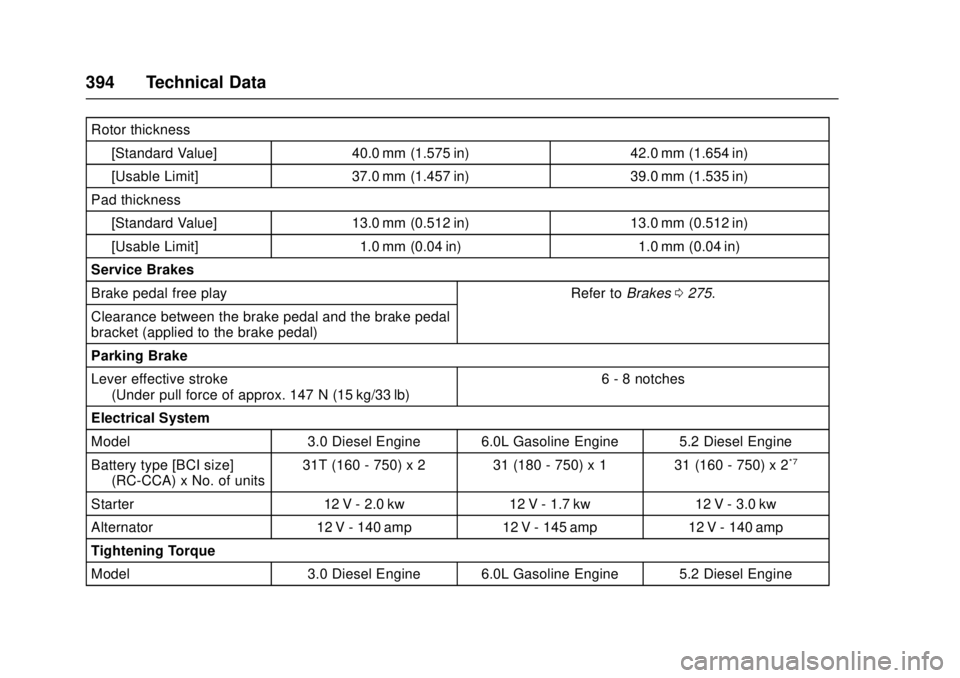

Rotor thickness[Standard Value] 40.0 mm (1.575 in) 42.0 mm (1.654 in)
[Usable Limit] 37.0 mm (1.457 in) 39.0 mm (1.535 in)
Pad thickness [Standard Value] 13.0 mm (0.512 in) 13.0 mm (0.512 in)
[Usable Limit] 1.0 mm (0.04 in) 1.0 mm (0.04 in)
Service Brakes
Brake pedal free play Refer to Brakes0275.
Clearance between the brake pedal and the brake pedal
bracket (applied to the brake pedal)
Parking Brake
Lever effective stroke (Under pull force of approx. 147 N (15 kg/33 lb) 6 - 8 notches
Electrical System
Model 3.0 Diesel Engine 6.0L Gasoline Engine 5.2 Diesel Engine
Battery type [BCI size] (RC-CCA) x No. of units 31T (160 - 750) x 2 31 (180 - 750) x 1 31 (160 - 750) x 2
*7
Starter
12 V - 2.0 kw12 V - 1.7 kw12 V - 3.0 kw
Alternator 12 V - 140 amp12 V - 145 amp12 V - 140 amp
Tightening Torque
Model 3.0 Diesel Engine 6.0L Gasoline Engine 5.2 Diesel Engine

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Technical Data 395
Oil pan drain plug83.3Y(8.5 kgf m/
61.0 lb ft) 25.0
Y(2.5 kgf m/
18.0 lb ft) 83.3
Y(8.5 kgf m/
61.0 lb ft)
Oil filter drain plug 25.0Y(2.5 kgf m/
18.0 lb ft) —
—
Oil filter —30.0Y(3.1 kgf m/
22.0 lb ft) —
Oil filter cartridge ——63.7Y(6.5 kgf m/
47.0 lb ft)
Remarks:
*1see Engine Oil (Gasoline) 0257 orEngine Oil (Diesel) 0251.
Remarks:*2see Engine Coolant 0263.
Remarks:*3see Automatic Transmission Fluid 0260.
Remarks:*4see Rear Axle (Gear Oil Viscosity Chart) 0283 orRear Axle (Oil Level Check) 0283.
Remarks:*5only for vehicles equipped with optional limited slip differential.
Remarks:*6The fuel tank capacity is stated on a metal plate attached to the fuel tank body. Only fill the tank to
95 percent of its capacity; this allows room for the expansion of the fuel.
Remarks:
*7larger capacity batteries 31 (180-930) × 2 can also be used. However, do not mix batteries of different
types and from different makers.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
396 Technical Data
Engine Drive Belt Routing
Fan Belt and Air Conditioning
Compressor Belt
See theMaintenance Schedule
0 345.
3.0L L4 Engine (IZ3)
No. Name
1 Fan Pulley
2 Tension pulley
3 A/C compressor
4 A/C belt
5 Crank pulley
6 Idler No.
Name
7 Alternator
8 Fan belt
If your air conditioning system is
functioning properly, it is not
necessary to remove and replace
the refrigerant or compressor oil.
6.0L V8 Engine (L96)
No. Name
1 Fan belt idler pulley
2 Alternator
3 Vacuum pulley
4 Power steering pump pulley No.
Name
5 Cooling fan pulley
6 Crank pulley
7 A/C belt
8 A/C compressor
9 Fan belt
10 Fan belt tensioner
5.2L L4 Engine (I1B)
No. Name
1 Fan belt
2 Fan pulley
3 A/C belt

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Technical Data 397
No.Name
4 A/C compressor
5 Tension pulley
6 Crank pulley
7 Alternator
If your air conditioning system is
functioning properly, it is not
necessary to remove and replace
the refrigerant or compressor oil.
. A V-ribbed belt is used for the
fan belt. This type of belt
requires the tension to be
adjusted more accurately than is
required with the conventional V
belt. Inappropriate tension could
cause the belt to make noise or
break. When the fan belt is
damaged, electricity is not
properly generated or becomes
a cause of engine overheating.
You must check the tension of
the fan belt carefully.
. Use dealer-certified genuine
parts when changing the
fan belt. .
Have the vehicle inspected and
serviced at your dealer.
. The air conditioning drive belt,
if equipped, must be adjusted
after fan belt adjustment. If the
belt is not adjusted properly, the
A/C belt may experience
excessive tension, and possible
premature failure.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
398 Customer Information
Customer
Information
Customer Information
Customer SatisfactionProcedure . . . . . . . . . . . . . . . . . . . 398
Customer Assistance Offices . . . . . . . . . . . . . . . . . . . . . . 399
Customer Assistance for Text Telephone (TTY) Users . . . . . 399
Online Owner Center . . . . . . . . . 399
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . 400
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . 400
Scheduling Service Appointments . . . . . . . . . . . . . . . 401
Collision Damage Repair . . . . . 401
Service Publications Ordering Information . . . . . . . . . . . . . . . . . . 403
Radio Frequency Statement . . . . . . . . . . . . . . . . . . . 404
Reporting Safety Defects
Reporting Safety Defects tothe United States
Government . . . . . . . . . . . . . . . . . 405
Reporting Safety Defects to General Motors . . . . . . . . . . . . . 405
Vehicle Data Recording and
Privacy
Vehicle Data Recording andPrivacy . . . . . . . . . . . . . . . . . . . . . . 405
Customer Information
Customer Satisfaction
Procedure
Your satisfaction and goodwill are
important to your dealer and to
Chevrolet. Normally, any concerns
with the sales transaction or the
operation of the Chevrolet chassis,
or upfitted rear body will be resolved
by your dealer's sales or service
departments. Sometimes, however,
despite the best intentions of all
concerned, misunderstandings can
occur. If your concern has not been
resolved to your satisfaction, the
following steps should be taken:
STEP ONE : Discuss your concern
with a member of dealership
management. Normally, concerns
can be quickly resolved at that level.
If the matter has already been
reviewed with the sales, service,
or parts manager, contact the owner
of your dealership or the general
manager.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Customer Information 399
STEP TWO :If after contacting a
member of dealership management,
it appears your concern cannot be
resolved by your dealership without
further help call the Chevrolet
Customer Assistance Center at
1-800-862-4389.
We encourage you to call the
toll-free number in order to give your
inquiry prompt attention. Have the
following information available to
give the Customer Assistance
representative:
. Your name, address, and
daytime phone number.
. Vehicle Identification
Number (VIN). This is available
from the vehicle registration or
title, and on the VIN plate or the
Vehicle Certification and
Greenhouse Gas (GHG)
Emissions Plate in the cab of the
vehicle.
. Dealership name and location.
. Vehicle delivery date and
present mileage.
. Nature of the problem. When contacting Chevrolet,
remember that your concern will
likely be resolved at a dealer's
facility. That is why we suggest
following Step One first.
Customer Assistance
Offices
Chevrolet encourages customers to
call the toll-free number for
assistance. However, if a customer
wishes to write or e-mail Chevrolet,
the letter should be addressed to:
United States
Chevrolet Motor Division
Chevrolet Customer Assistance
Center
P.O. Box 33170
Detroit, MI 48232-5170
www.Chevrolet.com
1-800-862-4389
1-800-833-2438 (For Text
Telephone Devices (TTYs))
Roadside Assistance:
1-888-899-1327
Customer Assistance for
Text Telephone (TTY)
Users
To assist customers who are deaf,
hard of hearing, or speech-impaired
and who use Text Telephones
(TTYs), Chevrolet has TTY
equipment available at its Customer
Assistance Center. Any TTY user in
the U.S. can communicate with
Chevrolet by dialing:
1-800-833-2438.
Online Owner Center
Online Owner Experience
my.chevrolet.com
The Chevrolet online owner
experience allows interaction with
Chevrolet and keeps important
vehicle-specific information in one
place.
Membership Benefits
E:
Download owner manuals and
view vehicle-specific how-to videos.
