CHEVROLET MALIBU 1998 Owners Manual

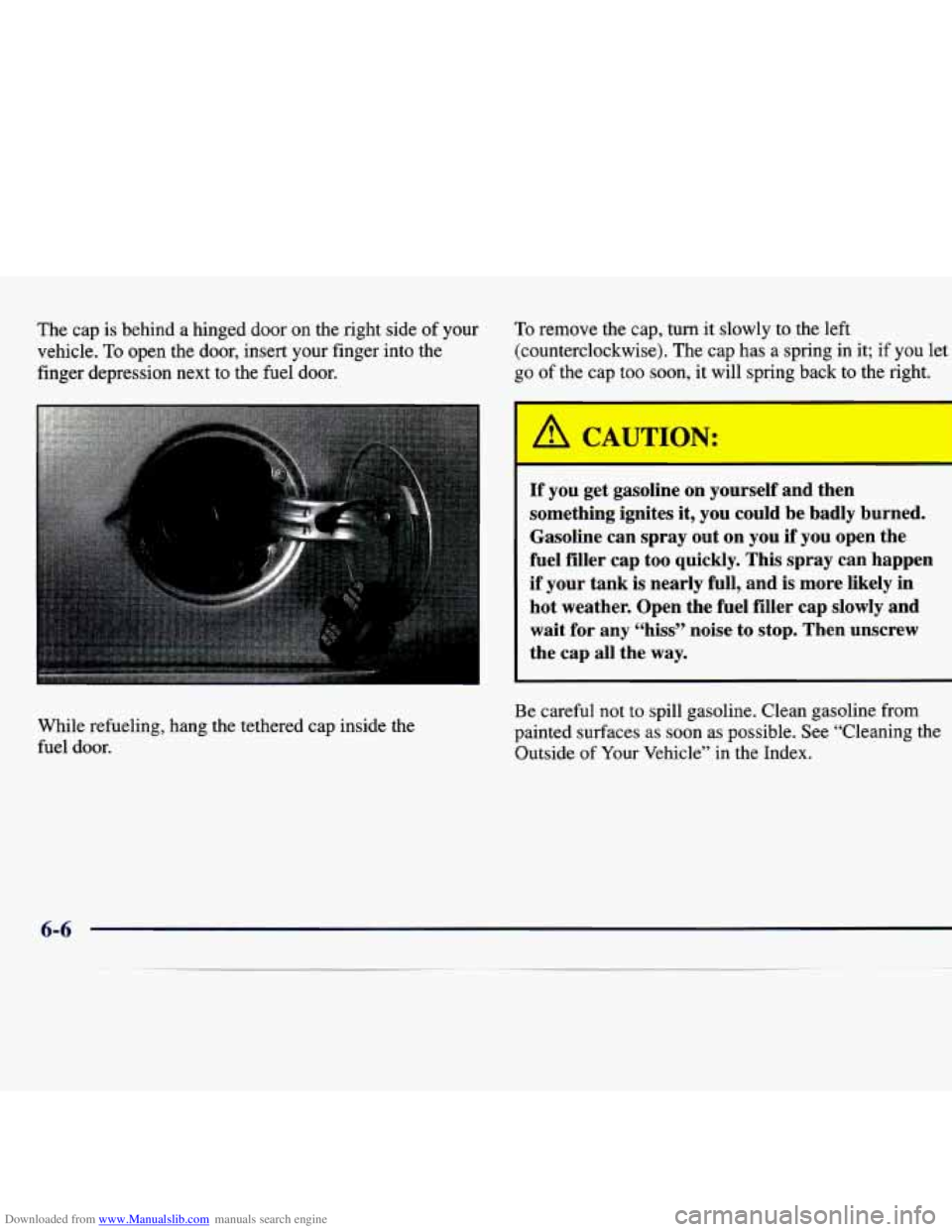

Downloaded from www.Manualslib.com manuals search engine The cap is behind a hinged door on the right side of your
vehicle.
To open the door, insert your finger into the
finger depression next to the fuel door.
To remove the cap, turn it slowly to the left
(counterclockwise). The cap has a spring in it; if you let
go of the cap too soon, it will spring back to the right.
While refueling, hang the tethered cap inside the
fuel door.
If you get gasoline on yourself and then
something ignites it, you could be badly burned.
Gasoline can spray out on you if you open the
fuel filler cap too quickly. This spray can happen
if your tank
is nearly full, and is more likely in
hot weather. Open the fuel filler cap slowly and
wait for any “hiss” noise to stop. Then unscrew
the cap all the
way.
Be careful not to spill gasoline. Clean gasoline from
painted surfaces as soon as possible. See “Cleaning the Outside of Your Vehicle” in the Index.
6-6

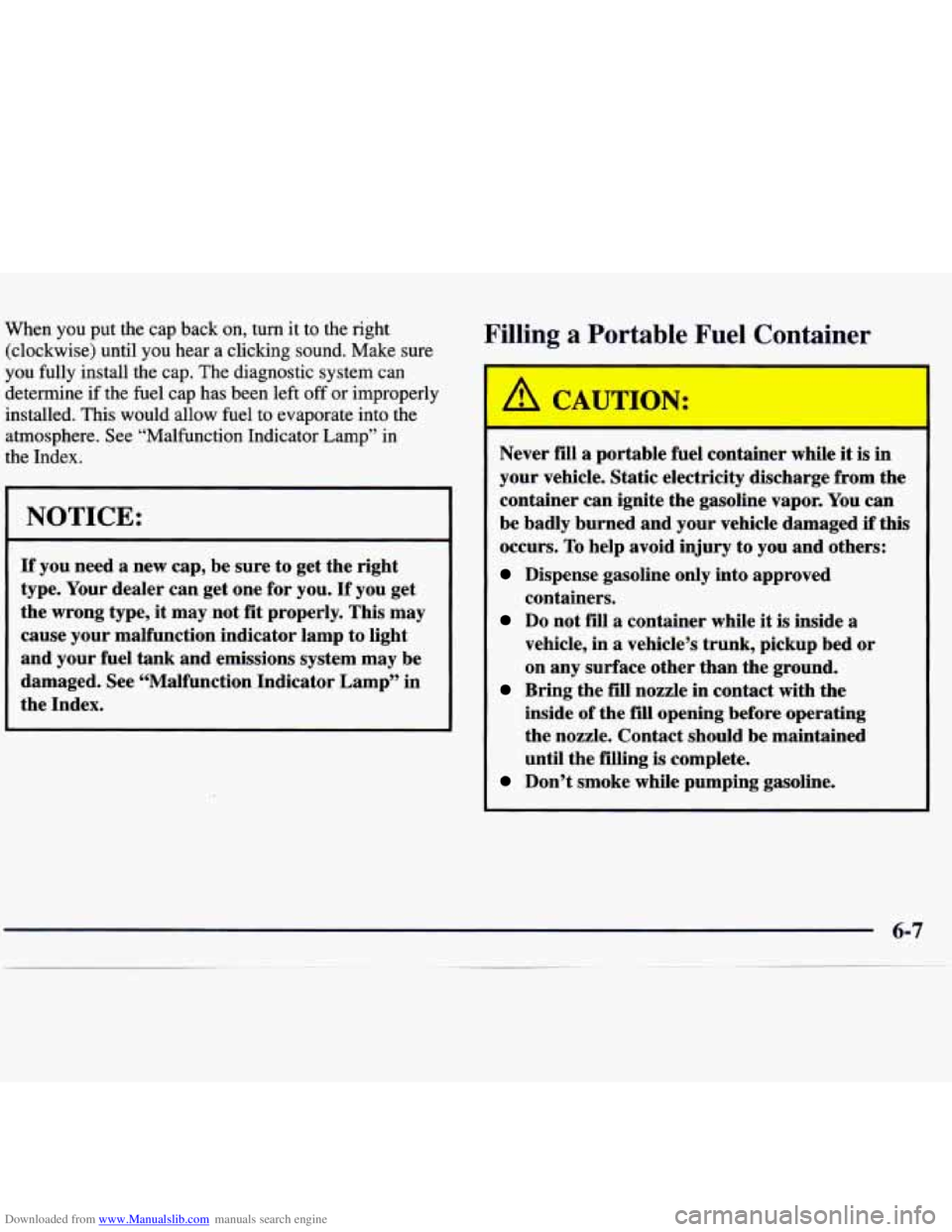

Downloaded from www.Manualslib.com manuals search engine When you put the cap back on, turn it to the right
(clockwise) until you
hear a clicking sound. Make sure
you fully install the cap. The diagnostic system can
determine if the fuel cap has been left
off or improperly
installed. This would allow fuel to evaporate into the
atmosphere. See “Malfunction Indicator Lamp” in
the Index.
NOTICE:
If you need a new cap, be sure to get the right
type. Your dealer can get one for you. If you get
the wrong type,
it may not fit properly. This may
cause your malfunction indicator lamp to light
and your fuel tank and emissions system may be
damaged. See “Malfunction Indicator Lamp” in
the Index.
Filling a Portable Fuel Container
Never fill a portable fuel container while it is in
your vehicle. Static electricity discharge from the
container can ignite the gasoline vapor. You can
be badly burned and your vehicle damaged
if this
occurs. To help avoid injury
to you and others:
Dispense gasoline only into approved
containers.
Do not fill a container while it is inside a
vehicle, in a vehicle’s trunk, pickup bed or
on any surface other than the ground.
inside
of the fill opening before operating
the nozzle. Contact should be maintained
until the filling
is complete.
Bring the fill nozzle in contact with the
Don’t smoke while pumping gasoline.

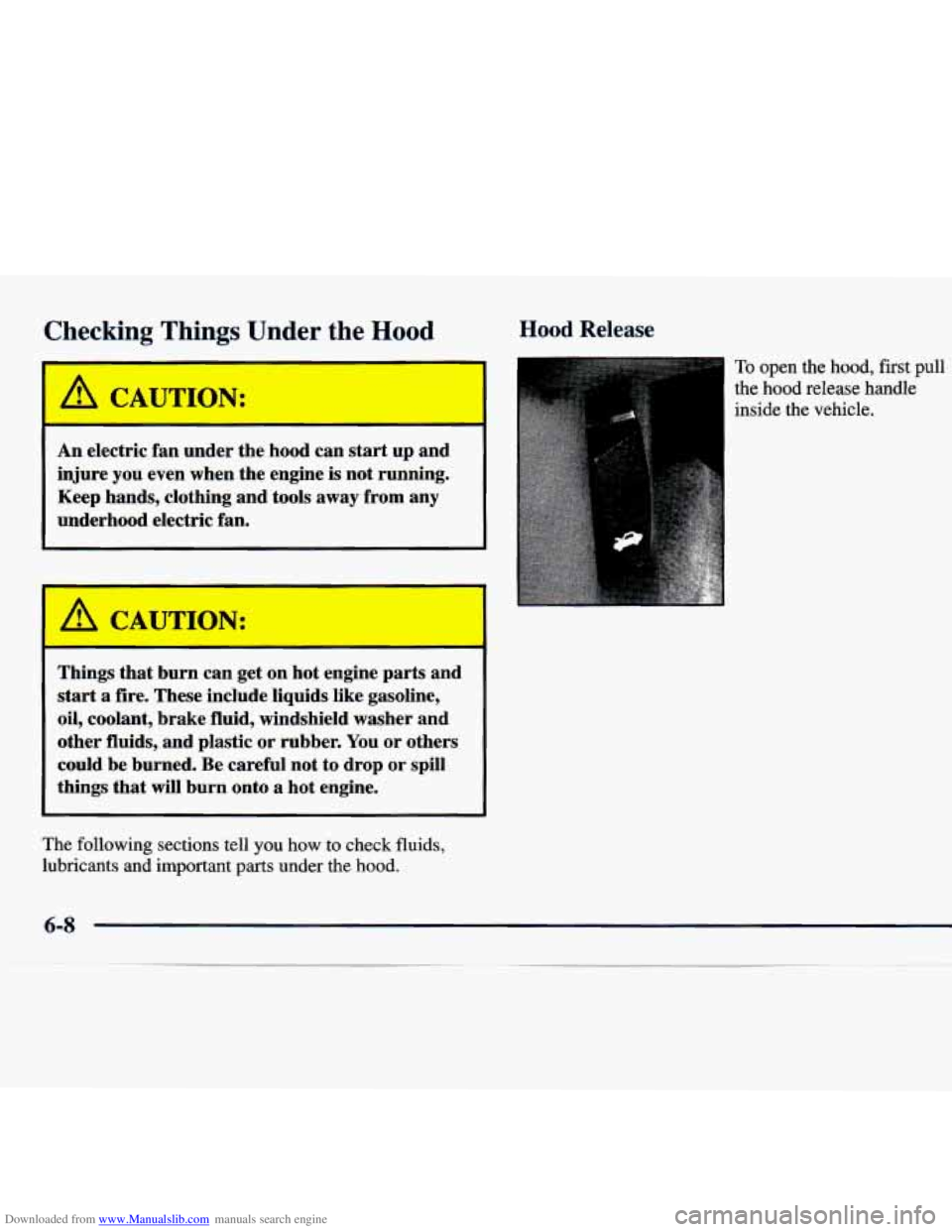

Downloaded from www.Manualslib.com manuals search engine Checking Things Under the Hood
/A CAL IION:
An electric fan under the hood can start up and
injure you even when the engine is not running.
Keep hands, clothing and tools away from any
underhood electric fan.
A CAUTION:
I -I
Things that burn can get on hot engine parts and
start a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber.
You or others
could be burned.
Be careful not to drop or spill
things that will burn onto a hot engine.
The following sections tell you how to check fluids,
lubricants and important parts under the hood.
Hood Release
To open the hood, first pull
the
hood release handle
inside the vehicle.
6-8

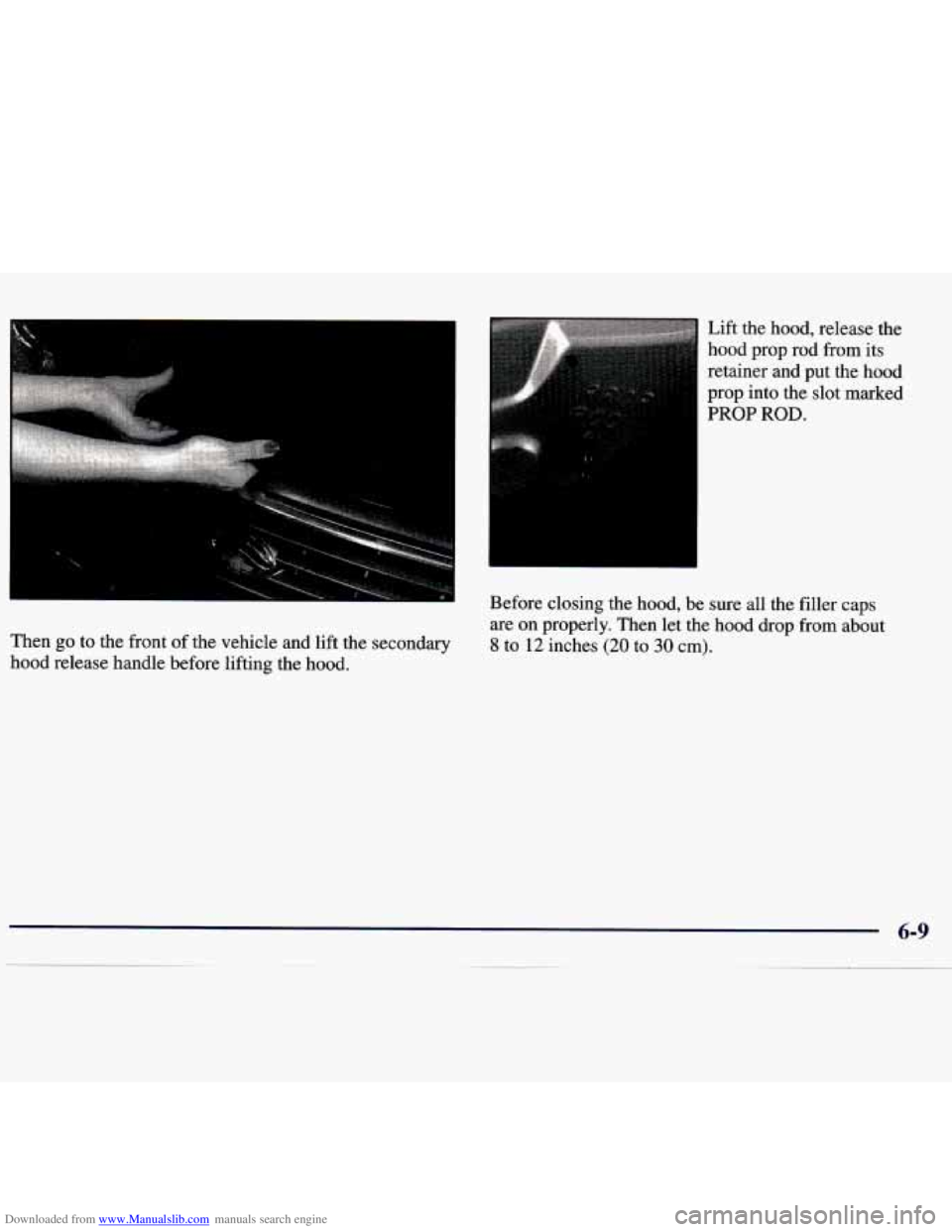

Downloaded from www.Manualslib.com manuals search engine Then go to the front of the vehicle and lift the secondary
hood release handle before lifting the hood. Lift the hood, release the
hood prop rod from its
retainer and put the hood
prop into the slot marked
PROP ROD.
Before closing the hood, be sure all the filler caps
are on properly. Then let the hood drop from about
8 to 12 inches (20 to 30 cm).

Downloaded from www.Manualslib.com manuals search engine 2.4L (CODE T) Engine
When you open the hood, you’ll see:
A. Engine Coolant Surge Tank
B. Engine Oil Fill Cap
C. Engine Oil Dipstick
D. Power Steering Fluid Reservoir
E. Brake Fluid Reservoir
F. Air Cleaner
G. Battery
H. Windshield Washer
Fluid Reservoir
6-10

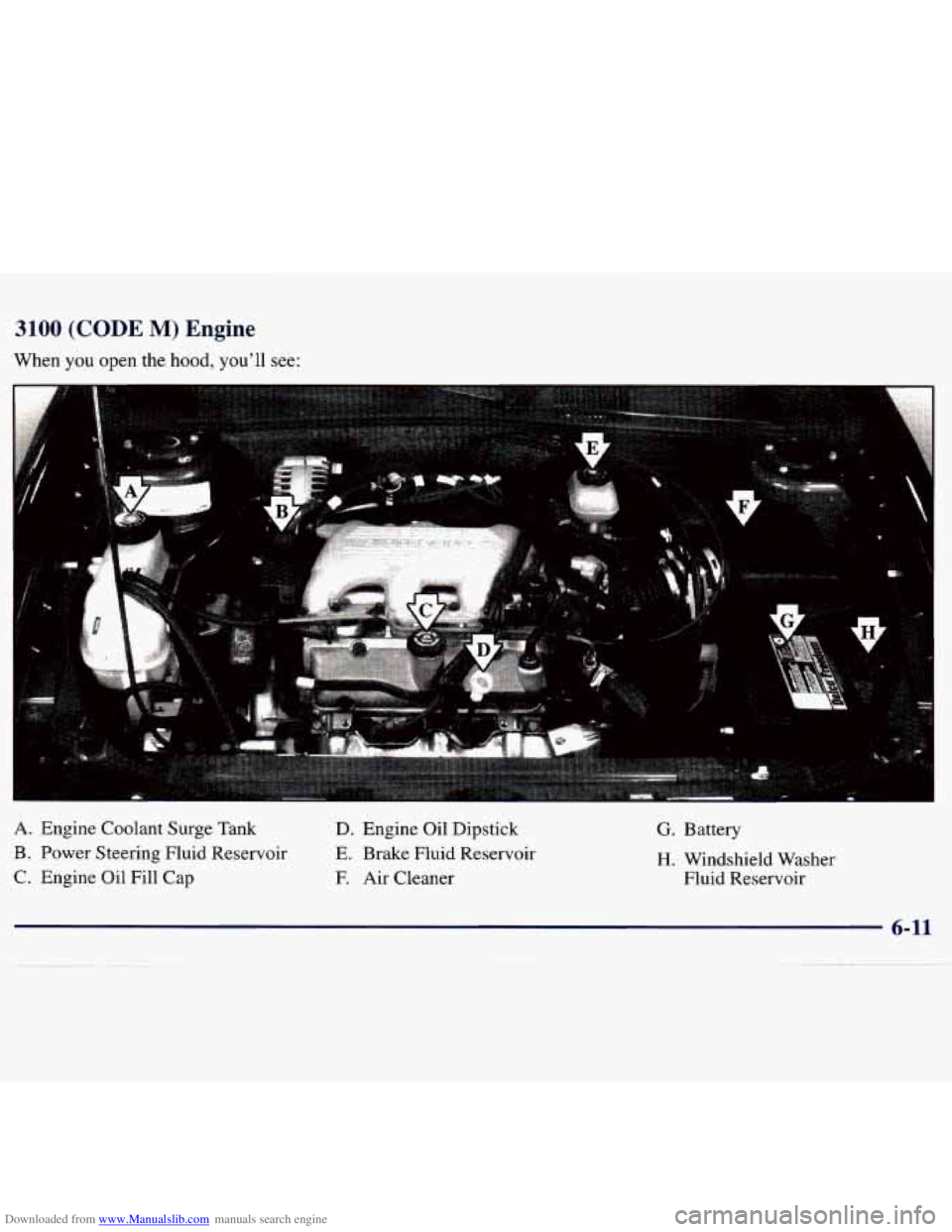

Downloaded from www.Manualslib.com manuals search engine 3100 (CODE M) Engine
When you open the hood, you’ll see:
A. Engine Coolant Surge Tank
B . Power Steering Fluid Reservoir
C. Engine Oil Fill Cap
D. Engine Oil Dipstick
E. Brake Fluid Reservoir
F. Air Cleaner
G. Battery
H. Windshield Washer
Fluid Reservoir

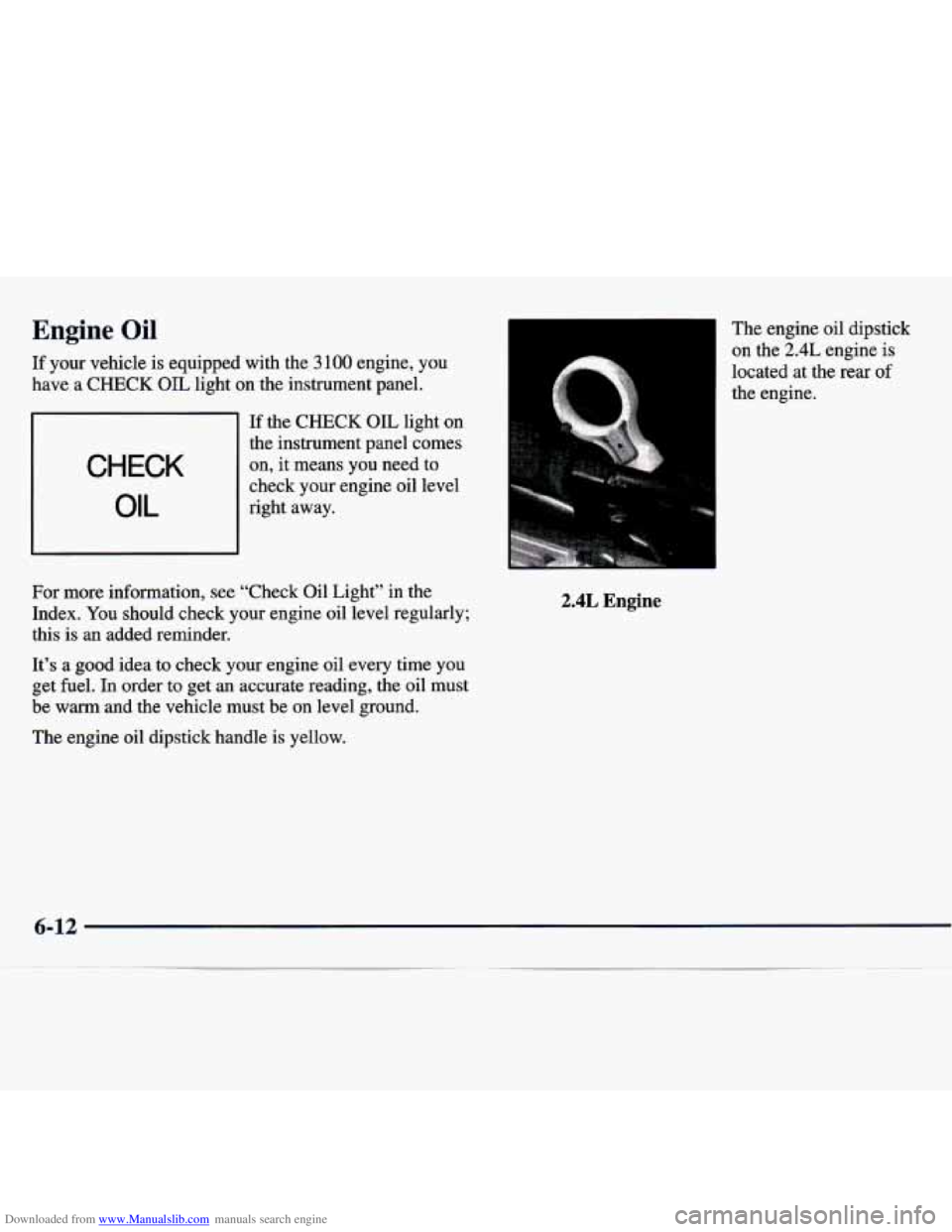

Downloaded from www.Manualslib.com manuals search engine Engine Oil
If your vehicle is equipped with the 3 100 engine, you
have a
CHECK OIL light on the instrument panel.
CHECK
OIL
If the CHECK OIL light on
the instrument panel comes
on, it means you need to
check your engine oil level
right away.
For more information, see “Check Oil Light” in the
Index. You should check your engine oil level regularly;
this is an added reminder.
It’s a good idea to check your engine oil every time you
get fuel.
In order to get an accurate reading, the oil must
be warm and the vehicle must be on level ground.
The engine oil dipstick handle is yellow. The engine
oil dipstick
on the
2.4L engine is
located at the rear
of
the engine.
2.4L Engine
6-12

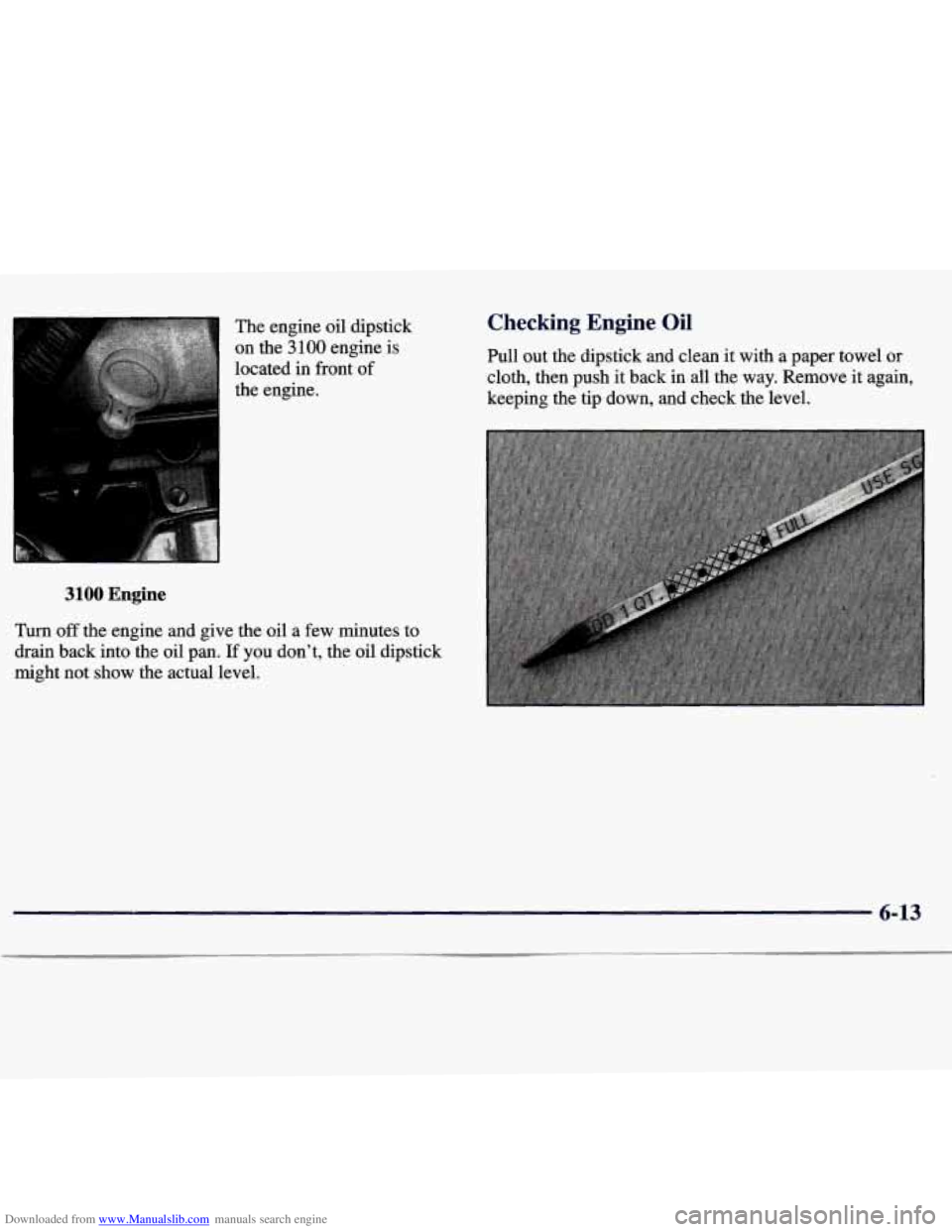

Downloaded from www.Manualslib.com manuals search engine The engine oil dipstick
on the
3100 engine is
located in front
of
the engine.
3100 Engine
Turn off the engine and give the oil a few minutes to
drain back into the oil pan.
If you don’t, the oil dipstick
might not show the actual level.
Checking Engine Oil
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back
in all the way. Remove it again,
keeping the tip down, and check the level.
6-13

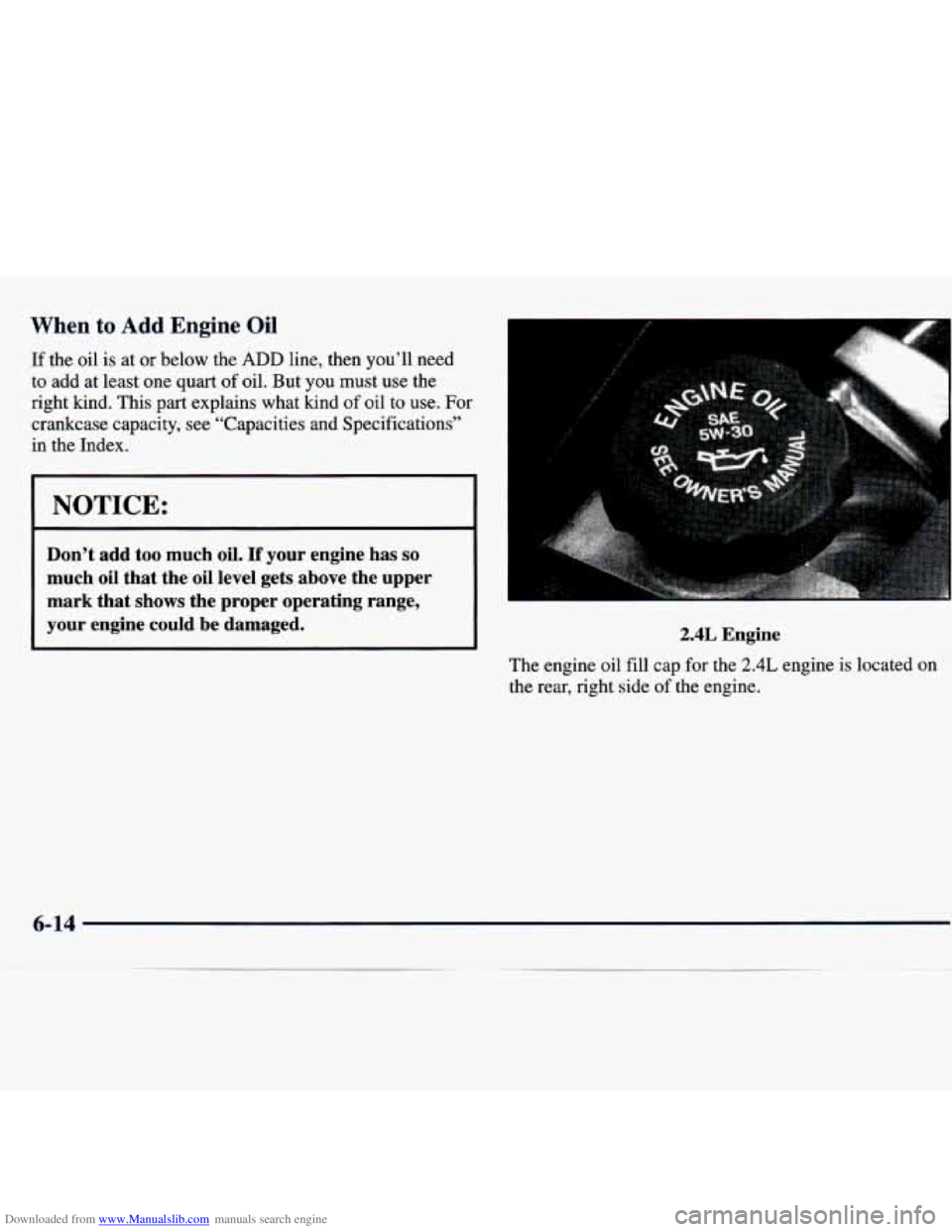

Downloaded from www.Manualslib.com manuals search engine When to Add Engine Oil
If the oil is at or below the ADD line, then you’ll need
to add at least one quart of oil. But you must use the
right kind. This part explains what kind of
oil to use. For
crankcase capacity, see “Capacities and Specifications”
in the Index.
NOTICE:
Don’t add too much oil. If your engine has so
much oil that the oil level gets above the upper
mark that
shows the proper operating range,
your engine could be damaged. 2.4L Engine
The engine oil fill cap for the 2.4L engine is located on
the rear, right side of the engine.
6-14

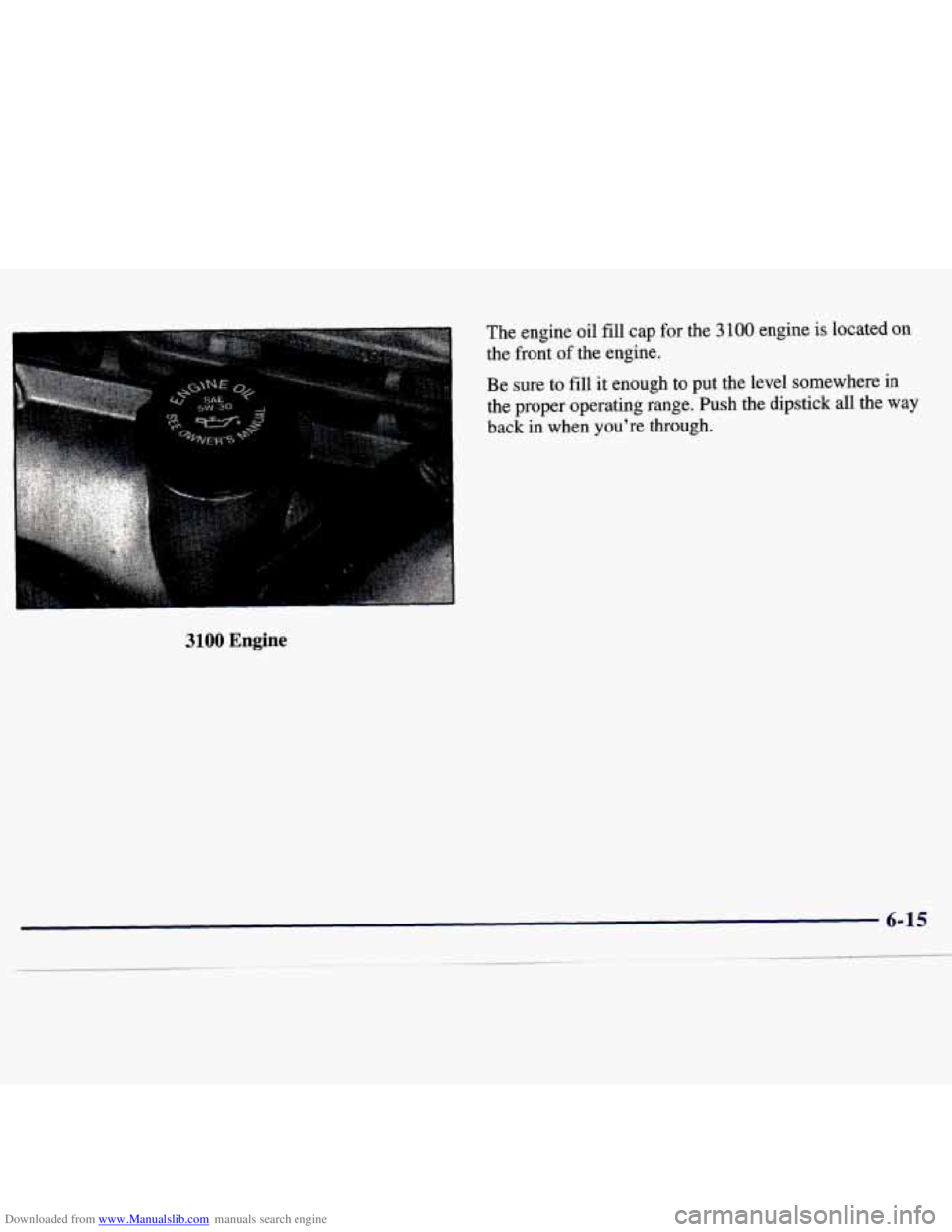

Downloaded from www.Manualslib.com manuals search engine The engine oil fill cap for the 3 100 engine is located on
the front of the engine.
Be sure to
fill it enough to put the level somewhere in
the proper operating range. Push the dipstick all the way
back in when you’re through.
3100 Engine
6-15
