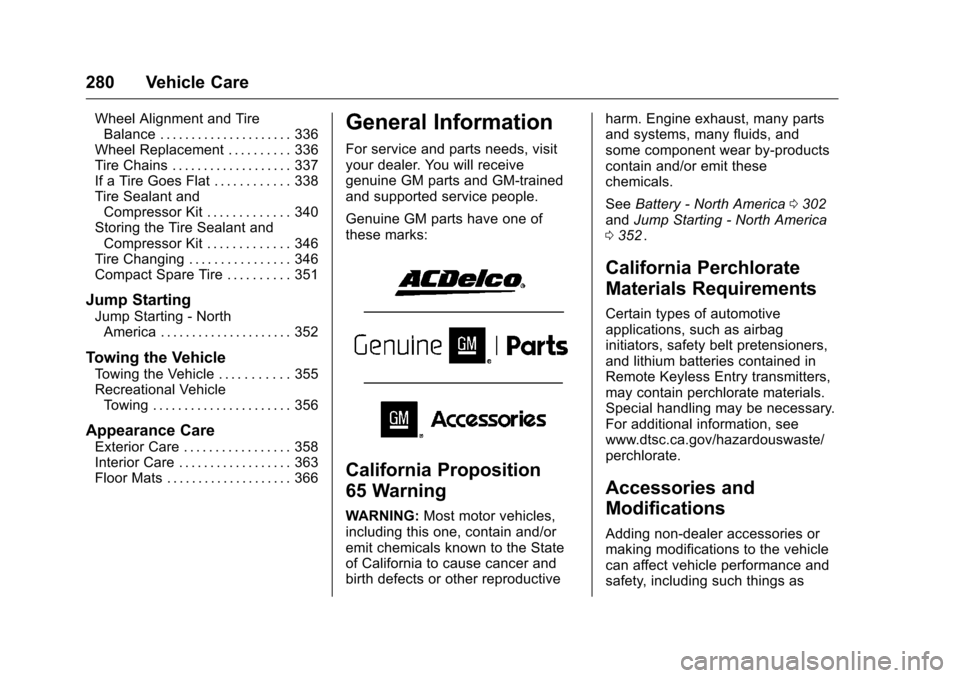

280 Vehicle Care
Wheel Alignment and TireBalance . . . . . . . . . . . . . . . . . . . . . 336
Wheel Replacement . . . . . . . . . . 336
Tire Chains . . . . . . . . . . . . . . . . . . . 337
If a Tire Goes Flat . . . . . . . . . . . . 338
Tire Sealant and Compressor Kit . . . . . . . . . . . . . 340
Storing the Tire Sealant and Compressor Kit . . . . . . . . . . . . . 346
Tire Changing . . . . . . . . . . . . . . . . 346
Compact Spare Tire . . . . . . . . . . 351
Jump Starting
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . 352
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . 355
Recreational VehicleTowing . . . . . . . . . . . . . . . . . . . . . . 356
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . 358
Interior Care . . . . . . . . . . . . . . . . . . 363
Floor Mats . . . . . . . . . . . . . . . . . . . . 366
General Information
For service and parts needs, visit
your dealer. You will receive
genuine GM parts and GM-trained
and supported service people.
Genuine GM parts have one of
these marks:
California Proposition
65 Warning
WARNING: Most motor vehicles,
including this one, contain and/or
emit chemicals known to the State
of California to cause cancer and
birth defects or other reproductive harm. Engine exhaust, many parts
and systems, many fluids, and
some component wear by-products
contain and/or emit these
chemicals.
See
Battery - North America 0302
iiand Jump Starting - North America
0 352ii.
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag
initiators, safety belt pretensioners,
and lithium batteries contained in
Remote Keyless Entry transmitters,
may contain perchlorate materials.
Special handling may be necessary.
For additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Accessories and
Modifications
Adding non-dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
Page 282 of 420

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15

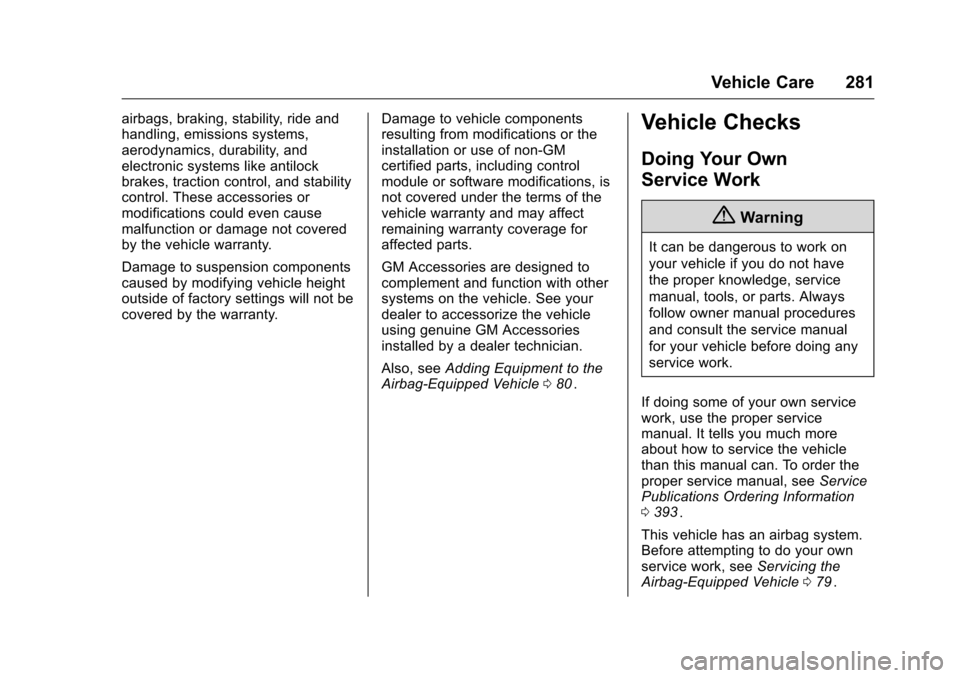

Vehicle Care 281
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered
by the vehicle warranty.
Damage to suspension components
caused by modifying vehicle height
outside of factory settings will not be
covered by the warranty.Damage to vehicle components
resulting from modifications or the
installation or use of non-GM
certified parts, including control
module or software modifications, is
not covered under the terms of the
vehicle warranty and may affect
remaining warranty coverage for
affected parts.
GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle
using genuine GM Accessories
installed by a dealer technician.
Also, see
Adding Equipment to the
Airbag-Equipped Vehicle 080
ii.
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work on
your vehicle if you do not have
the proper knowledge, service
manual, tools, or parts. Always
follow owner manual procedures
and consult the service manual
for your vehicle before doing any
service work.
If doing some of your own service
work, use the proper service
manual. It tells you much more
about how to service the vehicle
than this manual can. To order the
proper service manual, see Service
Publications Ordering Information
0 393
ii.
This vehicle has an airbag system.
Before attempting to do your own
service work, see Servicing the
Airbag-Equipped Vehicle 079
ii.
Page 283 of 420

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15
282 Vehicle Care
Keep a record with all parts receipts
and list the mileage and the date of
any service work performed. See
Maintenance Records0379
ii.
Caution
Even small amounts of
contamination can cause damage
to vehicle systems. Do not allow
contaminants to contact the fluids,
reservoir caps, or dipsticks.

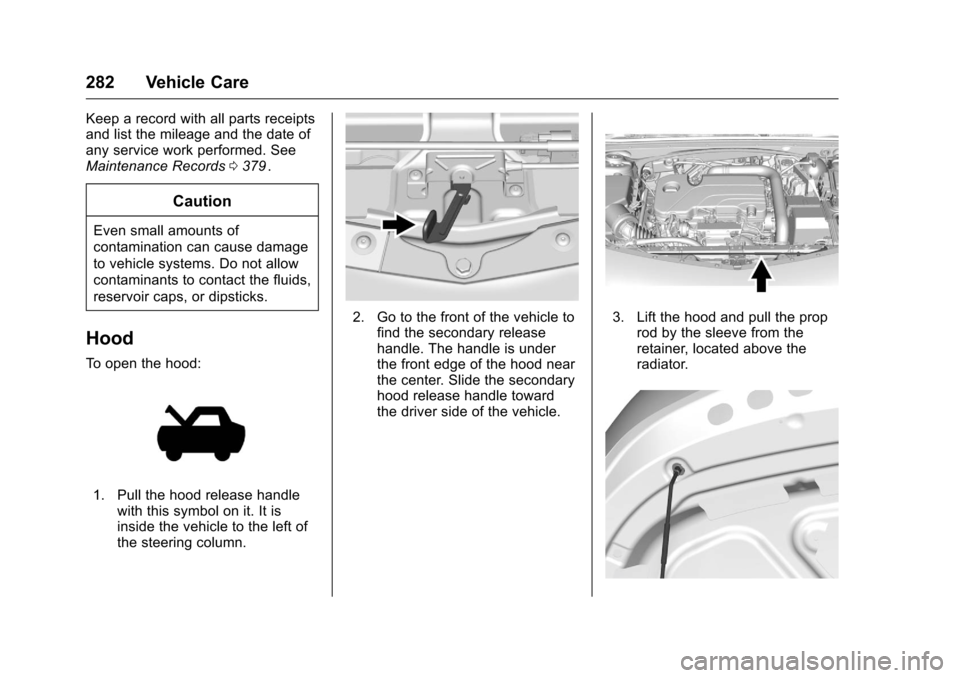

Hood
To open the hood:
1. Pull the hood release handle
with this symbol on it. It is
inside the vehicle to the left of
the steering column.
2. Go to the front of the vehicle tofind the secondary release
handle. The handle is under
the front edge of the hood near
the center. Slide the secondary
hood release handle toward
the driver side of the vehicle.3. Lift the hood and pull the proprod by the sleeve from the
retainer, located above the
radiator.
Page 284 of 420

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15
Vehicle Care 283

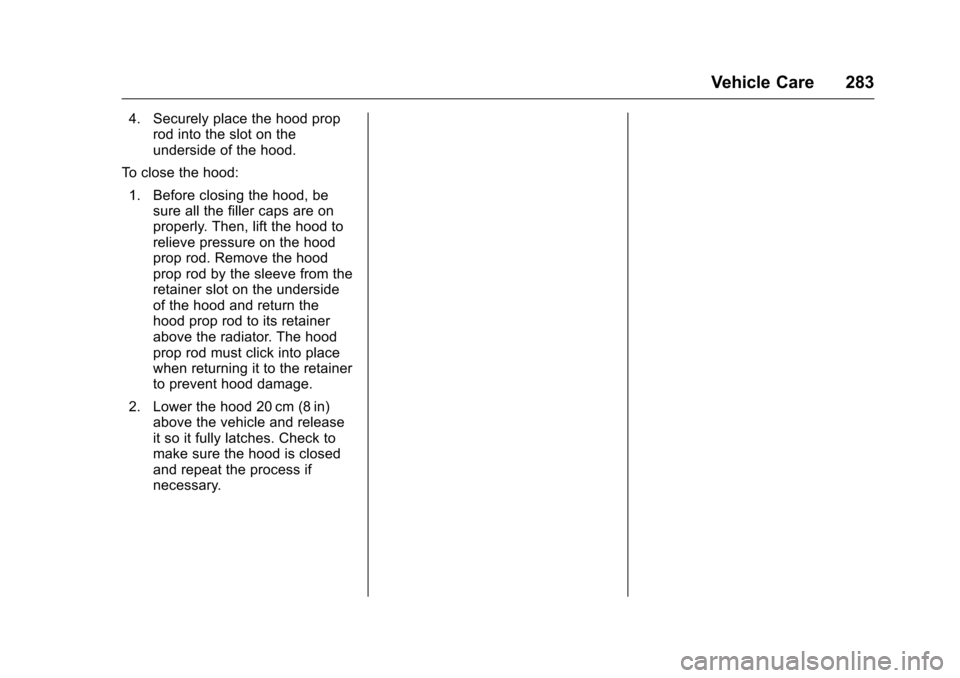

4. Securely place the hood proprod into the slot on the
underside of the hood.
To close the hood: 1. Before closing the hood, be sure all the filler caps are on
properly. Then, lift the hood to
relieve pressure on the hood
prop rod. Remove the hood
prop rod by the sleeve from the
retainer slot on the underside
of the hood and return the
hood prop rod to its retainer
above the radiator. The hood
prop rod must click into place
when returning it to the retainer
to prevent hood damage.
2. Lower the hood 20 cm (8 in) above the vehicle and release
it so it fully latches. Check to
make sure the hood is closed
and repeat the process if
necessary.
Page 285 of 420

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15
284 Vehicle Care

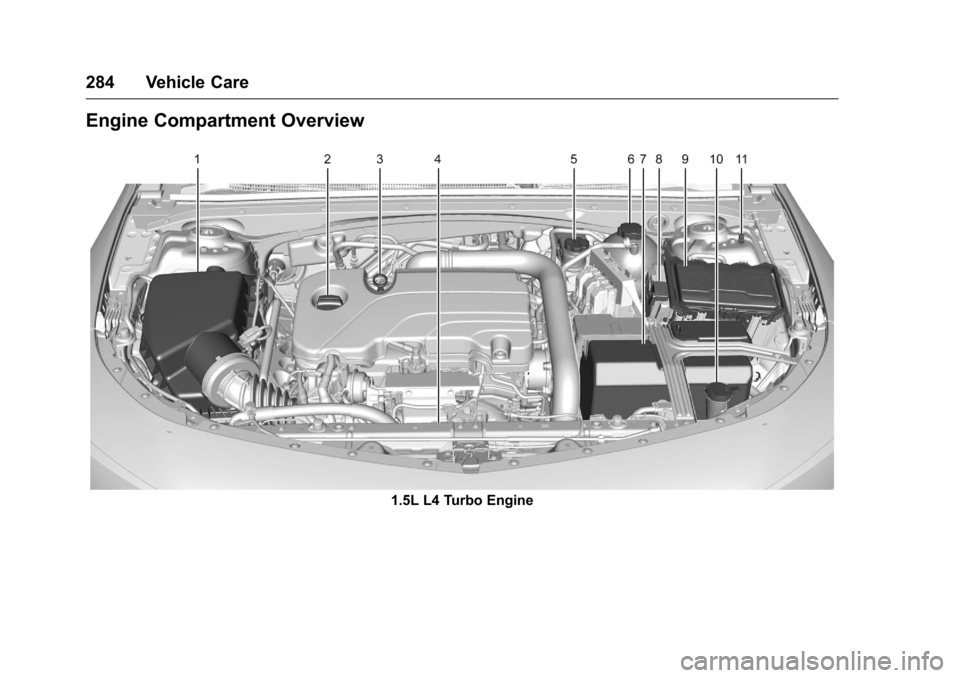

Engine Compartment Overview
1.5L L4 Turbo Engine
Page 286 of 420

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15

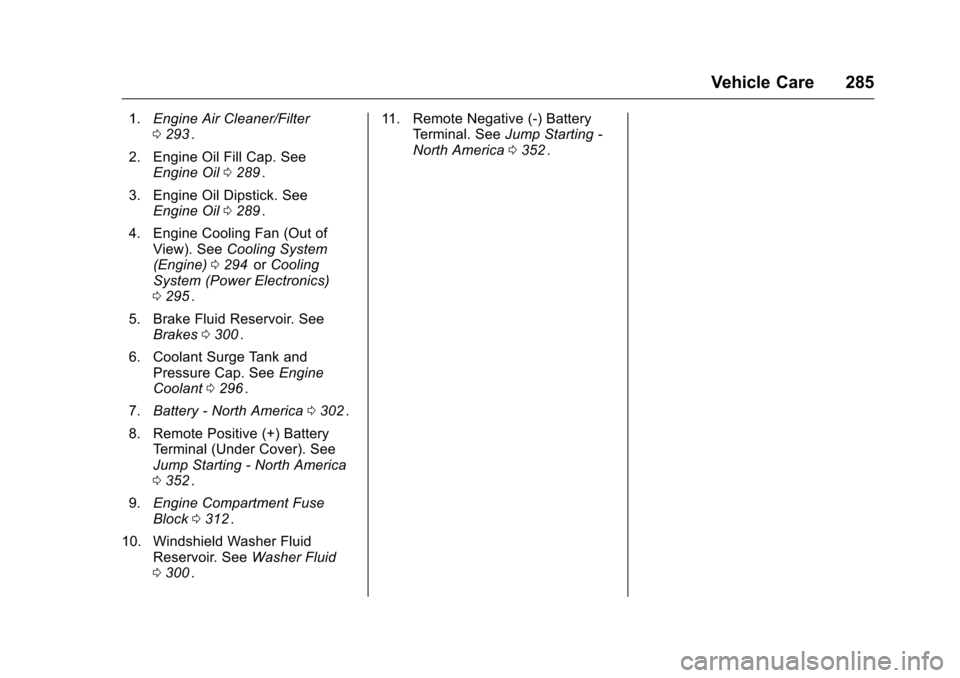

Vehicle Care 285
1.Engine Air Cleaner/Filter
0293ii.
2. Engine Oil Fill Cap. See Engine Oil 0289
ii.
3. Engine Oil Dipstick. See Engine Oil 0289
ii.
4. Engine Cooling Fan (Out of View). See Cooling System
(Engine) 0294
iior Cooling
System (Power Electronics)
0 295
ii.
5. Brake Fluid Reservoir. See Brakes 0300
ii.
6. Coolant Surge Tank and Pressure Cap. See Engine
Coolant 0296
ii.
7. Battery - North America 0302
ii.
8. Remote Positive (+) Battery Terminal (Under Cover). See
Jump Starting - North America
0352
ii.
9. Engine Compartment Fuse
Block 0312
ii.
10. Windshield Washer Fluid Reservoir. See Washer Fluid
0 300
ii. 11. Remote Negative (-) Battery
Terminal. See Jump Starting -
North America 0352
ii.
Page 287 of 420

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15
286 Vehicle Care

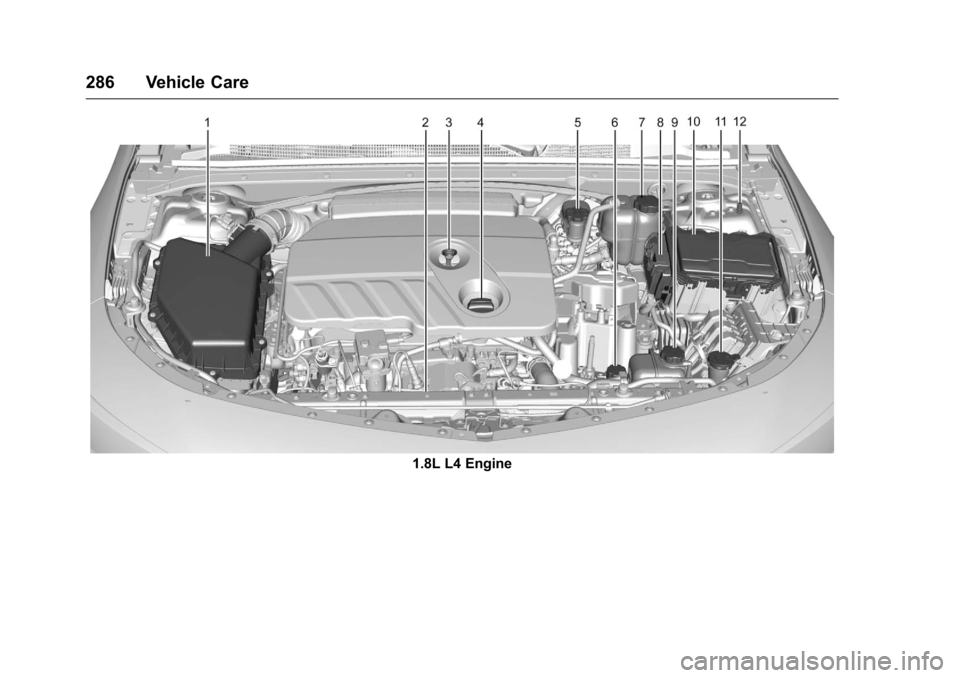

1.8L L4 Engine
Page 288 of 420

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15
Vehicle Care 287

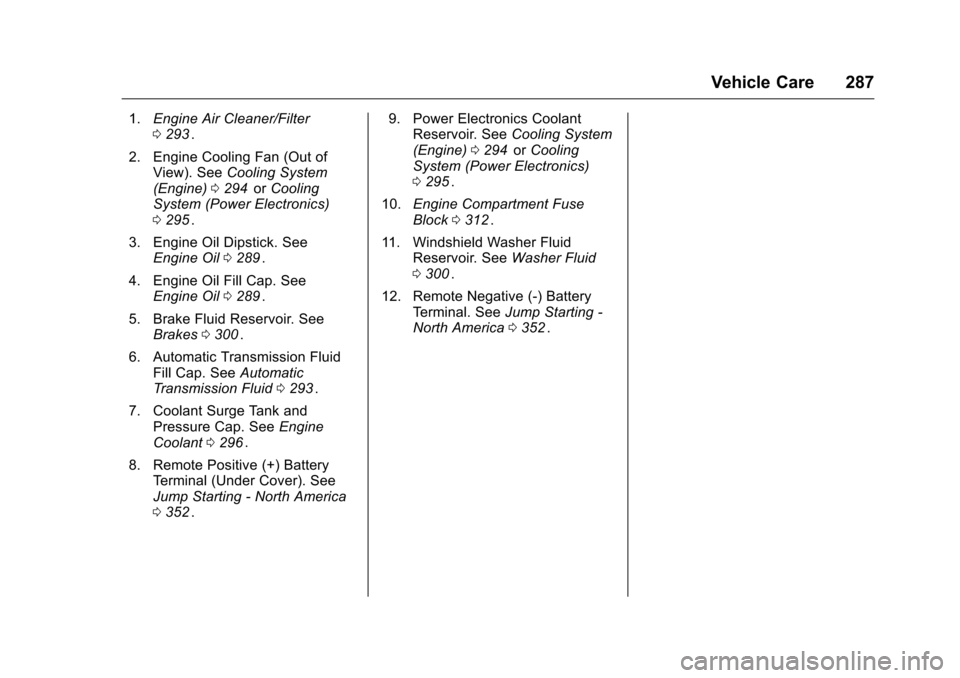

1.Engine Air Cleaner/Filter
0293ii.
2. Engine Cooling Fan (Out of View). See Cooling System
(Engine) 0294
iior Cooling
System (Power Electronics)
0 295
ii.
3. Engine Oil Dipstick. See Engine Oil 0289
ii.
4. Engine Oil Fill Cap. See Engine Oil 0289
ii.
5. Brake Fluid Reservoir. See Brakes 0300
ii.
6. Automatic Transmission Fluid Fill Cap. See Automatic
Transmission Fluid 0293
ii.
7. Coolant Surge Tank and Pressure Cap. See Engine
Coolant 0296
ii.
8. Remote Positive (+) Battery Terminal (Under Cover). See
Jump Starting - North America
0352
ii. 9. Power Electronics Coolant
Reservoir. See Cooling System
(Engine) 0294
iior Cooling
System (Power Electronics)
0 295
ii.
10. Engine Compartment Fuse
Block 0312
ii.
11. Windshield Washer Fluid Reservoir. See Washer Fluid
0 300
ii.
12. Remote Negative (-) Battery Terminal. See Jump Starting -
North America 0352
ii.
Page 289 of 420

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15
288 Vehicle Care

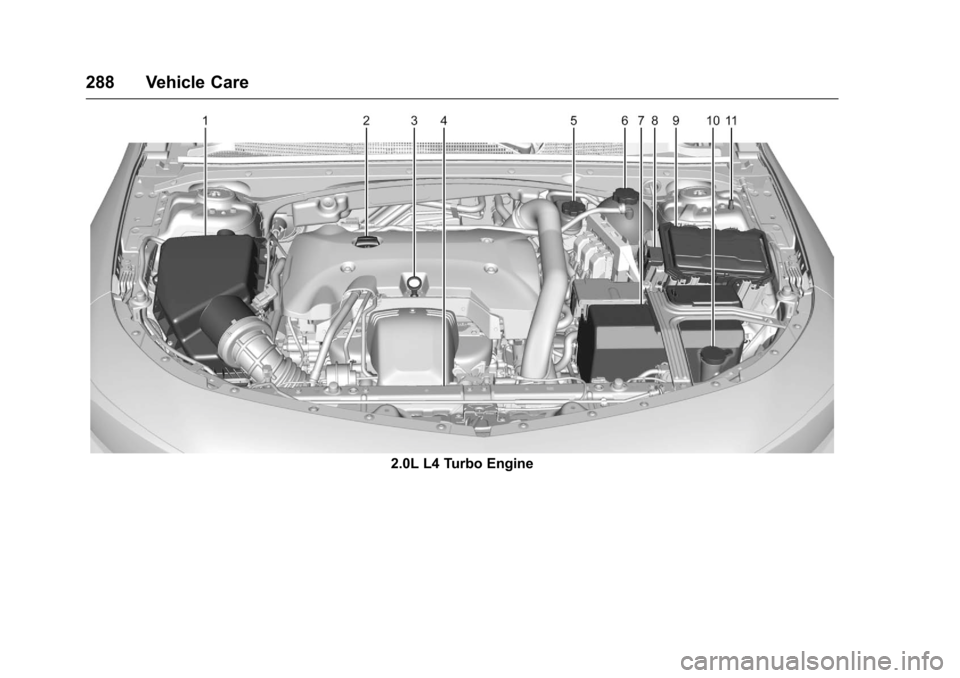

2.0L L4 Turbo Engine
Page 290 of 420

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9087641) - 2016 - crc - 9/3/15

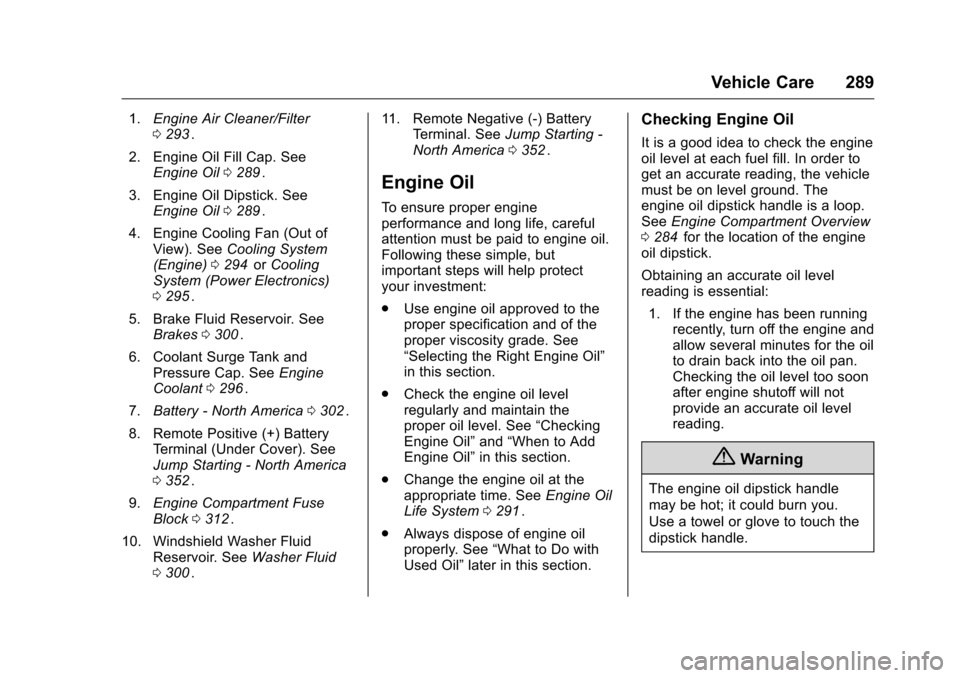

Vehicle Care 289
1.Engine Air Cleaner/Filter
0293ii.
2. Engine Oil Fill Cap. See Engine Oil 0289
ii.
3. Engine Oil Dipstick. See Engine Oil 0289
ii.
4. Engine Cooling Fan (Out of View). See Cooling System
(Engine) 0294
iior Cooling
System (Power Electronics)
0 295
ii.
5. Brake Fluid Reservoir. See Brakes 0300
ii.
6. Coolant Surge Tank and Pressure Cap. See Engine
Coolant 0296
ii.
7. Battery - North America 0302
ii.
8. Remote Positive (+) Battery Terminal (Under Cover). See
Jump Starting - North America
0352
ii.
9. Engine Compartment Fuse
Block 0312
ii.
10. Windshield Washer Fluid Reservoir. See Washer Fluid
0 300
ii. 11. Remote Negative (-) Battery
Terminal. See Jump Starting -
North America 0352
ii.
Engine Oil
To ensure proper engine
performance and long life, careful
attention must be paid to engine oil.
Following these simple, but
important steps will help protect
your investment:
.
Use engine oil approved to the
proper specification and of the
proper viscosity grade. See
“Selecting the Right Engine Oil”
in this section.
. Check the engine oil level
regularly and maintain the
proper oil level. See “Checking
Engine Oil” and“When to Add
Engine Oil” in this section.
. Change the engine oil at the
appropriate time. See Engine Oil
Life System 0291
ii.
. Always dispose of engine oil
properly. See “What to Do with
Used Oil” later in this section.
Checking Engine Oil
It is a good idea to check the engine
oil level at each fuel fill. In order to
get an accurate reading, the vehicle
must be on level ground. The
engine oil dipstick handle is a loop.
SeeEngine Compartment Overview
0 284
iifor the location of the engine
oil dipstick.
Obtaining an accurate oil level
reading is essential:
1. If the engine has been running recently, turn off the engine and
allow several minutes for the oil
to drain back into the oil pan.
Checking the oil level too soon
after engine shutoff will not
provide an accurate oil level
reading.
{Warning
The engine oil dipstick handle
may be hot; it could burn you.
Use a towel or glove to touch the
dipstick handle.
