CHEVROLET MONTE CARLO 1996 5.G Owners Manual

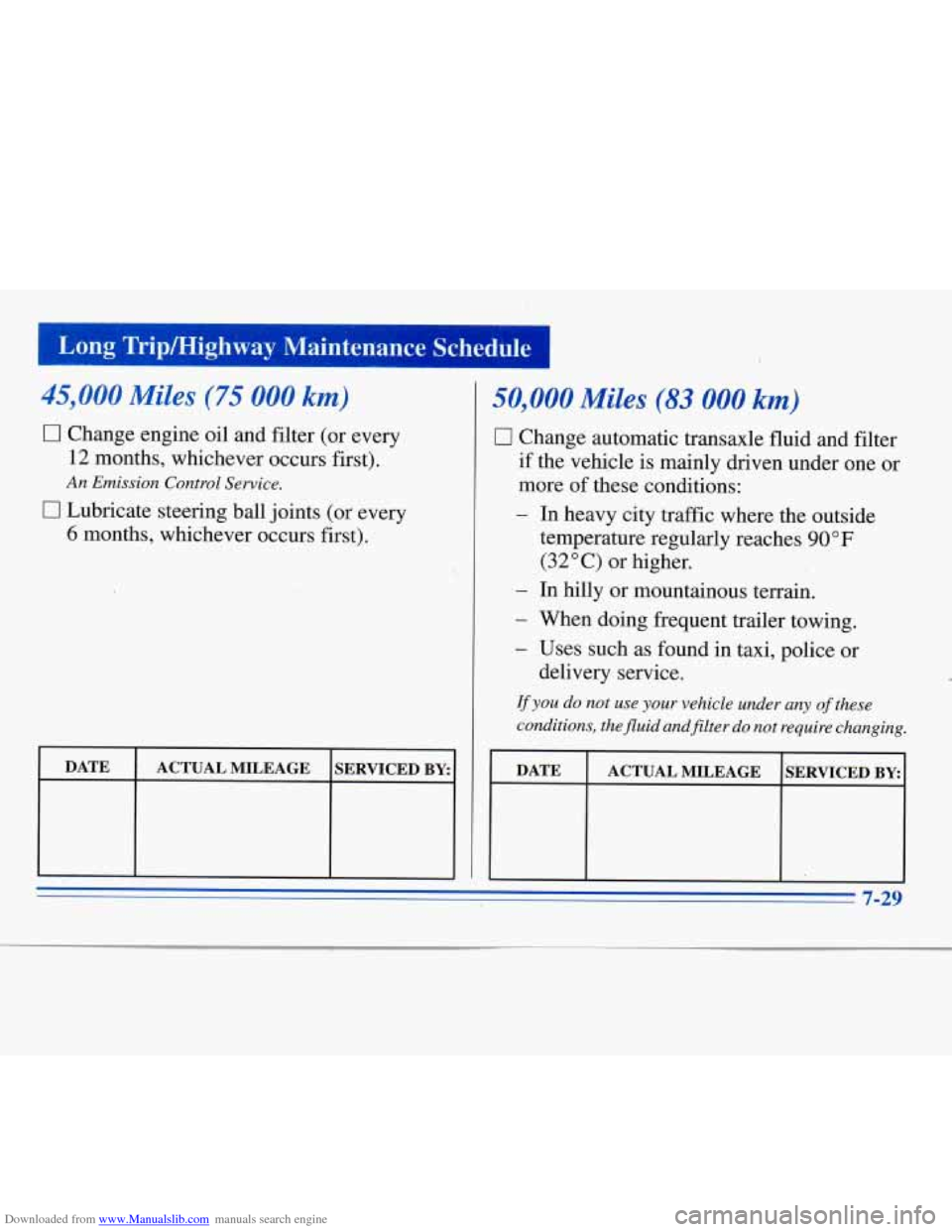

Downloaded from www.Manualslib.com manuals search engine Long Tripmighway Maintenance Schedule
45,000 Miles (75 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate steering ball joints (or every
6 months, whichever occurs first).
An Emission Control Service.
I DATE ACTUAL MILEAGE SERVICED BY:
50,000 Miles (83 000 km)
0 Change automatic transaxle fluid and filter
if the vehicle is mainly driven under one or
' more of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 OF
(32 O C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
If YOU do not use your vehicle under any of these
conditions, the fluid andfilter
do not require changing.
DATE ACTUAL MILEAGE ~ SERVICED BY:
7-29

Downloaded from www.Manualslib.com manuals search engine I Long Tripmighway Maintenance Schedule

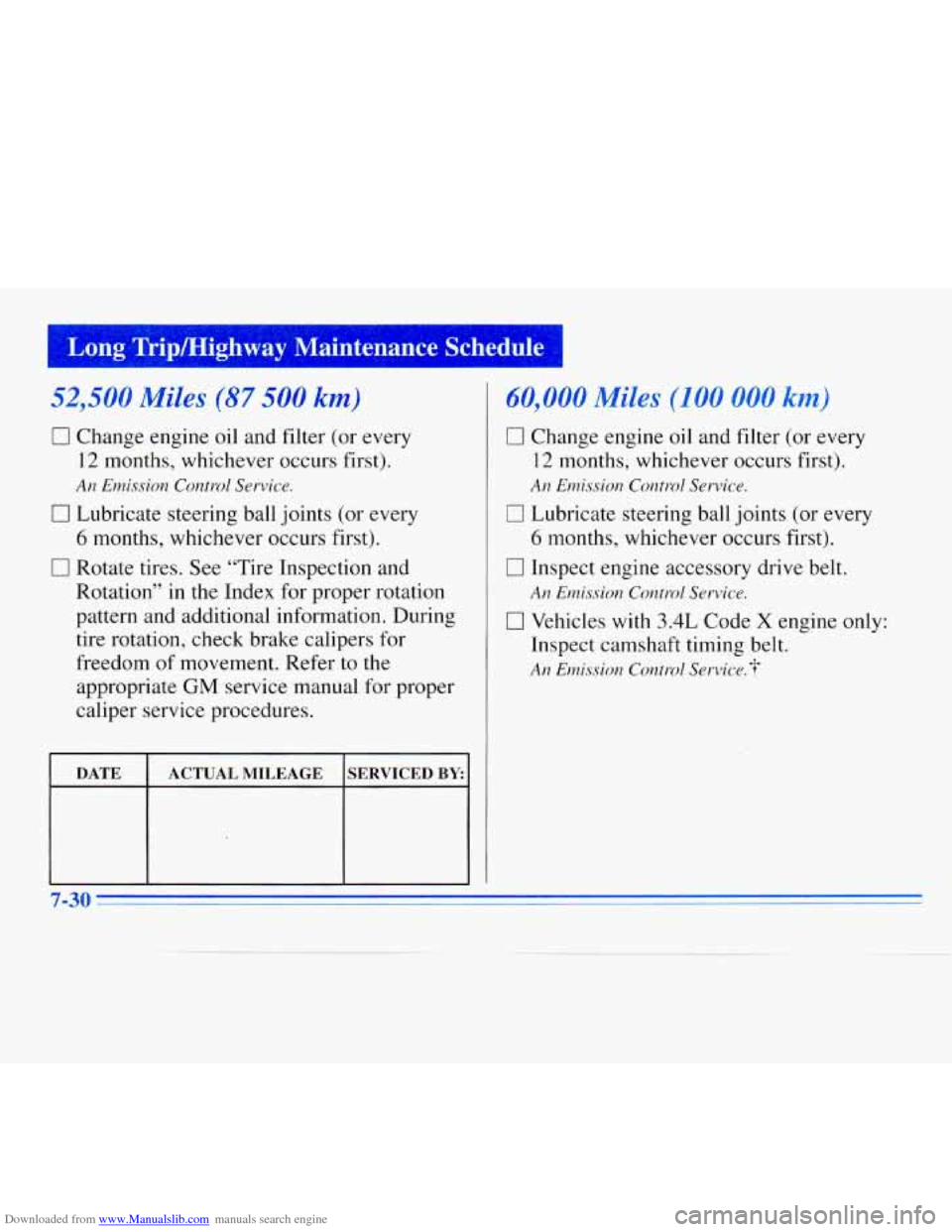

52,500 Miles (87 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate steering ball joints (or every
6 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information. During tire rotation, check brake calipers for
freedom
of movement. Refer to the
appropriate
GM service manual for proper
caliper service procedures.
DATE SERVICED BY ACTUAL MILEAGE
60,000 Miles (100 000 kt)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate steering ball joints (or every
6 months, whichever occurs first).
17 Inspect engine accessory drive belt.
0 Vehicles with 3.4L Code X engine only:
An Emission Control Service.
Inspect camshaft timing belt.
An Emission Con.trol Service. ?

Downloaded from www.Manualslib.com manuals search engine 1 Long TripKIighway Maintenance Schedule I

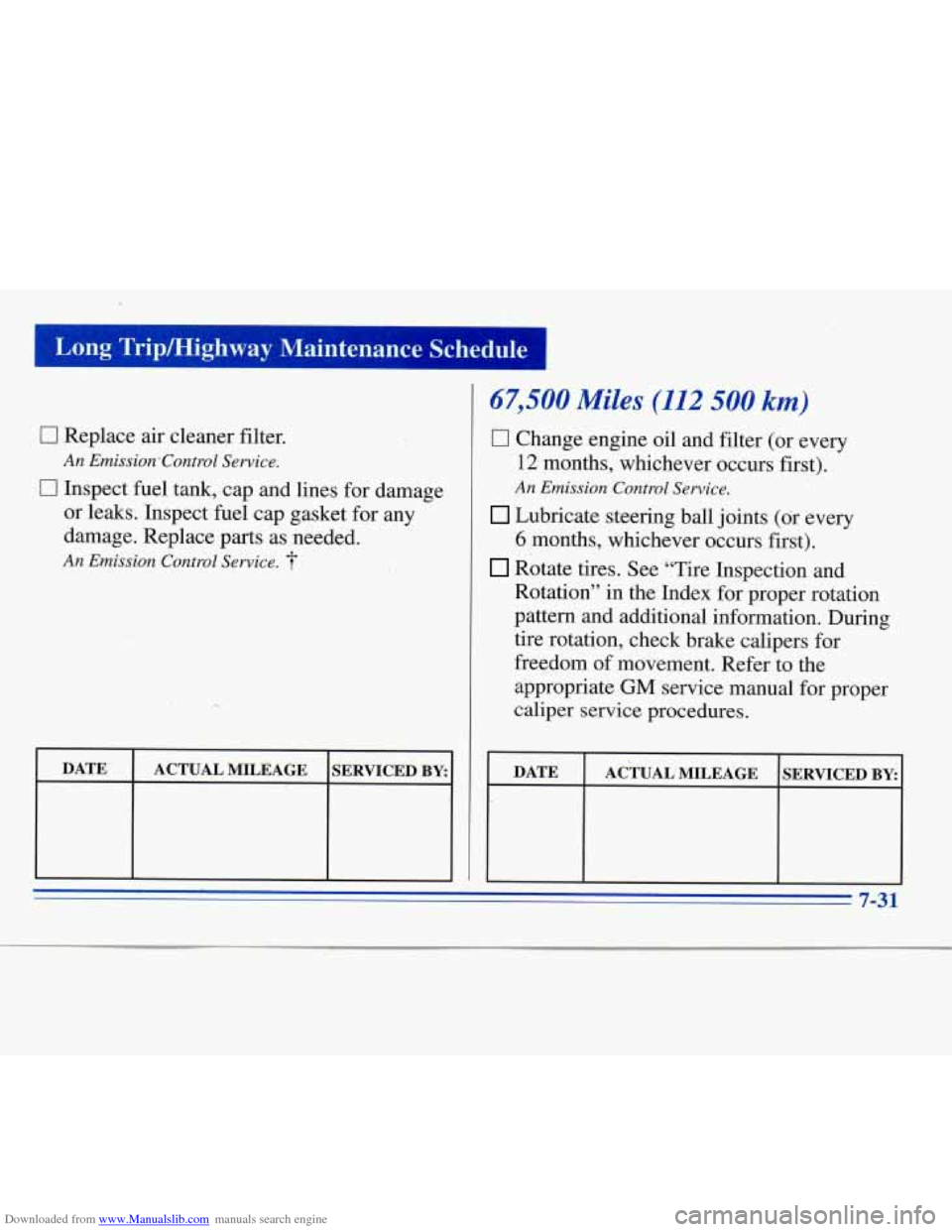

0 Replace air cleaner filter.
An EmissionControl Service.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect
fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service.
<
ACTUAL MILEAGE SERVICED BY:
67,500 Miles (112 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
Lubricate steering ball joints (or every
6 months, whichever occurs first).
Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
During
tire rotation, check brake calipers for
freedom of movement. Refer to the
appropriate
GM service manual for proper
caliper service procedures.
An Emission Control Service.
7-31

Downloaded from www.Manualslib.com manuals search engine Long Tripmighway Maintenance Schedule
75,OOOMiles (125 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate steering ball joints (or every
6 months, whichever occurs first).
Inspect camshaft timing belt.
An Emission Control Service.
An Emission Control Service.
I
DATE ACTUAL MILEAGE SERVICED BY:
82,500 Miles (137 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate steering ball joints (or every
6 months, whichever occurs first).
An Emission Control Service.
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. During
tire rotation, check brake calipers for
freedom of movement. Refer to the
appropriate
GM service manual for proper
caliper service procedures.
DATE ACTUAL MILEAGE SERVICED BY:
7-32
m

Downloaded from www.Manualslib.com manuals search engine Long Tripmighway Maintenance Schedule

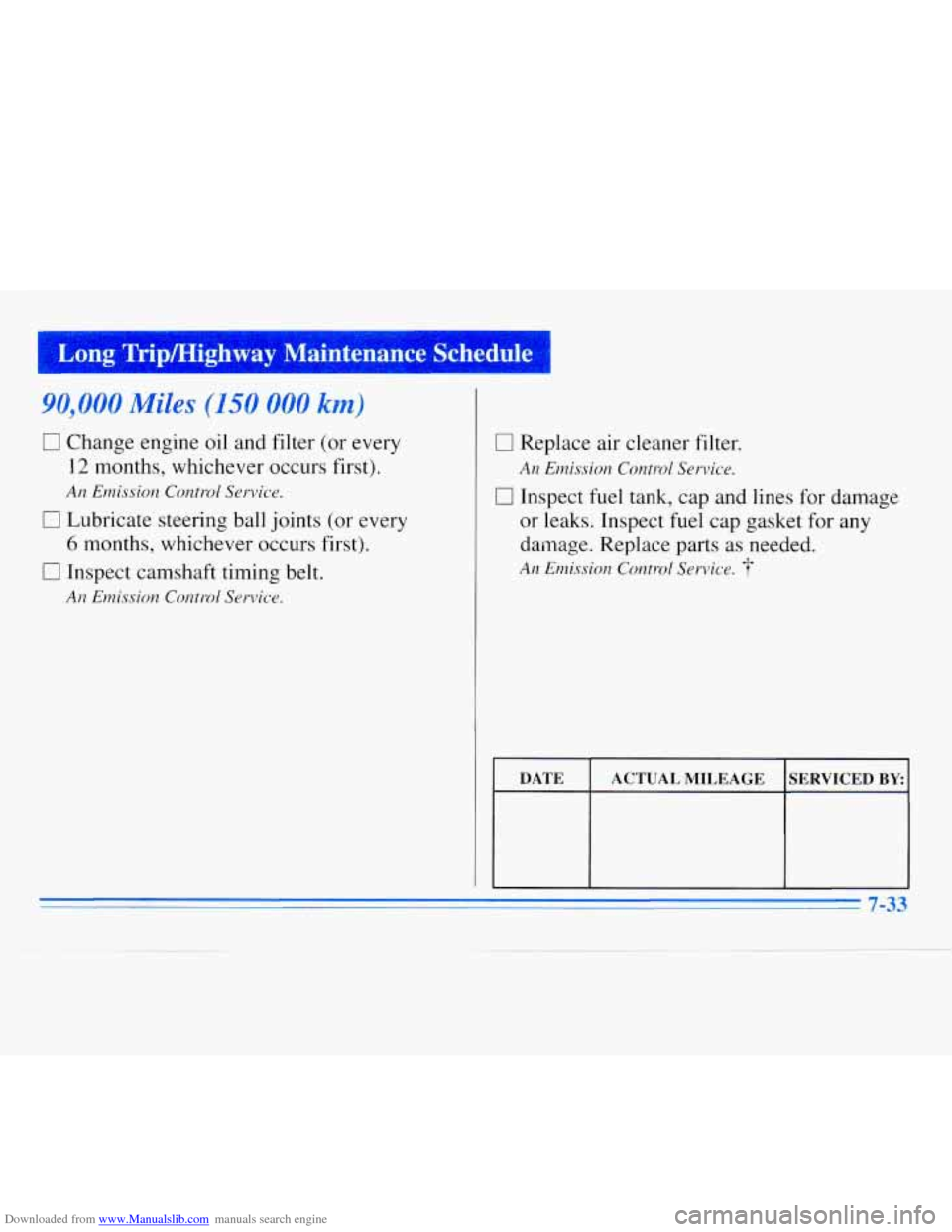

90,000 Miles (150 000 km)
I7 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate steering ball joints (or every
6 months, whichever occurs first).
0 Inspect camshaft timing belt.
An Emission Control Service.
17 Replace air cleaner filter.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts
as needed.
An Emission Control Service.
An Emission Control Service.
I I
DATE ACTUAL MILEAGE
SERVICED BY

Downloaded from www.Manualslib.com manuals search engine Long Trip/Hi-bvay Maintenance Schedule

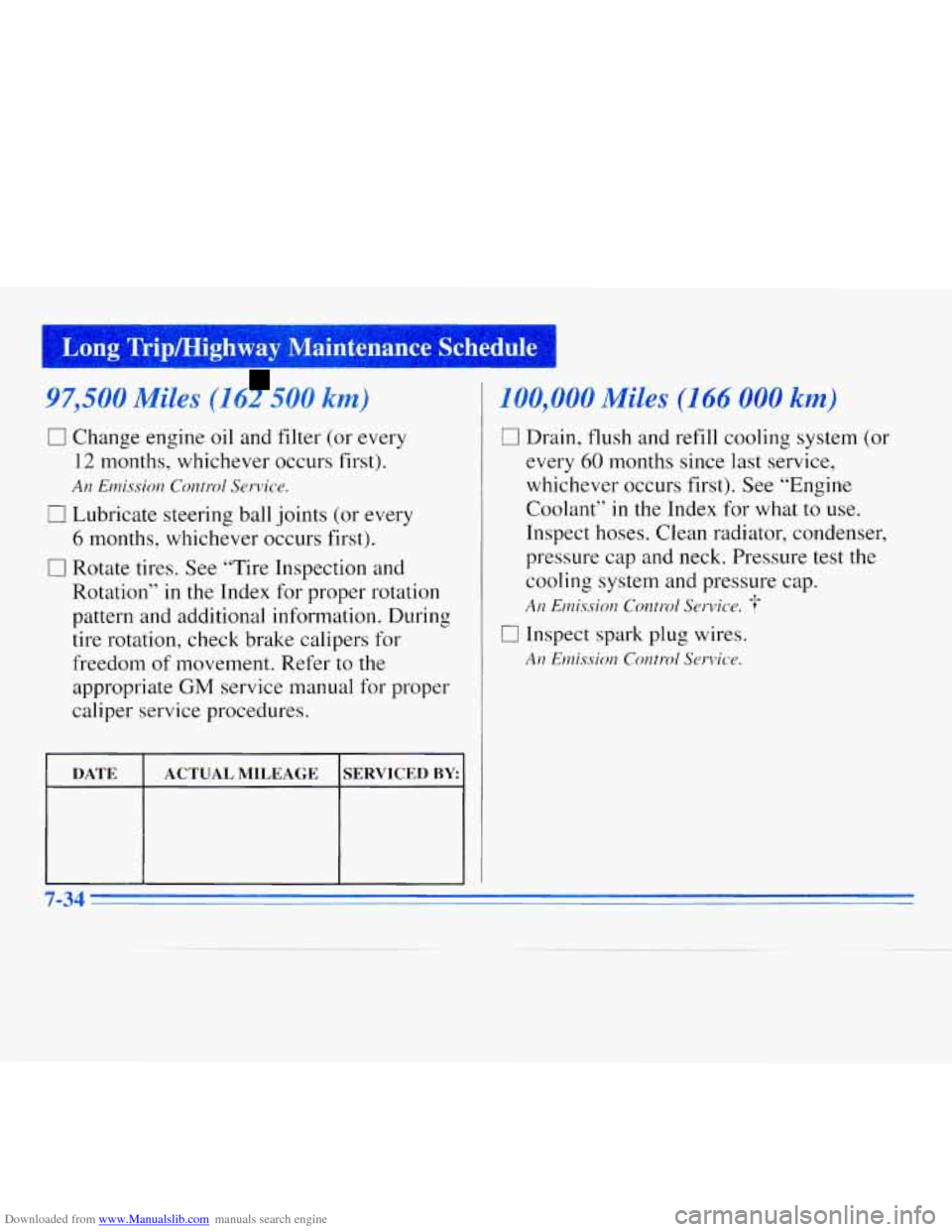

97,500 Miles (16- 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
17 Lubricate steering ball joints (or every
6 months, whichever occurs first).
17 Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information. During
tire rotation, check brake calipers for
freedom of movement. Refer to the
appropriate
GM service manual for proper
caliper service procedures.
DATE ACTUAL MILEAGE SERVICED BY
100,000 Miles (166 000 km)
0 Drain, flush and refill cooling system (or
every
60 months since last service,
whichever occurs first). See “Engine
Coolant”
in the Index for what to use.
Inspect hoses. Clean radiator, condenser,
pressure cap and neck. Pressure test the
cooling system and pressure cap.
An Emission Con‘trol Service.
0 Inspect spark plug wires.
An Emission Control Service.
7-34

Downloaded from www.Manualslib.com manuals search engine I Long Tripmighway Maintenance Schedule I
I7 Replace spark plugs. A72 Emission
0 Change automatic transaxle fluid and filter
if the vehicle is mainly driven under one or
more of these conditions:
Control Service.
- In heavy city traffic where the outside
temperature regularly reaches
90 O F
(32°C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
If you do not use your vehicle under any of these
conditions, theflcrid and,filter
do not require changing.
DATE ACTUAL MILEAGE
I
SERVICED BY:
7-35

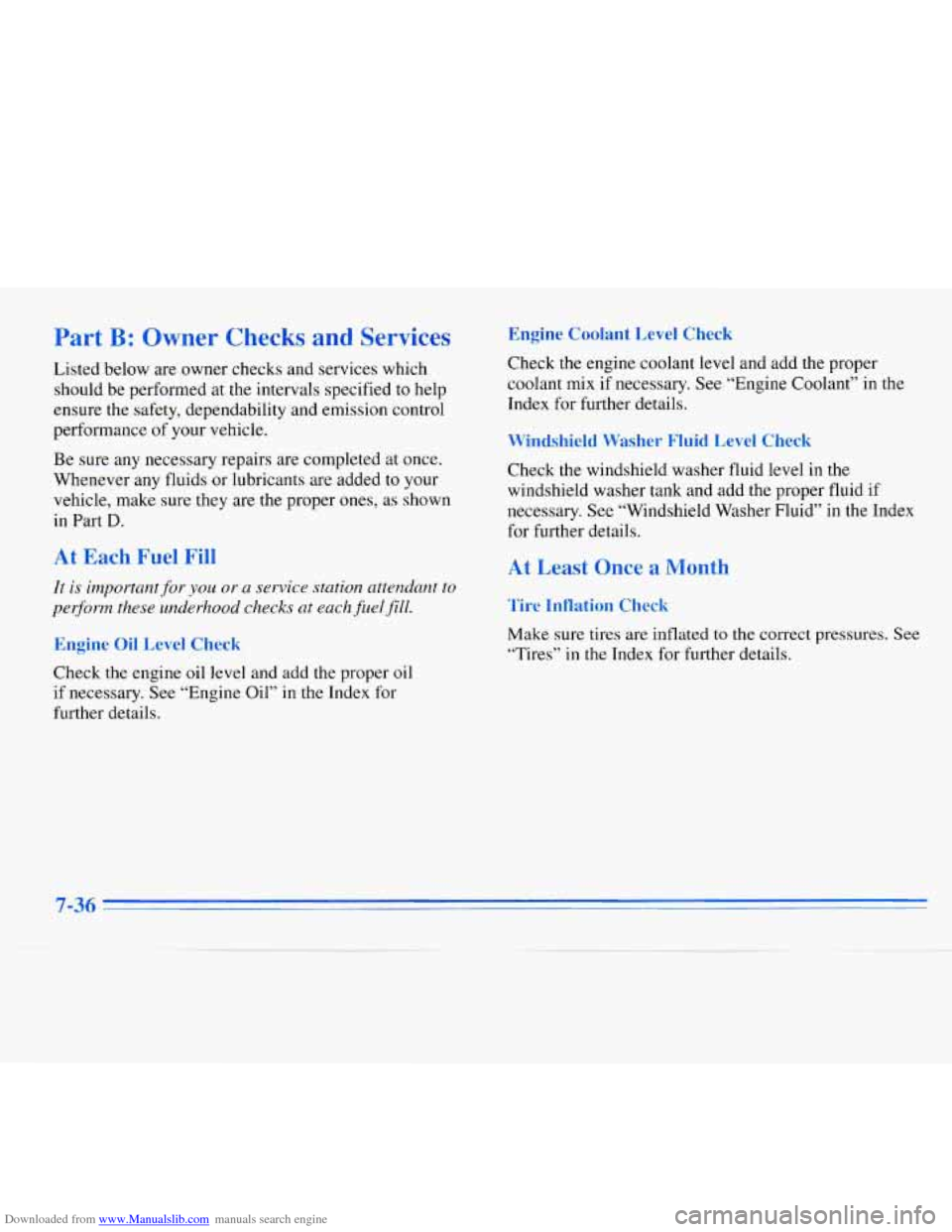

Downloaded from www.Manualslib.com manuals search engine Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part
D.
At Each Fuel Fill
It is important for you or a service station attendant to
per$orm these underhood checks at each fuel
fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil
if necessary. See “Engine Oil” in the Index for
further details.
Engine Coolant Level Check
Check the engine coolant level and add the proper
coolant mix if necessary. See “Engine Coolant” in the
Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid if
necessary. See “Windshield Washer Fluid” in
the Index
for further details.
At Least Once a Month
.Tire Inflation Check
Make sure tires are inflated to the correct pressures. See
“Tires” in the Index for further details.
7-36

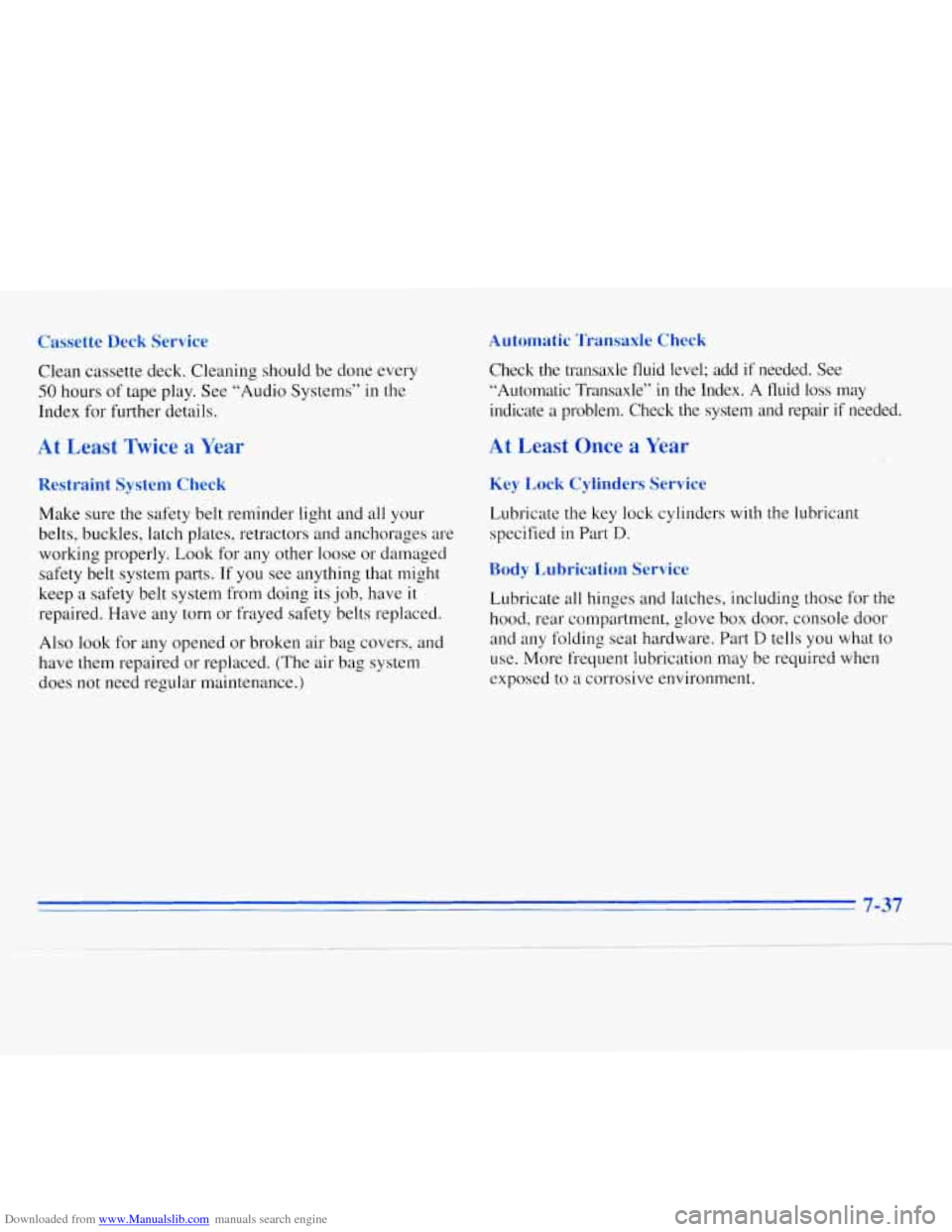

Downloaded from www.Manualslib.com manuals search engine Cassette Deck Service Automatic Transaxle Check
Clean cassette deck. Cleaning should
be done every
50 hours of tape play. See “Audio Systems” in the
Index for further details.
At Least Twice a Year
Restrain ystem Chc -1,
Make sure the sarety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are
working properly. Look for any other loose
or damaged
safety belt system parts.
If you see anything that might
keep a safety belt system from doing its job, have
it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened
or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.) Check the transaxle fluid level; add
if needed.
See
“Automatic Transaxle”
in the Index. A fluid loss may
indicate
a problem. Check the system and repair if needed.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part
D.
Body Lubrication Service
Lubricate all hinges and latches, including those for the
hood, rear compartment, glove box door, console door
and any folding seat hardware. Part
D tells you what to
use. More frequent lubrication may be required when
exposed to a corrosive environment.

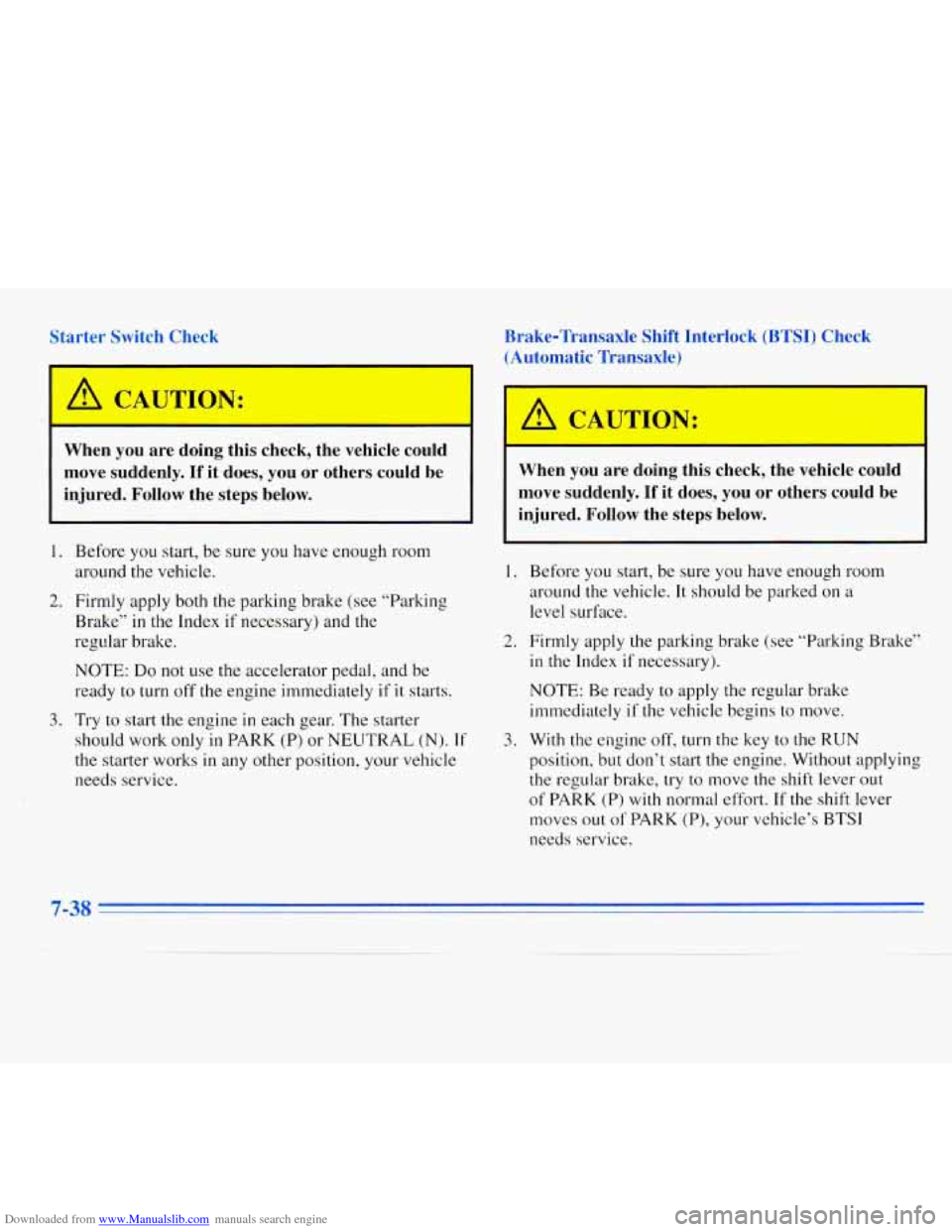

Downloaded from www.Manualslib.com manuals search engine Starter Switch Check Brake-Transaxle Shift Interlock (BTSI) Check
(Automatic Transaxle)
A CAUTION:
- ’ A CAUTION:
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be When you are doing this check, \
the vehicle could
injured. Follow the steps below. move suddenly. If it does, yo\
u or others could be --
: injured. Follow the steps below.
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle.
Firmly apply both the parking brake (see “Parking
Brake” in
the Index if necessary) and the
regular brake.
NOTE: Do not use the accelerator pedal, and be
ready to turn off the engine immediately
if it starts.
Try to start the engine
in each gear. The starter
should work only in PARK
(P) or NEUTRAL (N). If
the starter works in any other position, your vehicle
needs service. 1.
Before you start, be sure
you have enough room
around the vehicle. It should be parked on
a
level surface.
2. Firmly apply the parking brake (see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately
if the vehicle begins to move.
3. With the eilgine off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake, try
to move the shift lever out
of PARK (P) with normal effort. If the shift lever
moves out
of PARK (P), your vehicle’s BTSI
needs service.
7-38
