Page 2171 of 2438

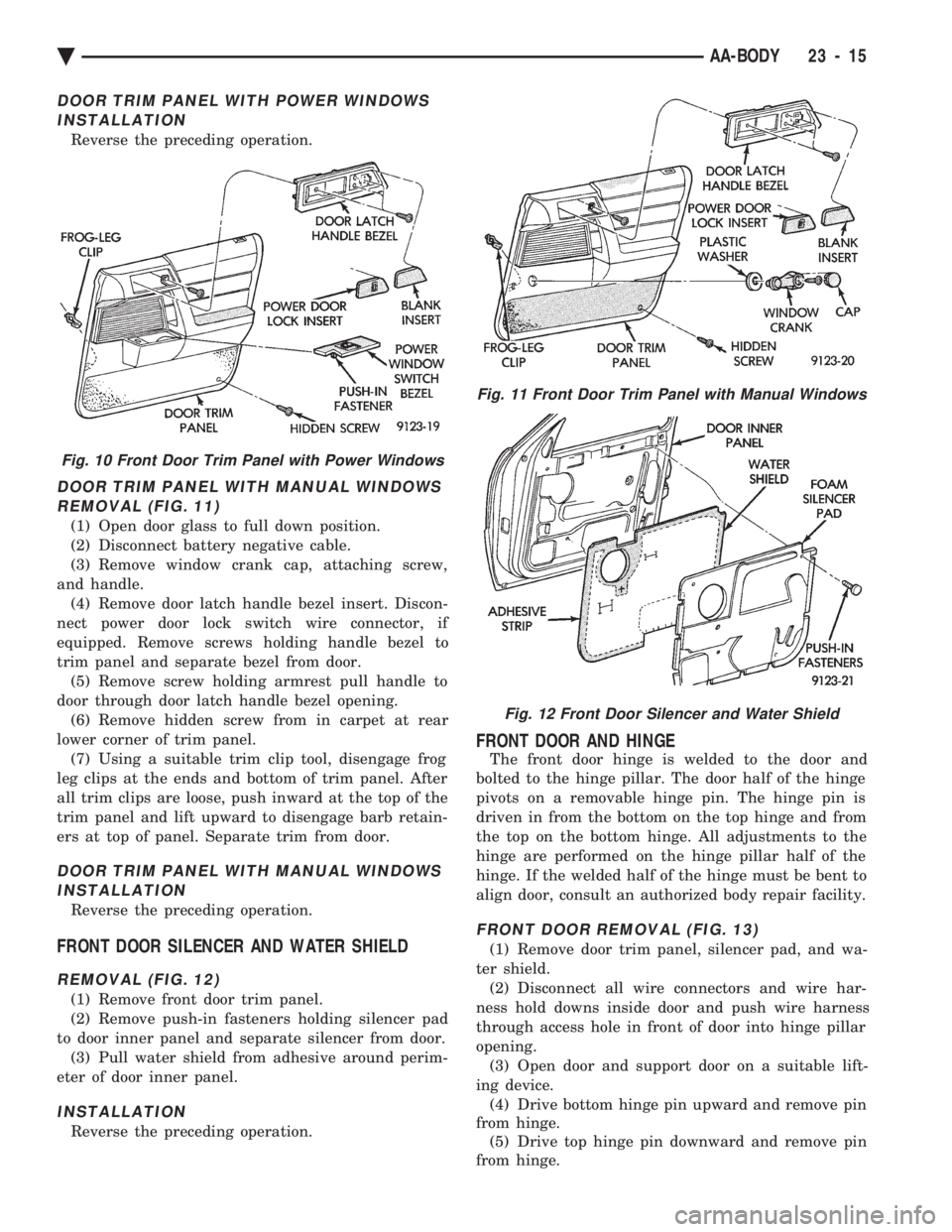

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual DOOR TRIM PANEL WITH POWER WINDOWS INSTALLATION
Reverse the preceding operation.
DOOR TRIM PANEL WITH MANUAL WINDOWSREMOVAL (FIG. 11)
(1) Open door glass to full down position.
(2) Disconnect battery

Page 2172 of 2438

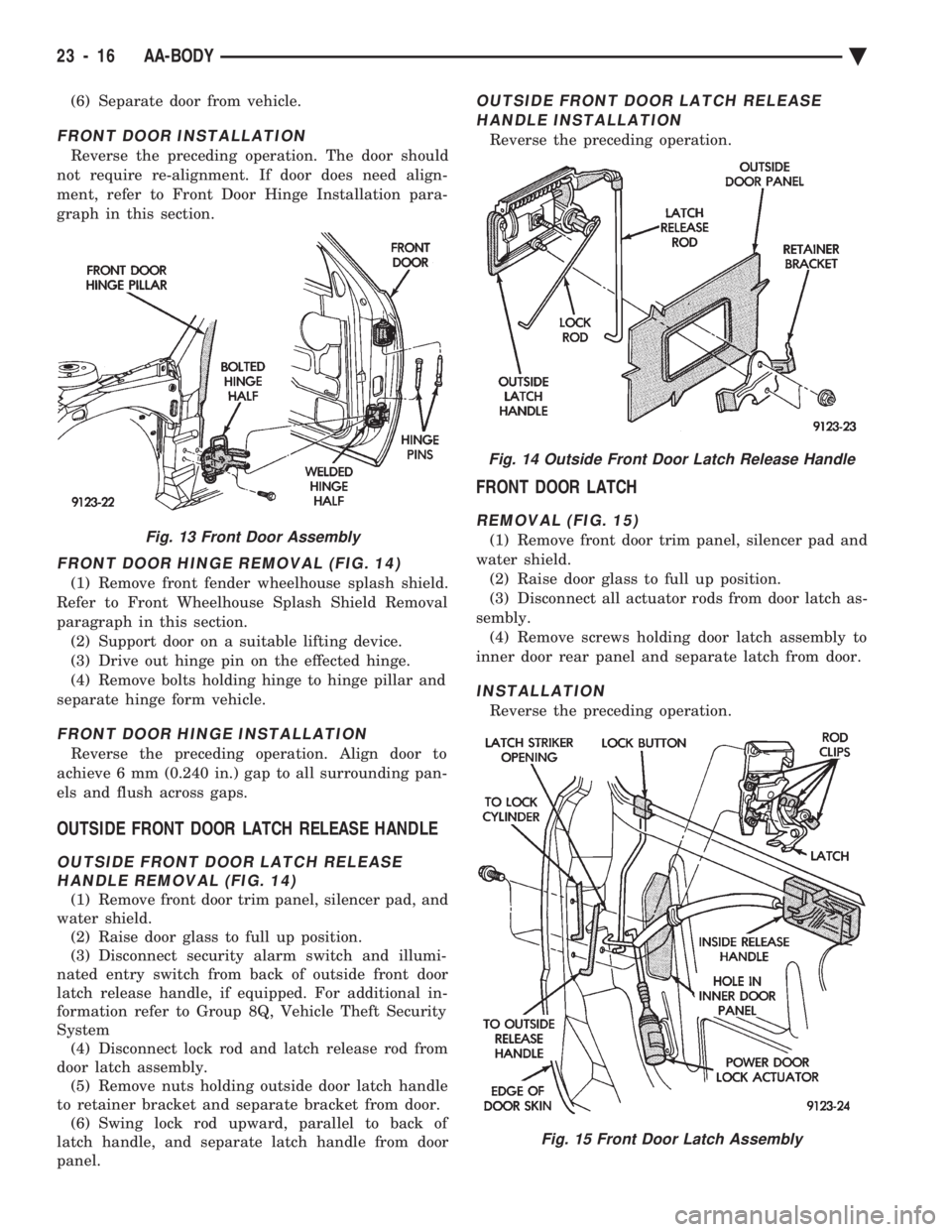

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (6) Separate door from vehicle.
FRONT DOOR INSTALLATION
Reverse the preceding operation. The door should
not require re-alignment. If door does need align-
ment, refer to Front Door Hinge Installatio

Page 2173 of 2438

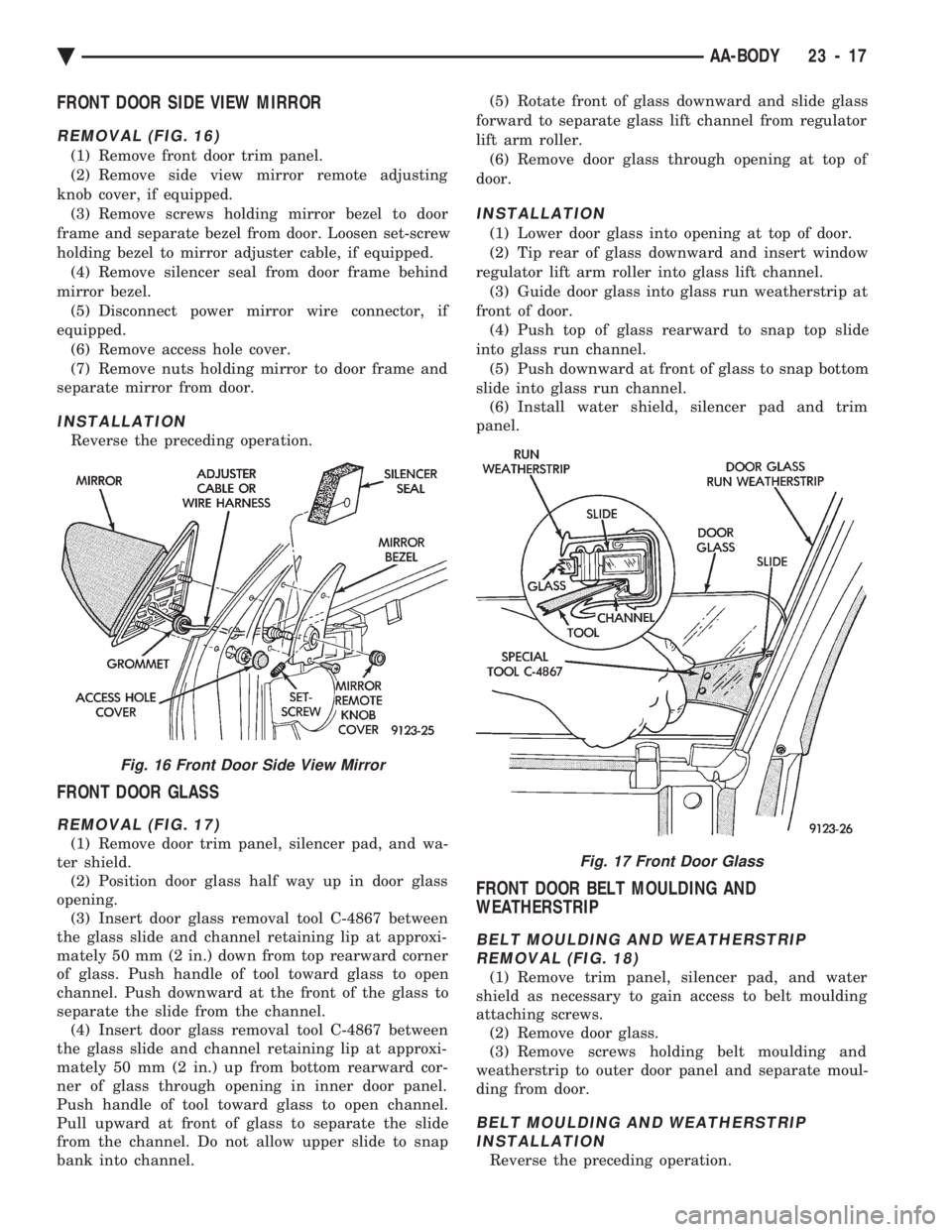

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual FRONT DOOR SIDE VIEW MIRROR
REMOVAL (FIG. 16)
(1) Remove front door trim panel.
(2) Remove side view mirror remote adjusting
knob cover, if equipped. (3) Remove screws holding mirror bezel to door
fr

Page 2174 of 2438

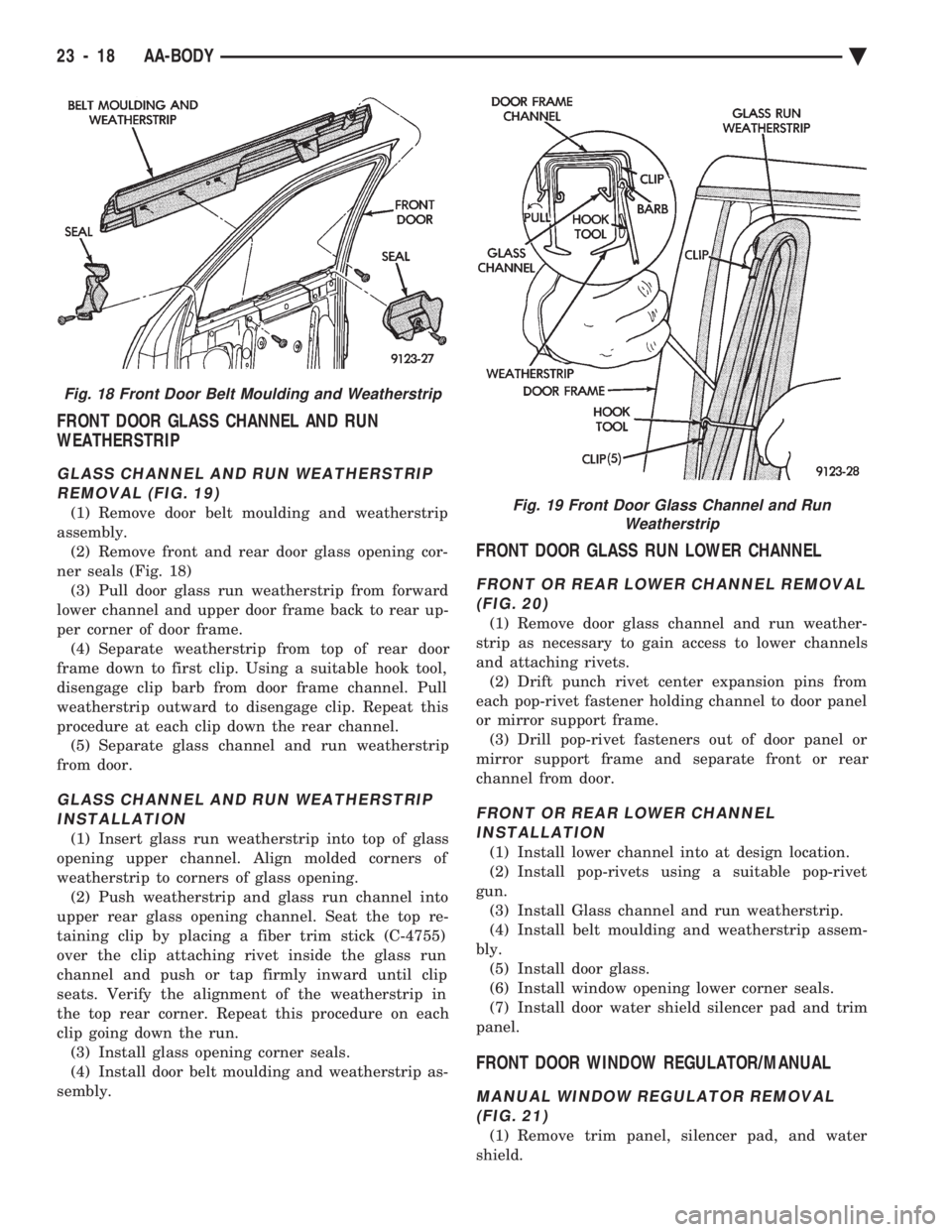

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual FRONT DOOR GLASS CHANNEL AND RUN
WEATHERSTRIP
GLASS CHANNEL AND RUN WEATHERSTRIP
REMOVAL (FIG. 19)
(1) Remove door belt moulding and weatherstrip
assembly. (2) Remove front and rear door glass openi

Page 2175 of 2438

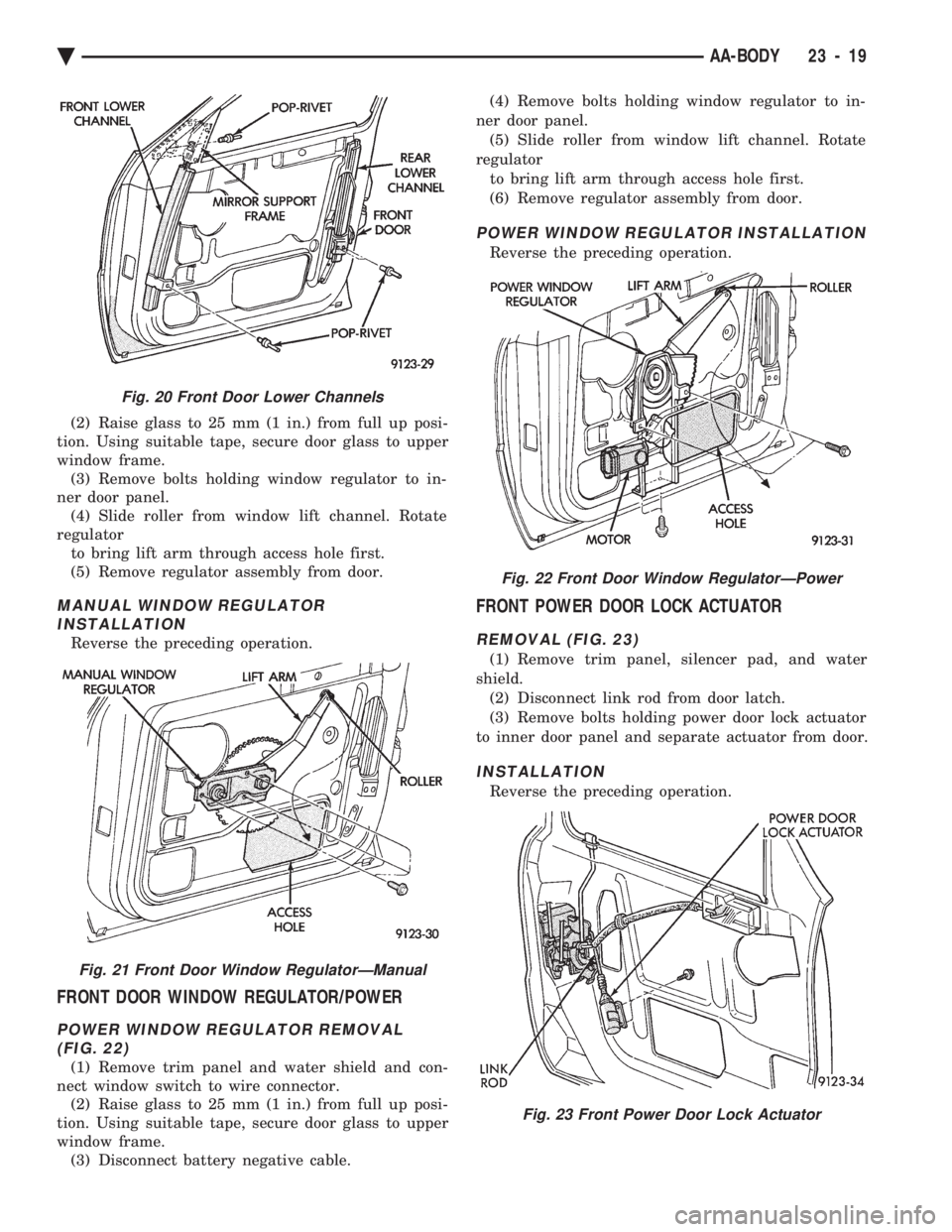

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (2) Raise glass to 25 mm (1 in.) from full up posi-
tion. Using suitable tape, secure door glass to upper
window frame. (3) Remove bolts holding window regulator to in-
ner door panel. (4) Slide roll

Page 2176 of 2438

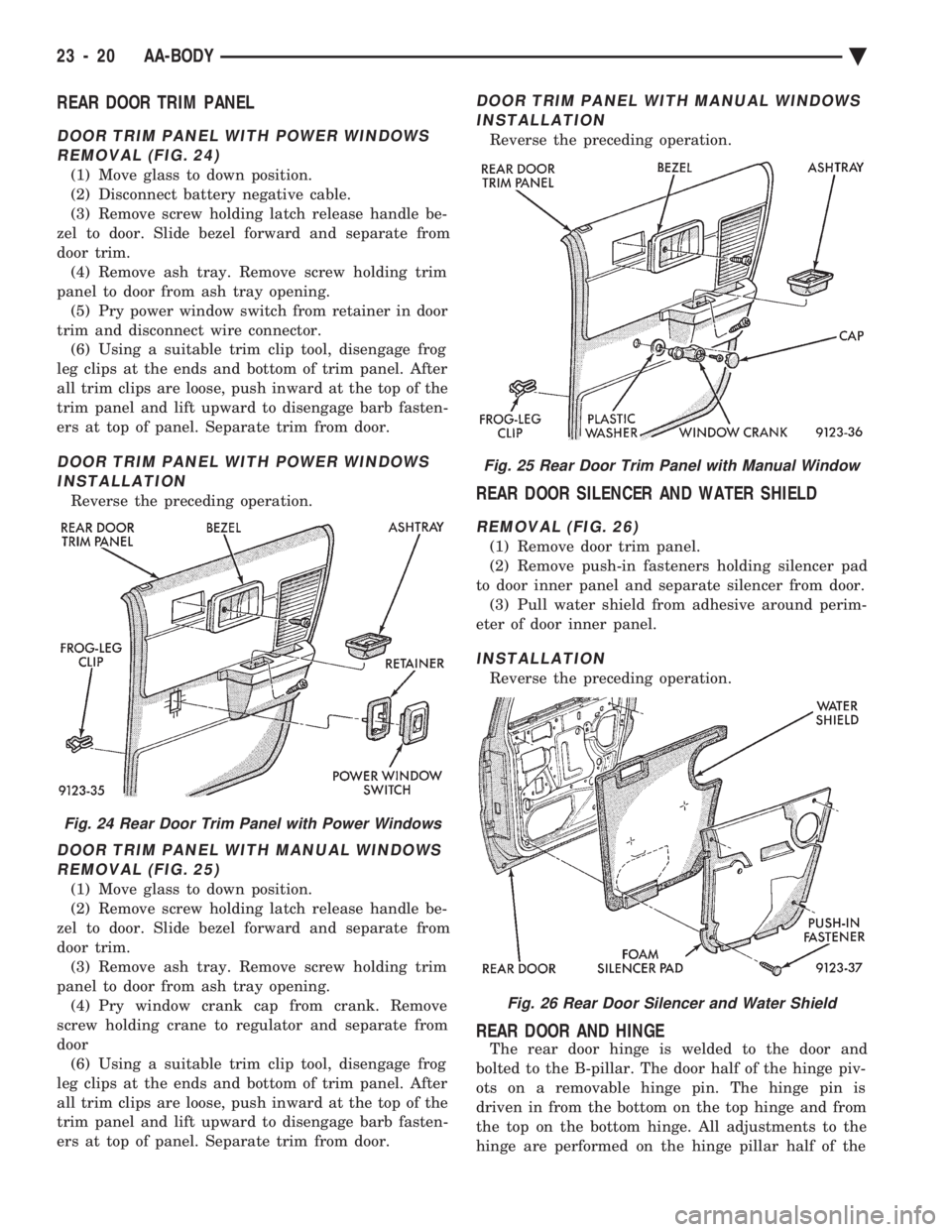

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual REAR DOOR TRIM PANEL
DOOR TRIM PANEL WITH POWER WINDOWS REMOVAL (FIG. 24)
(1) Move glass to down position.
(2) Disconnect battery negative cable.
(3) Remove screw holding latch release handle be-
zel

Page 2177 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual hinge. If the welded half of the hinge must be bent to
align door, consult an authorized body repair facility.
REAR DOOR REMOVAL (FIG. 27)
(1) Remove B-pillar trim panel and disconnect all
wire conne

Page 2178 of 2438

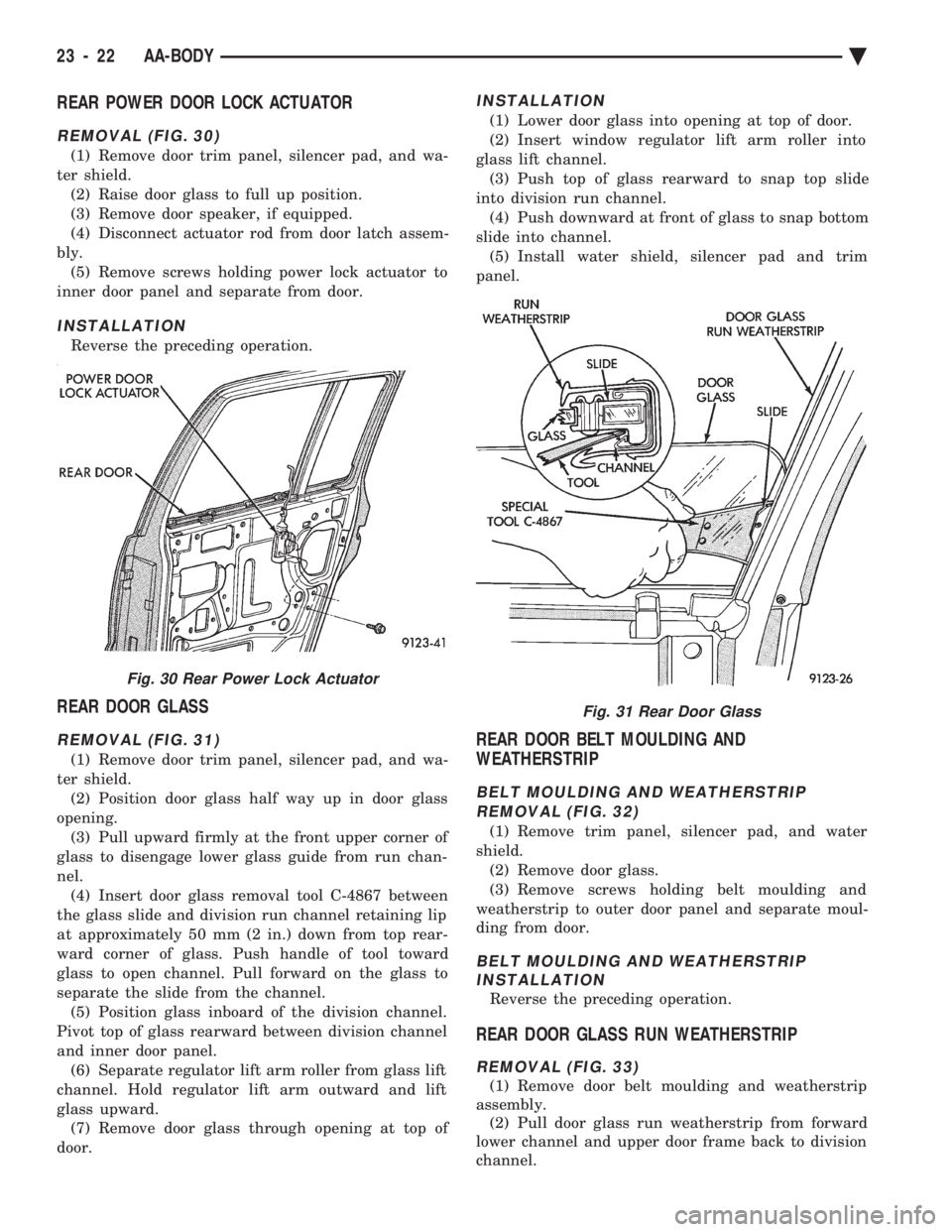

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual REAR POWER DOOR LOCK ACTUATOR
REMOVAL (FIG. 30)
(1) Remove door trim panel, silencer pad, and wa-
ter shield. (2) Raise door glass to full up position.
(3) Remove door speaker, if equipped.
(4) Disco

Page 2179 of 2438

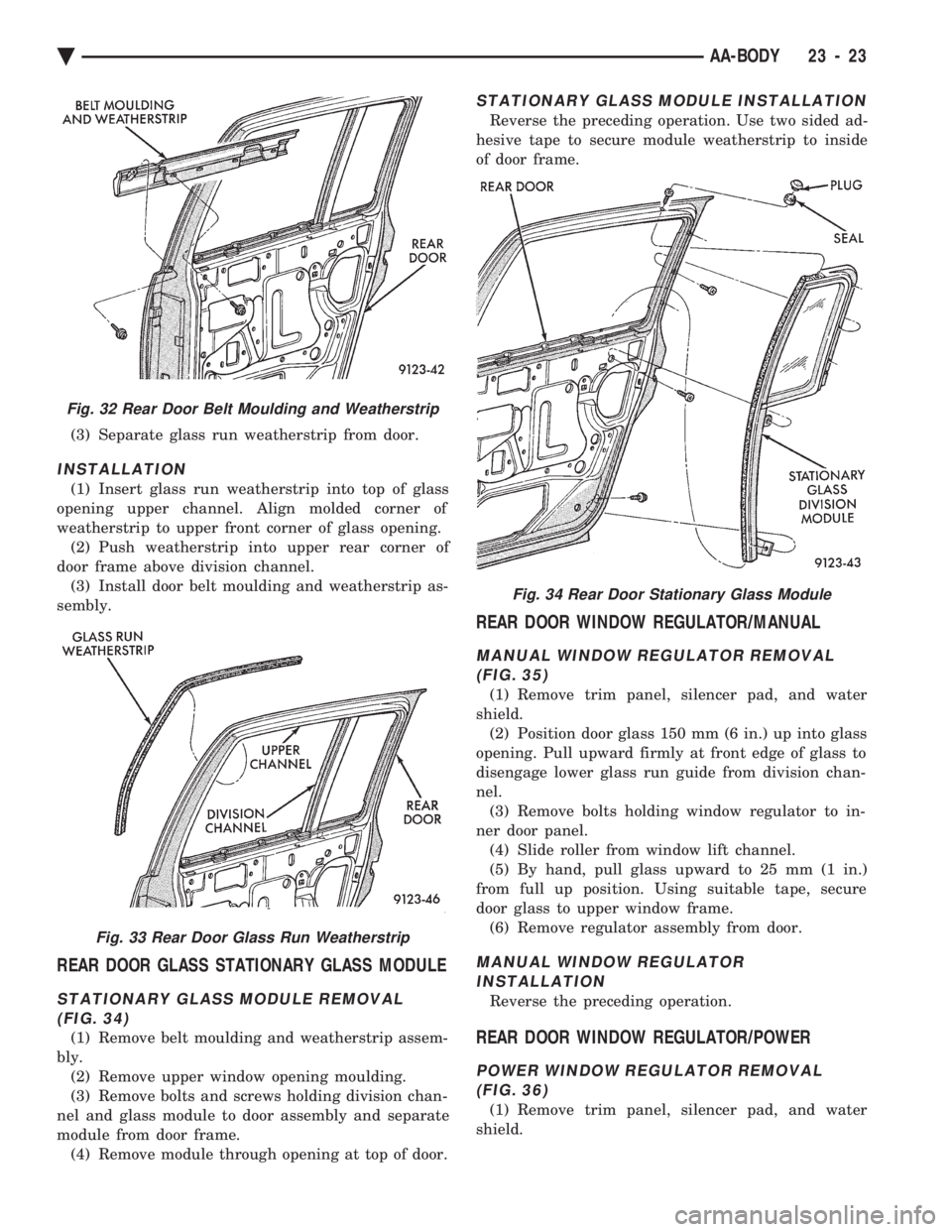

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (3) Separate glass run weatherstrip from door.
INSTALLATION
(1) Insert glass run weatherstrip into top of glass
opening upper channel. Align molded corner of
weatherstrip to upper front corner of gla

Page 2180 of 2438

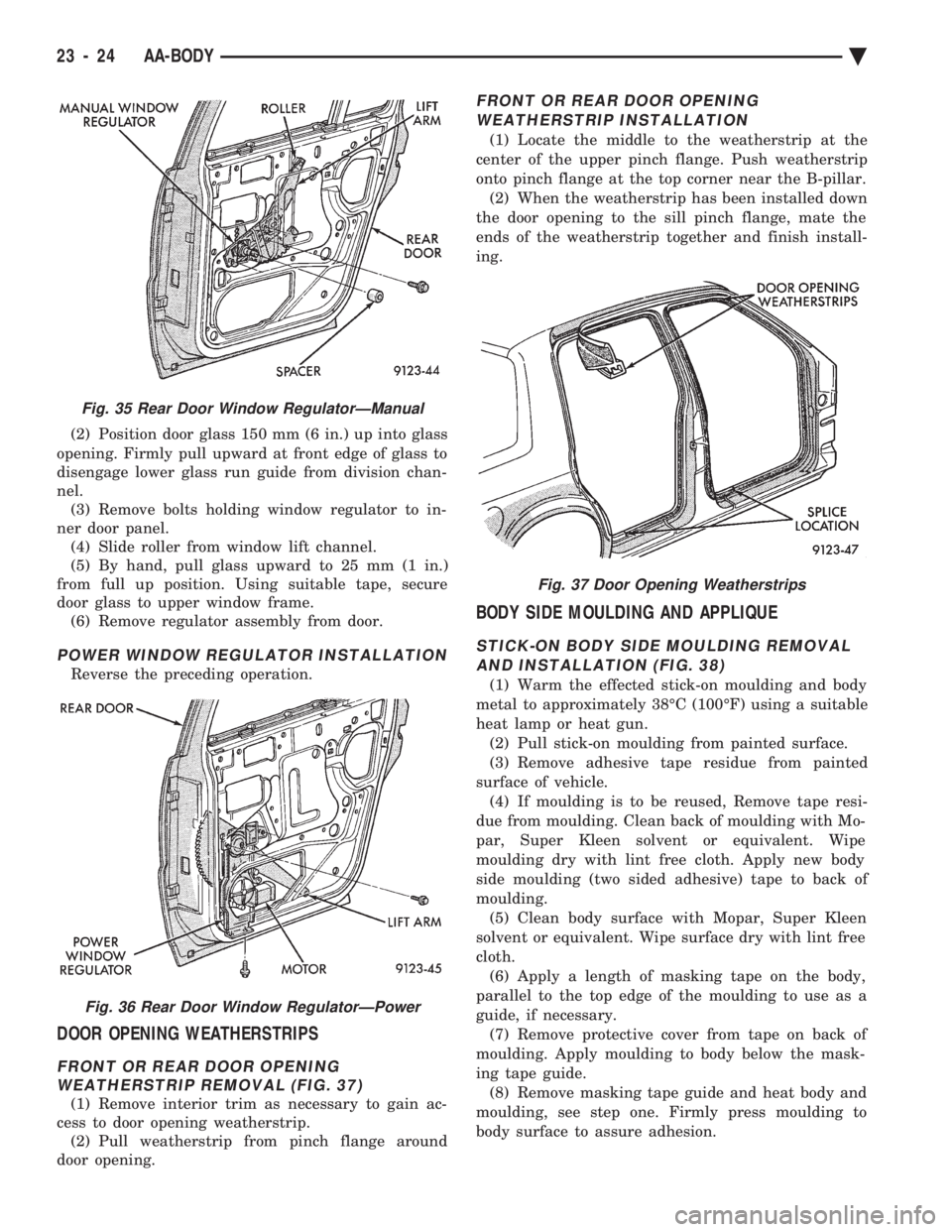

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (2) Position door glass 150 mm (6 in.) up into glass
opening. Firmly pull upward at front edge of glass to
disengage lower glass run guide from division chan-
nel. (3) Remove bolts holding window re
