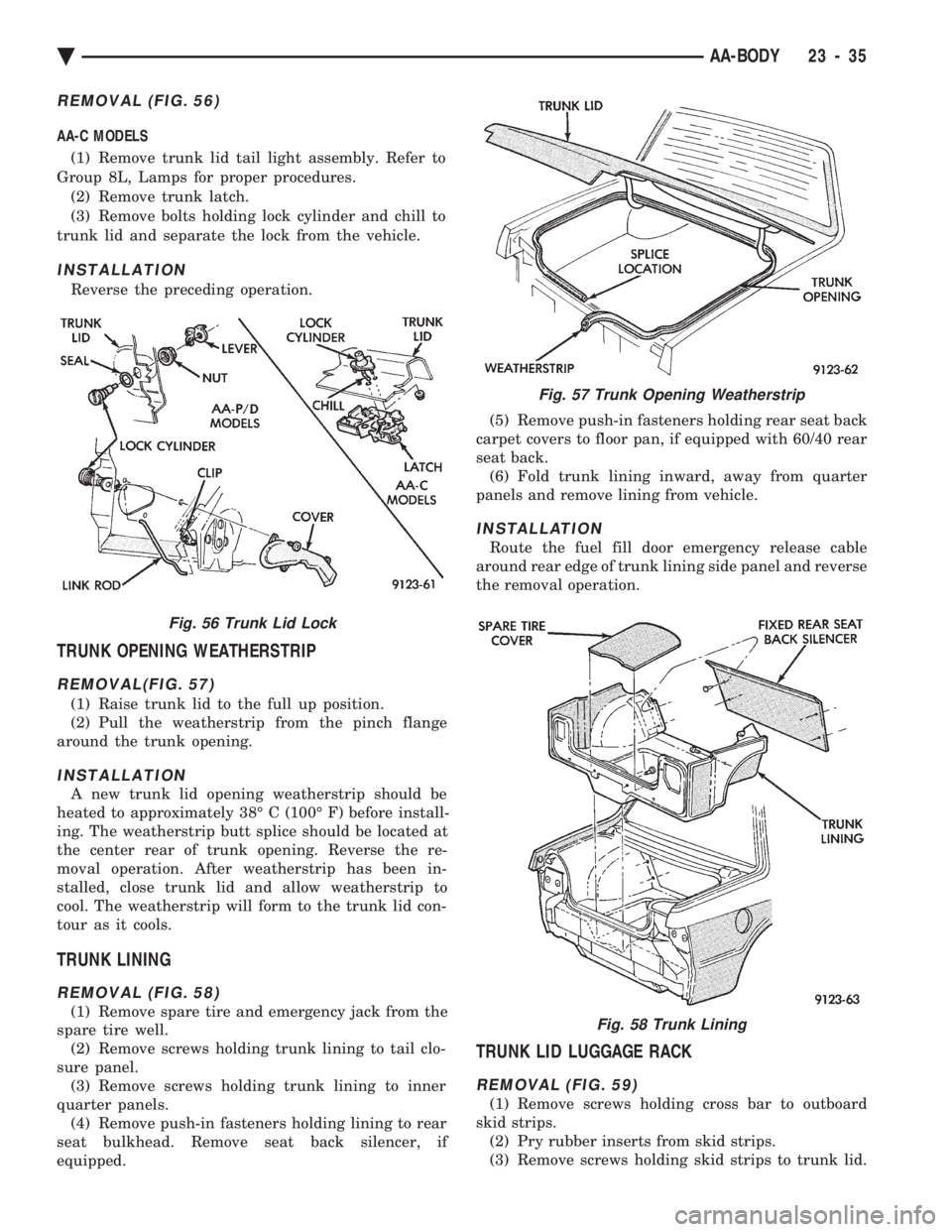

Page 2191 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual REMOVAL (FIG. 56)
AA-C MODELS (1) Remove trunk lid tail light assembly. Refer to
Group 8L, Lamps for proper procedures. (2) Remove trunk latch.
(3) Remove bolts holding lock cylinder and chill to
tru

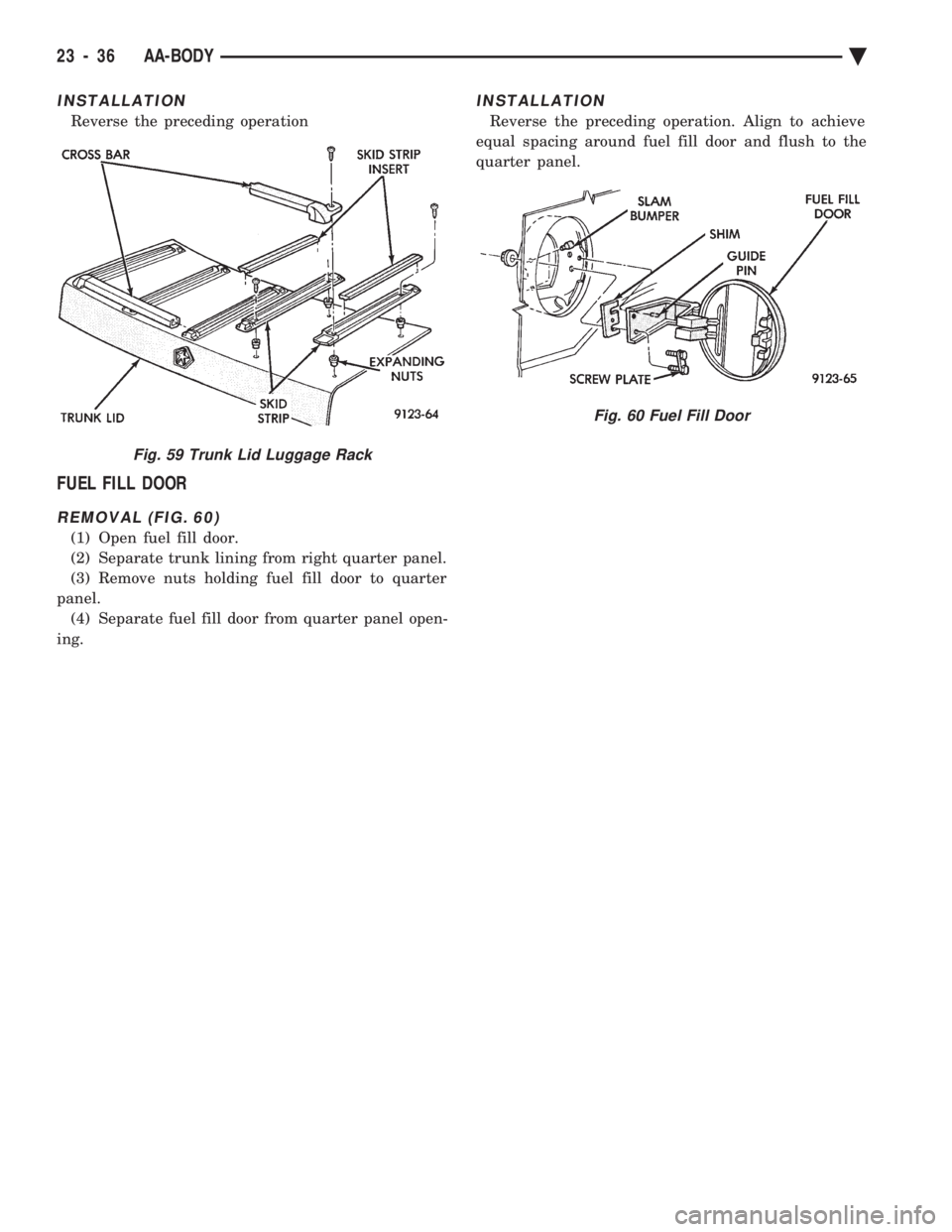

Page 2192 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INSTALLATION
Reverse the preceding operation
FUEL FILL DOOR
REMOVAL (FIG. 60)
(1) Open fuel fill door.
(2) Separate trunk lining from right quarter panel.
(3) Remove nuts holding fuel fill door to qu

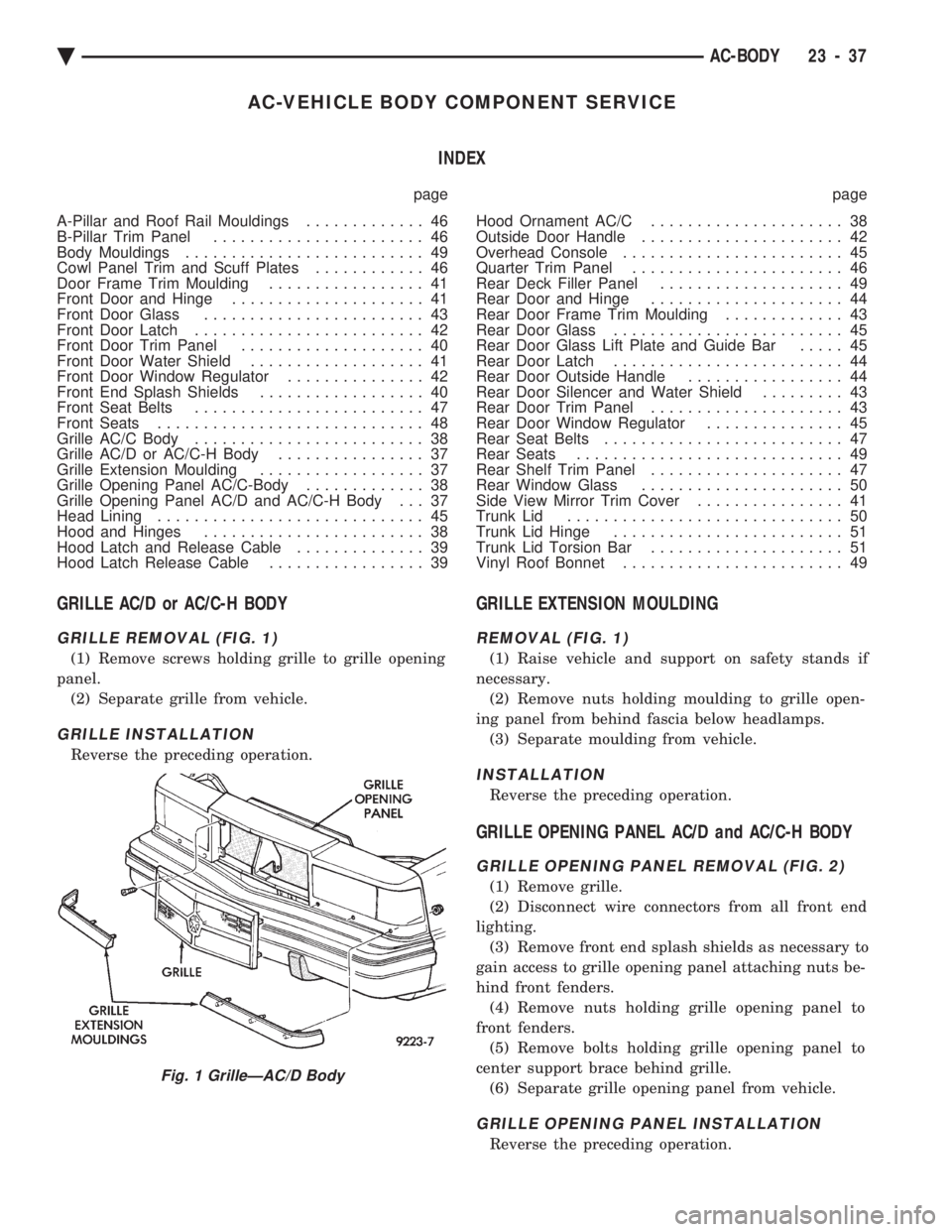

Page 2193 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual AC-VEHICLE BODY COMPONENT SERVICE INDEX
page page
A-Pillar and Roof Rail Mouldings  ............. 46
B-Pillar Trim Panel  ....................... 46
Body Mouldings  .......................... 49
C

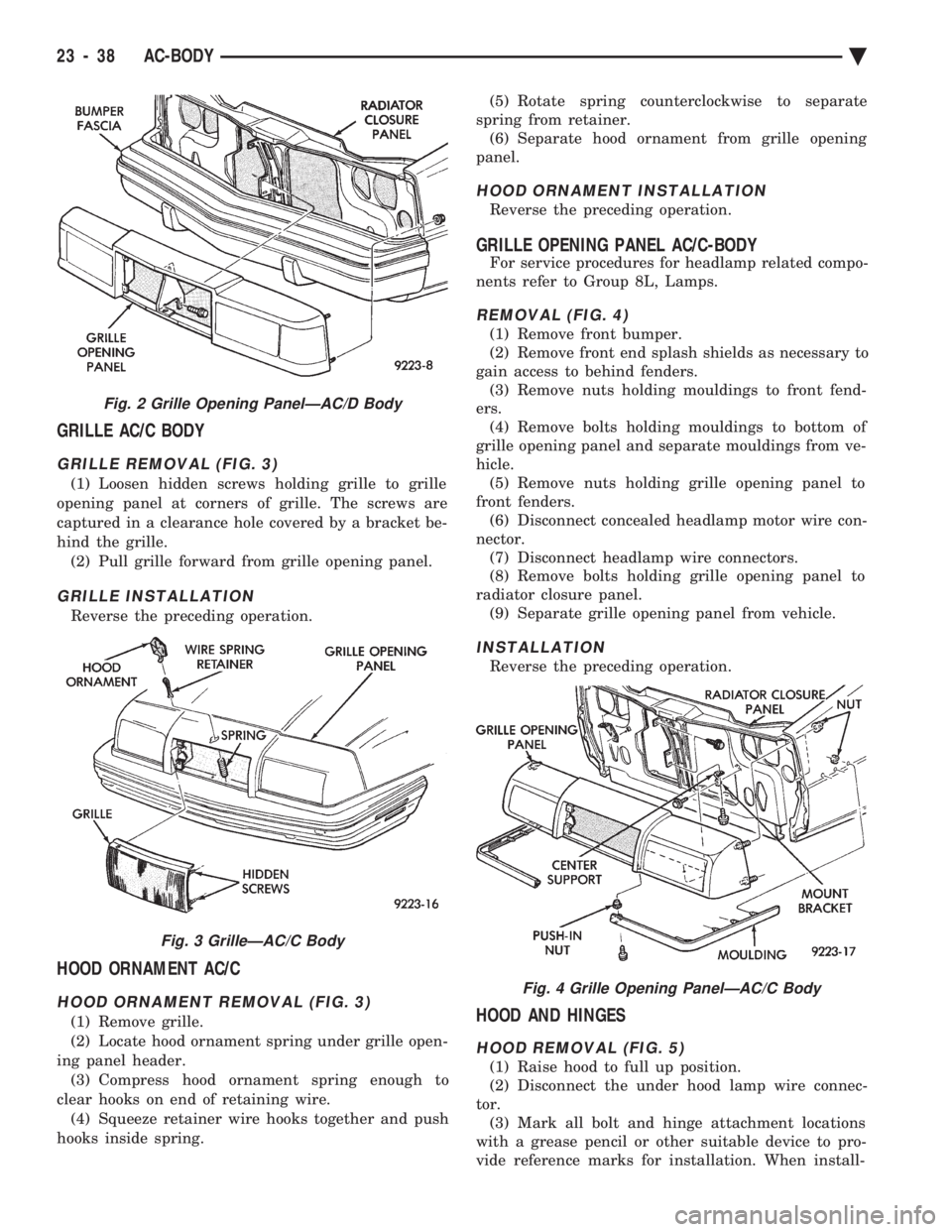

Page 2194 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual GRILLE AC/C BODY
GRILLE REMOVAL (FIG. 3)
(1) Loosen hidden screws holding grille to grille
opening panel at corners of grille. The screws are
captured in a clearance hole covered by a bracket be-
hin

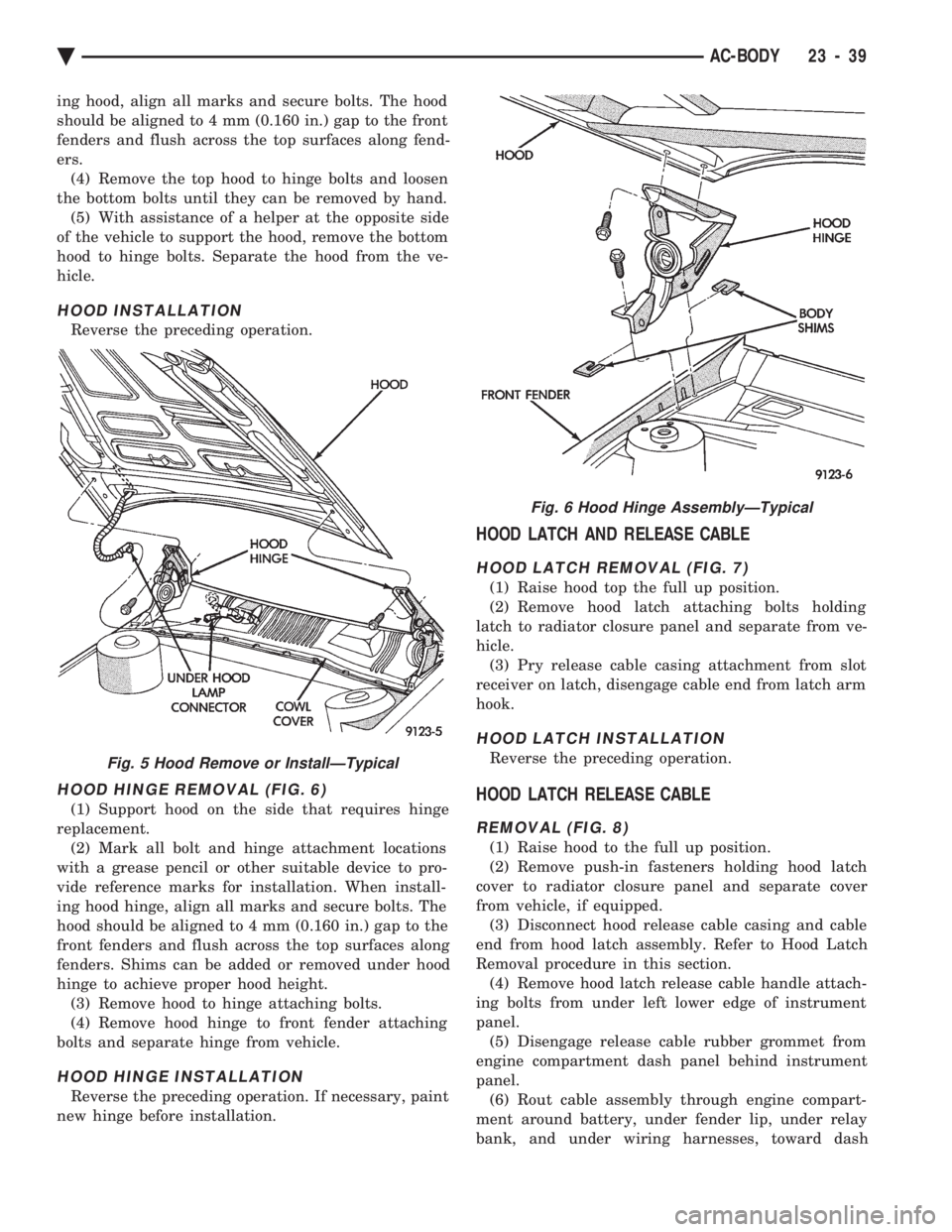

Page 2195 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual ing hood, align all marks and secure bolts. The hood
should be aligned to 4 mm (0.160 in.) gap to the front
fenders and flush across the top surfaces along fend-
ers.(4) Remove the top hood to hinge

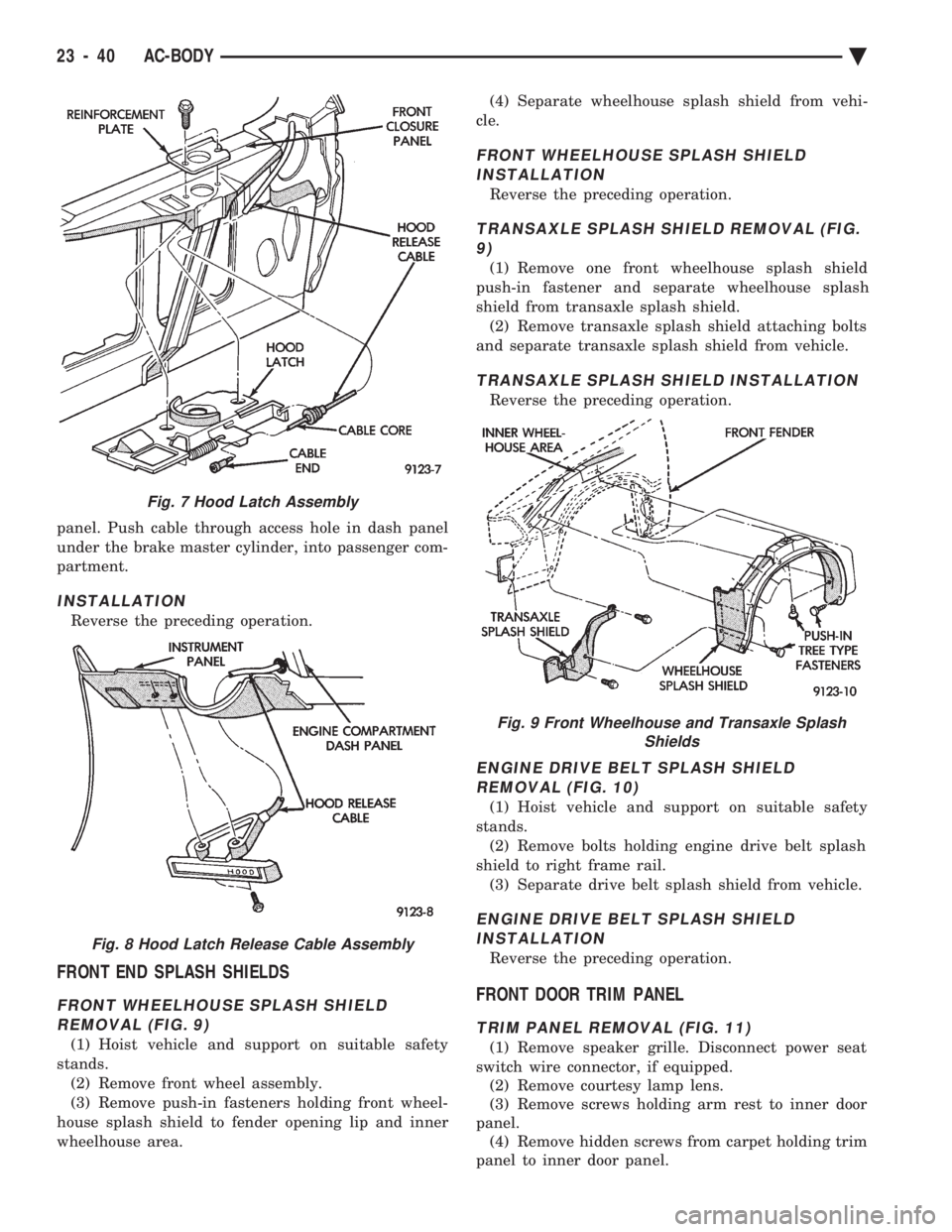

Page 2196 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual panel. Push cable through access hole in dash panel
under the brake master cylinder, into passenger com-
partment.
INSTALLATION
Reverse the preceding operation.
FRONT END SPLASH SHIELDS
FRONT WHEELHO

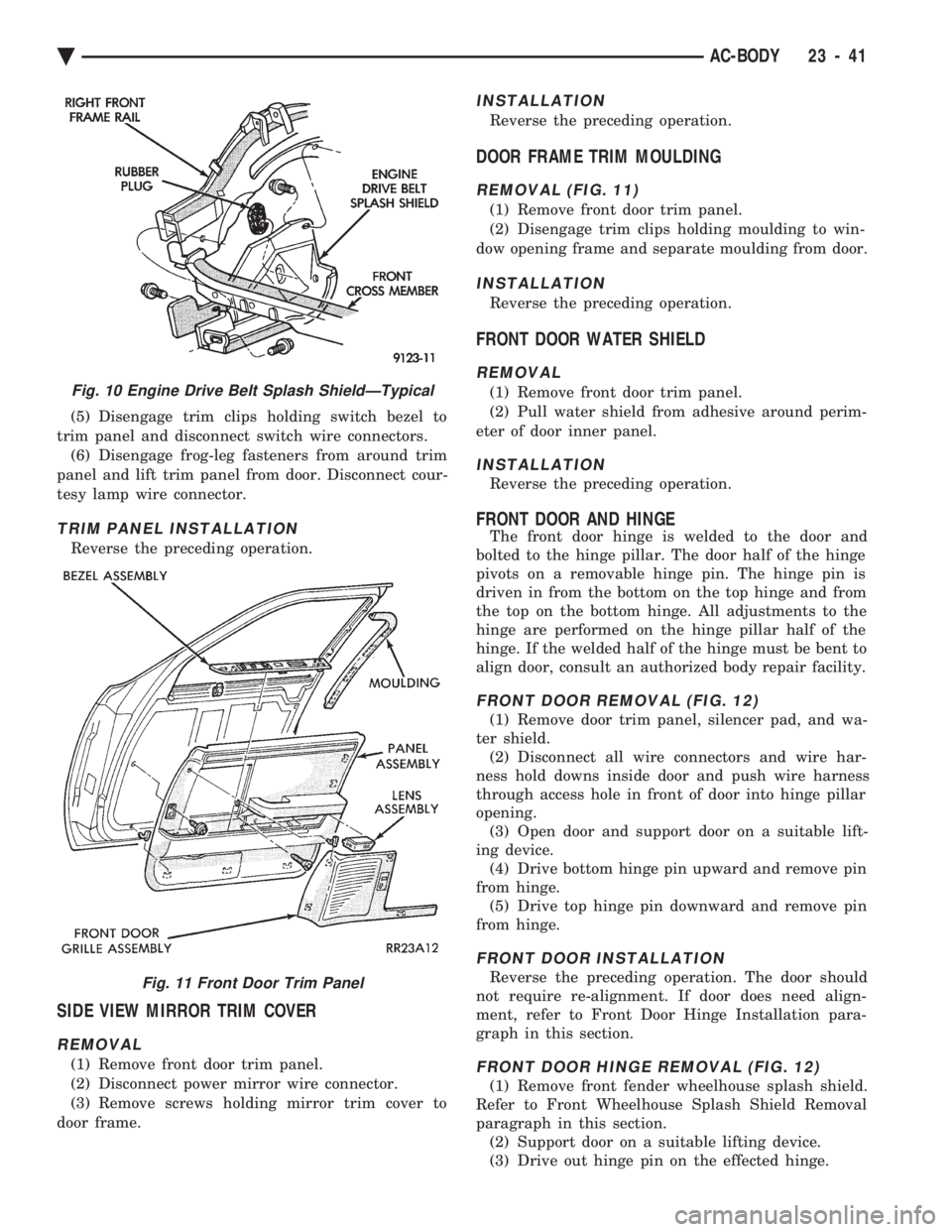

Page 2197 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (5) Disengage trim clips holding switch bezel to
trim panel and disconnect switch wire connectors. (6) Disengage frog-leg fasteners from around trim
panel and lift trim panel from door. Disconnect co

Page 2198 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (4) Remove bolts holding hinge to hinge pillar and
separate hinge form vehicle.
FRONT DOOR HINGE INSTALLATION
Reverse the preceding operation. Align door to
achieve 6 mm (0.240 in.) gap to all surrou

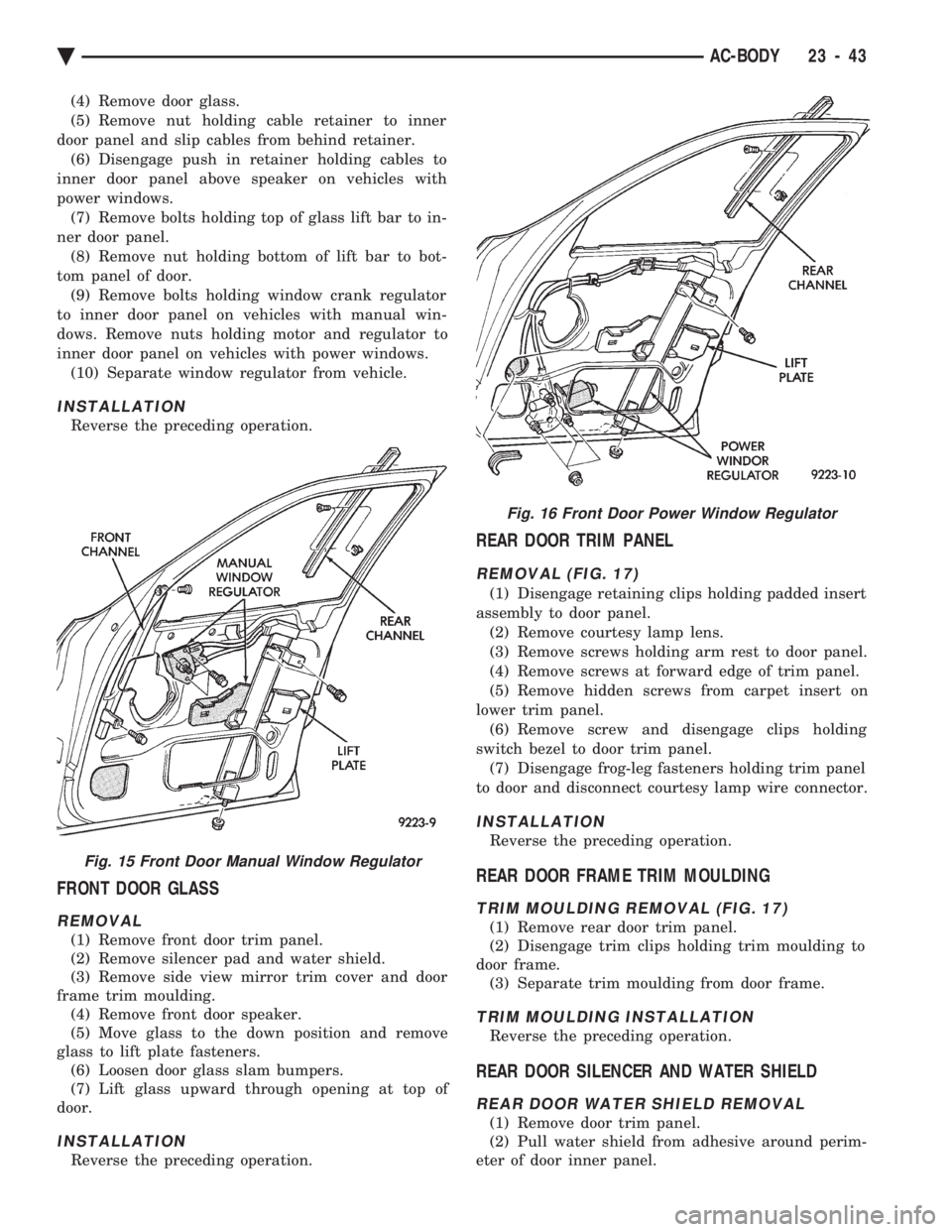

Page 2199 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (4) Remove door glass.
(5) Remove nut holding cable retainer to inner
door panel and slip cables from behind retainer. (6) Disengage push in retainer holding cables to
inner door panel above speaker

Page 2200 of 2438

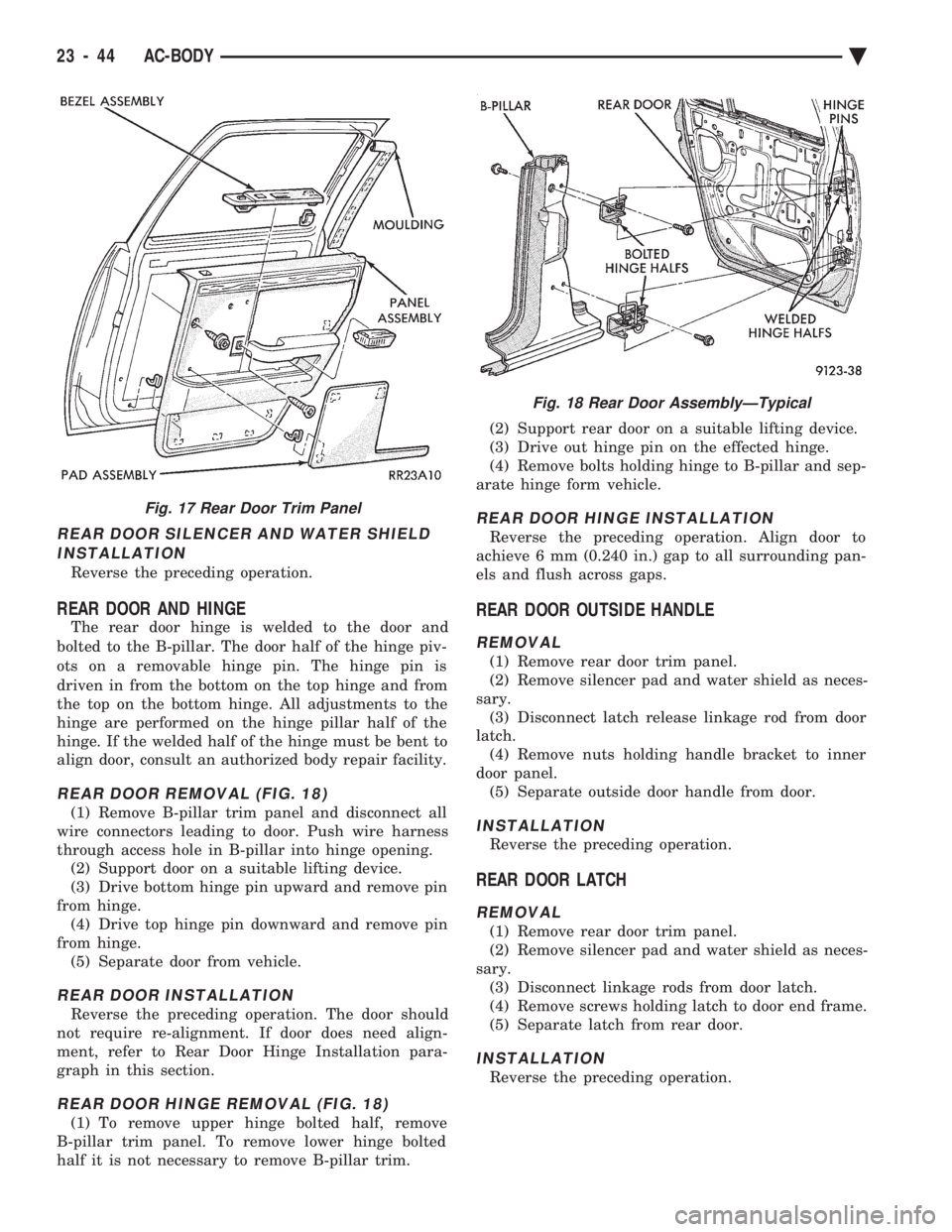

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual REAR DOOR SILENCER AND WATER SHIELD INSTALLATION
Reverse the preceding operation.
REAR DOOR AND HINGE
The rear door hinge is welded to the door and
bolted to the B-pillar. The door half of the hinge p
