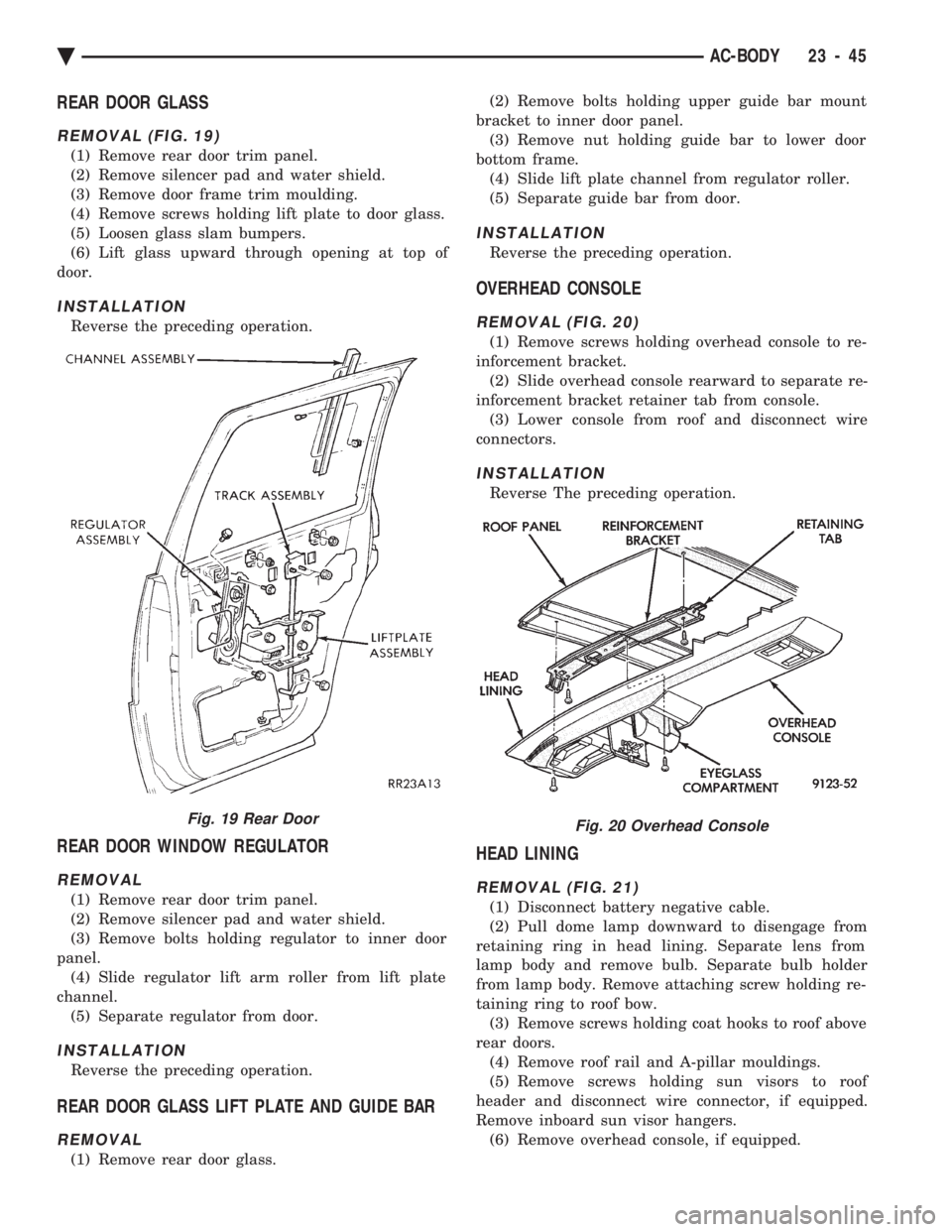

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual REAR DOOR GLASS
REMOVAL (FIG. 19)
(1) Remove rear door trim panel.
(2) Remove silencer pad and water shield.
(3) Remove door frame trim moulding.
(4) Remove screws holding lift plate to door glass.
(

Page 2202 of 2438

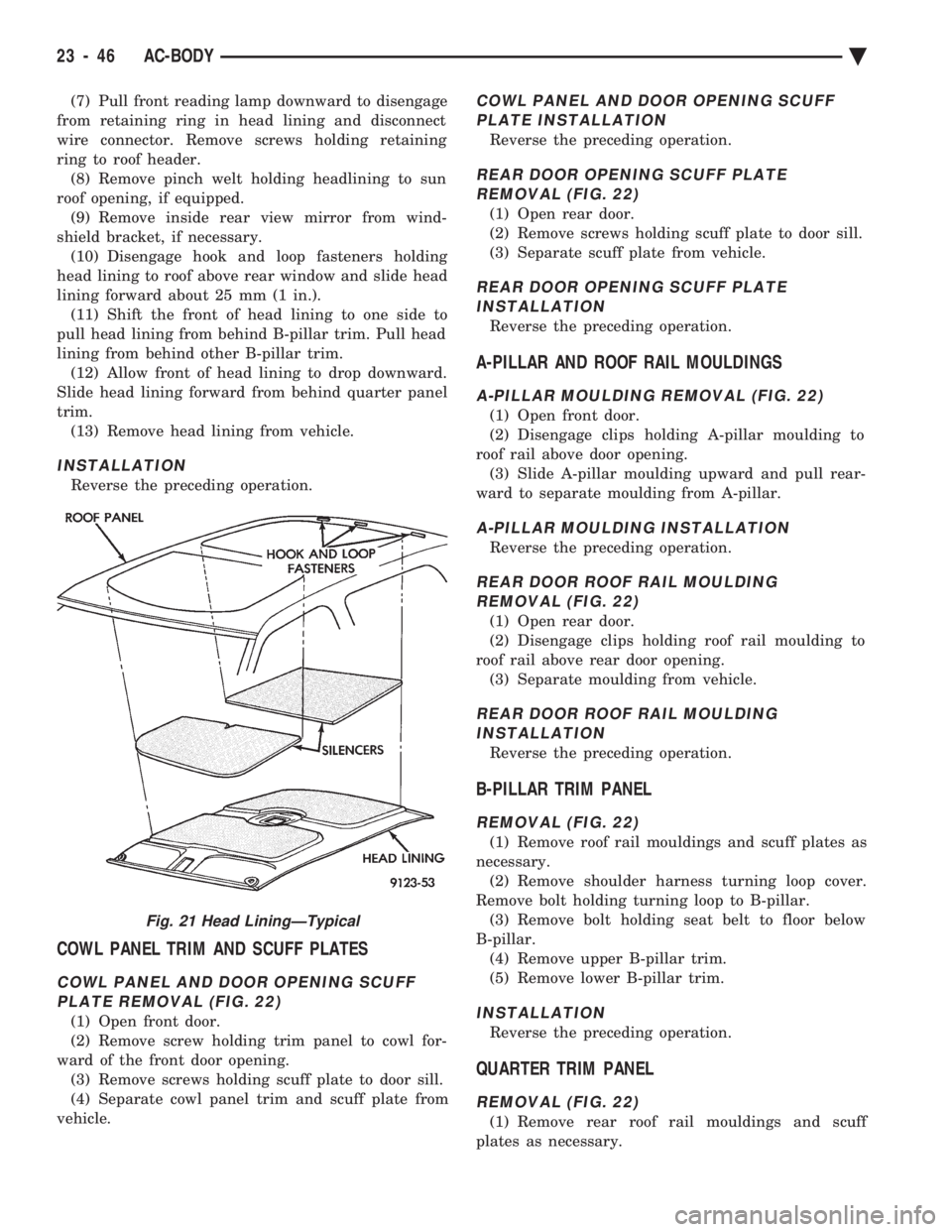

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (7) Pull front reading lamp downward to disengage
from retaining ring in head lining and disconnect
wire connector. Remove screws holding retaining
ring to roof header. (8) Remove pinch welt holding

Page 2203 of 2438

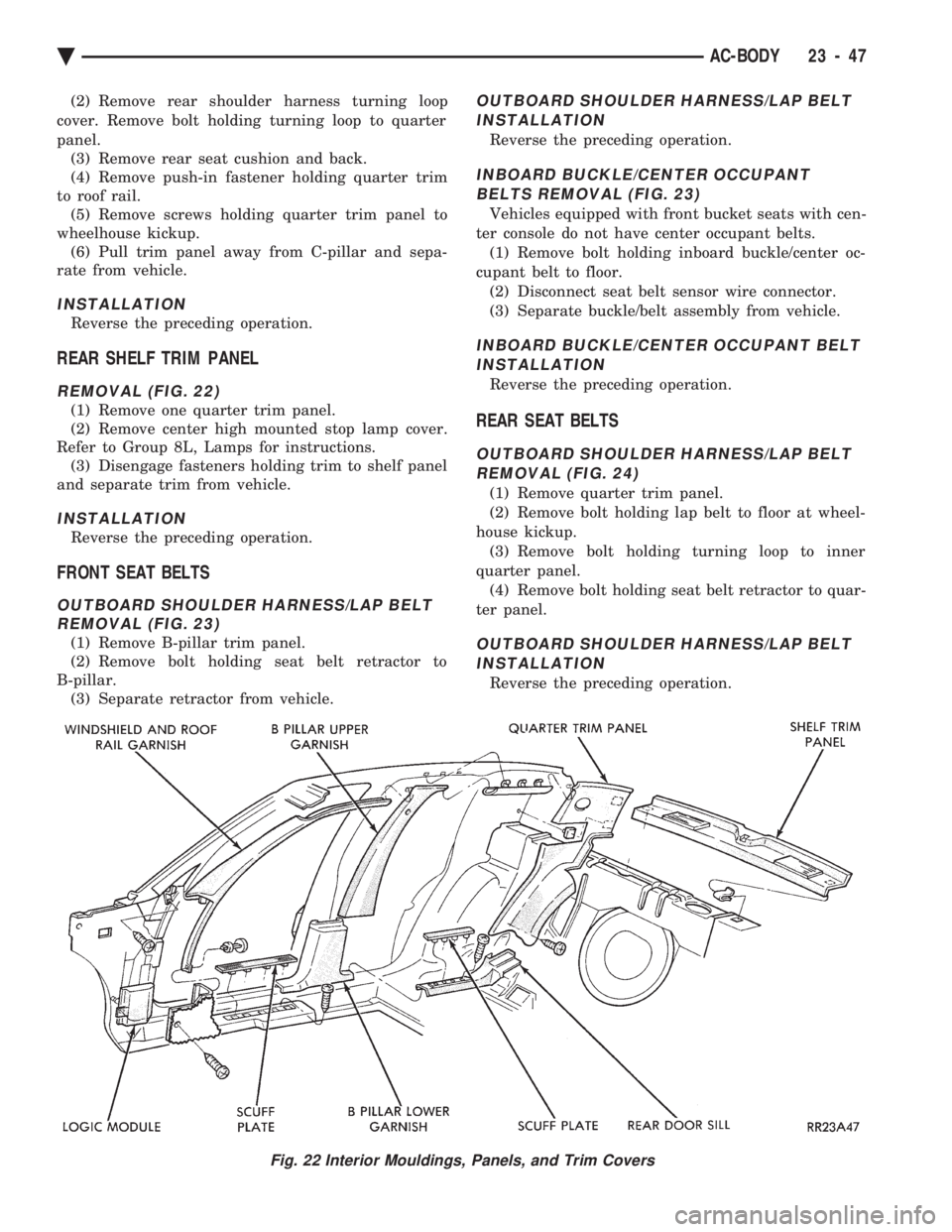

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (2) Remove rear shoulder harness turning loop
cover. Remove bolt holding turning loop to quarter
panel.  (3) Remove rear seat cushion and back.
(4) Remove push-in fastener holding quarter trim
to roo

Page 2204 of 2438

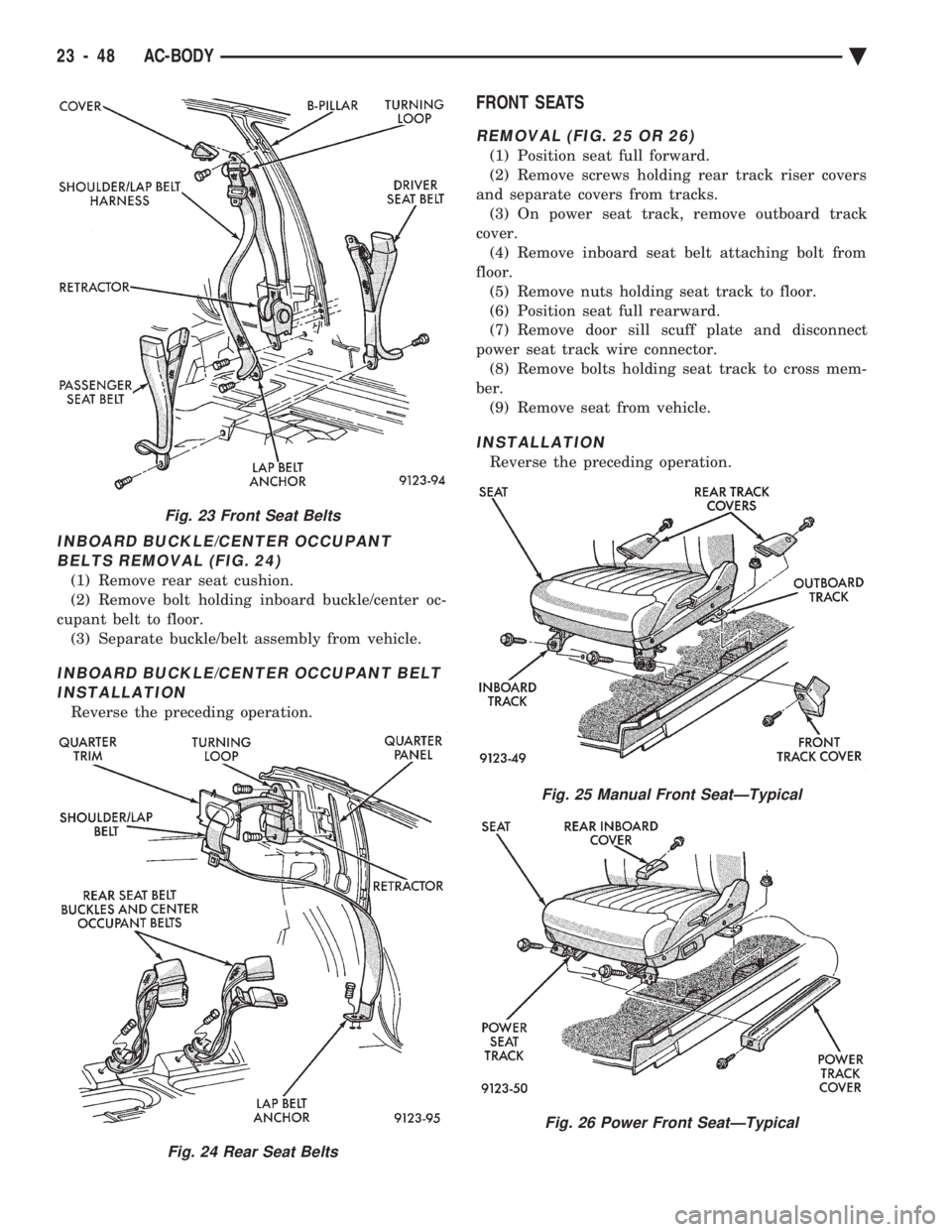

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INBOARD BUCKLE/CENTER OCCUPANT BELTS REMOVAL (FIG. 24)
(1) Remove rear seat cushion.
(2) Remove bolt holding inboard buckle/center oc-
cupant belt to floor. (3) Separate buckle/belt assembly from vehi

Page 2205 of 2438

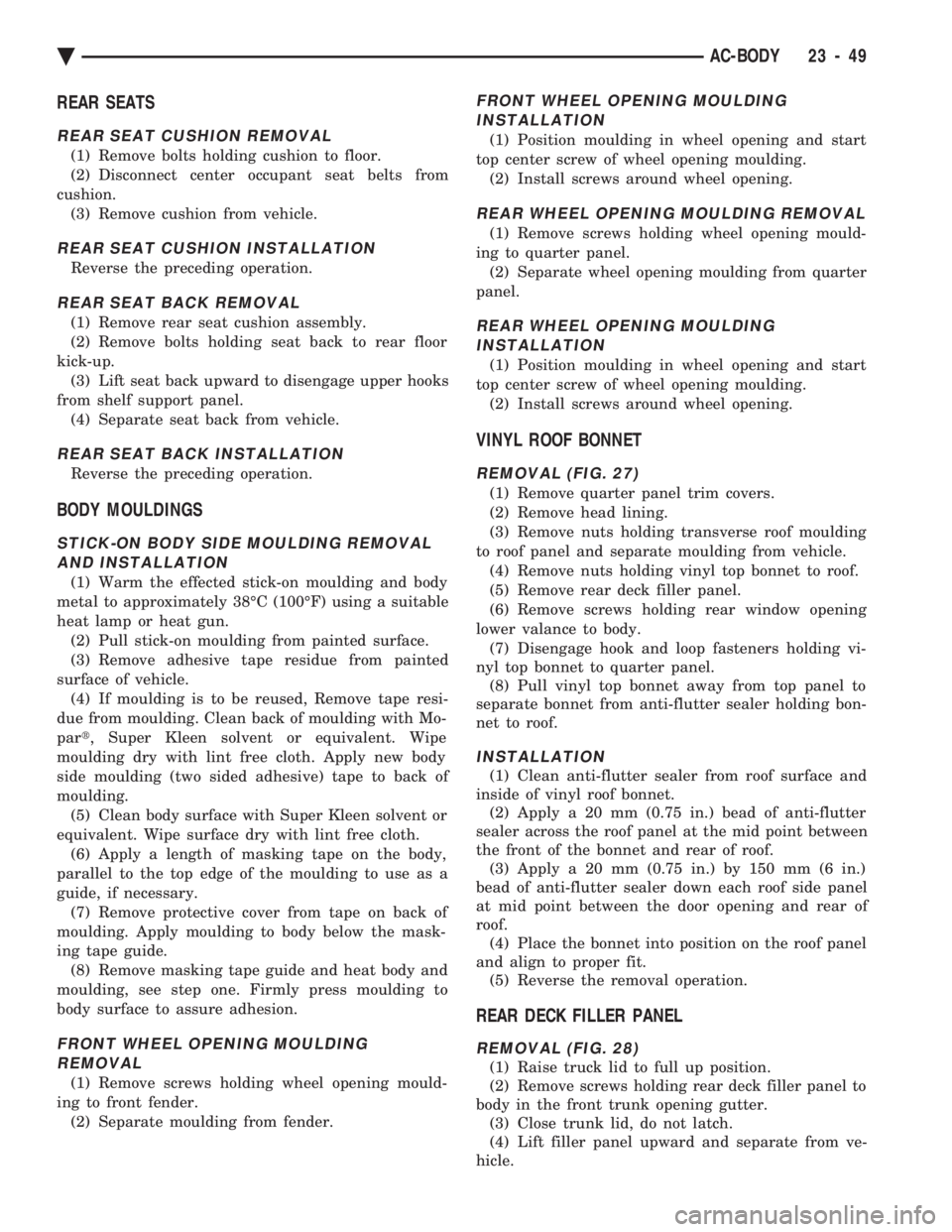

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual REAR SEATS
REAR SEAT CUSHION REMOVAL
(1) Remove bolts holding cushion to floor.
(2) Disconnect center occupant seat belts from
cushion. (3) Remove cushion from vehicle.
REAR SEAT CUSHION INSTALLATION

Page 2206 of 2438

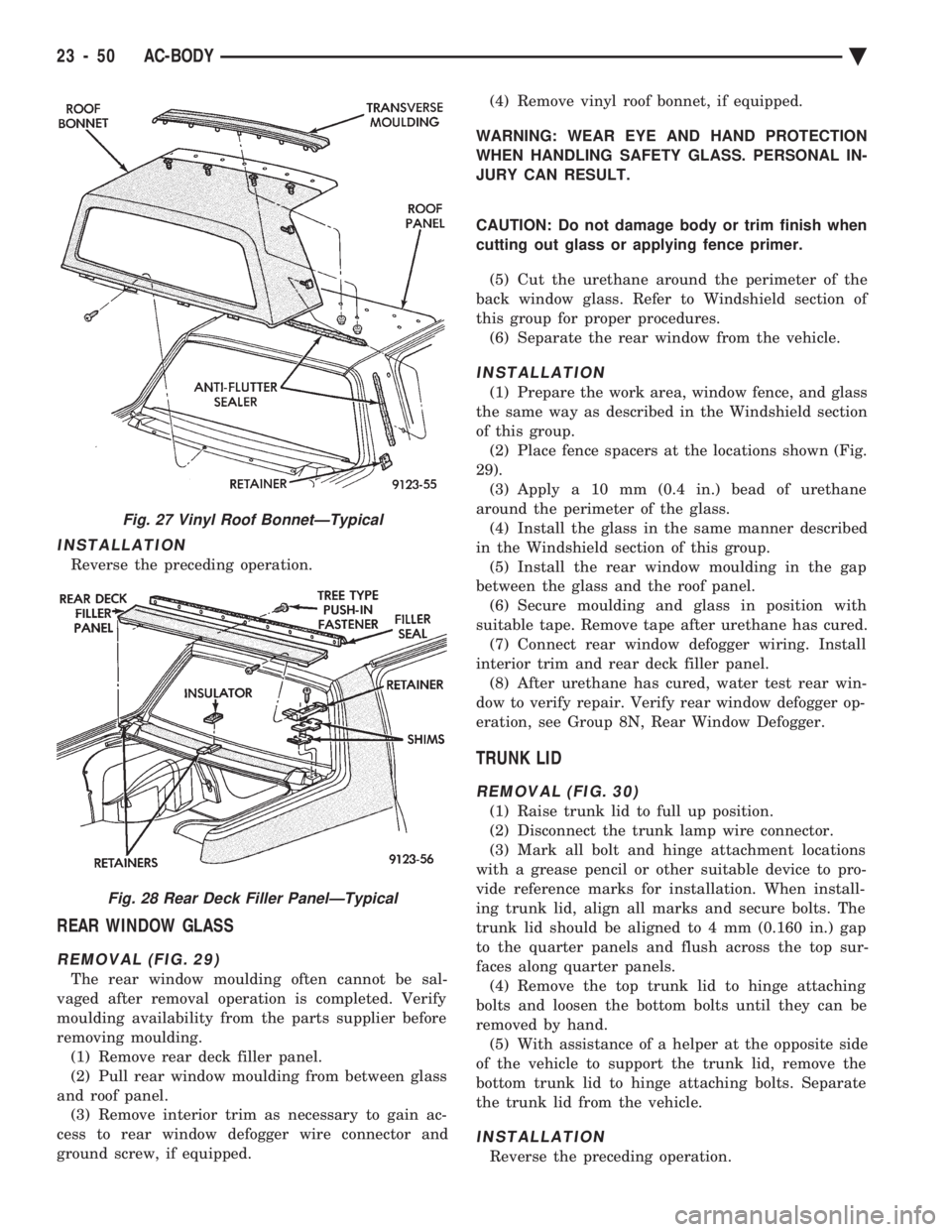

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INSTALLATION
Reverse the preceding operation.
REAR WINDOW GLASS
REMOVAL (FIG. 29)
The rear window moulding often cannot be sal-
vaged after removal operation is completed. Verify
moulding availabilit

Page 2207 of 2438

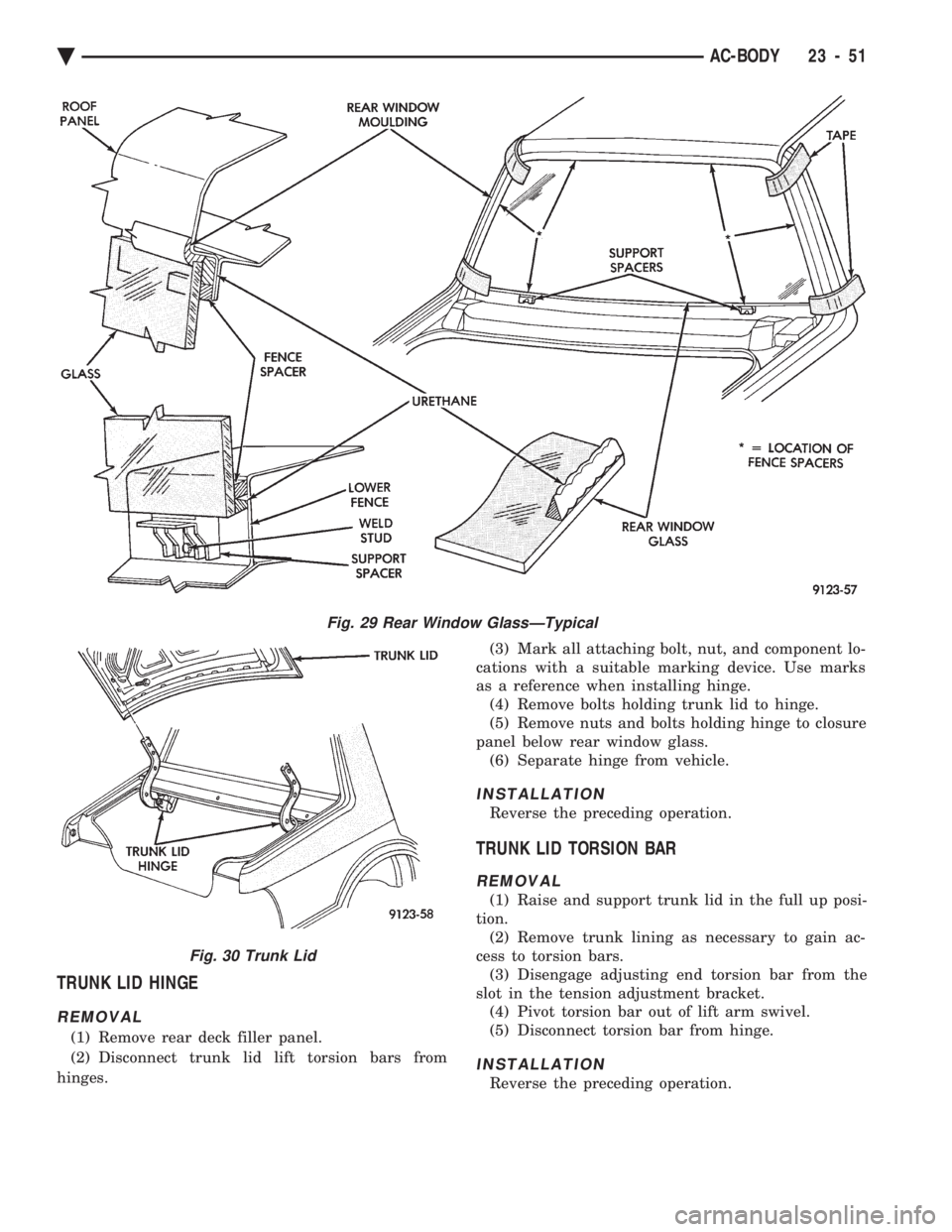

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual TRUNK LID HINGE
REMOVAL
(1) Remove rear deck filler panel.
(2) Disconnect trunk lid lift torsion bars from
hinges.  (3) Mark all attaching bolt, nut, and component lo-
cations with a suitable markin

Page 2208 of 2438

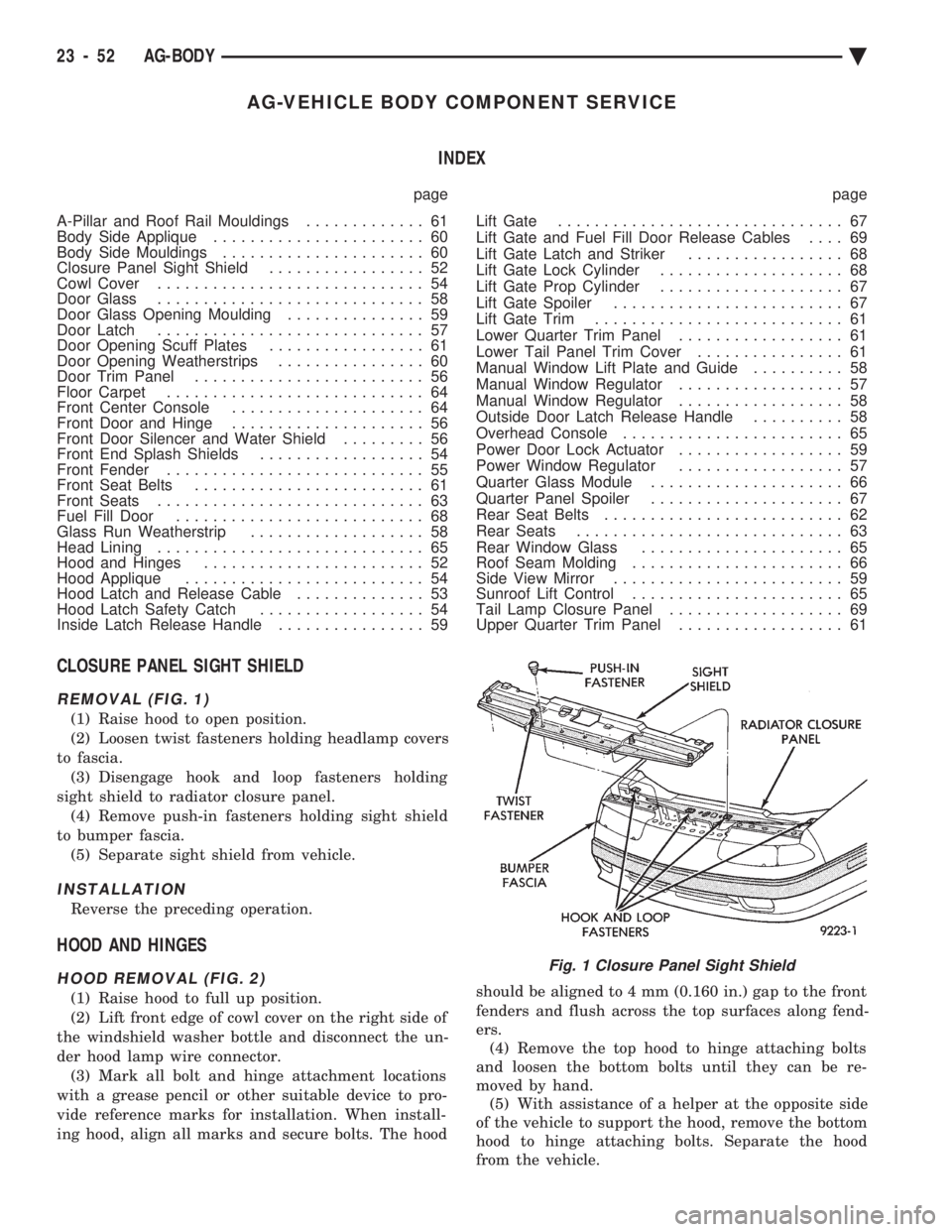

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual AG-VEHICLE BODY COMPONENT SERVICE INDEX
page page
A-Pillar and Roof Rail Mouldings  ............. 61
Body Side Applique  ....................... 60
Body Side Mouldings  ...................... 60
C

Page 2209 of 2438

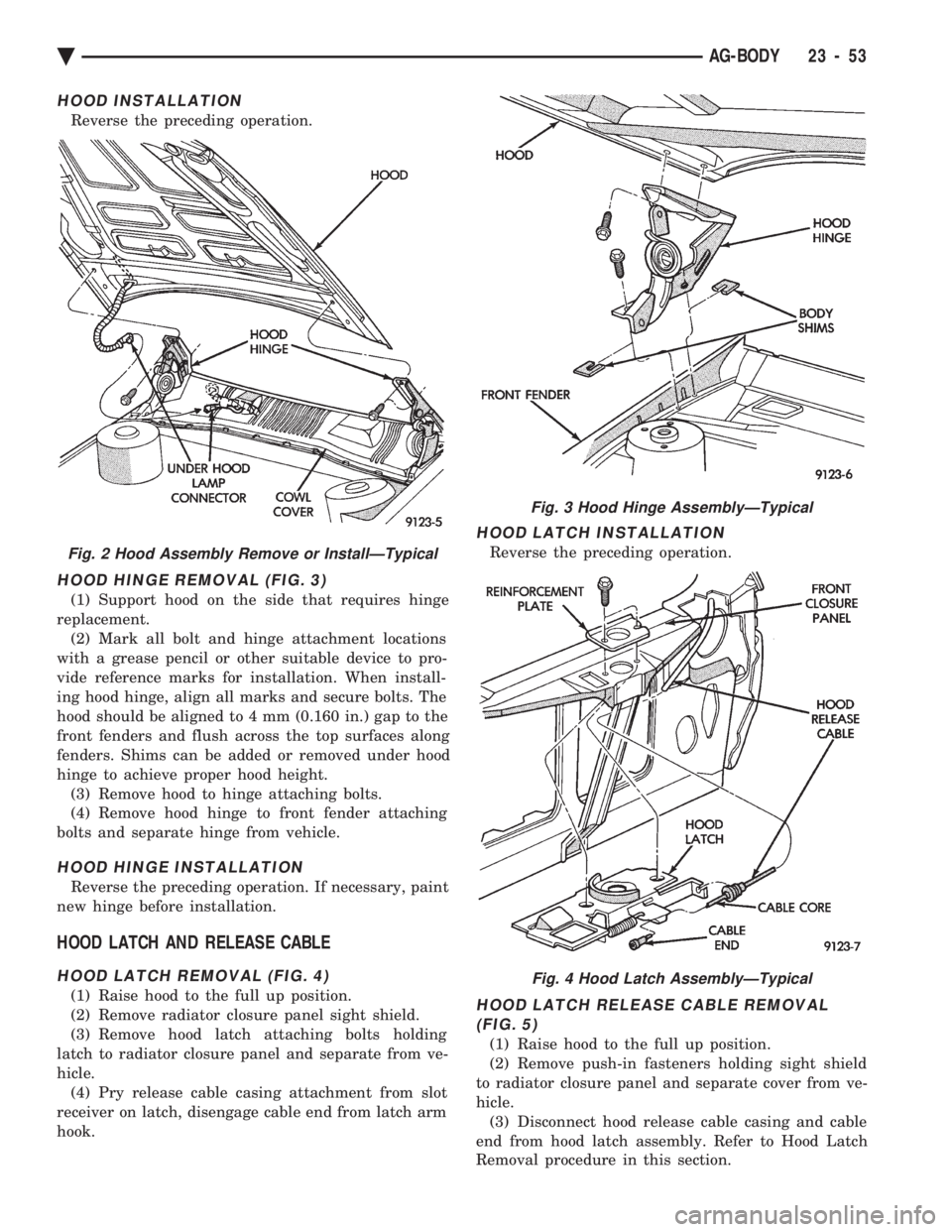

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual HOOD INSTALLATION
Reverse the preceding operation.
HOOD HINGE REMOVAL (FIG. 3)
(1) Support hood on the side that requires hinge
replacement. (2) Mark all bolt and hinge attachment locations
with a gr

Page 2210 of 2438

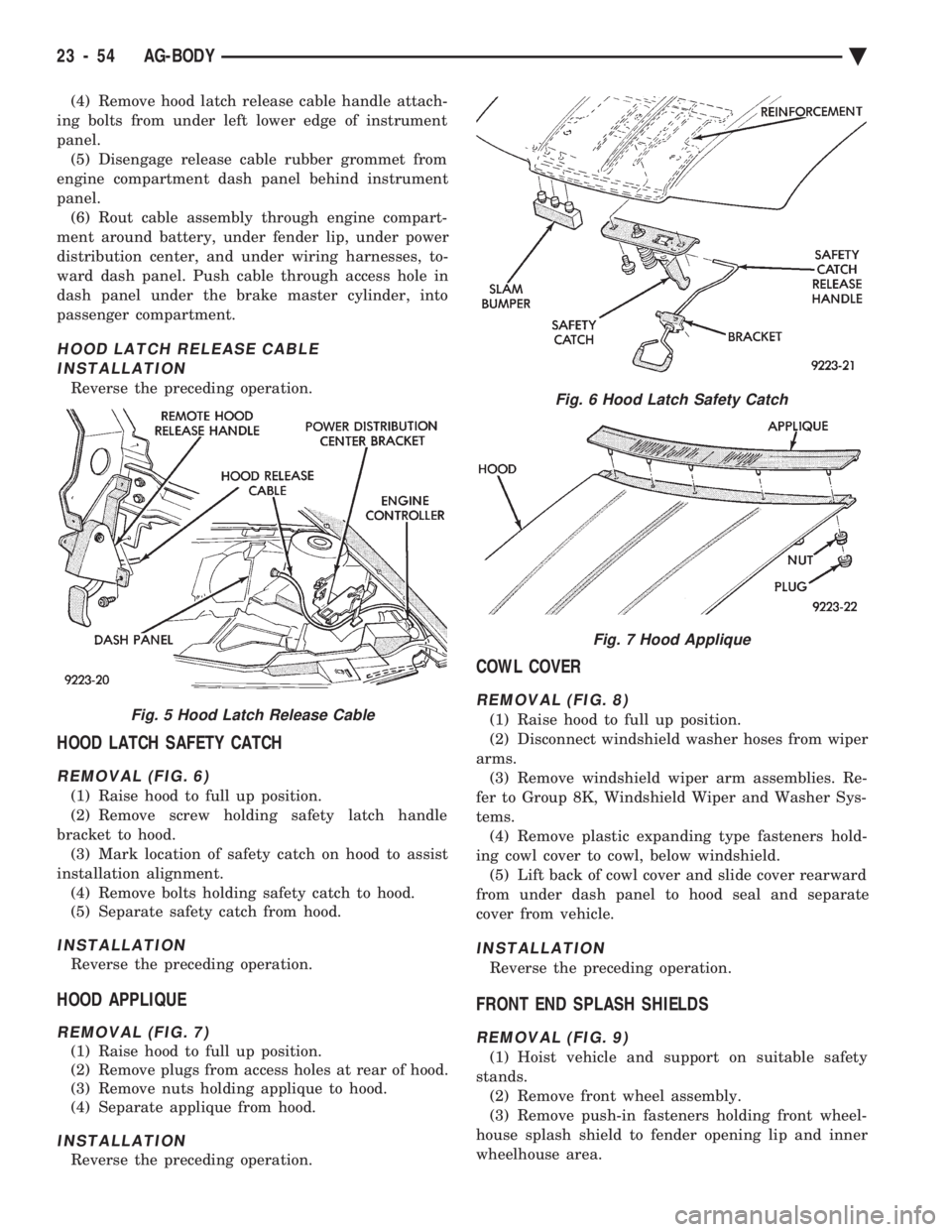

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (4) Remove hood latch release cable handle attach-
ing bolts from under left lower edge of instrument
panel. (5) Disengage release cable rubber grommet from
engine compartment dash panel behind instr
