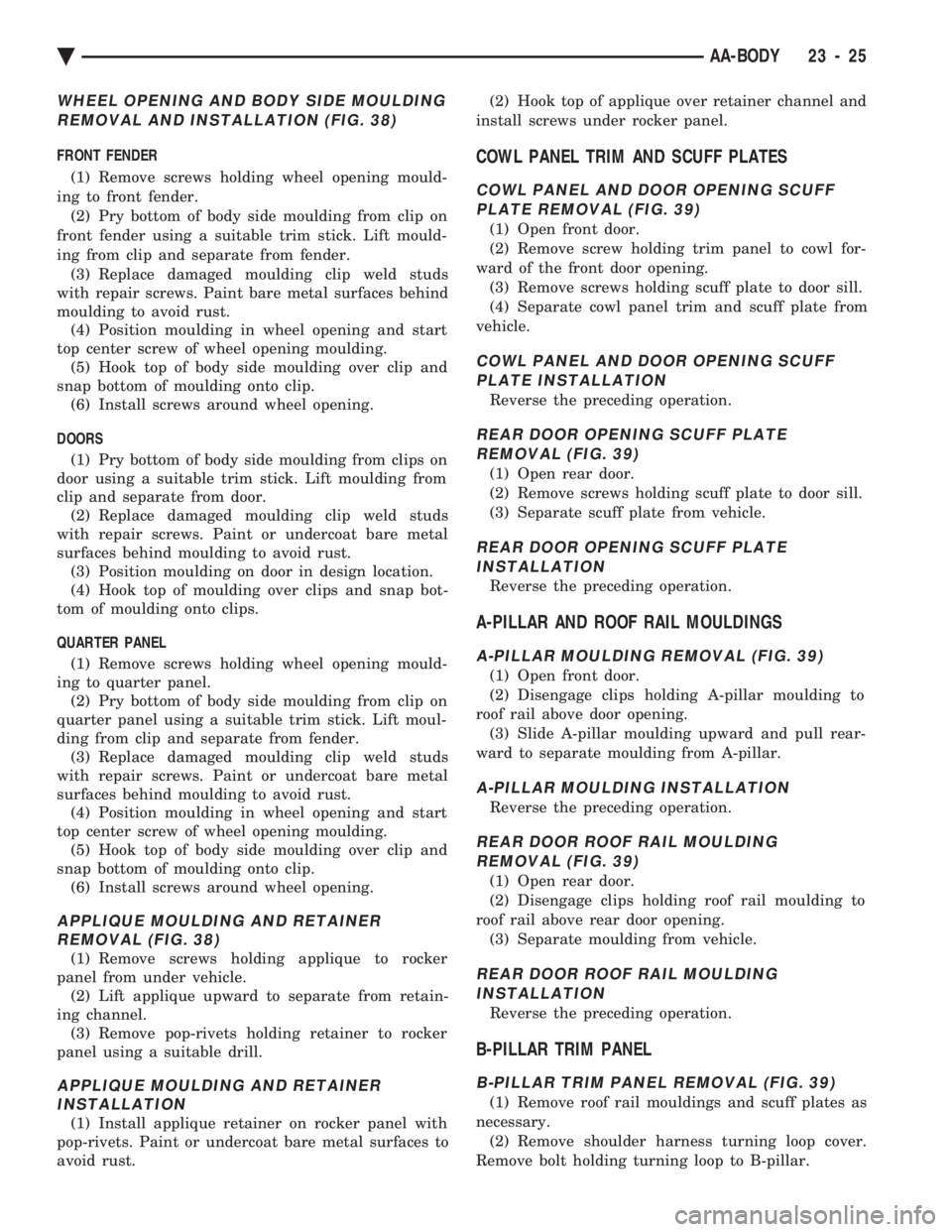

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual WHEEL OPENING AND BODY SIDE MOULDING REMOVAL AND INSTALLATION (FIG. 38)
FRONT FENDER
(1) Remove screws holding wheel opening mould-
ing to front fender. (2) Pry bottom of body side moulding from cli

Page 2182 of 2438

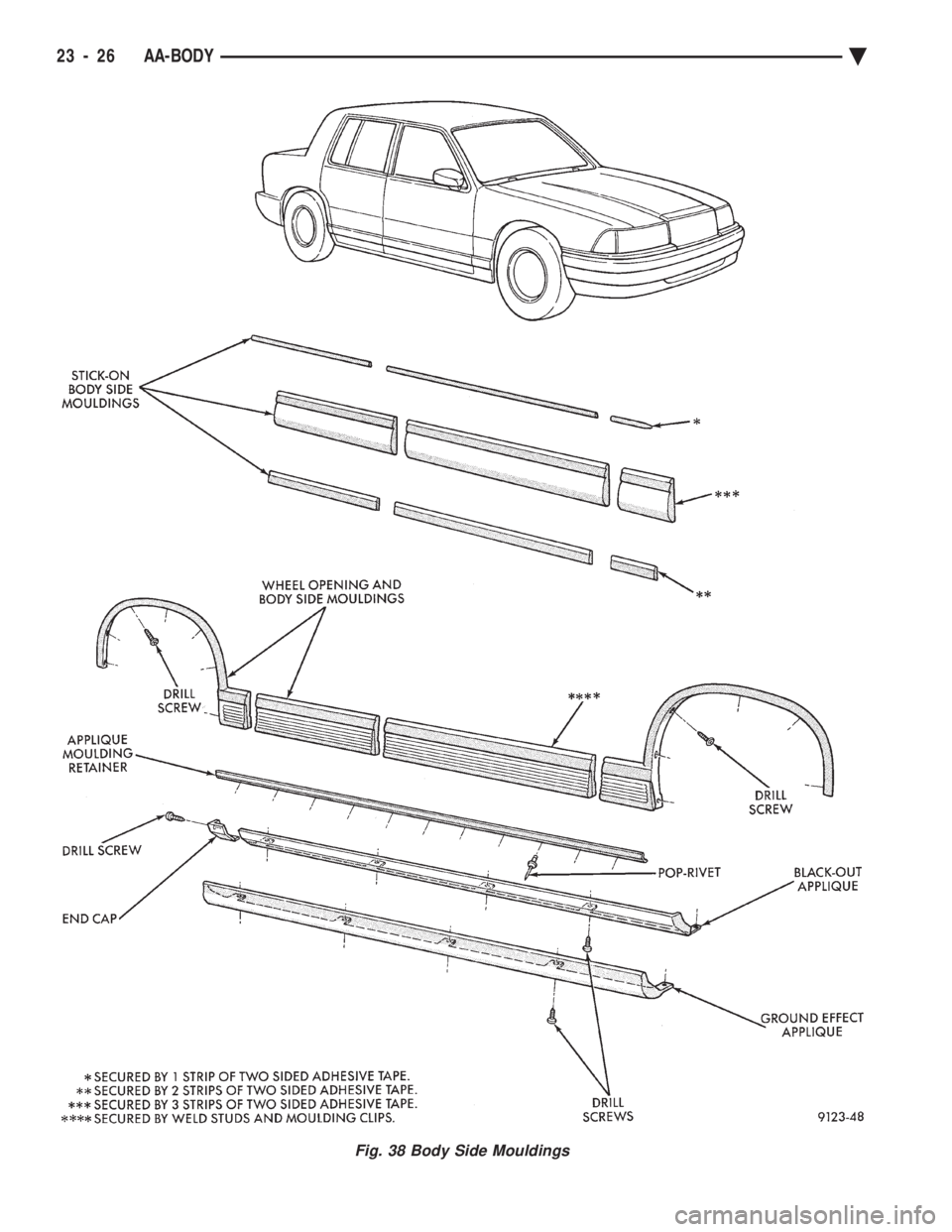

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 38 Body Side Mouldings
23 - 26 AA-BODY Ä

Page 2183 of 2438

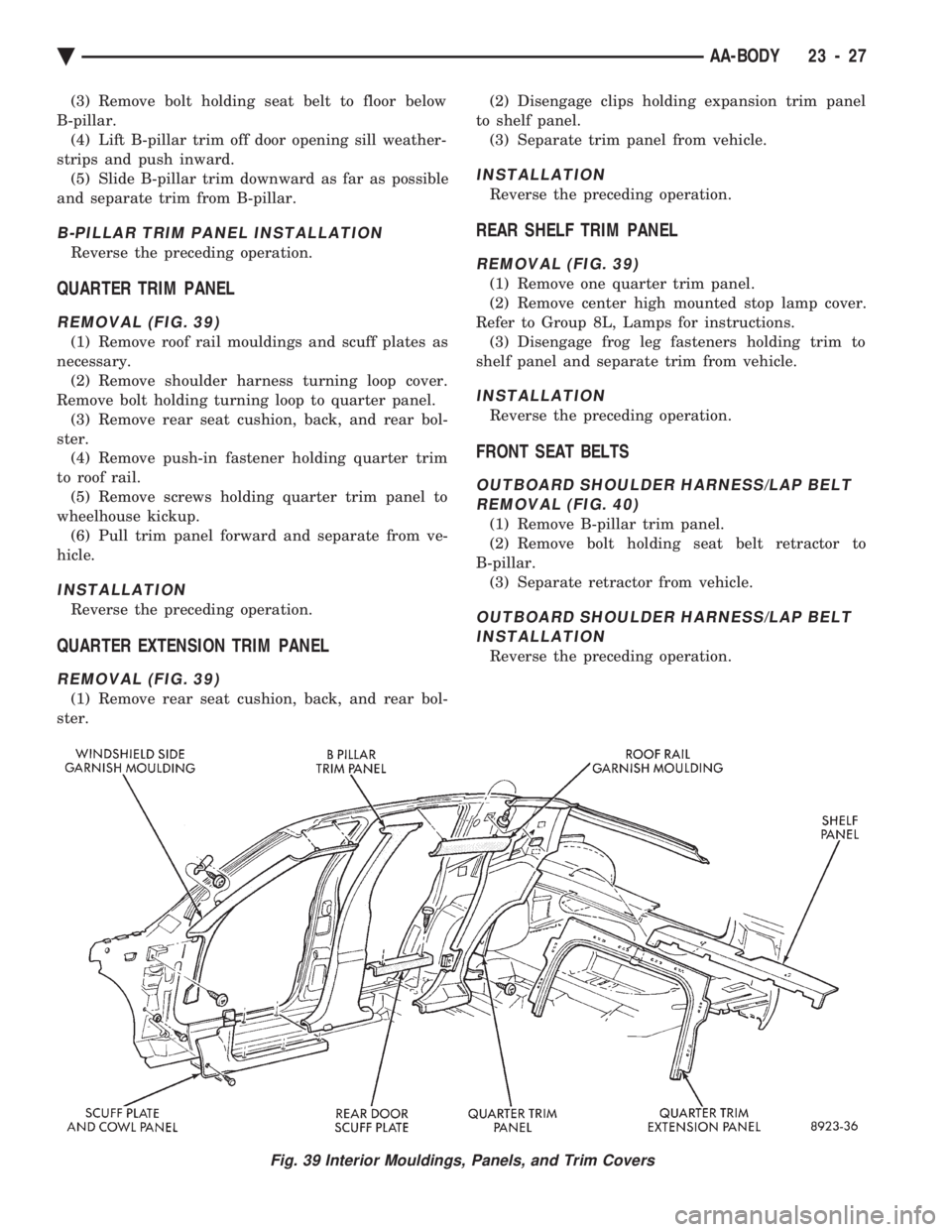

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (3) Remove bolt holding seat belt to floor below
B-pillar. (4) Lift B-pillar trim off door opening sill weather-
strips and push inward. (5) Slide B-pillar trim downward as far as possible
and separa

Page 2184 of 2438

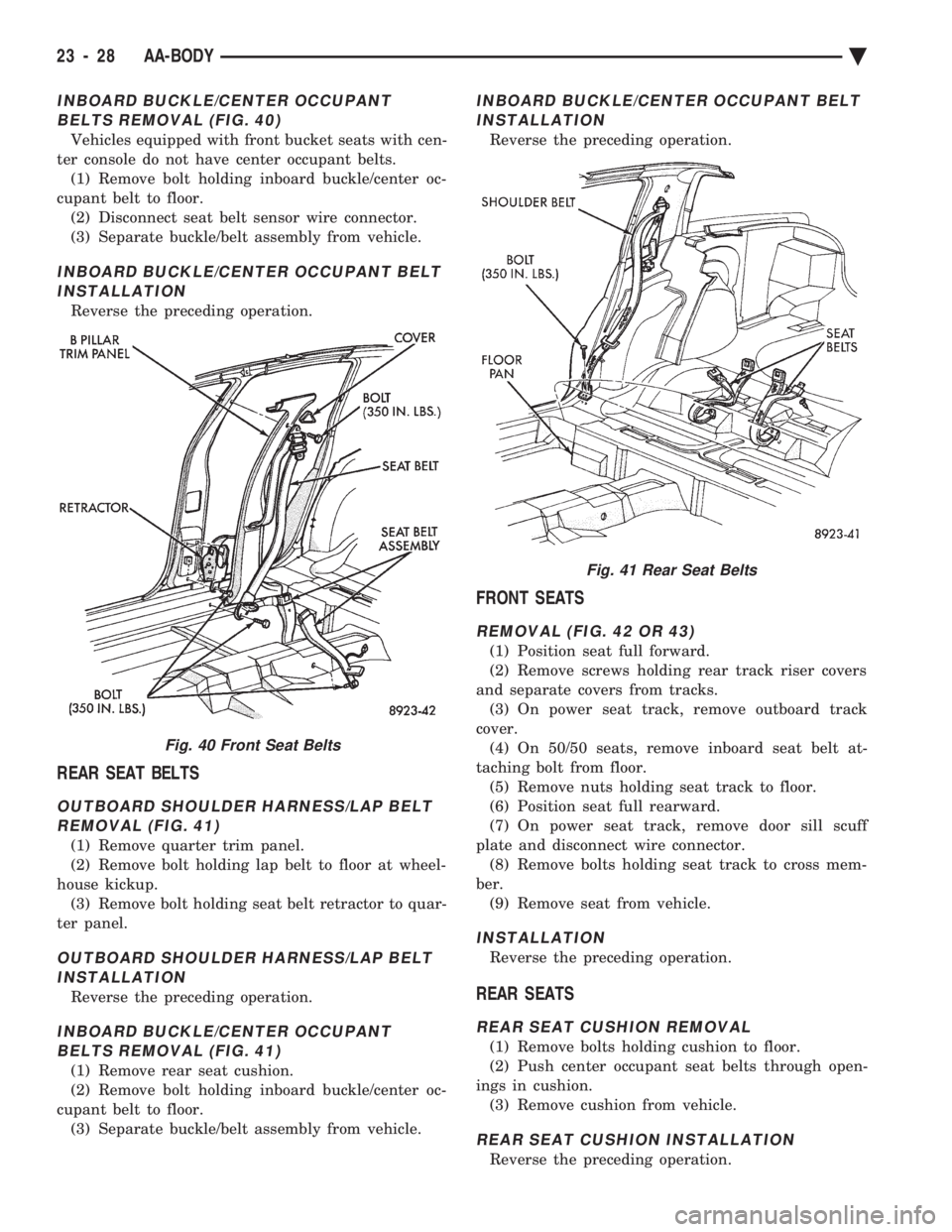

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INBOARD BUCKLE/CENTER OCCUPANT BELTS REMOVAL (FIG. 40)
Vehicles equipped with front bucket seats with cen-
ter console do not have center occupant belts. (1) Remove bolt holding inboard buckle/center

Page 2185 of 2438

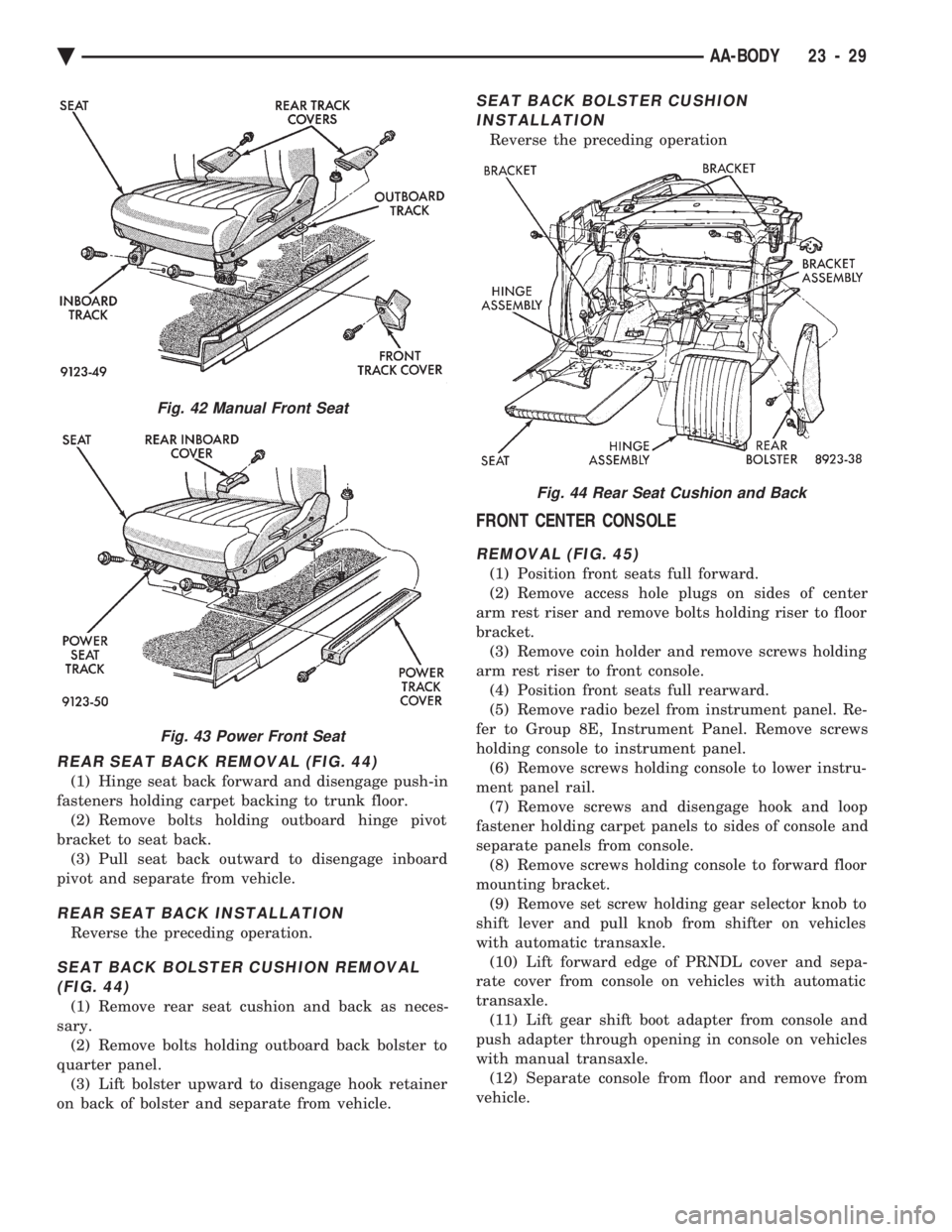

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual REAR SEAT BACK REMOVAL (FIG. 44)
(1) Hinge seat back forward and disengage push-in
fasteners holding carpet backing to trunk floor. (2) Remove bolts holding outboard hinge pivot
bracket to seat back.

Page 2186 of 2438

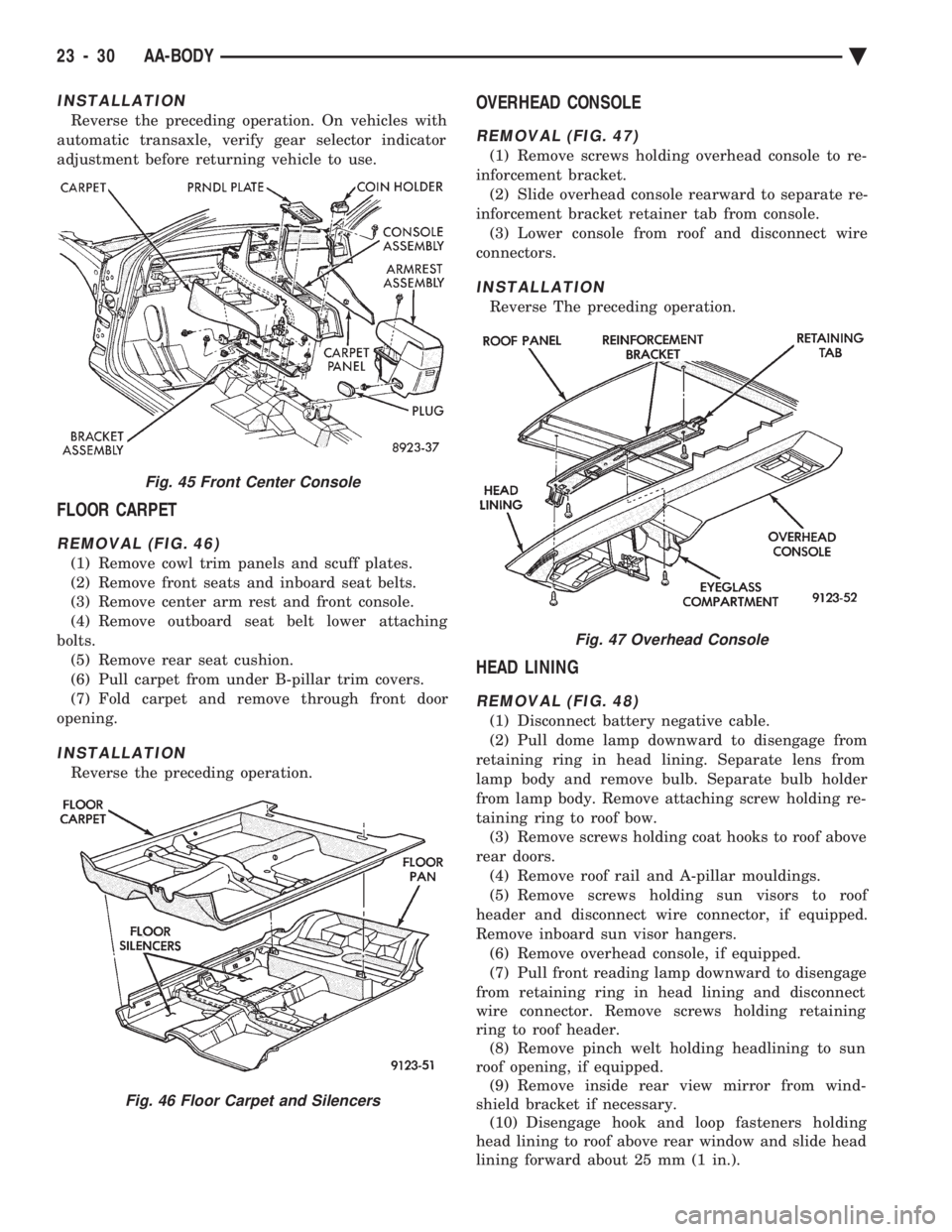

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INSTALLATION
Reverse the preceding operation. On vehicles with
automatic transaxle, verify gear selector indicator
adjustment before returning vehicle to use.
FLOOR CARPET
REMOVAL (FIG. 46)
(1) Remov

Page 2187 of 2438

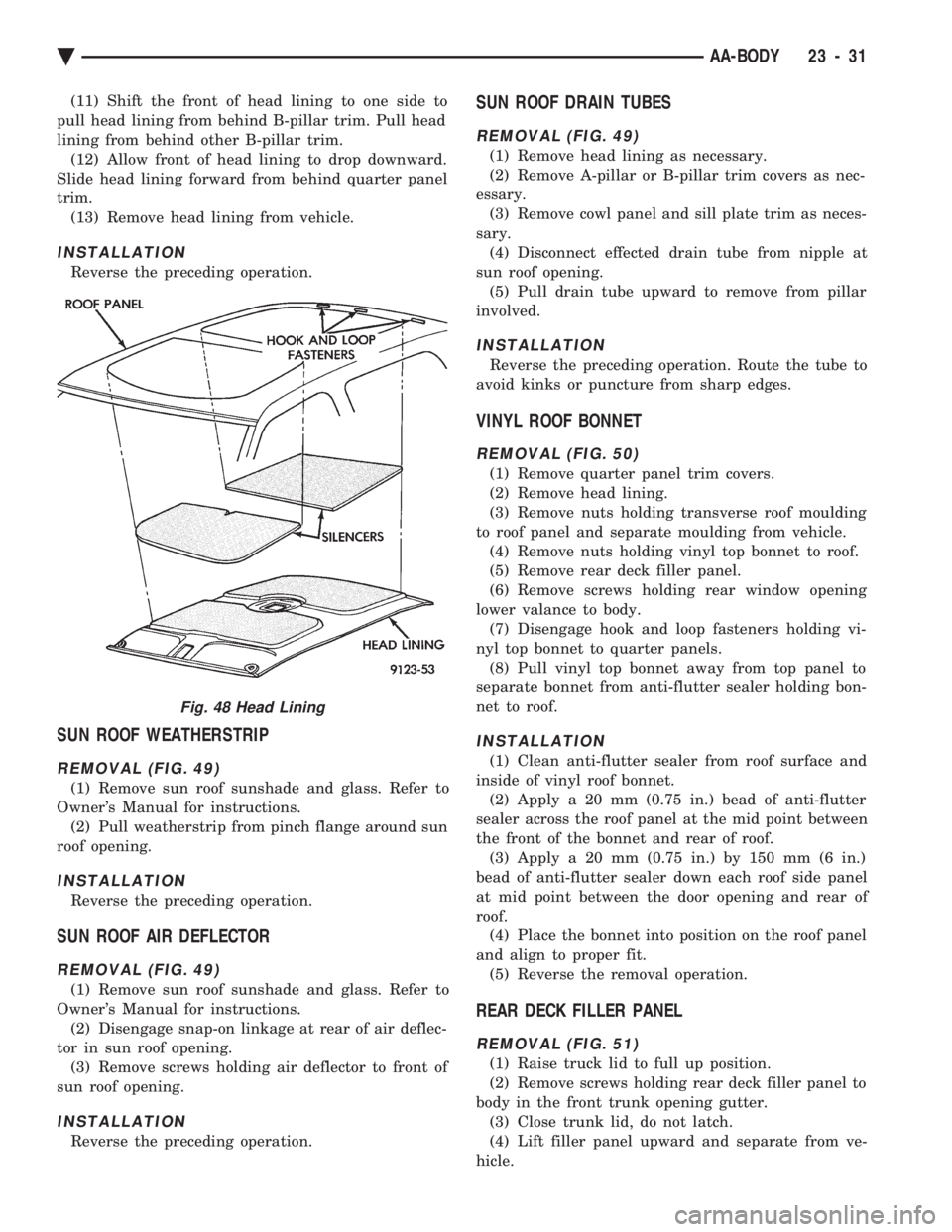

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (11) Shift the front of head lining to one side to
pull head lining from behind B-pillar trim. Pull head
lining from behind other B-pillar trim. (12) Allow front of head lining to drop downward.
Slid

Page 2188 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INSTALLATION
Reverse the preceding operation.

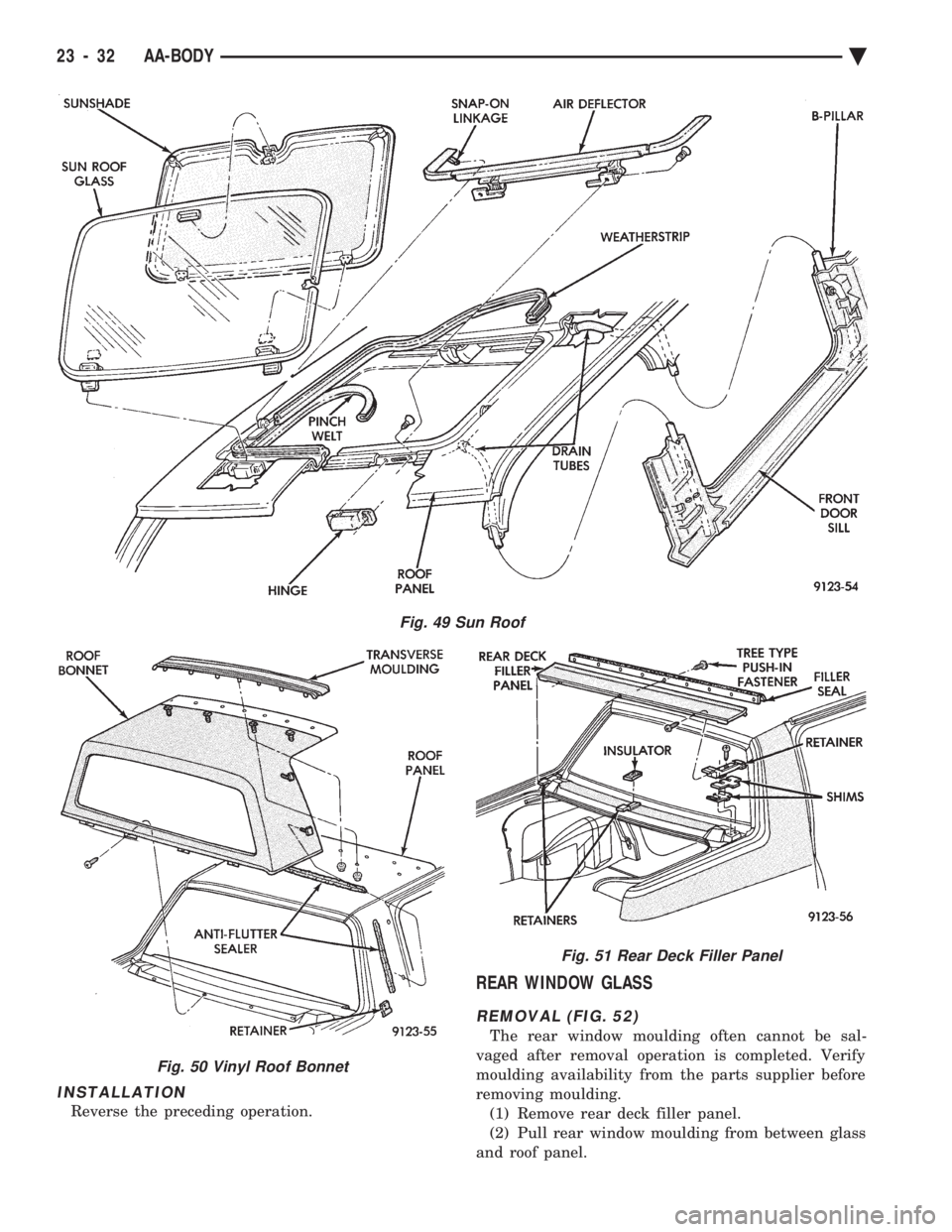

REAR WINDOW GLASS
REMOVAL (FIG. 52)
The rear window moulding often cannot be sal-
vaged after removal operation is completed. Verify
moulding availabilit

Page 2189 of 2438

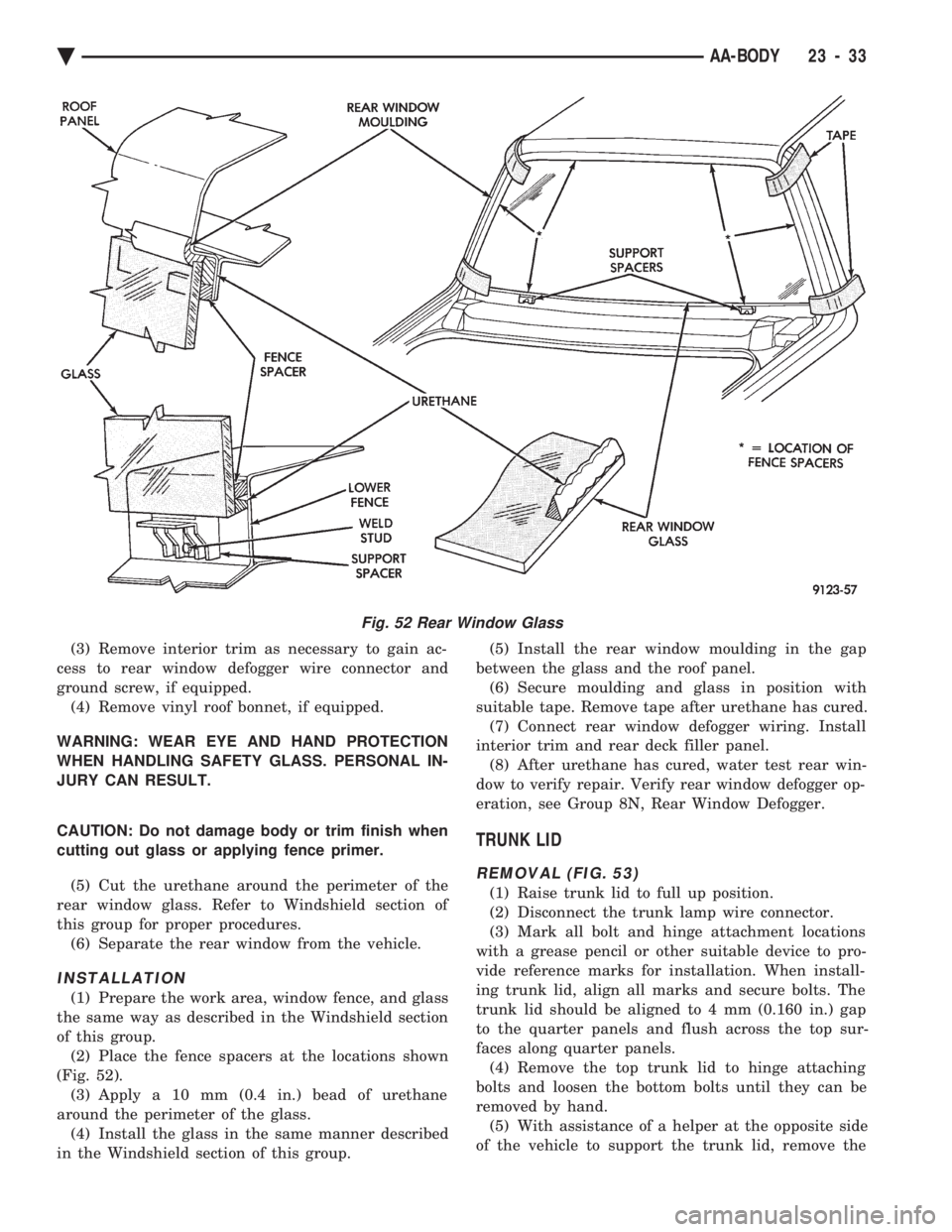

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (3) Remove interior trim as necessary to gain ac-
cess to rear window defogger wire connector and
ground screw, if equipped. (4) Remove vinyl roof bonnet, if equipped.
WARNING: WEAR EYE AND HAND PRO

Page 2190 of 2438

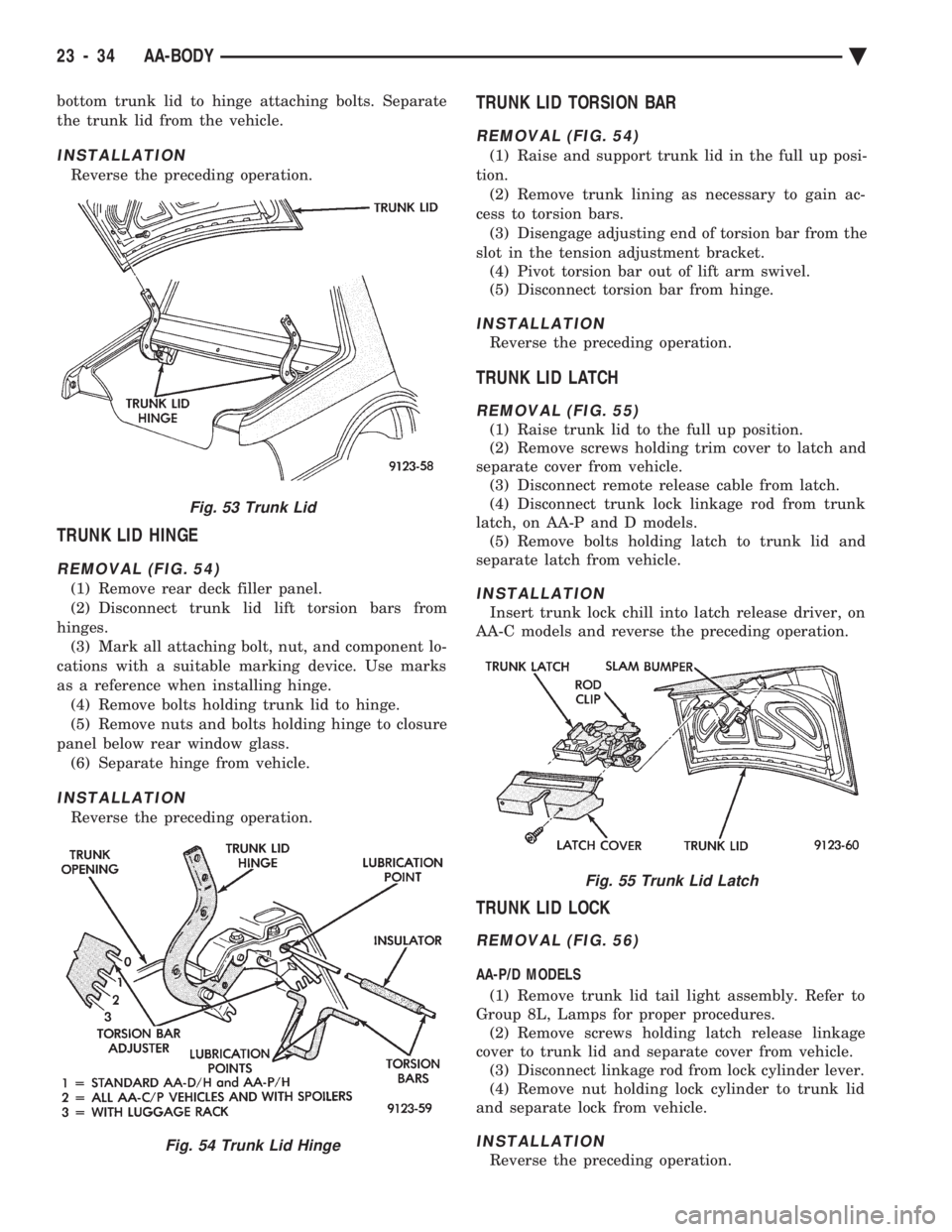

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual bottom trunk lid to hinge attaching bolts. Separate
the trunk lid from the vehicle.
INSTALLATION
Reverse the preceding operation.
TRUNK LID HINGE
REMOVAL (FIG. 54)
(1) Remove rear deck filler panel.
