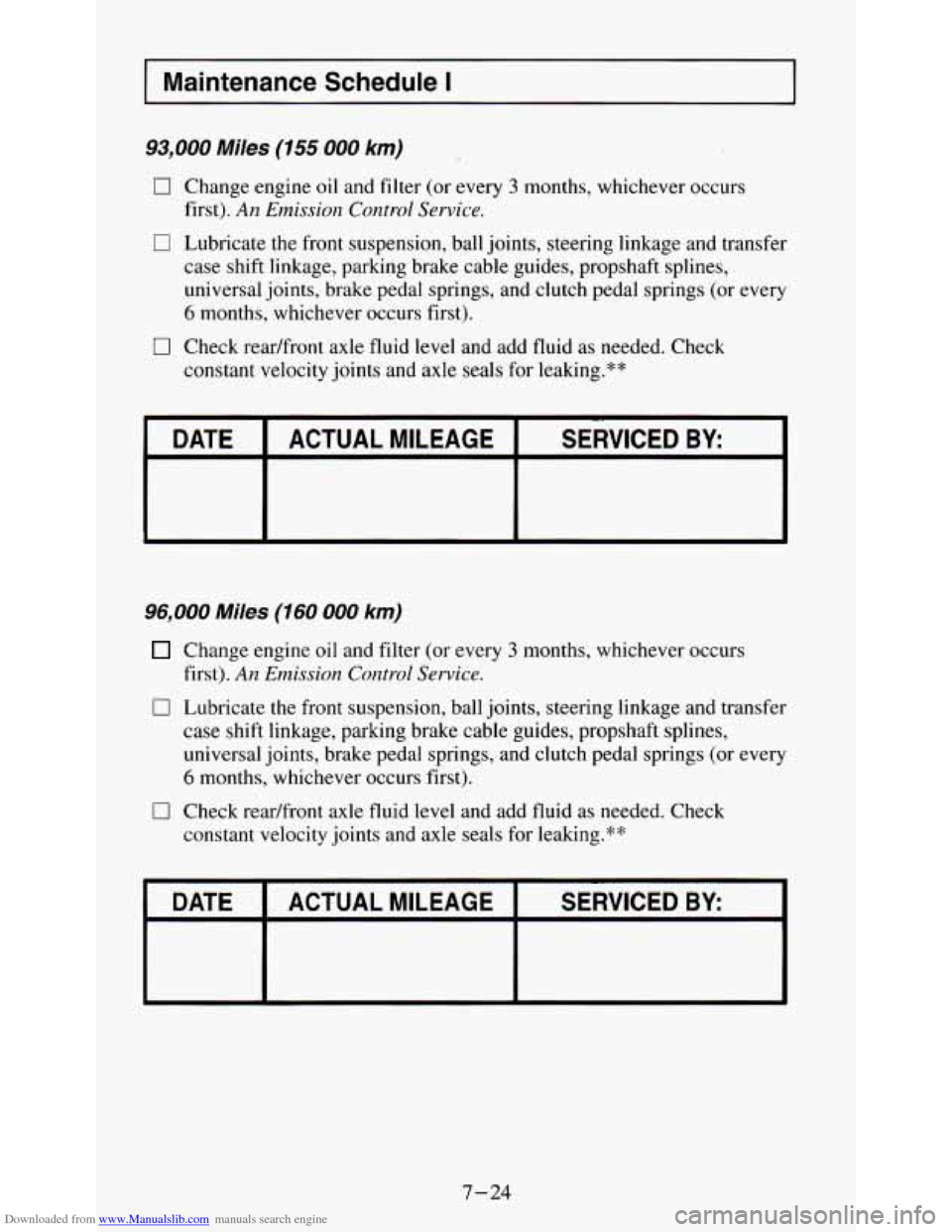

Downloaded from www.Manualslib.com manuals search engine 93,000 Miles (155 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
0 Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs (or every
6 months, whichever occurs first).
first).
An Emission Control Service.
0 Check
readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
I DATE I ACTUALMILEAGE I SERVICED BY:
96,000 Miles (160 000 km)
Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs (or every
6 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
DATE SERVICED BY: ACTUAL MILEAGE
7-24
Page 312 of 354

Downloaded from www.Manualslib.com manuals search engine I Maintenance Schedule I

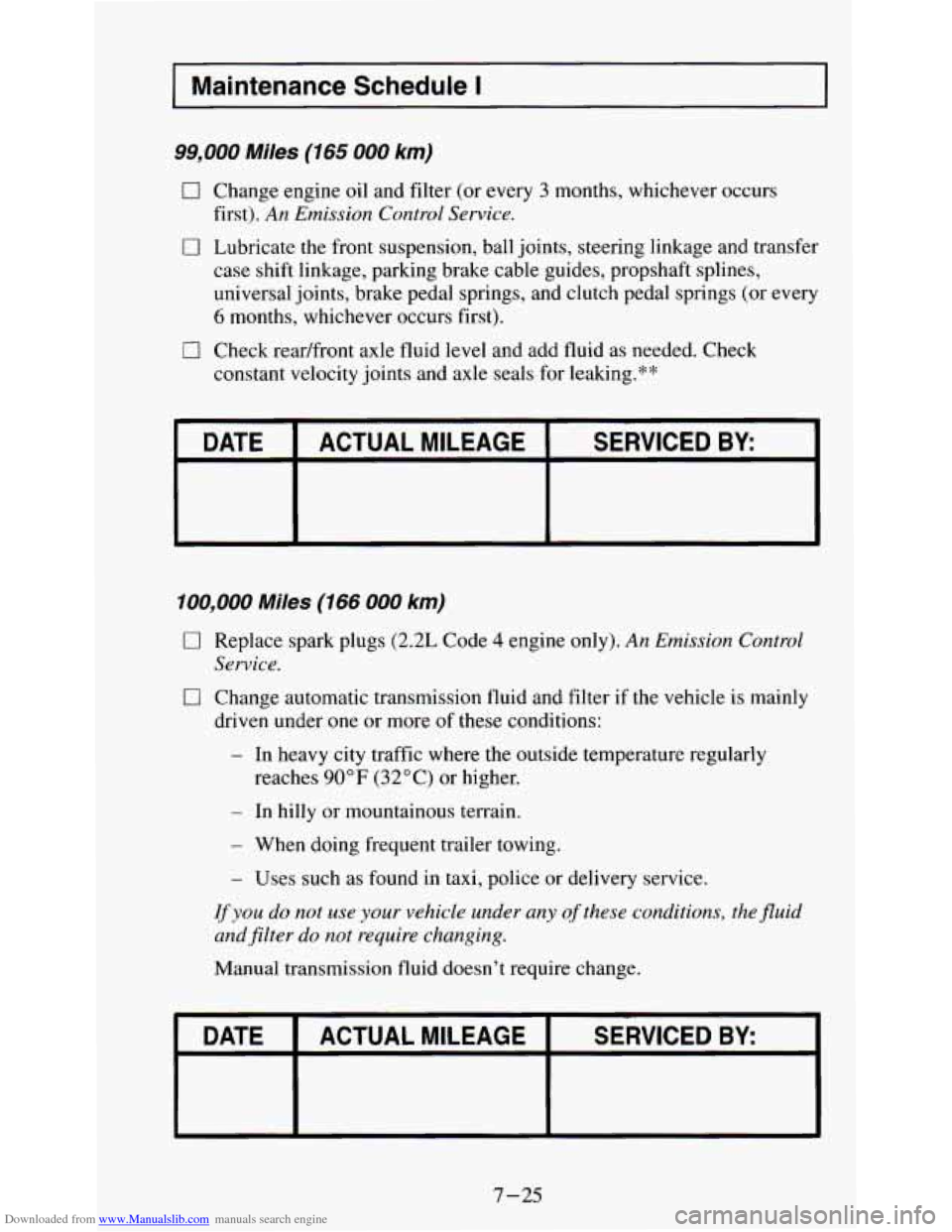

99,000 Miles (165 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs,
and clutch pedal springs (or every
6 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
DATE ACTUAL MILEAGE SERVICED BY:
100,000 Miles (166 000 km)
0 Replace spark plugs (2.2L Code 4 engine only). An Emission Control
0 Change automatic transmission fluid and filter if the vehicle is mainly
- In heavy city traffic where the outside temperature regularly
reaches
90°F (32°C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or delivery service.
Service.
driven under one or more of these conditions:
Ifyou do not use your vehicle under any of these conditions, the fluid
and filter do nor require changing.
Manual transmission fluid doesn’t require change.
DATE
ACTUAL MILEAGE SERVICED BY.
7-25
Page 313 of 354

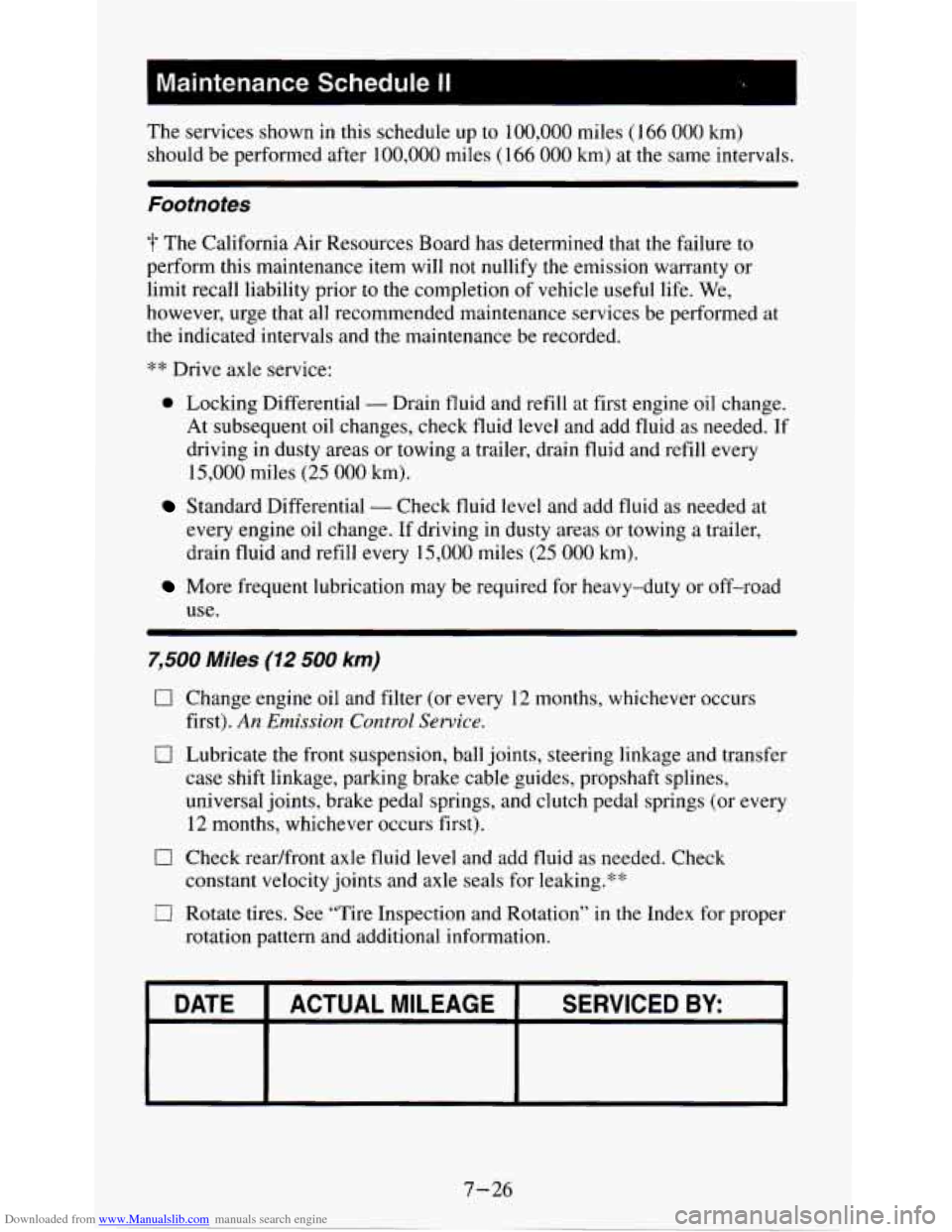

Downloaded from www.Manualslib.com manuals search engine The services shown in this schedule up to 100,000 miles (166 000 km)
should be performed after 100,000 miles (166
000 km) at the same intervals.
Footnotes
~~~
-f The California Air Resources Board has determined that the failure to
perform this maintenance
item will not nullify the emission warranty or
limit recall liability prior to
the completion of vehicle useful life. We,
however, urge that all recommended maintenance services be perfo\
rmed at
the indicated intervals and the maintenance be recorded.
** Drive axle service:
0 Locking Differential - Drain fluid and refill at first engine oil change.
At subsequent oil changes, check fluid level and add fluid
as needed. If
driving in dusty areas or towing a trailer, drain fluid and refill every
15,000 miles (25 000 km).
Standard Differential - Check fluid level and add fluid as needed at
every engine oil change. If driving
in dusty areas or towing a trailer,
drain fluid and refill every 15,000 miles
(25 000 km).
More frequent lubrication may be required for heavy-duty or off-road
use.
7,500 Miles (12 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
0 Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs (or every
12 months, whichever occurs first).
first).
An Emission Control Service.
0 Check
readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
I7 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
rotation pattern and additional information.
DATE SERVICED BY: ACTUAL MILEAGE
Page 314 of 354

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule II

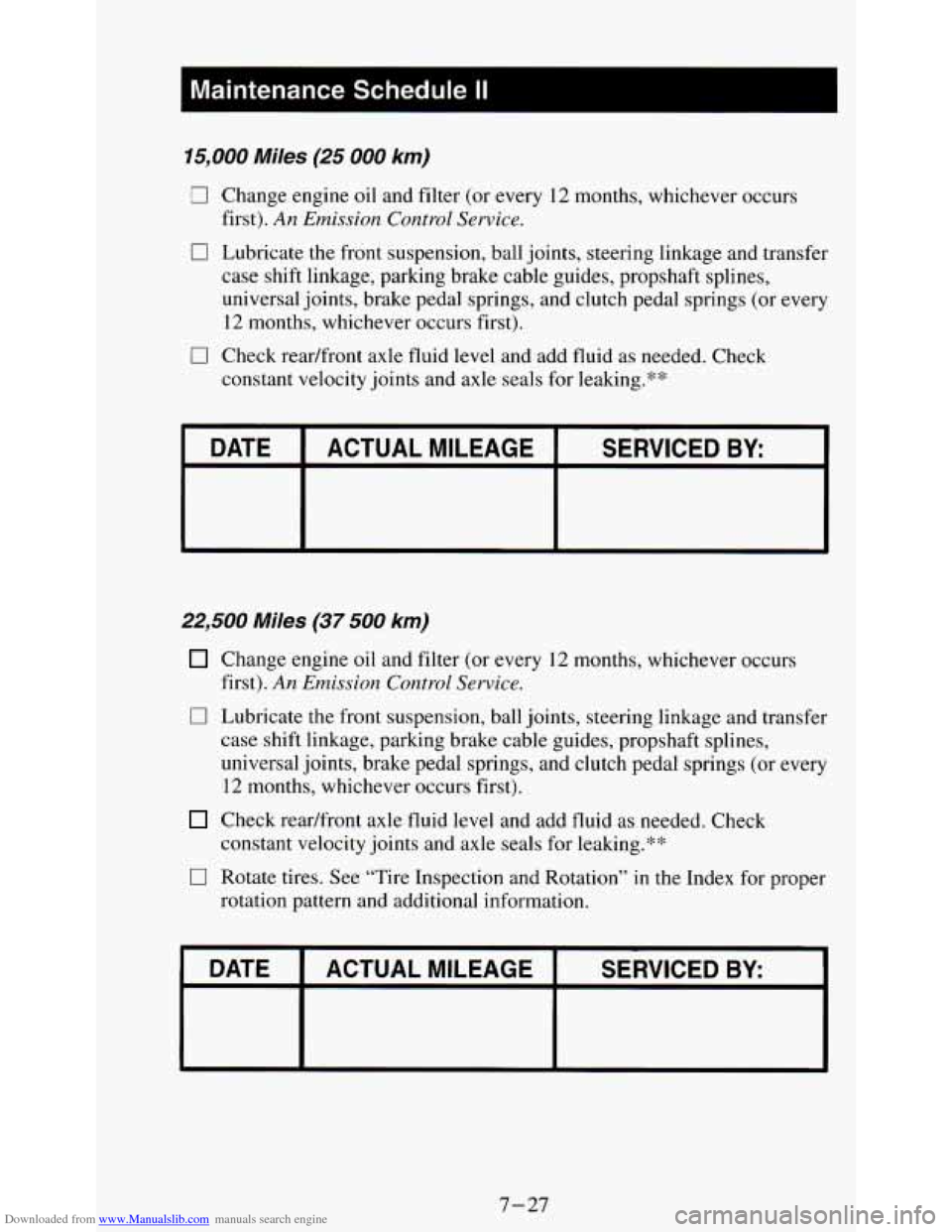

15,000 Miles (25 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs (or every
12 months, whichever occurs first).
0 Check rear/front axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
I DATE I ACTUALMILEAGE I SERVICED BY: I
22,500 Miles (37 500 km)
0
0
Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs (or every
12 months, whichever occurs first).
Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
Rotate tires. See “Tire Inspection and Rotation”
in the Index for proper
rotation pattern and additional information.
DATE ACTUAL MILEAGE SERVICED BY:
_. ~-
7-27
Page 315 of 354

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule II

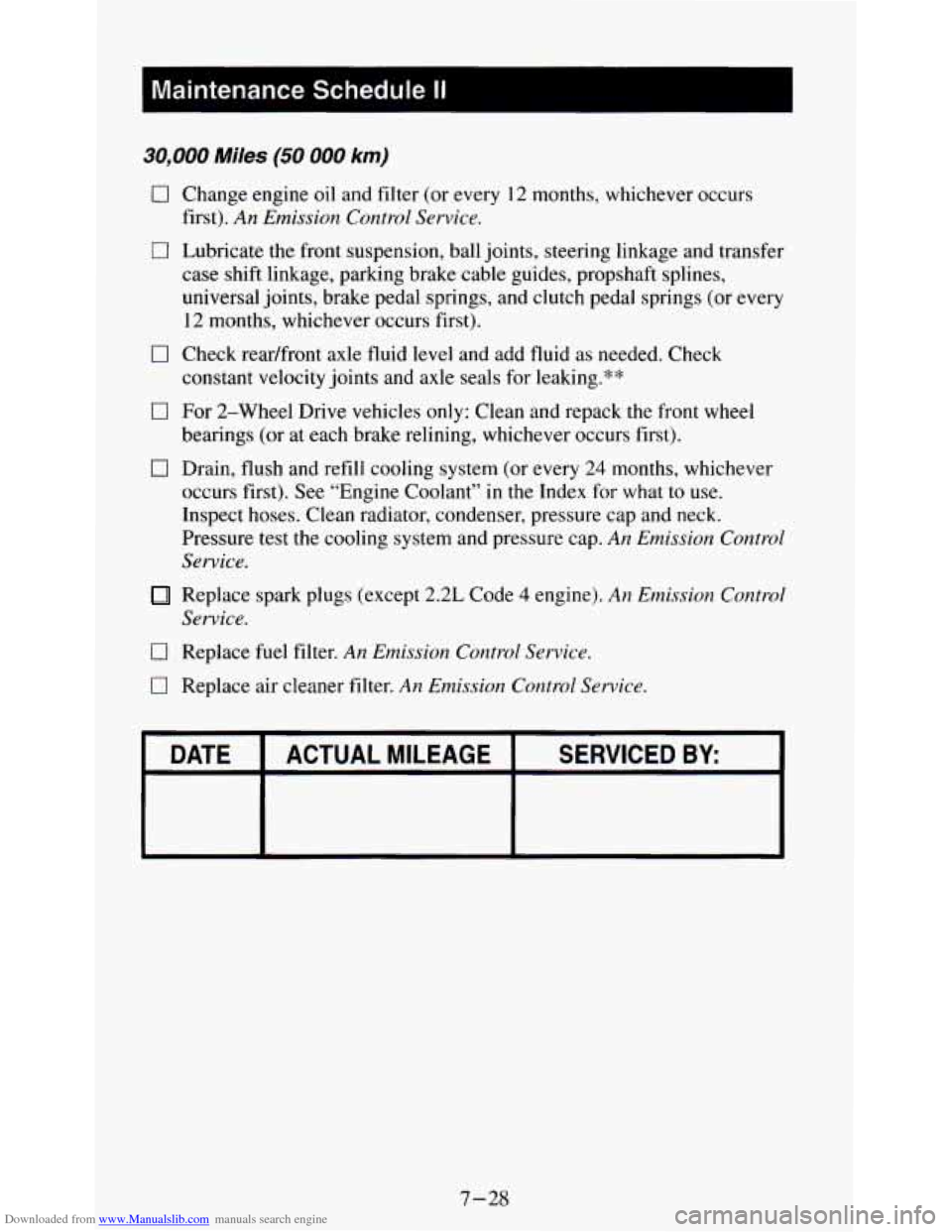

30,000 Miles (50 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs (or every
12 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
0 For 2-Wheel Drive vehicles only: Clean and repack the front wheel
bearings (or at each brake relining, whichever occurs first).
0 Drain, flush and refill cooling system (or every 24 months, whichever
occurs first). See “Engine Coolant”
in the Index for what to use.
Inspect hoses. Clean radiator, condenser, pressure cap and neck.
Pressure test the cooling system and pressure cap.
An Emission Control
Service.
Replace spark plugs (except 2.2L Code 4 engine). An Emission Control
Service.
0 Replace fuel filter. An Emission Control Service.
0 Replace air cleaner filter. An Emission Control Service.
DATE SERVICED BY: ACTUAL MILEAGE
L L
7-28
Page 316 of 354

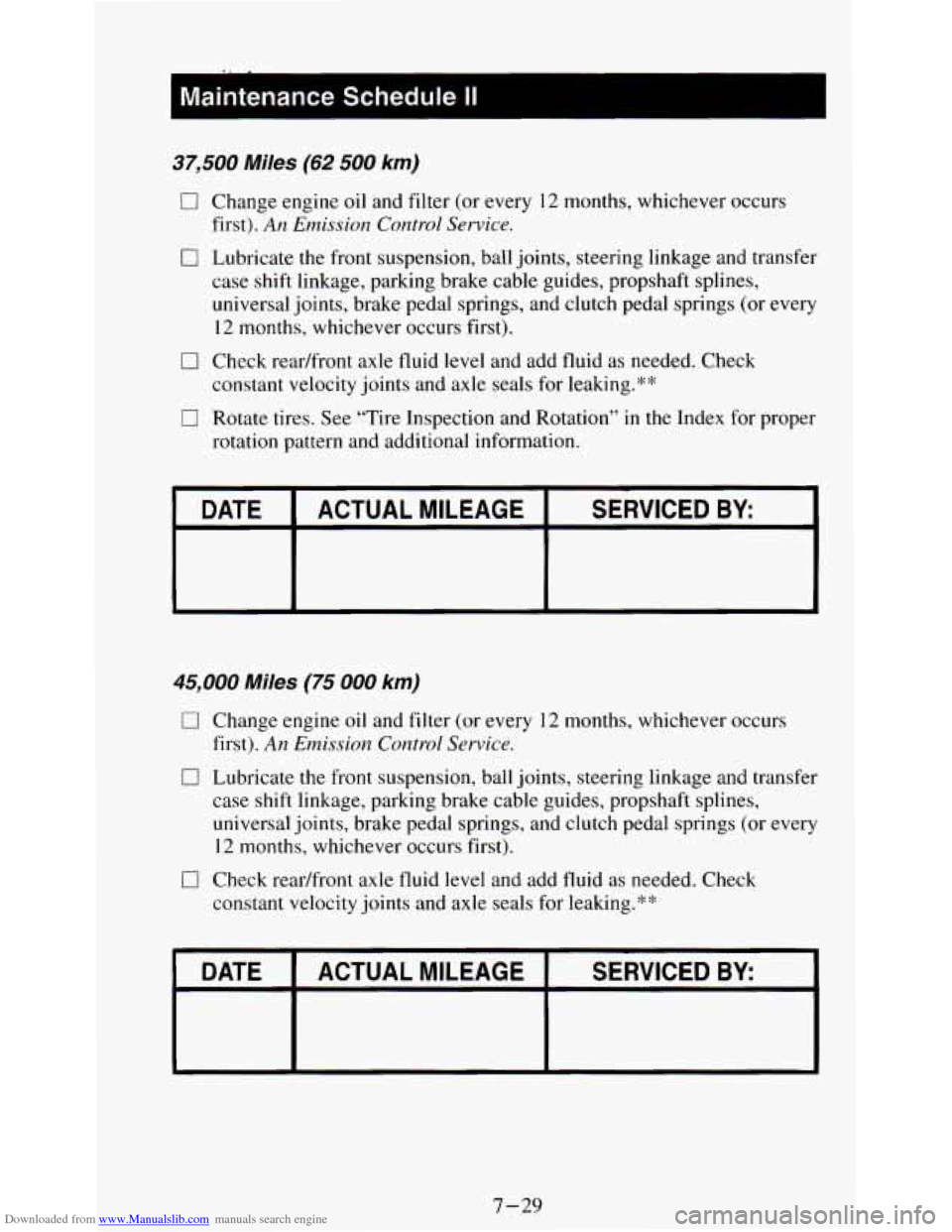

Downloaded from www.Manualslib.com manuals search engine 37,500 Miles (62 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
0 Lubricate the front suspension, ball joints, steering linkage and transfer
case
shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs (or every
12 months, whichever occurs first).
first).
An Emission Control Service.
0 Check
readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
rotation pattern and additional information.
’7 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
DATE
ACTUAL MILEAGE SERVICED BY:
i
45,000 Miles (75 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
0 Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs (or every
12 months, whichever occurs first).
first).
An Emission Control Service.
0 Check
readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
DATE
ACTUAL MILEAGE SERVICED BY:
7-29
Page 317 of 354

Downloaded from www.Manualslib.com manuals search engine I Maintenance Schedule II

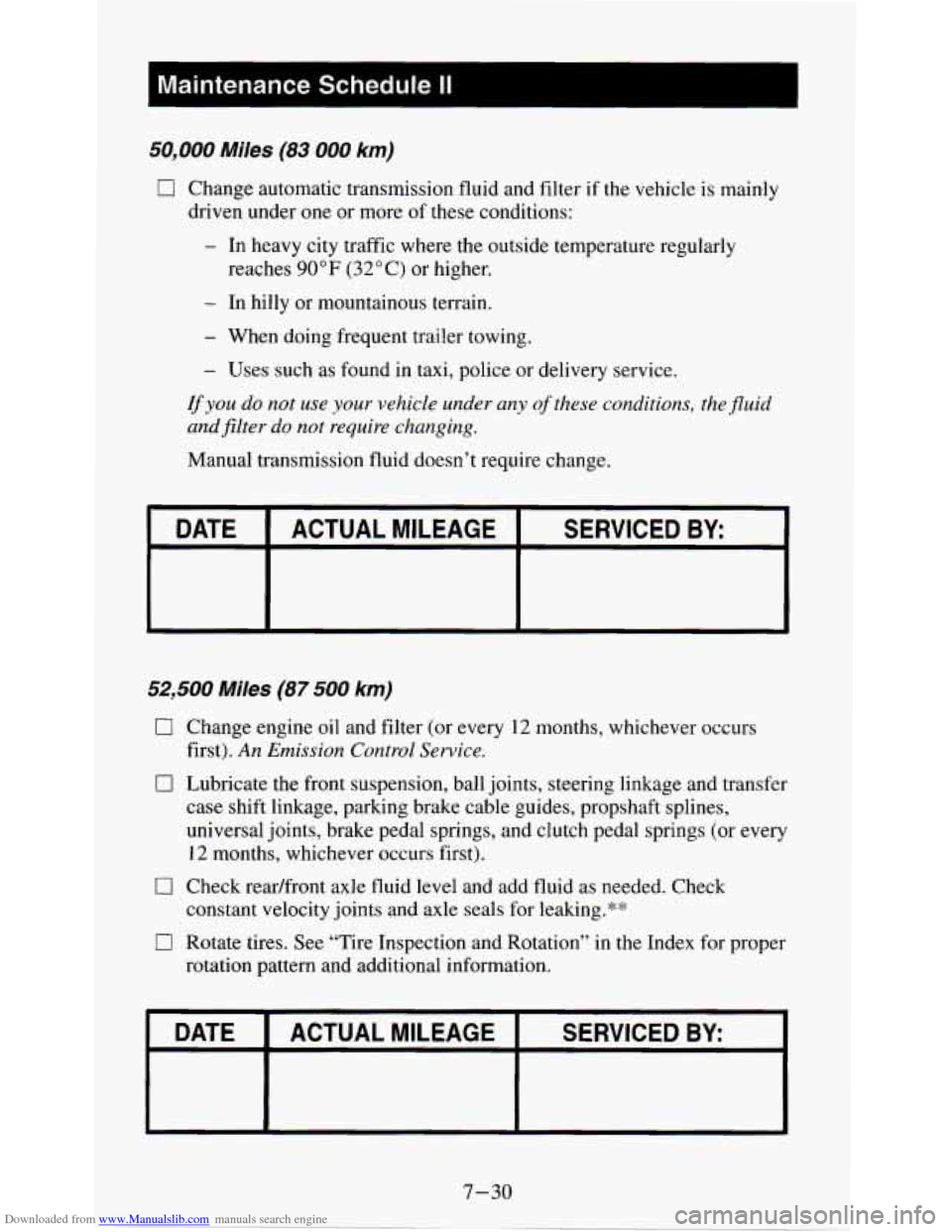

50,000 Miles (83 000 km)
0 Change automatic transmission fluid and filter if the vehicle is mainly
- In heavy city traffic where the outside temperature regularly
reaches
90°F (32°C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or delivery service.
driven under
one or more
of these conditions:
If you do not use your vehicle under any of these conditions, the fluid
and
filter do not require changing.
Manual transmission fluid doesn’t require change.
DATE SERVICED BY: ACTUAL MILEAGE
52,500 Miles (87 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
0 Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs
(or every
12 months, whichever occurs first).
first).
An Emission Control Service.
0 Check
readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
rotation pattern and additional information.
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
DATE
SERVICED BY: ACTUAL MILEAGE
7-30
Page 318 of 354

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule II

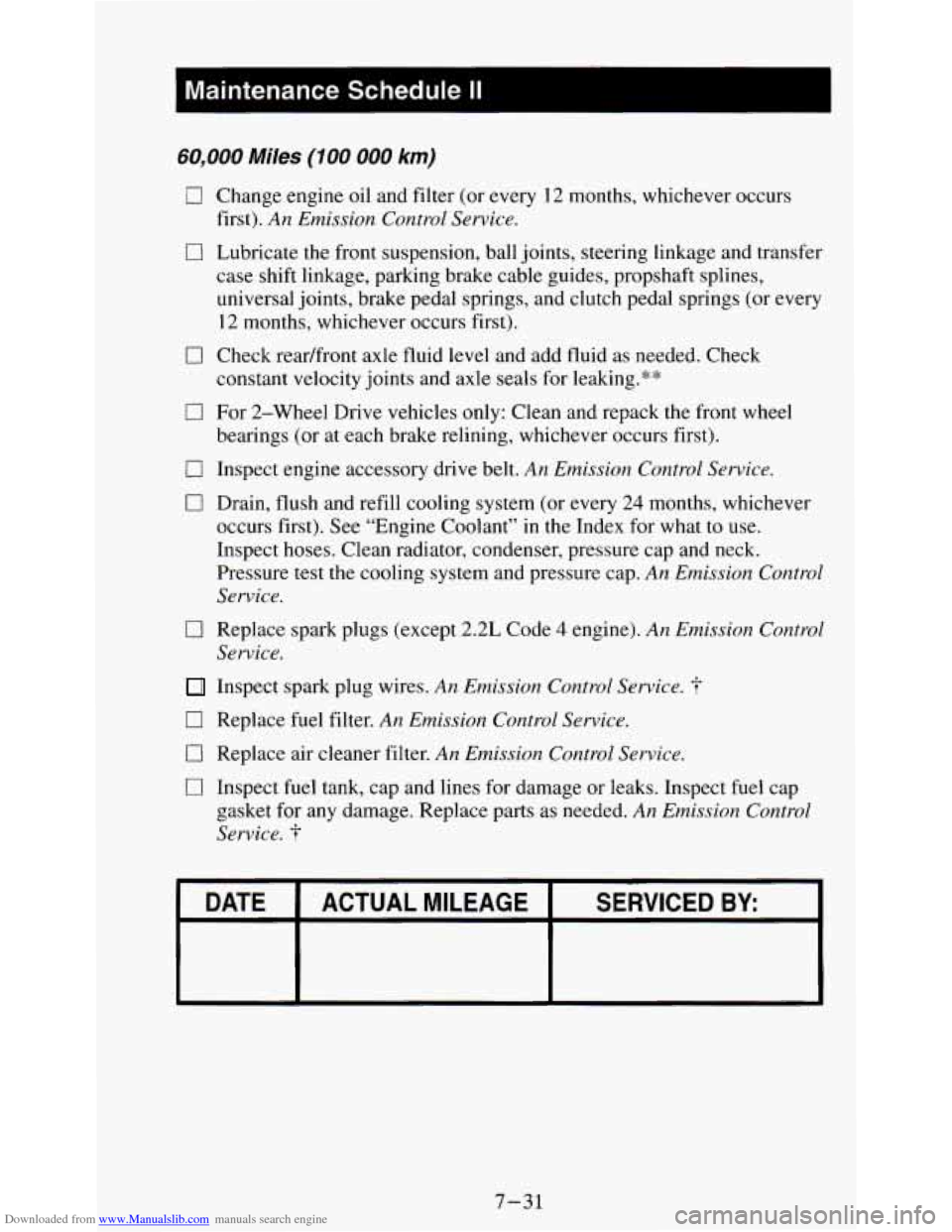

60,000 Miles (100 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs (or every
12 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
0 For 2-Wheel Drive vehicles only: Clean and repack the front wheel
bearings (or at each brake relining, whichever occurs first).
0 Inspect engine accessory drive belt. An Emission Control Service.
0 Drain, flush and refill cooling system (or every 24 months, whichever
occurs first). See “Engine Coolant’’
in the Index for what to use.
Inspect hoses. Clean radiator, condenser, pressure cap and neck.
Pressure
test the cooling system and pressure cap. An Emission Control
Service.
0 Replace spark plugs (except 2.2L Code 4 engine). An Emission Control
Service.
Inspect spark plug wires. An Emission Control Service.
0 Replace fuel filter. An Emission Control Service.
0 Replace air cleaner filter. An Emission Control Service.
0 Inspect fuel tank, cap and lines for damage or leaks. Inspect fuel cap
gasket for any damage. Replace parts
as needed. An Emission Control
Service.
DATE SERVICED BY: ACTUAL MILEAGE
7-31
Page 319 of 354

Downloaded from www.Manualslib.com manuals search engine I Maintenance Schedule II
67,500 Miles (112 500 km)
0
0
0
Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs (or every
12 months, whichever occurs first).
Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
Rotate tires. See “Tire Inspection and Rotation”
in the Index for proper
rotation pattern and additional information.
DATE SERVICED BY: ACTUAL MILEAGE
75,000 Miles (125 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs (or every
12 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
DATE SERVICED BY: ACTUAL MILEAGE
7-32
Page 320 of 354

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule II

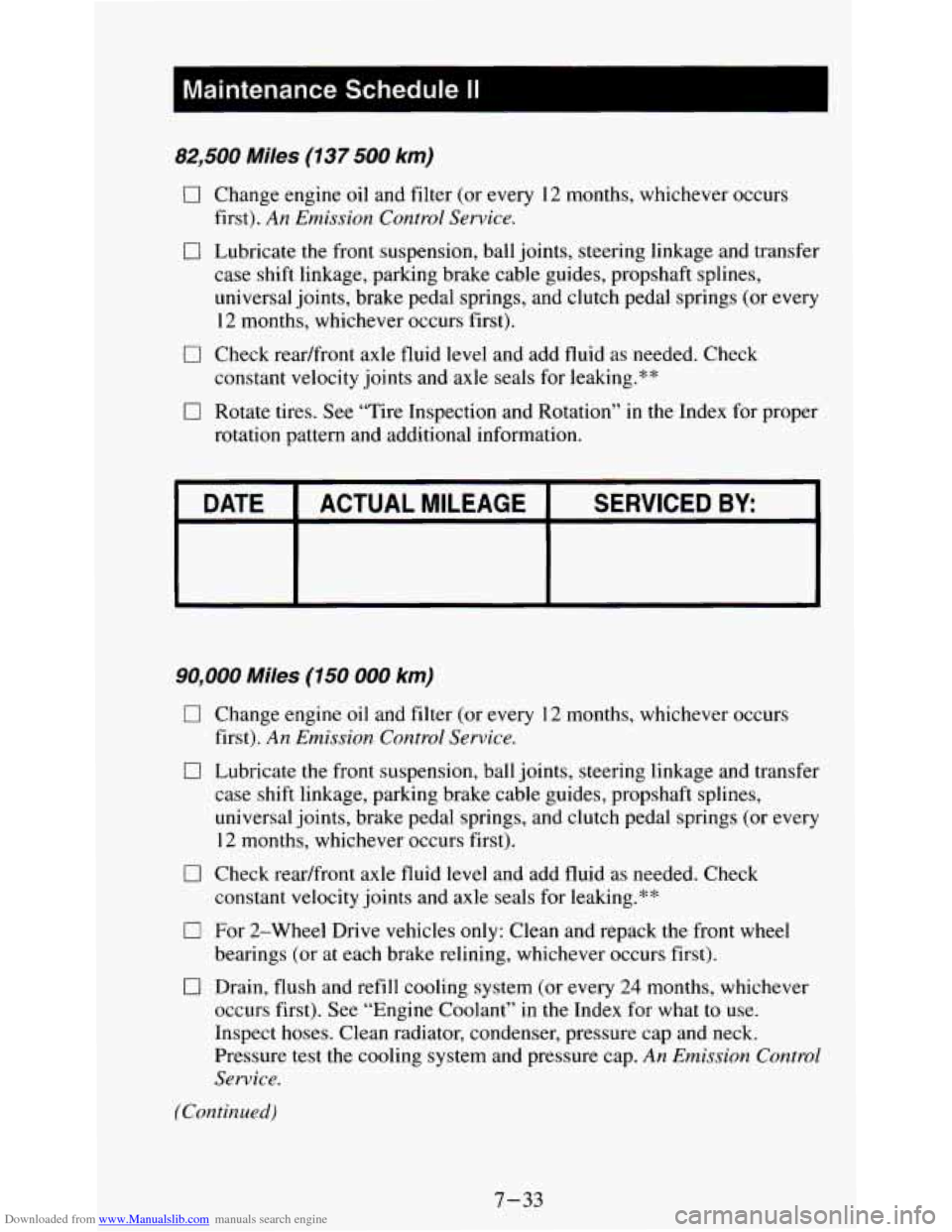

82,500 Miles (137 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs (or every
12 months, whichever occurs first).
constant velocity
joints and axle seals for leaking.**
0 Check readfront axle fluid level and add fluid as needed. Check
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
rotation pattern and additional information.
DATE SERVICED BY: ACTUAL MILEAGE
90,000 Miles (150 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs
0 Lubricate the front suspension, ball joints, steering linkage and transfer
case shift linkage, parking brake cable guides, propshaft splines,
universal joints, brake pedal springs, and clutch pedal springs (or every
12 months, whichever occurs first).
first).
An Emission
Control Service.
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.**
bearings
(or at each brake relining, whichever occurs first).
17 For 2-Wheel Drive vehicles only: Clean and repack the front wheel
0 Drain, flush and refill cooling system (or every 24 months, whichever
occurs first). See “Engine Coolant” in
the Index for what to use.
Inspect hoses. Clean radiator, condenser, pressure cap and neck.
Pressure test the cooling system and pressure cap.
An Emission Control
Service.
(Continued)
7-33
