CHEVROLET SILVERADO 2017 3.G User Guide
Manufacturer: CHEVROLET, Model Year: 2017, Model line: SILVERADO, Model: CHEVROLET SILVERADO 2017 3.GPages: 509, PDF Size: 8.87 MB
Page 11 of 509

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
10 In Brief

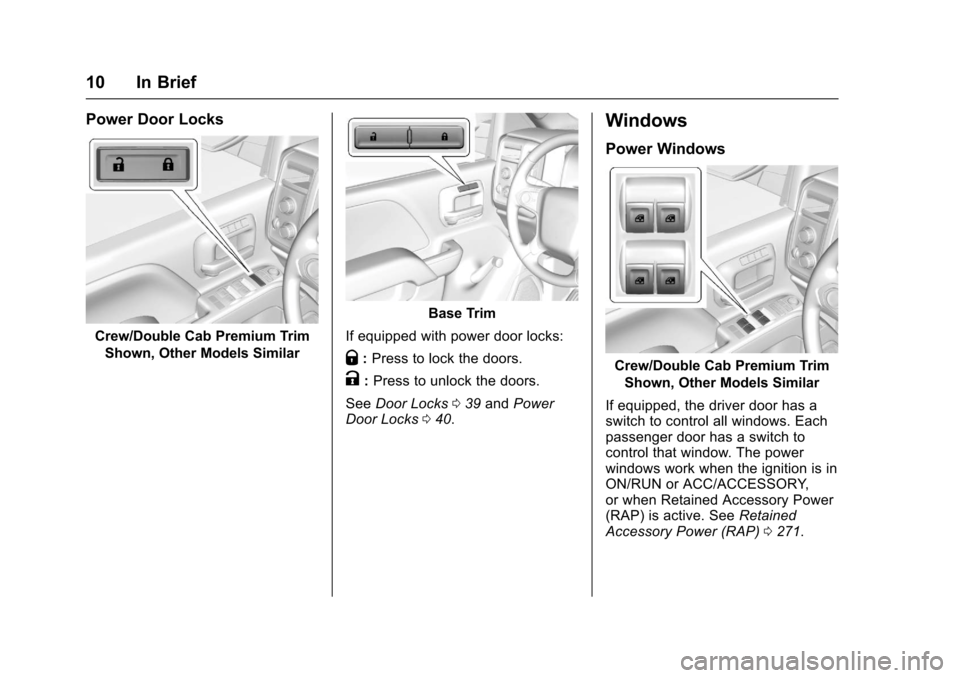

Power Door Locks
Crew/Double Cab Premium Trim
Shown, Other Models Similar
Base Trim
If equipped with power door locks:
Q:Press to lock the doors.
K:Press to unlock the doors.
SeeDoor Locks039andPowerDoor Locks040.
Windows
Power Windows
Crew/Double Cab Premium Trim
Shown, Other Models Similar
If equipped, the driver door has aswitch to control all windows. Eachpassenger door has a switch tocontrol that window. The powerwindows work when the ignition is inON/RUN or ACC/ACCESSORY,or when Retained Accessory Power(RAP) is active. SeeRetainedAccessory Power (RAP)0271.
Page 12 of 509

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
In Brief 11

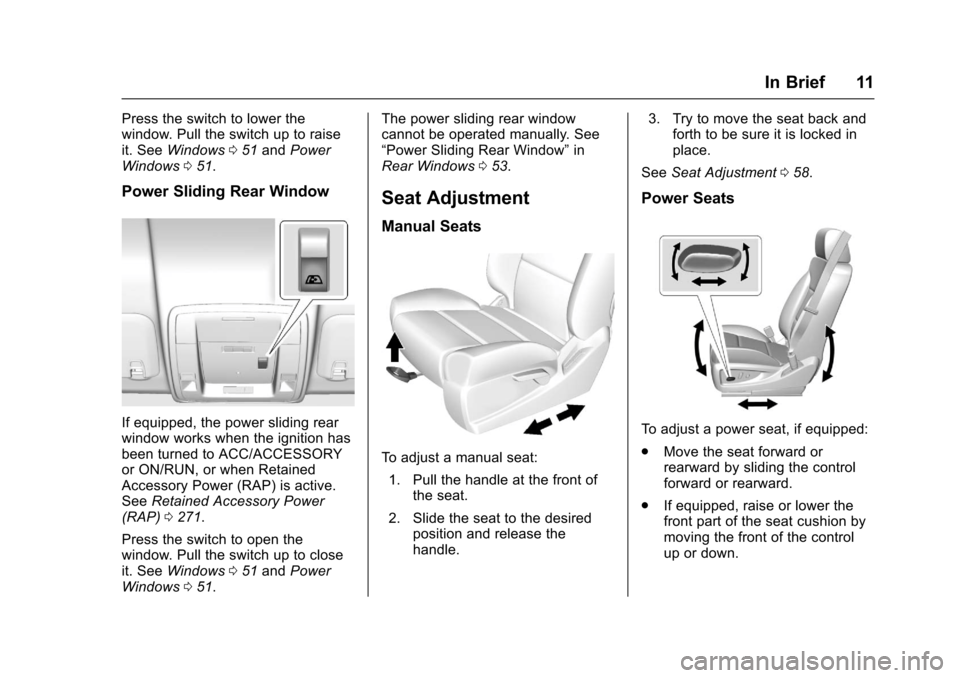

Press the switch to lower thewindow. Pull the switch up to raiseit. SeeWindows051andPowerWindows051.
Power Sliding Rear Window
If equipped, the power sliding rearwindow works when the ignition hasbeen turned to ACC/ACCESSORYor ON/RUN, or when RetainedAccessory Power (RAP) is active.SeeRetained Accessory Power(RAP)0271.
Press the switch to open thewindow. Pull the switch up to closeit. SeeWindows051andPowerWindows051.
The power sliding rear windowcannot be operated manually. See“Power Sliding Rear Window”inRear Windows053.
Seat Adjustment
Manual Seats
To a d j u s t a m a n u a l s e a t :
1. Pull the handle at the front ofthe seat.
2. Slide the seat to the desiredposition and release thehandle.
3. Try to move the seat back andforth to be sure it is locked inplace.
SeeSeat Adjustment058.
Power Seats
To a d j u s t a p o w e r s e a t , i f e q u i p p e d :
.Move the seat forward orrearward by sliding the controlforward or rearward.
.If equipped, raise or lower thefront part of the seat cushion bymoving the front of the controlup or down.
Page 13 of 509

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
12 In Brief

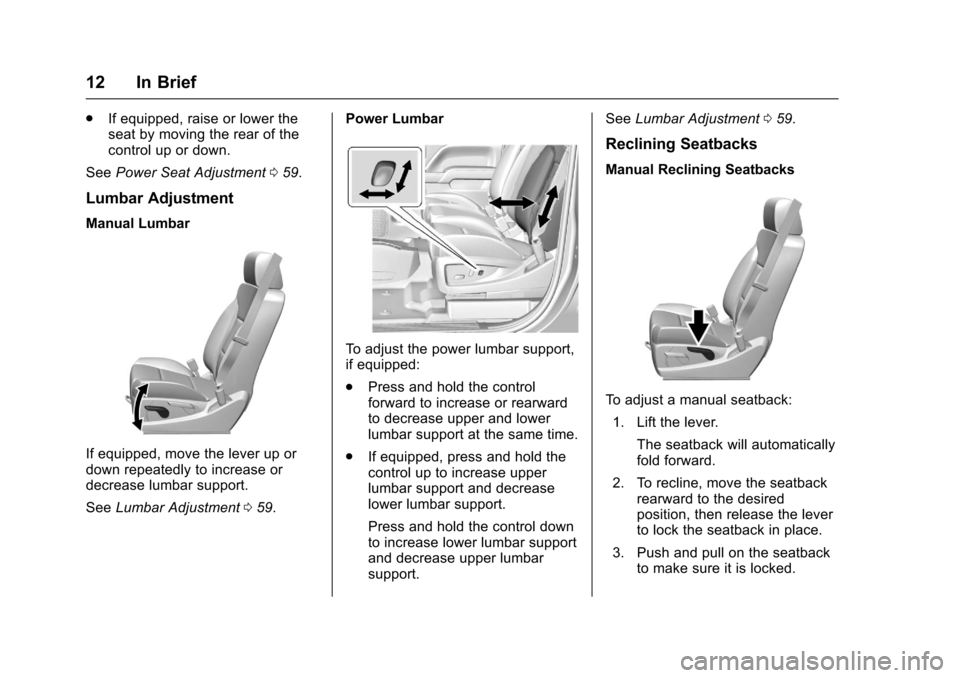

.If equipped, raise or lower theseat by moving the rear of thecontrol up or down.
SeePower Seat Adjustment059.
Lumbar Adjustment
Manual Lumbar
If equipped, move the lever up ordown repeatedly to increase ordecrease lumbar support.
SeeLumbar Adjustment059.
Power Lumbar
To a d j u s t t h e p o w e r l u m b a r s u p p o r t ,if equipped:
.Press and hold the controlforward to increase or rearwardto decrease upper and lowerlumbar support at the same time.
.If equipped, press and hold thecontrol up to increase upperlumbar support and decreaselower lumbar support.
Press and hold the control downto increase lower lumbar supportand decrease upper lumbarsupport.
SeeLumbar Adjustment059.
Reclining Seatbacks
Manual Reclining Seatbacks
To a d j u s t a m a n u a l s e a t b a c k :
1. Lift the lever.
The seatback will automaticallyfold forward.
2. To recline, move the seatbackrearward to the desiredposition, then release the leverto lock the seatback in place.
3. Push and pull on the seatbackto make sure it is locked.
Page 14 of 509

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
In Brief 13
To r e t u r n t h e s e a t b a c k t o t h e u p r i g h tposition:
1. Lift the lever fully withoutapplying pressure to theseatback, and the seatback willreturn to the upright position.
2. Push and pull on the seatbackto make sure it is locked.
SeeReclining Seatbacks060.
Power Reclining Seatbacks
To r e c l i n e a p o w e r s e a t b a c k ,if equipped:
.Tilt the top of the controlrearward to recline.
.Tilt the top of the control forwardto raise.
SeeReclining Seatbacks060.
Memory Features
Crew/Double Cab Shown, Other
Models Similar
If equipped, the SET, 1, 2, andB
(Exit) buttons on the driver door areused to manually store and recallmemory settings for the driver seat,outside mirrors, and adjustablepedals (if equipped).
Automatic Memory Recall and/orEasy Exit Recall features may beenabled in the PersonalizationMenus.
SeeMemory Seats061andVehicle Personalization0160.
Heated and Ventilated
Seats
Heated and Ventilated Seat
Buttons Shown, Heated Seat
Buttons Similar
If equipped, the buttons are on thecenter stack. To operate, the enginemust be running.
Page 15 of 509

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
14 In Brief

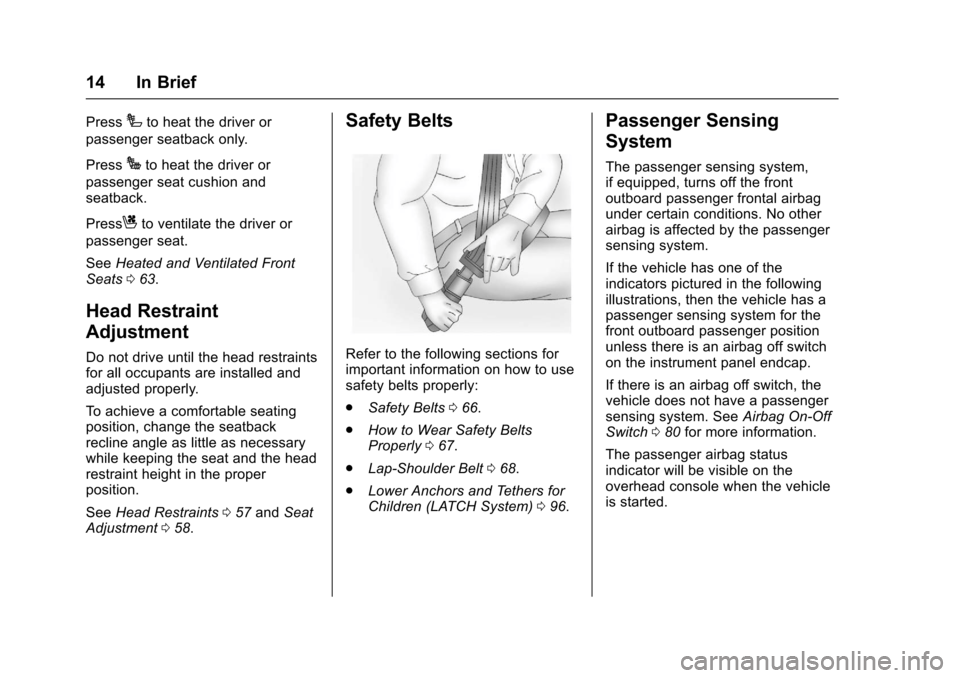

PressIto heat the driver or
passenger seatback only.
PressJto heat the driver or
passenger seat cushion andseatback.
PressCto ventilate the driver or
passenger seat.
SeeHeated and Ventilated FrontSeats063.
Head Restraint
Adjustment
Do not drive until the head restraintsfor all occupants are installed andadjusted properly.
To a c h i e v e a c o m f o r t a b l e s e a t i n gposition, change the seatbackrecline angle as little as necessarywhile keeping the seat and the headrestraint height in the properposition.
SeeHead Restraints057andSeatAdjustment058.
Safety Belts
Refer to the following sections forimportant information on how to usesafety belts properly:
.Safety Belts066.
.How to Wear Safety BeltsProperly067.
.Lap-Shoulder Belt068.
.Lower Anchors and Tethers forChildren (LATCH System)096.
Passenger Sensing
System
The passenger sensing system,if equipped, turns off the frontoutboard passenger frontal airbagunder certain conditions. No otherairbag is affected by the passengersensing system.
If the vehicle has one of theindicators pictured in the followingillustrations, then the vehicle has apassenger sensing system for thefront outboard passenger positionunless there is an airbag off switchon the instrument panel endcap.
If there is an airbag off switch, thevehicle does not have a passengersensing system. SeeAirbag On-OffSwitch080for more information.
The passenger airbag statusindicator will be visible on theoverhead console when the vehicleis started.
Page 16 of 509

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
In Brief 15
United States
Canada and Mexico
SeePassenger Sensing System082for important information.
Mirror Adjustment
Using hood-mounted air deflectorsand add-on convex mirrorattachments could decrease mirrorperformance.
Exterior Mirrors
Manual Mirrors
If equipped, adjust manual mirrorsby moving them up and down or leftto right to see a little of the side ofthe vehicle and to have a clear viewbehind the vehicle.
SeeManual Mirrors046.
Power Mirrors
Base Power Mirrors
If equipped with power mirrors:
1. Press (1) or (2) to select thedriver or passenger side mirror.
2. Press the arrows on the controlpad to move the mirror up,down, right, or left.
3. Adjust each outside mirror sothat a little of the vehicle andthe area behind it can be seen.
4. Keep the selector switch in thecenter position when notadjusting either outside mirror.
Uplevel with Power Folding
Mirrors
1. Press (1) or (3) to select thedriver or passenger side mirror.
Page 17 of 509

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
16 In Brief
2. Press the arrows on the controlpad while the indicator light onthe (1) or (3) button isilluminated, to move the mirrorup, down, right, or left.
3. Adjust each outside mirror sothat a little of the vehicle andthe area behind it can be seen.
4. Press either (1) or (3) again todeselect the mirror.
SeePower Mirrors047.
If equipped with power foldingmirrors:
1. Press (2) to fold the mirrors outto the driving position.
2. Press (2) again to fold themirrors in to the folded position.
For manual, power, and auto foldingmirrors, seeFolding Mirrors048.
The mirrors may also include amemory function that works with thememory seats. SeeMemorySeats061.
Interior Mirror
Adjustment
Adjust the mirror for a clear view ofthe area behind the vehicle.
Manual Dimming Rearview Mirror
If equipped, push the tab forward fordaytime use and pull it for nighttimeuse to avoid glare from theheadlamps from behind. SeeManual Rearview Mirror051.
Automatic Dimming RearviewMirror
If equipped, the mirror willautomatically reduce the glare of theheadlamps from behind. Thedimming feature comes on when thevehicle is started.
SeeAutomatic Dimming RearviewMirror051.
Steering Wheel
Adjustment
To a d j u s t t h e s t e e r i n g w h e e l :
1. Hold the steering wheel andpull the lever.
2. Move the steering wheel upor down.
3. Release the lever to lock thewheel in place.
Page 18 of 509

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
In Brief 17
Tilt and Telescoping SteeringWheel
To a d j u s t t h e t i l t a n d t e l e s c o p i n gsteering wheel, if equipped:
1. Push the lever (1) down tomove the steering wheelforward or rearward. Lift thelever up to lock the wheel inplace.
2. Pull the lever (2) toward you tomove the steering wheel up ordown, then release the lever tolock the wheel in place.
Do not adjust the steering wheelwhile driving.
Interior Lighting
Dome Lamps
There are dome lamps in theoverhead console and the headliner,if equipped.
To c h a n g e t h e d o m e l a m p s e t t i n g s ,press the following:
OFF :Turns the lamps off, evenwhen a door is open.
DOOR :The lamps come onautomatically when a door isopened.
ON :Turns all dome lamps on.
Reading Lamps
There are reading lamps in theoverhead console and the headliner,if equipped. To operate, the ignitionmust be in the ACC/ACCESSORYor ON/RUN position or usingRetained Accessory Power (RAP).
Page 19 of 509

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
18 In Brief
Pressmornnext to each reading
lamp to turn it on or off.
For more information about interiorlighting, seeInstrument PanelIllumination Control0177.
Exterior Lighting
The exterior lamp control is on theinstrument panel to the left of thesteering wheel.
O:Turns off the automaticheadlamps and Daytime RunningLamps (DRL). Turn the headlampcontrol to the off position again toturn the automatic headlamps orDRL back on.
For vehicles first sold in Canada, offwill only work when the vehicle is inP(Park).
AUTO :Automatically turns on theheadlamps, parking lamps,taillamps, instrument panel lights,roof marker lamps (if equipped),front/rear sidemarker lamps, andlicense plate lamps.
;:Turns on the parking lampsincluding all lamps, except theheadlamps.
5:Turns on the headlampstogether with the parking lamps andinstrument panel lights.
See:
.Exterior Lamp Controls0171.
.Daytime Running Lamps(DRL)0174.
.Fog Lamps0176.
Windshield Wiper/Washer
The windshield wiper control is onthe turn signal lever.
The windshield wipers are controlled
by turning the band withzon it.
1:Fast wipes.
w:Slow wipes.
3INT :Turn the band up for morefrequent wipes or down for lessfrequent wipes.
OFF :Turns the windshieldwipers off.
8:For a single wipe, turn to8,then release. For several wipes,
hold the band on8longer.
Page 20 of 509

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
In Brief 19
Lm:Push the paddle at the top ofthe lever to spray washer fluid onthe windshield.
SeeWindshield Wiper/Washer0122.
Climate Controls
These systems control the heating,cooling, and ventilation.
For an eAssist vehicle, see theSilverado/Sierra eAssistsupplement.
Climate Control System (with Heater Only)
1. Fan Control
2. Air Recirculation
3. Air Delivery Mode Control
4. Defrost
5. TEMP (Temperature Control)
