CHEVROLET SILVERADO 2017 3.G Owner's Manual

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
20 In Brief
Climate Control System (with Air Conditioning)
1. Fan Control
2. A/C (Air Conditioning)
3. Air Delivery Mode Control
4. Defrost
5. TEMP (Temperature Control)
6.K(Rear Window Defogger, If
Equipped)
f(Outside Heated Mirror, If
Equipped)
8(Outside Air, If Equipped)
7. Air Recirculation

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
In Brief 21
Dual Automatic Climate Control System
1. Driver Temperature Control
2. A/C (Air Conditioning)
3. Air Delivery Mode Controls
4. Fan Control
5. Defrost
6. Passenger TemperatureControl
7. SYNC (SynchronizedTe m p e r a t u r e )
8. Rear Window Defogger
9. Power Button
10. Air Recirculation
11 . A U T O ( A u t o m a t i c O p e r a t i o n )
SeeClimate Control Systems (withHeater Only)0237orClimateControl Systems (with AirConditioning)0238orDualAutomatic Climate Control System0240(If Equipped).
Transmission
Range Selection Mode
The Range Selection Mode buttons,if equipped, are on the automatictransmission shift lever.
To e n a b l e :
1. Move the shift lever toM(Manual Mode). The currentrange will display next to the M.This is the highest attainablerange with all lower gearsaccessible. As an example,when 5 (Fifth) gear is selected,1(First) through 5(Fifth) gearsare available.
2. Press the plus/minus buttons toselect the desired range ofgears for current drivingconditions. SeeManualMode0280.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
22 In Brief
While using Range Selection Mode,cruise control and the Tow/HaulMode can be used.
Grade Braking is not available whenRange Selection Mode is active.SeeTo w / H a u l M o d e0282.
Four-Wheel Drive
If the vehicle has Four-Wheel Drive,the engine's driving power can besent to all four wheels for extratraction.
Transfer Case Controls
The vehicle will have one of thesethree styles of transfer casecontrols. Use these controls to shiftinto and out of the differentfour-wheel drive modes.
Manual Transfer Case
This transfer case shift lever is onthe floor to the right of the driver.
Electronic Transfer Case
This transfer case knob is to the leftof the steering column.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
In Brief 23
Automatic Transfer Case
This transfer case knob is to the leftof the steering column.
The different drive options that maybe available are described following.
2m(Two-Wheel Drive High) :This
setting is used for driving in moststreet and highway situations.
AUTO (Automatic Four-WheelDrive) :This setting is ideal for usewhen road surface tractionconditions are variable.
Do not use AUTO mode to park onasteepgradewithpoortractionsuch as ice, snow, mud or gravel. InAUTO mode only the rear wheelswill hold the vehicle from slidingwhen parked. If parking on a steep
grade, use 4mto keep all four
wheels engaged.
4m(Four-Wheel Drive High) :Use
this setting when extra traction isneeded, such as on snowy or icyroads or in most off-road situations.
N(Neutral) :Shift to this settingonly when towing the vehicle. SeeRecreational Vehicle Towing0437orTr a i l e r To w i n g0318.
4n(Four-Wheel Drive Low) :This
setting sends maximum power to all
four wheels. Choose 4nwhen
driving in deep sand, mud, or snow,and while climbing or descendingsteep hills.
SeeFour-Wheel Drive0284.
Vehicle Features
Infotainment System
The base radio and base radio withtouchscreen information is includedin this manual. See the infotainmentmanual for information on theuplevel radios, audio players,phone, navigation system, RearSeat Entertainment (RSE), andvoice or speech recognition,if equipped.
Radio(s)
Base Radio
O:Press to turn the system on.Press and hold to turn it off. Whenon, press to mute; press again tounmute. Turn to increase ordecrease the volume.
RADIO :Press to choose betweenFM, AM, and SiriusXM®,if equipped.
MEDIA :Press to change the audiosource between CD, USB, AUX,and Bluetooth®Audio, if equipped.
{:Press to go to the Home Page.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
24 In Brief
MENU :Press to select a menu.
g:Press to seek the previousstation or track.
l:Press to seek the next stationor track.
See“Base Radio”inOverview(Base Radio with Touchscreen)0183orOverview (BaseRadio)0184.
Base Radio with Touchscreen
O:Press to turn the system on.Press and hold to turn it off. Whenon, press to mute; press again tounmute. Turn to increase ordecrease the volume.
{:Press to go to the Home Page.
7:Press to seek the previousstation or track.
6:Press to seek the next stationor track.
See“Base Radio with Touchscreen”inOverview (Base Radio withTo u c h s c r e e n )0183orOverview(Base Radio)0184.
Setting the Clock
SeeClock0123.
Satellite Radio
Vehicles with a SiriusXM®satelliteradio tuner and a valid SiriusXMsatellite radio subscription canreceive SiriusXM programming.
SiriusXM Satellite Radio
Service
SiriusXM is a satellite radio servicebased in the 48 contiguous UnitedStates and 10 Canadian provinces.SiriusXM satellite radio has a widevariety of programming andcommercial-free music, coast tocoast, and in digital-quality sound.AfeeisrequiredtoreceivetheSiriusXM service.
For more information refer to:
.www.siriusxm.com or call1-888-601-6296 (U.S.).
.www.siriusxm.ca or call1-877-438-9677 (Canada).
SeeSatellite Radio (Base Radio)0193orSatellite Radio (BaseRadio with Touchscreen)0193.
Portable Audio Devices
This vehicle may have a 3.5 mm(1/8 in) auxiliary input jack and USBports in the center console orarmrest. There may be a USB portin the upper glove box. Externaldevices such as iPods®,laptopcomputers, MP3 players, and USBstorage devices may be connected,depending on the audio system.
SeeUSB Port (Base Radio)0199orUSB Port (Base Radio withTo u c h s c r e e n )0201andAuxiliaryJack0207.
Bluetooth®
The Bluetooth®system allows userswith a Bluetooth-enabled cell phoneto make and receive hands-freecalls using the vehicle audio systemand controls.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
In Brief 25
The Bluetooth-enabled cell phonemust be paired with the in-vehicleBluetooth system before it can beused in the vehicle. Not all phoneswill support all functions.
SeeBluetooth (Voice Recognition -Base Radio)0221orBluetooth(Infotainment Controls - BaseRadio)0217orBluetooth(Overview)0216orBluetooth(Infotainment Controls - Base Radiowith Touchscreen)0226.
Steering Wheel Controls
If equipped, some audio controlscan be adjusted at the steeringwheel.
g:If equipped with OnStar®or aBluetooth®system, press to interactwith those systems. SeeOnStarOverview0486,Bluetooth (VoiceRecognition - Base Radio)0221orBluetooth (Infotainment Controls -Base Radio)0217orBluetooth(Overview)0216orBluetooth(Infotainment Controls - Base Radiowith Touchscreen)0226,or“Bluetooth (Overview)”in theinfotainment manual.
i:Press to reject an incomingcall or end a current call. Press tomute or unmute the infotainmentsystem when not on a call.
oorp:Press to go to theprevious or next menu option.
worx:Press to go to the next orprevious selection.
V:Press to select a highlightedmenu option.
The favorite and volume switchesare on the back of the steeringwheel.
1. Favorite: When on a radiosource, press to select the nextor previous favorite. When on amedia source, press to selectthe next or previous track.
2. Volume: Press to increase ordecrease the volume.
SeeSteering Wheel Controls0121.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
26 In Brief

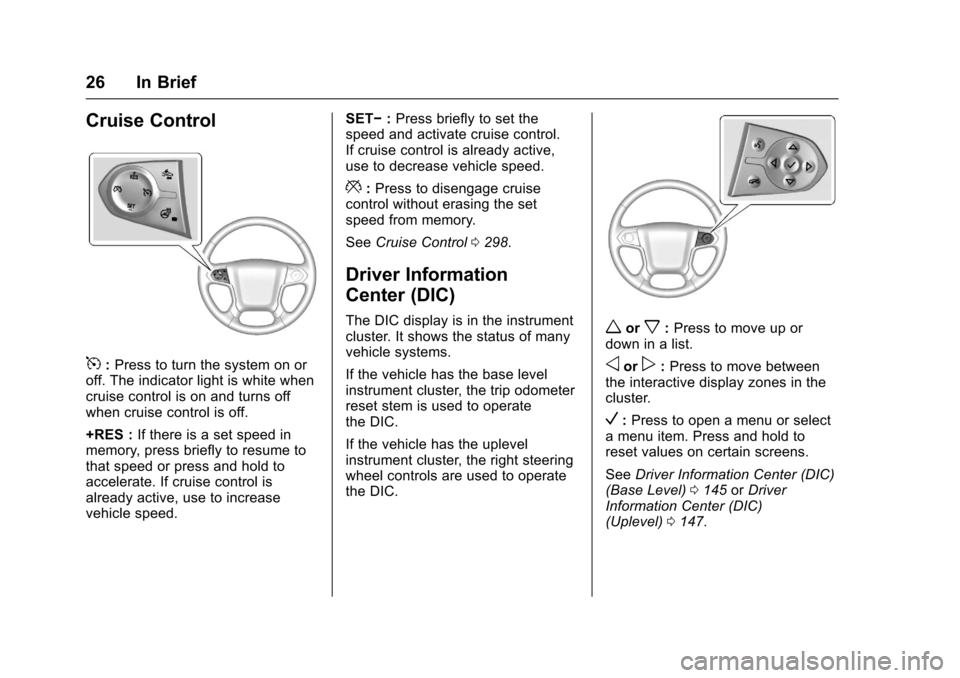

Cruise Control
5:Press to turn the system on oroff. The indicator light is white whencruise control is on and turns offwhen cruise control is off.
+RES :If there is a set speed inmemory, press briefly to resume tothat speed or press and hold toaccelerate. If cruise control isalready active, use to increasevehicle speed.
SET✓:Press briefly to set thespeed and activate cruise control.If cruise control is already active,use to decrease vehicle speed.
*:Press to disengage cruisecontrol without erasing the setspeed from memory.
SeeCruise Control0298.
Driver Information
Center (DIC)
The DIC display is in the instrumentcluster. It shows the status of manyvehicle systems.
If the vehicle has the base levelinstrument cluster, the trip odometerreset stem is used to operatethe DIC.
If the vehicle has the uplevelinstrument cluster, the right steeringwheel controls are used to operatethe DIC.
worx:Press to move up ordown in a list.
oorp:Press to move betweenthe interactive display zones in thecluster.
V:Press to open a menu or selectamenuitem.Pressandholdtoreset values on certain screens.
SeeDriver Information Center (DIC)(Base Level)0145orDriverInformation Center (DIC)(Uplevel)0147.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
In Brief 27

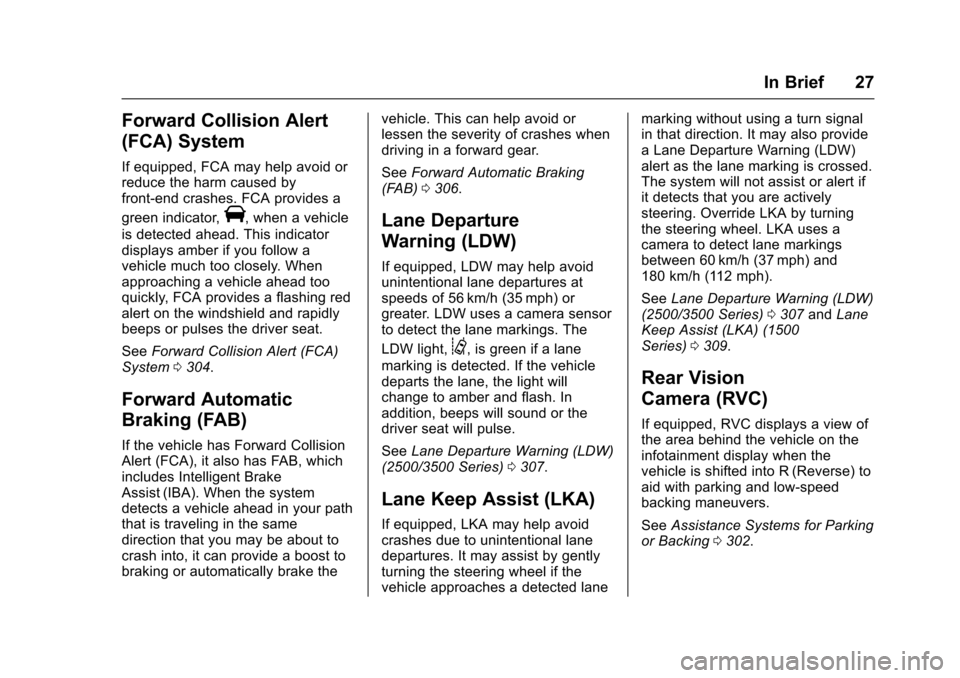

Forward Collision Alert
(FCA) System
If equipped, FCA may help avoid orreduce the harm caused byfront-end crashes. FCA provides a
green indicator,V,whenavehicle
is detected ahead. This indicatordisplays amber if you follow avehicle much too closely. Whenapproaching a vehicle ahead tooquickly, FCA provides a flashing redalert on the windshield and rapidlybeeps or pulses the driver seat.
SeeForward Collision Alert (FCA)System0304.
Forward Automatic
Braking (FAB)
If the vehicle has Forward CollisionAlert (FCA), it also has FAB, whichincludes Intelligent BrakeAssist (IBA). When the systemdetects a vehicle ahead in your paththat is traveling in the samedirection that you may be about tocrash into, it can provide a boost tobraking or automatically brake the
vehicle. This can help avoid orlessen the severity of crashes whendriving in a forward gear.
SeeForward Automatic Braking(FAB)0306.
Lane Departure
Warning (LDW)
If equipped, LDW may help avoidunintentional lane departures atspeeds of 56 km/h (35 mph) orgreater. LDW uses a camera sensorto detect the lane markings. The
LDW light,@,isgreenifalane
marking is detected. If the vehicledeparts the lane, the light willchange to amber and flash. Inaddition, beeps will sound or thedriver seat will pulse.
SeeLane Departure Warning (LDW)(2500/3500 Series)0307.
Lane Keep Assist (LKA)
If equipped, LKA may help avoidcrashes due to unintentional lanedepartures. It may assist by gentlyturning the steering wheel if thevehicle approaches a detected lane
marking without using a turn signalin that direction. It may also provideaLaneDepartureWarning(LDW)alert as the lane marking is crossed.The system will not assist or alert ifit detects that you are activelysteering. Override LKA by turningthe steering wheel. LKA uses acamera to detect lane markingsbetween 60 km/h (37 mph) and180 km/h (112 mph).
SeeLane Departure Warning (LDW)(2500/3500 Series)0307andLaneKeep Assist (LKA) (1500Series)0309.
Rear Vision
Camera (RVC)
If equipped, RVC displays a view ofthe area behind the vehicle on theinfotainment display when thevehicle is shifted into R (Reverse) toaid with parking and low-speedbacking maneuvers.
SeeAssistance Systems for Parkingor Backing0302.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
28 In Brief
Parking Assist
If equipped, Rear ParkingAssist (RPA) uses sensors on therear bumper to assist with parkingand avoiding objects while inR(Reverse). It operates at speedsless than 8 km/h (5 mph). RPA maydisplay a warning triangle on theRear Vision Camera screen and agraphic on the instrument cluster toprovide the object distance. Inaddition, multiple beeps or seatpulses may occur if very close to anobject.
The vehicle may also have the FrontParking Assist system.
SeeAssistance Systems for Parkingor Backing0302.
Power Outlets
Accessory power outlets can beused to plug in electrical equipment,such as a cell phone, MP3player, etc.
The vehicle may have up to fouraccessory power outlets.
Vehicles with a Center Console
.One or two in front of thecupholders on the centerconsole.
.One inside the center console.
.One on the rear of the centerconsole.
Vehicles with Bench Seats
.One on the center stack belowthe climate control system.
.One or two in the storage areaon the bench seat.
Lift the cover to access and replacewhen not in use.
SeePower Outlets0124.
Universal Remote System
If equipped with the UniversalRemote system, these buttons willbe in the front overhead console.
This system provides a way toreplace up to three remote controltransmitters used to activatedevices such as garage dooropeners, security systems, andhome automation devices.
SeeUniversal RemoteSystem0168.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
In Brief 29
Sunroof
If equipped, the sunroof operateswhen the ignition is on or in ACC/ACCESSORY, or when RetainedAccessory Power (RAP) is active.SeeRetained Accessory Power(RAP)0271.
Slide Switch
Express-Open/Express-Close :Toexpress-open the sunroof, fully
press and releaseI.Pressthe
switch again to stop the movement.To e x p r e s s - c l o s e t h e s u n r o o f , f u l l y
press and releaseK.Pressthe
switch again to stop the movement.
Open/Close (Manual Mode) :Toopen the sunroof, press and
holdI.Releasetheswitchtostop
the movement. Press and holdK
to close the sunroof. Release theswitch to stop the movement.
Tilt Switch
Vent :From the closed position,
pressJto vent the sunroof. Press
Kto close the vent.
When the sunroof is opened, an airdeflector will automatically raise.The air deflector will retract whenthe sunroof is closed.
The sunroof also has a sunshade,which can be pulled forward to blocksun rays. The sunshade must beopened and closed manually.
If an object is in the path of thesunroof while it is closing, theautomatic reversal system willdetect the object and stop thesunroof.
SeeSunroof054.
Performance and
Maintenance
Traction Control/
Electronic Stability
Control
The vehicle has a traction controlsystem that limits wheel spin andthe StabiliTrak system that assistswith directional control of the vehiclein difficult driving conditions. Bothsystems come on automaticallywhen the vehicle is started andbegins to move.
.To t u r n o f f t r a c t i o n c o n t r o l , p r e s s
and releasegon the center
stack. The traction off lighti
displays in the instrumentcluster. The appropriate DriverInformation Center (DIC)message displays. SeeRideControl SystemMessages0154.
.To t u r n o f f b o t h t r a c t i o n c o n t r o land StabiliTrak, press and
holdguntiliandgilluminate
