Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
40 Keys, Doors, and Windows
Warning (Continued)
.Yo u n g c h i l d r e n w h o g e t i n t ounlocked vehicles may beunable to get out. A childcan be overcome byextreme heat and can sufferpermanent injuries or evendeath from heat stroke.Always lock the vehiclewhenever leaving it.
.Outsiders can easily enterthrough an unlocked doorwhen you slow down or stopthe vehicle. Locking thedoors can help prevent thisfrom happening.
There are several ways to lock andunlock the vehicle.
From outside, use the RemoteKeyless Entry (RKE) transmitter orthe key in the driver door.
From inside, use the power doorlocks or manual door locks. To lockor unlock the door with the manuallocks, push down or pull up on themanual lock knob.
From inside, pull the door handleonce to unlock the door. Pull thehandle again to open the door.
SeeVehicle Alarm System043.
Power Door Locks
Crew/Double Cab Premium Trim
Shown, Other Models Similar
Base Trim
If equipped with power door locks:
Q:Press to lock the doors.
K:Press to unlock the doors.
Delayed Locking
If equipped, when locking the doorswith the power lock switch and adoor open, the doors will lockfive seconds after the last door isclosed. Three chimes signal thatdelayed locking is in use.
Pressing the power lock switchtwice overrides the delayed lockingfeature and immediately locks alldoors.
Page 42 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Keys, Doors, and Windows 41
This feature will not operate if thekey is in the ignition.
Turn delayed locking on or off usingvehicle personalization. SeeVehiclePersonalization0160.
Automatic Door Locks
If equipped, the doors will lockautomatically when all doors areclosed, the ignition is on, and theshift lever is moved out of P (Park)for automatic transmissions orvehicle speed is above 13 km/h(8 mph) for manual transmissions.
To u n l o c k t h e d o o r s :
.PressKon a power door lock
switch.
.If equipped with an automatictransmission, shift thetransmission into P (Park)
.If equipped with manualtransmission, remove the keyfrom the ignition when parked.
Automatic Door locking cannot bedisabled. Automatic door unlockingcan be programmed. SeeVehiclePersonalization0160.
Lockout Protection
When locking is requested with thedriver door open and the key in theignition, all the doors will lock andthen the driver door will unlock.
This can be manually overridden by
pressing and holdingQon the
power door lock switch.
Safety Locks
The rear door safety locks preventpassengers from opening the reardoors from inside the vehicle.
Crew/Double Cab Premium Trim
Shown, Others Similar
Press{to activate the safety locks
on the rear doors. The indicator light
comes on when activated. Press{
again to deactivate. The vehiclemust be on, in ACC/ACCESSORY,or in Retained Accessory Power(RAP). SeeRetained AccessoryPower (RAP)0271.
If the indicator light flashes, thefeature may not be working properly.
Page 43 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
42 Keys, Doors, and Windows
Doors
Tailgate
{Warning
It is extremely dangerous to ride
on the tailgate, even when the
vehicle is operated at low speeds.
People riding on the tailgate can
easily lose their balance and fall
in response to vehicle
maneuvers. Falling from a moving
vehicle may result in serious
injuries or death. Do not allow
people to ride on the tailgate. Be
sure everyone in your vehicle is in
aseatandusingasafetybelt
properly.
If equipped, to lock or unlock thetailgate, use the RKE transmitter orthe key. SeeRemote Keyless Entry(RKE) System Operation036.
Open the tailgate by lifting up on itshandle while pulling thetailgate down.
To s h u t t h e t a i l g a t e , f i r m l y p u s h i tupward until it latches.
After closing the tailgate, pull it backto be sure it latches securely.
Power Assist Steps
If equipped, the power assist steps,when enabled, will extend when thedoor is opened. They will retractthree seconds after the door isclosed or immediately if the vehiclestarts moving.
Keep hands, children, pets, objects,and clothing clear of the powerassist steps when in motion.
The steps will reverse direction ifthere is an obstruction. Remove theobstruction, then open and close thedoor on the same side to completethe motion. If the obstruction is notcleared, the assist steps remainextended.
Slight movement of the steps whileextended is normal.
Kick Switch
1. Place the vehicle in P (Park)and unlock the doors.
2. Kick the switch to extend thepower assist step to the tire.ADICmessagedisplays.
3. Kick the switch again to returnto normal operation.
Page 44 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Keys, Doors, and Windows 43
Center Stack Switch
The power assist steps can beextended and extended to the
tire by pressingj.When
extending the steps withj,the
kick switch is disabled.
The vehicle must be in P (Park) orN(Neutral).Toextendthesteps:
.Pressjto extend both steps.
ADICmessagedisplays.
.Pressjagain to extend to the
tire. A DIC message displays.
.Pressjagain to return to
normal operation.
Enable/Disable
To e n a b l e o r d i s a b l e t h e p o w e r
assist steps, press and holdjfor
four seconds. A DIC messagedisplays.
Cleaning
Clean the power assist stepsregularly. For an automatic carwash, extend the steps while inN(Neutral)usingthecenterstackswitch. The steps will stow whenshifting into D (Drive).
Vehicle Security
This vehicle has theft-deterrentfeatures; however, they do not makethe vehicle impossible to steal.
Vehicle Alarm System
The indicator light, on theinstrument panel near thewindshield, indicates the status ofthe system.
Off :Alarm system is disarmed.
On Solid :Ve h i c l e i s s e c u r e dduring the delay to arm the system.
Page 45 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
44 Keys, Doors, and Windows
Fast Flash :Vehicle is unsecured.Adoor,theliftgateorthehoodis open.
Slow Flash :Alarm system isarmed.
Arming the Alarm System
1. Turn off the vehicle.
2. Lock the vehicle in one ofthree ways:
.Use the RKE transmitter.
.Use the Keyless Accesssystem.
.With a door open, pressQ
on the interior of the door.
3. After 30 seconds, the alarmsystem will arm and theindicator light will begin to
slowly flash. PressingQon the
RKE transmitter a second timewill bypass the 30-seconddelay and immediately arm thealarm system.
The vehicle alarm system will notarm if the doors are locked withthe key.
If the driver door is opened withoutfirst unlocking with the RKEtransmitter, the horn will chirp andthe lights will flash to indicatepre-alarm. If the vehicle is notstarted, or the door is not unlocked
by pressingKon the RKE
transmitter during the 10-secondpre-alarm, the alarm will beactivated.
The alarm will also be activated if apassenger door, the liftgate, or thehood is opened without firstdisarming the system. When thealarm is activated, the turn signalsflash and the horn sounds for about30 seconds. The alarm system willthen re-arm to monitor for the nextunauthorized event.
Disarming the Alarm System
To d i s a r m t h e a l a r m s y s t e m o r t u r noff the alarm if it has been activated:
.PressKon the RKE transmitter.
.Unlock the vehicle using theKeyless Access system.
.Start the vehicle.
To a v o i d s e t t i n g o f f t h e a l a r m b yaccident:
.Lock the vehicle after alloccupants have exited.
.Always unlock a door with theRKE transmitter, or use theKeyless Access system.
Unlocking the driver door withthe key will not disarm thesystem or turn off the alarm.
How to Detect a Tamper
Condition
IfKis pressed on the RKE
transmitter and the horn chirps threetimes, an alarm occurred previouslywhile the alarm system was armed.
If the alarm has been activated, amessage will appear on the DIC.SeeSecurity Messages0156.
Inclination Sensor and
Intrusion Sensor
In addition to the standardtheft-deterrent system features, thissystem may also have an,inclination sensor and intrusionsensor.
Page 46 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Keys, Doors, and Windows 45
The inclination sensor can set offthe alarm if it senses movement ofthe vehicle, such as a change invehicle orientation.
The intrusion sensor monitors thevehicle interior, and can activate thealarm if it senses unauthorized entryinto the vehicle’sinterior.Donotallow passengers or pets to remainin the vehicle when the intrusionsensor is activated.
Before arming the theft-deterrentsystem and activating the intrusionsensor:
.Make sure all doors andwindows are completely closed.
.Secure any loose items such assunshades.
.Make sure there are noobstructions blocking thesensors in the front overheadconsole.
.Close DVD screens, if equipped,before leaving the vehicle.
Inclination and Intrusion
Sensors Disable Switch
It is recommended that the intrusionand inclination sensors bedeactivated if pets are left in thevehicle or if the vehicle is beingtransported.
With the vehicle turned off, pressoin the front overhead console.The indicator light will come onmomentarily, indicating that thesesensors have been disabled for thenext alarm system arming cycle.
Immobilizer
SeeRadio FrequencyStatement0482.
Immobilizer Operation
This vehicle has a passivetheft-deterrent system.
The system does not have to bemanually armed or disarmed.
The vehicle is automaticallyimmobilized when the vehicle isturned off.
The system is automaticallydisarmed when the key is turned toON/RUN, ACC/ACCESSORY,or START from the LOCK/OFFposition.
Page 47 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
46 Keys, Doors, and Windows
The security light, in the instrumentcluster, comes on if there is aproblem with arming or disarmingthe theft-deterrent system.
When trying to start the vehicle, thesecurity light comes on briefly whenthe ignition is turned on.
If the engine does not start and thesecurity light stays on, there is aproblem with the system. Turn theignition off and try again.
If the engine still does not start, andthe key appears to be undamaged,try another ignition key. It may benecessary to check the fuse. SeeFuses0390.Iftheenginestilldoesnot start with the other key, thevehicle needs service. If the vehicledoes start, the first key may befaulty. See your dealer.
It is possible for the immobilizersystem to learn new or replacementkeys. Up to eight keys can beprogrammed for the vehicle. Toprogram additional keys, seeKeys033.Toprogramadditionaltransmitters, seeRemote KeylessEntry (RKE) System Operation036.
Do not leave the key or device thatdisarms or deactivates the vehicletheft system in the vehicle.
See your dealer to get a new keyblank cut exactly as the ignition keythat operates the system.
Exterior Mirrors
Convex Mirrors
{Warning
Aconvexmirrorcanmakethings,
like other vehicles, look farther
away than they really are. If you
cut too sharply into the right lane,
you could hit a vehicle on the
right. Check the inside mirror or
glance over your shoulder before
changing lanes.
The passenger side mirror is convexshaped. A convex mirror's surface iscurved so more can be seen fromthe driver seat.
Manual Mirrors
If equipped, adjust manual mirrorsby moving the mirror up and downor left to right to see a little of theside of the vehicle and to have aclear view behind the vehicle.
Page 48 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Keys, Doors, and Windows 47
Using hood-mounted air deflectorsand add-on convex mirrorattachments could decrease mirrorperformance.
Trailer-Tow Mirrors
If equipped, adjust trailer-towmirrors for a clear view of the areabehind you. Manually pull out themirror head to extend it for bettervisibility when towing a trailer.
The lower portion of the mirror isconvex. A convex mirror's surface iscurved to see more from the driver
seat. The convex mirror can beadjusted manually to the driverpreferred position for better vision.
The mirror may have a turn signalarrow that flashes in the direction ofthe turn or lane change.
Power Mirrors
Base Power Mirrors
If equipped with power mirrors:
1. Press (1) or (2) to select thedriver or passenger side mirror.
2. Press the arrows on the controlpad to move the mirror in thedesired direction.
3. Adjust each outside mirror sothat a little of the vehicle andthe area behind it can be seen.
4. Keep the selector switch in thecenter position when notadjusting mirrors.
Crew/Double Cab Premium Trim
Shown, Other Models Similar
1. Press (1) or (2) to select thedriver or passenger side mirror.
2. Press the arrows on the controlpad while the indicator light onbutton (1) or (2) is illuminated,to move the mirror in thedesired direction.
Page 49 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
48 Keys, Doors, and Windows
3. Adjust each outside mirror sothat a little of the vehicle andthe area behind it can be seen.
4. Press either (1) or (2) again todeselect the mirror.
If you do not deselect the mirror, thefeature will turn off after aboutone minute.
If equipped, the mirrors may includeamemoryfunctionthatworkswiththe memory seats. SeeMemorySeats061.
Folding Mirrors
Crew/Double Cab Premium Trim
Shown, Other Models Similar
Power Folding
If equipped with power foldingmirrors:
1. Press (2) to fold the mirrors outto the driving position.
2. Press (2) again to fold themirrors in to the folded position.
The mirrors may also include amemory function that works with thememory seats. SeeMemorySeats061.
Resetting the Power FoldingMirrors
Reset the power folding mirrors if:
.The mirrors are accidentallyobstructed while folding.
.They are accidentally manuallyfolded/unfolded.
.The mirrors will not stay in theunfolded position.
.The mirrors vibrate at normaldriving speeds.
Manually fold both mirrors if theyare out of sync. Fold and unfold themirrors three times using the mirrorcontrols to reset them to theirnormal position. A popping noisemay be heard. This sound is normalafter a manual folding operation.
Manual Folding
If equipped, push the mirror towardthe vehicle to fold. Push the mirroroutward to return to its originalposition.
Manually fold the mirrors inward toprevent damage when goingthrough an automatic car wash.
Page 50 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Keys, Doors, and Windows 49

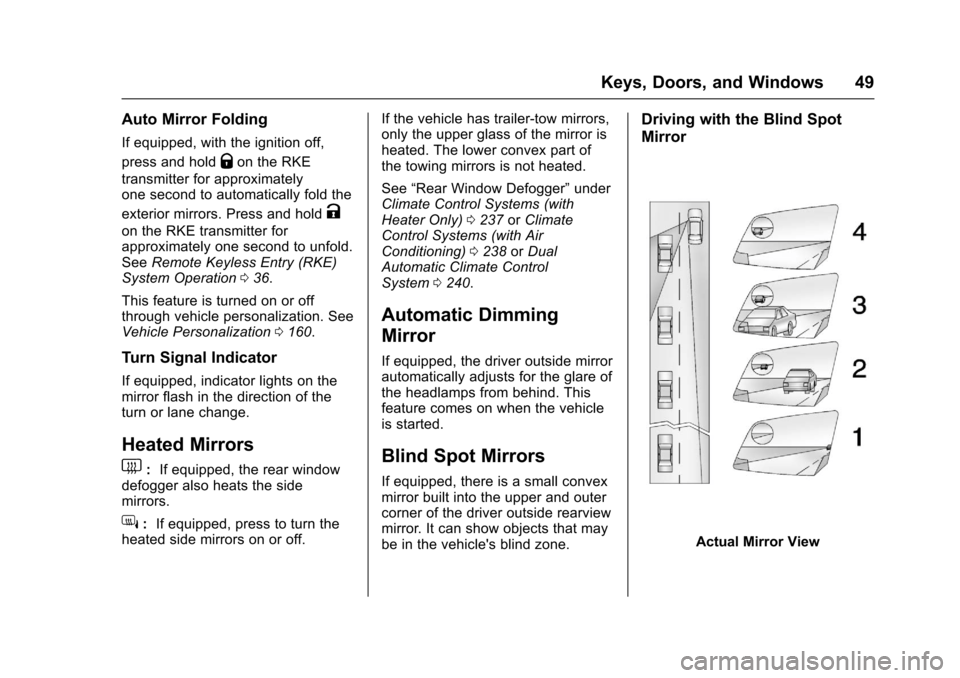

Auto Mirror Folding
If equipped, with the ignition off,
press and holdQon the RKE
transmitter for approximatelyone second to automatically fold the
exterior mirrors. Press and holdK
on the RKE transmitter forapproximately one second to unfold.SeeRemote Keyless Entry (RKE)System Operation036.
This feature is turned on or offthrough vehicle personalization. SeeVehicle Personalization0160.
Turn Signal Indicator
If equipped, indicator lights on themirror flash in the direction of theturn or lane change.
Heated Mirrors
1:If equipped, the rear windowdefogger also heats the sidemirrors.
W:If equipped, press to turn theheated side mirrors on or off.
If the vehicle has trailer-tow mirrors,only the upper glass of the mirror isheated. The lower convex part ofthe towing mirrors is not heated.
See“Rear Window Defogger”underClimate Control Systems (withHeater Only)0237orClimateControl Systems (with AirConditioning)0238orDualAutomatic Climate ControlSystem0240.
Automatic Dimming
Mirror
If equipped, the driver outside mirrorautomatically adjusts for the glare ofthe headlamps from behind. Thisfeature comes on when the vehicleis started.
Blind Spot Mirrors
If equipped, there is a small convexmirror built into the upper and outercorner of the driver outside rearviewmirror. It can show objects that maybe in the vehicle's blind zone.
Driving with the Blind Spot
Mirror
Actual Mirror View
