CHEVROLET SS 2017 1.G Service Manual
Manufacturer: CHEVROLET, Model Year: 2017, Model line: SS, Model: CHEVROLET SS 2017 1.GPages: 400, PDF Size: 7.31 MB
Page 41 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
40 Keys, Doors, and Windows
Interior Mirrors
Interior Rearview Mirrors
Adjust the rearview mirror for a clearview of the area behind yourvehicle.
If equipped with OnStar, there arethree buttons at the bottom of themirror. See your dealer for moreinformation on the system and howto subscribe to OnStar. SeeOnStarOverview0378.
To a v o i d a c c i d e n t a l O n S t a r c a l l s ,clean the mirror with the ignition off.Do not spray glass cleaner directlyon the mirror. Use a soft toweldampened with water.
Automatic Dimming
Rearview Mirror
The rearview mirror automaticallydims to reduce the glare of theheadlamps from behind. Thisfeature comes on when the vehicleis started.
Windows
{Warning
Never leave a child, a helpless
adult, or a pet alone in a vehicle,
especially with the windows
closed in warm or hot weather.
They can be overcome by the
extreme heat and suffer
permanent injuries or even death
from heat stroke.
Power Windows
{Warning
Children could be seriously
injured or killed if caught in the
path of a closing window. Never
leave keys in a vehicle with
children. When there are children
in the rear seat, use the window
lockout button to prevent
operation of the windows. See
Keys024.
Page 42 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
Keys, Doors, and Windows 41

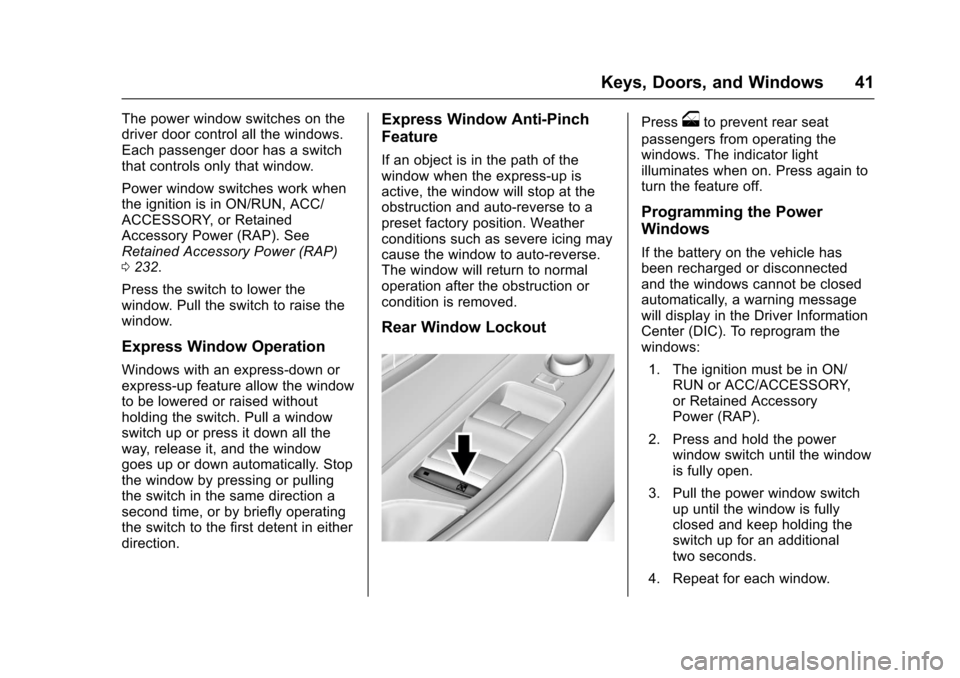

The power window switches on thedriver door control all the windows.Each passenger door has a switchthat controls only that window.
Power window switches work whenthe ignition is in ON/RUN, ACC/ACCESSORY, or RetainedAccessory Power (RAP). SeeRetained Accessory Power (RAP)0232.
Press the switch to lower thewindow. Pull the switch to raise thewindow.
Express Window Operation
Windows with an express-down orexpress-up feature allow the windowto be lowered or raised withoutholding the switch. Pull a windowswitch up or press it down all theway, release it, and the windowgoes up or down automatically. Stopthe window by pressing or pullingthe switch in the same direction asecond time, or by briefly operatingthe switch to the first detent in eitherdirection.
Express Window Anti-Pinch
Feature
If an object is in the path of thewindow when the express-up isactive, the window will stop at theobstruction and auto-reverse to apreset factory position. Weatherconditions such as severe icing maycause the window to auto-reverse.The window will return to normaloperation after the obstruction orcondition is removed.
Rear Window Lockout
Pressoto prevent rear seat
passengers from operating thewindows. The indicator lightilluminates when on. Press again toturn the feature off.
Programming the Power
Windows
If the battery on the vehicle hasbeen recharged or disconnectedand the windows cannot be closedautomatically, a warning messagewill display in the Driver InformationCenter (DIC). To reprogram thewindows:
1. The ignition must be in ON/RUN or ACC/ACCESSORY,or Retained AccessoryPower (RAP).
2. Press and hold the powerwindow switch until the windowis fully open.
3. Pull the power window switchup until the window is fullyclosed and keep holding theswitch up for an additionaltwo seconds.
4. Repeat for each window.
Page 43 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
42 Keys, Doors, and Windows

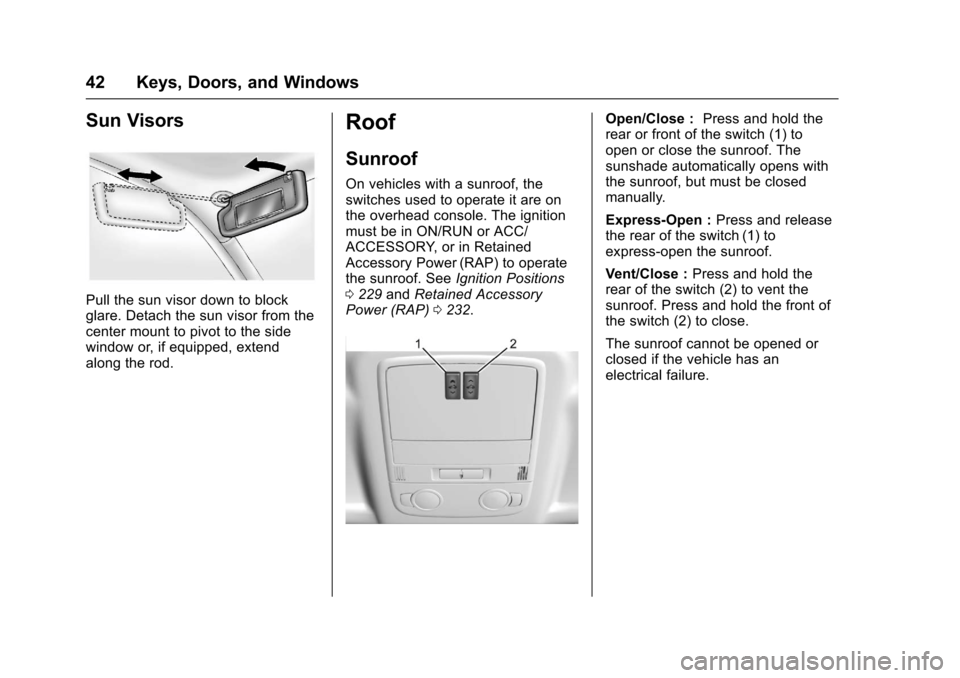

Sun Visors
Pull the sun visor down to blockglare. Detach the sun visor from thecenter mount to pivot to the sidewindow or, if equipped, extendalong the rod.
Roof
Sunroof
On vehicles with a sunroof, theswitches used to operate it are onthe overhead console. The ignitionmust be in ON/RUN or ACC/ACCESSORY, or in RetainedAccessory Power (RAP) to operatethe sunroof. SeeIgnition Positions0229andRetained AccessoryPower (RAP)0232.
Open/Close :Press and hold therear or front of the switch (1) toopen or close the sunroof. Thesunshade automatically opens withthe sunroof, but must be closedmanually.
Express-Open :Press and releasethe rear of the switch (1) toexpress-open the sunroof.
Vent/Close :Press and hold therear of the switch (2) to vent thesunroof. Press and hold the front ofthe switch (2) to close.
The sunroof cannot be opened orclosed if the vehicle has anelectrical failure.
Page 44 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
Keys, Doors, and Windows 43
Dirt and debris may collect on thesunroof seal or in the track. Thiscould cause an issue with sunroofoperation or noise. It could also plugthe water drainage system.Periodically open the sunroof andremove any obstacles or loosedebris. Wipe the sunroof seal androof sealing area using a cleancloth, mild soap, and water. Do notremove grease from the sunroof.
Page 45 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
44 Seats and Restraints
Seats and
Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . . . 45
Front Seats
Power Seat Adjustment . . . . . . . . 46Lumbar Adjustment . . . . . . . . . . . . 46Reclining Seatbacks . . . . . . . . . . . 47Memory Seats . . . . . . . . . . . . . . . . . 48Heated and Ventilated FrontSeats . . . . . . . . . . . . . . . . . . . . . . . . . 49
Rear Seats
Rear SeatPass-Through Door . . . . . . . . . . 51
Safety Belts
Safety Belts . . . . . . . . . . . . . . . . . . . . 51How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . . . 52Lap-Shoulder Belt . . . . . . . . . . . . . 53Safety Belt Use DuringPregnancy . . . . . . . . . . . . . . . . . . . . 55Safety Belt Extender . . . . . . . . . . . 56Safety System Check . . . . . . . . . . 56Safety Belt Care . . . . . . . . . . . . . . . 56
Replacing Safety Belt SystemParts after a Crash . . . . . . . . . . . 56
Airbag System
Airbag System . . . . . . . . . . . . . . . . . 57Where Are the Airbags? . . . . . . . 59When Should an AirbagInflate? . . . . . . . . . . . . . . . . . . . . . . . 60What Makes an AirbagInflate? . . . . . . . . . . . . . . . . . . . . . . . 61How Does an AirbagRestrain? . . . . . . . . . . . . . . . . . . . . . 61What Will You See after anAirbag Inflates? . . . . . . . . . . . . . . 62Passenger Sensing System . . . 63Servicing the Airbag-EquippedVehicle . . . . . . . . . . . . . . . . . . . . . . . 67Adding Equipment to theAirbag-Equipped Vehicle . . . . . 68Airbag System Check . . . . . . . . . . 68Replacing Airbag System Partsafter a Crash . . . . . . . . . . . . . . . . . 69
Child Restraints
Older Children . . . . . . . . . . . . . . . . . 69Infants and Young Children . . . . 71Child Restraint Systems . . . . . . . 73Where to Put the Restraint . . . . . 75Lower Anchors and Tethers forChildren (LATCH System) . . . . 76
Replacing LATCH System PartsAfter a Crash . . . . . . . . . . . . . . . . . 81Securing Child Restraints (Withthe Safety Belt in theRear Seat) . . . . . . . . . . . . . . . . . . . 81Securing Child Restraints (Withthe Safety Belt in theFront Seat) . . . . . . . . . . . . . . . . . . . 83
Page 46 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
Seats and Restraints 45
Head Restraints
Front Seats
{Warning
With head restraints that are not
installed and adjusted properly,
there is a greater chance that
occupants will suffer a neck/
spinal injury in a crash. Do not
drive until the head restraints for
all occupants are installed and
adjusted properly.
The vehicle's front seats haveadjustable head restraints in theoutboard seating positions.
Adjust the head restraint so that thetop of the restraint is at the sameheight as the top of the occupant'shead. This position reduces thechance of a neck injury in a crash.
To r a i s e o r l o w e r t h e h e a d r e s t r a i n t ,press the button located on the sideof the head restraint, and pull up orpush the head restraint down, andrelease the button. Pull and push onthe head restraint after the button isreleased to make sure that it islocked in place.
The front seat outboard headrestraints are not removable.
Rear Seats
The vehicle’srearseatshaveheadrestraints in the outboard seatingpositions that cannot be adjusted.
The rear outboard head restraintsare not removable.
Page 47 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
46 Seats and Restraints
Front Seats
Power Seat Adjustment
{Warning
Yo u c a n l o s e c o n t r o l o f t h e
vehicle if you try to adjust a driver
seat while the vehicle is moving.
Adjust the driver seat only when
the vehicle is not moving.
To a d j u s t t h e s e a t :
.Move the seat forward orrearward by sliding the controlforward or rearward.
.Raise or lower the seat bymoving the rear of the control upor down.
.Raise or lower the front part ofthe seat cushion by moving thefront of the control up or down.
To a d j u s t t h e s e a t b a c k , s e eReclining Seatbacks047.
To a d j u s t t h e l u m b a r s u p p o r t , s e eLumbar Adjustment046.
Lumbar Adjustment
To i n c r e a s e o r d e c r e a s e l u m b a rsupport, slide the control forward orrearward.
Page 48 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
Seats and Restraints 47
Reclining Seatbacks
To a d j u s t t h e s e a t b a c k :
.Tilt the top of the controlrearward to recline.
.Tilt the top of the control forwardto raise.
{Warning
Sitting in a reclined position when
the vehicle is in motion can be
dangerous. Even when buckled
up, the safety belts cannot do
their job.
(Continued)
Warning (Continued)
The shoulder belt will not be
against your body. Instead, it will
be in front of you. In a crash, you
could go into it, receiving neck or
other injuries.
The lap belt could go up over
your abdomen. The belt forces
would be there, not at your pelvic
bones. This could cause serious
internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear the
safety belt properly.
Do not have a seatback reclined ifthe vehicle is moving.
Page 49 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
48 Seats and Restraints
Memory Seats
The 1, 2, SET, andS(Exit) buttons
on the driver door are used tomanually store and recall memorysettings for the driver seat andoutside mirrors.
Storing Memory Positions
To s t o r e p o s i t i o n s t o t h e 1 a n d 2buttons:
1. Place the ignition in ON/RUNor ACCESSORY.
2. Adjust the driver seat and theoutside mirrors to the desireddriving position.
3. Press and release SET. A beepwill sound.
4. Immediately press and hold 1until two beeps sound.
5. Repeat Steps 1–4foraseconddriver using 2.
To s t o r e p o s i t i o n s t o t h eS(Exit)
button and easy exit features,
repeat Steps 1–4usingSto store
your position for getting out of thevehicle.
Manually Recalling MemoryPositions
Press and hold 1, 2, orSto
manually recall the previouslystored memory positions.
To s t o p r e c a l l m o v e m e n t , r e l e a s e 1 ,
2, orBbefore the stored positions
are reached; or press the SET,power mirror, or power seatcontrols.
Automatically Recalling MemoryPositions (Auto Memory Recall)
If programmed in vehiclepersonalization, the Auto MemoryRecall feature (automatic
transmission vehicles only)automatically recalls the currentdriver’spreviouslystored1or2position when the ignition ischanged from OFF to ON/RUN orACCESSORY.
See“Auto Memory Recall”under“Comfort and Convenience”inVehicle Personalization0120.
To s t o p r e c a l l m o v e m e n t , p r e s sB,
power mirror, or power seatcontrols. Turning the ignition off alsostops the recall.
RKE transmitters are not labeledwith a number. If your memory seatposition is stored to 1 or 2, but thisposition is not automaticallyrecalling, then store your positionsto the other button or switch RKEtransmitters with the other driver.
If the vehicle’sdriverhaschanged,in some vehicles the Driver ID maybe displayed for the next fewignition cycles.
Easy Exit Driver Seat
If programmed on in vehiclepersonalization, the easy exitfeature automatically moves the
Page 50 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
Seats and Restraints 49
driver seat rearward to a presetposition when exiting the vehicle.SeeVehicle Personalization0120.
The easy exit driver seatautomatically activates when one ofthe following occurs:
.The vehicle is turned off and thedriver door is opened within ashort time.
.The vehicle is turned off with thedriver door open.
RKE transmitters are not labeledwith a number. If your memory seatposition is stored to 1 or 2 but thisposition is not automaticallyrecalling, then store your positionsto the other button or switch RKEtransmitters with the other driver.
To s t o p r e c a l l m o v e m e n t , p r e s s o n eof the memory, power mirror,or power seat controls; or press thepower tilt and telescoping steeringwheel control, if equipped.
Obstructions
If something has blocked the driverseat while recalling a memoryposition, the recall may stop.Remove the obstruction. Then doone of the following:
.If automatically or manuallyrecalling the stored memoryposition, press and hold theappropriate manual control fortwo seconds. Try recalling againby pressing the appropriatememory button. If automaticallyrecalling the position, tryrecalling again by opening the
driver door and pressingKon
the RKE transmitter.
.If recalling the exit position,press and hold the appropriatemanual control for the exitfeature not recalling fortwo seconds. Then try recallingthe exit position again.
If the memory position is still notrecalling, see your dealer forservice.
Heated and Ventilated
Front Seats
{Warning
If you cannot feel temperature
change or pain to the skin, the
seat heater may cause burns. To
reduce the risk of burns, people
with such a condition should use
care when using the seat heater,
especially for long periods of
time. Do not place anything on
the seat that insulates against
heat, such as a blanket, cushion,
cover, or similar item. This may
cause the seat heater to
overheat. An overheated seat
heater may cause a burn or may
damage the seat.
