Black plate (23,1)Chevrolet Tahoe/Suburban Owner Manual - 2011
Keys, Doors and Windows 2-23

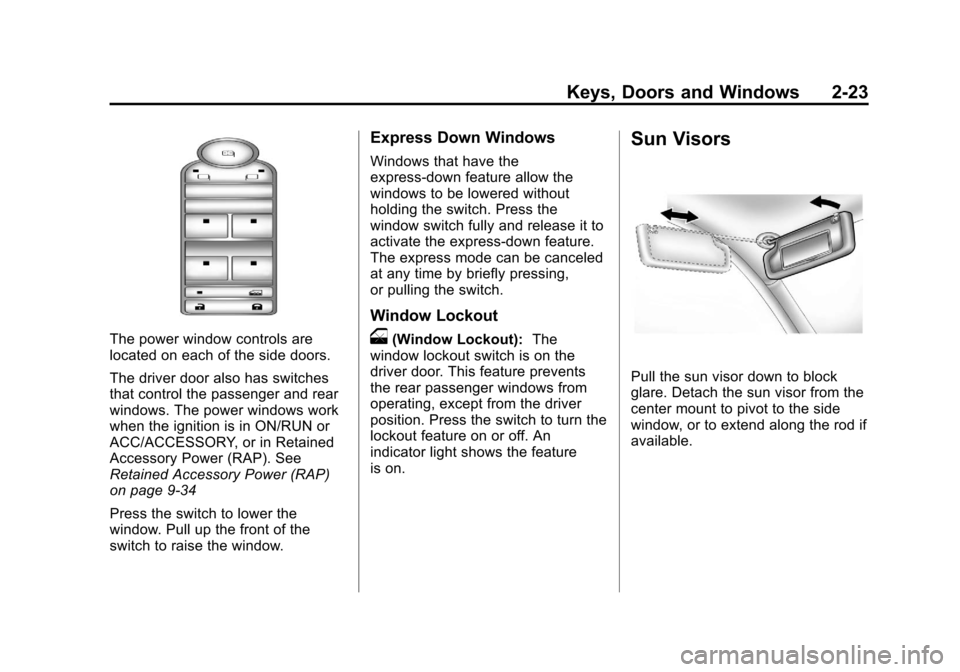

The power window controls are
located on each of the side doors.
The driver door also has switches
that control the passenger and rear
windows. The power windows work
when the ignition is in ON/RUN or
ACC/ACCESSORY, or in Retained
Accessory Power (RAP). See
Retained Accessory Power (RAP)
on page 9‑34
Press the switch to lower the
window. Pull up the front of the
switch to raise the window.
Express Down Windows
Windows that have the
express‐down feature allow the
windows to be lowered without
holding the switch. Press the
window switch fully and release it to
activate the express‐down feature.
The express mode can be canceled
at any time by briefly pressing,
or pulling the switch.
Window Lockout
o(Window Lockout):The
window lockout switch is on the
driver door. This feature prevents
the rear passenger windows from
operating, except from the driver
position. Press the switch to turn the
lockout feature on or off. An
indicator light shows the feature
is on.
Sun Visors
Pull the sun visor down to block
glare. Detach the sun visor from the
center mount to pivot to the side
window, or to extend along the rod if
available.

Black plate (24,1)Chevrolet Tahoe/Suburban Owner Manual - 2011
2-24 Keys, Doors and Windows

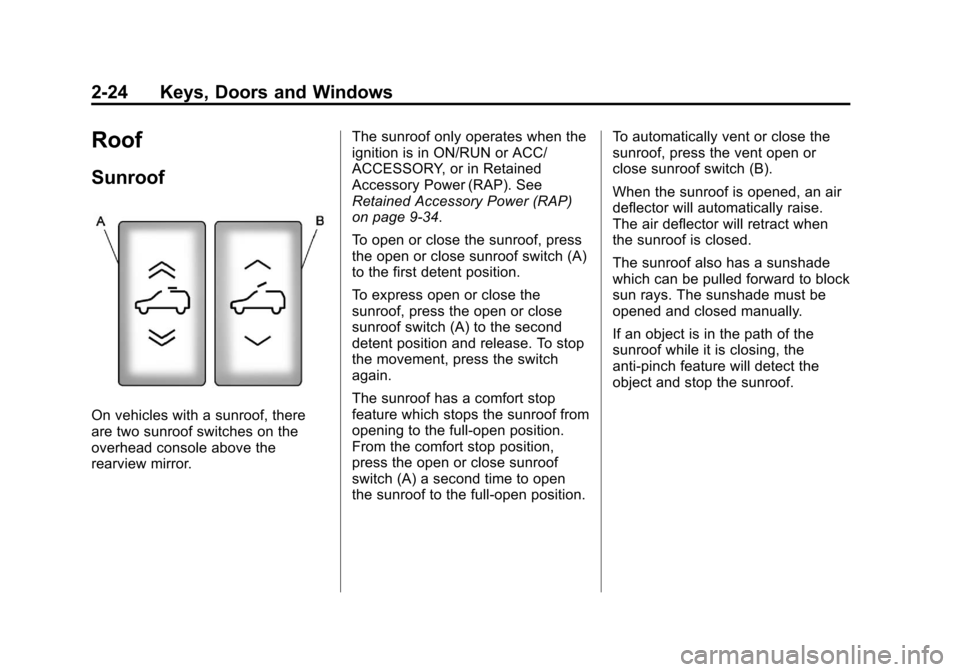

Roof
Sunroof
On vehicles with a sunroof, there
are two sunroof switches on the
overhead console above the
rearview mirror.The sunroof only operates when the
ignition is in ON/RUN or ACC/
ACCESSORY, or in Retained
Accessory Power (RAP). See
Retained Accessory Power (RAP)
on page 9‑34.
To open or close the sunroof, press
the open or close sunroof switch (A)
to the first detent position.
To express open or close the
sunroof, press the open or close
sunroof switch (A) to the second
detent position and release. To stop
the movement, press the switch
again.
The sunroof has a comfort stop
feature which stops the sunroof from
opening to the full-open position.
From the comfort stop position,
press the open or close sunroof
switch (A) a second time to open
the sunroof to the full-open position.To automatically vent or close the
sunroof, press the vent open or
close sunroof switch (B).
When the sunroof is opened, an air
deflector will automatically raise.
The air deflector will retract when
the sunroof is closed.
The sunroof also has a sunshade
which can be pulled forward to block
sun rays. The sunshade must be
opened and closed manually.
If an object is in the path of the
sunroof while it is closing, the
anti-pinch feature will detect the
object and stop the sunroof.

Black plate (25,1)Chevrolet Tahoe/Suburban Owner Manual - 2011
Keys, Doors and Windows 2-25

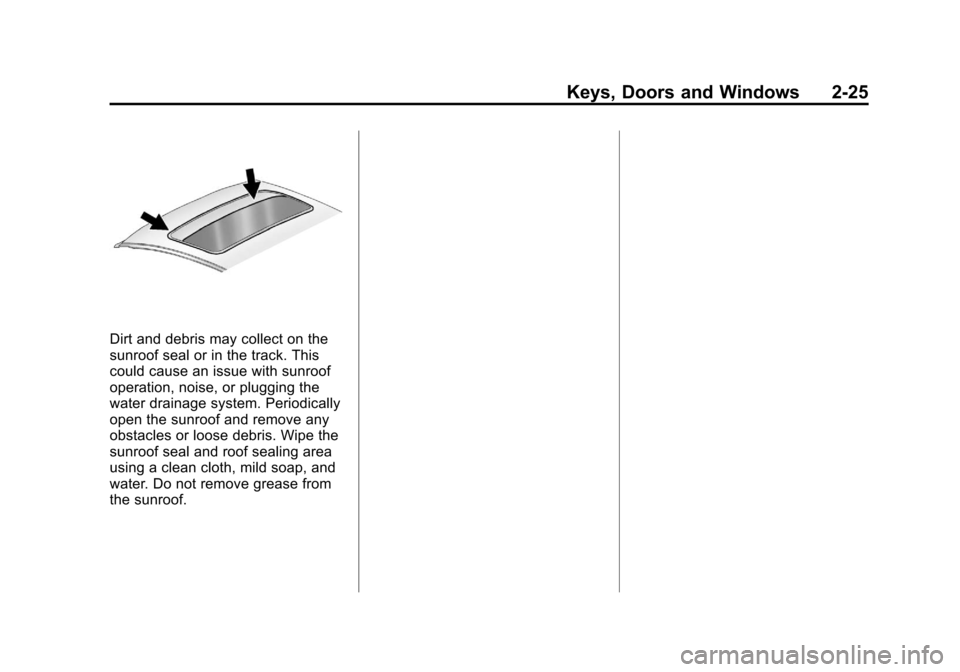

Dirt and debris may collect on the
sunroof seal or in the track. This
could cause an issue with sunroof
operation, noise, or plugging the
water drainage system. Periodically
open the sunroof and remove any
obstacles or loose debris. Wipe the
sunroof seal and roof sealing area
using a clean cloth, mild soap, and
water. Do not remove grease from
the sunroof.

Black plate (26,1)Chevrolet Tahoe/Suburban Owner Manual - 2011
2-26 Keys, Doors and Windows
2NOTES

Black plate (1,1)Chevrolet Tahoe/Suburban Owner Manual - 2011
Seats and Restraints 3-1
Seats and
Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . . . 3-2
Front Seats
Seat Adjustment . . . . . . . . . . . . . . 3-3
Center Seat . . . . . . . . . . . . . . . . . . . 3-4
Power Seat Adjustment . . . . . . . 3-4
Lumbar Adjustment . . . . . . . . . . . 3-6
Reclining Seatbacks . . . . . . . . . . 3-7
Heated Front Seats . . . . . . . . . . . 3-9
Heated and Ventilated FrontSeats . . . . . . . . . . . . . . . . . . . . . . . 3-10
Rear Seats
Heated Rear Seats . . . . . . . . . . 3-11
Second Row Seats (60/40Split Bench Seat) . . . . . . . . . . . 3-11
Second Row Seats (Bucket Seats) . . . . . . . . . . . . . . . . . . . . . . 3-15
Third Row Seats . . . . . . . . . . . . . 3-20
Safety Belts
Safety Belts . . . . . . . . . . . . . . . . . . 3-24
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . 3-27
Lap-Shoulder Belt . . . . . . . . . . . 3-33
Safety Belt Use During Pregnancy . . . . . . . . . . . . . . . . . . 3-38
Lap Belt . . . . . . . . . . . . . . . . . . . . . 3-39
Safety Belt Extender . . . . . . . . . 3-40
Safety System Check . . . . . . . . 3-40
Safety Belt Care . . . . . . . . . . . . . 3-40
Replacing Safety Belt System Parts After a Crash . . . . . . . . . 3-40
Airbag System
Airbag System . . . . . . . . . . . . . . . 3-41
Where Are the Airbags? . . . . . 3-43
When Should an AirbagInflate? . . . . . . . . . . . . . . . . . . . . . 3-45
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . 3-47
How Does an Airbag Restrain? . . . . . . . . . . . . . . . . . . . 3-47
What Will You See After an Airbag Inflates? . . . . . . . . . . . . 3-48
Passenger Sensing System . . . . . . . . . . . . . . . . . . . . . 3-49
Servicing the Airbag-Equipped Vehicle . . . . . . . . . . . . . . . . . . . . . 3-54 Adding Equipment to the
Airbag-Equipped Vehicle . . . 3-54
Airbag System Check . . . . . . . . 3-56
Replacing Airbag System Parts After a Crash . . . . . . . . . 3-56
Child Restraints
Older Children . . . . . . . . . . . . . . . 3-57
Infants and Young
Children . . . . . . . . . . . . . . . . . . . . 3-59
Child Restraint Systems . . . . . 3-61
Where to Put the Restraint . . . 3-63
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . 3-65
Replacing LATCH System Parts After a Crash . . . . . . . . . 3-73
Securing Child Restraints (Rear Seat Position) . . . . . . . . 3-74
Securing Child Restraints (Center Front Seat
Position) . . . . . . . . . . . . . . . . . . . 3-77
Securing Child Restraints (Right Front Seat
Position) . . . . . . . . . . . . . . . . . . . 3-77

Black plate (2,1)Chevrolet Tahoe/Suburban Owner Manual - 2011
3-2 Seats and Restraints

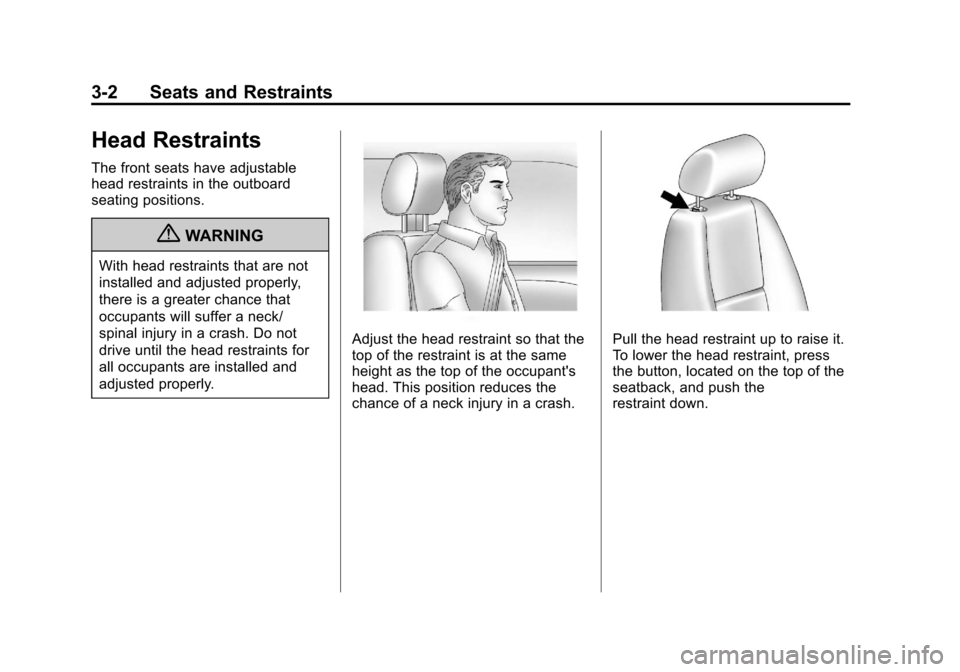

Head Restraints
The front seats have adjustable
head restraints in the outboard
seating positions.
{WARNING
With head restraints that are not
installed and adjusted properly,
there is a greater chance that
occupants will suffer a neck/
spinal injury in a crash. Do not
drive until the head restraints for
all occupants are installed and
adjusted properly.
Adjust the head restraint so that the
top of the restraint is at the same
height as the top of the occupant's
head. This position reduces the
chance of a neck injury in a crash.Pull the head restraint up to raise it.
To lower the head restraint, press
the button, located on the top of the
seatback, and push the
restraint down.

Black plate (3,1)Chevrolet Tahoe/Suburban Owner Manual - 2011
Seats and Restraints 3-3

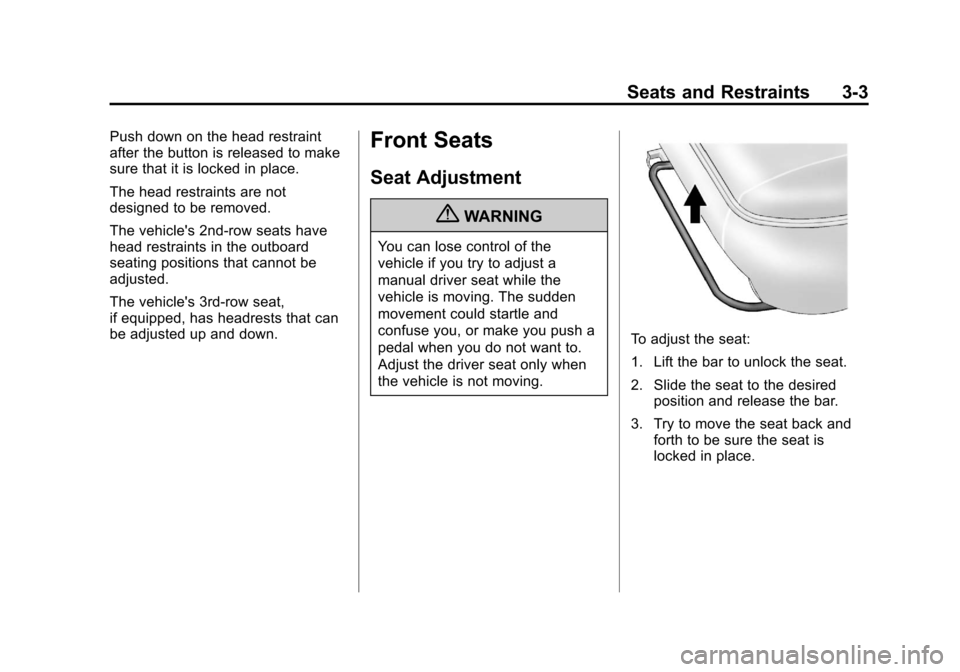

Push down on the head restraint
after the button is released to make
sure that it is locked in place.
The head restraints are not
designed to be removed.
The vehicle's 2nd-row seats have
head restraints in the outboard
seating positions that cannot be
adjusted.
The vehicle's 3rd-row seat,
if equipped, has headrests that can
be adjusted up and down.Front Seats
Seat Adjustment
{WARNING
You can lose control of the
vehicle if you try to adjust a
manual driver seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push a
pedal when you do not want to.
Adjust the driver seat only when
the vehicle is not moving.
To adjust the seat:
1. Lift the bar to unlock the seat.
2. Slide the seat to the desiredposition and release the bar.
3. Try to move the seat back and forth to be sure the seat is
locked in place.

Black plate (4,1)Chevrolet Tahoe/Suburban Owner Manual - 2011
3-4 Seats and Restraints

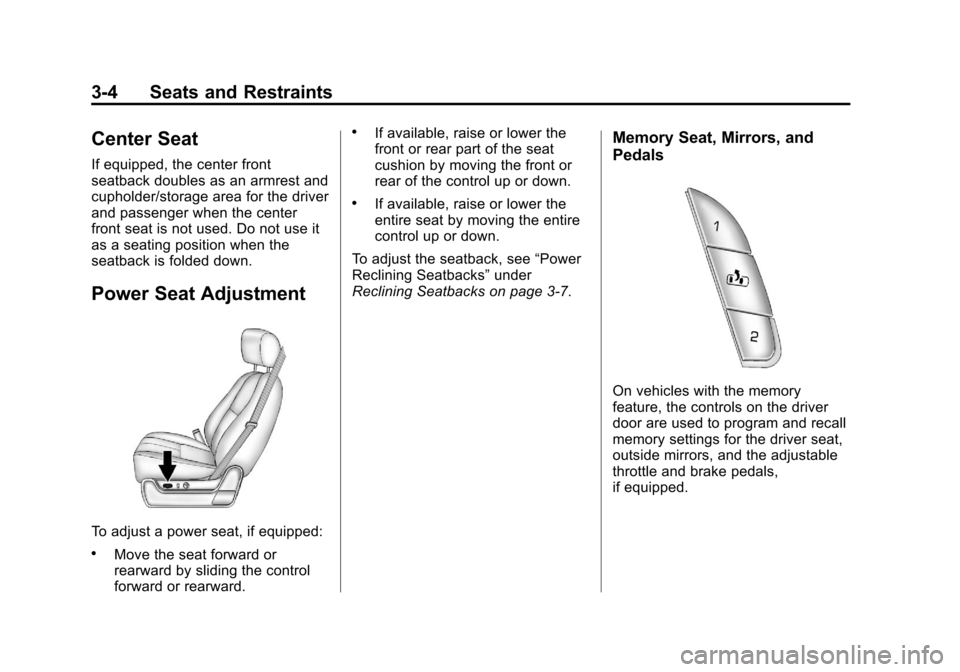

Center Seat
If equipped, the center front
seatback doubles as an armrest and
cupholder/storage area for the driver
and passenger when the center
front seat is not used. Do not use it
as a seating position when the
seatback is folded down.
Power Seat Adjustment
To adjust a power seat, if equipped:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.If available, raise or lower the
front or rear part of the seat
cushion by moving the front or
rear of the control up or down.
.If available, raise or lower the
entire seat by moving the entire
control up or down.
To adjust the seatback, see “Power
Reclining Seatbacks” under
Reclining Seatbacks on page 3‑7.
Memory Seat, Mirrors, and
Pedals
On vehicles with the memory
feature, the controls on the driver
door are used to program and recall
memory settings for the driver seat,
outside mirrors, and the adjustable
throttle and brake pedals,
if equipped.

Black plate (5,1)Chevrolet Tahoe/Suburban Owner Manual - 2011
Seats and Restraints 3-5
Storing Memory Positions
To save into memory:
1. Adjust the driver seat, seatbackrecliner, both outside mirrors,
and the throttle and brake
pedals, if available.
See Power Mirrors on page 2‑18
and Adjustable Throttle and
Brake Pedal on page 9‑29 for
more information.
Not all mirrors and adjustable
throttles and brake pedals will
have the ability to save and
recall their positions.
2. Press and hold “1”until
two beeps sound.
3. Repeat for a second driver position using “2.”
To recall, press and release “1”or
“2.” The vehicle must be in P (Park).
A single beep will sound. The seat,
outside mirrors, and adjustable
throttle and brake pedals will move
to the position previously stored for
the identified driver. Memory Remote Recall
The memory feature can recall the
driver seat, outside mirrors, and
pedals, if available, to stored
positions when entering the vehicle.
To activate, unlock the driver
door with the Remote Keyless
Entry (RKE) transmitter. The driver
seat, outside mirrors, and adjustable
pedals, if available, will move to the
memory position associated with the
transmitter used to unlock the
vehicle.
This feature can be turned on or off
using the vehicle personalization
menu. See
“Memory Seat Recall”
under Vehicle Personalization (With
DIC Buttons) on page 5‑49 for more
information.
To stop recall movement, press one
of the power seat controls, memory
buttons, or power mirror buttons,
or the adjustable pedal switch. If something has blocked the driver
seat and/or the adjustable pedals
while recalling a memory position,
the recall may stop. Remove the
obstruction; then press and hold the
appropriate manual control for the
memory item that is not recalling for
two seconds. Try recalling the
memory position again by pressing
the appropriate memory button.
If the memory position is still not
recalling, see your dealer for
service.
Easy Exit Driver Seat
This feature can move the seat
rearward to allow extra room to exit
the vehicle.
B(Easy Exit Driver Seat):
Press
to recall the easy exit seat position.
The vehicle must be in P (Park).
If the easy exit seat feature is
programmed on in the vehicle
personalization menu, automatic
seat movement occurs when the
ignition key is removed.

Black plate (6,1)Chevrolet Tahoe/Suburban Owner Manual - 2011

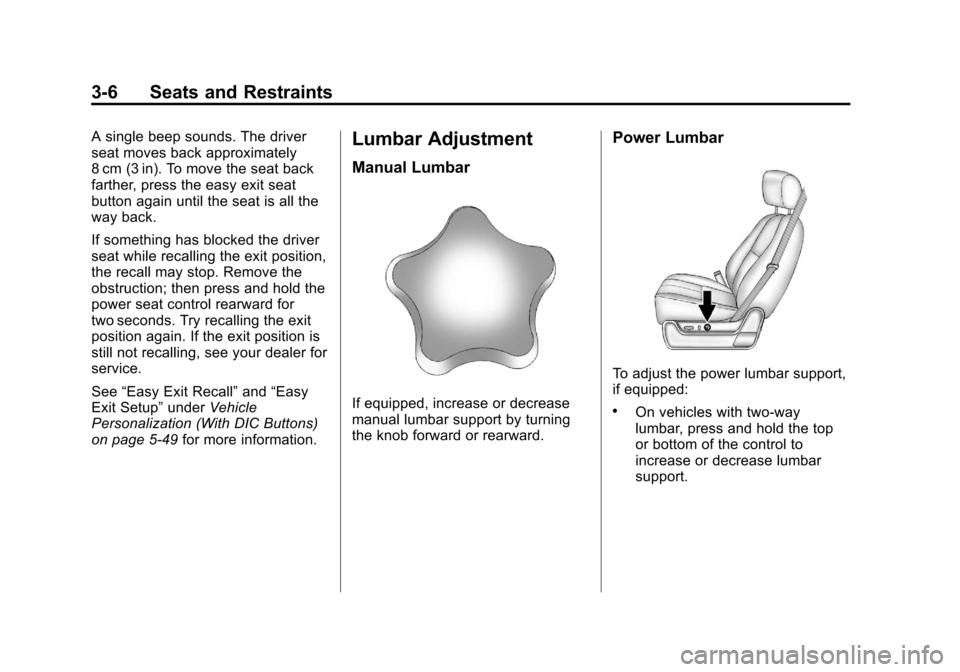

3-6 Seats and Restraints
A single beep sounds. The driver
seat moves back approximately
8 cm (3 in). To move the seat back
farther, press the easy exit seat
button again until the seat is all the
way back.
If something has blocked the driver
seat while recalling the exit position,
the recall may stop. Remove the
obstruction; then press and hold the
power seat control rearward for
two seconds. Try recalling the exit
position again. If the exit position is
still not recalling, see your dealer for
service.
See“Easy Exit Recall” and“Easy
Exit Setup” underVehicle
Personalization (With DIC Buttons)
on page 5‑49 for more information.Lumbar Adjustment
Manual Lumbar
If equipped, increase or decrease
manual lumbar support by turning
the knob forward or rearward.
Power Lumbar
To adjust the power lumbar support,
if equipped:
.On vehicles with two-way
lumbar, press and hold the top
or bottom of the control to
increase or decrease lumbar
support.
