CHEVROLET TRACKER 1995 Owners Manual

Fuel Gage Here are four concerns some owners have had about the
fuel gage. All these situations are normal and do not
indicate that anything is wrong with the fuel gage.
0
0
0
e
Your fuel gage shows about how much fuel is in your
tank. When the gage first indicates
EMPTY (E), you
still have a little fuel left (about one or two gallons), but
you need
to get more right away. At
the gas station, the fuel pump shuts off before the
gage reads
FULL (F).
It takes more (or less) fuel to fill up than the gage
reads. For example, the gage reads half full, but it
took more (or less) than half
of the tank’s capacity to
fill it.
The gage moves a little when you turn, stop or speed
UP-
When you turn the engine off, the gage doesn’t go
back to EMPTY (E).
ProCarManuals.com

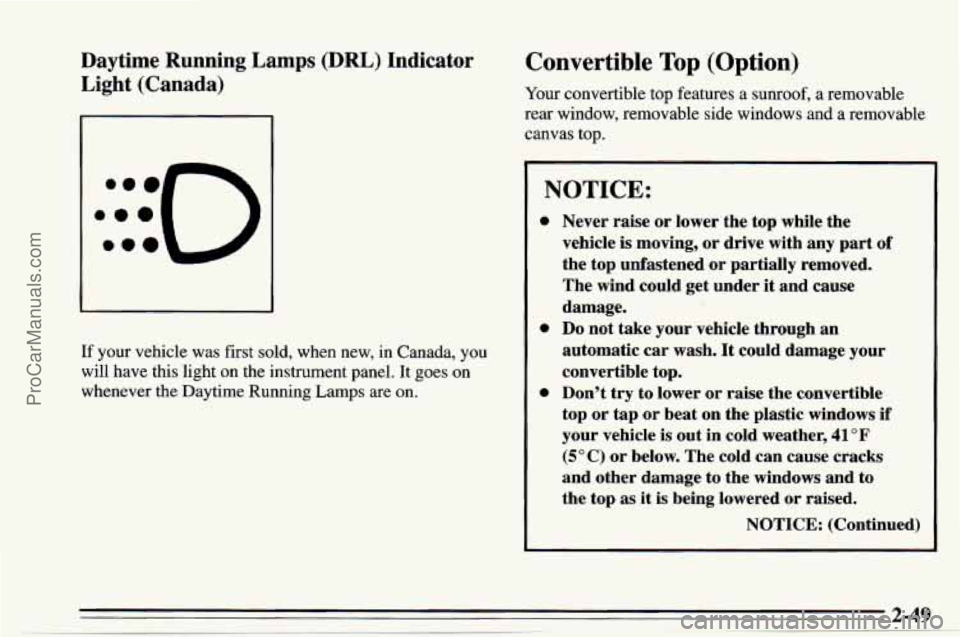

Daytime Running Lamps (DRL) Indicator
Light (Canada)
If your vehicle was first sold, when new, in Canada, you
will have this light on the instrument panel. It goes on
whenever the Daytime Running Lamps are
on.
Convertible Top (Option)
Your convertible top features a sunroof, a removable
rear window, removable side windows and a removable
canvas top.
NOTICE:
0
0
0 Never raise or lower the top while the
vehicle is moving, or drive with any part of
the top unfastened or partially removed.
The wind could get under it and cause
damage.
Do not take your vehicle through an
automatic car wash.
It could damage your
convertible top.
Don’t
try to lower or raise the convertible
top or tap or beat on the plastic windows if
your vehicle is out in cold weather,
41°F
(5OC) or below. The cold can cause cracks
and other damage to the windows and to
the top as it is being lowered or raised.
NOTICE: (Continued)
ProCarManuals.com

NOTICE: (Continued)

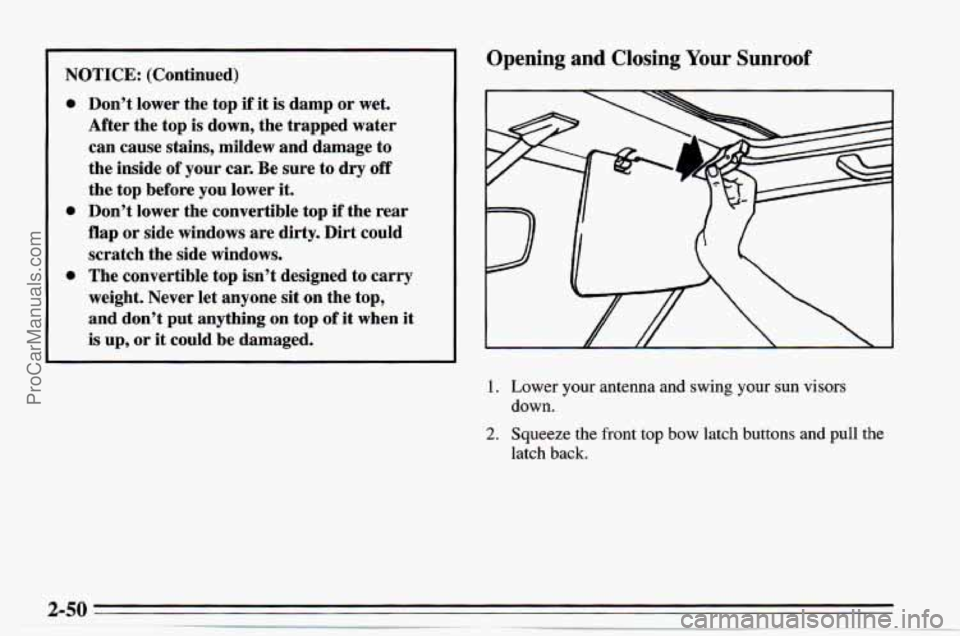

Opening and Closing Your Sunroof
e
e
e
Don’t lower the top if it is damp or wet.
After the top is down, the trapped water
can cause stains, mildew and damage to
the inside
of your car. Be sure to dry off
the top before you lower it.
Don’t lower the convertible top if the rear
flap or side windows are dirty. Dirt could
scratch the side windows.
The convertible top isn’t designed to carry
weight. Never let anyone
sit on the top,
and don’t put anything on top of it when it
is up, or it could be damaged.
1. Lower your antenna and swing your sun visors
down.
2. Squeeze the front top bow latch buttons and pull the
latch back.
ProCarManuals.com

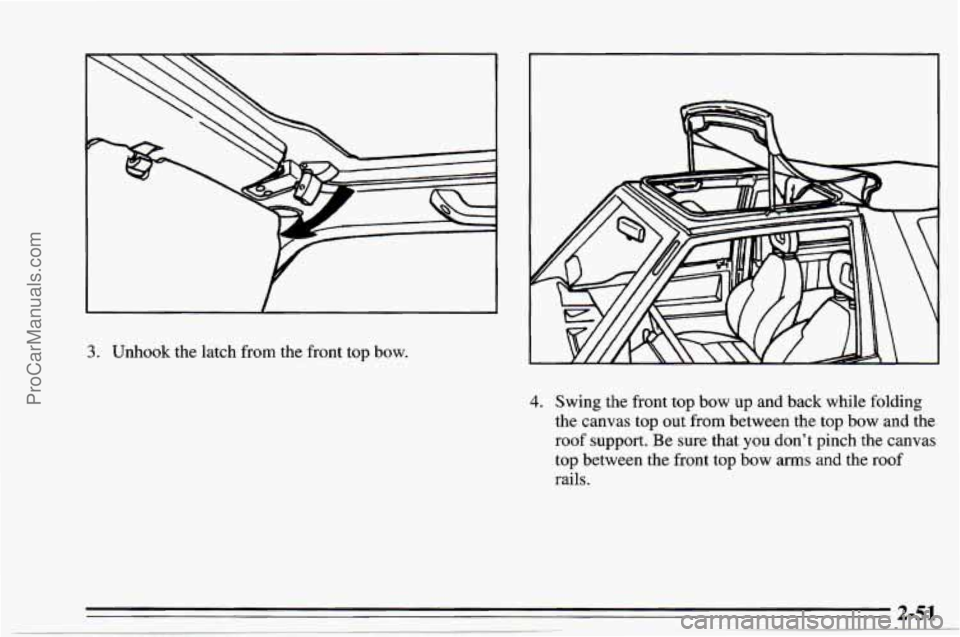

3. Unhook the latch from the front top bow.
4. Swing the front top bow up and back while folding
the canvas top out from between the top bow and the
roof support.
Be sure that you don’t pinch the canvas
top between the front top bow arms and the roof
rails.
ProCarManuals.com

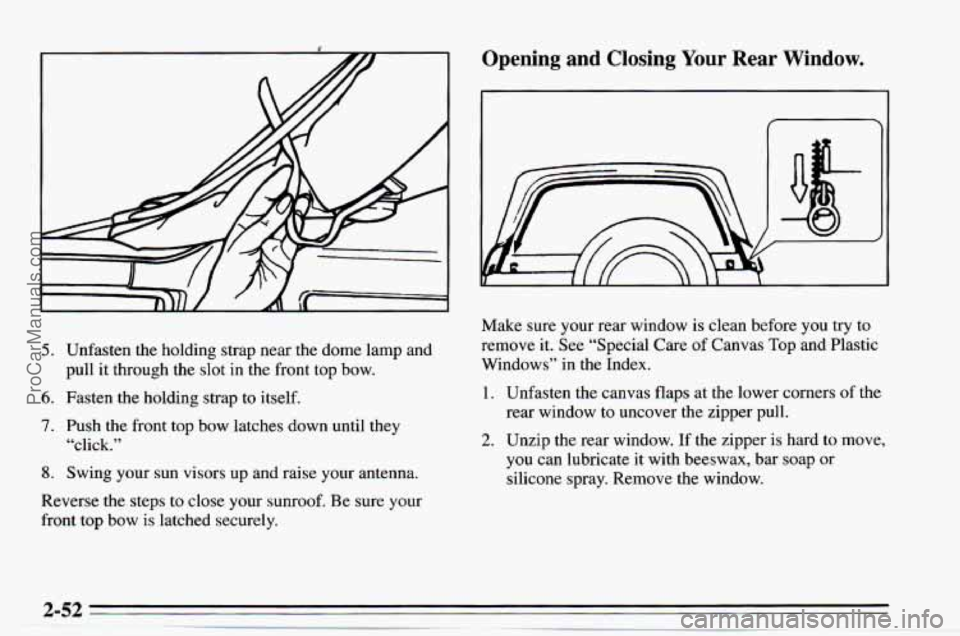

Opening and Closing Your Rear Window.
5. Unfasten the holding strap near the dome lamp and
6. Fasten the holding strap to itself.
pull
it through the slot
in the front top bow.
7. Push the front top bow latches down until they
“click.”
8. Swing your sun visors up and raise your antenna.
Reverse the steps to close your sunroof. Be sure your
front top bow
is latched securely. Make sure your rear
window is clean before you try
to
remove it. See “Special Care of Canvas Top and Plastic
Windows” in the Index.
1. Unfasten the canvas flaps at the lower corners of the
rear window to uncover the zipper pull.
2. Unzip the rear window. If the zipper is hard to move,
you can lubricate
it with beeswax, bar soap or
silicone spray. Remove the window.
ProCarManuals.com

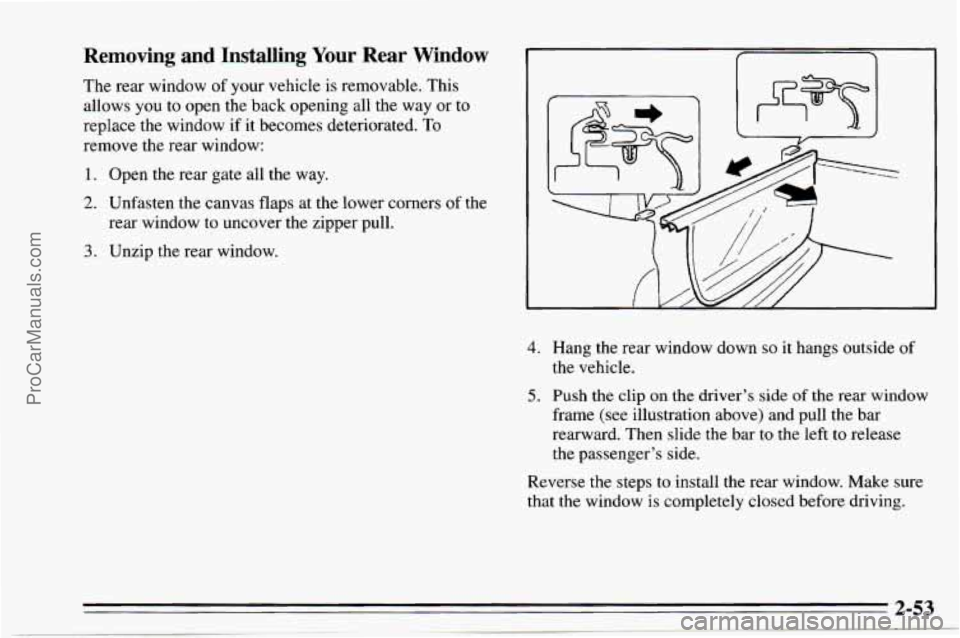

Removing and Installing Your Rear Window
The rear window of your vehicle is removable. This
allows you
to open the back opening all the way or to
replace the window if it becomes deteriorated. To
remove the rear window:
1. Open the rear gate all the way.
2. Unfasten the canvas flaps at the lower corners of the
rear window to uncover the zipper pull.
3. Unzip the rear window.
4. Hang the rear window down so it hangs outside of
the vehicle.
5. Push the clip on the driver’s side of the rear window
frame (see illustration above) and pull the bar
rearward. Then slide the
bar to the left to release
the passenger’s side.
Reverse the steps to install the rear window. Make sure
that the window
is completely closed before driving.
ProCarManuals.com

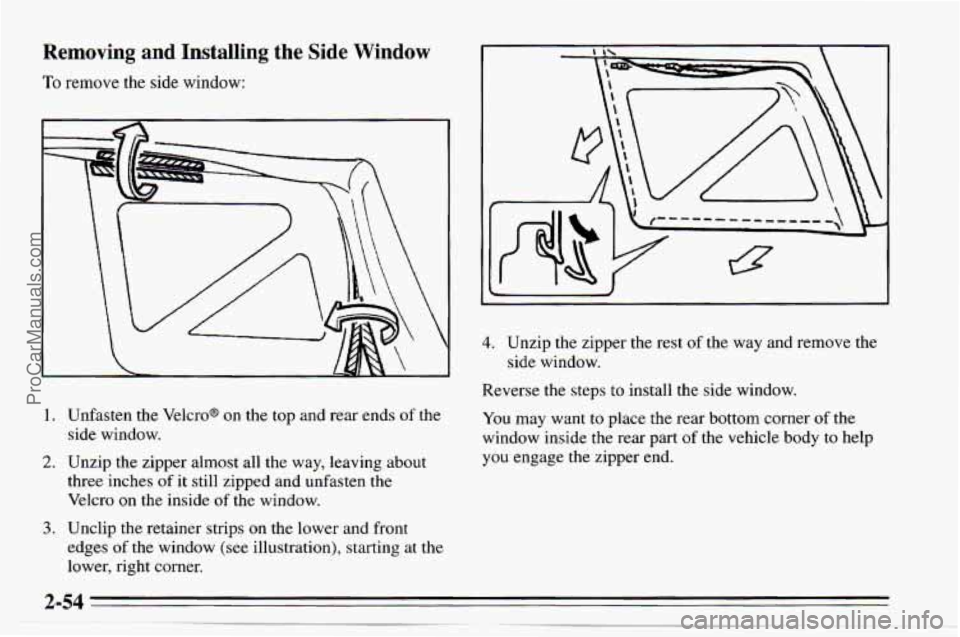

Removing and Installing the Side Window
To remove the side window:
1. Unfasten the Velcro@ on the top and rear ends of the
side window.
2. Unzip the zipper almost all the way, leaving about
three inches
of it still zipped and unfasten the
Velcro on the inside
of the window.
3. Unclip the retainer strips on the lower and front
edges
of the window (see illustration), starting at the
lower, right corner.
4. Unzip the zipper the rest of the way and remove the
side window.
Reverse the steps to install the side window.
You may want to place the rear bottom corner of the
window inside the rear part
of the vehicle body to help
you engage the zipper end.
ProCarManuals.com

I

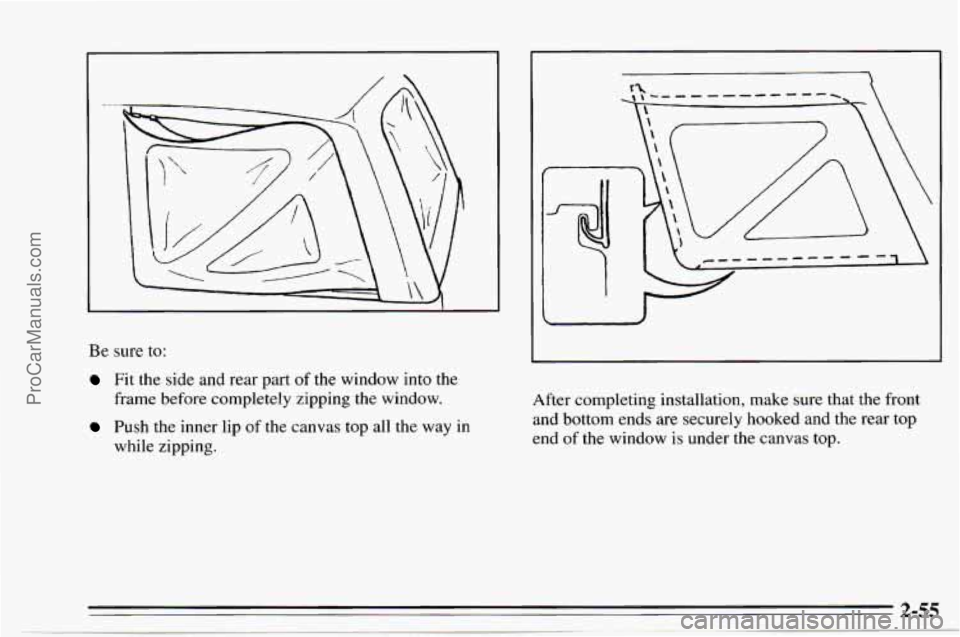

Be sure to:
Fit the side and rear part of the window into the
frame before completely zipping the window.
Push the inner lip of the canvas top all the way in
7 ile zipping. After
completing installation, make sure that the front
and bottom ends are securely hooked and the rear top
end of the window is under the canvas top.
ProCarManuals.com

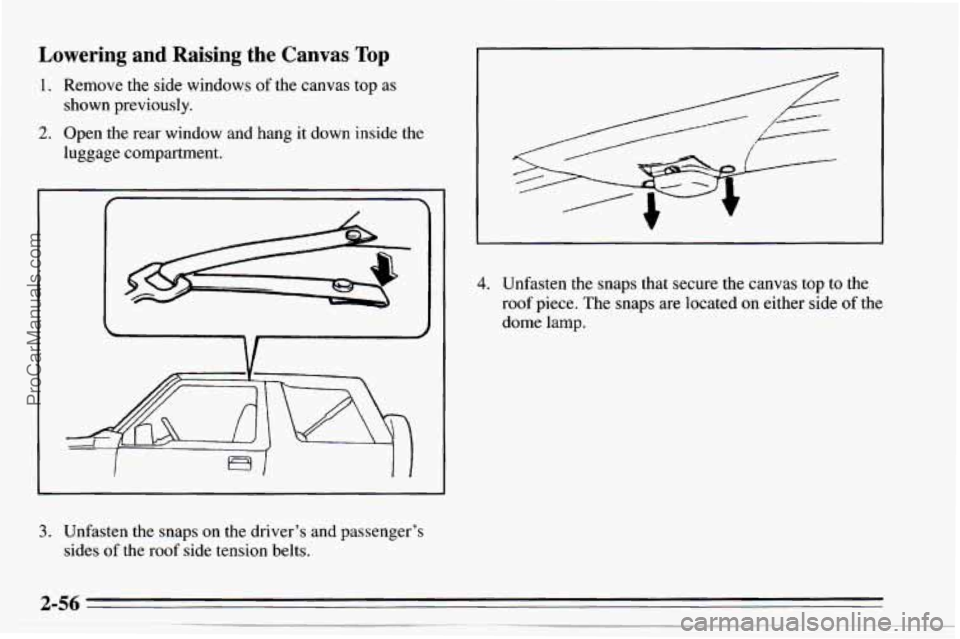

Lowering and Raising the Canvas Top
1. Remove the side windows of the canvas top as
shown previously.
2. Open the rear window and hang it down inside the
luggage compartment.
3. Unfasten the snaps on the driver’s and passenger’s
sides of the roof side tension belts.
4. Unfasten the snaps that secure the canvas top to the
roof piece. The snaps are located on either side of the
dome lamp.
ProCarManuals.com

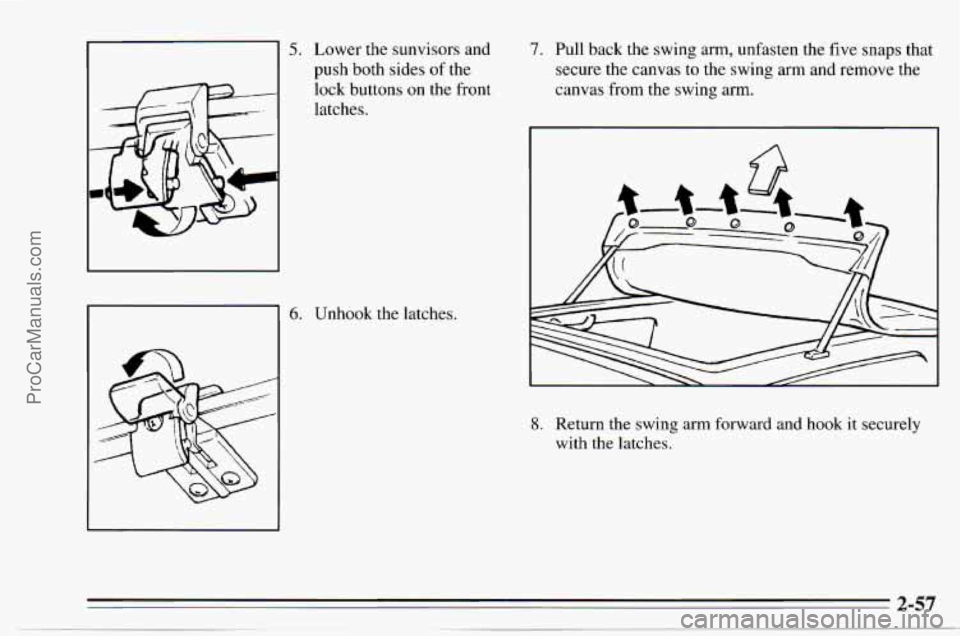

-1 push both sides of the
5. Lower the sunvisors and
-
lock buttons on the front
latches.
6. Unhook the latches.
7. Pull back the swing arm, unfasten the five snaps that
secure the canvas to the swing arm and remove the
canvas from the swing
arm.
8. Return the swing arm forward and hook it securely
with the latches.
2-57
