CHEVROLET TRACKER 1995 Manual PDF

The Turn SignaYLamps
ControVHeadlamp Beam Lever
The lever on the left side of the steering column
includes your:
0 Turn Signal and Lane Change Indicator
Headlamp High/Low Beam and Passing Signal
0 Lighting Operation
nrn Signal and Lane Change Indicator
The turn signal has two upward (for Right) and two
downward
(for Left) positions. These positions allow
you to signal
a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When the turn
is finished, the lever will return
automatically.
2-28
~. -
ProCarManuals.com

4
L
A green arrow on the instrument panel will flash in the
direction of the turn or lane change.
To signal a lane change, just raise or lower the lever
until the green arrow starts
to flash. Hold it there until
you complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows don’t
flash but just stay on, a signal bulb may be burned out
and other drivers won’t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident.
If the green arrows don’t go on at all when you
signal
a turn, check the fuse (see “Fuses and Circuit
Breakers’’ in the Index) and
for burned-out bulbs.
0
0
Turn the outside part of the lever to control the lamps.
There are three positions for the lamp switch.
OFF: All lamps are off.
0
-loo: : The parking lamps, taillamps, license plate
lamp and the instrument panel lighting come on. The
headlamps
are off.
-:g- : The headlamps and all other operating lamps
come on.
ProCarManuals.com

Lamps On Reminder Windshield Wipermasher Lever
If you turn the ignition off, remove the key, open the
door and leave the lamps on, a chime will remind you to
turn
off your lamps.
Headlamp High/Low Beam
First, you must have the
headlamps on. For high
beams, push the turn signal
lever away from you. When
the high beams are
on, a
blue light on the instrument
panel also will be on.
It will
go
off when you switch to
low beam.
To switch back to low beams, pull the lever toward you.
Passing Signal
With the lever in the low beam position, pull the lever
toward you to momentarily switch to high beam (to
~ signal that you are going to pass). When you release the
lever, the headlamps will return to low beam operation. The lever
on the right side
of the steering column
controls the windshield wipers
and washers.
Move the wiper switch to the position you want:
OFF: The wipers are off.
INT: Intermittent wiper operation. In light rain or snow,
you might want
to use this position rather than
continuous wiping.
LO: The wipers will run continuously at low speed.
2-30
ProCarManuals.com

HI: The wipers will run continuously at high speed.
For a single wiping cycle, push the lever to MIST. Hold
it there until the wipers start, then let go. The wipers will
stop after one cycle.
If you want more cycles, hold the
lever on MIST longer.
Washers
Pull the wipedwasher lever toward you to spray washer
fluid on the windshield. The spray will continue until
you release the lever. This will also turn on the low
speed wipers.
Be sure to clear ice and snow from the wiper blades
before using them. If they’re frozen to the windshield,
carefully loosen or thaw them.
If your blades do become
damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wipers.
A circuit
breaker will stop them until the motor cools. Clear away
snow or ice to prevent an overload.
When using concentrated washer fluid,
follow the manufacturer’s instructions for
adding water.
Don’t mix water with ready-to-use washer
fluid. Water can cause the solution to freeze
and damage your washer fluid tank and
other parts
of the washer system. Also,
water doesn’t clean as well as washer fluid.
Fill your washer fluid tank only
3/4 full
when it’s very cold.
This allows for
expansion, which could damage the tank
if
it is completely full.
Don’t
use radiator antifteeze in your
windshield washer.
It can damage your paint.
2-31
ProCarManuals.com

Rear Window WiperNasher
(Option)
~
I I To turn on your rear wiper,
push the upper button. Push
the same button again to
turn it off.
To spray washer fluid on the rear window, push the
lower button about halfway down. Washer fluid will
spray as long as you hold this button. To wash and wipe
at the same time, push the button all the way in.
The washer and wiper will run as
long as you hold this
button.
To add washer fluid, see "Windshield Washer
Fluid" in the Index.
Daytime Running Lamps (Canada Only)
Daytime Running Lamps (DRL) can make it easier for
others
to see the front of your vehicle during the day.
DRL can be helpful
in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset.
The
DRL system will make your low beam headlamps
come
on at a reduced brightness when:
The ignition is on,
The headlamp switch is off, and
The parking brake is released.
When you turn on the headlamp switch, your DRL will
go out, and your headlamps will come on.
The other lamps that come on with your headlamps will
also come
on.
When you turn off the headlamp switch, the regular
lamps will go off, and your low beam headlamps come
on at the reduced brightness of DRL,
To idle your vehicle with the DRL off, set the parking
brake. The DRL will stay off until you release the
parking brake.
As with any vehicle, you should turn on the regular
headlamp system any time
you need it.
ProCarManuals.com

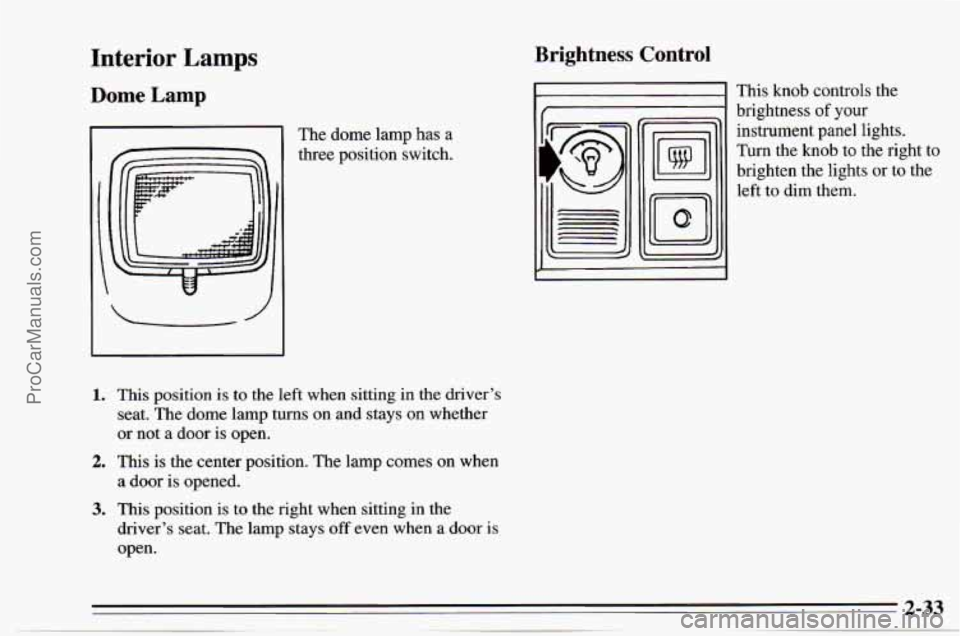

Interior Lamps
Dome Lamp
The dome lamp has a
three position switch.
1.
2.
3.
This position is to the left when sitting in the driver's
seat. The dome lamp turns on and stays
on whether
or not
a door is open.
This is the center position. The lamp comes on when
a door is opened.
This position is to the right when sitting in the
driver's seat. The lamp stays off
even when a door is
open.
Brightness Control
I 1 I/
ff
This knob controls
brightness
of your the
instrument panel lights.
Turn the knob to the right to
brighten the lights or to the
left
to dim them.
ProCarManuals.com

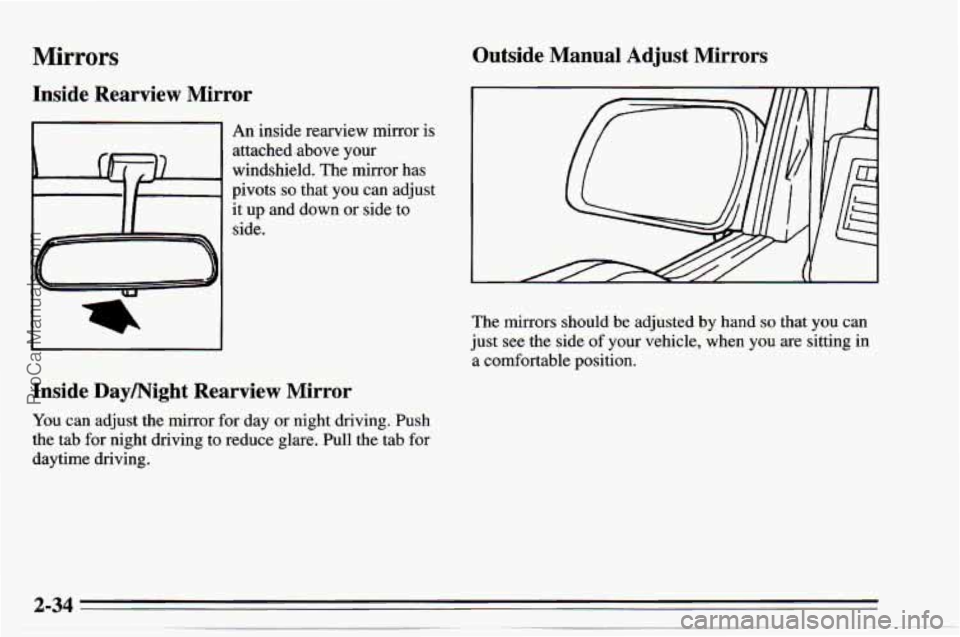

Mirrors
Inside Rearview Mirror
An inside rearview mirror is
attached .above your
windshield. The mirror has
pivots
so that you can adjust
it up and down or side to
side.
Inside Daymight Rearview Mirror
You can adjust the mirror for day or night driving. Push
the tab for night driving to reduce glare. Pull the tab
for
daytime driving.
Outside Manual Adjust Mirrors
The mirrors should be adjusted by hand so that you can
just see the side
of your vehicle, when you are sitting in
a comfortable position.
ProCarManuals.com

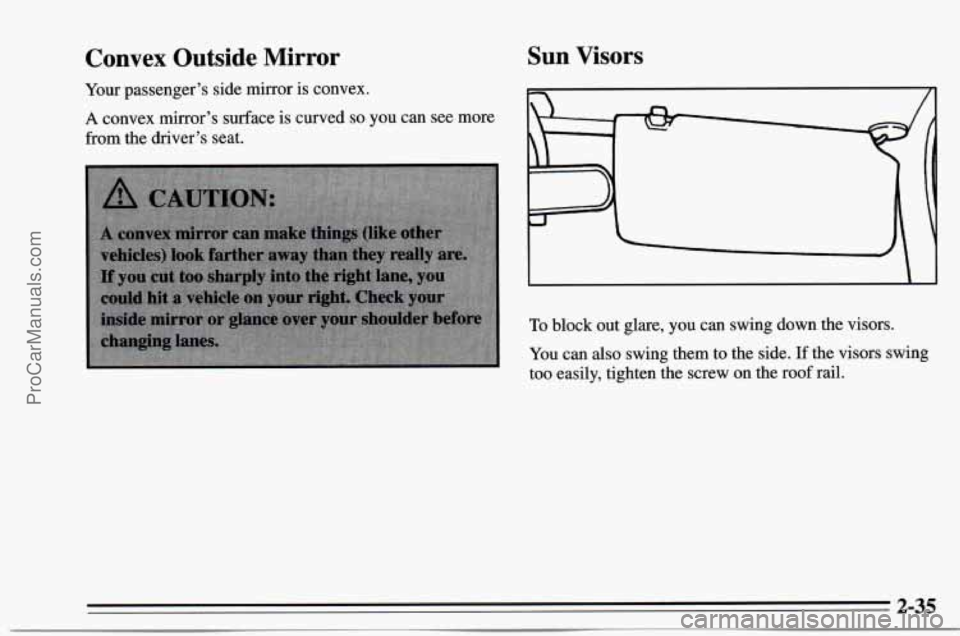

Convex Outside Mirror Sun Visors
Your passenger’s side mirror is convex.
A convex mirror’s surface is curved so you can see more
from the driver’s seat.
To block out glare, you can swing down the visors.
You can also swing them
to the side. If the visors swing
too easily, tighten the screw
on the roof rail.
2-35
ProCarManuals.com

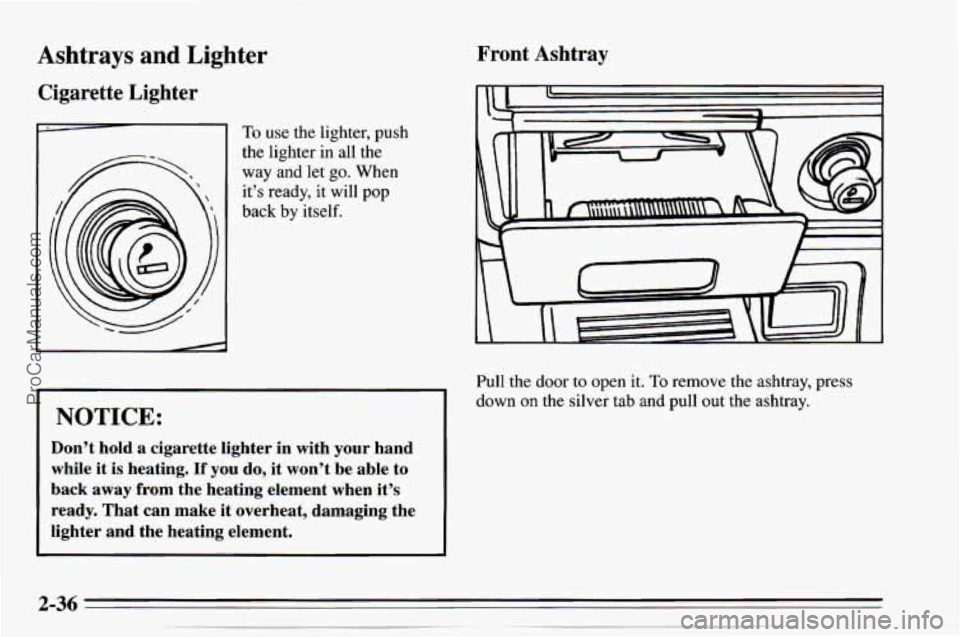

Ashtrays and Lig
Cigarette Lighter
Iter Front Ashtray
To use the lighter, push
the lighter in all the
way and let
go. When
it’s ready, it will pop
back by itself.
NOTICE:
Don’t hold a cigarette lighter in with your hand
while it is heating.
If you do, it won’t be able to
back away from the heating element when it’s
ready. That can make
it overheat, damaging the
lighter and the heating element.
Pull the door to open it. To remove the ashtray, press
down
on the silver tab and pull out the ashtray.
ProCarManuals.com

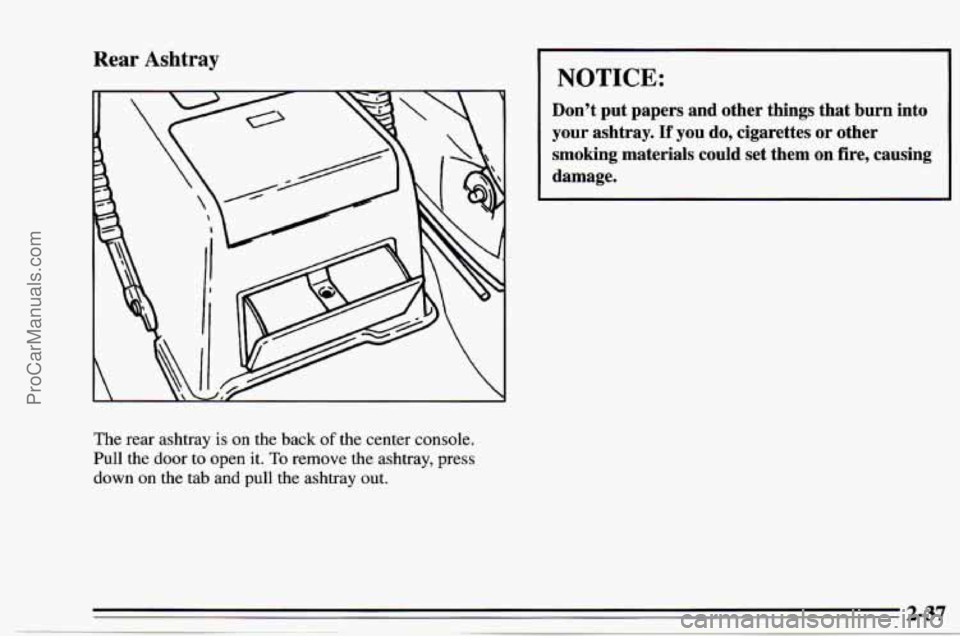

Rear Ashtray
The rear ashtray is on the back of the center console.
Pull the door to open it.
To remove the ashtray, press
down
on the tab and pull the ashtray out.
NOTICE:
Don’t put papers and other things that burn into
your ashtray.
If you do, cigarettes or other
smoking materials could set them
on fire, causing
damage.
2-37
