CHEVROLET TRACKER 1995 Owners Manual

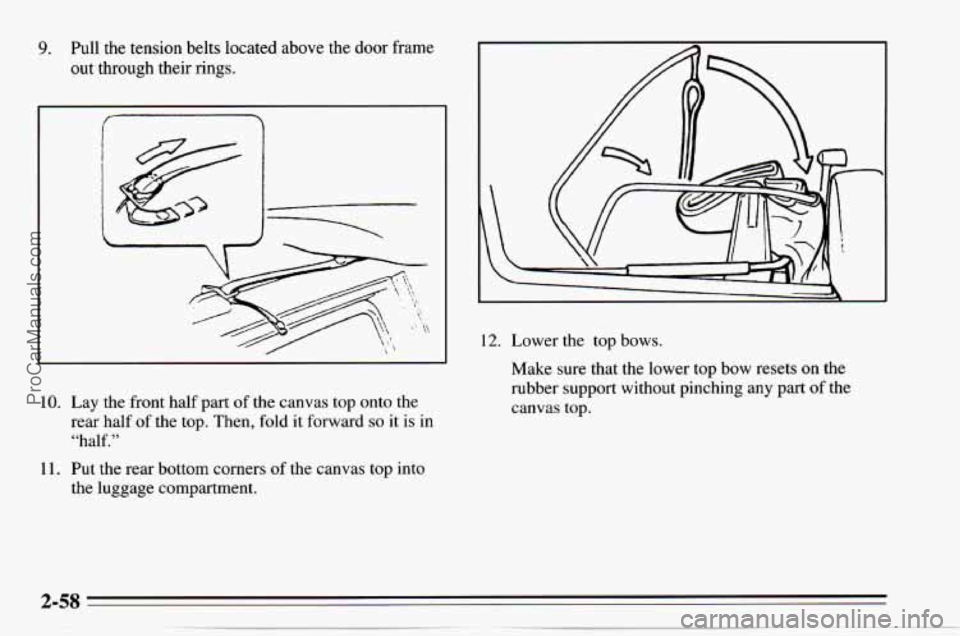

9. Pull the tension belts located above the door frame
out through their rings.
10. Lay the front half part of the canvas top onto the
rear half of the top. Then, fold
it forward so it is in
“half.”
11. Put the rear bottom corners of the canvas top into
the luggage compartment.
12. Lower the top bows.
Make sure that the lower top bow resets on the
rubber support without pinching any part of the
canvas top.
ProCarManuals.com

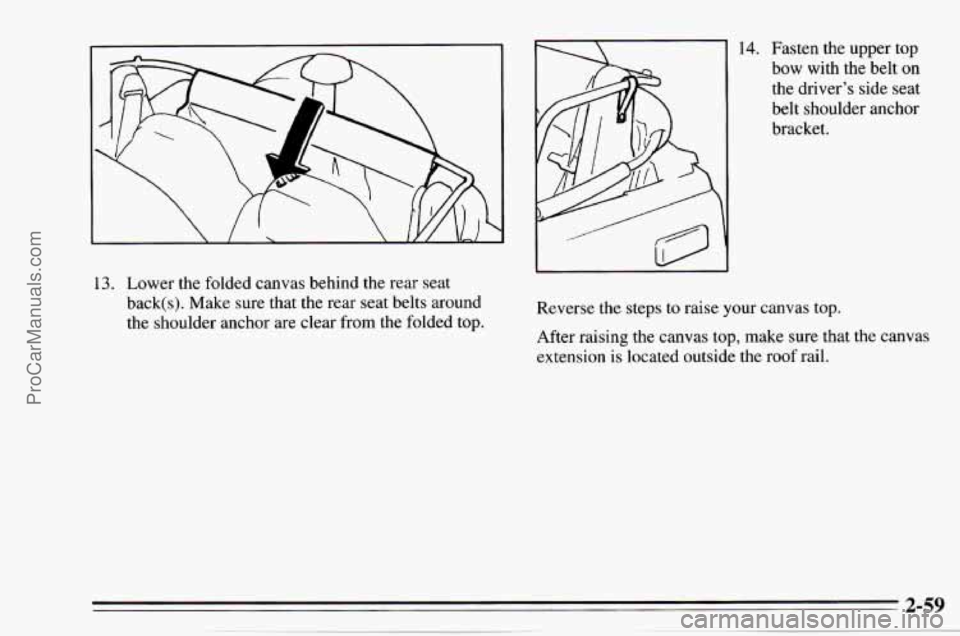

14. Fasten the upper top
bow with the belt
on
the driver’s side seat
belt shoulder anchor
bracket.
13. Lower the folded canvas behind the rear seat
back(s). Make sure that the rear seat belts around
the shoulder anchor are clear from the folded top. Reverse the
steps to raise your canvas top.
After raising the canvas top, make sure that the canvas
extension is located outside the
roof rail.
ProCarManuals.com

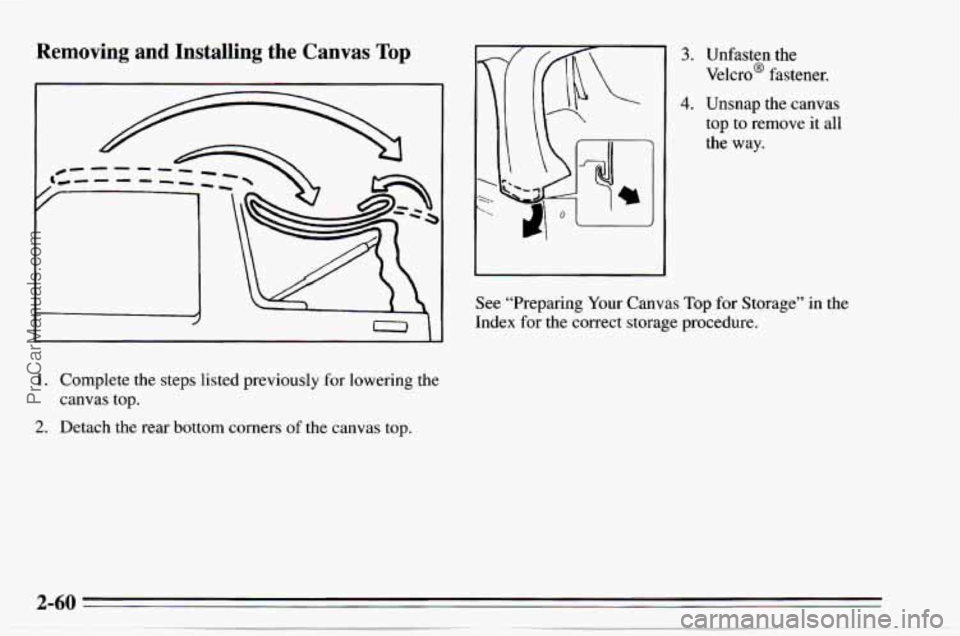

Removing and Installing the Canvas Top
1. Complete the steps listed previously for lowering the
canvas top.
2. Detach the rear bottom corners of the canvas top.
3. Unfasten the
VelcroB fastener.
4. Unsnap the canvas
top
to remove it all
the way.
See “Preparing Your Canvas
Top for Storage” in the
Index
for the correct storage procedure.
ProCarManuals.com

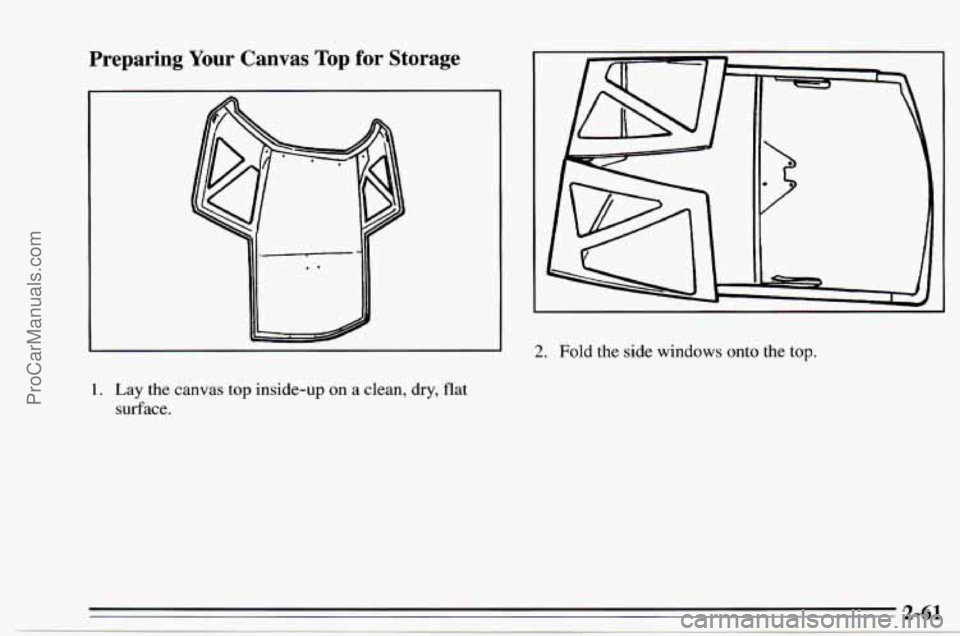

Preparing Your Canvas Top for Storage
2. Fold the side windows onto the top.
1. Lay the canvas top inside-up on a clean, dry, flat
surface.
ProCarManuals.com

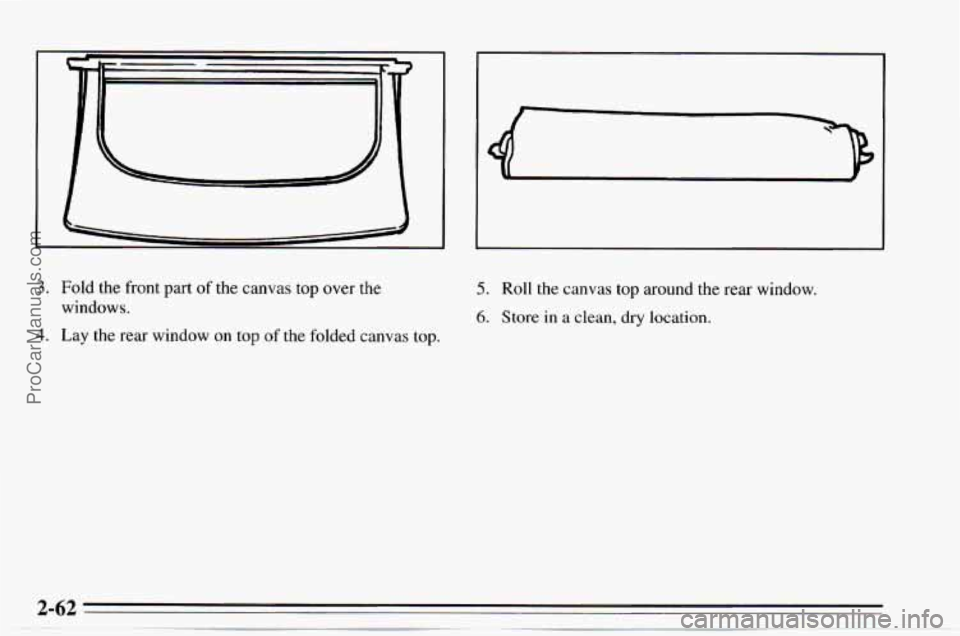

3. Fold the front part of the canvas top over the
windows.
4. Lay the rear window on top of the folded canvas top.
5. Roll the canvas top around the rear window.
6. Store in a clean, dry location.
ProCarManuals.com

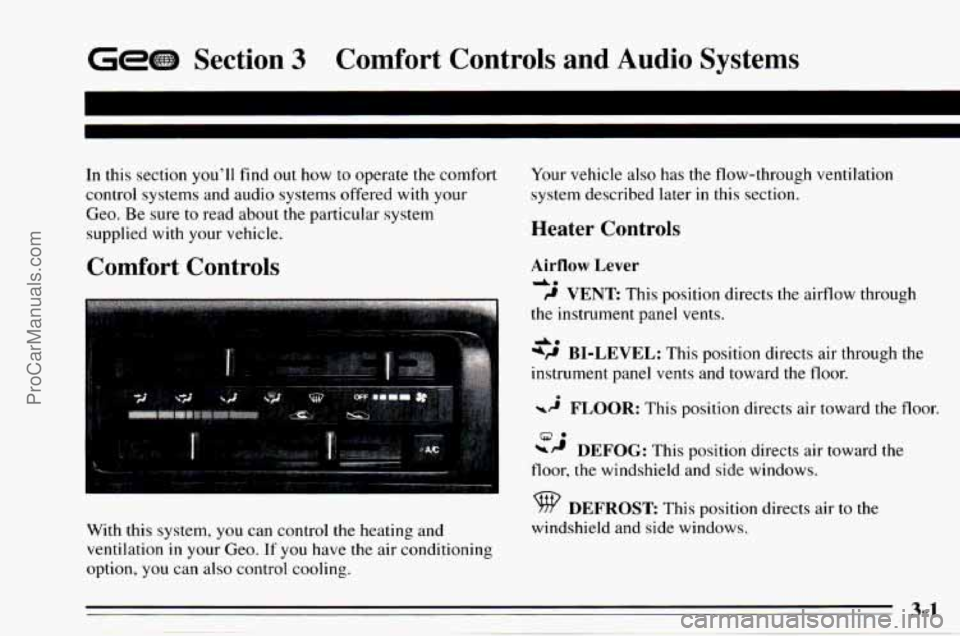

Gem Section 3 Comfort Controls and Audio Systems
In this section you’ll find out how to operate the comfort
control systems and audio systems offered
with your
Geo. Be sure to read about the particular system
supplied with your vehicle.
Comfort Controls
With this system, you can control the heating and
ventilation
in your Geo. If you have the air conditioning
option, you can
also control cooling. Your
vehicle also has the flow-through ventilation
system described later
in this section.
Heater Controls
Airflow Lever
da
9 VENT This position directs the airflow through
the instrument panel vents.
*P BI-LEVEL: This position directs air through the
instrument panel vents and toward
the floor.
-2 FLOOR: This position directs air toward the floor.
DEFOG: This position directs air toward the
A*
9.
floor, the windshield and side windows.
DEFROST This position directs air to the
windshield and side windows.
ProCarManuals.com

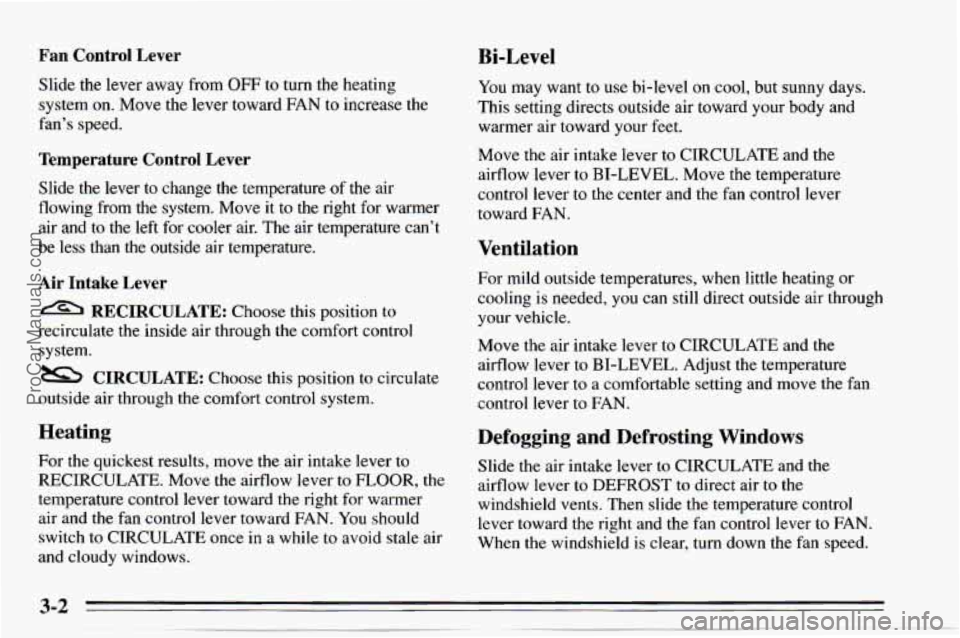

Fan Control Lever Bi-Level
Slide the lever away from OFF to turn the heating
system on. Move the lever toward FAN
to increase the
fan’s speed.
Temperature Control Lever
Slide the lever to change the temperature of the air
flowing from the system. Move it to the right for warmer
air and
to the left for cooler air. The air temperature can’t
be less than the outside air temperature.
Air Intake Lever
RECIRCULATE:
Choose this position to
recirculate the inside air through
the comfort control
system.
outside air through the comfort control system.
CIRCULATE: Choose this position to circulate
Heating
For the quickest results, move the air intake lever to
RECIRCULATE. Move the airflow lever to FLOOR, the
temperature control lever toward the right for warmer
air and the fan control lever toward FAN.
You should
switch
to CIRCULATE once in a while to avoid stale air
and cloudy windows.
You may want to use bi-level on cool, but sunny days.
This setting directs outside air toward your body and
warmer air toward your feet.
Move the air intake lever to CIRCULATE and the
airflow lever to
BI-LEVEL. Move the temperature
control lever to the center and the fan control lever
toward FAN.
Ventilation
For mild outside temperatures, when little heating or
cooling is needed, you can still direct outside air through
your vehicle.
Move the air intake lever to CIRCULATE and
the
airflow lever to BI-LEVEL. Adjust the temperature
control lever to a comfortable setting and move the fan
control lever to FAN.
Defogging and Defrosting Windows
Slide the air intake lever to CIRCULATE and the
airflow lever to DEFROST
to direct air to the
windshield vents. Then slide the temperature control
lever toward the right and the fan control lever to FAN.
When the windshield is clear, turn down the fan speed.
ProCarManuals.com

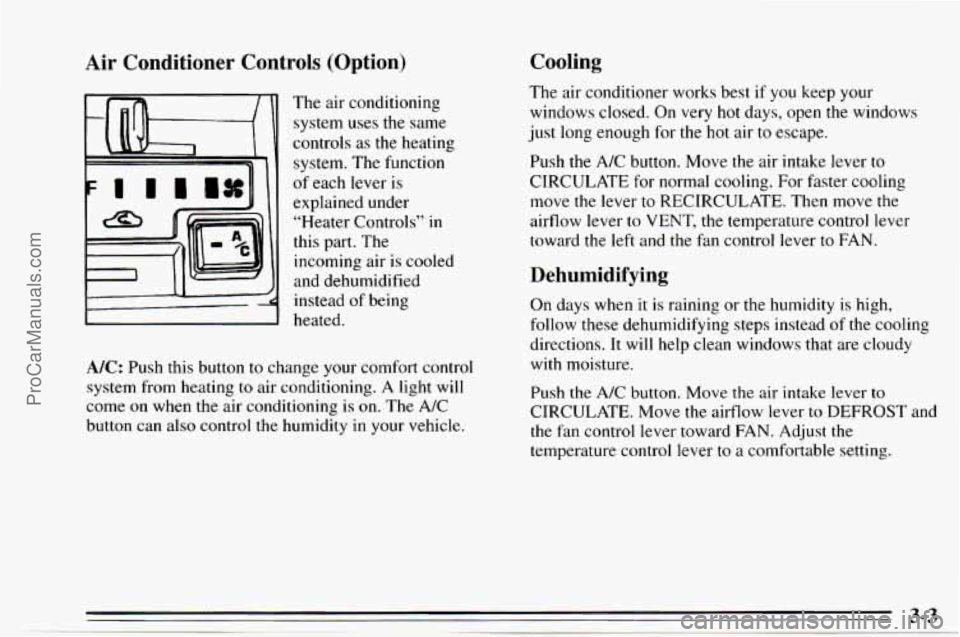

Air Conditioner Controls (Option)
The air conditioning
system uses
the same
controls
as the heating
system. The function
of each lever is
explained under
“Heater Controls”
in
this part. The
incoming air
is cooled
and dehumidified
instead of being
heated.
A/C: Push this button to change your comfort control
system from heating
to air conditioning. A light will
come on when the air conditioning is on. The A/C
button can also control the humidity in your vehicle.
Cooling
The air conditioner works best if you keep your
windows closed. On very hot days, open the windows
just
long enough for the hot air to escape.
Push the
A/C button. Move the air intake lever to
CIRCULATE for normal cooling. For faster cooling
move the lever to RECIRCULATE, Then move the
airflow lever to VENT, the temperature control lever
toward the left and the
fan control lever to FAN.
Dehumidifying
On days when it is raining or the humidity is high,
follow these dehumidifying steps instead
of the cooling
directions.
It will help clean windows that are cloudy
with moisture.
Push
the A/C button. Move the air intake lever to
CIRCULATE. Move the airflow lever to DEFROST and
the
fan control lever toward FAN. Adjust the
temperature control lever to a comfortable setting.
ProCarManuals.com

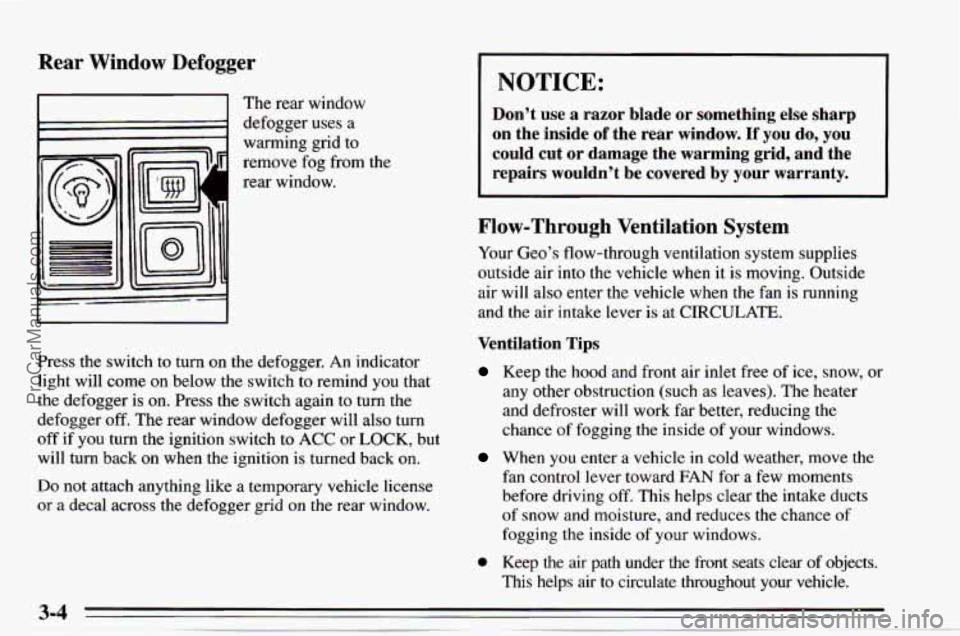

Rear Window Defogger
I I The rear window
1 defogger uses a
warming grid
to
remove fog from the
rear window.
Press the switch
to turn on the defogger. An indicator
light will come on below the switch to remind you that
the defogger is
on. Press the switch again to turn the
defogger
off. The rear window defogger will also turn
off if you turn the ignition switch to ACC or LOCK, but
will turn back on when the ignition
is turned back on.
Do not attach anything like a temporary vehicle license
or a decal across the defogger grid on the rear window.
I NOTICE:
Don’t use a razor blade or something else sharp
on the inside
of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn’t be covered by
your warranty.
Flow-Through Ventilation System
Your Geo’s flow-through ventilation system supplies
outside air into the vehicle when it is moving. Outside
air will also enter the vehicle when the fan
is running
and the air intake lever is at CIRCULATE.
Ventilation Tips
Keep the hood and front air inlet free of ice, snow, or
any other obstruction (such as leaves). The heater
and defroster will work far better, reducing the
chance of fogging the inside of your windows.
When you enter a vehicle in cold weather, move the
fan control lever toward FAN for a few moments
before driving
off. This helps clear the intake ducts
of snow and moisture, and reduces the chance of
fogging the inside of your windows.
0 Keep the air path under the front seats clear of objects.
This helps air to circulate throughout your vehicle.
ProCarManuals.com

Audio Systems
Your DelcoB audio system has been designed to operate
easily and give years of listening pleasure. But you will
get the most enjoyment out
of it if you acquaint yourself
with it first. Find out what your Delco@system can do
and how to operate all its controls, to be sure you're
getting the most out of the advanced engineering that
went into it.
Setting the Clock
AM/FM Stereo
To set the correct hour, press and hold RCL (TIME
SET). At the same time, press and hold TUNE
4 (HR)
until the correct hour appears.
To set the correct minute, press and hold
RCL (TIME
SET). At the same time press and hold TUNE (MIN)
until the correct minute appears.
AM/FM Stereo with Cassette Tape Player
To set the correct hour, press and hold RCLPROG
(TIME SET). At the same time, press and hold
TUNE
4 (HR) until the correct hour appears.
To set the correct minute, press and hold RCLPROG
(TIME SET).
At the same time press and hold
TUNE (MIN) until the correct minute appears.
AM/FM Stereo with Cassette Tape and Compact
Disc Players
To set the correct hour, press and hold RCL v A (TIME
SET). At the same time, press and hold TUNE
4 (HR)
until the correct hour appears.
To set the correct minute, press and hold
RCL v A
(TIME SET). At the same time press and hold
TUNE (MIN) until the correct minute appears.
