key CHEVROLET TRACKER 1995 Owner's Manual

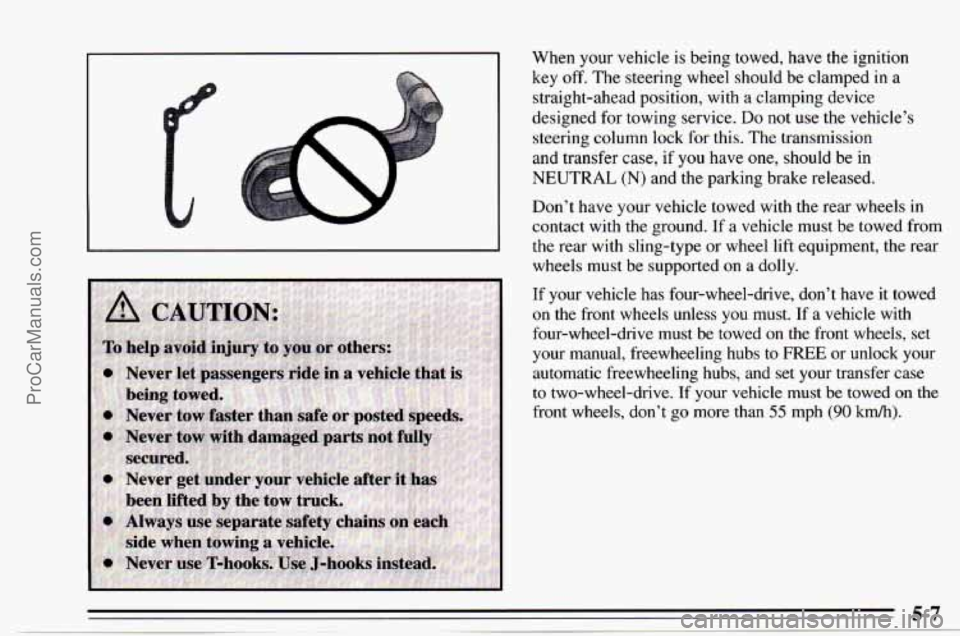

When your vehicle is being towed, have the ignition
key
off. The steering wheel should be clamped in a
straight-ahead position, with a clamping device
designed for towing service.
Do not use the vehicle’s
steering column lock
for this. The transmission
and transfer
case, if you have one, should be in
NEUTRAL (N) and the parking brake released.
Don’t have your vehicle towed with the rear wheels in
contact with the ground. If a vehicle must be towed from
the rear with sling-type or wheel lift equipment, the rear
wheels must be supported on a dolly.
If your vehicle has four-wheel-drive, don’t have it towed on
the front wheels unless you must. If a vehicle with
four-wheel-drive must be towed
on the front wheels, set
your manual, freewheeling hubs to FREE or unlock your
automatic freewheeling hubs, and set your transfer case
to two-wheel-drive. If
your vehicle must be towed on the
front wheels, don’t
go more than 55 mph (90 km/h).
5-7
ProCarManuals.com

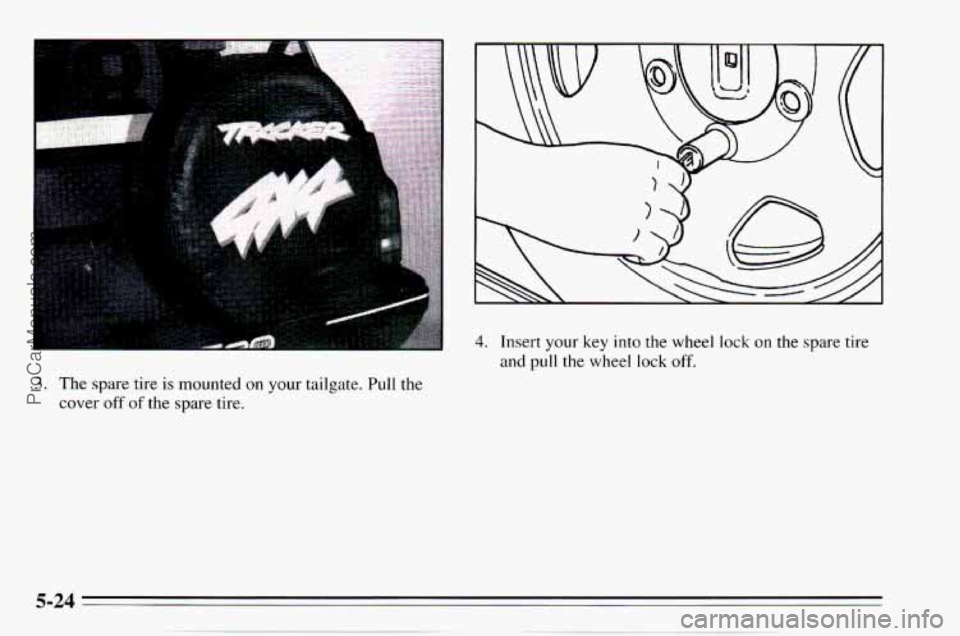

3. The spare tire is mounted on your tailgate. Pull the
cover off of the spare tire.
4. Insert your key into the wheel lock on the spare tire
and pull
the wheel lock off.
ProCarManuals.com

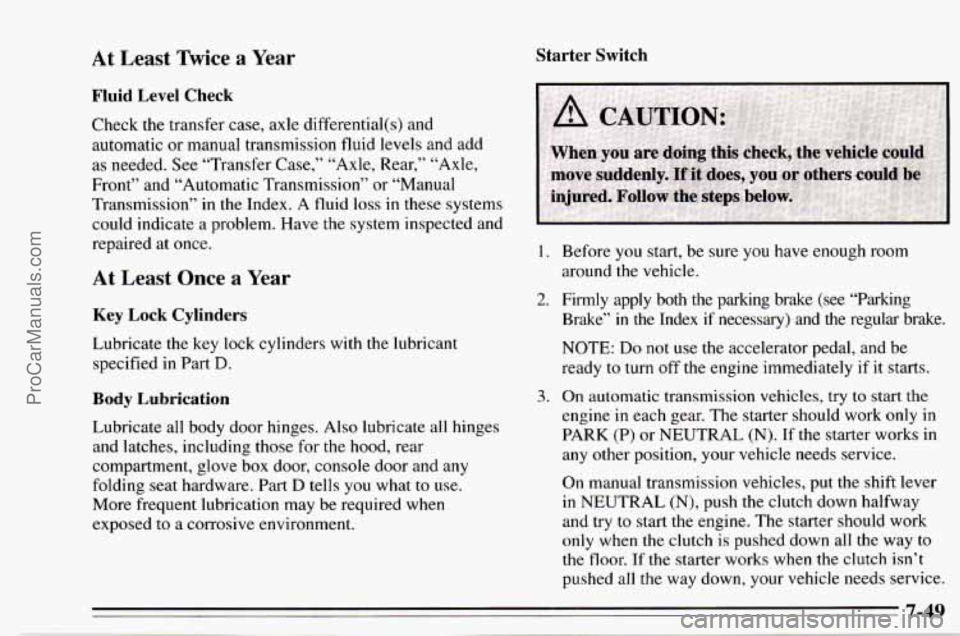

At Least mice a Year Starter Switch
Fluid Level Check
Check the transfer case, axle differential(s) and
automatic or manual transmission fluid levels and add
as needed.
See “Transfer Case,” “Axle, Rear,” “Axle,
Front” and “Automatic Transmission” or “Manual
Transmission” in the Index.
A fluid loss in these systems
could indicate
a problem. Have the system inspected and
repaired at
once.
At Least Once a Year
Key Lock Cylinders
Lubricate the key lock cylinders with the lubricant
specified
in Part D.
Body Lubrication
Lubricate all body door hinges. Also lubricate all hinges
and latches, including those for the hood, rear
compartment, glove box door, console door and any
folding seat hardware. Part
D tells you what to use.
More frequent lubrication may be required when
exposed
to a corrosive environment.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake (see “Parking
Brake”
in the Index if necessary) and the regular brake.
NOTE:
Do not use the accelerator pedal, and be
ready to turn
off the engine immediately if it starts.
3. On automatic transmission vehicles, try to start the
engine in each gear. The starter should work only in
PARK (P) or NEUTRAL (N). If the starter works in
any other position, your vehicle needs service.
On manual transmission vehicles, put the shift lever
in
NEUTRAL (N), push the clutch down halfway
and try
to start the engine. The starter should work
only when the clutch is pushed down all the way to
the floor. If the starter works when the clutch isn’t
pushed
all the way down, your vehicle needs service.
7-49
ProCarManuals.com

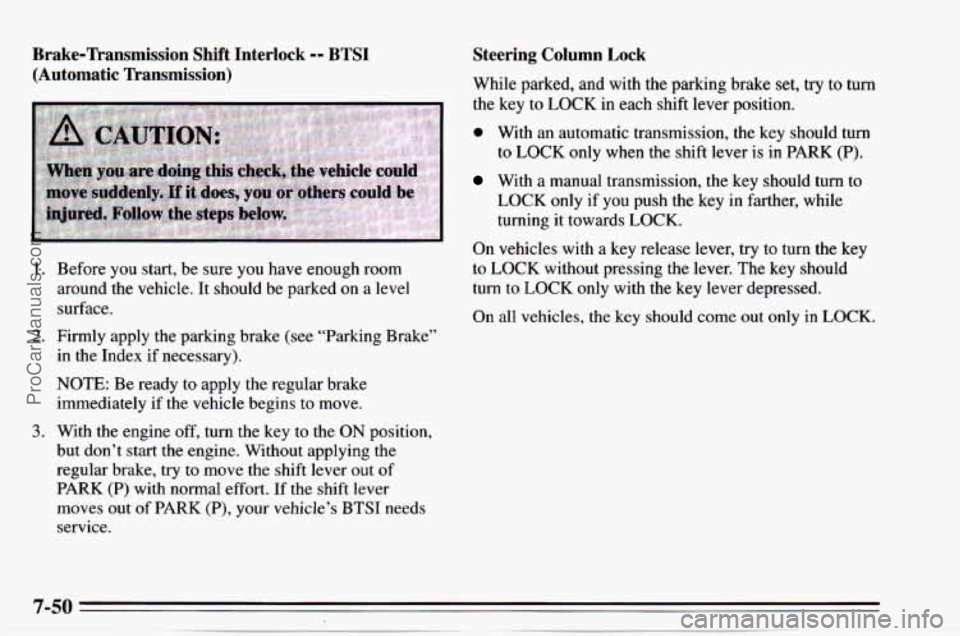

Brake-Transmission Shift Interlock -- BTSI
(Automatic Transmission)
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
Firmly apply the parking brake
(see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately if the vehicle begins to move.
With the engine off, turn the key
to the ON position,
but don’t start the engine. Without applying the
regular brake, try to move the shift lever out of
PARK
(P) with normal effort. If the shift lever
moves out of PARK (P), your vehicle’s BTSI needs
service.
Steering Column Lock
While parked, and with the parking brake set, try to turn
the key to
LOCK in each shift lever position.
0 With an automatic transmission, the key should turn
to
LOCK only when the shift lever is in PARK (P).
With a manual transmission, the key should turn to
LOCK only if you push the key in farther, while
turning it towards
LOCK.
On vehicles with a key release lever, try to turn the key
to
LOCK without pressing the lever. The key should
turn to
LOCK only with the key lever depressed.
On all vehicles, the key should come out only in LOCK.
ProCarManuals.com

Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your
GM dealer.
I USAGE
1 Engine Oil
F Engine Coolant
FLUIDLUBRICANT
Engine oil with the American
Petroleum Institute Certified For
Gasoline Engines “Starburst”
symbol of the proper viscosity.
To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture of water (preferably
distilled) and
good quality
ethylene glycol base antifreeze
(GM Part No. 1052753 or
equivalent) conforming to
GM
Specification 1825M or approved
recycled coolant conforming
to
GM Specification 1825M.
USAGE
FLUIDLUBRICANT
Hydraulic Brake Delco Supreme 11 @ Brake Fluid
System (GM
Part No. 1052535 or
equivalent DOT-3 brake fluid).
Parking Brake
Chassis lubricant (GM Part
Guides
No. 1052497 or equivalent) or
lubricant meeting requirements
of
NLGI Grade 2, Category LB or
GC-LB.
Power Steering DEXRON@-111 Automatic
System Transmission Fluid.
Manual
SAE 75W-90 GL-4 (GM Part
Transmission
No. 12346 190 Castrol@ S yntorq
GL-4 or equivalent) or
SAE
75W-90 GL-5 Gear Lubricant.
Automatic DEXRON@-111 Automatic
Transmission Transmission Fluid.
Key Lock Lubricate with Multi-Purpose
Cylinders Lubricant (GM
Part No. 12345120)
or synthetic SAE 5W-30 engine
oil.
7-54
ProCarManuals.com

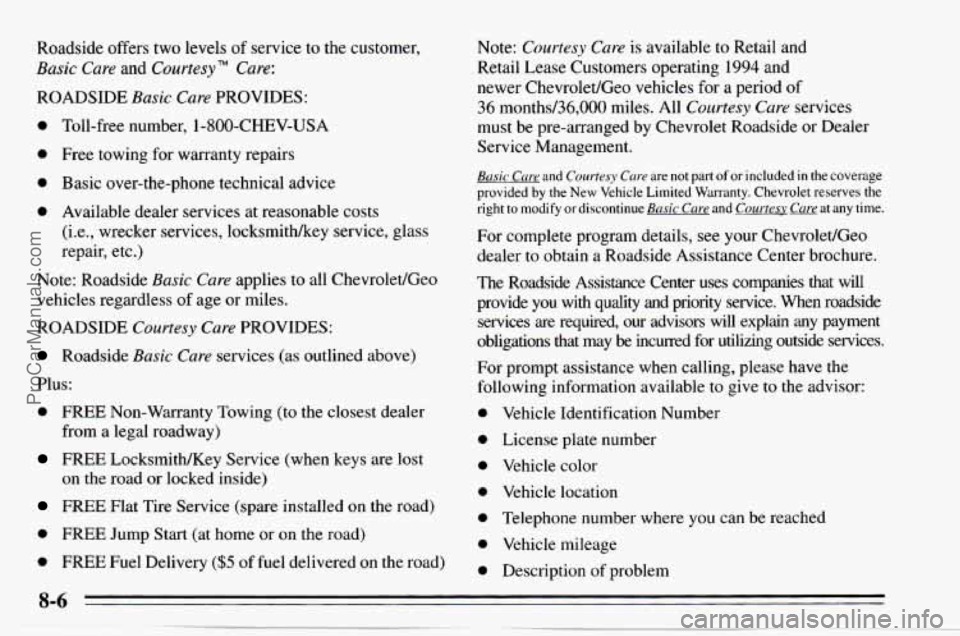

Roadside offers two levels of service to the customer,
Basic Care and Courtesy’” Care:
ROADSIDE Basic Care PROVIDES:
0
0
0
0
Toll-free number, 1 -800-CHEV-USA
Free towing for warranty repairs
Basic over-the-phone technical advice
Available dealer services at reasonable costs
(i.e., wrecker services, locksmithkey service, glass
repair, etc.)
Note: Roadside
Basic Care applies to all Chevrolet/Geo
vehicles regardless
of age or miles.
ROADSIDE
Courtesy Care PROVIDES:
Roadside Basic Care services (as outlined above)
Plus:
0 FREE Non-Warranty Towing (to the closest dealer
from a legal roadway)
FREE LocksmithKey Service (when keys are lost
on the road or locked inside)
FREE Flat Tire Service (spare installed on the road)
0 FREE Jump Start (at home or on the road)
0 FREE Fuel Delivery ($5 of fuel delivered on the road)
Note: Courtesy Care is available to Retail and
Retail Lease Customers operating 1994 and
newer ChevroletlGeo vehicles for
a period of
36 months/36,000 miles. All Courtesy Care services
must be pre-arranged by Chevrolet Roadside or Dealer
Service Management.
Basic Cure and Courfesy Care are not part of or included in the coverage
provided
by the New Vehicle Limited Warranty. Chevrolet reserves the
right to modify
or discontinue Basic Care and Courtesy a at any time.
For complete program details, see your Chevrolet/Geo
dealer to obtain a Roadside Assistance Center brochure.
The Roadside Assistance Center uses companies that will provide you
with quality and priority service. When roadside
services are required, our advisors
will explain any payment
obligations that may
be incurred for utilizing outside services.
For prompt assistance when calling, please have the following information available to give to the advisor:
0
0
0
0
0
0
0
Vehicle Identification Number
License plate number
Vehicle color
Vehicle location
Telephone number where you can be reached
Vehicle mileage
Description
of problem
ProCarManuals.com

GAWR (Gross Axle Weight Rating) ................ 4-43
Gear Positions
................................. 2- 12
GloveBox
..................................... 2-5
GVWR (Gross Vehicle Weight Rating) .............. 4-43
Halogen Bulbs
................................ 6-35
Hazard Warning Flashers
.......................... 5-1
Head Restraints
................................. 1-4
Headlamp High-Low Beam Changer
............... 2-30
Headlamps
.................................... 2-30
Headlamps. Bulb Replacement
.................... 6-35
Hearing or Speech Impaired. Customer Assistance
...... 8-2
Heater Controls
................................. 3-1
Heating
........................................ 3-2
High Beam Lamps. How
to Change ................ 2-30
Highway Hypnosis
.............................. 4-33
Hill and Mountain Roads
......................... 4-34
Glass. Cleaning
................................ 6-52
Hitches. Trailer
................................. 4-47
HoodProp
..................................... 6-7
Hood Release
................................... 6-6
Horn ......................................... 2-27
Hubs. Freewheeling
............................. 2- 17
Hydroplaning
.................................. 4-30
If You’re Stuck: In Sand. Mud. Ice or Snow ......... 5-31
Ignition Key Positions
............................ 2-8
Inside Daymight Rearview Mirror
................. 2-34
Inside Rearview Mirror
.......................... 2-34
Inspections
Brakesystem
............................... 7-53
Ignition Switch
.................................. 2-8 Exhaust Systems
............................. 7-52
Restraint Systems
............................ 7-52
Steering. Suspension and Front-Wheel-Drive
Axle Boot and Seal
......................... 7-52
Throttle Linkage
............................. 7-53
Instrument Panel
............................... 2-38
Cleaning
................................... 6-52
Cluster. Optional
............................. 2-41
Cluster. Standard
............................. 2-40
Fuse Block
................................. 6-62
InteriorLamps
................................. 2-33
.................................... J ack. Tire 5-23
Jump Starting
................................... 5-2
Key Lock Cylinders ............................ 7-49
Keys
.......................................... 2-1
Lamps Daytime Running
............................ 2-32
Dome
..................................... 2-33
Interior
.................................... 2-33
Lamp. Malfunction Indicator
...................... 2-46
LampsOnReminder
............................ 2-30
Larger Children. Safety Belt Use
................... 1-31
Leaving Your Vehicle
............................. 2-3
Leaving Your Vehicle With the Engine Running
....... 2-22
Lever AirIntake
................................... 3-2
Airflow ..................................... 3-1
Fancontrol
.................................. 3-2
9-5
