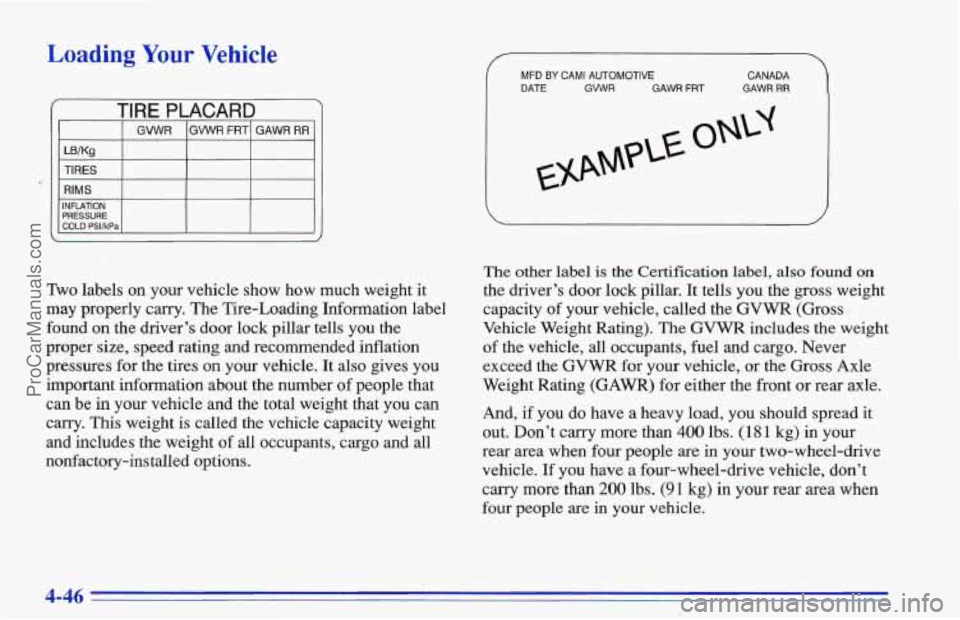

Loading Your Vehicle
TIRE PLACARD
I GWR IGWR FRTI GAWR RR I I I I I I
LBIKg
~~
TIRES
RIMS
INFLATION
COLD PSl/kPa PRESSURE
MFD BY CAM1 AUTOMOTIVE DATE GVWR GAWR FRT CANADA GAWR RR
Two labels on your vehicle show how much weight it
may properly carry. The Tire-Loading Information label
found on the driver's door lock pillar tells you the
proper size, speed rating and recommended inflation pressures for the tires on your vehicle. It also gives you
important information about the number
of people that
can be in your vehicle and the total weight that you can
carry. This weight is called the vehicle capacity weight
and includes the weight
of all occupants, cargo and all
nonfactory-installed options. The
other label is the Certification label, also found on
the driver's door
lock pillar. It tells you the gross weight
capacity of your vehicle, called the GVWR (Gross
Vehicle Weight Rating). The GVWR includes th'e weight
of the vehicle, all occupants, fuel and cargo. Never
exceed the
GVWR for your vehicle, or the Gross Axle
Weight Rating
(GAWR) for either the front or rear axle.
And, if you do have a heavy load, you should spread it
out. Don't
carry more than 400 lbs. (1 8 1 kg) in your
rear area when four people
are in your two-wheel-drive
vehicle.
If you have a four-wheel-drive vehicle, don't
carry
more than 200 lbs. (91 kg) in your rear area when
four people are
in your vehicle.
4-46
ProCarManuals.com

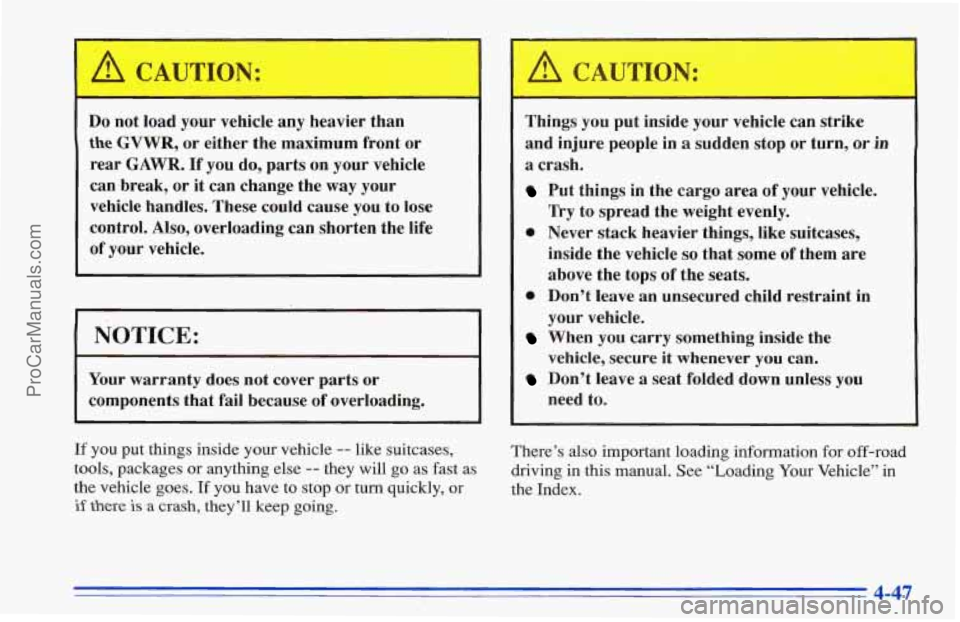

A CAUTION:
I:
Do not load your vehicle any heavier than
the GVWR, or either the maximum front or
rear
GAWR. If you do, parts an your vehicle
can break, or it can change the way your
vehicle handles. These could cause
you to lose
control. Also, overloading can shorten the life
of your vehicle.
NOTICE:
Your warranty does not cover parts or
components that fail because of overloading.
~~
€ you put things inside your vehicle -- like suitcases,
tools, packages or anything else
-- they will go as fast as
the vehicle goes.
If you have to stop or turn quickly, or
if there is a crash, they’ll keep going.
A CAUTION:
nside your vehicle can strike
and injure people in
a sudden stop or turn, or in
a crash.
Put things in the cargo area of your vehicle.
0 Never stack heavier things, like suitcases,
Try to spread the weight evenly.
inside the vehicle
so that some of them are
above the tops
of the seats.
0 Don’t leave an unsecured child restraint in
your vehicle.
When you carry something inside the
vehicle, secure it whenever
you can.
Don’t leave a seat folded down unless you
need to.
There’s also important loading information for off-road
driving in this manual.
See “Loading Your VehicIe” in
the Index.
4-47
ProCarManuals.com

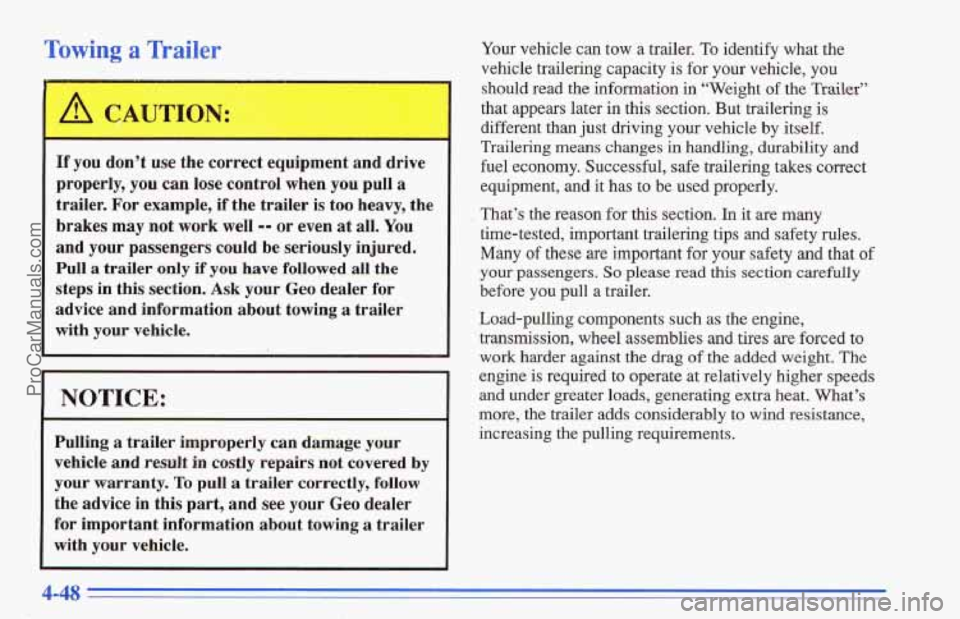

Towing a Trailer
A CAUTION:
If you don’t use the correct equipment and drive
properly, you can lose controlwhen you pull a
trailer. For example, if the trailer is too heavy, the
brakes
may not work well -- or even at all. You
and your passengers could be seriously injured.
Pull
a trailer only if you have followed all the
steps in this section.
Ask your Geo dealer for
advice and information about towing
a trailer
with your vehicle.
NOTICE:
Pulling a trailer improperly can damage your
vehicle and result in costly repairs not covered by
your warranty. To pull a trailer correctly, follow
the advice in this part, and see your Geo dealer
for important information about
towing a trailer
with your vehicle.
Your vehicle can tow a trailer. To identify what the
vehicle trailering capacity is for
your vehicle, you
should read the information in “Weight of the
Trailer”
that appears later in this section. But trailering is
different than just driving your vehicle by itself.
Trailering means changes
in handling, durability and
fuel
economy. Successful, safe trailering takes correct
equipment, and it has to be used properly.
That’s the reason for this section. In
it are many
time-tested, important trailering tips and safety des.
Many
of these are important for your safety and that of
your passengers. So please read this section carefully
before you pull
a trailer.
Load-pulhg components such as the engine,
transmission, wheel assemblies and tires are forced to
work harder against the drag of the added’weight. The
engine is required to operate at relatively higher speeds
and under greater loads, generating extra heat. What’s
more, the trailer adds considerably to wind resistance,
increasing the pulling requirements.
4-48
ProCarManuals.com

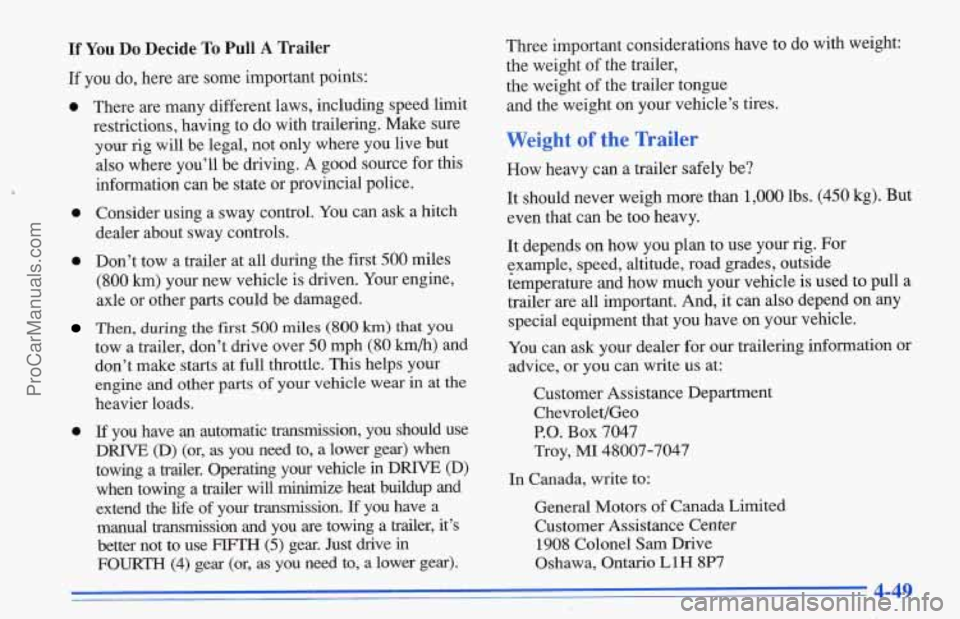

If You Do Decide To Pull A Trailer
If you do, here are some important points:
e
0
0
e
There are many different laws, including speed limit
restrictions, having to
do with trailering. Make sure
your rig will be legal, not only where you live but
also where you’ll be driving. A good source for this
information can be state or provincial police.
Consider using a sway control.
You can ask a hitch
dealer about sway controls.
Don’t tow a trailer at all during the first
500 miles
(800 km) your new vehicle is driven. Your engine,
axle or other parts could be damaged.
Then, during the first 500 miles (800 km) that you
tow a trailer, don’t drive over 50 mph (80 h/h) and
don’t make starts at full throttle. This helps your
engine and other parts
of your vehicle wear in at the
heavier loads.
If you have an automatic transmission, you should use
DRIVE (D) (or, as you need to, a lower gear) when
towing a trailer. Operating your vehicle
in DRIVE (D)
when towing a trailer will minimize heat buildup and
extend
the life of your transmission. If you have a
manual transmission and you are towing a trailer, it’s better not
to use FIFTH (5) gear. Just drive in
FOURTH (4) gear (or, as you need to, a lower gear). Three important considerations have
to do with weight:
the weight
of the trailer,
the weight of the trailer tongue
and the weight on your vehicle’s tires.
Weight of the Trailer
How heavy can a trailer safely be?
It should never weigh more than 1,000 lbs. (450 kg). But
even that can be too heavy.
It depends on how you plan to use your rig. For
example, speed, altitude, road grades, outside
temperature and how much your vehicle is used to pull a
trailer are all important. And, it can also depend on any
special equipment that
you have on your vehicle.
You can ask your dealer for our trailering information or
advice, or you can write
us at:
Customer Assistance Department
Chevrolet/Geo
P.O. Box 7047
Troy,
MI 48007-7047
In Canada, write to:
General Motors of Canada Limited
Customer Assistance
Cente
1908 Colonel Sam Drive
Oshawa,
Ontario LlH 8P7
$4-49
ProCarManuals.com

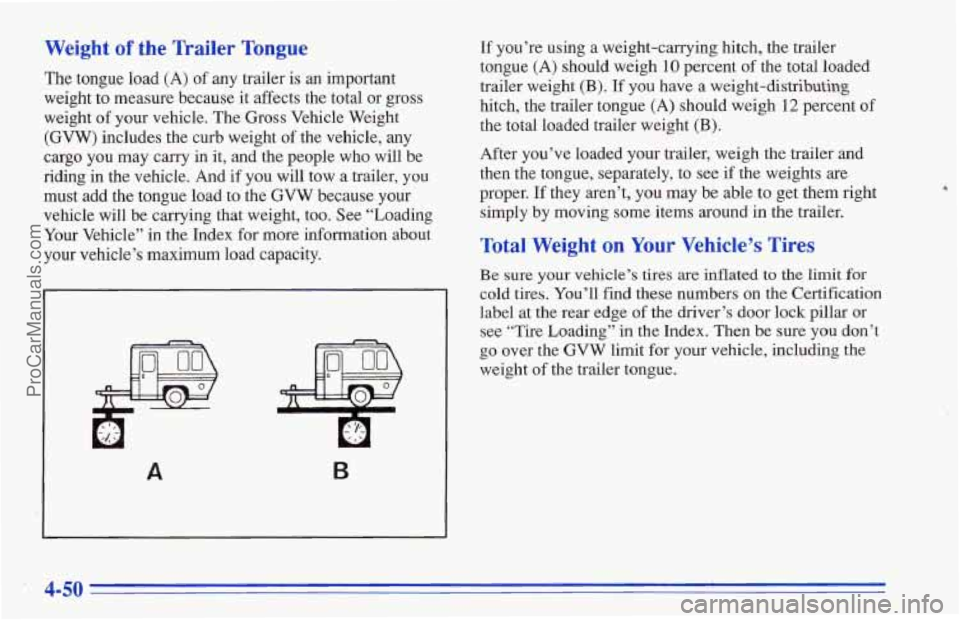

Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because it affects the total or gross
weight
of your vehicle. The Gross Vehicle Weight
(GVW) includes the curb weight of the vehicle, any
cargo you may carry in
it, and the people who will be
riding in the vehicle. And if
you will tow a trailer, you
must add the tongue load to the
GVW because your
vehicle will be carrying that weight, too. See “Loading
Your Vehicle”
in the Index for more information about
your vehicle’s maximum load capacity.
A B
If you’re using a weight-carrying hitch, the trailer
tongue
(A) should weigh 10 percent of the total loaded
trailer weight
(B). If you have a weight-distributing
hitch, the trailer tongue
(A) should weigh 12 percent of
the total loaded trailer weight
(B).
After you’ve loaded your trailer, weigh the trailer and
then the tongue, separately, to see
if the weights are
proper.
If they aren’t, you may be able to get them right
simply by moving some items around in the trailer.
Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inflated to the limit for
cold tires. You’ll find these numbers
on the Certification
label at the rear edge
of the driver’s door lock pillar or
see “Tire Loading” in the Index. Then be sure you don’t
go over the GVW limit for your vehicle, including the
weight
of the trailer tongue.
4-50
ProCarManuals.com

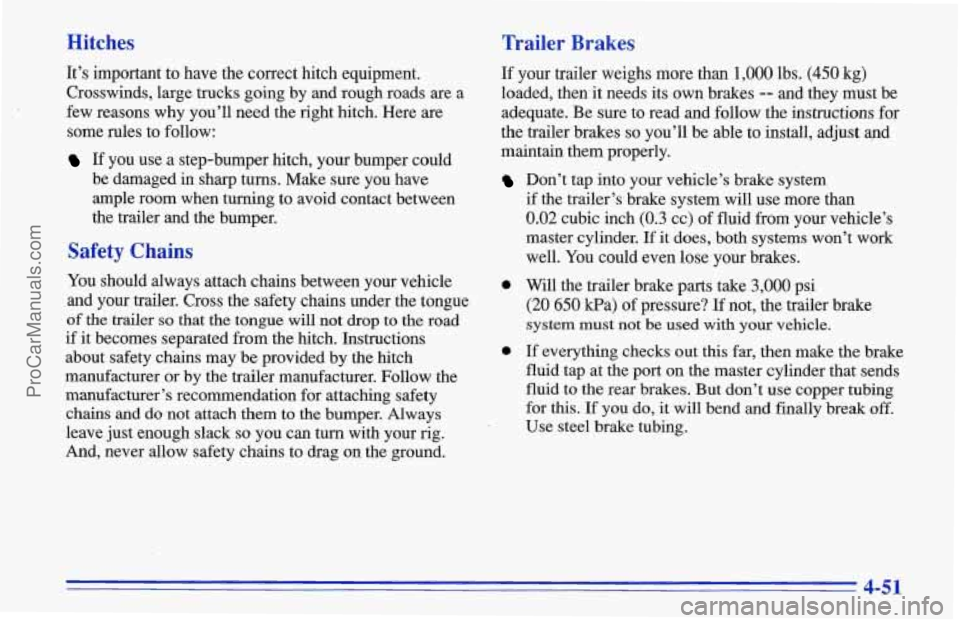

Hitches Trailer Brakes
It’s important to have the correct hitch equipment.
Crosswinds, large trucks going by and
rough roads are a
few reasons why you’ll need the right hitch. Here are
some rules to follow:
If you use a step-bumper hitch, your bumper could
be damaged in sharp turns. Make sure you have
ample room when turning to avoid contact between
the trailer and the bumper.
Safety Chains
You should always attach chains between your vehicle
and your trailer. Cross the safety chains under the tongue
of the trailer so that the tongue will not drop to the road
if it becomes separated from the hitch. Instructions
about safety chains may
be provided by the hitch
manufacturer or by the trailer manufacturer. Follow the
manufacturer’s recommendation for attaching safety
chains and do not attach them to
the bumper. Always
leave
just enough slack so you can turn with your rig.
And, never allow safety chains to drag on the ground. If your
trailer weighs
more than 1,000 lbs. (450 kg)
loaded, then it needs its own brakes -- and they must be
adequate. Be sure to read and follow the instructions for
the trailer brakes
so you’ll be able to install, adjust qd
maintain them properly.
Don’t tap into your vehicle’s brake system
if the trailer’s brake system. will use more than
0.02 cubic inch (0.3 cc) of fluid from your vehicle’s
master cylinder.
If it does, both systems won’t work
well. You could even lose your brakes.
0 Will the trailer brake parts take 3,000 psi
(20 650 Ea) of pressure? If not, the trailer brake
system must not be used with your vehicle.
0 If everything checks out this far, then make the brake
fluid tap at the port
on the master cylinder that sends
fluid to
the rear brakes. But don’t use copper tubing
for this. If you do, it will bend and finally break off.
Use steel brake tubing.
4-51
ProCarManuals.com

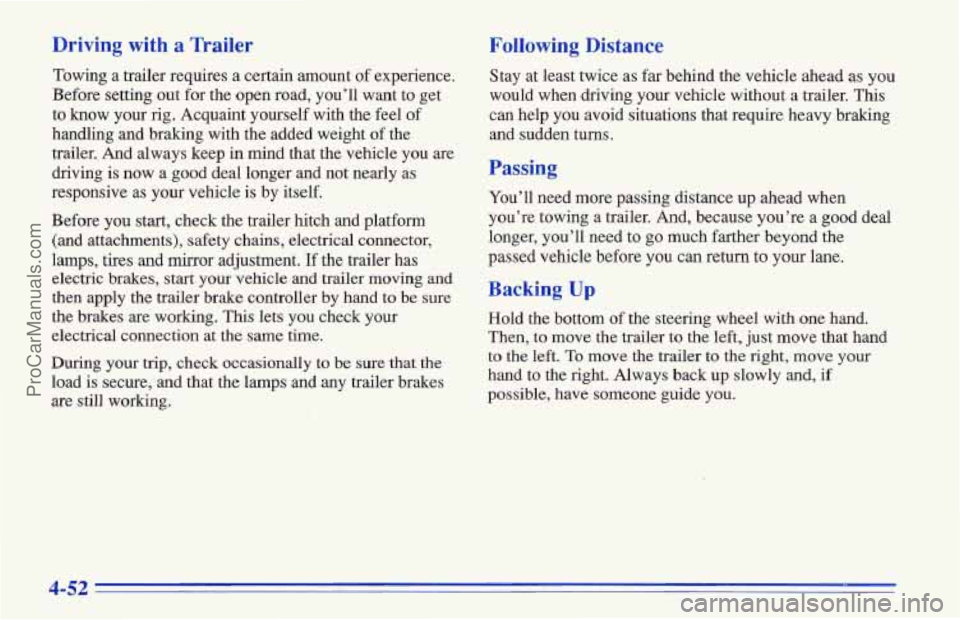

Driving with a Trailer Following Distance
Towing a trailer requires a certain amount of experience.
Before setting out for the open road, you’ll want to get
to
know your rig. Acquaint yourself with the feel of
handling and braking with the added weight of the
trailer., And always keep in mind that the vehicle you are
driving is now a good deal longer and not nearly as
responsive as your vehicle is by itself.
Before you start, check the trailer hitch and platform
(and attachments), safety chains, electrical connector,
lamps, tires and mirror adjustment. If the trailer has
electric brakes, start your vehicle and trailer moving and
then apply the trailer brake controller by hand to be sure
the brakes are working. This lets you check your
electrical connection at
the same time.
During your trip, check occasionally to be sure that the
load is secure, and that the lamps and
any trailer brakes
are still working. Stay
at least twice as
far behind the vehicle ahead as you
would when
driving your vehicle without a trailer. This
can help you avoid situations that require heavy braking
and sudden turns.
Passing
You’ll need more passing distance up ahead when
you’re towing a trailer. And, because you’re a
good deal
longer, you’ll need to
go much farther beyond the
passed vehicle before you can return to your lane.
Backing Up
Hold the bottom of the steering wheel with one hand.
Then,
to move the trailer to the left, just move that hand
to the left. To move the trailer to the right, move your
hand to the right. Always back up slowly and, if
possible, have someone guide you.
4-52
ProCarManuals.com

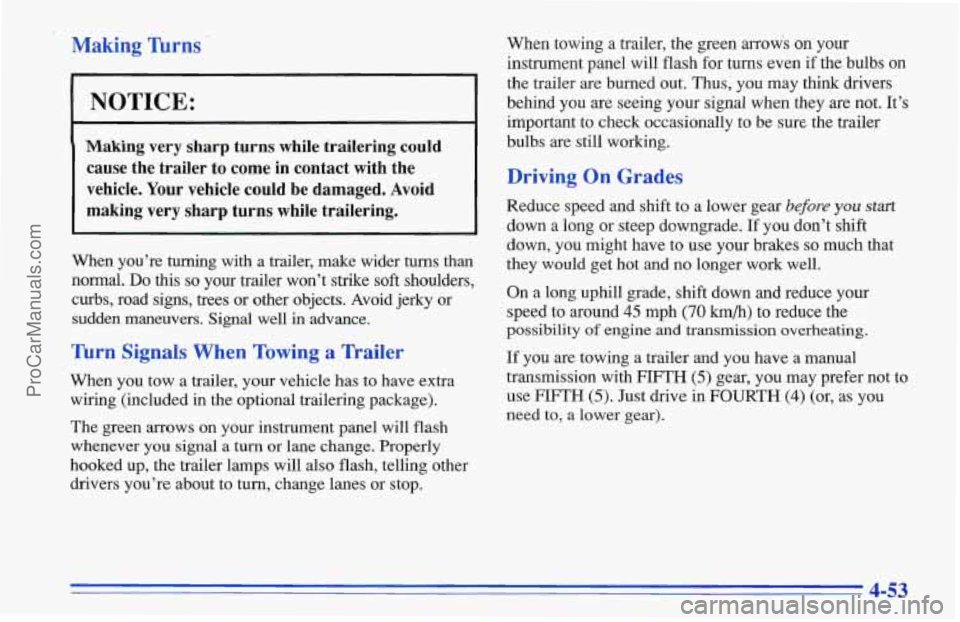

Making Turns
NOTICE:
Making very sharp turns while trailering could
cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you’re turning with a trailer, make wider turns than
normal.
Do this so your trailer won’t strike soft shoulders,
curbs, road signs, trees or other objects. Avoid jerky or
sudden maneuvers. Signal well
in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have extra
wiring (included in the optional trailering package).
The green arrows on your instrument panel will
flash
whenever you signal a turn or lane change. Properly
hooked up, the trailer lamps will also flash, telling other
drivers you’re about to turn, change lanes or stop. When towing
a trailer, the green arrow’s on your
instrument panel
will flash for turns even if the bulbs on
the trailer are burned out. Thus, you may thlnk drrvers
behind you are seeing your signal when they
are not. It’s
important to check occasionally to be sure the trailer
bulbs are still working.
Driving On Grades
Reduce speed and shift to a lower gear before you start
down a long or steep downgrade. If you don’t shift
down, you might have to use your brakes
so much that
they would get hot and no longer work well.
On a long uphill grade, shift down and reduce your
speed to around
45 mph (70 km/h) to reduce the
possibility
of engine and transmission overheating.
If you are towing a trailer and you have a manual
transmission with FIFTH
(5) gear, you may prefer not to
use FIFTH
(5). Just drive in FOURTH (4) (or, as you
need
to, a lower gear).
4-53
ProCarManuals.com

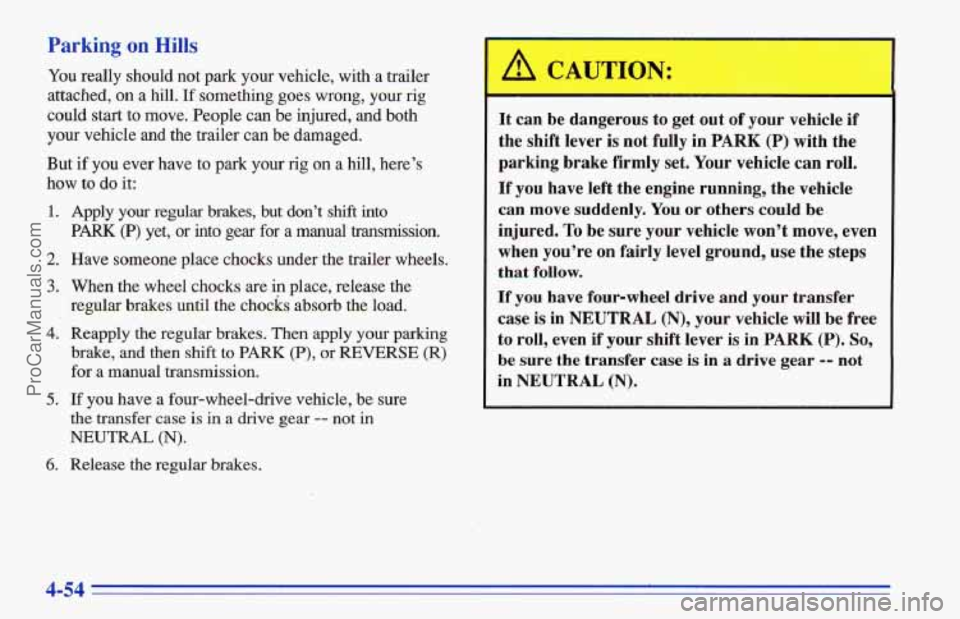

Parking on Hills
You really should not park your vehicle, with a trailer
attached,
on a hill. If something goes wrong, your rig
could start
to move. People can be injured, and both
your vehicle and the trailer
can be damaged.
But if you ever have to park your rig on a hill, here’s
how
to do it:
1. Apply ybur regular brakes, but don’t shift into
2. Have someone place chocks under the trailer wheels.
3. When the wheel chocks are in place, release the
regular brakes mtil the chocks absorb the load.
4. Reapply the regular brakes. Then apply your parking
brake, and then shift to PARK (PI, or REVERSE (R)
for a manual transmission.
PARK (P) yet, or into gear for a manual transmission.
5. If you have a four-wheel-drive vehicle, be sure
the transfer case is in a drive gear -- not in
NEUTRAL (N).
6. Release the regular brakes.
CAUTION:
It can be dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake firmly set.
Your vehicle can roll,
If you have left the engine running, the vehicle
can move suddenly. You or others could be
injured.
To be sure your vehicle won’t move, even
when you’re on fairly level ground, use the steps
that follow.
If you have four-wheel drive and your transfer
case
is in NEUTRAL (N), your vehicle will be free
to roll,
even if your shift lever is in PARK (P). So,
be sure the transfer case is in a drive gear -- not
in NEUTRAL (N).
4-54
ProCarManuals.com

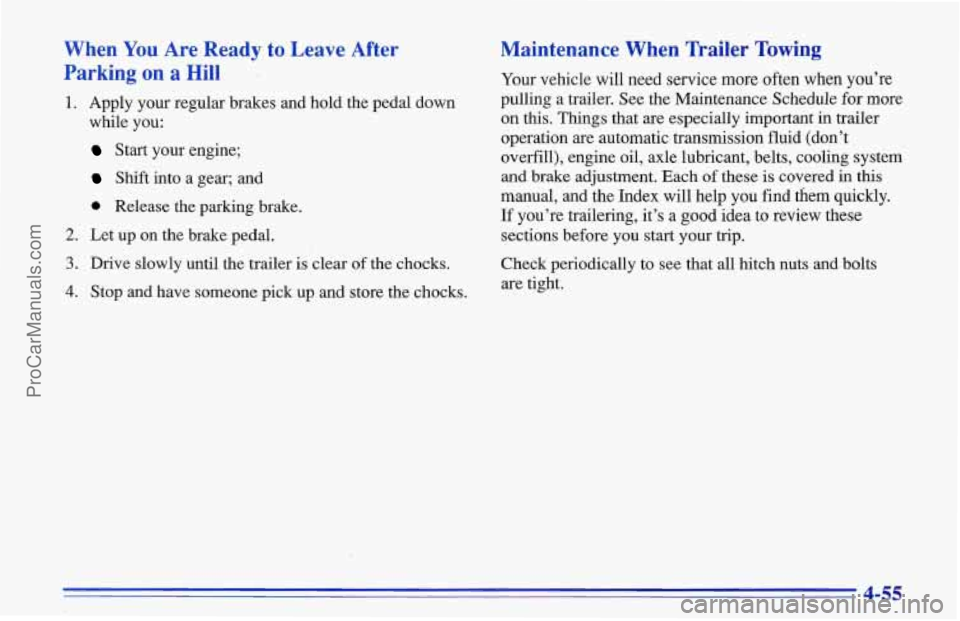

When You Are Ready to Leave After
Parking on
a Hill
1. Apply your regular brakes and hold the pedal down
while you:
Start your engine;
Shift into a gear; and
0 Release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when you’re
pulling a trailer. See the Maintenance Schedule for more
on this. Things that are especially important in trailer
operation are automatic transmission fluid (don’t
overfill), engine oil, axle lubricant, belts, cooling system and brake adjustment. Each of these
is covered in this
manual, and the Index will help you find them quickly.
If you’re trailering, it’s a good idea to review these
sections before you start your trip.
Check periodically to see that all hitch nuts and bolts
are tight.
4-55
ProCarManuals.com
