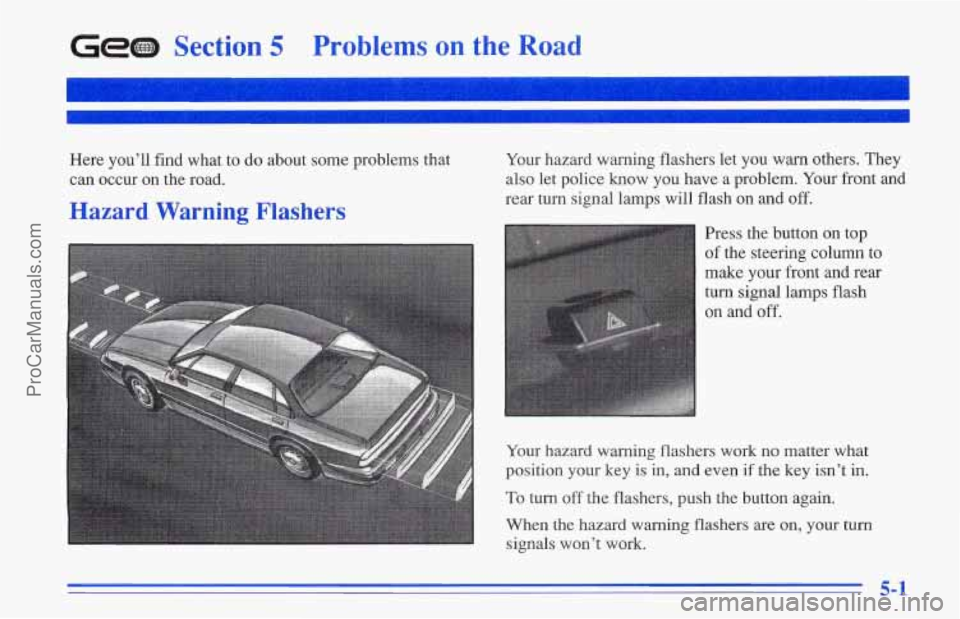

Gem Section 5 Problems on the Road
Here you’ll find what to do about some problems that
can occur on the road.
Hazard Warning Flashers
Your hazard warning flashers let you warn others. They
also let police know you have a problem. Your front and
rear turn signal lamps ,will flash on and
off.
Press the button on top
of the steering column to
make your front and rear
turn signal lamps flash
on and
off.
Your hazard warning flashers work no matter what
position
your key is in, and even if the key isn’t in.
To turn off the flashers, push the button again.
When the hazard warning flashers are
on, your turn
signals won’t work.
5-1
ProCarManuals.com

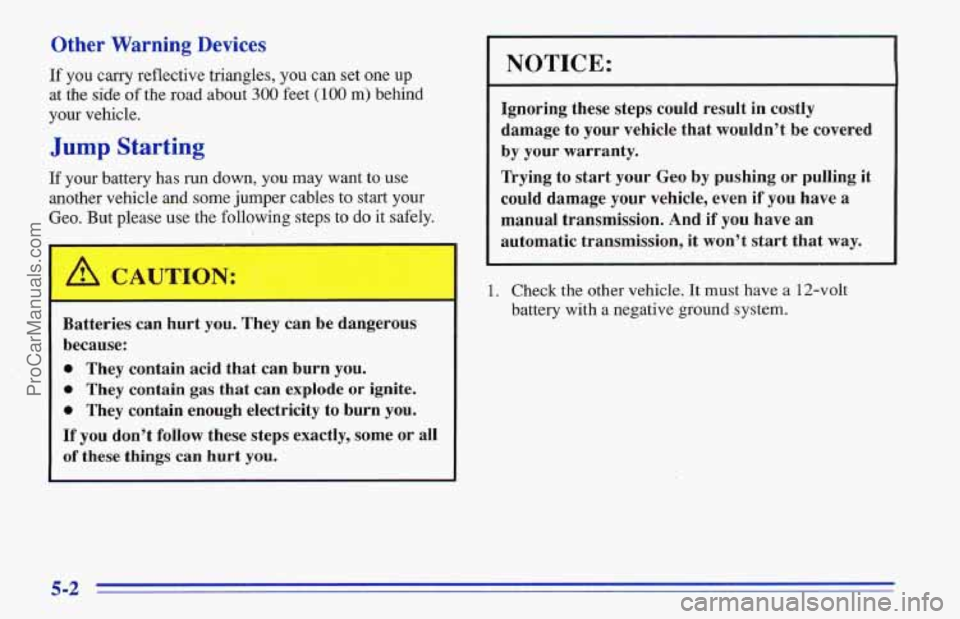

Other Warning Devices
If you carry reflective triangles, you can set one up
at the side
of the road about 300 feet (100 m) behind
your vehicle.
Jump Starting
If your battery has run down, you may want to use
another vehicle
and some jumper cables to start your
Geo. But please use the following steps to do it safely.
I
I NOTICE:
Ignoring these steps could result in costly
damage to your vehicle that wouldn’t be covered
by your warranty.
Trying to start your
Geo by pushing or pulling it
could damage your vehicle, even if you have a
manual transmission. And if you have an
automatic transmission, it won’t start that way.
I
1. Check the other vehicle. It must have a 12-volt
battery with
a negative ground system.
Batteries can hurt you. They can be dangerous
because:
0 They contain acid that can burn you.
0 They contain gas that can explode or ignite.
0 They contain enough electricity to burn you.
If you don’t follow these steps exactly, some or all
of these things can hurt you.
5-2
ProCarManuals.com

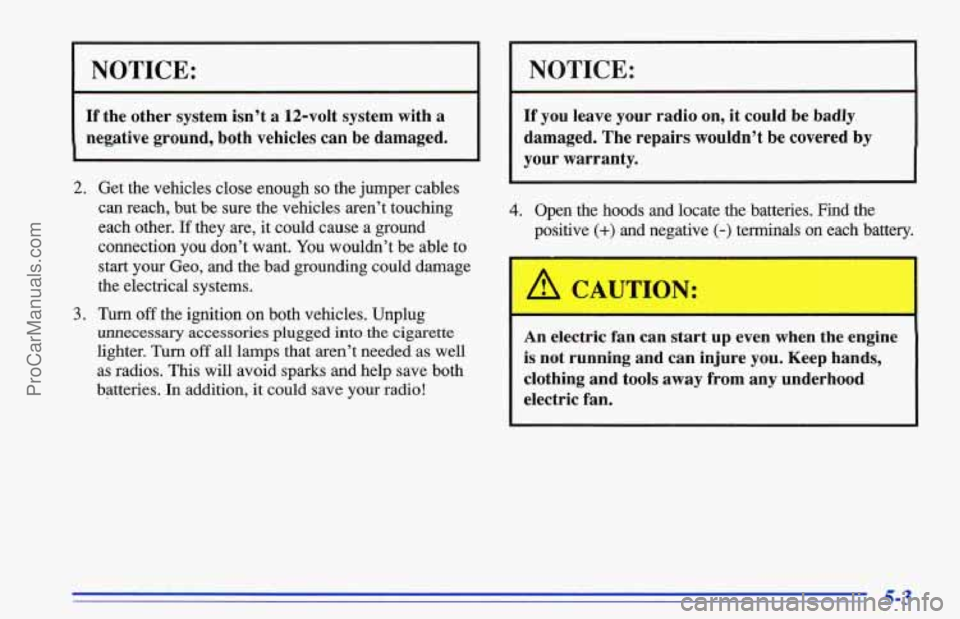

I NOTICE:
If the other system isn’t a 12-volt system with a
negative ground, both vehicles can be damaged.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other.
If they are, it could cause a ground
connection you don’t want. You wouldn’t be able to
start your Geo, and the bad grounding could damage
the electrical systems.
3. Turn off the ignition on both vehicles. Unplug
unnecessary
accessories plugged into the cigarette
lighter. Turn
off all lamps that aren’t needed as well
as radios.
This will avoid sparks and help save both
batteries.
In addition, it could save your ra.dio!
I NOTICE:
~~ ~
If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered by
your warranty.
4. Open the hoods and locate the batteries. Find the
positive (+) and negative (-) terminals on each battery.
I A CAUTION:
An electric fan can start up even when the engine
is not running and can injure you. Keep hands,
clothing and tools away from any underhood
electric fan.
5-3
ProCarManuals.com

Using a match near a battery can cause battery
gas to explode. People have been hurt doing this,
and some have been blinded. Use-a flashlight if
you need more light.
Be sure the battery has enough water.
You don’t
need to add water to the Delco Freedom@ battery
installed in every new
GM vehicle. But if a battery
has filler caps, be sure the right amount of fluid is
there. If it is low, add water to take care of that
first. If you don’t, explosive gas could be present.
Battery fluid contains acid that can burn
you.
Don’t get it on you. If you accidentally get it in
your eyes or on your skin, flush the place with
water and get medical help immediately.
I 5. Check that the jumper cables don’t have loose or
missing insulatiofi. If they do, you could get a shock.
The vehicles could be damaged, too.
13
Fan or other moving engine parts can injure you
badly. Keep your hands away from moving parts
once the engines are running.
ProCarManuals.com

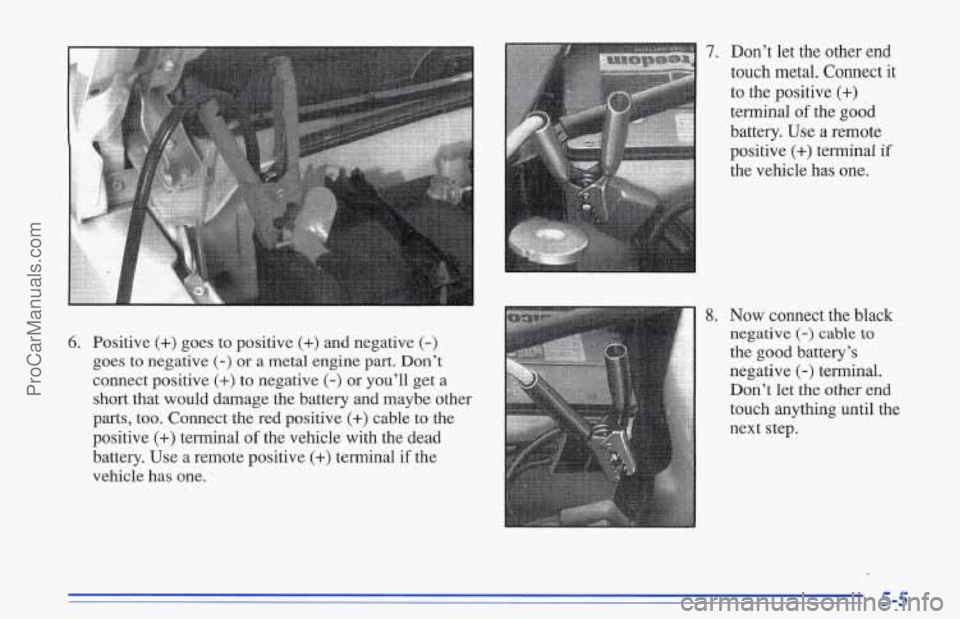

6. Positive (+) goes to positive (+) and negative (-)
goes to negative (-) or a metal engine part. Don’t
connect positive (+) to negative (-) or you’ll get a
short that would damage the battery and maybe other
parts,
too. Connect the red positive (+) cable to the
positive
(+) terminal of the vehicle with the dead
battery. Use a remote positive
(+) terminal if the
vehicle has one.
7. Don’t let the other end
touch metal. Connect
it
to the positive (+)
terminal of the good
battery. Use a remote
8.
positive (+> terminal if
the vehicle has one.
Now connect the black
negative (-> cable to
the good battery’s
negative
(-) terminal.
Don’t let the
other end
touch anything until the
next step.
5-5 ProCarManuals.com

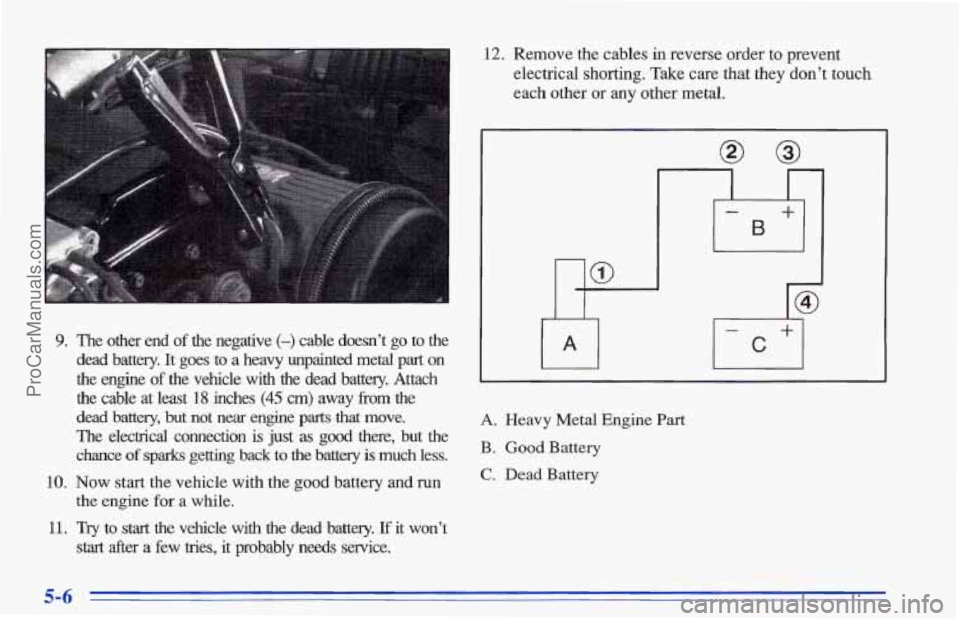

9. The other end of the negative (-) cable doesn’t go to the
dead battery.
It goes to a heavy unpainted metal part on
the engine of the vehicle with the dead battery. Attach
the
cable at least 18 inches (45 cm) away from the
dead battery, but not near engine parts that move.
The electrical connection is just as good there, but the
chance
of sparks getting back to the battery is much less.
10. Now start the vehicle with the good battery and run
11. Try to start the vehicle with the dead battery. If it won’t
the engine for a while.
start after a few tries, it probably needs service.
12. Remove the cables in reverse order to prevent
electrical shorting. Take care that they don’t touch
each other or any other metal.
A. Heavy Metal Engine Part
€3. Good Battery
C. Dead Battery
5-6
ProCarManuals.com

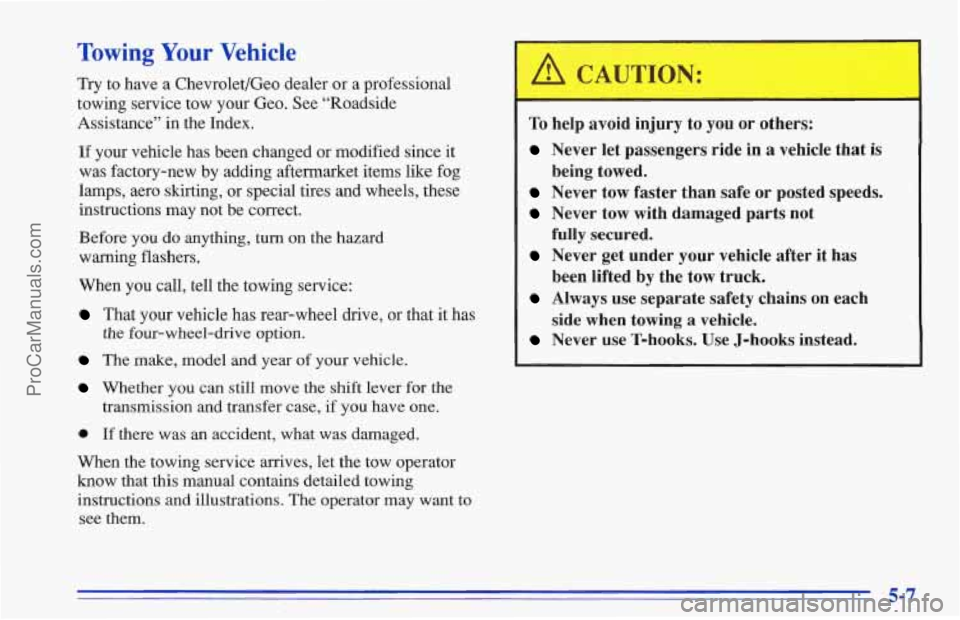

Towing Your Vehicle
Try to have a Chevrolet/Geo dealer or a professional
towing service tow your Geo. See “Roadside
Assistance” in the Index.
If your vehicle has been changed or modified since it
was factory-new by adding aftermarket items like fog
lamps, aero skirting, or special tires and wheels, these
instructions may not
be correct.
Before you do anything, turn on the hazard
warning flashers.
When you call, tell the towing service:
That your vehicle has rear-wheel drive, or that it has
the four-wheel-drive option.
The make, model and year of your vehicle.
Whether you can still move the shift lever for’the
transmission and transfer case,
if you have one.
0 If there was an accident, what was damaged.
When the towing service arrives, let the tow operator
know that this manual contains detailed towing
instructions
and illustrations. The operator may want to
see them.
I a CAUTION:
To help avoid injury to you or others:
Never let passengers ride in a vehicle that is
Never tow faster than safe or posted speeds.
Never tow with damaged parts not
Never get under your vehicle after it has
Always use separate safety chains on each

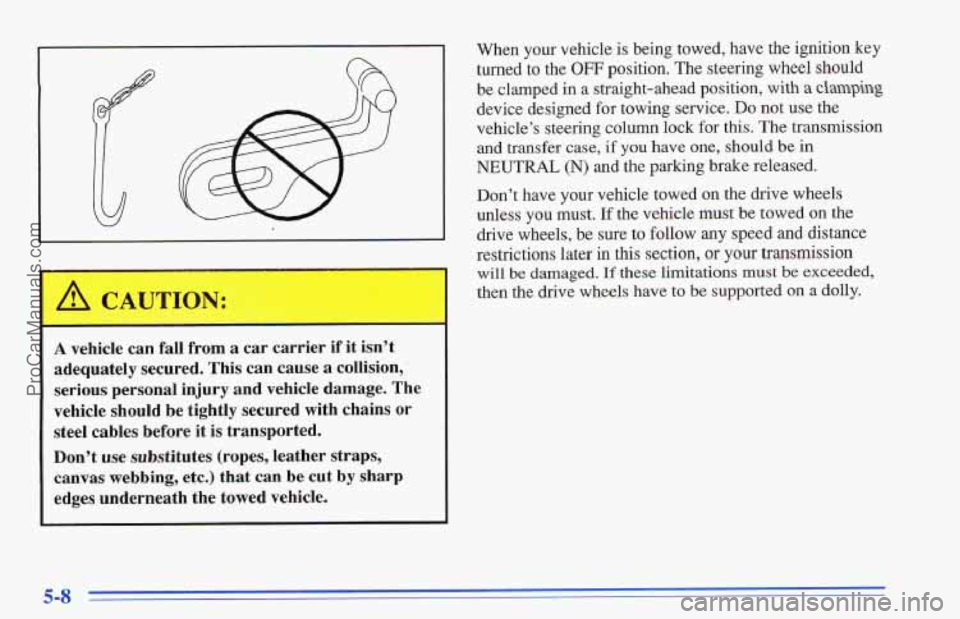

Never use T-hooks. Use J-hooks instead.
being towed.
fully
secured.
been lifted by the tow truck.
side when towing
a vehicle.
5-7
ProCarManuals.com

U‘l’lOR’
A vehicle can fall from a car carrier if it isn’t
adequately secured. This can cause
a collision, ‘
serious personal injury and vehicle damage. The
vehicle should be tightly secured with chains or
steel cables before
it is transported.
Don’t
use substitutes (ropes, leather straps,
canvas webbing,
etc.) that can be cut by sharp
edges underneath the towed vehicle.
When your vehicle is being towed, have the ignition key
turned to the OFF position. The steering wheel should
be clamped in a straight-ahead position, with a clamping
device designed for towing service. Do not use the
vehicle’s steering column lock for this.
The transmission
and
transfer case, if you have one, should be in
NEUTRAL (N) and the parking brake released.
Don’t have your vehicle towed
on the drive wheels
unless
you must. If the vehicle &ust be towed on the
drive wheels, be sure to follow any speed and distance
restrictions later
in this section, or your transmission
will be damaged. If these limitations must be exceeded,
then the drive wheels have to be supported on a dolly.
5-8
ProCarManuals.com

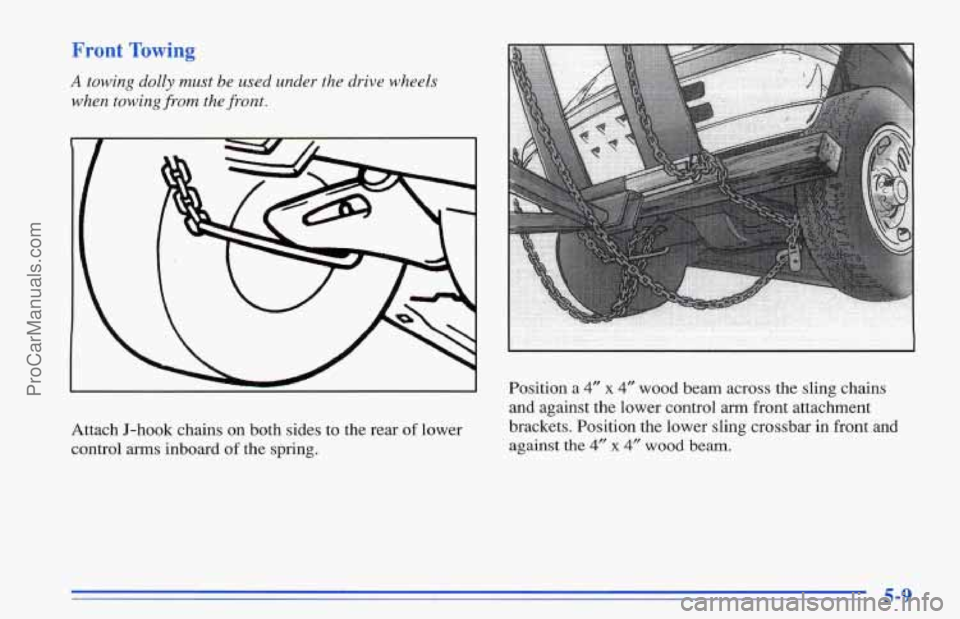

A towing dolly must be used under the drive wheels
when towing
from the fvont.
Attach J-hook chains on both sides to the rear of lower
control arms inboard
of the spring. Position
a 4” x 4” wood
beam across the sling chains
and against
the lower control arm front attachment
brackets. Position the lower sling crossbar in front and
against the
4” x 4” wood beam.
