CHEVROLET VENTURE 1998 Owners Manual

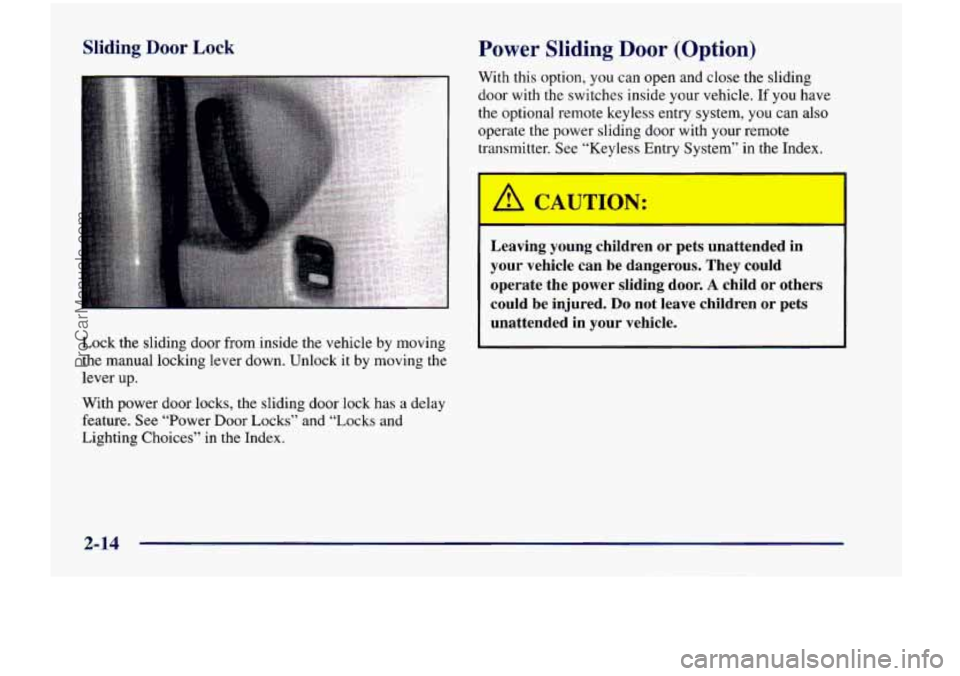

Sliding Door Lock
Lock the sliding door from inside the vehicle by moving
the manual locking lever down. Unlock it by moving the
lever up.
Power Sliding Door (Option)
With this option, you can open and close the sliding
door with the switches inside your vehicle. If
you have
the optional remote keyless entry system,
you can also
operate the power sliding door with your remote transmitter. See “Keyless Entry System” in the Index.
TION:
Leaving young children or pets unattended in
your vehicle can be dangerous. They could
operate the power sliding door.
A child or others
could be injured.
Do not leave children or pets
unattended in your vehicle.
With power door locks, the sliding door lock has a delay
feature.
See “Power Door Locks” and “Locks and
Lighting Choices” in the Index.
2-14
ProCarManuals.com

I
1

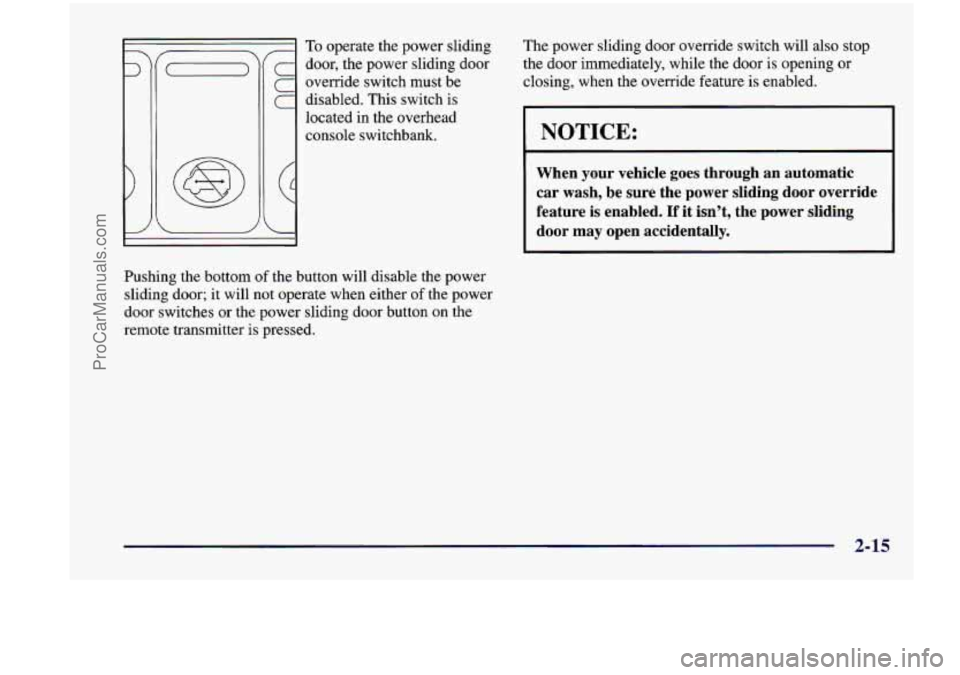

= To operate the power sliding
door, the power sliding door
c override switch must be
disabled. This switch is
located in the overhead
console switchbank. The
power sliding door override switch will also stop
the door immediately, while the door is opening or
closing, when the override feature is enabled.
NOTICE:
When your vehicle goes through an automatic
car wash, be sure the power sliding door override
feature is enabled.
If it isn’t, the power sliding
door may open accidentally.
Pushing the bottom of the button will disable the power
sliding door; it will not operate when either
of the power
door switches or the power sliding door button on the
remote transmitter is pressed.
2-15
ProCarManuals.com

7
3
7
C
C
C
2-16
To open or close the sliding door, press and release one
of the two power door switches.
One is mounted on the wall,
just in front of the
passenger’s side sliding door. The other switch is
located in the overhead console switchbank.
The sliding door must be unlocked for it to operate.
The key does not have to be in the ignition.
To help
avoid accidental operation of the sliding door, disable
the power sliding door by pushing the power sliding
door override switch. When the key is in the ignition
in RUN, the power
sliding door will only open if the transaxle is in
PARK (P). The transaxle does not have to be in
PARK
(P) to close the door.
If the override feature is not enabled and the power
sliding door is open or in the process
of closing when
you shift out of PARK (P), a buzzer will sound. This is a
warning that the sliding door is not completely closed.
If you shift the transaxle out of PARK (P) and
accelerate before the power sliding door latches
closed, the door may reverse to the open position,
A child or others could fall out of the vehicle and
be injured. Always make sure the power sliding
door is closed and latched before
you drive away.
ProCarManuals.com

If anything obstructs the power sliding door while it is
closing, the door will automatically reverse to the open
position, provided it meets sufficient resistance.
Resistance must
be as strong as the force of the closing
door, or stronger. The force of the closing door increases
significantly as the door approaches the latched position.
You or others could be injured if caught in the
path
of the sliding door. Make sure the door path
is clear before closing the door.
To manually open the power sliding door when the
power sliding door override feature is disabled, pull the inside or outside handle and let go. The door will
open fully.
To manually open the power sliding door when the
power sliding door override feature is enabled, pull
the inside or outside handle and slide the door all the
way back.
2-17
ProCarManuals.com

-

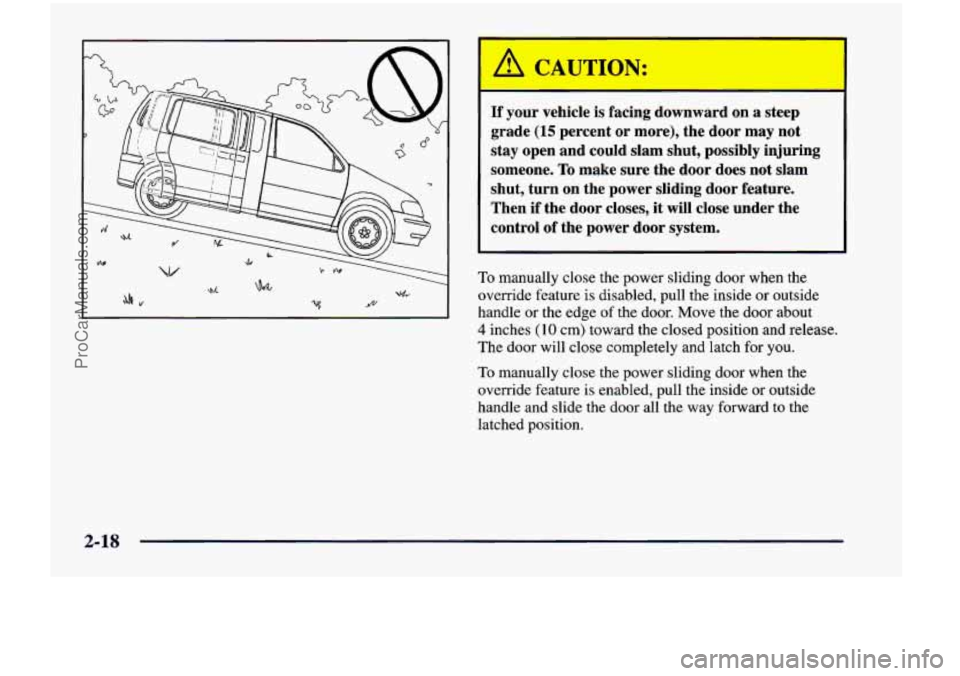

TIf your vehicle is facing downward on a steep
grade
(15 percent or more), the door may not
stay open and could slam shut, possibly injuring
someone.
To make sure the door does not slam
shut, turn on the power sliding door feature.
Then if the door closes, it will close under the
control
of the power door system.
I
To manually close the power sliding door when the
override feature is disabled, pull the inside or outside
handle or the edge of the door. Move the door about
4 inches (10 cm) toward the closed position and release.
The door will close completely and latch
for you.
To manually close the power sliding door when the
override feature is enabled, pull the inside or outside
handle and slide the door
all the way forward to the
latched position.
2-18
ProCarManuals.com

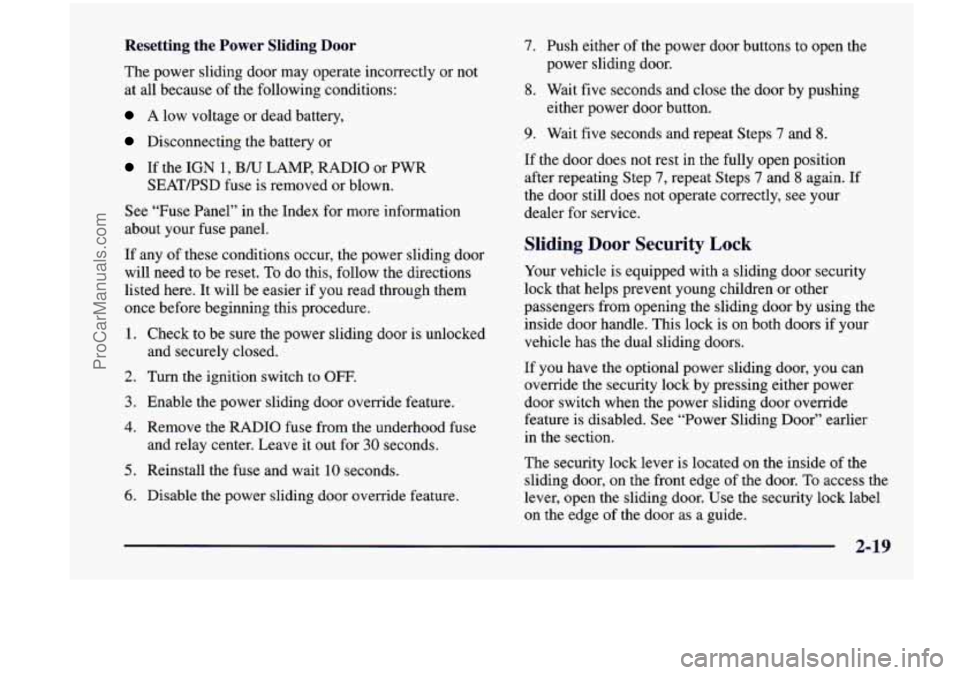

Resetting the Power Sliding Door
The power sliding door may operate incorrectly or not
at all because of the following conditions:
A low voltage or dead battery,
Disconnecting the battery or
If the IGN 1, B/U LAMP, RADIO or PWR
SEAT/PSD fuse is removed or blown.
See “Fuse Panel” in the Index for more information
about your fuse panel.
If any of these conditions occur, the power sliding door
will need to be reset.
To do this, follow the directions
listed here. It will be easier if you read through them
once before beginning this procedure.
1. Check to be sure the power sliding door is unlocked
2. Turn the ignition switch to OFF.
and securely closed.
3. Enable the power sliding door override feature.
4. RI .ove the RADIO fuse from the underhood fuse
anu relay center. Leave
it out for 30 seconds.
5. Reinstall the fuse and wait 10 seconds.
6. Disable the power sliding door override feature.
7. Push either of the power door buttons to open the
8. Wait five seconds and close the door by pushing
9. Wait five seconds and repeat Steps 7 and 8.
If the door does not rest in the fully open position
after repeating Step
7, repeat Steps 7 and 8 again. If
the door still does not operate correctly, see your
dealer for service. power sliding door.
either power door button.
Sliding Door Security Lock
Your vehicle is equipped with a sliding door security
lock that helps prevent young children or other
passengers from opening the sliding door by using the
inside door handle. This lock is on both doors if your
vehicle has the dual sliding doors.
If
you have the optional power sliding door, you can
override the security lock by pressing either power
door switch when
the power sliding door override
feature
is disabled. See “Power Sliding Door” earlier
in the section.
The security lock lever
1s located on the inside of the
sliding door, on the front edge of the door. To access the
lever, open the sliding door. Use the security lock label
on the edge of the door as a guide.
ProCarManuals.com

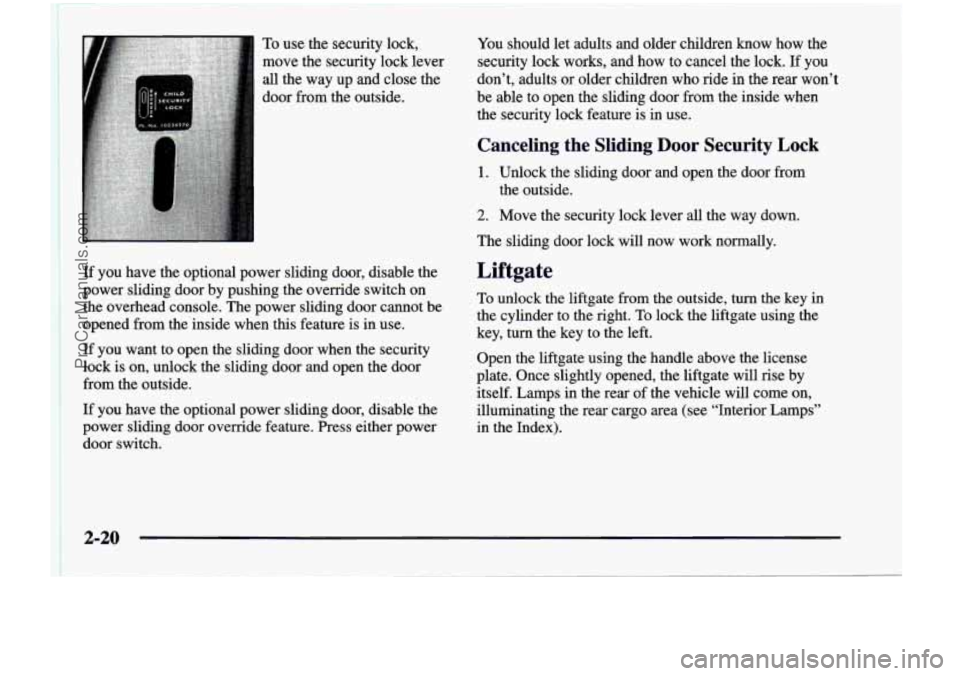

To use the security lock,
move the security lock lever
all the way up and close
the
door from the outside. You
should let adults and older children know how the
security lock works, and how to cancel the lock. If you
don’t, adults
or older children who ride in the rear won’t
be able to open the sliding door from the inside when the security lock feature is in use.
Canceling the Sliding Door Security Lock
1. Unlock the sliding door and open the door from
the outside.
2. Move the security lock lever all the way down.
The sliding door lock will now work normally.
If you have the optional power sliding door, disable the
power sliding door by pushing the override switch on
the overhead console. The power sliding door cannot be
opened from the inside when this feature is in use.
If you want to open the sliding door when the security
lock is on, unlock the sliding door and open the door
from the outside.
If you have the optional power sliding door, disable the
power sliding door override feature. Press either power door switch.
Liftgate
To unlock the liftgate from the outside, turn the key in
the cylinder to the right. To lock the liftgate using the
key, turn the key to the left.
Open the liftgate using the handle above the license
plate. Once slightly opened, the liftgate will rise by
itself. Lamps in the rear of the vehicle will come on,
illuminating the rear cargo area (see “Interior Lamps”
in the Index).
2-20
ProCarManuals.com

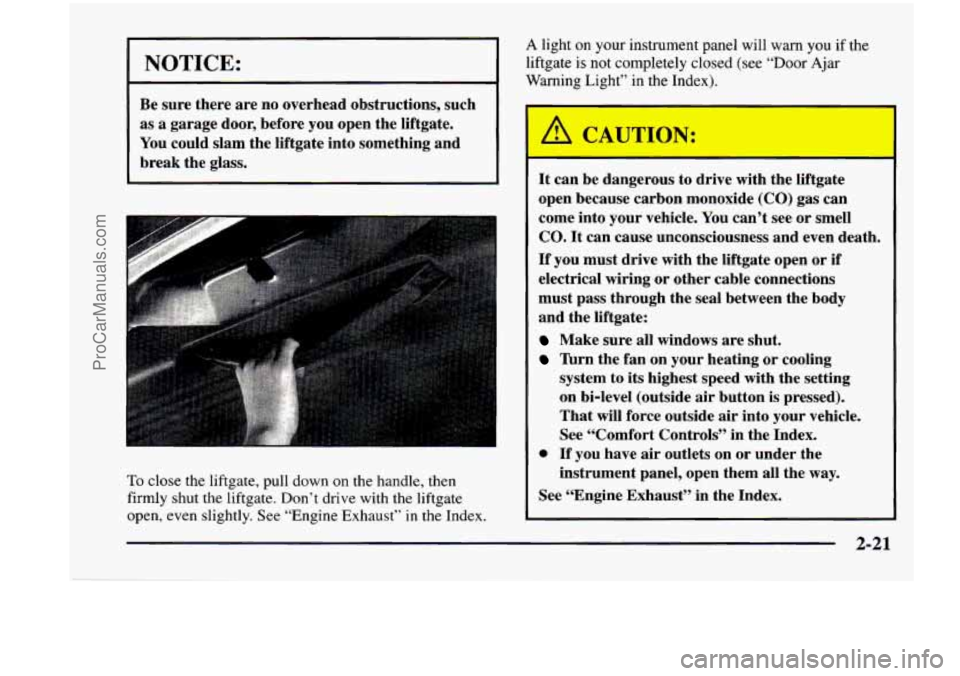

NOTICE:
Be sure there are no overhead obstructions, such
as
a garage door, before you open the liftgate.
You could slam the liftgate into something and
break the glass.
I
To close the liftgate, pull down on the handle, then
firmly shut the liftgate. Don’t drive with the liftgate
open, even slightly. See “Engine Exhaust” in the Index.
A light on your instrument panel will warn you if the
liftgate is not completely closed (see “Door Ajar
Warning Light” in the Index).
It can be dangerous to drive with the liftgate
open because carbon monoxide (CO) gas can
come into your vehicle. You can’t see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the liftgate open or if
electrical wiring or other cable connections
must pass through the seal between the body
and the liftgate:
Make sure all windows are shut.
lbrn the fan on your heating or cooling
system to
its highest speed with the setting
on bi-level (outside air button is pressed).
That will force outside air into your vehicle.
See “Comfort Controls” in the Index.
0 If you have air outlets on or under the
instrument panel, open them all the way.
See “Engine Exhaust’’ in the Index.
2-21
ProCarManuals.com

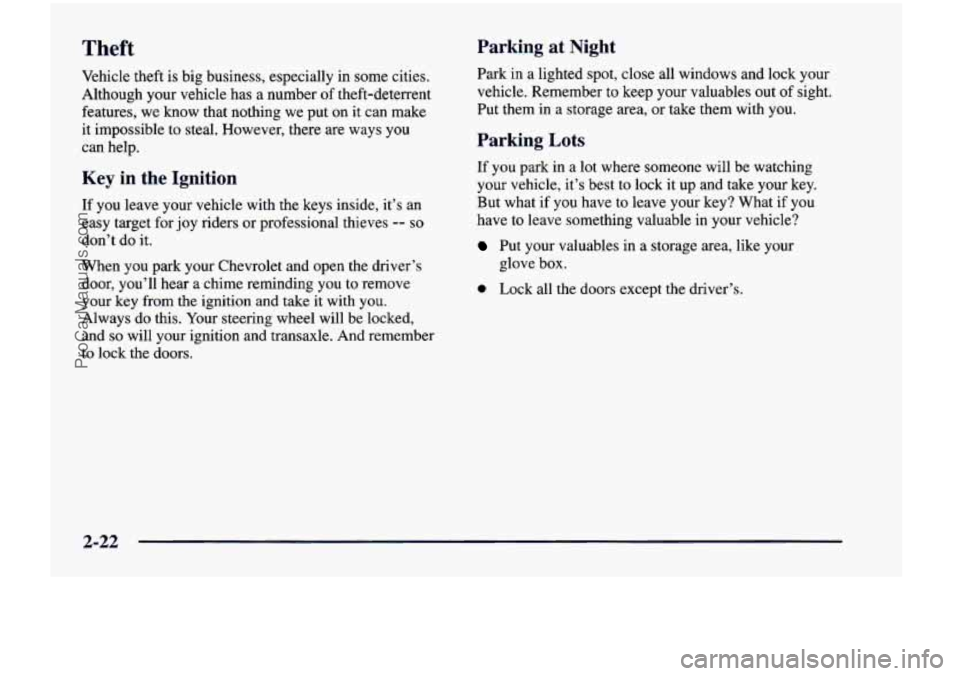

Theft Parking at Night
Vehicle theft is big business, especially in some cities.
Although your vehicle has
a number of theft-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it’s an
easy target for joy riders or professional thieves
-- so
don’t do it.
When you park your Chevrolet and open the driver’s
door, you’ll hear
a chime reminding you to remove
your key from the ignition and take it with
you.
Always do this. Your steering wheel will be locked,
and
so will your ignition and transaxle. And remember
to lock the doors. Park in
a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it’s best to lock it up and take your key.
But what if you have to leave your key? What if you
have to leave something valuable in your vehcle?
Put your valuables in a storage area, like your
glove box.
0 Lock all the doors except the driver’s.
2-22
ProCarManuals.com

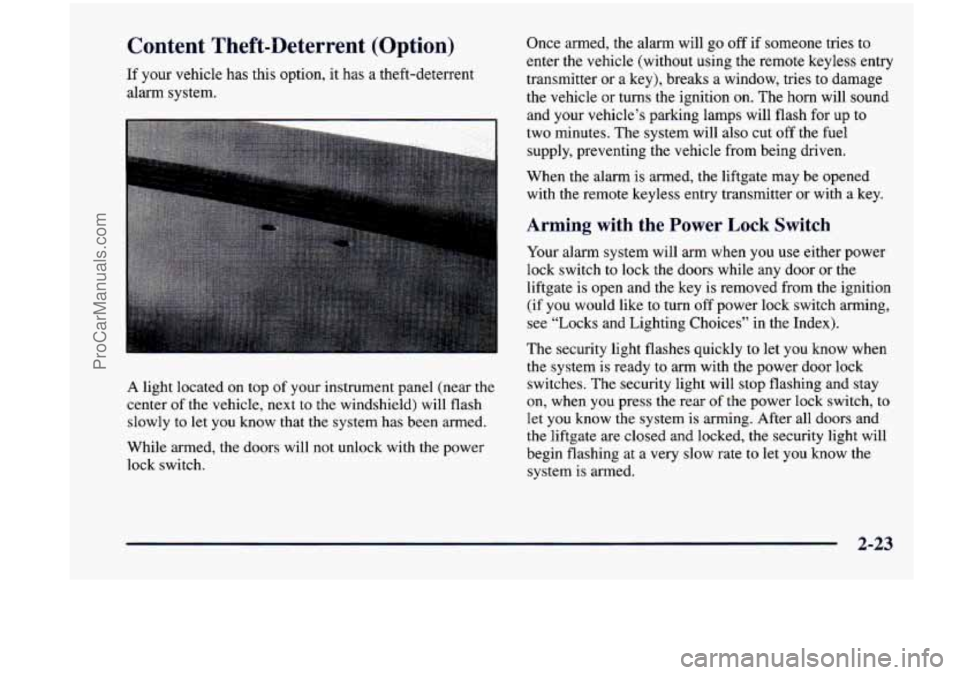

Content Theft-Deterrent (Option)
If your vehicle has this option, it has a theft-deterrent
alarm system.
A light located on top of your instrument panel (near the
center of the vehicle, next to the windshield) will flash
slowly to let you know that the system has been armed.
While armed, the doors will not unlock with the power
lock switch. Once
armed, the alarm will go off if someone tries to
enter the vehicle (without using
the remote keyless entry
transmitter or a key), breaks a window, tries to damage
the vehicle or turns the ignition on. The
horn will sound
and your vehicle’s parking lamps will flash for up
to
two minutes. The system will also cut off the fuel
supply, preventing the vehicle from being driven.
When the alarm is armed, the liftgate may be opened
with the remote keyless entry transmitter or with a key.
Arming with the Power Lock Switch
Your alarm system will arm when you use either power
lock switch to lock the doors while any door
or the
liftgate is open and the key is removed from the ignition
(if you would like to turn off power lock switch arming,
see “Locks and Lighting Choices” in the Index).
The security light flashes quickly to let you know when
the system is ready to arm with the power door lock
switches. The security light will stop flashing and stay
on, when you press the rear of the power lock switch, to
let
you know the system is arming. After all doors and
the liftgate are closed and locked, the security light will
begin flashing at a very slow rate
to let you know the
system
is armed.
2-23
ProCarManuals.com
