CHEVROLET VENTURE 1998 Owners Manual

If a bulb is burned out, replace it to help avoid an
accident. If the arrows don’t go
on at all when you
signal a turn, check for burned-out bulbs and check the
fuse (see “Fuses and Circuit Breakers” in the Index).
If you have a trailer towing option with added wiring for
the trailer lamps, the signal indicator will flash at a
normal rate even if a turn signal bulb is burned out.
Check the front and rear turn signal lamps regularly to
make sure they are working.
Turn Signal on Chime
If either turn signal is left on for more than 3/4 mile
(1.2 km), a chime will sound to let the driver know to
turn it off.
If you need
to leave the signal on for more than 3/4 mile
(1.2 km), turn off the signal and then turn it back on.
Headlamp High/Low Beam Changer
To change the headlamps from high to low beam, or low
to high, simply pull the turn signal lever all the way
toward you. Then release it.
When the high beams
are on, this light on the
instrument cluster will
also be
on.
Windshield Wipers
You control the windshield wipers by turning the band
marked WIPER.
For a single wiping cycle, turn the band to MIST. Hold
it there until the wipers start, then let go. The wipers will
stop after one cycle. If you want more cycles, hold the
band
on mist longer.
2-54
ProCarManuals.com

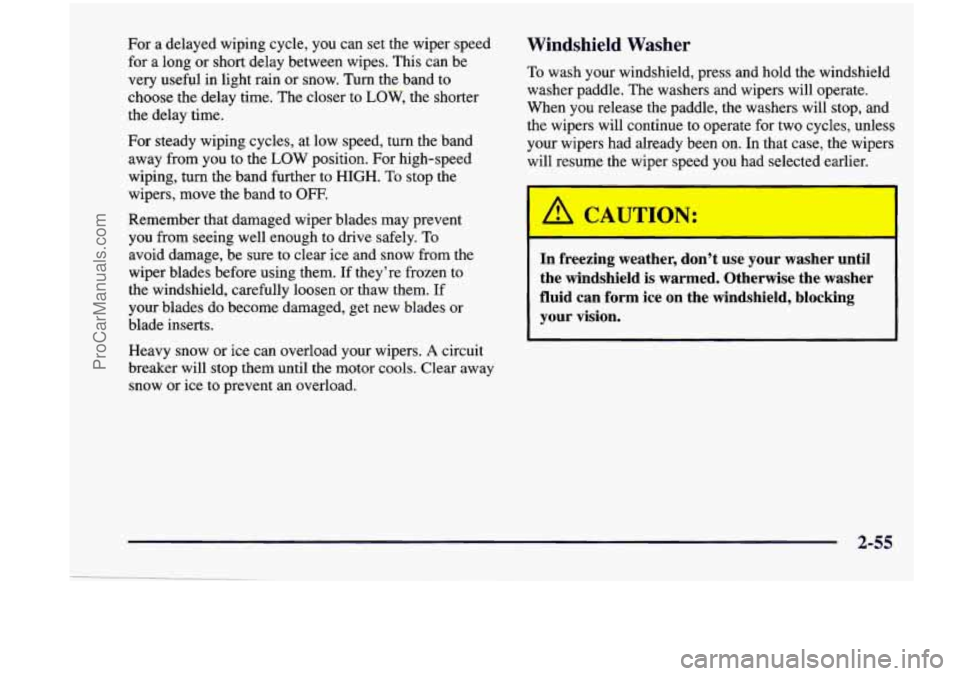

For a delayed wiping cycle, you can set the wiper speed
for a long
or short delay between wipes. This can be
very useful in light rain or snow. Turn the band to
choose the delay time. The closer to
LOW, the shorter
the delay time.
For steady wiping cycles, at low speed, turn the band
away
from you to the LOW position. For high-speed
wiping, turn the band further to
HIGH. To stop the
wipers, move the band to
OFF.
Remember that darnaged wiper blades may prevent
you from seeing well enough to drive safely. To
avoid damage, be sure to clear ice and snow from the
wiper blades before using them. If they’re frozen to
the windshield, carefully loosen or thaw them. If
your blades do become damaged, get new blades or
blade inserts.
Heavy snow or ice can overload your wipers.
A circuit
breaker will stop them until the motor cools. Clear away
snow or ice to prevent an overload.
Windshield Washer
To wash your windshield, press and hold the windshield
washer paddle. The washers and wipers will operate.
When you release the paddle, the washers will stop, and
the wipers will continue to operate for two cycles, unless
your wipers had already been on. In that case, the wipers
will resume the wiper speed you had selected earlier.
b
I A CAUTION:
In freezing weather, don’t use yc ; washer until
the windshield is
1 warmed. Otherwise the washer
I
fluid can form ice on the windshield, blocking
your vision. I
2-55
ProCarManuals.com

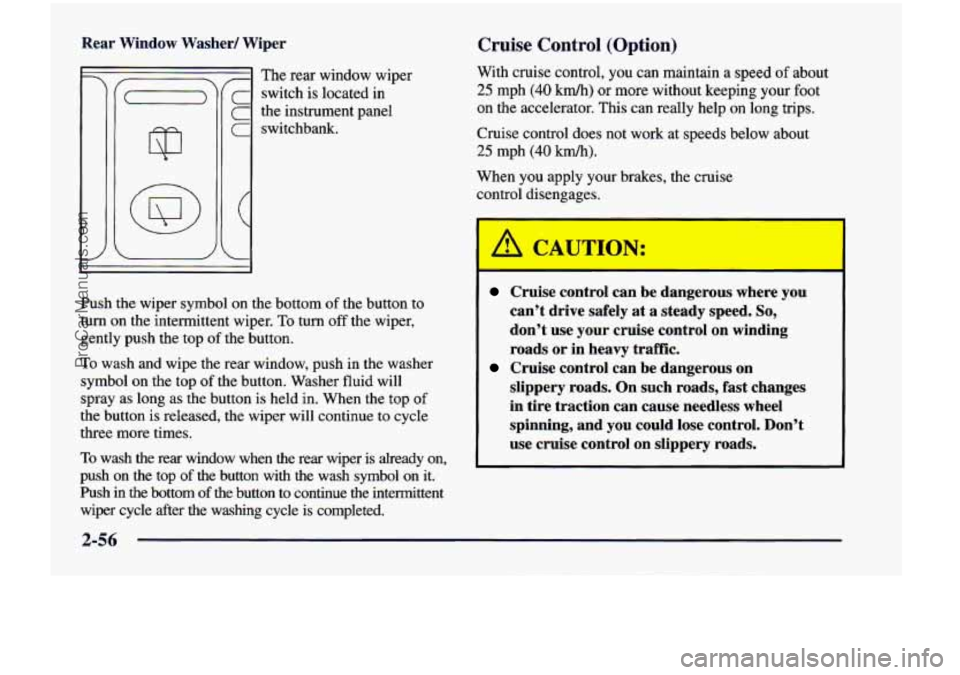

Rear Window Washer/ Wiper
! The rear window wiper
- switch is located in
the instrument panel
1 switchbank.
Cruise Control (Option)
With cruise control, you can maintain a speed of about
25 mph (40 km/h) or more without keeping your foot
on the accelerator. This can really help on long trips.
Cruise control does not work at speeds below about
25 mph (40 km/h).
When you apply your brakes, the cruise
control disengages.
Push
the wiper symbol on the bottom of the button to
turn on the intermittent wiper. To
turn off the wiper,
gently push the top
of the button.
To wash and wipe the rear window, push in the washer
symbol on the top
of the button. Washer fluid will
spray as long as the button is held in. When the top
of
the button is released, the wiper will continue to cycle
three more times.
To wash the rear window when the rear wiper is already on,
push on the top
of the button with the wash symbol on it.
Push in the bottom
of the button to continue the intermittent
wiper cycle after the washing cycle is completed.
Cruise control can be dangerous where you
can’t drive safely at a steady speed.
So,
don’t use your cruise control on winding
roads or in heavy
traffic.
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spinning, and
you could lose control. Don’t
use cruise control on slippery roads.
Cruise control can be dangerous on
ProCarManuals.com

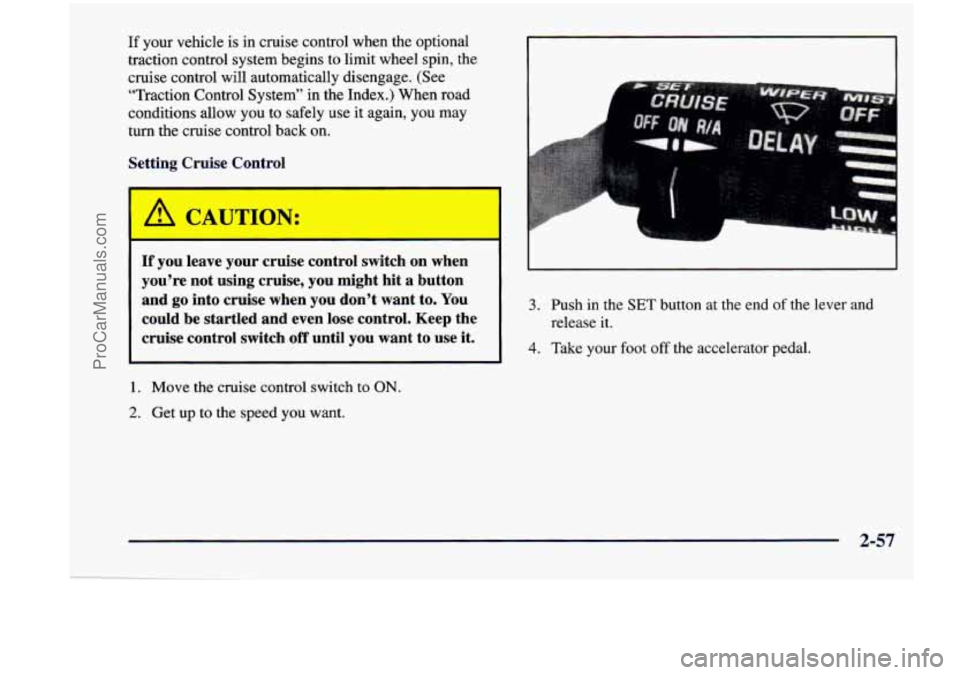

If your vehicle is in cruise control when the optional
traction control system begins to limit wheel spin, the
cruise control will automatically disengage. (See
“Traction Control System” in the Index.) When road
conditions allow you to safely use it again, you
may
turn the cruise control back on.
Setting Cruise Cc ’rol
d
If you leave your cruise control switch on when
you’re not using cruise,
you might hit a button
and
go into cruise when you don’t want to. You 3. Push in the SET button at the end of the lever and
could be startled and even lose control. Keep the release it.
cruise control switch off until you want to use it. 4. Take your foot off the accelerator pedal.
1. Move the cruise control switch to ON.
2. Get up to the speed you want.
2-57
ProCarManuals.com

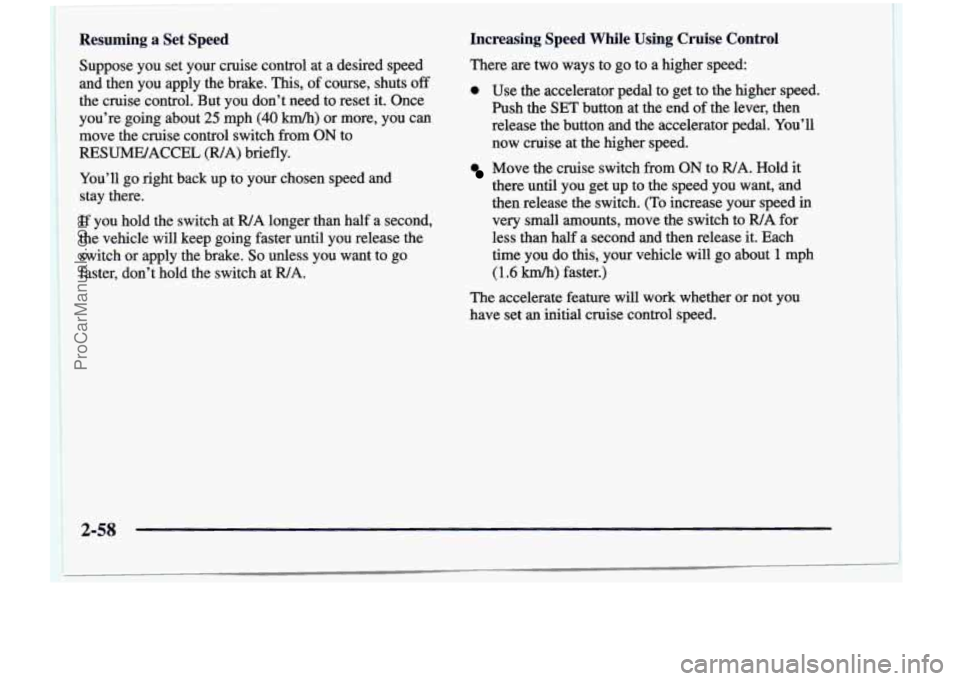

Resuming a Set Speed
Suppose you set your cruise control at a desired speed
and then you apply the brake. This, of course, shuts
off
the cruise control. But you don’t need to reset it. Once
you’re going about
25 mph (40 km/h) or more, you can
move the cruise control switch from
ON to
RESUME/ACCEL (WA) briefly.
You’ll go right back up to your chosen speed and
stay there.
If you hold the switch at
R/A longer than half a second,
the vehicle will keep going faster until you release the
switch or apply the brake.
So unless you want to go
faster, don’t hold the switch at
R/A.
Increasing Speed While Using Cruise Control
There are two ways to go to a higher speed:
0 Use the accelerator pedal to get to the higher speed.
Push the SET button at the end of the lever, then
release the button and the accelerator pedal. You’ll
now cruise at the higher speed.
Move the cruise switch fiom ON to WA. Hold it
there until you get up to the speed you want, and
then release the switch. (To increase your speed
in
very small amounts, move the switch to R/A for
less than half a second and then release it. Each
time you do this, your vehicle will go about
1 mph
(1.6 kmh) faster.)
The accelerate feature will work whether or not you
have set
an initial cruise control speed.
2-58
I
ProCarManuals.com

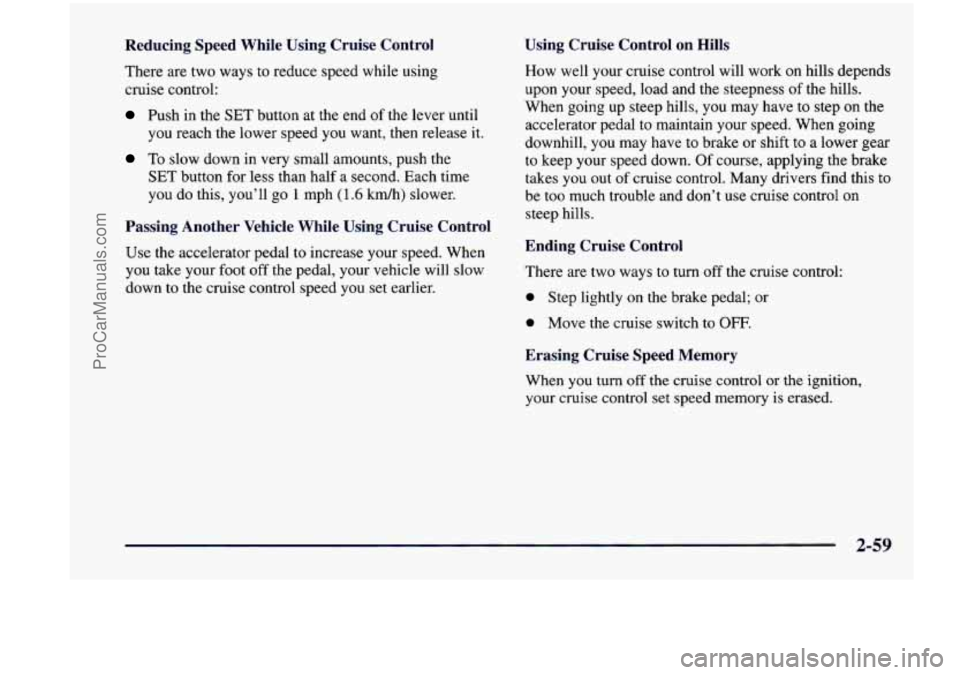

Reducing Speed While Using Cruise Control
There are two ways to reduce speed while using
cruise control:
Push in the SET button at the end of the lever until
you reach the lower speed you want, then release it.
To slow down in very small amounts, push the
SET button for less than half a second. Each time
you do this, you’ll go
1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot
off the pedal, your vehicle will slow
down to the cruise control speed you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and the steepness
of the hills.
When going up steep hills,
you may have to step on the
accelerator pedal to maintain your speed. When going
downhill, you may have
to brake or shift to a lower gear
to keep your speed down. Of course, applying the brake
takes you out of cruise control. Many drivers find this to
be too much trouble and don’t use cruise control
on
steep hills.
Ending Cruise Control
There are two ways to turn off the cruise control:
0 Step lightly on the brake pedal; or
0 Move the cruise switch to OFF.
Erasing Cruise Speed Memory
When you turn off the cruise control or the ignition,
your cruise control set speed memory is erased.
2-59
ProCarManuals.com

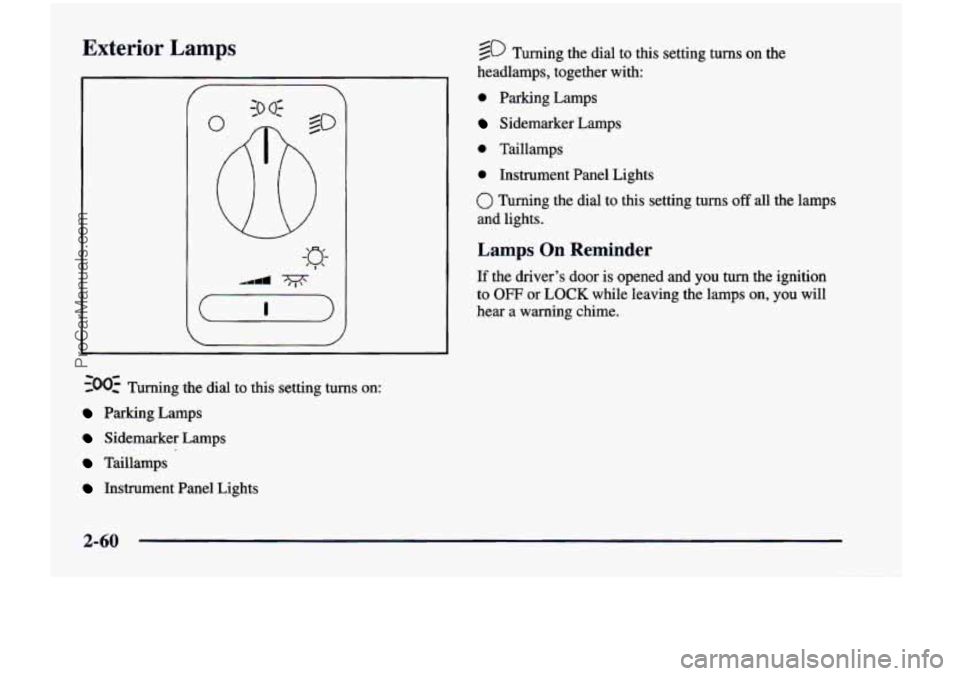

Exterior Lamps
~00~ Turning the dial to this setting turns on:
Parking Lamps
Sidemarker Lamps
Taillamps
Instrument Panel Lights
@ Turning the dial to this setting turns on the
headlamps, together with:
0 Parking Lamps
Sidemarker Lamps
0 Taillamps
0 Instrument Panel Lights
0 Turning the dial to this setting turns off all the lamps
and lights.
Lamps On Reminder
If the driver’s door is opened and you turn the ignition
to
OFF or LOCK while leaving the lamps on, you will
hear a warning chime.
2-60
ProCarManuals.com

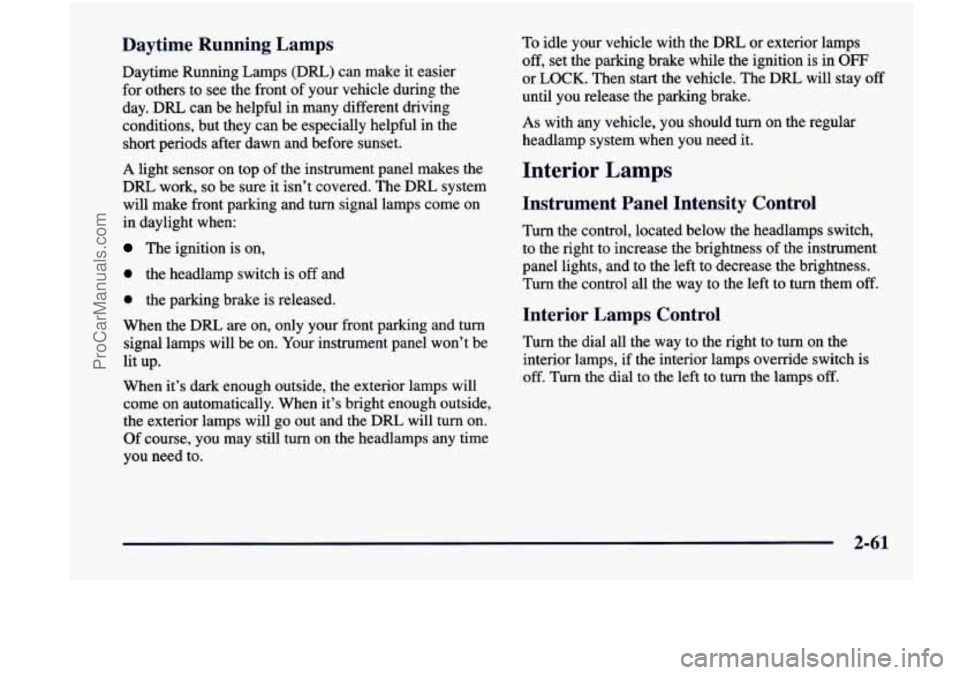

Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during the
day. DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset.
A light sensor on top of the instrument panel makes the
DRL work,
so be sure it isn’t covered. The DRL system
will make front parking and turn signal lamps come on
in daylight when:
The ignition is on,
0 the headlamp switch is off and
0 the parking brake is released.
When the DRL are on, only your front parking and turn
signal lamps will be on. Your instrument panel won’t be
lit up.
When it’s dark enough outside, the exterior lamps will
come on automatically. When
it’s bright enough outside,
the exterior lamps will go out and the DRL will turn
on.
Of course, you may still turn on the headlamps any time
you need to.
To idle your vehicle with the DRL or exterior lamps
off, set the parking brake while the ignition is in
OFF
or LOCK. Then start the vehicle. The DRL will stay off
until you release the parking brake.
As with any vehicle, you should turn on the regular
headlamp system when
you need it.
Interior Lamps
Instrument Panel Intensity Control
Turn the control, located below the headlamps switch,
to the right to increase the brightness of the instrument
panel lights, and
to the left to decrease the brightness.
Turn the control all the way to the left to turn them
off.
Interior Lamps Control
Turn the dial all the way to the right to turn on the
interior lamps, if the interior lamps override switch is
off. Turn the dial to
the left to turn the lamps off.
2-61
ProCarManuals.com

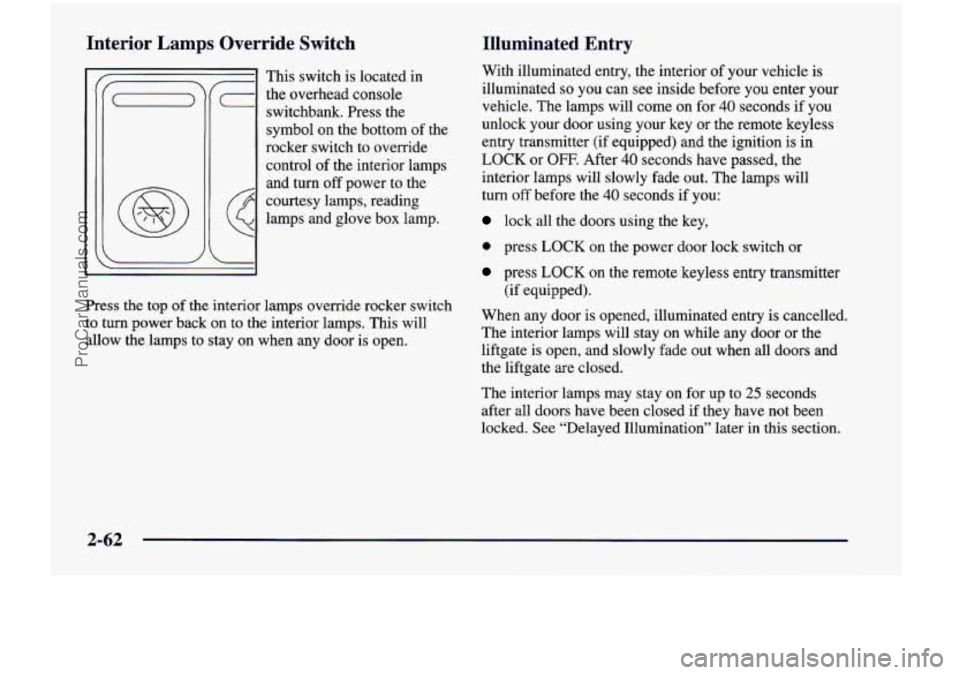

Interior Lamps Override Switch
This switch is located in
(- the overhead console
switchbank. Press
the
symbol on the bottom of the
rocker switch to override
control of the interior lamps
and turn off power to the
courtesy lamps, reading
lamps and glove box lamp.
G
Press the top of the interior lamps override rocker switch
to
turn power back on to the interior lamps. This will
allow the lamps to stay on when any door is open.
Illuminated Entry
With illuminated entry, the interior of your vehicle is
illuminated
so you can see inside before you enter your
vehicle. The lamps will come on for
40 seconds if you
unlock your door using your key or the remote keyless
entry transmitter (if equipped) and the ignition is in
LOCK or OFF. After 40 seconds have passed, the
interior lamps will slowly fade out. The lamps will
turn off before the 40 seconds if you:
lock all the doors using the key,
0 press LOCK on the power door lock switch or
press LOCK on the remote keyless entry transmitter
(if equipped).
When any door is opened, illuminated entry is cancelled.
The interior lamps will stay on while any door or the
liftgate is open, and slowly fade out when all doors and
the liftgate are closed.
The interior lamps may stay on for up to
25 seconds
after all doors have been closed if they have not been
locked. See “Delayed Illumination” later in this section.
2-62
ProCarManuals.com

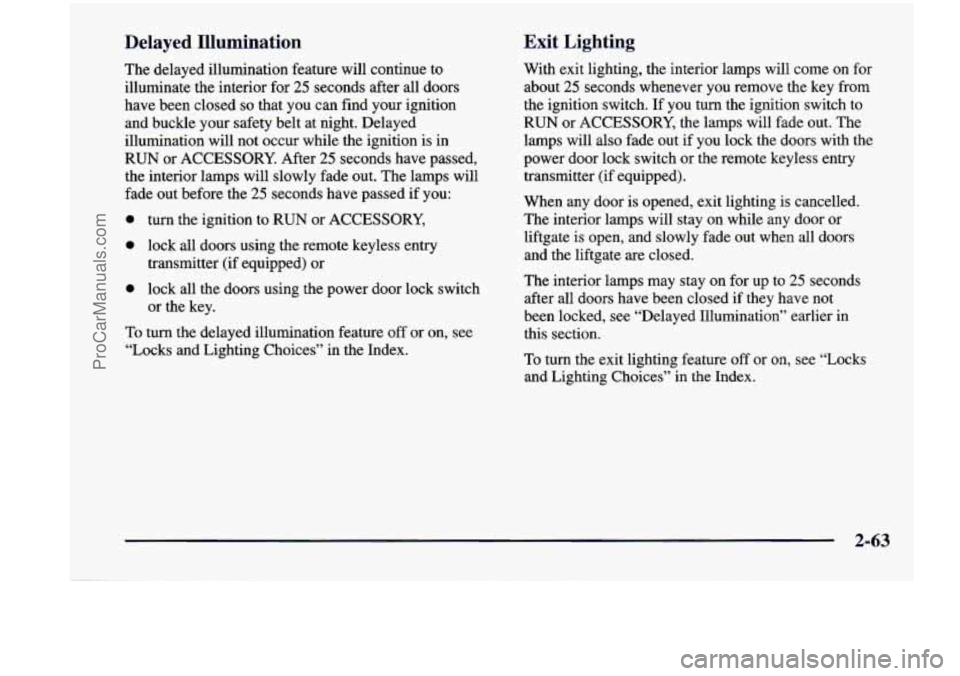

Delayed Illumination Exit Lighting
The delayed
illumination feature will continue to
illuminate the interior for
25 seconds after all doors
have been closed
so that you can find your ignition
and buckle your safety belt at night. Delayed
illumination will not occur while the ignition is in
RUN or ACCESSORY. After
25 seconds have passed,
the interior lamps will slowly fade out. The lamps will
fade out before the
25 seconds have passed if you:
0 turn the ignition to RUN or ACCESSORY,
0 lock all doors using the remote keyless entry
transmitter (if equipped) or
0 lock all the doors using the power door lock switch
or the key.
To turn the delayed illumination feature off or on, see
“Locks and Lighting Choices” in the Index. With exit lighting, the interior
lamps will come on for
about
25 seconds whenever you remove the key from
the ignition switch. If you turn the ignition switch to
RUN or ACCESSORY, the lamps will fade out. The
lamps will
also fade out if you lock the doors with the
power door lock switch or the remote keyless entry
transmitter (if equipped).
When any door is opened, exit lighting is cancelled.
The interior lamps will stay on while any door or
liftgate is open, and slowly fade out when all doors
and the liftgate are closed.
The interior lamps may stay on for up to
25 seconds
after all doors have been closed if they have not
been locked, see “Delayed Illumination” earlier in
this section.
To turn the exit lighting feature
off or on, see “Locks
and Lighting Choices” in the Index.
2-63
ProCarManuals.com
